UT525/UT526 is a digital multi-functional electric testing instrument adopting
new design and integrating large scale analog integrated circuit, digital circuit
and microprocessor chips, which can mainly test parameters of residual current
device (RCD), earth, insulation resistance, DCV and ACV; with features of full
functions, high accuracy, stable performance, easy and reliable operation, it
is available to test RCD, insulation and earth of electric equipments. UT525/
UT526 is the ideal selection for repairing, maintaining and testing RCD of all
electric equipments.

I. Safety Precautions
This instrument was designed, manufactured and tested according to
IEC61010 safety standard (Safety Requirements for Electrical Equipment).
This Instructions describe the warnings and safety rules which ensure the safe
operation and safe state of the instrument, which the user must follow. Please
read following instructions before using.
Warning
● Please read and understood the Instructions before using.
● Please follow the requirements of the Instructions, keep the
Instructions well for further reference at any time.
● During testing, incorrect operation will cause accident and
instrument damage.
Sign on the instrument tell the user that some operations should be
made according to relative requirements of the Instructions to ensure safety
operation of the instrument.
3
UT525/526 Operating Manual

It means under some conditions, the operation may cause
serious or fatal damages may be caused.
Warning It means taking care to keep away from electric shock.
It means avoiding instrument damage and gain accurate
testing.
4
UT525/526 Operating Manual
Note
Danger
Danger
● Do not test circuit with AC440V/DC440V or above.
● Do not test in the place with inammable conditions.
● Do not operate the instrument if the surface of the instrument is wet or the
hand is wet.
● During testing, do not touch the conductive part of the testing pen.
● Do not open the battery cover during testing.
● During testing insulation and RCD, do not touch the circuit to be tested.
Warning
● When there is anything unusual to the instrument, such as the instrument
is damaged or the metal is exposed, please do not use it.

● Operate carefully under the voltage over 33Vrms, 46.7Vacrms or 70Vdc,
electric shock may be caused under such kind of voltage during operating.
● After completing high resistance testing, the charge storage of the circuit
to be tested must be released.
● Do not replace battery if the instrument is in place with humidity.
● Make sure the all testing wires are connected with the testing ports rmly.
● Before opening cover of the battery, please make sure the instrument is
turned off.
Note
● Before testing resistance, the circuit to be tested must be discharged
completely and separated from the power circuit absolutely.
● If the testing pen or adapter is damaged and needs to be replaced,
please replace with testing pen or adapter with the same model and
electric specications.
● When the battery sign ( ) shows that the battery is used up, please do
not use the instrument any more. If the instrument won’t be used for a long
time, please take out the battery and then keep the instrument well.
5
UT525/526 Operating Manual

6
UT525/526 Operating Manual
● Do not put or use the instrument in the place with high temperature, high
humidity, inammable or explosive matters and high electromagnetic eld.
● Do not clean the cover of the instrument with wet cloth of detergent, do not
use abrasives or solvent.
● When the instrument is wet, please make it dry and then put it in the
proper place.

7
UT525/526 Operating Manual
II. Features

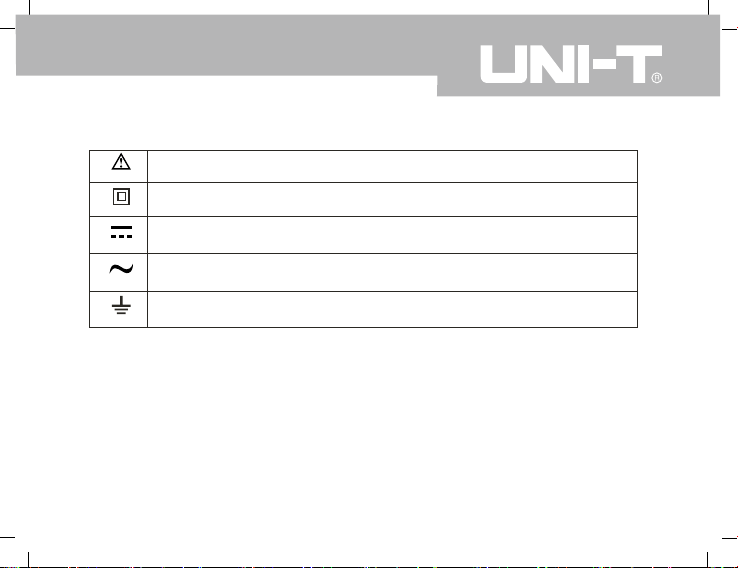

Danger of electric shock may happen
The instrument has double-insulation or reinforced insulation
DC
AC
Earth
● Designed and manufactured strictly according to IEC61010 safety
standard, the instrument meets with Over Voltage Standard (CATIII600V)
and safety standard of Class II Pollution.
● Auto discharge function.
● Red warning light.

8
UT525/526 Operating Manual
III. Specications
Error limit: ±(a% reading + digits), one year of warranty period
Environment temperature: 23±5℃
Environment humidity: 45-75%RH
UT525/UT526 RCD testing indexes
RCD testing current 10mA 30mA 100mA 300mA
Applied voltage Voltage: 220V±10%, frequency: 45Hz-65Hz
Accuracy tolerance RCD testing current accuracy tolerance with AC (220V±2): (0+10%)
Testing time
range when
switch of
RCD is off
Accuracy tolerance ±(5%+2)
(10mA) range: 0-2,000mS
(30mA) range: 0-500mS
(100mA) range: 0-300mS
(300mA) range: 0-300mS

9
UT525/526 Operating Manual
UT525 earth testing indexes
Rated voltage About 5.0V
Test range 0.01Ω-200Ω
Test current ＞200mA for 0.00Ω-2.00Ω
Accuracy tolerance 0.01Ω-200Ω: ±(2%+5)
UT526 earth testing indexes
Rated voltage About 5.0V
Test range 0.01Ω-2,000Ω
Test current ＞200mA within 0.00Ω-2.00Ω
Accuracy tolerance 0.01Ω-2,000Ω: ±(2%+5)

10
UT525/526 Operating Manual
UT525 insulation resistance testing indexes
Rated voltage 100V 250V 500V
Test range 0.05MΩ-200MΩ
Open circuit voltage DC 100V±10% DC 250V±10% DC 500V±10%
Rated test current 100KΩ load 250KΩ load 500KΩ load
Short circuit ＜1.8mA
Accuracy tolerance 0.05MΩ-200MΩ: ±(5%+5)
0.9mA-1.1mA 0.9mA-1.1mA 0.9mA-1.1mA

11
UT525/526 Operating Manual
UT526 insulation resistance testing indexes
Rated voltage 250V 500V 1,000V
Test range 0.05MΩ-200MΩ 0.05MΩ-300MΩ 0.05MΩ-500MΩ
Open circuit voltage DC 250V±10% DC 500V±10% DC 1,000V±10%
Rated test current 500KΩ load 1MΩ load 250KΩ load
Short circuit ＜1.8mA
Accuracy tolerance 0.05MΩ-500MΩ: ±(5%+5)
0.9mA-1.1mA 0.9mA-1.1mA 0.9mA-1.1mA

UT525/UT526 voltage testing indexes
DCV ACV
Test range ±0-±440V 0-440 (50/60Hz), just for reference to
that less than 10V
Resolution 1V
Accuracy tolerance ±(2%+3)
UT525/UT526 frequency testing indexes
Test range 20Hz-100Hz
Resolution 1Hz
Accuracy tolerance Just for reference
12
UT525/526 Operating Manual

13
UT525/526 Operating Manual
● Display: LCD display, max reading: 9999
● Low battery voltage warning:
● Over limit indication: “OL”
● Auto range function
● Unit display: can display function, electric unit signs
● Work conditions: 0℃-40℃/ 85%RH or less
● Storage condition: -20℃-60℃/90%RH or less
● Dimensions: 150mm(L)×100mm(W)×71mm(D)
● Current consumption: about 50mA (1,000V output) (about 10mA in general
condition)
● Accessories: testing wire, alkaline battery (1.5V, AA)×6, Instructions,
carrying bag
● Weight: 0.7kg (including batteries)
● Power: alkaline battery (1.5V, AA)×6

14
UT525/526 Operating Manual
IV. Front View of the Instrument (see Picture 1)
1. L: jack of live wire terminal for RCD testing and positive terminal for voltage
testing
2. E: jack of earth for RCD testing
3. N: jack of null wire terminal for RCD testing and input negative terminal for
voltage testing
4. LINE: jack of high voltage output for insulation resistance testing
5. LCD
6. RCD current setup key and voltage testing switch key
7. RCD angles switch key and return-to-zero key
8. Test button
9. Dial plate

15
UT525/526 Operating Manual
Picture 1

16
UT525/526 Operating Manual
V. Function of Keys and Dial Plate
1. I/VOLT is RCD current testing range selection and voltage testing switch key;
2. ANG/ZERO is RCD testing angle switch key and return-to-zero key before
starting earth testing;
3. TEST is test key;
4. When dial plate points to Continuly, enter earth test;
5. When dial plate points to RCD/V, enter RCD testing and AC and DC voltage
testing;
6. When dial plate points to UT525 output voltage: 100V/250V/500V or UT526
output voltage: 250V/500V/1,000V (select the demanded output voltage)
respectively, enter insulation resistance testing;
VI. Testing Preparation
When turning on the instrument, if the battery sign on the left of LCD shows
low voltage, it means the battery is almost used up and needs to be replaced.
Low voltage display sign Voltage of battery
7V or less

17
UT525/526 Operating Manual
VII. Earth Testing (see Picture 2 for the connection diagram )
Connect the object to be tested with the instrument according to the diagram,
after that make the dial plate point to Continuly, and then press TEST key to
start earth test.
Note
1. To keep the accuracy of test, return-to-zero operation must be made (return-
to-zero operation by pen: in state of earthing, make the two pens in reliable
short circuit state, after that press TEST key, and then press ANG/ZERO
return-to-zero key, the resistance of the pens will be clear to “0”, and the
LCD displays ZERO.
2. Do not test live object.

18
UT525/526 Operating Manual
Picture 2

19
UT525/526 Operating Manual
VIII. RCD Testing (see Picture 3 for the connection diagram)
Make the dial plate point to RCD/V and press I/VOLT key to set up test current
(test current: 10mA\30mA\100mA\300mA) to start RCD testing.
Connection Method:
Connect the red, green and blue testing wires of three-wire plug with the red
(L), green (E) and blue (N) ports respectively, and then insert the three-wire
plug into the 220V civil jack and press TEST key.
Note
1. During testing RCD, the earth terminal of power jack must be grounded
reliably.
2. During testing RCD, make sure that connection of L (live wire), N (null wire)
and E (earth wire) of power jack are connected rightly.
3. This testing is made under high voltage, pay attention to personnel safety
