VeEX MPX100 User manual
MPX100 e-Manual
Please direct all questions to your local VeEX Sales Office, Representative or Distributor or contact VeEX technical support at
www.veexinc.com © Copyright 2010 VeEX Incorporated. All rights reserved.
No part of this user manual may be reproduced, translated into a foreign language or be transmitted electronically without
prior agreement and written consent of VeEX Incorporated as governed by International copyright laws. Information contained
in this manual is provided "as is" and is subject to change without notice. ™Trademarks of VeEX Incorporated have been
identified where applicable, however the absence of such identification does not affect the legal status of any trademark.
MPX100 e-Manual D07-00-022 Rev A00
Page 1 of 46
Table of Contents
1.0 Product Introduction
2.0 About this User Manual
3.0 Safety Information
4.0 Basic Operation
4.0.1 Interfaces
4.0.2 Applications
4.0.3 Usage
4.0.4 Application

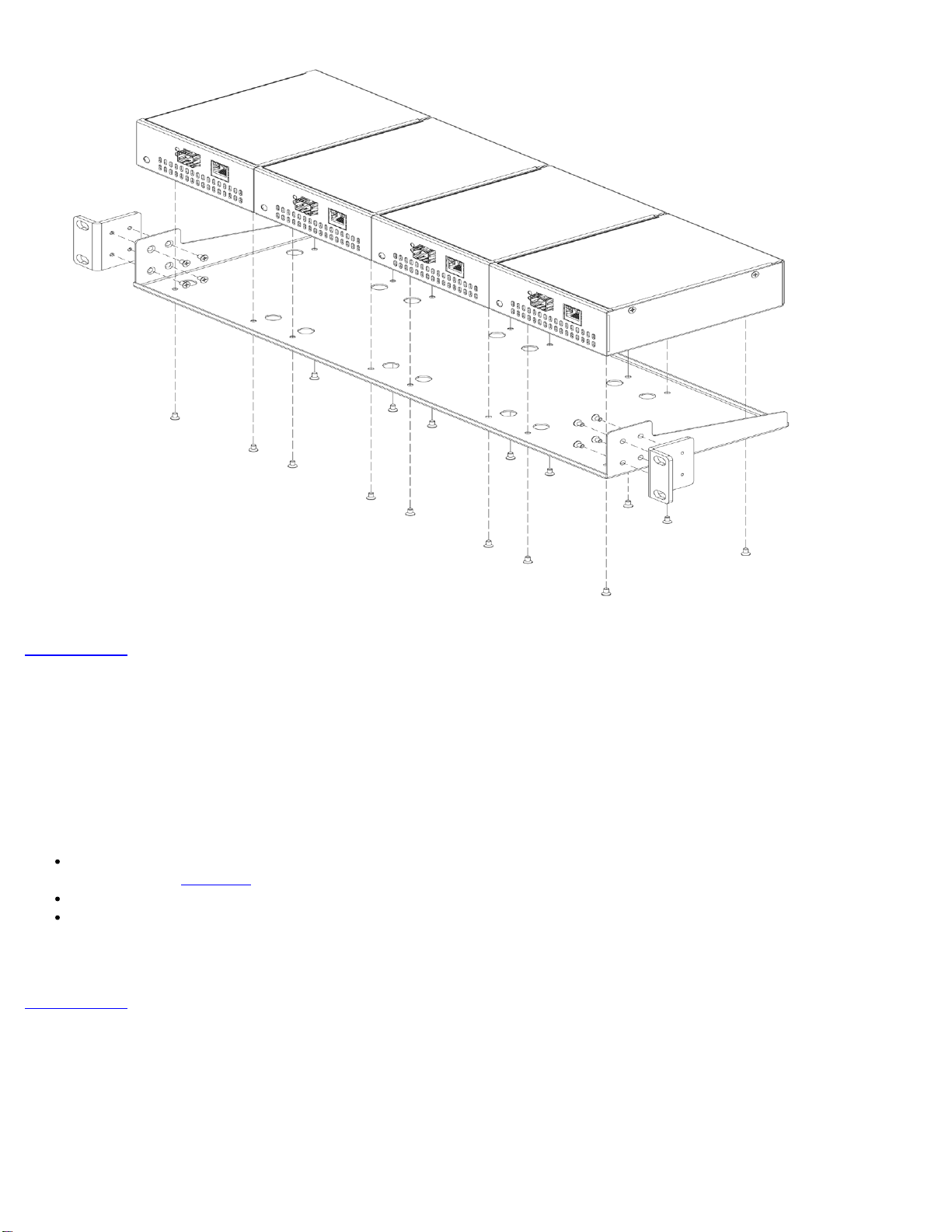

4.1 Installation Procedure
5.0 ReVeal Software
5.1 System Requirements
5.2 Software License
5.3 Installation Procedure
6.0 Getting Started
6.1 IP Address Configuration
6.1.1 General Settings
6.1.2 Configuration

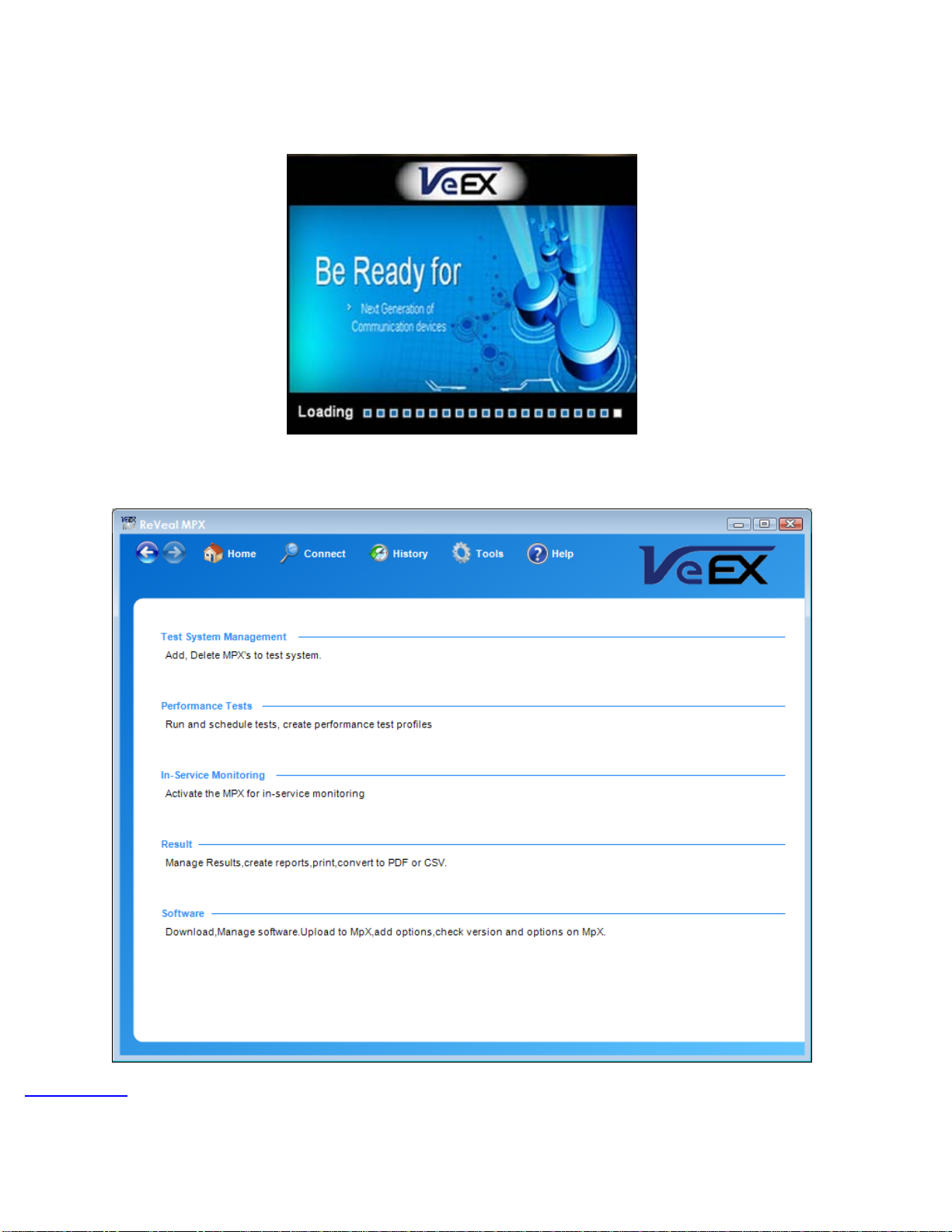

6.2 Step 1 - Launching ReVeal Software
6.3 Test System Management
6.3.1 Test System Management Comments
6.4 Performance Tests
6.4.1 Test Profiles Overview
6.4.2 Test Profiles Comments
6.4.3 Test Port IP Setup
6.4.4 On-Demand Testing Overview
6.4.5 Operations
MPX100 e-Manual D07-00-022 Rev A00
Page 2 of 46
6.4.6 On-Demand Testing Comments
6.4.7 Scheduled Testing
6.5 Result
6.5.1 Results Viewing and Printing
7.0 Software
7.1 Downloading New Software
7.2 Connecting a Unit
7.3 Upgrading with New Software
8.0 Warranty
9.0 Product Specifications
10.0 Certifications and Declarations
11.0 About VeEX
Go back to top
1.0 Product Introduction
Overview
The MPX100 is an intelligent 1GE, 10/100/1000Base-T and 1000Base-X, loopback device that is the perfect companion to the MX
product family (MX100, MX120, MPX100, MX300) and TX300. Loopback control can be performed in-band or via the built-in
10/100BaseT Ethernet port via an internet connection. The MPX100 paired with a handheld tester, is the industry’s most cost
effective solution for point to point Service Level Agreement (SLA) verification and end-to-end performance testing.

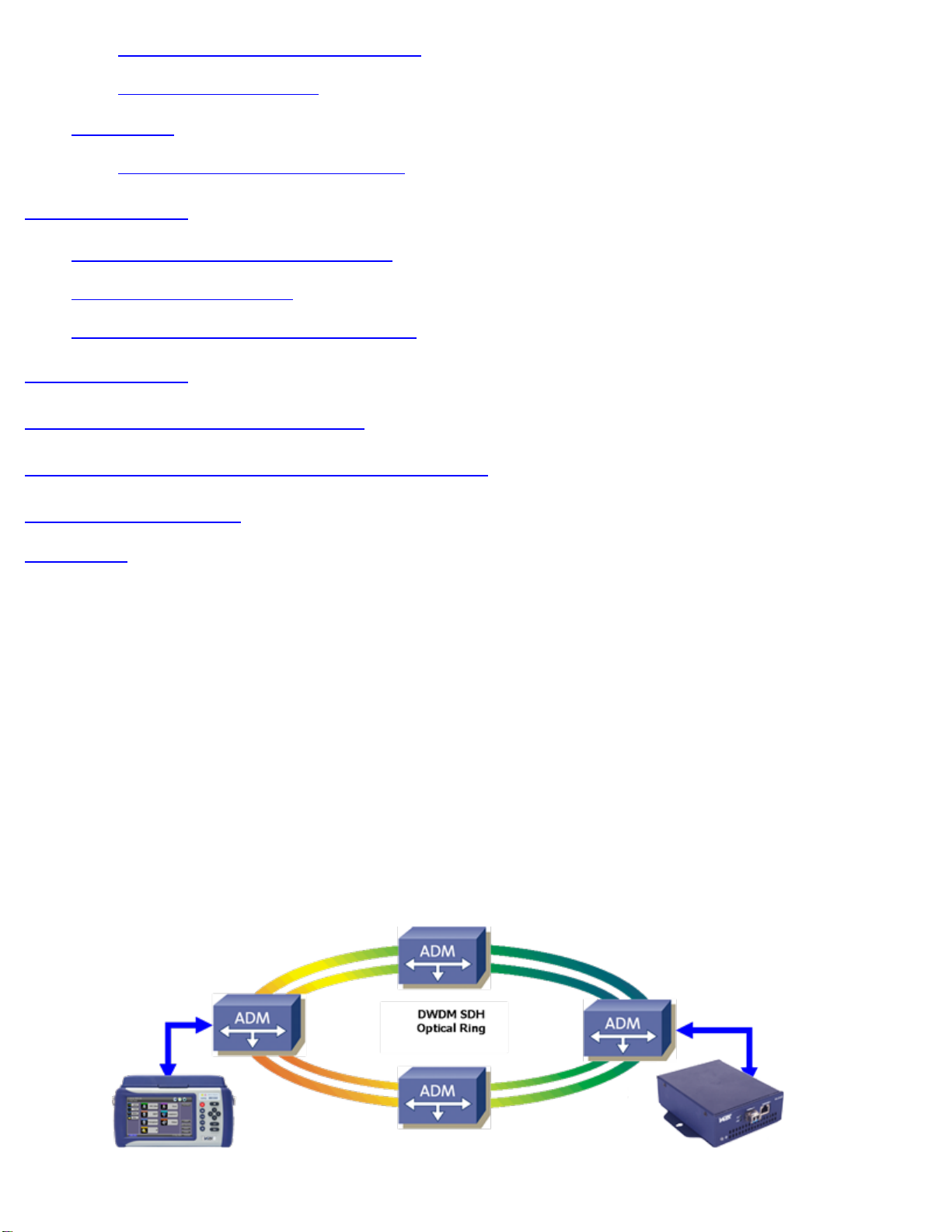

Applications
The MX100/MX120/MX300/TX300 and MPX100 are the industry's most cost-effective 1GE testing pair for the verification of end-to-
end Ethernet transport. The MX100/MX120/MX300/TX300 generates Ethernet/IP test traffic to the MPX100, which will loop the
traffic back to the MX100/MX120/MX300/TX300 for analysis. This test scenario can be carried out for BERT, RFC2544, and
Multiple Streams throughput tests.
MPX100 e-Manual D07-00-022 Rev A00
Page 3 of 46
Loopback Modes
Four modes are available for looping back test traffic: layer 1, layer 2, layer 3, and layer 4. The optional loopback-ready boot-up
profile, allows for fast and easy setup of the MPX100 to begin testing as soon as the device is powered on. This convenient feature
can be easily configured with the accompanying PC software, ReVeal MPX100.
Layer 1: all incoming unicast traffic is looped back, MAC and IP addresses are not swapped.
Layer 2: all incoming unicast traffic is looped back with the MAC source and destination addresses swapped.
Layer 3: all incoming unicast traffic is looped back with MAC and IP source and destination addresses swapped.
Layer 4: all incoming unicast traffic is looped back with MAC, IP, and UDP/TCP source and destination addresses
supported.
Go back to top
2.0 About this User Manual
Every effort was made to ensure that the information contained in this user manual is accurate. Information is subject to change
without notice and we accept no responsibility for any errors or omissions. In case of discrepancy, the web version takes
precedence over any printed literature.
(c) Copyright 2006-2010 VeEX Inc. All rights reserved. VeEX, VePAL are registered trademarks of VeEX Inc and/or its affiliates in
the the USA and certain other countries. All trademarks or registered trademarks are the property of their respective companies.
No part of this document may be reproduced or transmitted electronically or otherwise without written permission from VeEX Inc.
This device uses software either developed by VeEX Inc or licensed by VeEX Inc from third parties and is the confidential and
proprietary of VeEX Inc. The software is protected by copyright and contains trade secrets of VeEX Inc or VeEX's licensors. The
purchaser of this device agrees that it has received a license solely to use the software as embedded in the device, and the
purchaser is prohibited from copying, reverse engineering, decompiling, or disassembling the software.
This user manual is suitable for novice, intermediate, and experienced users and is intended to help you successfully use the
features and capabilities of the VePAL MPX100 test set. It is assumed that you have basic computer experience and skills, and are
familiar with IP and telecommunication concepts, terminology, and safety.
For more technical resources, visit VeEX Inc web site at www.veexinc.com.
If you need assistance or have questions related to the use of this product, call or e-mail our customer care department for
customer support. Before contacting our customer care department, you must have your product serial number and software
version ready. Please go to Basic Operations section for details on locating your unit serial number in the menus or locate the
serial number on the back of the chassis. Please provide this number when contacting VeEX customer service.
Customer Care:
Phone: + 1 408 970 9090
E-mail: [email protected]
Website: www.veexinc.com
Go back to top

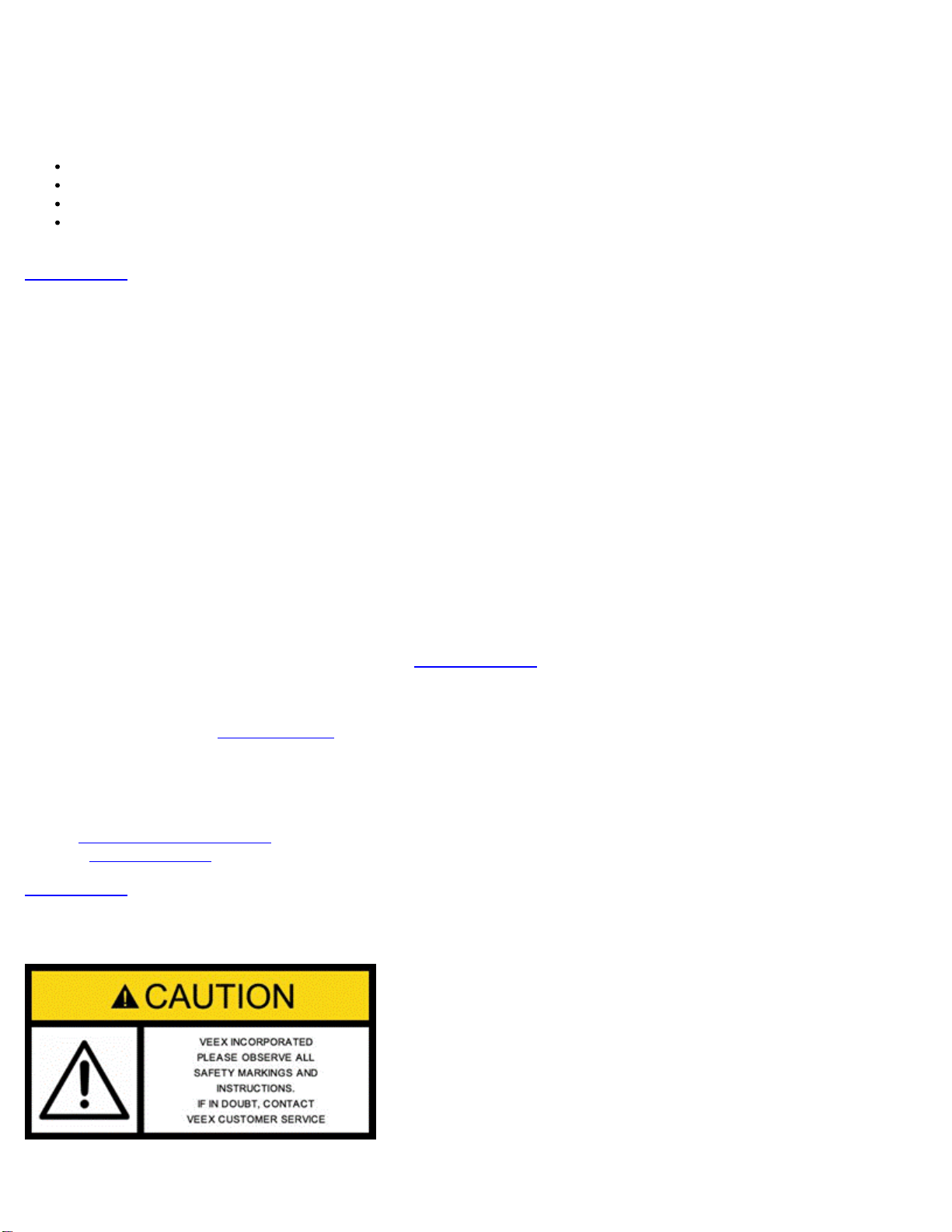

3.0 Safety Information
Safety precautions should be observed during all phases of operation of this instrument. The instrument has been designed to
MPX100 e-Manual D07-00-022 Rev A00
Page 4 of 46
ensure safe operation however please observe all safety markings and instructions. Do not operate the instrument in the presence
of flammable gases or fumes or any other combustible environment. VeEX Inc. assumes no liability for the customer's failure to
comply with safety precautions and requirements.
Go back to top
4.0 Basic Operation
The MPX100 has the following features:
Rack mounted Ethernet Probe
10/100/1000 Base-T
1000Base-X with SFP
Layer 1 to Layer 4 Traffic Generation and Analysis
Same specifications as the MX100
ReVeal MPX for outband control via 10/100T port for:
Live on-demand testing
Schedule tests (coming)
RS232C Supervisor serial port
4.0.1 Interfaces
The MPX100 is equipped with the following test port and LEDs located on the front of the unit:
10/100/1000Base-T RJ-45 Port
10Mbps
100Mbps
1000Mbps
1000Base-X SFP Port
1000Base-SX 850nm; 1Gbps
1000Base-LX 1310nm; 1Gbps
1000Base-EX 1550nm; 1Gbps
Power LED - indicates power status - LED is off when the unit is powered off and green when the unit is powered on.
Link LED - indicates physical link status - LED is off when there is no link and green when the link is up.
Activity LED - indicates traffic status - LED is off when no traffic is present and green when traffic is received.
MPX100 - Front View
MPX100 e-Manual D07-00-022 Rev A00
Page 5 of 46
Go back to top
The MPX100 is equipped with the following connectors located at the rear of the unit:
Power Input - 15Volts DC
10/100Base-T port - Ethernet applications include:
Transfer test profiles between the unit and a computer using ReVeal MPX100 software
Upgrade the instrument software using ReVeal MPX100 software
Remote control of the instrument using ReVeal MPX100 software
RS232C Supervisor or management serial port - used for:
Configuring the IP address, gateway, subnet, of the Ethernet management port

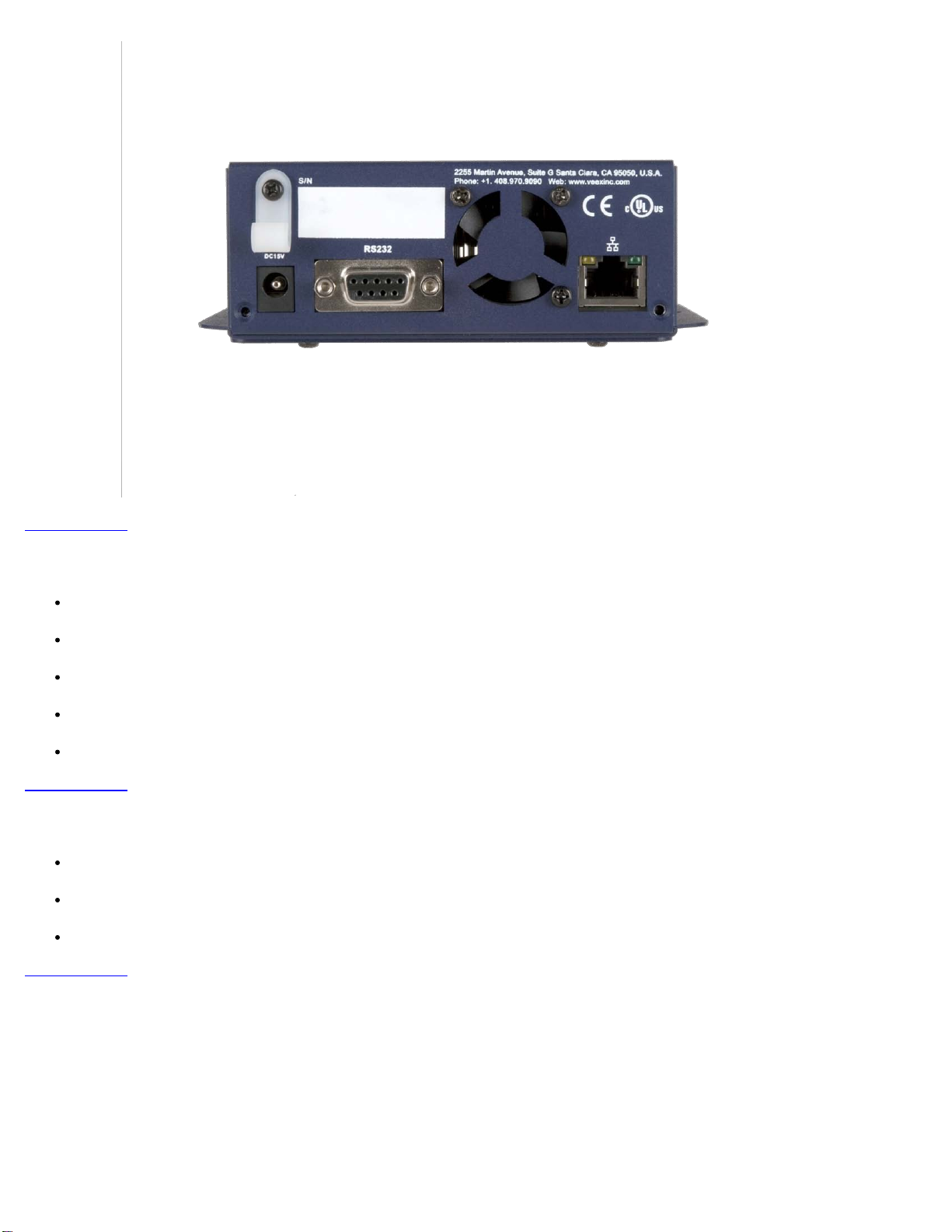

MPX100 - Rear View
MPX100 e-Manual D07-00-022 Rev A00
Page 6 of 46
Go back to top
4.0.2 Applications
The MPX enters the centralized systems test market
Deployment of MPXs in a centralized location and distributed across the telco/service provider network
Reduction of truck rolls, 24/7/365 network monitoring and on-demand testing
Low cost Ethernet probe
Interoperability with field test equipment (MX100/MX120)
Go back to top
4.0.3 Usage
The MPX can be used in several configurations that all add value to a new or existing customers
MPX as a centralized Responder unit for the MX100 and MX120s used in the field
As a set of dedicated probes where our ReVeal MPX software controls the units and allows scheduled or live testing
Go back to top
4.0.4 Application
MPX as a centralized or distributed responder unit for the MX100 and MX120s used in the field.
MPX100 e-Manual D07-00-022 Rev A00
Page 7 of 46
MPX100 e-Manual D07-00-022 Rev A00
Page 9 of 46
Go back to top
5.0 ReVeal MPX100 Software
ReVeal MPX100 software forms an integral part of the MPX100 Loopback device and is required to configure and manage tests
applications.
5.1 System Requirements
ReVeal MPX software has the following minimum system requirements:
Operating System: Windows 2000, Windows XP or Windows Vista. For Vista operating systems, please install the following
software patch. Click here
Hard Drive Space: 5Mbytes
Connection method: Ethernet
Note: Operating systems and hardware requirements may change over time. Please check with your local VeEX representative
regarding latest system requirements.
Go back to top
5.2 Software License
ReVeal is protected by copyright laws and international copyright treaties, as well as other intellectual property laws and treaties.
By installing the ReVeal software, you are obliged to observe and comply with the following terms and conditions including the
detailed EULA enclosed.
1. GRANT OF LICENSE.
ReVeal is licensed as follows:
MPX100 e-Manual D07-00-022 Rev A00
Page 10 of 46
(a) Installation and Use -
VeEX Incorporated grants you the right to install and use copies of ReVeal on your computer
running a validly licensed copy of the operating system for which ReVeal was designed [e.g., Windows 2003, Windows XP,
Windows Vista].
(b) Backup Copies - You may also make copies of ReVeal as may be necessary for backup and archival purposes.
2. DESCRIPTION OF OTHER RIGHTS AND LIMITATIONS.
(a) Maintenance of Copyright Notices - You must not remove or alter any copyright notices on any and all copies of
ReVeal.
(b) Distribution - You may not distribute registered copies of ReVeal to third parties without the prior consent of VeEX
Incorporated.
(c) Prohibition on Reverse Engineering, Decompilation, and Disassembly - You may not reverse engineer,
decompile, or disassemble ReVeal or any of its components, except and only to the extent that such activity is expressly permitted
by applicable law notwithstanding this limitation.
(d) Rental - You may not rent, lease, or lend ReVeal software.
(e) Support Services - VeEX Incorporated may provide you with support services related to ReVeal and associated functions.
Any supplemental software code provided to you as part of the Support Services shall be considered part of ReVeal and subject to
the terms and conditions of this EULA - (EULA stands for End User Licensing Agreement.)
(f) Compliance with Applicable Laws - You must comply with all applicable laws regarding use of ReVeal.
3. TERMINATION
Without prejudice to any other rights, VeEX Incorporated may terminate this EULA if you fail to comply with the terms and
conditions of this EULA. In such event, you must destroy all copies of ReVeal in your possession.
4. COPYRIGHT
All title, including but not limited to copyrights, in and to ReVeal and any copies thereof are owned by VeEX Incorporated or its
suppliers. All title and intellectual property rights in and to the content which may be accessed through use of ReVeal is the
property of the respective content owner and may be protected by applicable copyright or other intellectual property laws and
treaties. This EULA grants you no rights to use such content. All rights not expressly granted are reserved by VeEX Incorporated.
5. NO WARRANTIES
VeEX Incorporated expressly disclaims any warranty for ReVeal. ReVeal is provided "As Is" without any express or implied warranty
of any kind, including but not limited to any warranties of merchantability, noninfringement, or fitness of a particular purpose. VeEX
Incorporated does not warrant or assume responsibility for the accuracy or completeness of any information, text, graphics, links or
other items contained within ReVeal. VeEX Incorporated makes no warranties respecting any harm that may be caused by the
transmission of a computer virus, worm, time bomb, logic bomb, or other such computer program. VeEX Incorporated further
expressly disclaims any warranty or representation to Authorized Users or to any third party.
6. LIMITATION OF LIABILITY
In no event shall VeEX Incorporated be liable for any damages (including, without limitation, lost profits, business interruption, or
lost information) rising out of Authorized Users' use of or inability to use ReVeal, even if VeEX Incorporated has been advised of
the possibility of such damages. In no event will VeEX Incorporated be liable for loss of data or for indirect, special, incidental,
consequential (including lost profit), or other damages based in contract, tort or otherwise. VeEX Incorporated shall have no liability
with respect to the content of ReVeal or any part thereof, including but not limited to errors or omissions contained therein, libel,
infringements of rights of publicity, privacy, trademark rights, business interruption, personal injury, loss of privacy, moral rights or
the disclosure of confidential information.
Click here for a detailed copy of the ReVeal End User License Agreement (EULA).
Go back to top
5.3 Installation Procedure
This sections explains how to install the ReVeal software and user manual using the supplied CD-ROM. The ReVeal manual
contains detailed information about using the software and it also includes all the information you will need to connect and set up
your product.
Installing ReVeal in Windows 2000/XP/Vista
1) Insert the VeEX CD supplied with your MPX100 unit into your CD-ROM drive. If Autorun is enabled, the CD will start
automatically - If so, go to step 5.
2) Press the Start button and select Run..
3) Type d:\veex (where ‘d:’ is your CD-ROM drive)
MPX100 e-Manual D07-00-022 Rev A00
Page 11 of 46
4) Press the Enter key
5) Click the Install Application Software button
6) The program will guide you through the installation
Note: If you do not have a copy of ReVeal software supplied with the MPX100 unit, you can download the necessary version for
your device from the VeEX website (http://www.veexinc.com/) and registering as a user. Links will guide you to the software
location.
Go back to top
6.0 Getting Started
6.1 IP Address Configuration
6.1.1 General Settings
10/100T management port default IP settings:
IP: 192.168.0.10
Subnet: 255.255.255.0
Gateway: 192.168.0.1
Serial port settings:
B/s = 38400, Bits = 8, Parity = None, Stop Bits = 1, Flow Control = None
Go back to top
6.1.2 Configuration
STEP 1
NOTE: Do NOT power on the MPX yet.
Connect the MPX100’s serial port to the PC’s serial port or USB port (via a USB-to-Serial cable if necessary).
From your PC, launch HyperTerminal and start a new connection
MPX100 e-Manual D07-00-022 Rev A00
Page 12 of 46
USB-to-Serial connection: Select the corresponding COM port for the USB-to-Serial cable
STEP 2
Configure the serial port settings.
STEP 3
Power on the MPX
The HyperTerminal should automatically display the following boot-up process
MPX100 e-Manual D07-00-022 Rev A00
Page 13 of 46
Boot-up process
STEP 4
Press ENTER at this point of the boot-up process
At the login prompt, type "root" and press ENTER
STEP 5
At the end of the boot-up process, the command line "#" appears. Type the following commands:
MPX100 e-Manual D07-00-022 Rev A00
Page 14 of 46
# cd /usr/app
# ls -l
Note: After commands are entered, verify that "mpxconfig" file exists.
STEP 6
Change the IP settings of the 10/100T (IP address, subnet, gateway) and give the MPX a location name (optional) with the
following command string:
./mpxconfig –n "IP" "Subnet" "Gateway" –l "Location Name"
Example: ./mpxconfig –n 192.168.0.31 255.255.255.0 192.168.0.1 –l MPX31 (press ENTER)
MPX100 e-Manual D07-00-022 Rev A00
Page 15 of 46
STEP 7
Type "ipconfig" to verify the new IP settings.
MPX100 e-Manual D07-00-022 Rev A00
Page 16 of 46
6.2 Step 1 - Launch ReVeal MPX100 Software
Once the default IP address is known, launch ReVeal MPX100 software from the shortcut on your desktop or wherever the
software has been installed. The screen below will be displayed while the software application is being launched.
ReVeal MPX100 - Launch Window
ReVeal MPX100 - Main Menu
Go back to top
6.3 Test System Management
STEP 1
MPX100 e-Manual D07-00-022 Rev A00
Page 18 of 46
From the Home menu, access "Test System Management"
STEP 2
Press "Add" and enter the IP address of the MPX you will add
Press "Check": ReVeal MPX will check for the MPX online
MPX100 e-Manual D07-00-022 Rev A00
Page 19 of 46
Note: Green check mark appears if ReVeal MPX finds the MPX100.
Press "Finish" to close the window.
STEP 3
The MPX100 just added now appears in the table with an "Online" status
Press "Save" to save the table entry to the ReVeal MPX management table
MPX100 e-Manual D07-00-022 Rev A00
Page 20 of 46
Table of contents
Other VeEX Test Equipment manuals
Popular Test Equipment manuals by other brands
Associated Research
Associated Research HYAMP II 5030DT Operation and service manual
Keysight
Keysight 11683A Operating and service manual
Elditest
Elditest GE4500 Series manual
METREL
METREL EasiTEST MI 2087 AL2 instruction manual
Libelium
Libelium Adeunis Field Test Device Guide
AOIP
AOIP CALYS 1000 instruction manual
