VeEX RXT-1200 User manual

Table of Contents
1.0 General Information
2.0 Safety Information
3.0 Introduction
3.1 Platform Overview
3.2 Front Panel
3.2.1 LED's
3.2.2 Key Pad
3.2.3 Touch Screen
3.3 Battery
3.3.1 Battery Overdraw Protection
3.4 Hardware Configurations
3.5 Home Screen
3.6 Quick Access Menu
4.0 Getting Started
4.1 Inital Settings
4.1.1 Change language and user interface style
4.1.2 Change the time zone and current time
4.1.3 Change other settings

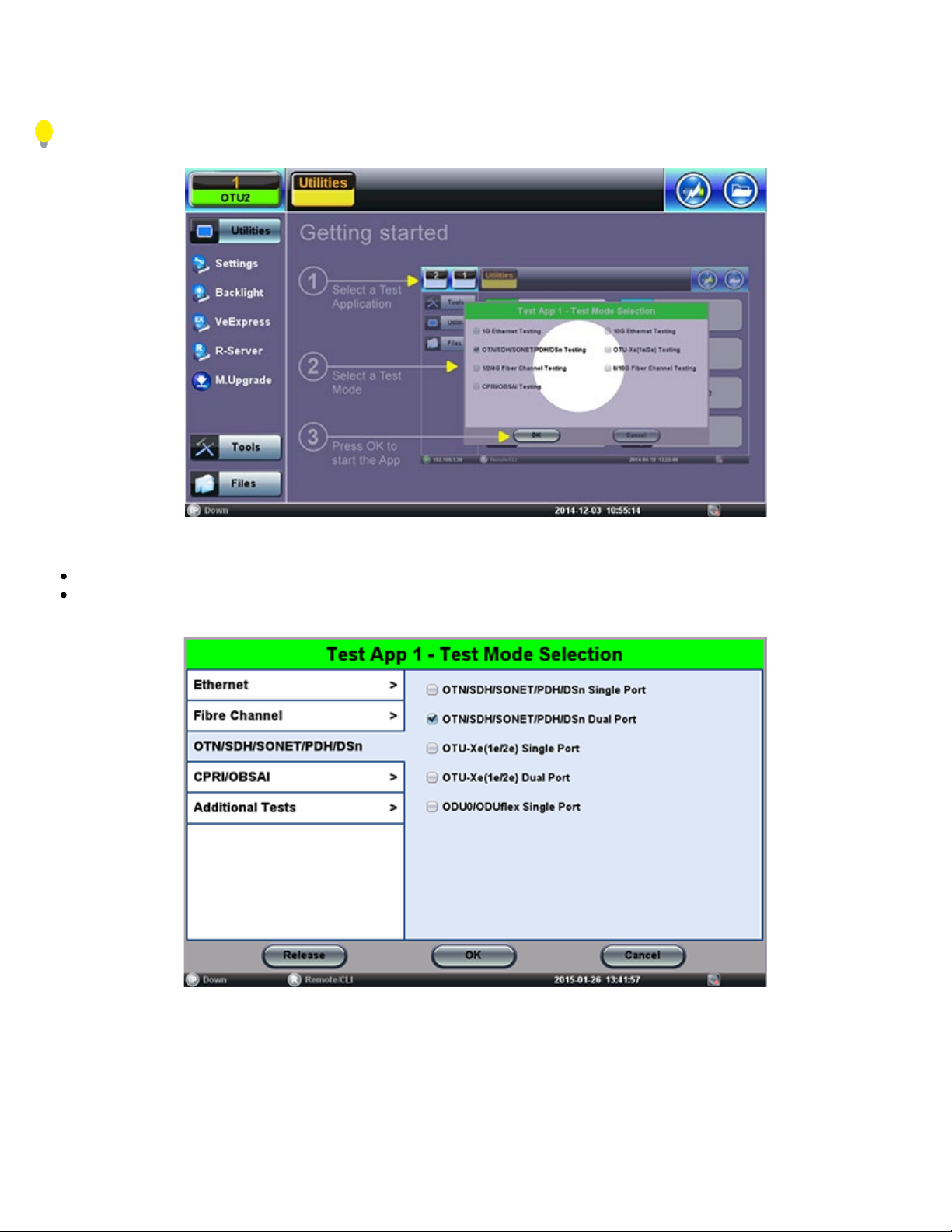

4.2 Launch Test Application
4.3 Understanding Test Application GUI
5.0 Utilities
5.1 Platform Settings
5.1.1 About
5.1.2 Screen Calibration
5.1.3 Bluetooth
5.1.4 Power
5.1.5 Backlight
RXT1200_Platform_Manual_RevB01
Page 2 of 117

5.1.6 Global Settings
5.1.7 Date and Time
5.1.8 Remote Access
5.1.9 EZ Remote
5.1.10 VF Noise Calibration (Microphone)
5.1.11 Hign Precision Clock Sources
5.2 Help
5.3 VeExpress
5.4 R-Server (Advanced Management)
5.5 Software Upgrade
6.0 File Manager
6.1 File Manager: Working with Saved Results, Profiles, Images
6.2 USB Memory Browser
6.3 Manage SD Card
7.0 Tools
7.1 IP Tools
7.2 Net Wiz
7.3 WiFi Wiz
7.4 ARP Wiz
7.5 Advanced Tools
7.5.1 Fiber Tools
7.5.1.1 Fiber Scope
7.5.1.2 The Importance of Fiber Connector Inspection
7.5.1.3 Connecting the Fiberscope
7.5.1.4 Setup Page 2 and Capture Tab
7.5.2 Optical Power Meter (OPM)
7.5.3 WiFi Spectrum Analyzer
7.5.4 Data Card
7.5.5 WiFi inSSIDer
RXT1200_Platform_Manual_RevB01
Page 3 of 117

7.5.6 OTDR Viewer
7.5.7 GNSS Operation
7.5.8 GNSS Sky View
7.6 Web Browser
8.0 Certification and Declarations
9.0 About VeEX
Go back to TOP
RXT1200_Platform_Manual_RevB01
Page 4 of 117

1.0 General Information
This user manual is suitable for novice, intermediate, and experienced users and is intended to help use the features
and capabilities of VeEX products successfully. It is assumed that the user has basic computer experience and skills,
and is familiar with telecommunication and other concepts related to VeEX product usage, terminology, and safety.
Every effort was made to ensure that the information contained in this user manual is accurate. Information is subject
to change without notice and we accept no responsibility for any errors or omissions. In case of discrepancy, the web
version takes precedence over any printed literature. The content in this manual may vary from the software version
installed in the unit. For condition of use and permission to use these materials for publication in other than the
English language, contact VeEX, Inc.
© Copyright VeEX, Inc. All rights reserved. VeEX, Sunrise Telecom, Digital Lightwave, Air Expert, CaLan,
FaultScout, Fiberizer, MPA, MTT, RXT, VeGrade, VeriPHY, and VeSion, among others, are trademarks or registered
trademarks of VeEX, Inc. and/or its affiliates in the USA and other countries. All trademarks or registered trademarks
are the property of their respective companies. No part of this document may be reproduced or transmitted
electronically or otherwise without written permission from VeEX, Inc.
This manual describes software and/or a device that uses software either developed by VeEX Inc. or licensed by
VeEX, Inc. from third parties. The software is confidential and proprietary of VeEX, Inc. The software is protected by
copyright and contains trade secrets of VeEX, Inc. or VeEX's licensors. The purchaser of this device and/or software,
downloaded or embedded, agrees that it has received a license solely to use the software as embedded in the device
and/or provided by VeEX Inc., and to use it solely as intended and described in this manual. The purchaser is
prohibited from copying, reverse engineering, decompiling, or disassembling the software.
Go back to top Go back to TOC
1.1 Customer Support
For more technical resources, visit www.veexinc.com.
For assistance or questions related to the use of this product, call or e-mail our customer care department for customer
support. Before contacting our customer care department, have the product model, serial number, and software version
ready. Please locate the serial number on the back of the chassis. Please provide this number when contacting VeEX,
Inc. customer care.
Support hours may vary depending on the product.
Product Technical Support
Support is generally available 8:00 AM to 8:00 PM, Eastern Standard Time, Monday to Friday.
Phone: [phone]
E-mail: [email protected]
MPA Product Technical Support
Support is generally available 8:30 AM to 5:30 PM, Eastern Standard Time, Monday to Friday.
Phone: [phone]
International: [phone]
E-mail: [email protected]
Go back to top Go back to TOC
1.2 Warranty
RXT1200_Platform_Manual_RevB01
Page 5 of 117

For warranty information on VeEX products, go to https://www.veexinc.com/Support/Warranty.
To activate the warranty, please register your product at https://www.veexinc.com/Support/ProductRegistration.
Go back to top Go back to TOC
1.3 Patent Information
VeEX product hardware and software may be protected by one or more patents on file with the United States Patent
Office.
Go back to top Go back to TOC
1.4 Documentation Conventions
Icons used in this manual:
Marks a helpful tip (action or method), which can save time and
improve usability of the product.
Provides important information needed to use this product and
avoid missteps.
Cautions against and action or inactivity, which can hinder
productivity.
Strongly warns against a condition, an action, or inactivity which
can lead to a health hazard, injury, equipment damage, data loss,
and/or financial losses.
Stop and read before continuing.
Go back to top Go back to TOC
RXT1200_Platform_Manual_RevB01
Page 6 of 117

2.0 Safety Information
Safety precautions should be observed during all phases of operation of this instrument. The instrument has been designed to
ensure safe operation however please observe all safety markings and instructions. Do not operate the instrument in the presence
of flammable gases or fumes or any other combustible environment. VeEX Inc. assumes no liability for the customer's failure to
comply with safety precautions and requirements.
Optical Connectors
The test platform displays a laser warning icon when the laser source is active to alert the user about a potentially dangerous
situation. It is recommended to:
1. Deactivate the laser before connecting or disconnecting optical cables or patchcords.
2. Never look directly into an optical patchcord or an optical interface (e.g. CFP, CFP2, CFP4, QSFP+, SFP+, SFP, OTDR, LS,
VFL) while the laser is enabled. Even though optical transceivers are typically fitted with Class 1 lasers, which are considered
eye safe, optical radiation for an extended period can cause irreparable damage to the eyes.
3. Never use a fiber microscope to check the optical connectors when the laser source is active.
Electrical Connectors
Telephone lines may carry dangerous voltages. Always connect the electrical test ports to known test interfaces which carry low
level signals.
Safe Module Handling
While replacing test modules, all work on the open panel must be performed only by suitably qualified personnel who are familiar
with the dangers both to people and to the instrument itself.
Modules are not hot swappable. The platform must be turned off and unplugged from VAC mains when removing or inserting
test modules.
For safety and EMC (Electromagnetic Compatibility), empty module slots must be properly covered with blank panel covers.
Prevent foreign objects from entering the RXT, before, during and after module exchange or re-configuration process. They
could create short circuits or damage internal fans.
Always store test modules by themselves in individual ESD protected packaging (with no loose elements, like screws or
tools).
Lithium-ion Battery Precautions
Lithium-ion (Li-ion) battery packs are compact and offer high capacity and autonomy, which make them ideal for demanding
applications, like providing long lasting power to portable test equipment. For safety reasons, due to their high energy concentration,
these battery packs and products containing them must be used, charged, handled, and stored properly, according to the
manufacturer’s recommendations.
Li-ion battery packs contain individual Li-ion cells as well as battery monitoring and protection circuitry, sealed in their plastic
container that must not be disassembled or serviced.
The test set unit's battery pack is also fitted with a safety connector to prevent accidental short circuits and reverse polarity.
Always charge the unit's battery pack inside the test platform battery bay using the AC/DC adapter supplied by VeEX.
Do not charge or use the battery pack if any mechanical damage is suspected (shock, impact, puncture, crack, etc).
Do not continue charging the battery if it does not recharge within the expected charging time
RXT1200_Platform_Manual_RevB01
Page 7 of 117

Storage: For long term storage, the battery pack should be stored at 20°C/68°F (room temperature), charged to about 30 to
50% of its capacity. Spare battery packs should be charged and used at least once a year to prevent over-discharge (rotate
them regularly).
It is recommended to charge and use battery packs at least every three months. Battery packs must not go without
recharging (reconditioning) for more than six months.
After extended storage, battery packs may reach a deep discharge state or enter into sleep mode. For safety reasons, Li-ion
batteries in deep discharge state may limit the initial charging current (pre-recharge) before starting their regular fast charging
cycle. The pre-charging state may take several hours.
Air transportation of Li-ion batteries is regulated by United Nations' International Air Transportation Association (IATA)
Dangerous Goods Regulations and by country-specific regulations. Please check local regulations and with common carriers
before shipping Li-ion battery packs or products containing relatively large Li-ion battery packs.
Electrical Connectors
Telephone lines may carry dangerous voltages. Always connect the electrical test ports to known test interfaces which carry low
level signals.
ESD: Electrostatic Discharge Sensitive Equipment
Test modules could be affected by electrostatic discharge. To minimize the risk of damage when
replacing or handling test modules, make sure to follow proper ESD procedures and dissipate any
electrostatic charge from your body and tools and use proper grounding gear.
Perform all work at a workplace that is protected against electrostatic build-up and discharging.
Never touch any exposed contacts, printed circuit boards or electronic components.
Always store test modules in ESD protected packaging.
Wear ESD protection and grounding gear when:
Inserting, extracting, or handling test modules.
Inserting or removing SFPs, XFPs, QSFPs, or CFPs from the platform.
Connecting or disconnecting cables from modules or platform.
Go back to TOC
RXT1200_Platform_Manual_RevB01
Page 8 of 117

3.0 Introduction to RXT-1200
RXT represents the next-generation in integrated toolkits for field technicians, combining advanced multi-service testing capabilities,
built around a single high-performance chassis, in a compact format.

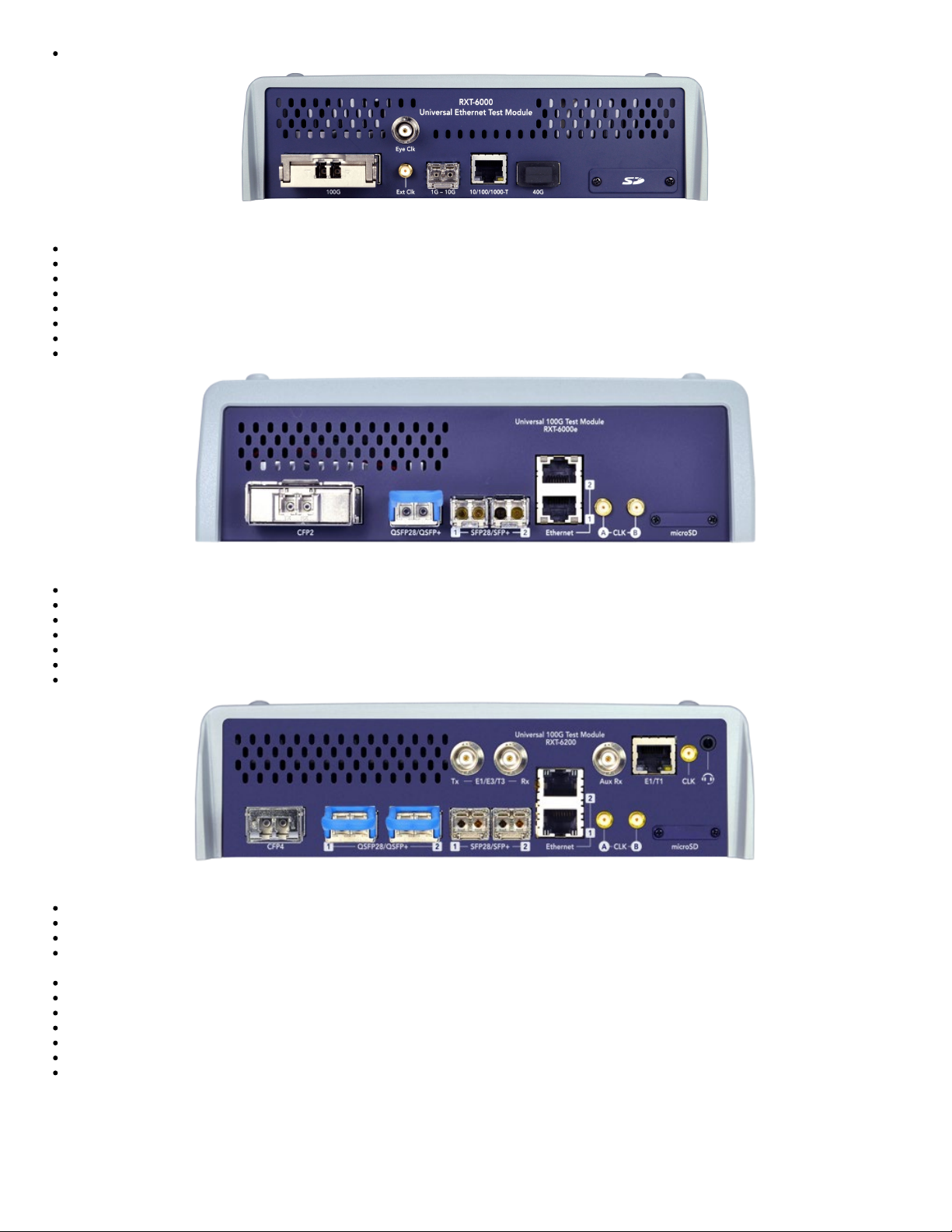

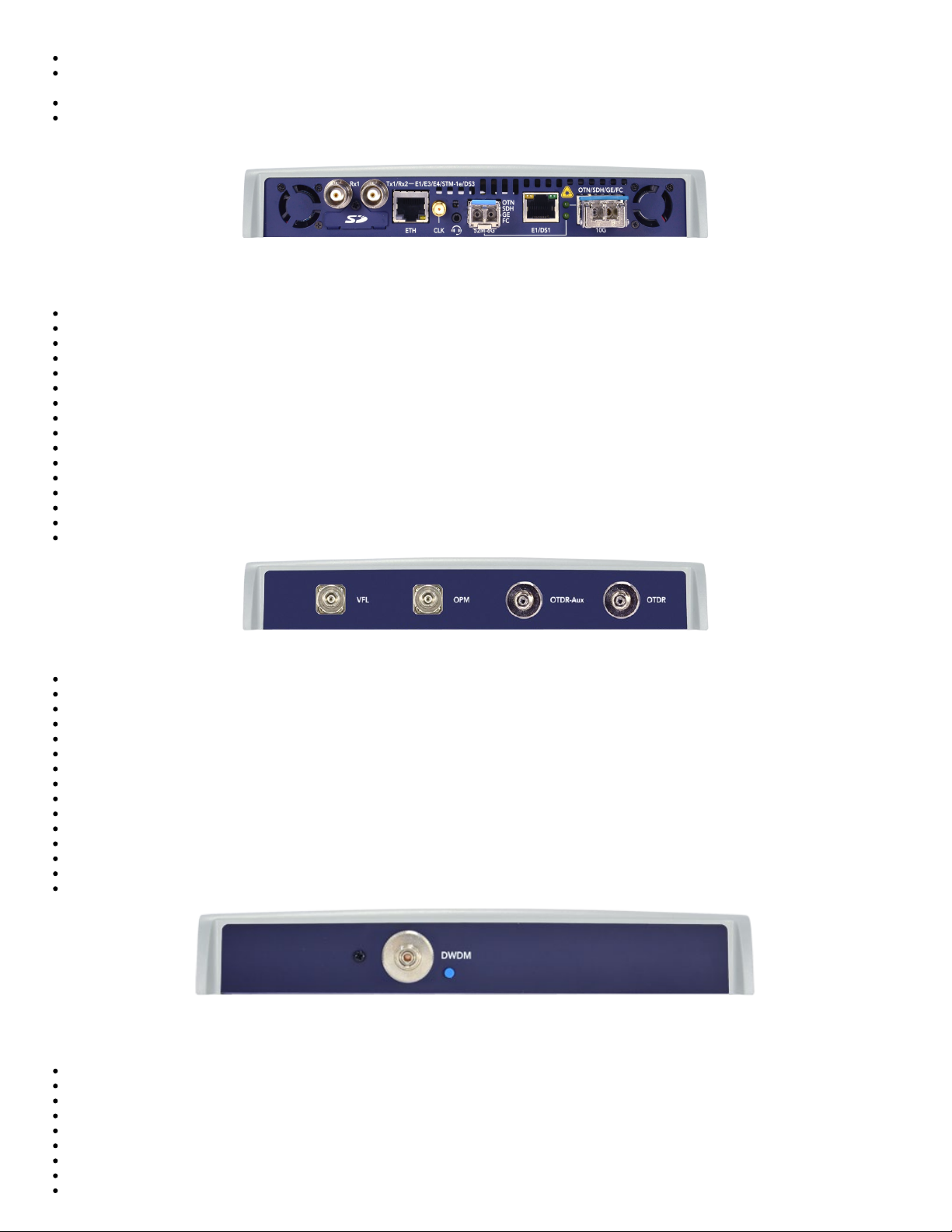

RXT-1200 is a flexible Modular Platform for nodes and field applications. RXT-1200 offers a modern test platform architecture, with a
broad range of available test modules covering Access (copper and fiber), Metro, Transport and Core technologies.
It has a application-oriented GUI design, which is similar across different test modules and other VeEX products.
It uses field-replaceable self-contained modules, to offer a broad variety of modern and legacy test capabilities.
Key features:
Modern test platform, with a broad range of available test modules covering Access (copper and fiber), Metro, Transport and
Core technologies, including DWDM
Application-oriented GUI
GUI familiarity across different test modules and other VeEX products reduces the learning curve
View test results and create detailed reports by region, area, system, and technician
Enables all jobs to be completed correctly the first time
Multi-technology: Datacom, Fiber Optics, WDM, DSn/PDH, SONET/SDH, OTN, Ethernet, Fibre Channel, CPRI/OBSAI; from
64k to 400Gbps
Expand test functions with a growing list of test modules
Future-proof cost-effective platform
Test set connectivity via Ethernet Management interface, WiFi, Bluetooth®, or Data Card for back office applications and
workflow optimization
User defined test profiles and thresholds
Fast and efficient test result transfer to USB memory stick
Ultra-high capacity field-exchangeable Li-ion battery pack extends testing time
Management Port (Ethernet LAN and remote access)
Two USB 2.0 ports
Memory sticks, Wi-Fi, Bluetooth, Fiber Scope, Optical Power Meter, Wi-Fi Spectrum Analyzer, 3G/4G Data Card,
External OTDR, etc.
Built-in GPS Receiver and Atomic Clock hardware (optional)
VeExpress Client
Keeps Platform and Native Modules SW versions and licenses up-to-date
R-Server Client option (Advanced Results Management)
Upload Test Results and Test Profiles to a centralized server
Built-in speaker, microphone and headphone jack
QuickSwap™ Module Exchange (no tools required)
High-capacity Li-ion Battery Pack
Go back to TOC
RXT1200_Platform_Manual_RevB01
Page 9 of 117

3.1 RXT-1200 Overview
3.2 Front Panel
3.2.1 LEDs
Power LED: A single LED indicates the power state of the unit.
The LED is off when the unit is powered off.
The LED is green when the unit is powered on.
The LED is orange when the unit is connected to the AC Mains and powered off (charging).
Soft LEDs: Each tests module offers detailed soft LEDs and indicators in its test application.
3.2.2 Key Pad
Power: Press for 2 seconds to turn the test set ON or OFF
(prevents accidental ON/OFF).
Cursor Keys: Application dependent; May offer alternative GUI
Navigation to touch screen (e.g. while wearing gloves in cold
weather)
Enter: Application dependent
Escape: Application dependent
Alt Alternate function - Links the buttons to the GUI soft Function
Keys (MTT Emulation Mode only)
Clear History: Resets blinking LED reminders of past Errors or
Alarms. Test results are not affected. The F2 key on standard
keyboards can be used when controlled via VNC.
Volume and Brightness Control: Brings up the Sound and
screen Brightness controls; Use cursor buttons to adjust the levels.
Test Application Selector: Quickly switches back-and-forth
between the active Test Application and RXT platform Utilities
functions; Active test is not affected
Lock/Unlock Touch Screen: Can also be programmed to capture
Screen Shots (>Utilities >Settings >Global >Save Settings). Use
the F3 in standard keyboards.
Home: Quickly bring users back to the Main Menu
Save Test Results: Saves the current Test Results with
customized or auto naming (yyyymmdd-hhmmss format). The F1
key on standard keyboards can be used when controlled via VNC.
3.2.3 Touch Screen
The LCD supports touch screen operation. To operate the touch screen to navigate the menus and tabs, use the stylus located on the right side of the unit. Please
observe the following precautions:
Never use excessive pressure on the touch screen as this may damage its functionality.
Never use sharp objects such as a pen, screwdriver, etc., as this may damage the surface.
Clean the surface of the touch screen using a soft cloth and mild detergent only. Do not use alcohol.
Go back to TOC
RXT1200_Platform_Manual_RevB01
Page 10 of 117

3.3 Battery
The test set platform is equipped with a smart Li-ion rechargeable battery pack, which is located on the rear of the unit. The battery will be partially charged upon
delivery, so it is recommended to fully charge the battery before use. Please charge the battery at room temperature to preserve its life and to obtain maximum
charge. The battery is charged during operation, provided the unit is connected to the AC Mains using the supplied AC adapter. Removing the battery while the unit is
powered on is not recommended - this may result in damage. Remove the rubber cover on the right side to connect the AC Main adapter to the unit.
Make sure that the key is aligned while plugging in the AC adapter to the unit. If it is not aligned, the plug will not connect to the unit and using force will damage
the connector.
Battery Charging time
The total charging time depends on the remaining battery capacity percentage and the actual current load in the RXT. An idle RXT would recharge faster than an
active one.
Attention!
For safety reasons, the battery charging time is always limited to a maximum of three hours
If the RXT is being used while charging and a full charge (100% capacity) cannot be achieved
within three hours, the charging will automatically stop.
To resume charging, unplug the AC/DC adapter and let the RXT work on battery power for a
minute or two and plug the AC/DC back in. This will reset the charging circuitry.
Warning!
DO NOT disconnect the AC/DC power supply when the RXT is running under heavy load
conditions (greater than the battery's current ratings), such as certain multi-module multi-test
applications.
If the current required is too high, but still within the battery's limits, a warning message would be
displayed when the AC/DC adapter is unplugged, while all the tests are properly closed and RXT
shuts down.
Under overload conditions, the battery may not be able to supply enough current to keep the test
scenario running and its safety mechanisms may shut the battery down without warning and test
results may be lost.
Battery Safety precautions
For more information on safety precautions for batteries, see Lithium-ion Battery Precautions.
Go back to TOC
Battery Power Capacity
Total Battery Power: 83.7 Watt Hours
RXT Platform test platform: 20 Watts
AC/DC Power Supply
When using the AC/DC power supply adapter, the total power capacity provided is 88 Watts.
Go back to TOC
3.3.1 Battery Overdraw Protection
When battery capacity declines to 10%, an audible alarm and pop-up warning displays a notification to plug in the A/C adapter or shut down the unit. If this warning is
ignored and the battery capacity is allowed to decline to under 5%, the unit will initiate a shutdown to protect the battery from damage and for safety.
If an event, such as the AC/DC adapter being unplugged, a power interruption occurs or some other event triggers the power load to exceed the 95W battery limit, the
unit will initiate an emergency shutdown to protect the battery from damage and for safety.
During an emergency shutdown all modules power is switched off. No test files (results or configurations) are saved.
Go back to TOC
3.4 Hardware Configurations
The following are examples of some test modules available for the RXT platform. Please refer to their individual datasheets and manuals for further details. For an up-
to-date list of modules available, please visit www.veexinc.comen-us/Products/RXTSeries.
RXT-3000
RXT1200_Platform_Manual_RevB01
Page 11 of 117

All-in-One test module reduces CAPEX
Optimized for engineers or technicians installing and maintaining OTN, SDH/SONET, and Carrier Ethernet networks transporting legacy and next generation
Mobile Backhaul networks
Flexible software platform allows for multiple test applications running simultaneously
User defined test profiles and thresholds
RXT-4100/4100+
Multimode and Singlemode Wavelength options - 850, 1300, 1310, 1490, 1550, 1625 & 1650 nm
Filtered 1625 or 1650 nm OTDR port for in-service measurements
OTDR ports feature live fiber detection
High dynamic range for long haul fibers and testing through high-count PON splitters
Sampling points up to 500,000 (RXT-4100+)
FTTx/PON optimized test parameters for best in class dead zones
Event dead zone < 1m, Attenuation dead zone < 4m
Telcordia GR-196 and SR-4731.sor file formats
Optional V-Scout/V-Profile mode – Intelligent Link Mapping using intuitive icons derived from multiple test acquisitions
Optional Built-in Visual Fault Locator
Optional Optical Power Meter with WaveID detection
Optional Light Sources with WaveID and Loop mode
Optional Fiber Inspection Scope (USB)
Upload OTDR traces, OLTS results and Fiberscope images directly to Fiberizer Cloud
Built-in G.657 launch fiber
Universal 2.5 mm optical interfaces with inter-changeable optical adaptors (SC/FC/ST/LC)
RXT-4111
Test DWDM Mux/Demux at ITU-T G.694.1 wavelengths
C-band tuning (standard 89 channels at 50 GHz spacing)
Optional extended band tuning to Channel 62 with 50 GHz spacing
Integrated wavelength locker stable to within ± 2.5 GHz
High dynamic range for long haul fibers and testing through DWDM multiplexers/OADMs/de-multiplexers
Sampling points up to 128,000
Advanced TEC laser stabilization for hot and cold weather operating conditions
Optimized test parameters for best in class dead zones
Event dead zone < 1m, Attenuation dead zone < 4m
Telcordia GR-196 and SR-4731.sor file formats
Optional V-Scout mode – Intelligent Link Mapping using intuitive icons derived from multiple test acquisitions
Optional DWDM Light Source via OTDR port
Push/Pull OTDR traces and Fiberscope images directly to Fiberizer Cloud via wired or wireless internet connection
Built-in launch fiber to characterize OTDR connections and short fiber spans
Universal 2.5 mm optical interfaces with inter-changeable optical adaptors (SC/FC/ST/LC)
RXT-4112
Characterize CWDM networks at ITU-T G.694.2 wavelengths
End-to-end continuity testing using stabilized CWDM light source (via OTDR port)
OTDR port features live fiber detection
High dynamic range (up to 42 dB) for long haul fibers and testing through CWDM multiplexers/OADMs/de-multiplexers
Sampling points up to 256,000
Optimized test parameters for best in class dead zones
Event dead zone < 1m, Attenuation dead zone < 4m
Telcordia GR-196 and SR-4731.sor file formats
Optional V-Scout mode – Intelligent Link Mapping using intuitive icons derived from multiple test acquisitions
RXT1200_Platform_Manual_RevB01
Page 12 of 117

Optional Built-in Visual Fault Locator
Optional Optical Power Meter
Optional CWDM Light Source via OTDR port
Upload OTDR traces and Fiberscope images directly to Fiberizer Cloud via wired or wireless internet connection
Universal 2.5 mm optical interfaces with inter-changeable optical adaptors (SC/FC/ST/LC)
RXT-4113
CWDM wavelengths per ITU-T G.694.2 (18 Channels)
DWDM wavelengths per ITU-T G.694.1 (C-band, 1527.99 to 1563.86 nm, Channel #s 17-62) in 50, 100 0r 200 GHz steps
Sampling resolution up to 5000,000 points
Event dead zone <1m, Attenuation dead zone < 4m
Built in DWDM wavelength locker with ± 2.5 GHz stability
High dynamic range for long haul fibers and testing through xWDM Mux/demux
TEC laser stabilization fr hot and cold weather conditions
Telcordia GR-196 and SR-4731.sor file formats
Optional V-Scout mode – Intelligent Link Mapping using intuitive icons derived from multiple test acquisitions
Optional CWDM/DWDM Light Source via OTDR port
Optional broadband Optical Power Meter
Built-in launch fiber to characterize OTDR connections and short fiber spans
Universal 2.5 mm optical interface with inter-changeable optical adaptors (SC/FC/LC)
RXT4500/4510
Wavelength range from 1260 to 1650 nm
DWDM channel spacing down to 25 GHz, module dependent
Resolution 0.1 nm C-band
In-band OSNR measurement
Fast continuous scanning at ≤5 sec
Simultaneous measurements of up to 200 channels, module dependent
Channel power measurement
Channel threshold detection
Span power measurement
Continuous sweep with min/max hold
Channel frequency and wavelength delta vs. ITU grid
High wavelength accuracy: ± 50 pm
High dynamic range: ≥65 dB
OSNR measurement: up to 40 dB
Low Polarization Dependent Loss (PDL): < 0.3 dB
Universal optical interface with industry standard adaptors
Supports 10/40/100 Gbps transmission modulation types
DFB laser qualification
DWDM channel monitoring per ITU G.694.1 grid for 25/33/37.5/100/200 GHz, module dependent
CWDM channel monitoring per ITU G.694.2 grid
OSNR measurement compliant with IEC 61280-2-9
RXT6000
CFP2 interface for 100GE and OTU4 applications
QSFP+ for 40GE, OTU3 and STL256.4
SFP+ for 100Base-FX, 1000Base-X, 10GEBase-X, OTU2/2e/1e, STM-64/OC192, and Fibre Channel 1/2/4/8/10G applications
RJ45 for 10/100/1000Base-T applications
External clock interface
150ppm clock offset generation
Eye diagram reference clock output
RXT1200_Platform_Manual_RevB01
Page 13 of 117

Soft LED indicators
RXT-6000e
CFP2 (LR4 & SR10) and QSFP28 interfaces for 100GE, OTU4 and 50GE applications
Supports IEEE 802.3bj Clause 91 RS-FEC as required for SR4 and SR10
CFP4 support via CFP2-to-CFP4 adapter
QSFP+ for 40GE, OTU3
SFP28 interface for 25GE, 32/16G FC, 24G CPRI 10 and 25G eCPRI Layer 4 with RS-FEC
SFP+ for 100Base-FX, 1000Base-X, 10GEBase-X, OTU2/2e/1e/1, STM-64/16/4/1/0, OC192/48/12/3/1, and Fibre Channel 16/10/8/4/2/1G and CPRI up to 12G
RJ45 for 10/100/1000Base-T applications
Optional PDH/DSn with standard connectors
RXT-6200
Independent Dual-Port testing, up to 2x 112G
CFP4 (LR4 & SR4) and QSFP28 interfaces for 100GE, OTU4 and 50GE applications
Supports IEEE 802.3bj Clause 91 RS-FEC as required for SR4
QSFP+ for 40GE, OTU3
SFP28 interface for 25GE, 32/16G FC, 24G CPRI 10 and 25G eCPRI Layer 4 with RS-FEC
SFP+ for 100Base-FX, 1000Base-X, 10GEBase-X, OTU2/2e/1e/1, STM-64/16/4/1/0, OC192/48/12/3/1, and Fibre Channel 16/10/8/4/2/1G and CPRI up to 12G
RJ45 for 10/100/1000Base-T applications
RXT-6400
Native QSFP-DD PAM4 hardware for best-in-class signal integrity (no adapters required)
400G Ethernet testing per IEEE 802.3bs specification with KP4 Forward Error Correction (FEC)
Provides all the necessary features to test QSFP-DD transceivers, networking equipment and 400GE links
Advanced and flexible state-of-the-art FPGA-based design, with native PAM4 transceivers, provides future-proof hardware support for 400GE evolution,
emerging standards, test functions, requirements and applications
Wide range of supported 400GE interfaces, including 400GBASE-SR8, FR8, LR8, DR4, and FR4
MDIO/I2C registers Read and Write
Per-lane PAM4 pre-emphasis settings
KP4 FEC codeword symbol errors distribution and Skew
Ethernet Throughput performance test
Hardware ready to support QSFP56, QSFP28, QSFP+, SFP56, SFP28, SFP+, SFP, RJ45 interfaces for lower rate applications
Battery backup for efficient operation and mobility within large equipment rooms and datacenters (no need for constant rebooting)
RXT1200_Platform_Manual_RevB01
Page 14 of 117

RXT-1200 Test Platform (a.k.a. Chassis)
Provides all user interfaces, as well as common tools, connectivity and feature set
RXT-2000A MTT Carrier Module
Used to adapt older and new MTT-series modules to the new RXT-1200 test platform
The combination of an RXT-2000A with an MTT-XX inside is referred as RXT-2XX0
RXT-XXXX Test Modules (Native)
New self-contained test modules specifically designed for the RXT-1200 platform (no adapter required). Offer new V300 style GUI
It includes Sunrise Telecom’s original RXT-2600 SHDSL.bis test module, which is the only legacy module supported by RXT-1200
Other RxT-1000 modules are not compatible with the new RXT-1200.
3.4.1 Inserting/ Removing Test Modules
Turn the test set OFF before Inserting or Removing RXT and/or MTT modules from a chassis
Insert: Align the module with the rails and slide it in until it locks (clicks)
Remove: Press+hold the Release button and use the other hand to extract the module
MTT Modules (in RXT Carrier)
Insert: Align the module with rails, push it in and tighten the thumb-screws
Remove: Loosen (do not remove) the thumb-screws and pull the module out
RXT1200_Platform_Manual_RevB01
Page 15 of 117

3.5 Home Screen
3.6 Quick Access Menu
This multi-tasking section provides convenient and immediate access to system features, connectivity, accessories, results, etc., always at your fingertip. Those
features are always available, independently of whether tests are running or not.
RXT1200_Platform_Manual_RevB01
Page 16 of 117

Go back to TOC
RXT1200_Platform_Manual_RevB01
Page 17 of 117

International user interface style USA Interface style
4.0 Getting Started
4.1 Initial Settings
4.1.1 Change language and user interface style
Before using the platform, set the language and user interface style as needed. By default, the user interface style is set to USA if
the unit is shipped to North America and to International if the unit is shipped to outside North America.
To change the GUI language and user interface style
1. Tap Utilities, and then tap Settings.
2. Tap the Global option.
3. Select the language from the Language drop-down list box.
4. Select the user interface style from the User Interface drop-down list box.
International: Provides layer-based SDH/PDH configuration menus with access to detailed settings
USA: Provides simplified application-based SONET/DSn menu with more automation. The Advanced Mode option
displays the configuration menu for additional settings.
Go back to TOC
4.1.2 Change the time zone and current time
To manually change the Date & Time
1. Tap Utilities, and then tap Settings.
2. Tap the Date & Time option.
3. Select the date and current time from the drop-down list boxes.
4. Tap Apply.
To synchronize the time to the GPS
The GPS receiver hardware option must be installed. For more information on the atomic clock and relative phase monitoring, see
5.1.11 High Precision Clock Source
Go back to TOC
4.1.3 Change other settings
For more information on changing other global settings, such as units of measurement, profile and results save preferences,
password, etc., see Utilities.
Go back to TOC
RXT1200_Platform_Manual_RevB01
Page 18 of 117

4.2 Launching Test Applications
A Quick Guide is always presented in the Home screen after boot up.
This procedure can be started at any time, from any screen or menu.
1. Select an empty Test App button.
Up to two independent tests can run simultaneously (test set or test module dependent)
Some test applications may require two port groups (e.g. router wrap-around test) and may not be supported by all test
modules or test sets configurations
2. Select the desired Test Mode Based on the application to be tested.
3. Tap on the OK button to confirm.
The test port group is assigned to the selected test application and the required software/firmware is loaded.
4.3 Understanding Test Application GUI
RXT1200_Platform_Manual_RevB01
Page 19 of 117

A. Utilities Button: Tap this button access RXT Utility functions Or press the orange App rubber button to toggle.
B. Active Test Application GUI
- Shows the Test Port Group being used and the Test App ID (Rate / Technology)
Tap this button to release the Test App or change its Test Mode.
C. Test Application Menu
Lists all test Functions, Applications and Tools available for the selected test mode
Setup = Port and Test Signal configuration
D. LEDs - Test Signal Status
E. History - Clears past events reminder (blinking)
F. Current test interface line rates
G. Action buttons section
This vertical section displays direct access functions applicable to each specific Test Mode, such as Start/Stop test, Laser
control, Error and Alarm injection, Start protocol capture, etc.
Most of these buttons offer immediate action. A few open a configuration menu.
Go back to TOC
RXT1200_Platform_Manual_RevB01
Page 20 of 117
