WAREMA KNX SA 16M230.32 SMI AP User manual

1
warema_2024841_alhb_en_v3•2023-05-01 We reserve the right to make technical modifications
WARNING
If hazard-free operation cannot be as-
sumed, the device may not be started or
must be deactivated. This assumption is
justified if:
 the housing or the connecting lines show
signs of damage,
 the device is no longer working.
WARNING
It is important to comply with the following
points in the interest of personal safety.
Children may not play with the operating elements of
the control unit or the remote control. Store remote con-
trols out of reach of children.
Make sure that no persons or objects are in the path
of the driven parts (venetian blinds, external venetian
blinds, etc.).
Disconnect the device from the supply voltage if clean-
ing or other maintenance work must be performed.
Function of the sun shading actuator
These functions are integrated in the software.
You will find a detailed description in the KNXSASMI
software manual (art. no. 2024839). You can download
the manual and the product database of the sun shading
actuator from www.warema.de/knx or from the ETS online
catalogue.
Installation
Insert a slotted screwdriver into the respective cover
opening (Fig. 7) and carefully pry open the hinged cover.
Repeat the procedure for the second opening of the cover.
After both latches have been unlatched,
the cover can be removed. Open the second cover in the
same way. Alternatively, the surface-mounted model may
also be mounted on a DIN rail (TH35-15).
When installing, please note that the Up/Down
push button (manual override S1, S2) see
Fig. 5 must also be accessible in the device termi-
nal room after commissioning and allocation of the
motors.
General information

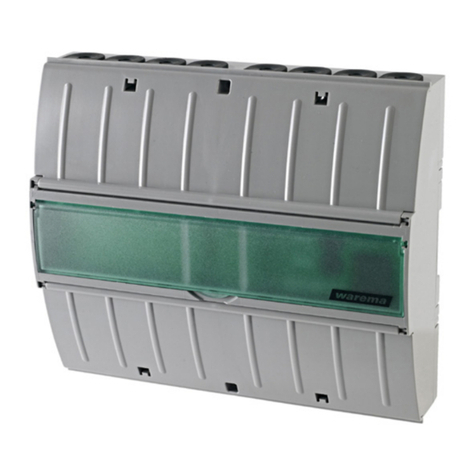

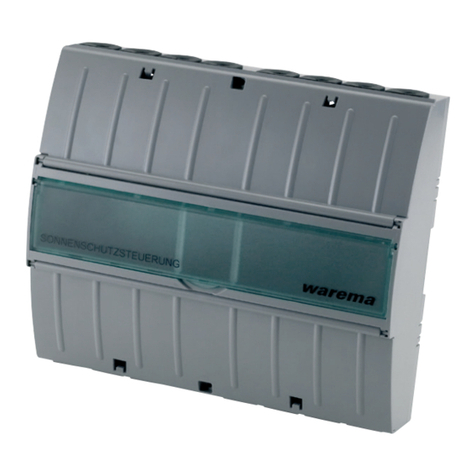

Fig. 1 KNXSA16M230.32 SMI AP /
KNXSA16MDC.32 SMI LoVo AP
The KNXSA16M230.32 SMI AP and the
KNXSA16MDC.32SMILoVo AP sun shading actuators
are devices for the central operation of up to 16 SMI sun
shading drives in up to 16 groups.
The device is operated using a KNX bus system. The
sun shading actuator and the drives are supplied with
230VAC or 24VDC.
Either 4 motors per integrated miniature fuse or 16 mo-
tors without fuse protection can be connected to the SMI
interface.
Additionally, the switch actuator has 32 binary inputs which
can be programmed in ETS.
Intended use
The KNXSA16M230.32SMIAP and the
KNXSA16MDC.32 SMILoVo AP are electronic devices to
control sun shading products. The approval of the manu-
facturer must be obtained for any use of the device other
than its intended purpose specified in these instructions.
The sun shading actuator is intended for installation in
enclosed electrical operating facilities.
Safety instructions
WARNING
The electrical installation (assembly)/dis-
mantling must be performed by a certified
electrician in accordance with the electri-
cal installation regulations published by
the VDE Association for Electrical, Elec-
tronic & Information Technologies (VDE
0100) and/or in compliance with the stand-
ards and legal requirements of the country
in which the device is being installed. The
electrician must observe the installation
instructions included with the electrical
devices supplied.
Installation instructions
KNX SA 16M230.32 SMI AP
KNX SA 16M230.32 SMI
LoVo AP
Valid from
1 May 2023
Keep for future use.

warema_2024841_alhb_en_v3•2023-05-01We reserve the right to make technical modifications
2
Electrical connection
An on-site overload current protection device (fuse) and a
disconnecting and isolating switch to switch off the entire
system must be provided.
The electrical connection is made as shown in the wiring
diagram on the reverse side (Fig. 8 or Fig. 9), the connec-
tion to the KNX bus system and the drives is made using
spring terminals, the connecting lines are designed as
screw terminals.
Commissioning
After the installation has been completed and the operating
voltages have been applied, the correct drive connection
can be operated using a push button (Fig. 5).
(Recommended: slotted screwdriver blade 3.0 - 4.0mm)
You will find a detailed description on the further commis-
sioning in the KNXSMI software manual
(art. no. 2024839).
Commissioning WAREMA KNX SMI actuators always takes
place in the ETS.
The SMI Key IDs are searched for via an automatic motor
search and assignment in the smartphone or the ETS DCA
app. Manual input of the SMI Key ID is possible, but not
necessary.
The app can read out and acknowledge the SMI motors
error list, display the status of the binary inputs or teach in
reversing pulses.
The following video shows the simple commissioning with
the ETS DCA App:
You can find instruction videos on our
YouTube channel at:
https://youtu.be/EiAx1fra4ME
Local operation via App / Bluetooth (LE)
You will find the app for operating the KNX sun shading ac-
tuator in the Apple AppStore and in the Google Play Store.
Download this to your smartphone.
After starting the app, the surrounding area is scanned for
WAREMA
sun shading actuators. Available actuators are shown and
can be operated. Operation via app has the same prior-
ity as manual operation via group objects. The operating
behaviour is as follows:
Brief push of the button = Stop move command
Long push of the button = Up/Down move command.
A detailed description of the operation is integrated in the
app and can also be found in the associated KNXSASMI
software manual (art. no. 2024839). If a motor has not
been allocated to an output, these can only be operated
via SMI Broadcast.
The communication between the smartpe and the
KNX devices is established via Bluetooth. This func-
tion can be switched off using the ETS (in default
mode, the function is always "On").
During parameterisation, change the default pass-
word in accordance with your specifications and
memorise your password in order to prevent opera-
tion by unauthorised persons.
ARNINGW
Never randomly press the keys on the app
without having a line of sight to the sun
shading system.
Fig. 2 Example screen of the KNX SA Smartphone app
Fig. 3 QR code for downloading the iOS app at
www.warema.de/knx
Fig. 4 QR code for downloading the Android app at
www.warema.de/knx
S1 S2
manual
override
S1 S2
manual
override
Fig. 5 Push button for raising/lowering in terminal rooms
The manual override operation, a push button on the
device, has the highest priority and overrides all KNX com-
mands (even the safety objects).
The operating behaviour is the same as the "KNX behav-
iour":
Brief push of the button = Stop,
Long push of the button = Movement.
WARNING
Never randomly press the buttons on the
keypad without having a line of sight to the
sun shading system.

3
warema_2024841_alhb_en_v3•2023-05-01 We reserve the right to make technical modifications
Programming
You can perform programming either in the app or directly
on the device.
There is a Prog button for programming and a display LED
both in the app and on the keypad (see Fig. 6).
The procedure here is basically the same:
 Press the programming button in the app or on the
device (Fig. 6) to put the device into programming
mode. The red LED lights up when programming mode
is active. Programming is performed using the ETS on
the PC. This software ends the programming mode
automatically. The red LED goes out.
 If the programming mode is to be ended earlier, press
the programming button again. The red LED goes out.
Fig. 6 Cover plate with LED to display SMI communication
LED flash patterns:
Communication
LED green
Error
LED
red
Statement
Flashes
irregularly XSMI communication, no fault
Flashes
irregularly
X
SMI communication,
faults occur (the LED
is deactivated during
the motor search &
initialisation)
Lights up
constantly X X
Unparameterised - SMI
bus not yet commis-
sioned or no motors in
the internal motor list
When installing, please note that the Up/Down
switch (manual override S1, S2) see
Fig. 5 must also be accessible in the device termi-
nal room after commissioning and allocation of the
motors.
Maintenance
There are no parts inside the device that require mainte-
nance.
Cleaning
Clean the housing with a soft, dry cloth. Do not use deter-
gents, cleaning agents, solvents, abrasive substances or
steam cleaners!
Liability
Failure to comply with the product information in these in-
structions and any use of the device other than its intended
use may result in the manufacturer refusing to honour
warranty claims for product damage. In this case, liability
for consequential damage to persons or property will also
be excluded. Observe the information in the operating
instructions for your sun shading system. The automatic
or manual operation of the sun shading system while
iced over as well as using the sun shading system during
severe weather may cause damage and must be prevented
by the user through suitable precautions.
Obligations for the disposal of electrical
devices
A marking with this symbol indicates the following
obligations under the scope of legal regulations:

 The owner of this electrical device must dispose of it
separately from unsorted municipal waste for further
recycling.
 Used batteries and accumulators that are not enclosed
in the old device, as well as lamps/bulbs that can be
removed from the old device without breaking, must be
disposed of separately.
 Distributors of electrical devices and disposal compa-
nies are obliged to take back the equipment free of
charge.
 The owner must take it upon themselves to delete any
personal data contained in the electrical device prior to
disposal.

warema_2024841_alhb_en_v3•2023-05-01We reserve the right to make technical modifications
4
Technical data
KNXSA16M230.32SMIAP Min. Typ. Max. Unit
Supply 230 V AC
Operating voltage 198 230 253 VAC
Mains frequency 50 Hz
SMI power consumption
deactivated
1.3 1.7
W with
230VAC
SMI power consumption
activated
2.5 3.5
W with
230VAC
SMI outputs
Number of motors 16 Pc
Number of groups 16 Pc
Number of fuse-protected
SMI motor connections
4 Pc
Number of non fuse-protect-
ed SMI motor connections
1 Pc
Power of fuse-protected SMI
motor connection
(internally
protected with 6.3ATH)
900 VA
Power of non fuse-protected
SMI motor connections
3600 VA
KNXSA16MDC.32SMI
LoVoAP Min. Typ. Max. Unit
24 V DC supply
Operating voltage 21.6 24 26.4 VDC
SMI current consumption
deactivated
7 36 mA with
24VDC
SMI current consumption
activated
8 49 mA with
24VDC
SMI outputs
Number of motors 16 Pc
Number of groups 16 Pc
Number of fuse-protected
SMI motor connections
4 Pc
Number of non fuse-protect-
ed SMI motor connections
1 Pc
Power of fuse-protected SMI
motor connection
(internally
protected with 2.5ATE)
4 A
Power of non fuse-protected
SMI motor connections
16 A
Technical data for both KNX SMI actuators
Binary inputs
Local voltage active 8 24 36 VDC
Local current active 1 1.5 2 mA
Local voltage inactive -0.5 0 4 VDC
Bluetooth transceiver
Transmission frequency 2.4 GHz
Transmission power 0 dBm
Input sensitivity -90 dBm
Operating range
(environment without inter-
ference)
5 m
Interface KNX TP 1
Current consumption KNX 3.5 10 mA
Voltage 30 VDC
Housing
Degree of protection of sur-
face mounted housing
IP30
Safety class
(PE is looped
through, only with KNX SA
16M230.32 SMI AP)
II
Safety class (KNX SA
16MDC.32 SMI AP LoVo)
III
Overvoltage category III
Input/output
insulation voltage
4kVAC / 1min
Miscellaneous
Conformity available at www.warema.de/ce
This device meets the EMC directives for use in residential and
commercial areas.
WAREMA Renkhoff SE declares herewith that this radio system
type KNXSA16M230.32SMIAP and
KNXSA16MDC.32SMILoVoAP is in compliance with the
guideline 2014/53/EU.
Ambient conditions
Operating temperature 0 50 °C
Storage temperature -25 70 °C
Humidity
(not condensing)
10 40 85 %Hrel
Pollution degree 2
Connections
Supply 230VAC Screw terminals
Motor outputs Spring terminals
SMI interface Spring terminals
Push button inputs Spring terminals
KNX bus system Spring terminals
Connection terminals
Supply 230VAC max. 2.5mm²
Stripping length 6.5mm
Torque 0.5 - 0.6Nm
Motor outputs 230VAC max. 1.5mm²
SMI interface max. 1.5mm²
Push button inputs max. 1.5mm²
Stripping length 8mm
KNX bus system 0.6 - 0.8 mm ∅
Stripping length 6mm
Article numbers
KNXSA16M230.32SMIAP 2022210
KNXSA16MDC.32
SMILoVoAP
2022212
WAREMA Renkhoff SE
Hans-Wilhelm-Renkhoff-Str. 2
97828 Marktheidenfeld
Germany
210 mm
119 mm
184 mm
180 mm
60 mm
3 ‒ 4 mm
Fig. 7 Dimensions of 12MW DIN rail-mounted housing for
KNX SA 16M230.32 SMI AP and
KNX SA 16MDC.32 SMI LoVo AP

5
warema_2024841_alhb_en_v3•2023-05-01 We reserve the right to make technical modifications
All push button lines
JY(St)Y 2×2×0.8 mm
Max. line length 200 m
for interference-proof routing,
use a twisted paired line. Binary inputs freely
usable in KNX
-
+-
+
All bus lines
YCYM 2×2×0.8 mm
KNX Bus KNX Bus
power line on-site
230 V AC/50 Hz/16 A
3x1.5 mm²
N
PE
L
N
PE
L
to other
components
X1
KNX SA 16M230.32 SMI AP
PE N PE N L I −
6,3 AT H F1
X7
In9.1 In9.2 In10.1 In11.1 In12.1 In12.2 In11.2 In10.2
In+
X8
KNX- KNX+
X10 X11
In1.1 In1.2 In2.1 In3.1 In4.1 In4.2 In3.2 In2.2 In+ In+ In+ In+ In5.1 In5.2 In6.1 In7.1 In8.1 In8.2 In7.2 In6.2 In+ In+ In+ In+
X2 X3 X5
In+ In+ In+
In13.1 In13.2 In14.1 In15.1 In16.1 In16.2 In15.2 In14.2
In+
In+ In+ In+
nc I +
PE N OUT PE N OUT I − I + I − I + PE N OUT PE N OUT I − I + I − I +
Lout
X4 X6
6,3 AT H F2 6,3 AT H F3 6,3 AT H F4
prog
BLBNBKGY GNYE
to the
motors
Example:
Connection of SMI motors on motor
connection that is not fuse-protected
Maximum of 16 motors
Total power maximum 3600 VA on motor
connection that is not fuse-protected.
Cross-section of motor lines measured
according to total current of all motors.
5 × 1.5 mm2
4
3
1
2
4
3
1
2
4
3
1
2
4
3
1
2
BL
BN
BK
GY
GNYE
BL
BN
BK
GY
GNYE
BL
BN
BK
GY
GNYE
Example:
Connection of motors D370 SMI on
fuse-protected motor connection
Maximum 4 motors
Max. total power of 900 VA on
fuse-protected motor connection
(miniature fuse 6.3 AT H 250 V in the
actuator) when using motor lines
H05RR-F 5 G 0.75 BK, type WAREMA
distributor
M
SMI
I+
PE
L
N
I-
M
SMI
I+
PE
L
N
I-
M
SMI
I+
PE
L
N
I-
BL
BN
BK
GY
GNYE
BLBNBKGY GNYE
M
SMI
I+
PE
L
N
I-
Motor 1
Motor 2
Motor 3
Motor 4
5 × 1.5 mm2
All motor lines
H05RR-F 5 G 0.75 BK
Type WAREMA
4
3
1
2
4
3
1
2
4
3
1
2
4
3
1
2
BL
BN
BK
GY
GNYE
BL
BN
BK
GY
GNYE
BL
BN
BK
GY
GNYE
distributor
M
SMI
I+
PE
L
N
I-
M
SMI
I+
PE
L
N
I-
M
SMI
I+
PE
L
N
I-
BL
BN
BK
GY
GNYE
BLBNBKGY GNYE
M
SMI
I+
PE
L
N
I-
Motor 5
Motor 6
Motor 7
Motor 8
5 × 1.5 mm2
All motor lines
H05RR-F 5 G 0.75 BK
Type WAREMA
S1 S2
manual
override
Fig. 8 Connection example KNXSA16M230.32 SMI AP

warema_2024841_alhb_en_v3•2023-05-01We reserve the right to make technical modifications
6
All push button lines
JY(St)Y 2x2x0.8 mm,
max. line length 200 m,
for interference-proof
routing, use a twisted
paired line.
Binary inputs freely
usable in KNX
-
+-
+
All bus lines
YCYM 2×2×0.8 mm
KNX Bus KNX Bus
power line on-site
24 V DC
0 V
24 V DC
0 V
24 V DC
To additional
components
(depending on
power supply unit)
X1
KNX SA 16MDC.32 SMI LoVo AP
nc 0 V nc 0 V 24 V I −
6,3 AT H F1
X7
In9.1 In9.2 In10.1 In11.1 In12.1 In12.2 In11.2 In10.2
In+
X8
KNX- KNX+
X10 X11
In1.1 In1.2 In2.1 In3.1 In4.1 In4.2 In3.2 In2.2 In+
In+ In+ In+
In5.1 In5.2 In6.1 In7.1 In8.1 In8.2 In7.2 In6.2 In+
In+ In+ In+
X2 X3 X5
In+ In+ In+
In13.1 In13.2 In14.1 In15.1 In16.1 In16.2 In15.2 In14.2
In+
In+ In+ In+
nc I +
nc 0 V 24 V nc 0 V 24 V I − I + I − I + nc 0 V 24 V nc 0 V 24 V I − I + I − I +
Vout
X4 X6
6,3 AT H F2 6,3 AT H F3 6,3 AT H F4
prog
to the
motors
Example:
Connection of SMI LoVo motors on motor
connection that is not fuse-protected
Maximum of 16 motors
Total power maximum 16 A on motor
connection that is not fuse-protected.
Cross-section of motor lines measured
according to total current of all motors and
cable lengths.
Example:
Connection of 4 SMI LoVo
motors on fuse-protected motor
connection
Maximum of 4 motors per
fuse-protected motor connection,
Max. total power of 4 A on
fuse-protected motor connection
(miniature fuse 2.5 AT E 250 V
in the actuator)
distributor
M
SMI
I+
0V
24V
I-
M
SMI
I+
0V
24V
I-
M
SMI
I+
0V
24V
I-
M
SMI
I+
0V
24V
I-
Motor 1
Motor 2
Motor 3
Motor 4
Notice:
Be mindful of voltage drops
across the length of the line when
dimensioning the cable
cross-sections!
S1 S2
manual
override
Fig. 9 Connection example KNXSA16MDC.32 SMI LoVo AP
