Whalen Luke Twin over Twin Loft Bunk Bed with Desk User manual

THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Date 2015-12-19 Rev. 1 Factory: JIYIFO
Luke Twin over Twin Loft Bunk Bed with Desk
Stock # M50807
ADULT ASSEMBLY REQUIRED
If you have any questions regarding assembly or if parts are missing, DO NOT return this item to the
store where it was purchased. Please call our customer service number and have your instructions
and parts list ready to provide the model name, part name or factory number:
866-942-5362
Pacific Standard Time: 8:30 a.m. - 4:30 p.m., Monday - Friday
Or visit our web site 24 hours a day, 7 days a week for product assistance at
www.whalenstyle.com
Or e-mail your request to [e-mail]
LOT NUMBER:
DATE PURCHASED: / /

2
QUALITY GUARANTEE
We are confident that you will be delighted with your Whalen Furniture purchase.
Should this product be defective in workmanship or materials or fail under normal use, we will
repair or replace it for up to one (1) year from date of purchase. Every Whalen Furniture product is
designed to meet your highest expectations. We guarantee that you will immediately see the value of
our fine furniture.
This warranty gives you specific legal rights and you may also have other rights which vary from
State to State.
Customer Service: 866-942-5362
8:30 a.m. - 4:30 p.m., PST, Monday to Friday
www.whalenstyle.com
ALWAYS USE GUARDRAILS ON BOTH LONG SIDES OF THE UPPER BUNK. IF
THE BUNK BED WILL BE PLACED NEXT TO THE WALL, THE GUARDRAIL
THAT RUNS THE FULL LENGTH OF THE BED SHOULD BE PLACED AGAINST
THE WALL TO PREVENT ENTRAPMENT BETWEEN THE BED AND WALL.
STRANGULATION HAZARD - Never attach or hang items to any part of the bunk bed
that are not designed for use with the bed; for example, but not limited to, hooks, belts,
and jump ropes.
Prohibit more than one person on upper bunk.
Maximum mattress thickness must not exceed 9 in. (22.86 cm). Surface of mattress must
be at least 5 in. (12.70 cm) below the upper edge of guardrails.
Use only mattress which is 74 in. (1.88 m) to 75 in. (1.90 m) long and 37 ½ in. (95.25 cm) to
38½ in. (97.79 cm) wide on upper bed and lower bed.
Replacement parts, including additional guardrails, may be obtained from any our dealer.

3
TO HELP PREVENT SERIOUS OR FATAL INJURIES FROM ENTRAPMENT
OR FALLS
•Follow the information on the warnings appearing on the upper bunk end
structure and on the carton. Do not remove warning label from bed.
•Always use the recommended size mattress or mattress support, or both, to help
prevent the likelihood of entrapment or falls.
•Surface of mattress must be at least 5 in. (12.70 cm) below the upper edge of
guardrails.
•Do not allow children under 6 years of age to use the upper bunk.
•Periodically check and ensure that the guardrail, ladder and other components
are in their proper position, free from damage and that all connectors are tight.
•Do not allow horseplay on or under the bed and prohibit jumping on the bed.
•Always use the ladder for entering and leaving the upper bunk.
•Do not use substitute parts. Contact the manufacturer or dealer for replacement
parts.
•Use of a night light may provide added safety precaution for a child using the
upper bunk.
•Always use guardrails on both long sides of the upper bunk. If the bunk bed will
be placed next to the wall, the guardrail that runs the full length of the bed
should be placed against the wall to prevent entrapment between the bed and
wall.
•The use of water or sleep flotation mattress is prohibited.
•STRANGULATION HAZARD – Never attach or hang items to any part of the
bunk bed that are not designed for use with the bed; for example, but not limited
to, hooks, belts, and jump ropes.
•Prohibit more than one person on upper bunk.
•Keep these instructions for future reference.
This product was manufactured December 2015.

4
Parts and Hardware List
Please read completely through the instructions and verify that all listed parts and hardware are present
before beginning assembly.

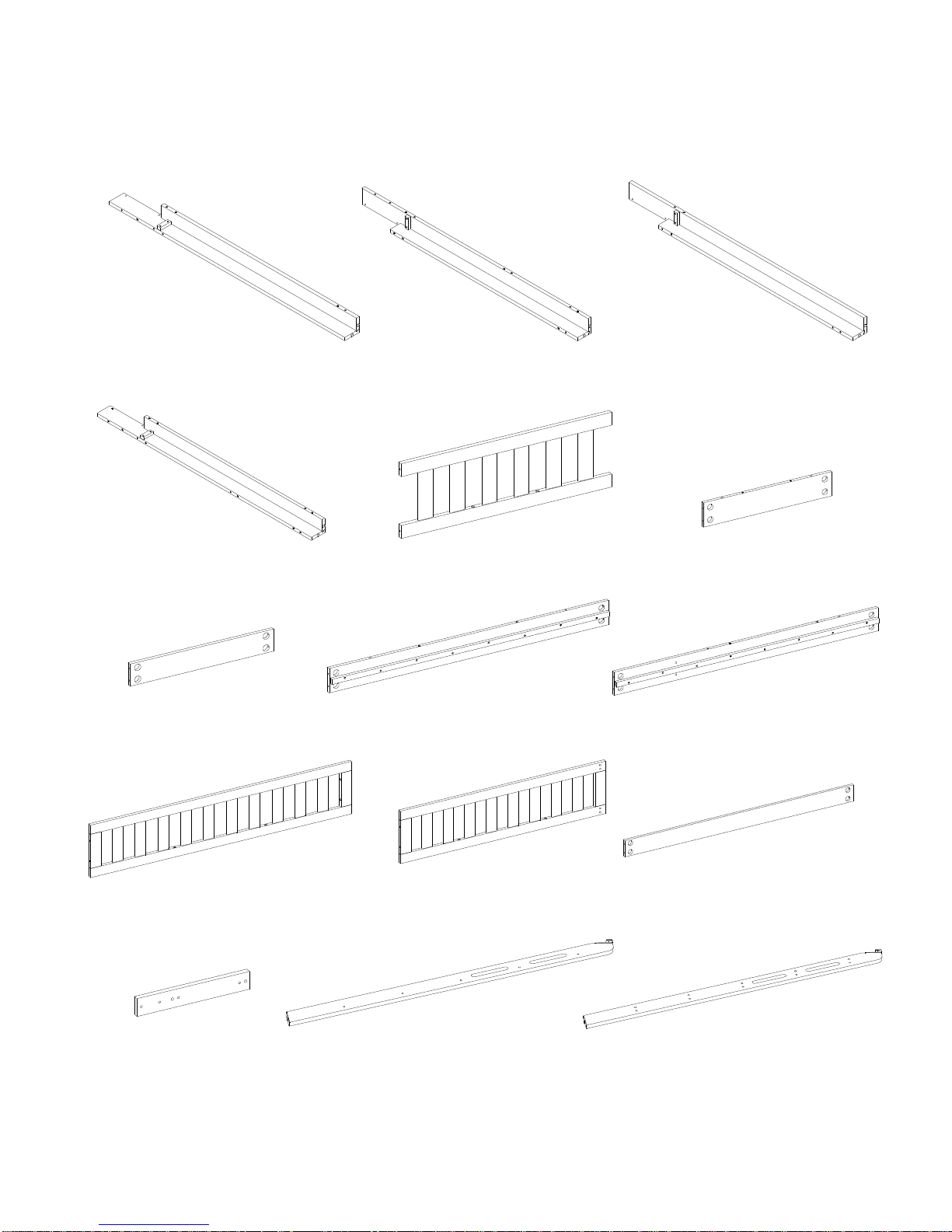

A- Left Front Post B- Left Back Post C- Right Front Post
(Qty. 1) (Qty. 1) (Qty. 1)
D- Right Back Post E- Upper Cross Assembly F- Upper Side Rail
(Qty. 1) (Qty. 2) (Qty. 2)
G- Bottom Side Rail H- Upper Back Side Rail I- Ladder Side Rail
(Qty. 2) (Qty. 1) (Qty. 1)
J- Long Guardrail K- Short Guardrail L- Lower Back Rail
(Qty. 1) (Qty. 1) (Qty. 2)
M- Guardrail Post N- Left Ladder Support O- Right Ladder Support
(Qty. 1) (Qty. 1) (Qty. 1)

5
Parts and Hardware List
Please read completely through the instructions and verify that all listed parts and hardware are present
before beginning assembly.
P- Ladder Step Q- Mattress Support Slats R- Single Bed Left Wing
(Qty. 5) (Qty. 2) (Qty. 1)
S- Single Bed Right Wing T- Single Bed Cross Assembly U- Single Bed Headboard Bottom Rail
(Qty. 1) (Qty. 1) (Qty. 1)
V- Single Bed Left Leg W- Single Bed Right Leg X- Single Bed Footboard Rail
(Qty. 1) (Qty. 1) (Qty. 1)
Y- Single Bed Mattress Side Rail ZA- Desk Top ZB- Left Front / Right Back Leg
(Qty. 2) (Qty. 1) (Qty. 2)
ZC- Right Front/ Left Back Leg ZD- Desk Side Stretcher ZE - Desk Bottom Stretcher
(Qty. 2) (Qty. 2) (Qty. 1)

6
Parts and Hardware List
Please read completely through the instructions and verify that all listed parts and hardware are present
before beginning assembly.

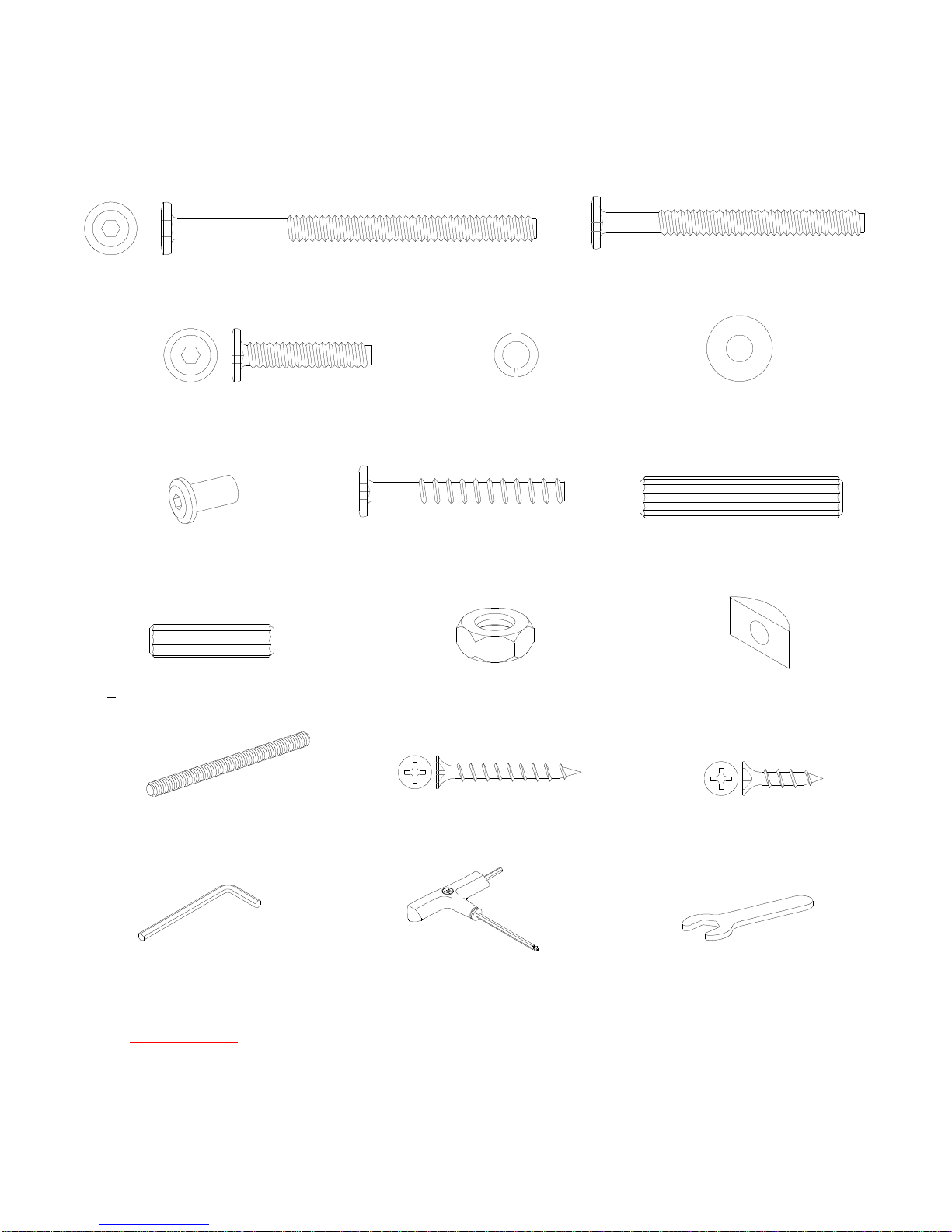

(1) Ø1/4” x 90 mm Bolt (2) Ø1/4” x 65 mm Bolt
( Qty. 16+1 extra) ( Qty. 14+1 extra)
(3) Ø1/4” x 32 mm Bolt (4) Lock Washer (5) Flat Washer
( Qty. 4+1 extra) ( Qty. 8+1 extra) ( Qty. 8+1 extra)
(6) Flange Nut (7) Ø6.5 mm x 48 mm Tapping Bolt (8) Ø10 x 50 mm Wood Dowel
( Qty. 4+1 extra) ( Qty. 26+1 extra) ( Qty. 26+1 extra)
(9) Ø8 x 30 mm Wood Dowel (10) Hex Nut (11) Curved Spacer
( Qty. 2+1 extra) ( Qty. 44+2 extra) ( Qty. 44+2 extra)
(12) Ø1/4” x 80 mm Threaded Rod (13) Ø4 mm x 35 mm Screw (14) Ø4 mm x 19 mm Screw
( Qty. 44+2 extra) ( Qty. 28+1 extra) ( Qty. 2+1 extra)
L-shaped Allen Wrench T-Handle Allen Wrench Open Wrench
(Qty. 1) (Qty. 1) (Qty. 2)
Tools required: Allen wrench, open wrench (provided) and Phillips screwdriver (not provided).

7
DESK ASSEMBLING
1. Unpack the units and confirm that you have all hardware and required parts.

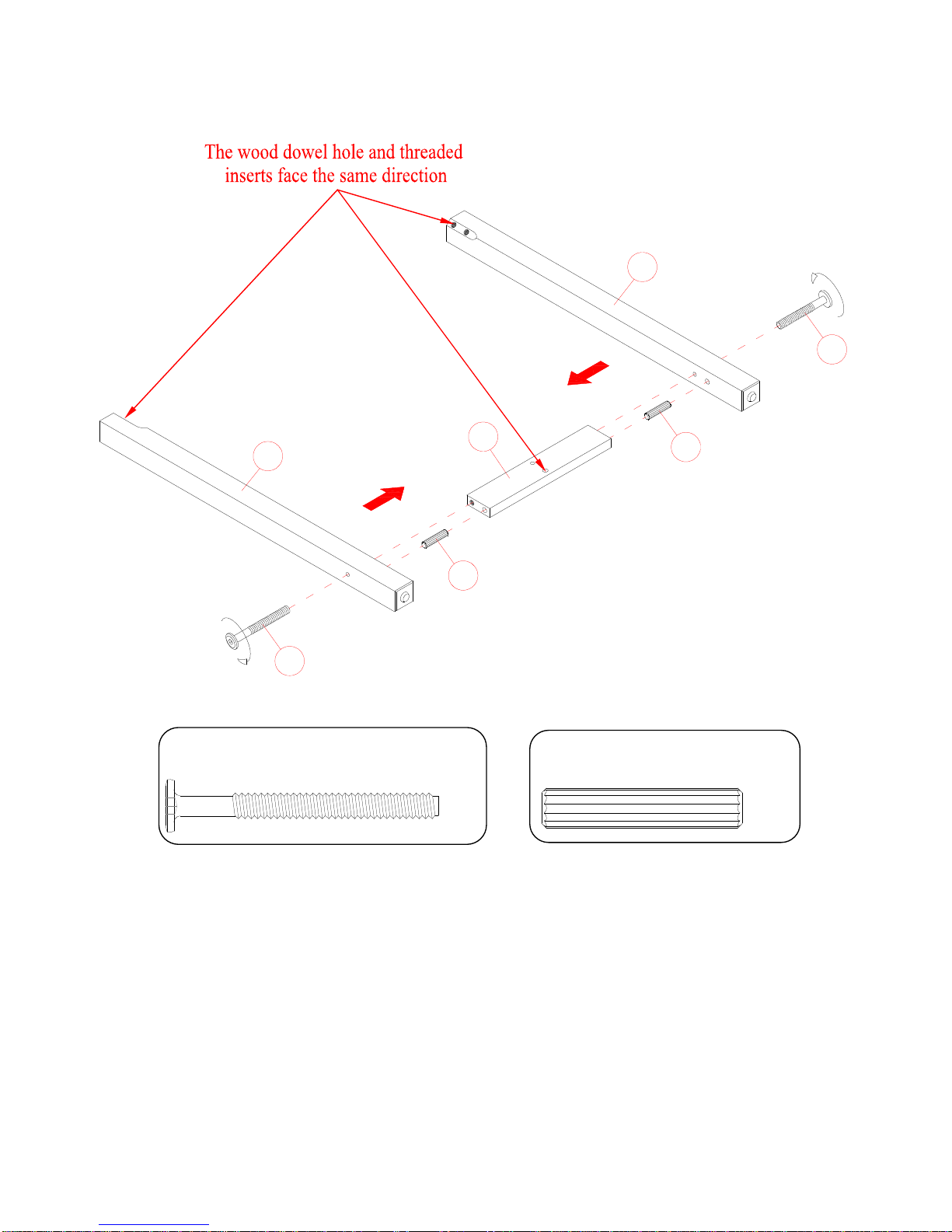

2. Insert two 50 mm Wood Dowels (8) into the non-threaded holes of one Desk Side Stretcher (ZD) at both
ends and attach it between the Desk Legs (ZB and ZC) with two 65 mm Bolts (2) as shown. Make sure
that the wood dowel hole on the stretcher will face inward.
3. Repeat the same procedure to combine the other Desk Side Stretcher (ZD) and Desk Legs (ZB and ZC).
x 2
8
ZC
ZB ZD
2
2
8
Ø10 x 50 mm Wood Dowel
(4 used in this step)
⑧
Ø1/4” x 65 mm Bolt
(4 used in this step)
②

8
DESK ASSEMBLING
4. Place the Desk Top (ZA) upside down on a level and protective surface.
5. Align and attach one leg assembly to the apron corners of the Desk Top (ZA). Insert two 65 mm Bolts (2)
with the Lock Washers (4) and Flat Washers (5) through the corner block and screw into the threaded
inserts in each Leg. As shown.
6. Attach the Desk Bottom Stretcher (ZE) to the Desk Side Stretcher (ZD) with one 65 mm Bolt (2) and one
50 mm Wood Dowel (8).
7. Repeat the same procedure to attach the other leg assembly at the opposite end.
Flat Washer
(8 used in this step)
⑤
Lock Washer
(8 used in this step)
④
Ø10 x 50 mm Wood Dowel
(2 used in this step)
⑧
Ø1/4” x 65 mm Bolt
(10 used in this step)
②
ZC
ZB
ZC
ZB
ZD
ZD
8
ZE
ZA
2
ZD
ZE
ZB ZC
245
ZA

9
SINGLE BED ASSEMBLING
8. Insert two 50 mm Wood Dowels (8) into the large holes of the Single Bed Cross Assembly (T) and attach
it to the Single Bed Headboard Bottom Rail (U) using two 90 mm Bolts (1). Securely tighten the bolts
with the enclosed L-shaped Allen wrench.
Ø10 x 50 mm Wood Dowel
(2 used in this step)
⑧
1
1
8
8
T
U
Ø1/4” x 90 mm Bolt
(2 used in this step)
①

10
SINGLE BED ASSEMBLING

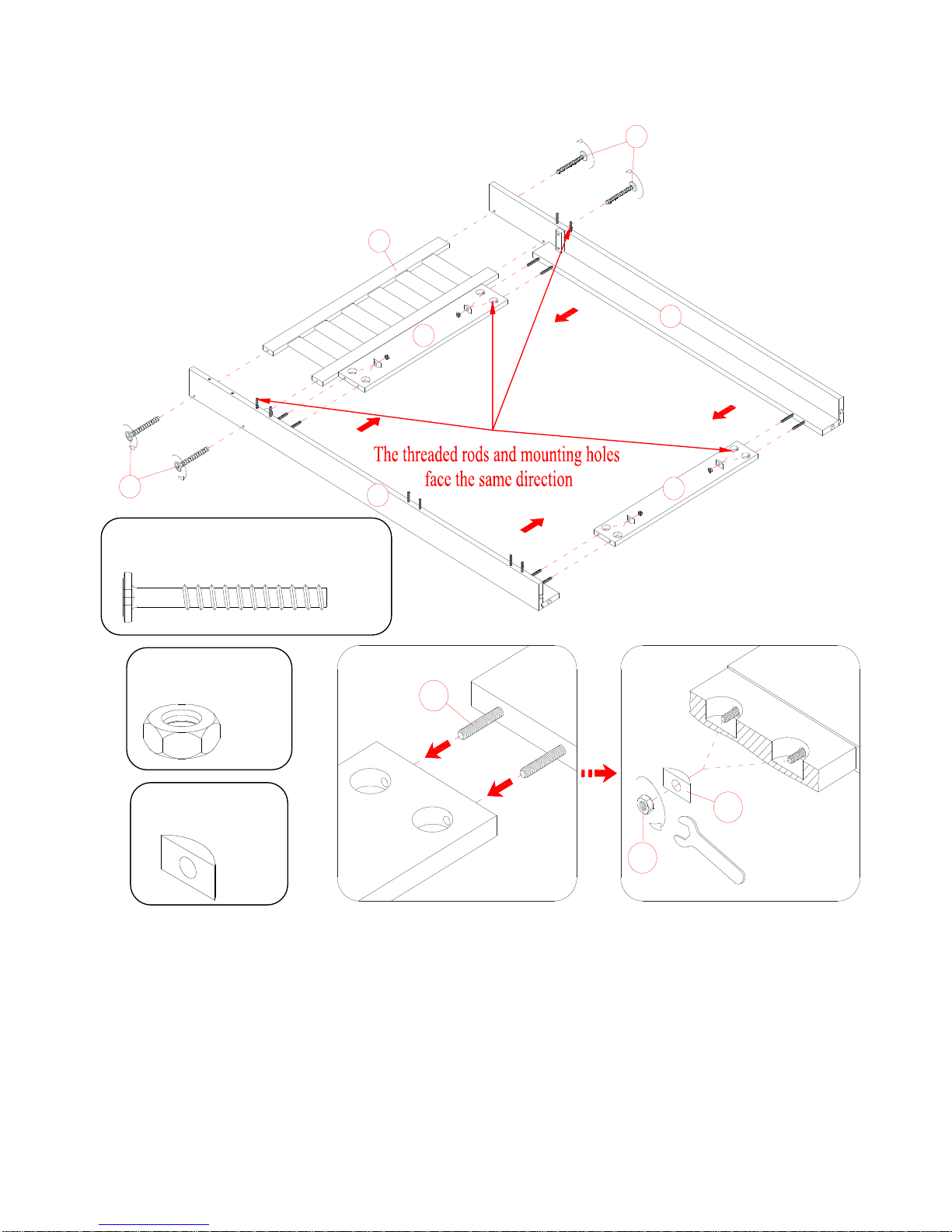

9. Fasten the previous assembly between Single Bed Left and Right Wings (R and S) with eight 48 mm
Tapping Bolts (7). As shown.
T
U
S
R
7
7
7
7
Ø6.5 mm x 48 mm Bolt
(8 used in this step)
⑦

11
SINGLE BED ASSEMBLING
10. Securely screw the Threaded Rods (12) into the threaded inserts on the both Single Bed Headboard
Wings (R and S) and Footboard Legs (V and W).
S
R
12
12
Ø1/4” x 80 mm Threaded Rod
(12 used in this step)
⑫
40mm
VW
12
12
12
12

12
SINGLE BED ASSEMBLING

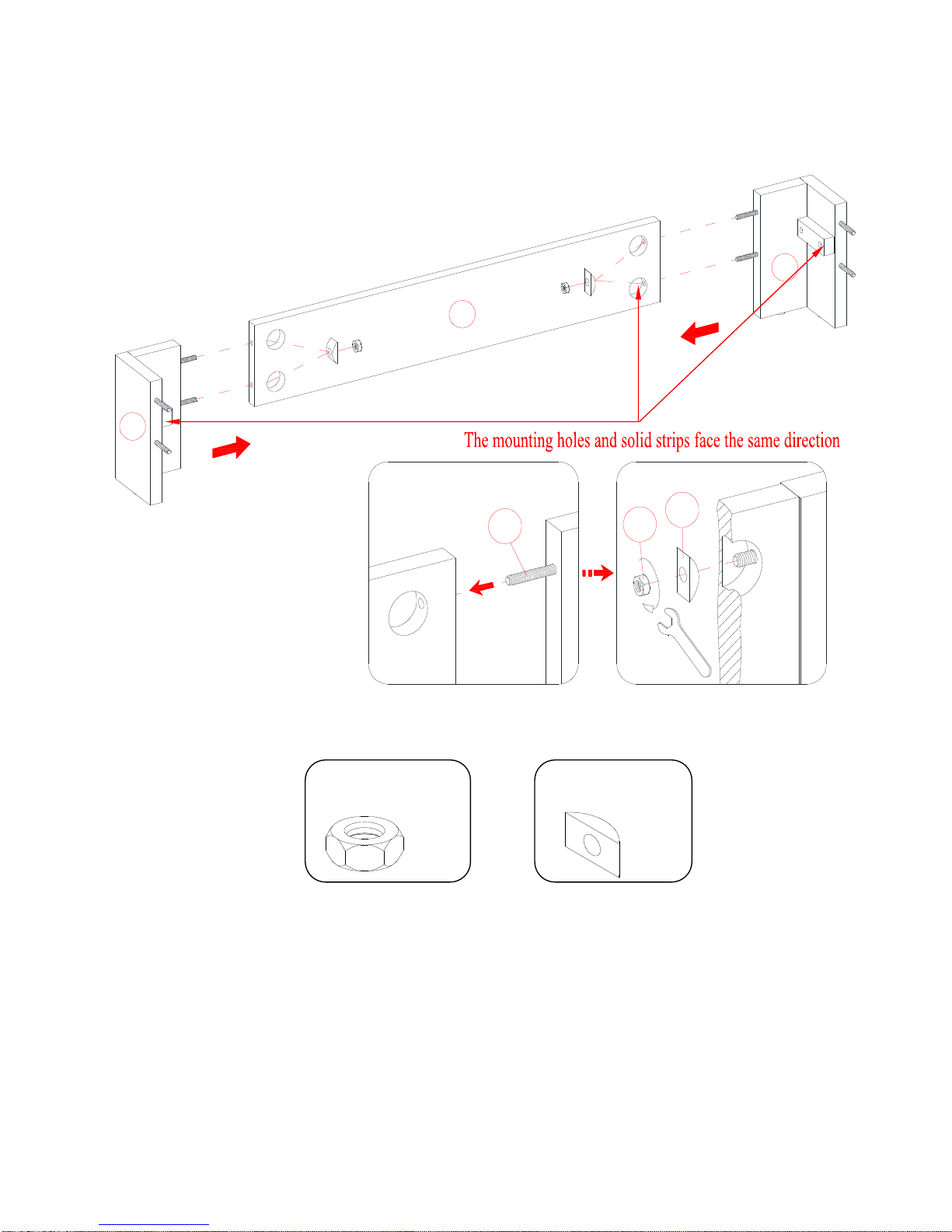

11. Align the installed Threaded Rods (12) on the Single Bed Left and Right Legs (V and W) with the
through holes on the Single Bed Footboard Rail (X) and press them together as shown. Fit the Curved
Spacer (11) and Hex Nut (10) onto each Threaded Rod (12). Securely tighten the nuts with the provided
open wrench.
X
V
W
12 11
10
Curved Spacer
(4 used in this step)
⑪
Hex Nut
(4 used in this step)
⑩

13
SINGLE BED ASSEMBLING

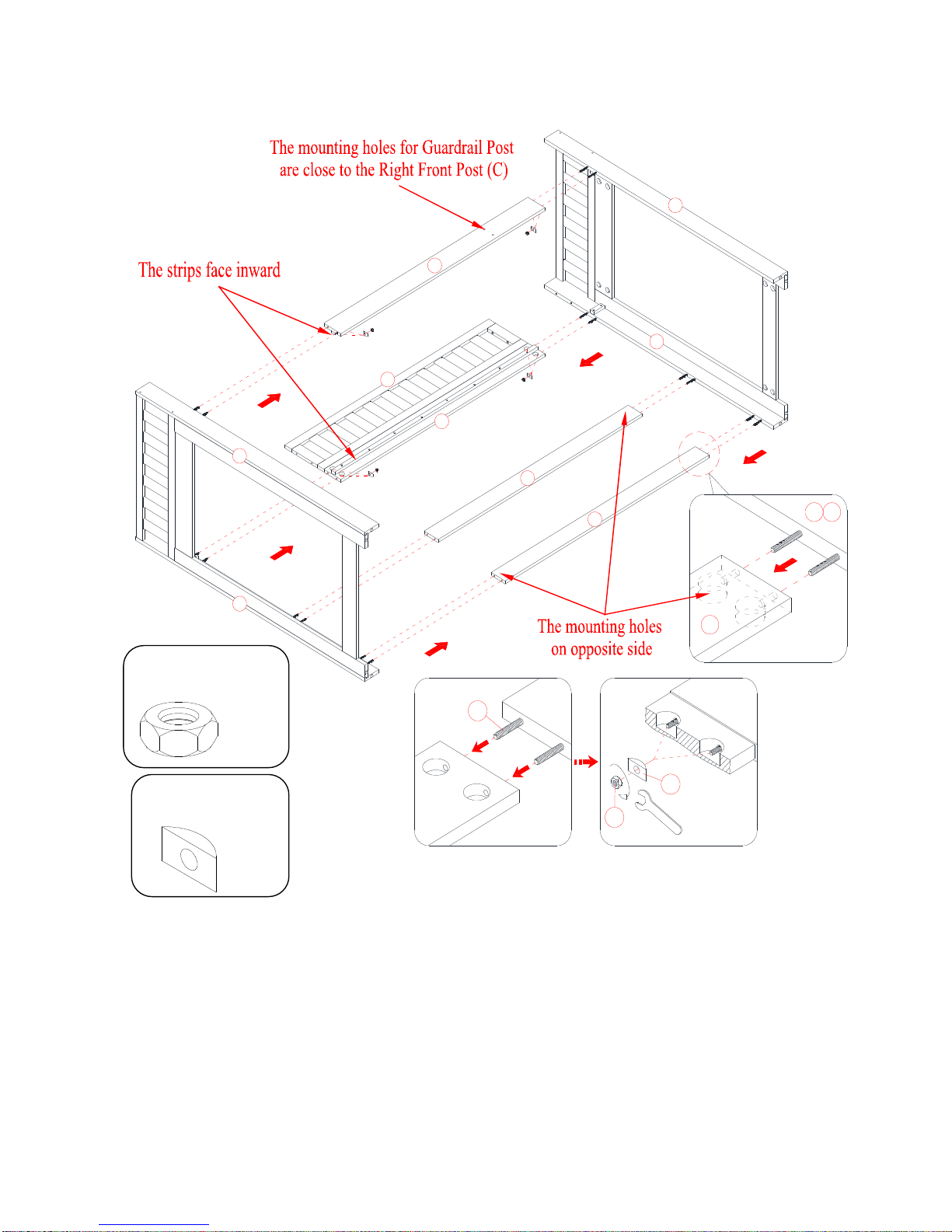

12. Attach two Single Bed Mattress Side Rails (Y) between the assembled Single Bed Headboard and
Footboard keep the solid strips facing inward, using eight Curved Spacers (11) and eight Hex Nuts (10).
S
R
V
W
Y
Y
12 11
10
Curved Spacer
(8 used in this step)
⑪
Hex Nut
(8 used in this step)
⑩

14
SINGLE BED ASSEMBLING
13. Lay out one Mattress Support Slats (Q) onto the strips on the Single Bed Mattress Side Rails (Y). Insert
and screw the 35 mm Screws (13) into the countersunk holes on each slat. Tighten the screws using a
Phillips screwdriver.
Ø4 mm x 35 mm Screw
(14 used in this step)
⑬
13
V
W
Y
Y
S
R
Q
Q

15
LOFT BED ASSEMBLING

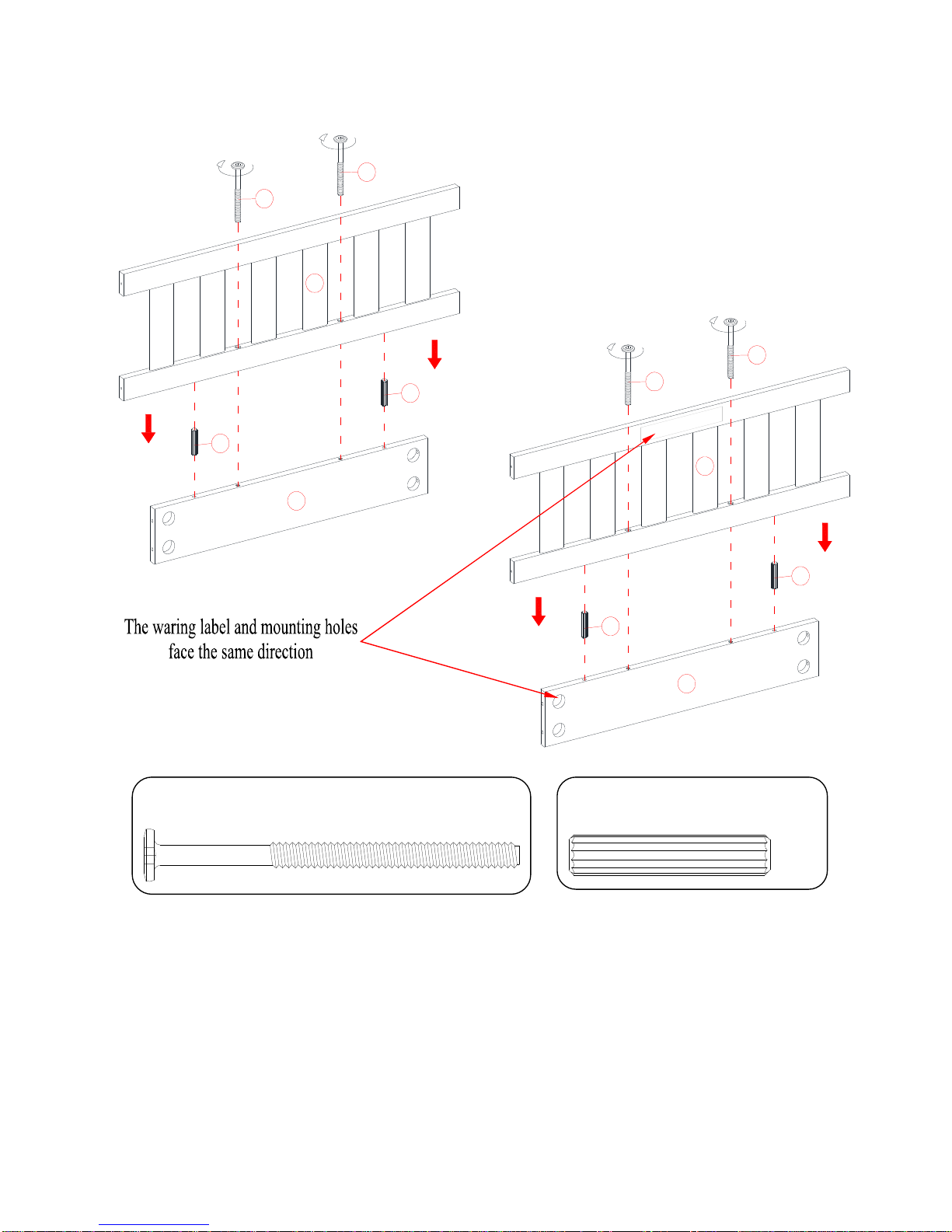

14. Align and attach one Upper Cross Assembly (E) to one Upper Side Rail (F) using two 50 mm Wood
Dowels (8) and two 90 mm Bolts (1). Securely tighten the bolts with the enclosed L-shaped Allen wrench.
15. Repeat the previous step to combine the remaining Upper Cross Assembly (E) with the other Side Rail (F)
as shown.
Ø10 x 50 mm Wood Dowel
(4 used in this step)
⑧
Ø1/4” x 90 mm Bolt
(4 used in this step)
①
1
8
E
8
1
F
1
8
E
8
1
F

16
LOFT BED ASSEMBLING

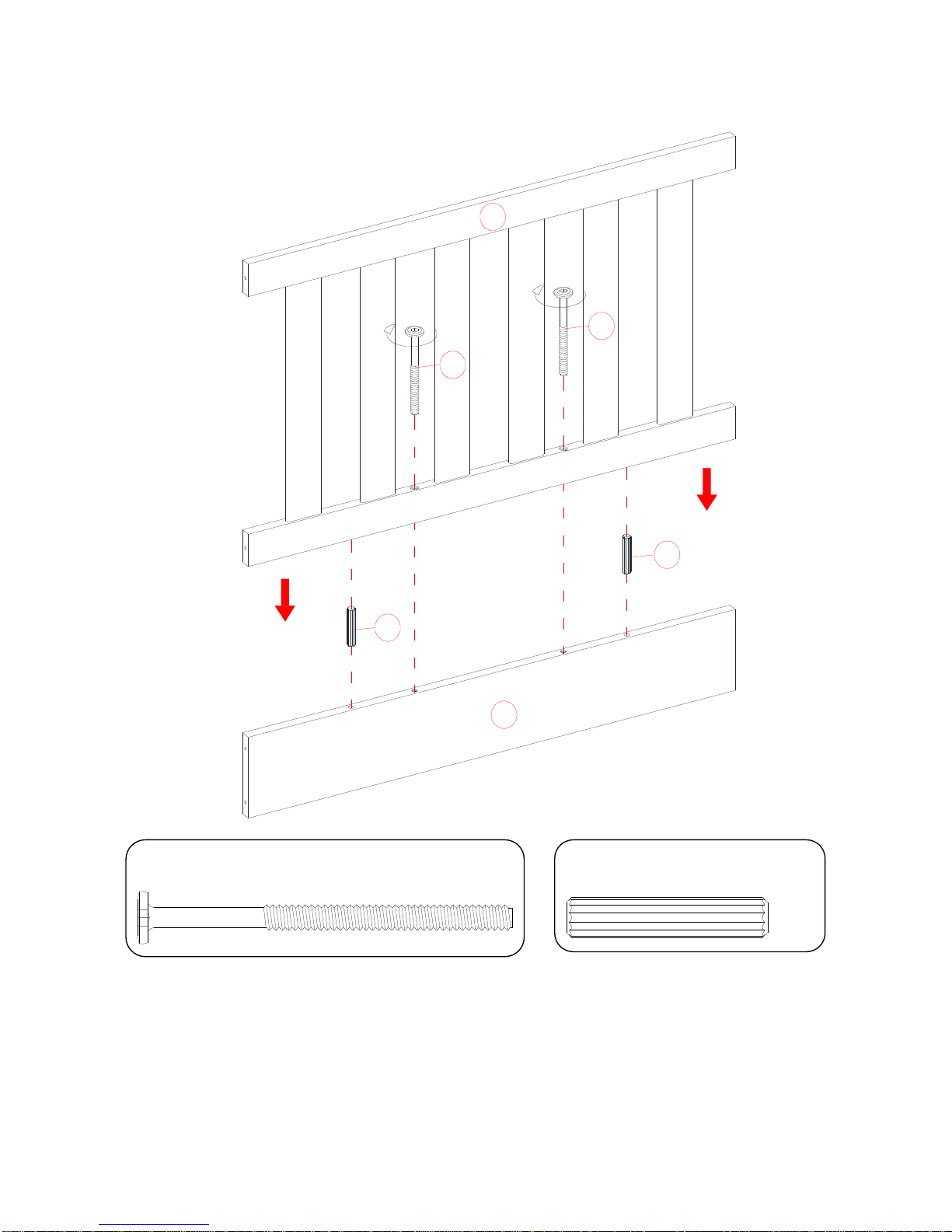

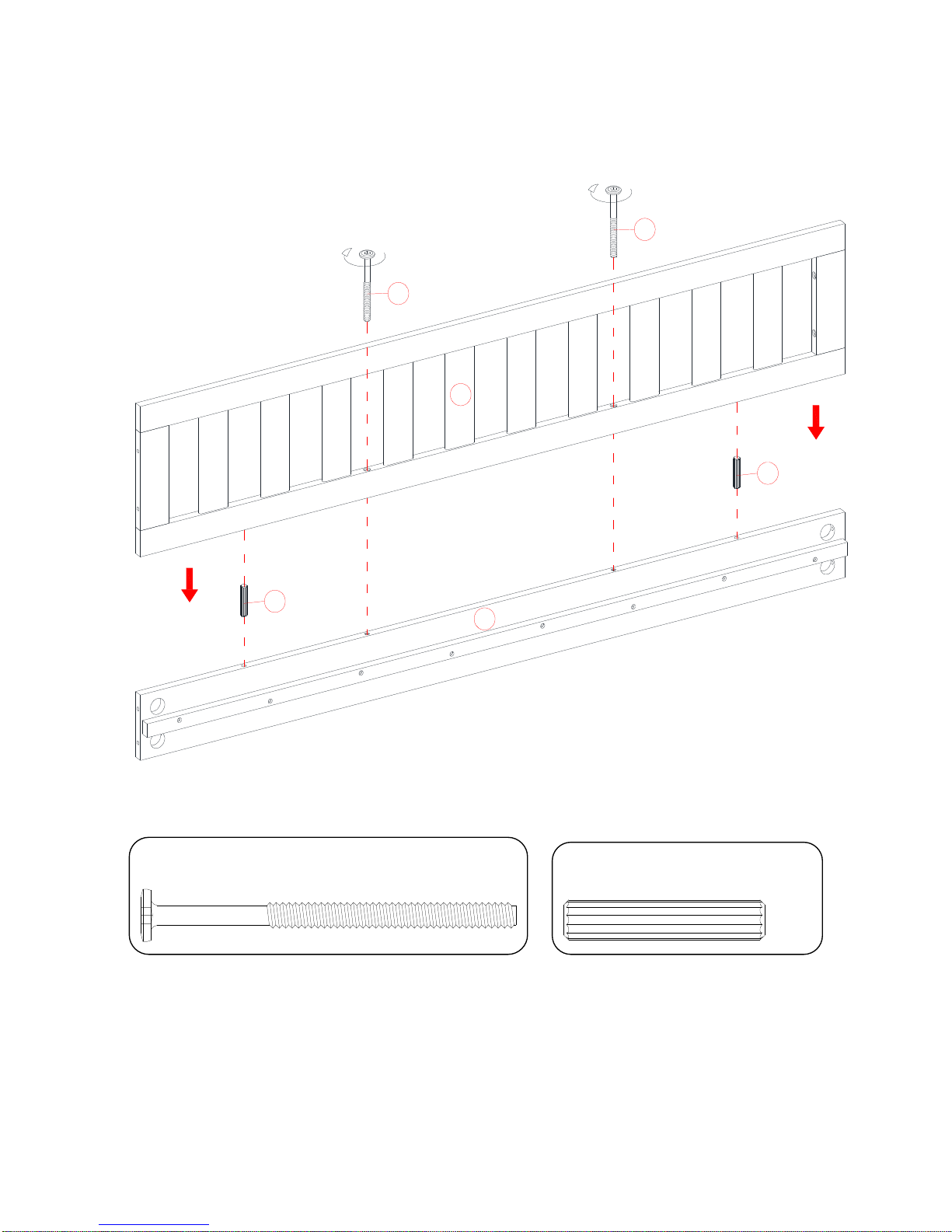

16. Combine the Long Guardrail (J) and the Upper Back Side Rail (H) together with two 50 mm Wood
Dowels (8) and two 90 mm Bolts (1).
Ø10 x 50 mm Wood Dowel
(2 used in this step)
⑧
8
8
1
1
H
J
Ø1/4” x 90 mm Bolt
(2 used in this step)
①

17
LOFT BED ASSEMBLING

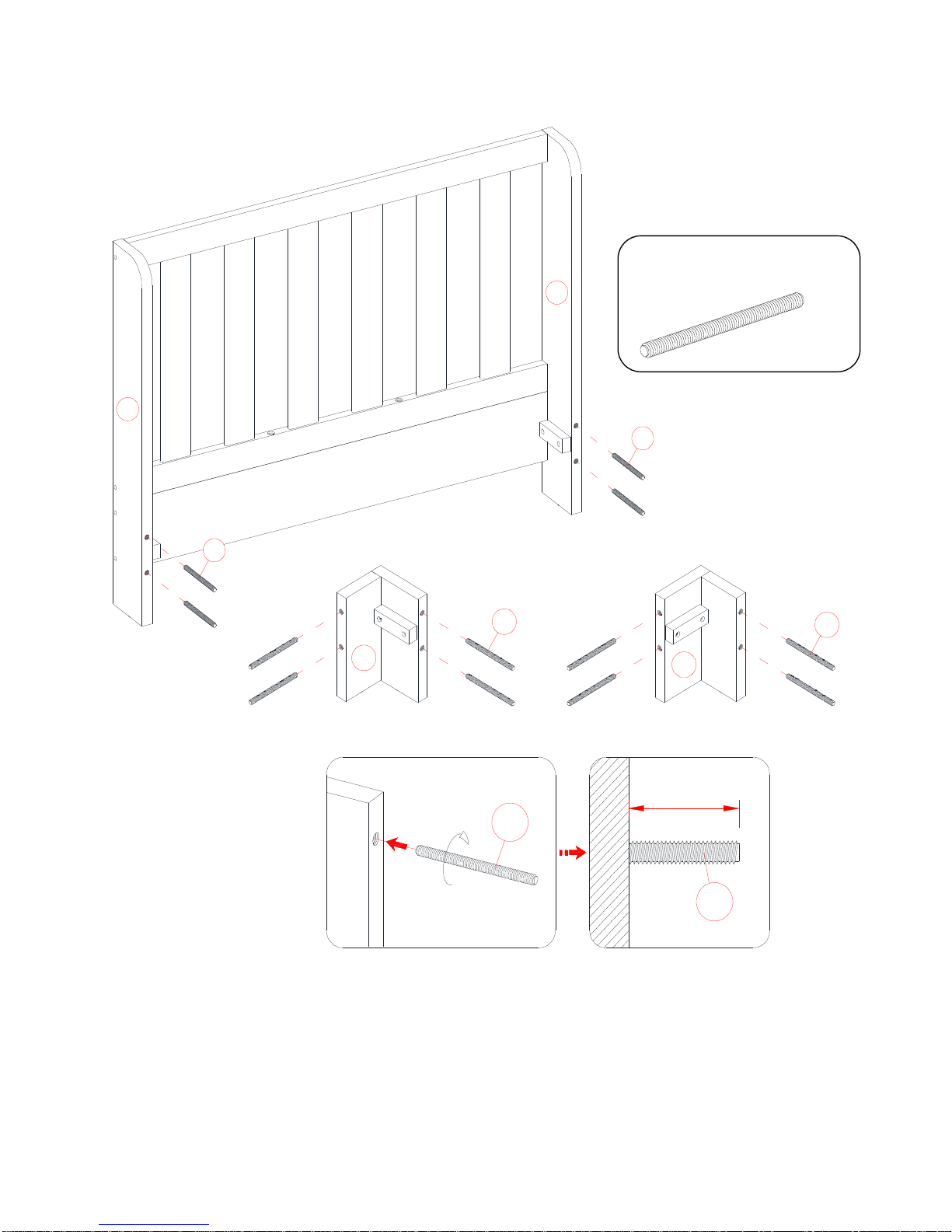

17. Screw the Threaded Rods (12) half way into the threaded inserts on the Posts (A, B, C and D) as shown.
40mm
B
A D
C
12
12 12
12
12
Ø1/4” x 80 mm Threaded Rod
(32 used in this step)
⑫

18
LOFT BED ASSEMBLING
18. Align the installed Threaded Rods (12) on the Left Front and Back Posts (A and B) with the through
holes on the Upper and Bottom Side Rails (F and G) and press them together as shown. Fit the Curved
Spacer (11) and Hex Nut (10) onto each Threaded Rod (12). Securely tighten the nuts with the provided
open wrench.
19. Fasten the Posts (A and B) to the Upper Cross Assembly (E) with four 48 mm Tapping Bolts (7).
Curved Spacer
(8 used in this step)
⑪
B
A
E
F
G
12
11
10
7
7
Hex Nut
(8 used in this step)
⑩
Ø6.5 mm x 48 mm Tapping Bolt
(4 used in this step)
⑦

19
LOFT BED ASSEMBLING
20. Repeat the same procedure to form loft bed footboard.
C
D
E
F
G
12
11
10
7
7
Ø6.5 mm x 48 mm Bolt
(4 used in this step)
⑦
Hex Nut
(8 used in this step)
⑩
Curved Spacer
(8 used in this step)
⑪

20
LOFT BED ASSEMBLING
21. Align the installed Threaded Rods (12) on the Post (B) with the through holes on two Lower Back Rails
(L) and press them together. Be sure the mounting holes on Lower Back Rails (L) will face backward.
22. Align the installed Threaded Rods (12) on the Posts (A and B) with the through holes on the Side Rails
(H and I) and press them together as shown. Fit the Curved Spacer (11) and Hex Nut (10) onto each
Threaded Rod (12). Securely tighten the nuts with the provided open wrench.
23. Repeat the same procedure to attach the loft bed footboard at the opposite end.
C
D
B
A
H
J
L
L
I
12
11
10
L
B D
Hex Nut
(8 used in this step)
⑩
Curved Spacer
(8 used in this step)
⑪
