Worx WA3764 User manual

Vehicle Charger EN
Chargeur pour véhicule F
Cargador de vehículo ES
P03
P06
P10
WA3764

1
23
2
1
1
1
23
2
1
1

Vehicle Charger EN
3
PRODUCT SAFETY
WARNING: This product can expose you
to chemicals including lead, phthalate
or bisphenol A which are known to the State of
California to cause cancer, birth defects or other
reproductive harm. Wash your hands after use.
For more information go to www.P65Warnings.
ca.gov.
IMPORTANT SAFETY
INSTRUCTIONS
1. This manual contains important safety and
operating instructions for battery charger Model
WA3764.
2. Before using battery charger, read all instructions
and cautionary markings on battery charger,
battery, and product using battery.
3. CAUTION –To reduce risk of injury, charge only
Li-Ion type rechargeable batteries. Other types
of batteries may burst causing injury to persons
and damage.
4. Do not expose charger to rain, moisture, or
snow.
5. Use of an attachment not recommended or
sold by the battery charger manufacturer may
result in a risk of fire, electric shock, or injury to
persons.
6. To reduce risk of damage to cigarette lighter
connector and cord, pull by cigarette lighter
connector rather than cord when disconnecting
charger.
7. Make sure cord is located so that it will not be
stepped on, tripped over, or otherwise subjected
to damage or stress.
8. Do not operate charger with damaged cord
or cigarette lighter connector – replace it
immediately.
9. Do not operate charger if it has received a sharp
blow, been dropped, or otherwise damaged in
any way; take it to a qualified serviceperson.
10. Do not disassemble charger; take it to a qualified
serviceperson when service or repair is required.
Incorrect reassembly may result in a risk of
electric shock or fire.
11. To reduce risk of electric shock, unplug charger
before attempting any maintenance or cleaning.
Turning off controls will not reduce this risk.
SAVE THESE
INSTRUCTIONS
Information for radiated emission
This device complies with Canadian ICES-001.
SYMBOLS
To reduce the risk of injury, user
must read instruction manual
Warning

Vehicle Charger EN
4

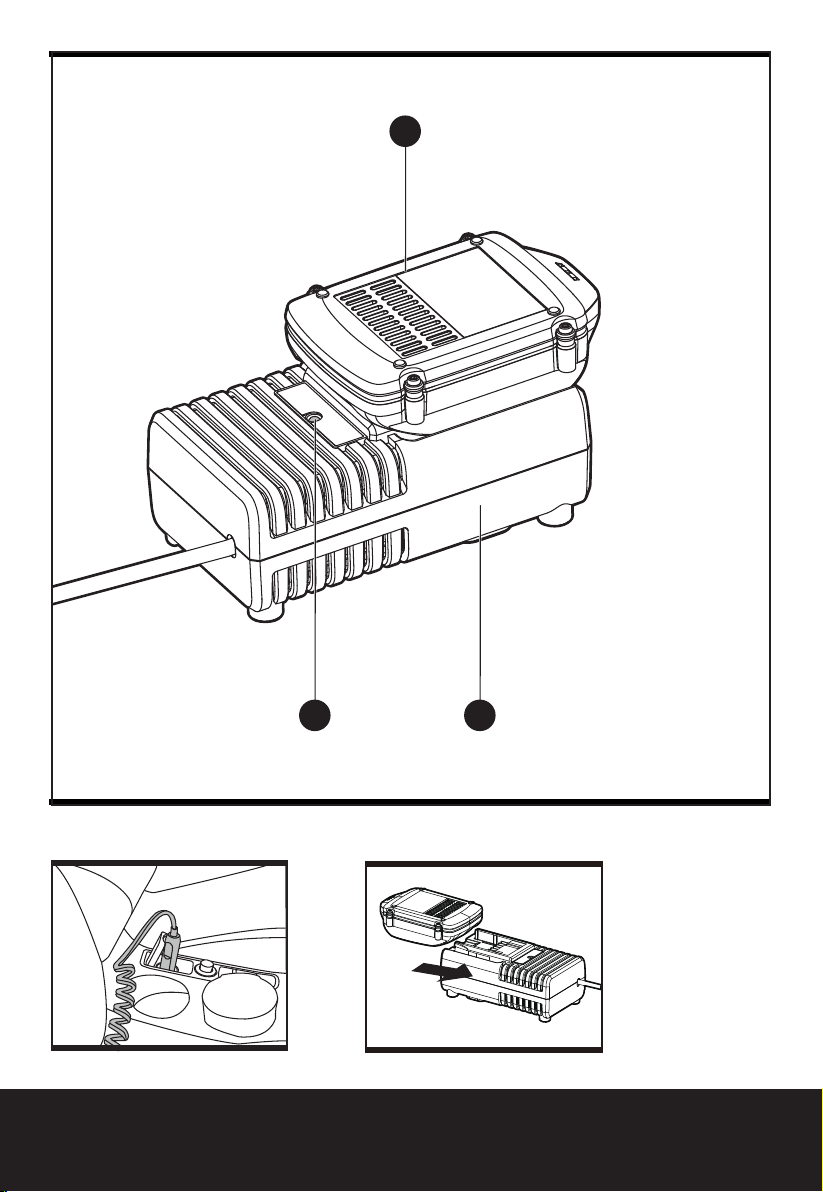

1. BATTERY PACK*
2. CHARGER
3. CHARGE INDICATOR LIGHT
* Not all the accessories illustrated or
described are included in standard delivery.
We recommend that you purchase your accessories
listed in the above list from the same store that
sold you the tool. Use of any other accessory or
attachment may increase the risk of injury. Refer to
the accessory packaging for further details. Store
personnel can assist you and offer advice.
TECHNICAL DATA
Rated Input voltage 11~26V
Output voltage 18-20V
Charging current 2A
Rated Input power 50W
Charge battery Li-ion
Charging time (approx.)
Battery pack:
2.0Ah
4.0Ah 60min
120min
Machine weight 1.1 Ibs
For the technical data of the types, the number of
cells and the rated capacity of the batteries that can
be charged, please refer the nameplate of the battery
pack supplied by WORX.
CHARGING PROCEDURE
NOTE: Before using the tool, read the
instruction book carefully.
CHARGING INSTRUCTIONS
1. CHARGING YOUR BATTERY PACK
WARNING: The charger and battery pack
are specifically designed to work together
so do not attempt to use any other devices. Never
insert or allow metallic objects into your charger
or battery pack connections because an electrical
failure and hazard will occur.
2. BEFORE USING YOUR CORDLESS TOOL
Your battery pack is UNCHARGED and you must
charge once before use.
3. HOW TO CHARGE YOUR BATTERY
CHARGING PROCEDURE
1) Unwrap cord and plug in the car power supply
interface. (See Fig. 1)
2) Insert the battery pack into the charger, making
sure the battery pack is fully seated into the
charger. (See Fig. 2)
WARNING: When battery charge runs
out after continuous use or exposure
to direct sunlight or heat, allow time for the
battery to cool down before re-charging to
achieve the full charge.
NOTICE: To extend the vehicles battery life,
it is recommended to only use the WA3764
charger while the vehicle is in operation.
CHARGING INDICATOR
This charger is designed to detect some problems
that can arise with battery packs. Indicator lights
indicate problems (see table below). If this occurs,
insert a new battery pack to determine if the charger
is OK. If the new battery charges correctly, then the
original pack is defective and should be returned
to a service center or recycling service center. If the
new battery pack displays the same problem as the
original Battery Pack, have the charger tested at an
authorized service center.
Light ON/ OFF
Flash Status
Red on
Defective Battery
Red flash - - - - -
BatteryTemperature
Protection
The temperature of
battery pack is less than
32oF(0oC) or more than
113oF(45oC).
Green on
Fully Charged
Green flash
- - - - - - Charging
BATTERY TEMPERATURE PROTECTION
This charger has a battery temperature protection
feature. When the charger detects a battery pack that
is too hot or cold (the light will be red and flash), it
automatically activates the protection circuit, and
suspends charging until the battery pack has reached
the correct temperature.The charging process will
then automatically begin (the light will be green and
flash).This feature ensures maximum battery life.

Vehicle Charger EN
5
LEAVING THE BATTERY PACK IN THE
CHARGER
If a fully charged battery pack is left in the charger,
the Light will remain green.The battery pack will
remain charging with a maintenance trickle current.
DEFECTIVE BATTERY PACKS
This charger will detect a defective battery pack.
When a defective battery pack is inserted into the
charger, the charger will try to repair it.This process
will last about 30 mins (the light will be green and
flash). If the repair is successful, the charger will
automatically begin to charge the battery pack to the
highest capacity possible (the light will be green and
flash). If the light becomes solid red, the battery pack
is dead.
NOTE: Repaired battery packs are still usable but
should not be expected to perform as much work as
new battery packs.
IMPORTANT CHARGING NOTES:
1. For a new battery or a battery that has been
in storage for sometime, please recharge the
battery before use. If you want to store the
battery for a long time, please fully charge the
battery pack to ensure maximum battery life.
2. Longer life and better performance can be
obtained if the battery pack is charged when
the air temperature is between 650F and 750F
(180-240C). Do not charge the battery pack in air
temperatures below 400F(4.50C), or above 1050
F(40.50 C).This is important as it can prevent
serious damage to the battery pack.
3. Never freeze your charger or immerse charger
in water or any other liquid.
4. When the battery pack fails to produce
sufficient power on jobs that were previously
done easily, please recharge your battery, do
not continue to use under this condition.You
may charge a partially used pack whenever you
desire with no adverse affect on the battery
pack.
5. When charging it is normal that the charger
and battery pack may become warm to touch.
6. If the battery pack does not charge properly:
a. Check current at power outlet by plugging in
another appliance.
b. Plug and unplug to check whether the charger is
ok
c. Check whether the battery has been damaged
d. Move the charger and battery pack to a location
where the surrounding air temperature is
approximately650and 750F(180-240C).
e. If the charging problem persists, take the tool,
battery pack and charger to an authorized
service center.
f. Under certain conditions, when the charger is
plugged into the power supply, the exposed
charging contacts inside the charger can be
shorted by foreign material. Foreign materials
of a conductive nature such as metallic particles
should be kept away from charger cavities.
Always unplug the charger from the power
supply when there is no battery pack in the
charger or before attempting to clean.
PROBLEM SOLUTION
I CANNOT FIT THE BATTERY INTO THE
BATTERY CHARGER. WHY?
a) Check if the charger and the battery pack are
specifically designed for working together.
b) The battery can be inserted into the charger
only in one direction.Turn the battery around
until it can be inserted into the slot, the
indicator light should be green and flash when
the battery is charging.
REASONS FOR DIFFERENT CHARGING TIMES
The charging time can be affected by many reasons
which are not defects in your product.
a) If the battery pack is only partly discharged it
may be re-charged in less than rated charging
time.
b) If the battery pack and ambient temperature are
very cold/ hot, it may take longer to re-charge.
Please find an appropriate environment with
proper air temperature to start charging.
c) If the battery pack is very hot, remove battery
pack from the charger and allow battery pack
to cool first to ambient temperature and then
recharging can be started.
MAINTAIN TOOLS WITH
CARE
Remove the plug from the socket before
carrying out any adjustment, servicing or
maintenance.
Your battery charger requires no additional
lubrication or maintenance. Never use water or
chemical cleaners to clean your charger. Wipe clean
with a dry cloth. Always store your charger in a dry
place.
If the supply cord is damaged, it must be replaced
by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
Do not operate charger with damaged cord or
cigarette lighter connector – replace it immediately.
