ZXV10 H100 Home Gateway
User Manual (Draft)
ZTE CORPORATION

ZXV10H100HomeGateway
User Manual (Draft)
Manual Version
Product Version V1.0
Copyright © 2004 ZTE Corporation
All rights reserved.
No part of this documentation may be excerpted, reproduced, translated, annotated or
duplicated, in any form or by any means without the prior written permission of ZTE
Corporation.
ZTE CORPORATION
ZTE Plaza, Keji Road South, Hi-Tech Industrial Park, Nanshan District, Shenzhen, P.R.China
Website: http://www.zte.com.cn
Postcode: 518057
Customer Support Center: ([phone] 800-9830-9830
Fax: [phone]
Email: [e-mail]
****
S.N.:

FAX: [phone]
Suggestions and Feedback
To improve the quality of ZTE product documentation and offer better services to our customers, we hope
you can give us your suggestions and comments on our documentation and fax this form to
[phone]; or mail to “Marketing center 3rd floor ZTE Plaza, Keji Road South, Hi-Tech Industrial
Park, Nanshan District, Shenzhen, P. R. China”. Our postcode is 518057.
Document name ZXV10 H100 Home Gateway User Manual (Draft)
Product version V1.0 Document version
Equipment installation time
Your information
Name Company
Postcode Company address
Telephone E-mail
Presentation: How is information presented? (Introductions, procedures, illustrations, others)
Good Fair Average Poor Bad
Accessibility: Can you find the information you want? (Table of contents, Index, headings,
numbering, others)
Good Fair Average Poor Bad
Your evaluation
of this
documentation
Intelligibility: Can you understand it when you find it? (Language, vocabulary, readability, others)
Good Fair Average Poor Bad
Presentation:
Accessibility:
Your suggestions
for improvement
of this
documentation
Intelligibility:
Your other
suggestions on
ZTE product
documentation

Preface
Manual Description
Thank you for choosing the wireless Local Area Network (LAN) product-ZXV10
H100 of ZTE Corporation.
The ZXV10 H100 home gateway is a modular access gateway in the center of a home
network. It links multiple devices through Internet connections and provides users with
safe communication, entertainment and storage functions.
How to Use This Manual
This manual describes in detail the installation and configuration methods of this
product. Before installation or use of this product, please read this manual carefully to
comprehensively understand the functions of this product.
Conventions
This manual contains the following conventions in symbols, keyboard operations,
mouse operations and warning marks.
1. Symbols
The information with an angular bracket stands for a key name, button name or
the information that is input at the terminal by an operator. The information with
a square bracket stands for the man-machine interface, menu bar, data table, and
field name. A multi-level menu is separated with an arrow. For example, the
multi-level menu [File→New→Folder] stands for the menu item [Folder] under
the submenu [New] under the menu [File].
2. Keyboard operation convention
Format Meaning
Characters in angle brackets
Key or button name. For example, <Enter>, <Tab>,
<Backspace> and <a> mean carriage return, tab key, backspace
key and letter "a” in lower case.
<key 1+ key 2>
Press several keys on the keyboard at the same time. For
example, <Ctrl + Alt + A> means pressing “Ctrl”, “Alt”, and “A”
at the same time.

Format Meaning
<key, key 2>
Press the first key, and then release it and then press the second
key.For example, <Alt, F> means pressing the “Alt” key, and
then releasing it and then pressing the “F” key.
3. Mouse operation convention
Format Meaning
Click Press and release the left mouse button promptly
Double-click Quickly press twice the left button of the mouse and then release
it.
Right-click Quickly press and release the right button of the mouse
Drag Press and hold the left button of the mouse and move the mouse
4. Identifier
Four eye-catching symbols will appear in this manual to indicate the places
worthy of special attentions during operation:
Attention , Caution ,Warning ,and Danger:
alerting you to some important instructions.
Statement: The actual product may differ from what is described in this
manual due to frequent update of ZTE products and fast development of
technologies. Please contact the local ZTE office for the latest updating
information of the product.

-i-
Contents
1 Introduction of the Product ................................................................................................................... 1-1
1.1 Introduction of the Product ............................................................................................................ 1-1
1.2 Packing List of the Product............................................................................................................ 1-1
1.3 Features of the Product .................................................................................................................. 1-1
1.4 Appearance of the Product ............................................................................................................. 1-2
1.5 System Requirements..................................................................................................................... 1-4
2 System Connections ................................................................................................................................ 2-1
2.1 System Application Environment .................................................................................................. 2-1
2.2 Connecting the LAN Network Interface........................................................................................ 2-1
2.3 Connecting the WAN (ADSL) Network Interface ......................................................................... 2-2
2.4 Connecting the Telephone Set........................................................................................................ 2-2
2.5 Connecting the Power Transformer ............................................................................................... 2-2
3 Client Settings ......................................................................................................................................... 3-1
3.1 TCP/IP Installation......................................................................................................................... 3-1
3.2 TCP/IP Configuration .................................................................................................................... 3-2
3.3 Configuration Inspection ............................................................................................................... 3-3
4 WEB Configuration ................................................................................................................................ 4-3
4.1 Main Logon Interface .................................................................................................................... 4-3
4.2 Basic Configuration ....................................................................................................................... 4-3
4.2.1 LAN Interface Information ................................................................................................. 4-3
4.2.2 ADSL WAN Connection ..................................................................................................... 4-3
4.2.3 Static Route......................................................................................................................... 4-3
4.2.4 RIP Dynamic Route ............................................................................................................4-3

-ii-
4.2.5 DHCP Server ...................................................................................................................... 4-3
4.2.6 DHCP Relay ....................................................................................................................... 4-3
4.2.7 DNS Relay.......................................................................................................................... 4-3
4.2.8 Bridge Connection.............................................................................................................. 4-3
4.2.9 SNTP .................................................................................................................................. 4-3
4.2.10 SNMP ............................................................................................................................... 4-3
4.2.11 WLAN .............................................................................................................................. 4-3
4.3 Advanced Configuration................................................................................................................ 4-3
4.3.1 ADSL Mode Configuration ................................................................................................ 4-3
4.3.2 Firewall Configuration ....................................................................................................... 4-3
4.3.3 MAC Filter ......................................................................................................................... 4-3
4.3.4 IPQoS ................................................................................................................................. 4-3
4.3.5 UPnP................................................................................................................................... 4-3
4.3.6 VLAN ................................................................................................................................. 4-3
4.3.7 Bluetooth ............................................................................................................................ 4-3
4.4 VOIP Configuration....................................................................................................................... 4-3
4.4.1 Protocol Selection/Switchover............................................................................................ 4-3
4.4.2 SIP Configuration ............................................................................................................... 4-3
4.4.3 MGCP Configuration..........................................................................................................4-3
4.4.4 Voice Configuration............................................................................................................ 4-3
4.5 Other Operation Tools ................................................................................................................... 4-3
4.5.1 Configuring the Save and Restore ...................................................................................... 4-3
4.5.2 Device Reset Operation ...................................................................................................... 4-3
4.5.3 Network Connectivity Test Tool: PING.............................................................................. 4-3
4.5.4 ATM OAM Loopback......................................................................................................... 4-3
4.6 Equipment Status and Statistics..................................................................................................... 4-3

-iii-
Appendix A Radio Client Configuration................................................................................................. A-3
Appendix B FAQ....................................................................................................................................... B-3
Appendix C Technical Specification........................................................................................................ C-3

1-1
1 Introduction of the Product
1.1 Introduction of the Product
Thank you for choosing the wireless Local Area Network (LAN) product-ZXV10
H100 of ZTE Corporation.
The ZXV10 H100 home gateway is a modular access gateway in the center of a home
network. It links multiple devices through Internet connections and provides users with
safe communication, entertainment and storage functions.
1.2 Packing List of the Product
The package of the H100 product should contain the following components:
•One H100 host
•One DC power transformer
•One RJ45 10/100BaseT Ethernet cross-connect connection line and one
•parallel connection line
•Two RJ11 telephone lines
•USB Slave connection line
•One Manual and Toolkit CD
•One user manual
•Guarantee card
•Certificate of quality
If any of the above components is missing or damaged, please contact your dealer. In
case of replacement, please keep the package and existing components of the product
well.
1.3 Features of the Product
•Interface Features

ZXV10 H100 Home Gateway User Manual (Draft)
1-2
WAN side:
ADSL interface: Built-in splitter, compatible with ADSL/ADSL2/2+
LAN side:
Fast Ethernet port: four, RJ-45, 10/100Mbps, complies with the IEEE802.3
and IEEEE802.3u standards
WLAN interface: Complies with the IEEE 802.11g/b standard, built-in antenna
Blue Tooth interface: Supports Core V1.2, built-in antenna
POTS interface: RJ11, 2-port
USB interface: 1 master (V2.0) & 1 slave (V1.1)
Extended interface (optional):
Card Bus: One, supports the 16-bit PCMCIA and 32-bit CARDBUS cards
•Technical Features
It implements two functions: data access and IP voice. The data exchange and
forwarding functions of Layer 2 and Layer 3 are implemented for data access
and the IP voice function is implemented according to different signaling
protocols and related network devices. In addition to providing the above
functions, the product gives much consideration to security, QOS and network
management, such as multi-level authentication based on devices, users and
services, encryption of data channels, implementation of QOS requirements
matching the local devices and network according to services with different
requirements, network management based on multiple management modes.
1.4 Appearance of the Product
The planform of the H100 is shown below:

Chapter 1 Introduction of the Product
1-3
The indicators on the front panel of the ZXV10 H100 are shown below:
The meanings of the indicators on the front panel of the ZXV10 H100 are show in the
table below:
Indicators Status Description
On Power-on self-test failure
Fault indicator. Flashing To be determined
The green indicator is
solid on
The device is powered on and the version
is being loaded/upgraded
Off The device is powered off
Run indicator
Flashing The device runs normally
The green indicator is
solid on
The ADSL synchronization is normal and
so is the link connection
Off The link is not set up yet
ADSL LINK indicator
Flashing The link is being set up through
hand-shake negotiation
The green indicator is
solid on
Working (switched on with the WLAN
button)
Off Stops working (switched off with the
WLAN button)
WLAN indicator
Flashing Flashing according to the network traffic
The green indicator is
solid on
Working (switched on with the Bluetooth
button)
Off Stops working (switched off with the
Bluetooth button)
Bluetooth indicator
Flashing Flashing according to the network traffic
The meanings of the indicators on the rear panel of the ZXV10 H100 are show in the
table below:
The meanings of the indicators on the rear panel of the ZXV10 H100 are show in the

ZXV10 H100 Home Gateway User Manual (Draft)
1-4
table below:
Indicators Status Description
The green indicator is solid
on
The physical link connection is normal
Off The device is powered off/the network cable is
unconnected
LAN 1 2 3 4
Flashing Flashing according to the network traffic
On the rear panel of the ZXV10 H100, are two RJ–45 LAN network interfaces, three
RJ–11 interfaces, the reset button and the power supply slot. The details are shown in
the table below:
Buttons Description
Reset button Default functions of the reset button
WLAN button Switch on/off the Wi-Fi function
Bluetooth button Switch on/off the Bluetooth function
1.5 System Requirements
Hardware Requirements
•You need an ADSL modem to access the services provided by the Internet
Service Provider (ISP);
•One PC installed with a 10 Mbps,100 Mbps or 10/100 Mbps Ethernet card;
•If necessary, a Ethernet hub and Ethernet cables can be added to construct a
small and medium Intranet;
Software Requirements
•Each computer accessed into the network should be installed with the network
card driver and the TCP/IP protocol and have correct network settings;
•The H100 has a fixed IP address, or a dynamic IP address allocated from the
DHCP server, or an IP address allocated in the PPPOE dial-up. You also need to
set the gateway server address and the DNS server address provided by your
ISP;
•The Windows 98/Me/2000/NT/Xp or Linux operating system should run
normally;
•One PC of the LAN should be installed with the WEB explorer (Microsoft

Chapter 1 Introduction of the Product
1-5
Internet Explorer 5.0 or later, or Netscape Communicator 4.0 or later) should be
installed in.

2-1
2 System Connections
2.1 System Application Environment

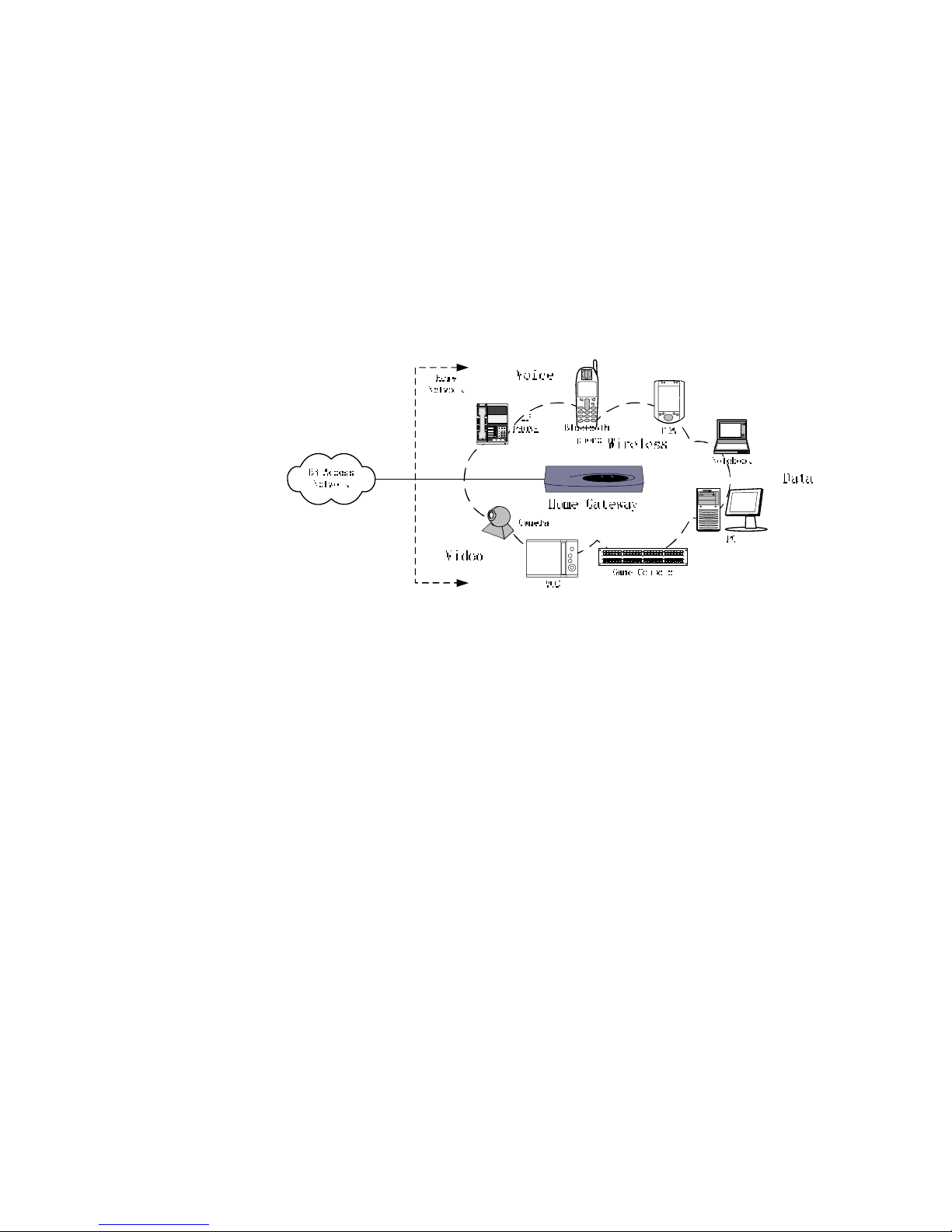

The main application environment of the ZXV10 H100 home gateway is shown below:
PWR
OK
WIC0
ACT/CH0
ACT/CH1
WIC0
ACT/CH0
ACT/CH1
ETH
ACT
COL
12 3
45 6
78 9
*8 #
2.2 Connecting the LAN Network Interface
You can connect the H100 to your computer, Ethernet hub or switch. Use one
cross-over or straight-through Ethernet cable to connect the LAN network interface of
the H100 to the network adapter of your PC or other network devices. You can also use
a WLAN wireless RF signal line to connect the H100 to your computer, but the
antenna on the rear panel of the H100 should be put in an ideal direction.
•Connecting your local network through Ethernet cables
Four LAN network interfaces of the H100 can auto-negotiate the connection
speed of the 10 Mbps/100 Mbps Ethernet and the half-duplex/full-duplex
transmission mode. Use a cross-over or straight-through Ethernet cable co
connect any LAN network interface of the H100 to your PC. You cascade the
LAN network interfaces of the H100, connect them to the Ethernet hub or the
Ethernet switch and then connect your PC or other network devices to the hub or
the Ethernet switch.
•Connecting your local network through WLAN
You need to install a wireless network card on your PC in the local network for

ZXV10 H100 Home Gateway User Manual (Draft)
2-2
access to the network through wireless signals and adjust the antenna on the rear
panel of the H100 to the ideal direction to get the effective coverage. You had
better put the H100 in the center of your radio network. Generally, the higher
your antenna is, the better the performance is. Ensure that the H100 is in the
most ideal position in the whole office or home.
•Connecting your local network through USB cables
•Connecting your local network through bluetooth
Warning:
Be sure not to insert the telephone line into any RJ – 45 network interface; otherwise
the H100 will be damaged. Use Ethernet cables with RJ – 45 connectors in compliance
with the CE standard.
2.3 Connecting the WAN (ADSL) Network Interface
2.4 Connecting the Telephone Set
2.5 Connecting the Power Transformer
Use the power transformer to connect the power to the H100 and ensure that the
running indicator on the front panel of the H100 is on.
Warning:
Please use the power transformer provided by us; otherwise the device might be
damaged.

3-1
3 Client Settings
3.1 TCP/IP Installation
If your client PC is not installed with the TCP/IP protocol, please refer to the following
settings:
Click the <Start> button, select [Settings] and then click the [Network and Dial-up
Connections] icon;
Double click the [Local Connections] icon and then click the <Properties> button in
the [Local Connections] tab;
Click the <Install…> button and then double click the [Protocols] icon;
Select [Internet Protocol (TCP/IP)] and then click the <OK> button to finish the
protocol installation.

ZXV10 H100 Home Gateway User Manual (Draft)
3-2
3.2 TCP/IP Configuration
For access to the Internet through the H100, you must configure the PC in the LAN to
be in the same subnet segment with the H100. The default network settings of the H100
are: the IP address of 192.168.1.1 and the subnet mask of 255.255.255.0.
Attention:
The settings are subject to your network requirements. Be sure to install the above
configurations for the first access to the WEB configuration page of the H100.
If your computer is not configured with TCP/IP, set the IP address of the connected
client host to 192.168.1.x (x is within the range of 2 – 254), as shown below. You can
either set the client IP address to be automatically allocated from the DHCP server, or
manually configure it.
