2N VoiceBlue Next User manual

2N®VoiceBlue Next
User Manual
Version 3.0
Firmware 01.00.04 www.2n.cz

The 2N TELEKOMUNIKACE a.s. joint-stock company is a Czech manufacturer and supplier
of telecommunications equipment.
The product family developed by 2N TELEKOMUNIKACE a.s. includes GSM gateways,
private branch exchanges (PBX), and door and lift communicators.
2N TELEKOMUNIKACE a.s. has been ranked among the Czech top companies for years
and represented a symbol of stability and prosperity on the telecommunications market
for almost two decades. At present, we export our products into over 120 countries
worldwide and have exclusive distributors on all continents.
2Nis a registered trademark of 2N TELEKOMUNIKACE a.s.. Any product and/or other
names mentioned herein are registered trademarks and/or trademarks or brands
protected by law.
2N TELEKOMUNIKACE administers the FAQ database to help you quickly find information
and to answer your questions about 2N products and services. On faq.2n.cz you can find
information regarding products adjustment and instructions for optimum use and

Declaration of Conformity
2N TELEKOMUNIKACE a.s. hereby declares that the 2NStarGate product complies with
all basic requirements and other relevant provisions of the 1999/5/EC directive. For the
full wording of the Declaration of Conformity see the CD-ROM enclosed and at www.2n.cz.
The 2N TELEKOMUNIKACE company is a holder of the ISO 9001:2000 certificate. All
development, production and distribution processes of the company are managed by this
standard and guarantee a high quality and advanced technical level of and a professional
approach to all of our products.

Table of Contents
1. Product Overview...............................................................7
1.1 Product Description....................................................................................................... 8
2N®VoiceBlue Next Basic Features ................................................................................ 8
1.2 Safety Precautions......................................................................................................... 9
1.3 Firmware Upgrade........................................................................................................ 10
1.4 Terms and Symbols Used ........................................................................................... 11
Symbols in Manual......................................................................................................... 11
Future Functions, Innovations........................................................................................ 11
2. Description and Installation............................................13
2.1 Before You Start........................................................................................................... 14
Product Completeness Check........................................................................................ 14
Connector Lay-Out (2-Channel Version)........................................................................ 14
Connector Lay-Out (4-Channel Version)........................................................................ 15
Status LED Indicators..................................................................................................... 15

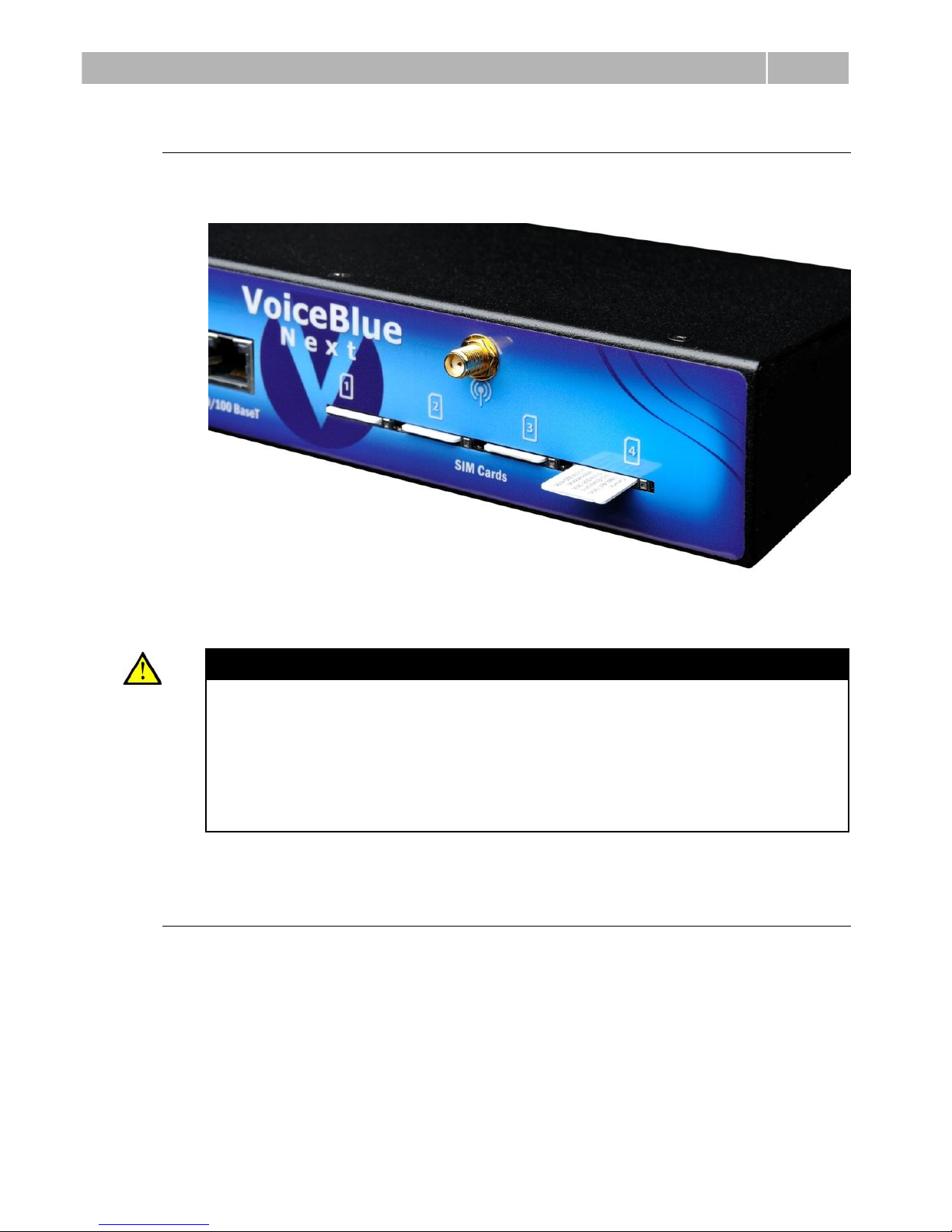

SIM Card Placement (2-Channel Version)..................................................................... 16
SIM Card Placement (4-Channel Version)..................................................................... 17
Licences ......................................................................................................................... 17
GSM/UMTS Network Restriction.................................................................................... 18
Potential GSM/UMTS Troubles...................................................................................... 18
2.2 Factory Settings ........................................................................................................... 19
2.3 Brief Installation Guide................................................................................................ 20
SIM Card Inserting/Removing........................................................................................ 20
Installation Conditions .................................................................................................... 20
Wall Mounting (2-Channel Version) .............................................................................. 22
Horizontal Mounting (4-Chanel Version)........................................................................ 22
System Rack Mounting (4-Channel Version)................................................................. 23
Power Supply Connection.............................................................................................. 25
Antenna Connection....................................................................................................... 26
Ethernet Cable Connection............................................................................................ 26
Antenna Splitter.............................................................................................................. 27
Licence Restrictions ....................................................................................................... 27
Firmware Upgrade.......................................................................................................... 27
2.4 IP Voice Transmission................................................................................................. 29
Speech Encoding Methods ............................................................................................ 29
SIP Components ............................................................................................................ 30
SIP Signalling Messages................................................................................................ 30
2.5 2N®VoiceBlue Next Connection to VoIP.................................................................... 32
SIP / H.323 Interconnection ........................................................................................... 32
Point-to-Point Configuration ........................................................................................... 32

Point-to-Multipoint Configuration.................................................................................... 33
3. 2N®VoiceBlue Next Configuration.................................35
3.1 Factory Reset................................................................................................................ 36
3.2 Basic Configuration –Step by Step ........................................................................... 37
3.3 Call Routing .................................................................................................................. 39
Mobility Extension .......................................................................................................... 39
LCR Table ...................................................................................................................... 40
Routing Algorithm for Outgoing Calls............................................................................. 41
Routing Algorithm for Incoming Calls............................................................................. 42
DISA Welcome Note ...................................................................................................... 44
3.4 Web Configuration Interface ....................................................................................... 45
Essential Data ................................................................................................................ 45
Login............................................................................................................................... 45
Web Icons....................................................................................................................... 46
Home Page..................................................................................................................... 46
Gateway ......................................................................................................................... 47
Utils................................................................................................................................. 64
Update............................................................................................................................ 65
Restart............................................................................................................................ 65
SIM client........................................................................................................................ 65
4. Terminal............................................................................67
4.1 Terminal-Based Communication................................................................................ 68
Terminal.......................................................................................................................... 68
Access Data ................................................................................................................... 68
4.2 AT Interface................................................................................................................... 69
Basic Commands ...................................................................69
Configuration commands......................................................70
4.3 LOGs.............................................................................................................................. 74
4.4 CDR................................................................................................................................ 76
4.5 Available Status Messages ......................................................................................... 77
GSM Layer Statuses ...................................................................................................... 77
Link Layer Statuses........................................................................................................ 78
Command Shell Statuses............................................................................................... 78
Records of Events and Calls.......................................................................................... 79
4.6 Statistics........................................................................................................................ 80
4.7 Tracing........................................................................................................................... 82
4.8 External SMS Control................................................................................................... 83

5. Technical Parameters......................................................85
5.1 Technical Parameters .................................................................................................. 86
6. Supplementary Information ............................................89
6.1 Regulations and Directives ......................................................................................... 90
6.2Troubleshooting ........................................................................................................... 91
6.3 List of Abbreviations.................................................................................................... 92
6.4 General Instructions and Cautions ............................................................................ 94
Electric Waste and Used Battery Pack Handling ........................................................... 95

7
1
1. Product
Overview
In this section, we introduce the 2N®VoiceBlue Next product, outline its application
options and highlight the advantages following from its use. This section also includes
safety instructions.
Here is what you can find in this section:
Product Description
Safety Precautions
Firmware Upgrade
Terms and Symbols Used

Product Description
1.1
8
1.1 Product Description
2NVoiceBlue Next is a device that helps directly interconnect a SIP-supporting VoIP
network with GSM networks and can be used for direct connection with a telephone
set. The voice mode, i.e. outgoing and incoming calls, is the basic function of the
gateway. 2NVoiceBlue Next is equipped with all voice mode functions and provides
the highest user comfort. In addition to voice transmission, 2NVoiceBlue Next
enables you to send and receive text messages (SMS). No additional equipment (such
as an external phone) is needed for normal operation. You can use the web interface
or AT commands for all the gateway settings. The programmable parameters are set
in such a way that you can make calls the moment you connect the system to the
Ethernet, connect an antenna and insert the SIM card. 2NVoiceBlue Next can be
combined with the 2N Mobility Extension service (remote GSM extension) for up to 8
users1. 2NVoiceBlue Next also provides connection to the 2NSIM Star system2.
2N®VoiceBlue Next Basic Features
Compact size
Two/four GSM/UMTS channels2
System rack installation option2
Intelligent incoming/outgoing call routing
SMS sending/receiving (web, AT interfaces)
User-friendly web interface
Power over Ethernet (PoE)
A single antenna for 1 or 2 GSM modules
Automatic call records and detailed statistics
2N Mobility Extension support
2NSIM Star support
Possibility of SMS sending+receiving via web interface
Tone detection
1Depending on the available licence type
2Depending on the part number

Safety Precautions
1.2
9
1.2 Safety Precautions
It is prohibited to use any transmitters, including the UMTS/GSM devices, in areas
where explosives are used, such as quarries.
It is prohibited to use the GSM gateways at petrol stations where mobile telephones
are also prohibited.
GSM phones may affect sensitive life-saving devices in medical centres. Therefore, it is
forbidden to use GSM/UMTS devices, including the GSM gateways, in such facilities.
In general, any prohibition regarding mobile phones based on RF energy radiation
applies to GSM/UMTS devices too.
If necessary, the GSM gateways may be installed at a safe distance from the
prohibited area and connected with the original place through an Ethernet cable.
Although GSM gateways are not intended for cars or aeroplanes, all relevant
prohibitions and regulations regarding mobile phones apply to them too.

Firmware Upgrade
1.3
10
1.3 Firmware Upgrade
The manufacturer reserves the right to modify the product in order to improve its
qualities.
In response t
the software contained in the product (firmware). For the latest 2NVoiceBlue Next
firmware version and the User Manual refer to the 2N web sites.
For a detailed description of the 2NVoiceBlue Next firmware upgrade see the section
devoted to the system installation.
Manual
Version
Upgrade
1.1
The User Manual relates to the 2NVoiceBlue Next firmware
version 01-00-02.
2.0
The User Manual relates to the 2NVoiceBlue Next firmware
version 01-00-04.
3.0
New four-channel 2NVoiceBlue Next version.

Terms and Symbols Used
1.4
11
1.4 Terms and Symbols Used
Symbols in Manual
Safety Warning
Always abide by this information to prevent injury of persons.
Warning
Always abide by this information to prevent damage to the device.
Caution
Important information for system functionality.
Tip
Useful advice for quick and efficient functionality.
Note
Routines or advice for efficient use of the device.
Future Functions, Innovations
The grey-marked text in this document designates the functions that are under
preparation or development at present.

13
2
2. Description and
Installation
This section describes the proper 2N®VoiceBlue Next product installation and
connection.
Here is what you can find in this section:
Before You Start
Factory Settings
Brief Installation Guide
IP Voice Transmission
2NVoiceBlue Next Connection to VoIP

Before You Start
2.1
14
2.1 Before You Start
Caution
Make sure that you are equipped with all system components necessary
for putting 2NVoiceBlue Next in operation (SIM card, VoIP phone and/or
duly configured SIP line of your SIP Proxy, an available 100BaseT socket
and a PC for initial settings).
Product Completeness Check
Before installing this product, check whether the 2NVoiceBlue Next delivery complies
with the following packing list. Be careful because there may be differences in the
packing list depending on whether you have ordered a two-channel or four-channel
version of the 2NVoiceBlue Next product (different part numbers).
Package
2ch VBN
4ch VBN
2NVoiceBlue Next
1
1
Power supply adapter
1
1
Short antenna
1
None
Long antenna
1
1
Ethernet cable
1
1
2N CD User Manual and SW
1
1
Wall-mounting set
1
None
SIM card cover including screws
1
None
Rubber feet
None
4
Connector Lay-Out (2-Channel Version)
The following connectors are mounted on the 2NVoiceBlue Next bottom:
Power supply connector DC jack 2.1mm
10/100BaseT Ethernet connector
RESET button press for a short time to restart the GSM gateway and for a long time
to restart the GSM gateway and download the factory settings.

Before You Start
2.1
15
Connector Lay-Out (4-Channel Version)
The following connectors are mounted on the 2NVoiceBlue Next bottom:
10/100BaseT Ethernet connector with PoE support
RESET button press for a short time to restart the GSM gateway and for a
long time to restart the GSM gateway and download the factory settings.
Antenna connector for all GSM/UMTS channels
SIM holder
Find a power supply connector (DC Jack 2.1mm) and type plates at the rear.
Status LED Indicators
The 2NVoiceBlue Next states are indicated by LEDs on the front and system
connector sides. For the LED types see the table below.

Before You Start
2.1
16
Power supply
indicator
Blue shining
Connected, correct function
Blue flashing
Device error
No light
Disconnected, malfunction
UMTS / GSM
No light
Logged-in module, ready
Green shining
Active call
Green fast flashing
Module initialisation / communication
Green slow flashing
GSM/UMTS login process
Red shining
GSM module blocked /no SIM card
Red fast flashing
GSM module off
Orange shining
Initialisation upon GSM gateway power up
LAN
Green shining / Orange not shining
100BaseT Ethernet disconnected, no operation
Green shining / Orange flashing
100BaseT Ethernet connected, network
operation
Green not shining/ Orange shining
10BaseT Ethernet connected, no operation
Green flashing / Orange shining
10BaseT Ethernet connected, network
operation
SIM Card Placement (2-Channel Version)
Lift off the SIM card holder on the 2NVoiceBlue Next backside, insert the SIM card
and replace the holder, securing the latch.
1/2

Before You Start
2.1
17
SIM Card Placement (4-Channel Version)
Insert a SIM card into one of the four SIM holders on the 2NVoiceBlue Next front
making sure that the chip contacts are at the front bottom. The SIM holders are
equipped with the push&pull technology for facilitation.
Caution
Remember to set call forwarding, call barring, preferential network(s),
SMS centre and similar provider and SIM card services in your mobile
phone before inserting the SIM card in 2NVoiceBlue Next.
If two SIM cards are used, both of them must have an identical PIN,or
PIN request disable must be selected.
Disconnect 2NVoiceBlue Next from the power supply before inserting
the SIM cards!
Licences
2NVoiceBlue Next may contain time-limited software licences (SIP signalling,
Mobility Extension, e.g.) that render services for limited hours only. Every gateway
restart adds one hour to the internal licence counter. To check the current licence
status, use the web interface of the gateway (refer to Subs. 3.4, p. 45), or the AT
interface of the Telnet protocol (refer to S. 4, p. 67).

Before You Start
2.1
18
Caution
A GSM gateway with an expired licence cannot process any incoming
and/or outgoing calls! To avoid this, ask your dealer for licence
prolongation or an unlimited licence!
GSM/UMTS Network Restriction
Some 2NVoiceBlue Next types may be restricted to certain GSM/UMTS networks
only. If so, the red indicator at the given GSM/UMTS module is on and the netw-err
cause is detected. Contact your dealer please for more information.
Tip
Contact your dealer please for more information.
Potential GSM/UMTS Troubles
All 2N GSM gateways work reliably under a long-time full load. The following problems
may be caused by GSM/UMTS networks:
GSM/UMTS module(s) cannot log in, log in slowly, or log out occasionally. This
problem may be caused by any of the following situations:
The GSM/UMTS signal is low. The minimum signal level should be
approximately -80dBm. If lower, change the antenna position or type!
The GSM/UMTS cell (BTS) to which the GSM/UMTS modules are trying to
log in is overloaded. Change the antenna position or reduce the count of
the logged-in GSM/UMTS modules.
One of the GSM/UMTS modules is permanently logged-out or fails to make
outgoing calls:
The problem indicates a GSM/UMTS network overload on the installation
site. To eliminate the problem, set the Relax delay parameter to 2
seconds (refer to the GSM Basic Parameters subsection, p. 39). If the
GSM module fails to log in or rejects to make outgoing GSM calls even
after the gateway restart, consult your GSM provider for your SIM
card/GSM module availability.
The manufacturer shall not be held liable for any SIM card or provider service
terms and conditions for
the SIM card use.

Factory Settings
2.2
19
2.2 Factory Settings
The table below includes the factory settings for the key configuration parameters of
the GSM gateway:
Parameter
Value
IP address
192.168.1.2
IP mask
255.255.255.0
IP gateway
192.168.1.1
Username
Admin
Password
2n
Caution
Remember to change the username and password during the first
gateway configuration to avoid unauthorised access!

Brief Installation Guide
2.3
20
2.3 Brief Installation Guide
SIM Card Inserting/Removing
For the correct handling of SIM cards refer to the SIM Card Placement subsection on
p. 16.
Caution
Make sure that the GSM gateway is off before inserting and removing SIM
cards to avoid the GSM/UMTS module damage.
Installation Conditions
The following installation conditions have to be met for proper installation:
2NVoiceBlue Next is to be installed on a site with enough free space.
2NVoiceBlue Next 2NVoiceBlue Next can be mounted on a vertical surface
(2-channel version), or on a horizontal surface or into a system rack (4-
channel version). It is possible to operate 2NVoiceBlue Next in another
working position too, e.g. on a desk, for a short time for servicing and testing
purposes, for example.
Any excess of the allowed working temperature may not affect the 2N
VoiceBlue function immediately but may result in faster ageing and lower
reliability. For the allowed working temperature and humidity ranges refer to
S. 5, p. 85.
2NVoiceBlue Next is not designed for high-vibration environments such as
means of transport, machine rooms, and similar.
2NVoiceBlue Next is not designed for dusty environments or places exposed
to high humidity and temperature changes.
2NVoiceBlue Next may not be exposed to aggressive gases, acid and solvent
vapours, and so on.
2NVoiceBlue Next is intended for indoor use. It may not be exposed to rain,
flowing water, condensing moisture, fog, and so on.
2NVoiceBlue Next may never be exposed to direct sunshine or placed close
to heat sources (radiators).
A sufficient clearance must be kept over and under 2NVoiceBlue Next for
cabling and air flow to carry off the heat.
A sufficient GSM/UMTS signal intensity has to be provided for 2NVoiceBlue
Next.
An adequate capacity of the GSM/UMTS network has to be ensured (no BTS
overload). Remember that multiple GSM gateways used in one location may
overload the base transceiver station (BTS) you are currently logged in to.
This may lead to a permanent or occasional rejection of GSM/UMTS calls!
