ACME BOOTES User manual

- 1 -
CONTENTS
01/ Safety Instructions.................................................................................................. 2
02/ Technical Specifications ........................................................................................ 4
03/ Control Panel........................................................................................................... 6
04/ Fixture Installation.................................................................................................. 7
05/ Effect Wheels & Lamp ........................................................................................... 9
5.1 Effect Wheels................................................................................................... 9
5.2 Light Source...................................................................................................... 9
5.3 Lamp Replacement........................................................................................ 10
5.4 Lamp Replacement Warning .......................................................................12
06/ How To Set The Unit............................................................................................12
6.1 Main Functions ..............................................................................................12
6.2 Home Position Adjustment ......................................................................... 24
07/ Control By Universal DMX Controller.............................................................. 27
7.1 DMX512 Connection................................................................................... 27
7.2 Address Setting.............................................................................................. 28
7.3 DMX512 Configuration............................................................................... 28
08/ Error Information .................................................................................................. 33
09/ Troubleshooting ....................................................................................................39
10/ Fixture Cleaning....................................................................................................40

- 2 -
01/ Safety Instructions
WARNING
Please keep this User Guide for future consultation. If you sell the unit to another user, be
sure that they also receive this instruction manual.
Important:
Damages caused by the disregard of this user manual are not subject to warranty. The dealer
will not accept liability for any resulting defects or problems.
Unpack and check carefully to ensure that there is no transportation damage before
using the unit.
This product is for indoor use only. Use only in a dry location.
DO install and operate by qualified operator.
DO NOT allow children to operate the fixture.
Use safety chain when fixing the unit. Handle the unit by carrying its base instead of
head only.
The unit must be installed in a location with adequate ventilation, at least 50cm from
adjacent surfaces.
Be sure that no ventilation slots is blocked, otherwise the unit will be overheated.
Before operation, ensure that you are connecting this product to the proper voltage in
accordance with the specifications in this manual or on the product’s specification label.
It’s important to ground the yellow/green conductor to earth in order to avoid electric
shock.
Minimum ambient temperature TA: 0℃. Maximum ambient temperature TA: 40℃. Do
not operate this product at a lower or higher temperature.
DO NOT connect the device to any dimmer pack.
During initial start-up some smoke or smell may arise. This is a normal process and does
not necessarily mean that the device is defective, and it will decrease gradually within 15
minutes.
Keep flammable materials away from the fixture while operating to avoid fire hazard.
Make sure the power cord is not crimped or damaged; replace it immediately if damaged.
Please read the instruction carefully which includes important information
about the installation, usage and maintenance.

- 3 -
Unit’s surface temperature may reach up to 70 ℃. DO NOT touch the housing
bare-handed during its operation.
Avoid any flammable liquids, water or metal from entering the unit. Once it happens, cut
off the mains power immediately.
DO NOT operate in a dirty or dusty environment. DO clean the fixture regularly.
DO NOT touch any wire during operation as there might be a hazard of electric shock.
Avoid entanglement of the power cord with other wires.
The minimum distance to objects/surface must be more than 12 meters.
Disconnect mains power before fuse/lamp replacement or servicing.
Replace fuse/lamp only with the same type.
In the event of serious operating problem, stop using the unit immediately.
Never turn on and off the unit time after time.
The housing, the lenses, or the ultraviolet filter must be replaced if they are visibly
damaged.
DO NOT open the housing as there are no user serviceable parts inside.
DO NOT attempt to operate this unit if it becomes damaged. DO NOT attempt any
repairs yourself. Repairs carried out by unskilled people can lead to damage or
malfunction. Please contact the nearest authorized technical assistance center if needed.
Disconnect this product from its power source before servicing.
DO use the original packaging if the device is to be transported.
Hot lamp explosion hazard. DO NOT open the unit within 15 minutes after switching off.
DO replace the bulb once it is damaged, deformed or life-expired.
Avoid direct eye exposure to the light source while the product is on.
Never touch bulb with bare fingers, as it is very hot after using.
DO NOT operate this product if you see damage on the housing, shields, or cables. Have
the damaged parts replaced by an authorized technician at once.

- 4 -
02/ Technical Specifications
Power Voltage
180-240V~ 50/60Hz
Power Consumption
485W
Light Source
PHILIPS MSD Silver 380W
Color Temperature
7800K
Beam Angle
2°
Dimmer/Strobe
0-100% smooth dimming; outstanding strobe effect with variable
speed
Color Wheel
14 fixed colors plus white, with rainbow effect
Gobo Wheel
Static Gobo Wheel
13 gobos plus open
Movement
Pan
540°
Tilt
244°
Pan/Tilt Resolution
16 bit
Automatic pan/tilt position correction
Control
DMX Channel
19/14 Channels
Control Mode
DMX512
RDM
Firmware Upgrade
Firmware Upgrade via DMX link
Construction
Display
LCD display
Data In/Out
3-pin XLR (5-pin XLR is optional)
Power In/Out
Power Connector in/out
Protection Rating
IP20
Features
Motorized focus
Independent frost effect
2 x prisms: 8-facet prism + 24-facet prism, capable of bidirectional
rotation and superposition
2 x soft filters provide soft and even light beam
Dimensions
350x253x565mm
13.8"x10"x22.2"in
Weight
19.1kgs
42.1lbs

- 5 -

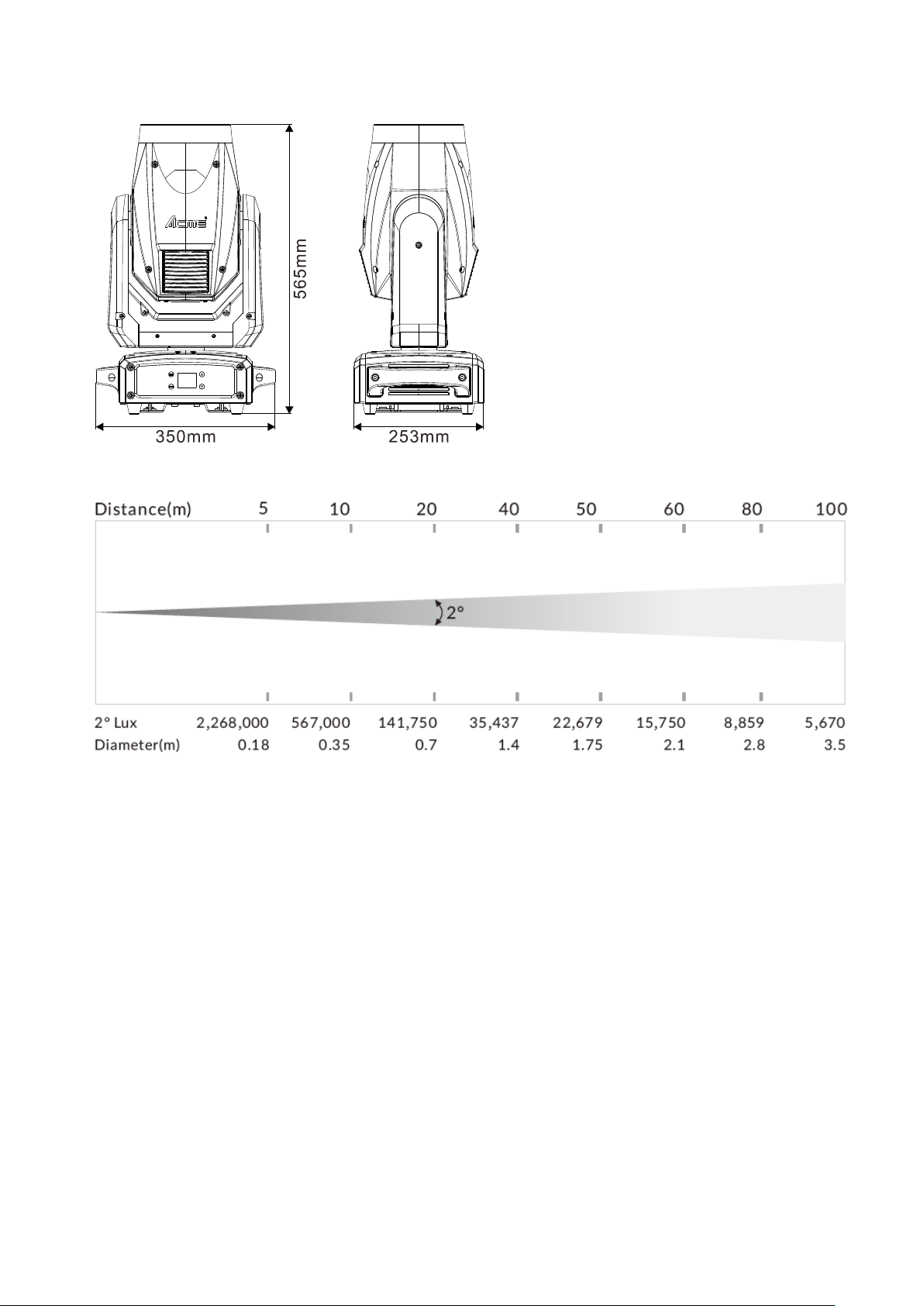

Photometric Diagram:

- 6 -

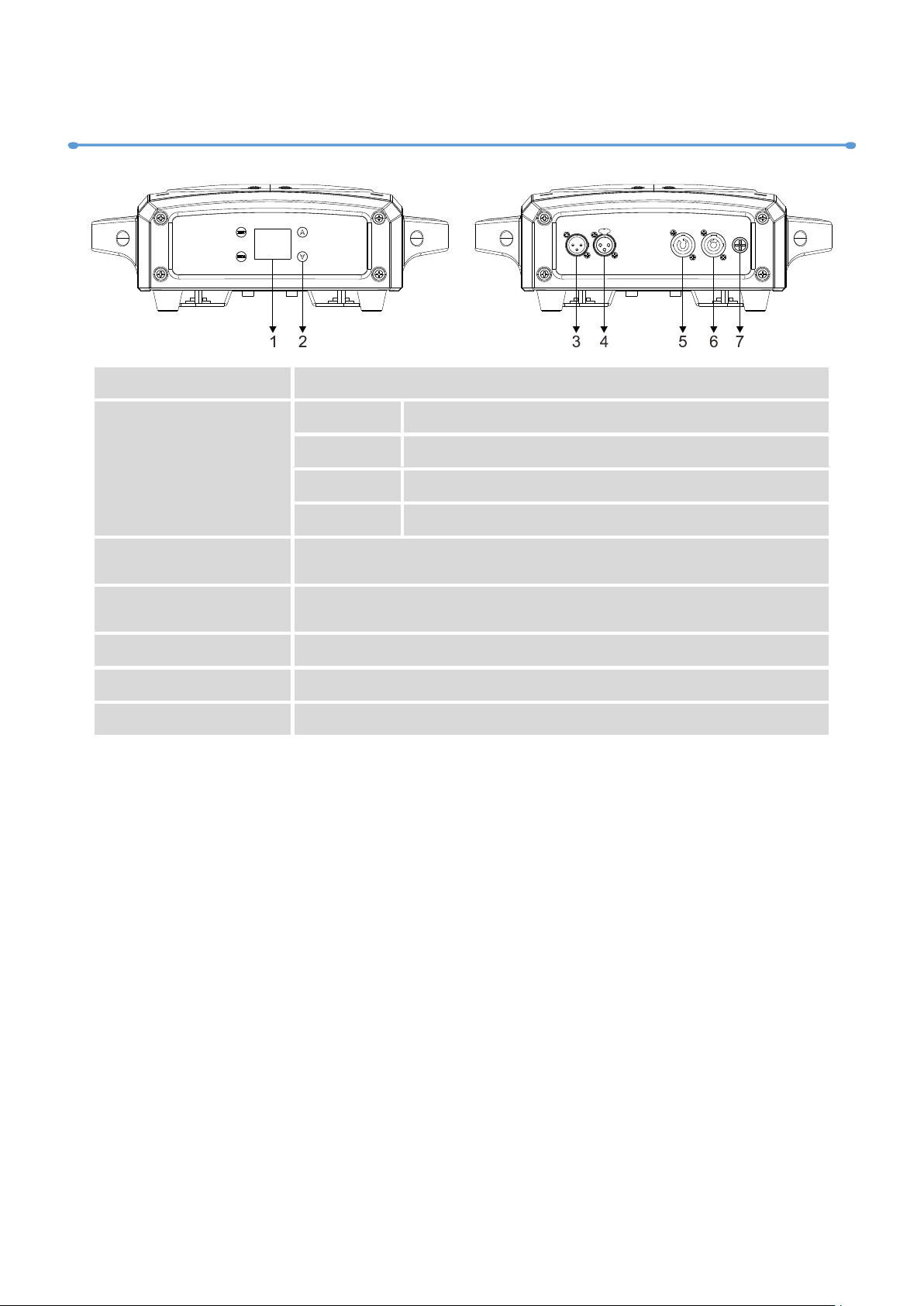

03/ Control Panel
1. Display
To show the various menus and the selected function
2. Buttons
MENU
To enter into move backward or leave the menu
UP
To go backward to move up in the menu
DOWN
To go forward to move down in the menu
ENTER
To perform the desired functions
3. DMX IN
For DMX512 link, use 3-pin XLR cable to link the unit and DMX
controller to input DMX signal (5-pin XLR cable is optional)
4. DMX OUT
For DMX512 link, use 3-pin XLR cable to link the next units to
output DMX signal (5-pin XLR cable is optional)
5. POWERCON IN
To connect to supply power
6. POWERCON OUT
To connect to the next fixture
7. FUSE(T 10A)
Protects the unit from damage of over-voltage or short circuit

- 7 -
04/ Fixture Installation
DO install and operate by qualified operator. Fixture(s) should be installed in areas
outside walking paths, seating areas, or away from areas were unauthorized personnel
might reach the fixture by hand. NEVER stand directly below the fixture(s) when rigging,
removing or servicing.
Always ensure that the unit is firmly fixed to avoid vibration and slipping off during
operation. Ensure that the trussing or area of installation must be able to hold 10 times
the weight without any deformation. Always attach a safety cable that can hold at least
12 times the weight of the fixture whenever installing this fixture in a suspended
environment to ensure that the fixture will not fall if the clamp fails.
This fixture is fully operational in three different mounting positions: hanging
upside-down, mounted sideways on trussing, or set on a flat level surface. Always use
and install the supplied safety cable as a safety measure to prevent accidental damage
and/or injury in the event the clamp fails.

- 8 -

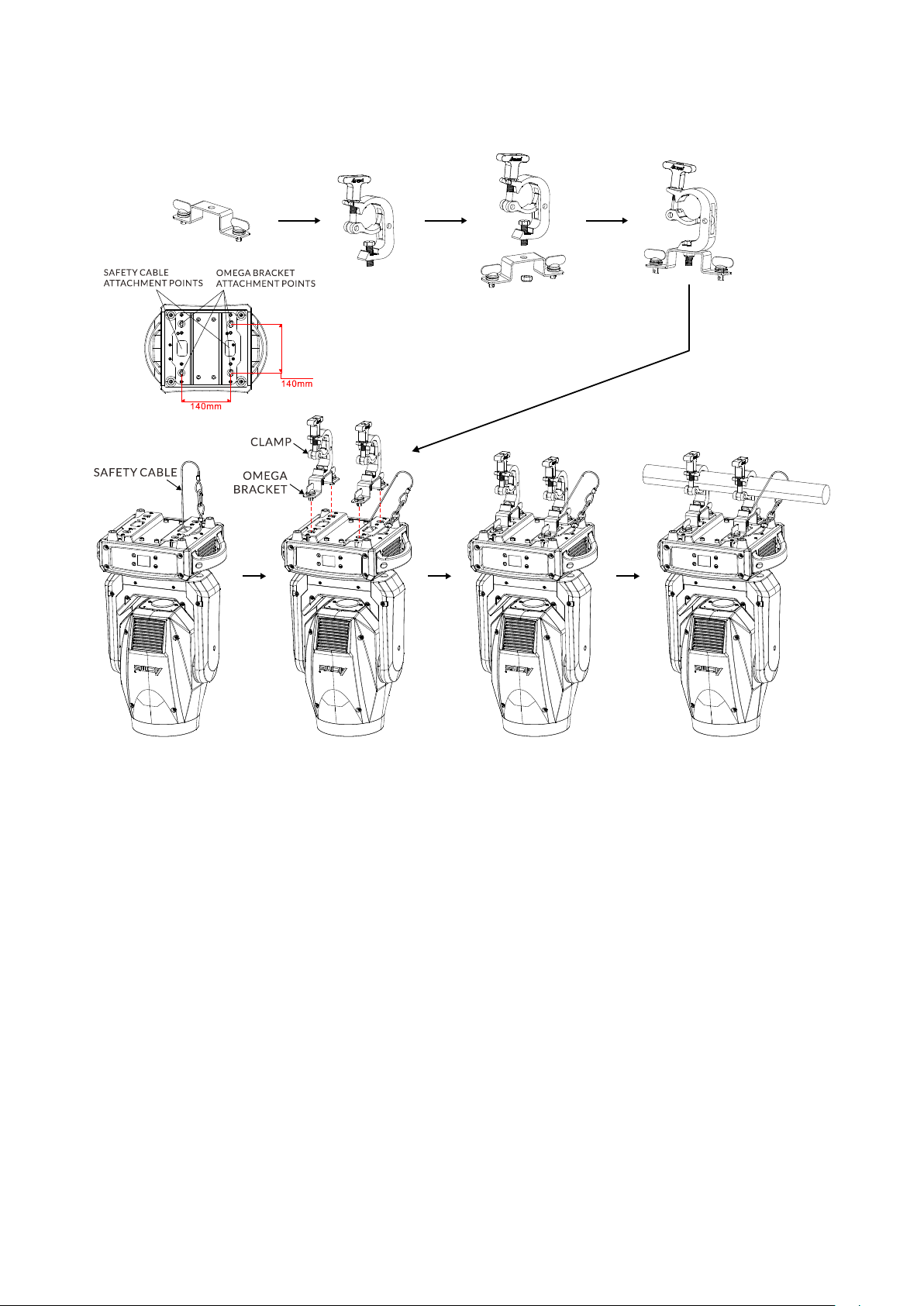

Steps for installing the omega brackets to the fixture:

- 9 -
05/ Effect Wheels & Lamp

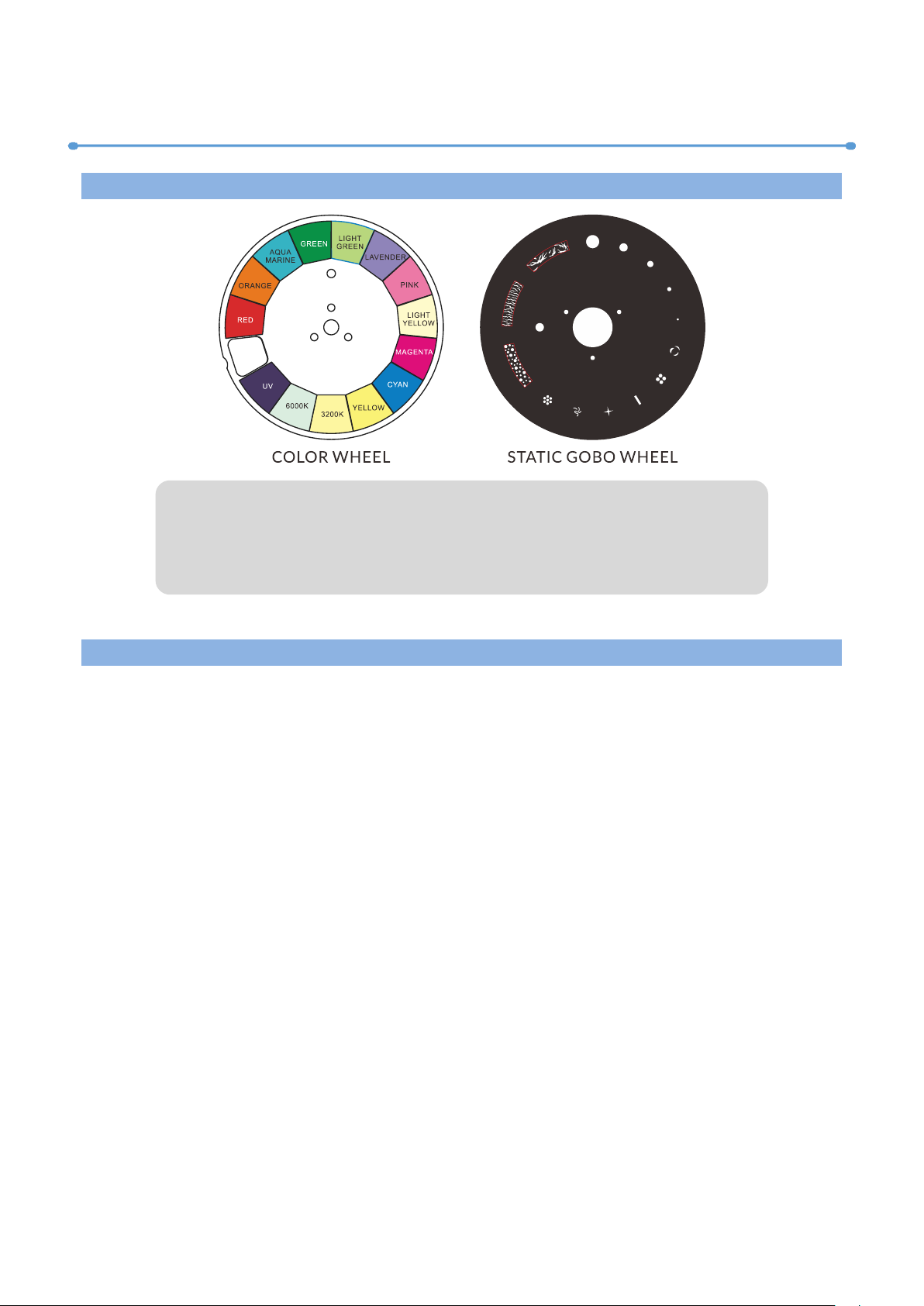

5.1 Effect Wheels
5.2 Light Source
PHILIPS MSD Silver 380W
Because of its high internal pressure, there might be a risk that the discharge lamp would
explode during operation. The lamp emits intense UV radiation which is harmful to the eyes
and skin. The high luminance of the arc can cause severe damage to the retina if you take a
close look at the lamp.
To protect the lamp, always turn off the lamp first (via control panel or DMX controller)
and let the unit run at least five minutes to cool down before switching off the mains
supply. Never handle the lamp or luminary when it is hot.
Do not touch the bulb with bare hands. If this happens, clean the lamp with denatured
alcohol and wipe it with a lint free cloth before installation.
The lamp generates UV radiation. Never operate the lamp without appropriate shielding.
When lighting up, the lamp operates at high pressure and there is a slight risk of arc tube
rupture. The risk increases with age, temperature and improper handling of the lamp. Do
not use the lamp longer than its lifespan.
Make sure the lamp is located in the center of the reflector for the best projection.
DANGER!
Install the color wheel / gobo wheel with the device switched off only.
Unplug from mains before changing the color wheel / gobo wheel!

- 10 -

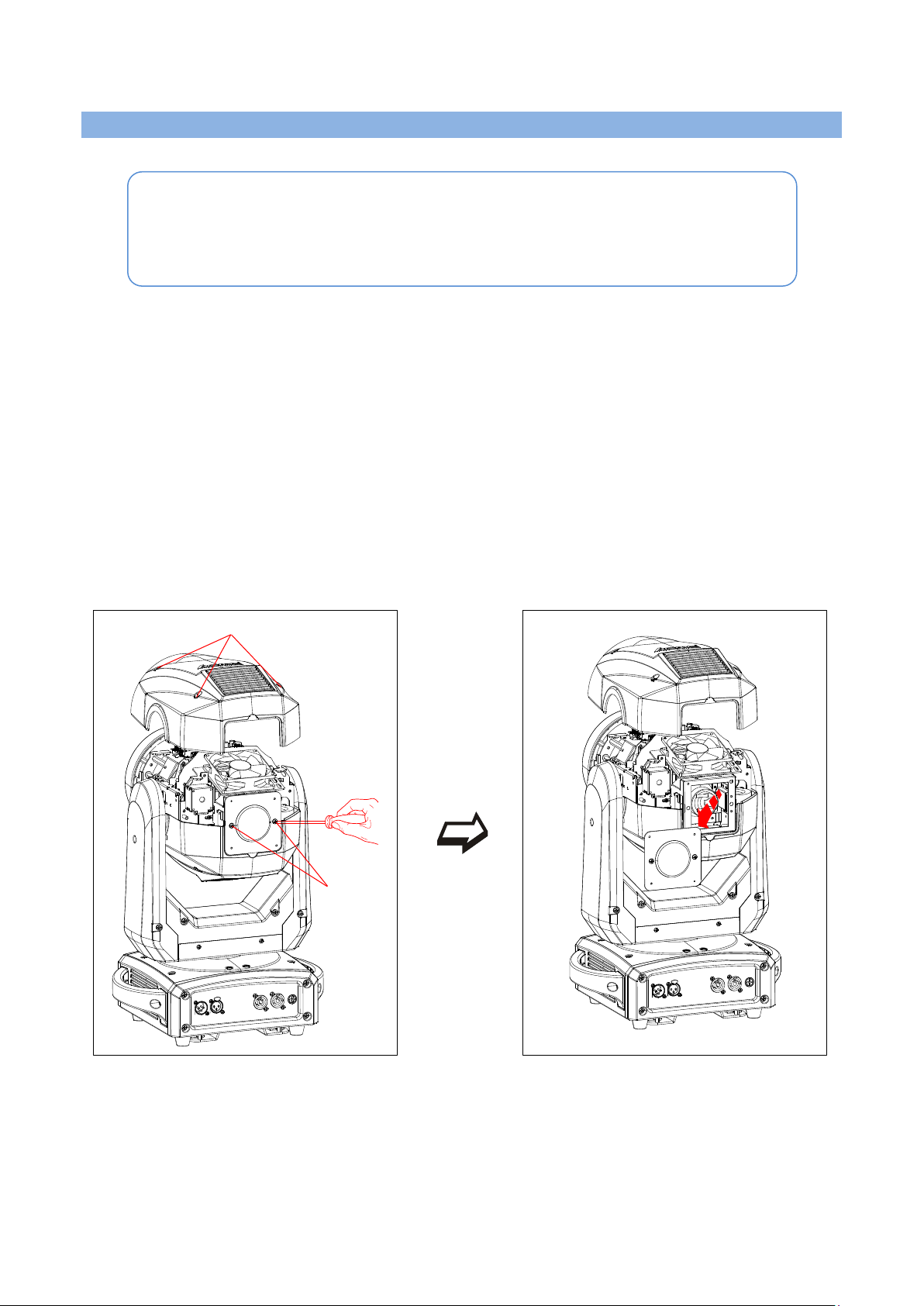

5.3 Lamp Replacement
Do not use this lamp more than 1500 hours, using the lamp any longer than its set life could
seriously damage the fixture. Periodically checking the lamp running time, when the lamp
reaches the 1500 hour mark, or close to it, we strongly suggest you switch the lamp out.
Reset the lamp time after you have replaced the lamp.
To replace the lamp:
Ensure that the fixture is detached from power and has cooled down completely. It is a good
idea to allow the fixture to run for 15 minutes after the lamp has been turned off, so that the
cooling fans have time to works.
Loosen the screws on the head of the fixture and open the fixture head covers.
A
B
ATTENTION
The entire light path and lens of the luminaire must be thoroughly cleaned
before replacing the lamp.

- 11 -

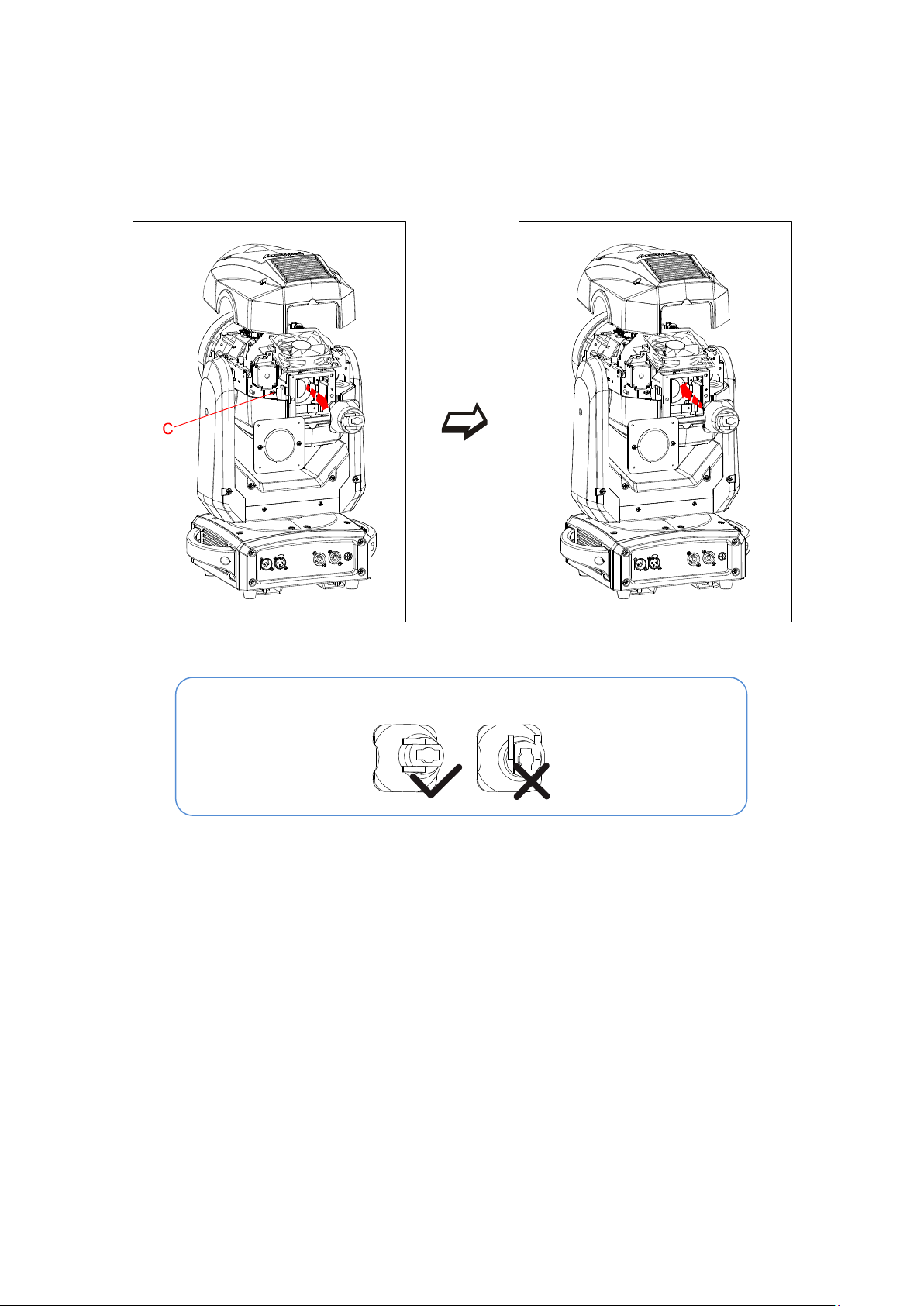

Loosen the screw that holds the lamp in place. Unplug the leads of the lamp and lift the lamp
out of its recess, disconnect the lamp and connect a new lamp that must be the same type
with the old one. And then place the new lamp into the lamp recess.
Finally reinstall the head cover, fastening it securely before reapplying power.
The installing direction of lamp:

- 12 -
5.4 Lamp Replacement Warning
When the lamp reaches 1200 hours of usage, the display will flash the message “Replace
Lamp Soon” for up to 5 minutes. During this period, the fixture will still work normally.
When the lamp reaches 1500 hours of usage, the display will flash the message “Replace
Lamp Now” for up to 10 minutes. After 10 minutes, the fixture will return to normal
operation.
When the lamp is continuously used overtime, the display will flash the message “Lamp
Timeout Use, Replace Lamp Now” for up to 10 minutes. After 10 minutes, the fixture will
return to normal operation.
06/ How To Set The Unit
6.1 Main Functions
To access the control menus, press the [MENU] button.
Navigate the menu structure, using the [ENTER], [UP] and [DOWN] buttons.
To select a menu option or to confirm a selection, press the [ENTER] button.
To return to a higher level in the menu structure without making a change, press the
[MENU] button, or wait 30 seconds.
ATTENTION
Damages caused by the failure to replace the bulb in time are not subject to warranty.

- 13 -
The main functions are shown below:
MENU
SUBMENU
OPTIONS
DMX Settings
DMX Address
1-494 (19 CH)
(Default=1)
1-499 (14 CH)
DMX Channel Mode
Mode 1 (19)
Mode 2 (14)
No DMX Status
Blackout
Hold
Manual
View DMX Value
Fixture Settings
Pan Invert
No
Yes
Tilt Invert
No
Yes
P/T Feedback
No
Yes
Pan/Tilt Speed
Fast
Slow
Lamp Settings
Lamp On/Off
Off
On
Lamp ON with Power
Off
On
Lamp ON via DMX
Off
On
Lamp OFF via DMX
Off
On
Display Settings
Display Invert
No
Yes
Backlight Intensity
1-10
(Default=10)
Language
English
Chinese
Fixture Test
Auto Test
Manual Test
Clear
No/Yes
Pan
0-255
Tilt
0-255
Color
0-255
Gobo
0-255
Soften
0-255
Prism 1
0-255

- 14 -
MENU
SUBMENU
OPTIONS
R-Prism 1
0-255
Prism 2
0-255
R-Prism 2
0-255
Frost
0-255
Focus
0-255
Strobe
0-255
Dimmer
0-255
Fixture Information
Fixture Use Hour
Lamp Use Time
Lamp Time Reset
Password=050
Lamp State
Driver State
Lamp Voltage
Fault Mode
Fan State
Head Fan
Firmware Version
RDM UID
Error Logs
Fixture Errors
Reset Error Logs
No
Yes
Password=050
Reset Function
Pan/Tilt Reset
No
Yes
Effect Reset
No
Yes
All Reset
No
Yes
Special Function
Factory Settings
No
Yes

- 15 -
DMX Settings
Enter the control menu and select DMX Settings, press ENTER. Use the UP/DOWN button
to select DMX Address, DMX Channel Mode, No DMX Status or View DMX Value.
DMX Address
DMX Channel Mode
No DMX Status
Select No DMX Status, press ENTER.
Use UP/DOWN button to select one of the following status:
Blackout (Fixture blacks out if DMX signal stops)
Hold (The device continues to operate in the current mode with the last
active DMX values until the signal returns)
Manual (The device accepts the DMX value stored in the ‘Manual Test’
menu)
Confirm your selection with ENTER.
To exit the menu, press MENU, or wait 30 seconds.
Select DMX Channel Mode, press ENTER.
Use UP/DOWN button to select between Mode 1 (19) and Mode 2 (14),
confirm your selection with ENTER.
To exit the menu, press MENU, or wait 30 seconds.
Select DMX Address, press ENTER.
Use UP/DOWN button to select an address, confirm your selection with
ENTER.
CHANNEL MODE
DMX ADDRESS
Mode 1 (19)
1-494
Mode 2 (14)
1-499
To exit the menu, press MENU, or wait 30 seconds.

- 16 -
View DMX Value
Fixture Settings
Enter the control menu and select Fixture Settings, press ENTER. Use the UP/DOWN button
to select Pan Invert, Tilt Invert, P/T Feedback or Pan/Tilt Speed.
Pan Invert
Tilt Invert
P/T Feedback
Pan/Tilt Speed
Select Pan/Tilt Speed, press ENTER.
Use UP/DOWN button to select Fast or Slow, confirm your selection
with ENTER.
To exit the menu, press MENU, or wait 30 seconds.
Select View DMX Value, press ENTER.
Use UP/DOWN button to select the desired DMX channel, for which the
value is to be displayed.
To exit the menu, press MENU, or wait 30 seconds.
Select Pan Invert, press ENTER.
Use UP/DOWN button to select No (pan invert deactivated) or Yes (pan
invert activated), confirm your selection with ENTER.
To exit the menu, press MENU, or wait 30 seconds.
Select P/T Feedback, press ENTER.
Use UP/DOWN button to select No (pan/tilt feedback deactivated) or
Yes (pan/tilt feedback activated), confirm your selection with ENTER.
To exit the menu, press MENU, or wait 30 seconds.
Select Tilt Invert, press ENTER.
Use UP/DOWN button to select No (tilt invert deactivated) or Yes (tilt
invert activated), confirm your selection with ENTER.
To exit the menu, press MENU, or wait 30 seconds.

- 17 -
Lamp Settings
Enter the control menu and select Lamp Settings, press ENTER. Use the UP/DOWN button
to select Lamp On/Off, Lamp ON with Power, Lamp ON via DMX or Lamp OFF via DMX.
Lamp On/Off
Lamp ON with Power
Lamp ON via DMX
Lamp OFF via DMX
Select Lamp OFF via DMX, press ENTER.
Use UP/DOWN button to select Off or On, confirm your selection with
ENTER.
To exit the menu, press MENU, or wait 30 seconds.
Select Lamp ON via DMX, press ENTER.
Use UP/DOWN button to select Off or On, confirm your selection with
ENTER.
To exit the menu, press MENU, or wait 30 seconds.
Select Lamp ON with Power, press ENTER.
Use UP/DOWN button to select Off (lamp off while power on) or On
(lamp on while power on), confirm your selection with ENTER.
To exit the menu, press MENU, or wait 30 seconds.
Select Lamp On/Off, press ENTER.
Use UP/DOWN button to select Off (lamp off) or On (lamp on), confirm
your selection with ENTER.
To exit the menu, press MENU, or wait 30 seconds.

- 18 -
Display Settings
Enter the control menu and select Display Settings, press ENTER. Use the UP/DOWN button
to select Display Invert, Backlight Intensity or Language.
Display Invert
Backlight Intensity
Language
Fixture Test
Enter the control menu and select Fixture Test, press ENTER. Use the UP/DOWN button to
select Auto Test or Manual Test.
Auto Test
Select Auto Test, press ENTER.
The device immediately performs an automatic self-test.
To end the automatic self-test and exit the menu, press MENU, or wait
30 seconds.
Select Language, press ENTER.
Use UP/DOWN button to select English or Chinese, confirm your
selection with ENTER.
To exit the menu, press MENU, or wait 30 seconds.
Select Backlight Intensity, press ENTER.
Use UP/DOWN button to select a value between 1(dark) and 10
(bright), confirm your selection with ENTER.
To exit the menu, press MENU, or wait 30 seconds.
Select Display Invert, press ENTER.
Use UP/DOWN button to select No (display normal) or Yes (display
inverted), confirm your selection with ENTER.
To exit the menu, press MENU, or wait 30 seconds.

- 19 -
Manual Test
Fixture Information
Enter the control menu and select Fixture Information, press ENTER. Use the UP/DOWN
button to select Fixture Use Hour, Lamp Use Time, Lamp Time Reset, Lamp State, Fan State,
Firmware Version, RDM UID or Error Logs.
Fixture Use Hour
Lamp Use Time
Lamp Time Reset
Select Lamp Use Time, press ENTER.
The lamp operating hours is displayed.
To exit the menu, press MENU, or wait 30 seconds.
Select Manual Test, press ENTER.
Use UP/DOWN button to select the channel for which the manual test
is to be performed, confirm your selection with ENTER.
Use UP/DOWN button to select a value, confirm your selection with
ENTER.
To exit the menu, press MENU, or wait 30 seconds.
(The device returns to its original DMX state after the manual test. The
test values are saved automatically when the device is switched off.)
Select Lamp Time Reset, press ENTER.
Use UP/DOWN button to set the password 050, confirm your selection
with ENTER. The lamp operating hours is reset.
To exit the menu, press MENU, or wait 30 seconds.
Select Fixture Use Hour, press ENTER.
The operating hours is displayed.
To exit the menu, press MENU, or wait 30 seconds.
