ACME FLANDINA 22 IP User manual

1A
CONTENTS
1. Safety Instructions ......................................................................................... 2
2. Technical Specifications ................................................................................. 4
3. Control Panel ................................................................................................. 6
4. Fixture Installation ......................................................................................... 7
5. How To Set The Unit..................................................................................... 10
5.1 Main Function........................................................................................ 10
5.2 Home Position Adjustment .................................................................... 16
6. Control By Universal DMX Controller ........................................................... 20
6.1 DMX512 Connection .............................................................................. 20
6.2 Address Setting ...................................................................................... 21
6.3 DMX512 Configuration........................................................................... 21
7. Error Information......................................................................................... 40
8. Troubleshooting........................................................................................... 41
9. Fixture Cleaning ........................................................................................... 41

2A
1. Safety Instructions
WARNING
Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that
they also receive this instruction manual.
Important:
Damages caused by the disregard of this user manual are not subject to warranty. The dealer will
not accept liability for any resulting defects or problems.
Unpack and check carefully to ensure that there is no transportation damage before using the
unit.
This product is suitable for wet locations. Do not immerse in water.
DO install and operate by qualified operator.
DO NOT allow children to operate the fixture.
Use safety chain when fixing the unit. Handle the unit by carrying its base instead of head only.
The unit must be installed in a location with adequate ventilation, at least 50cm from adjacent
surfaces.
Be sure that no ventilation slots is blocked, otherwise the unit will be overheated.
Before operation, ensure that you are connecting this product to the proper voltage in
accordance with the specifications in this manual or on the product’s specification label.
It’s important to ground the yellow/green conductor to earth in order to avoid electric shock.
Minimum ambient temperature TA: 0℃. Maximum ambient temperature TA: 40℃.Do not
operate this product at a lower or higher temperature.
DO NOT connect the device to any dimmer pack.
Keep flammable materials away from the fixture while operating to avoid fire hazard.
Make sure the power cord is not crimped or damaged; replace it immediately if damaged.
Unit’s surface temperature may reach up to 65℃. DO NOT touch the housing bare-handed
during its operation.
Avoid any flammable liquids, water or metal from entering the unit. Once it happens, cut off
the mains power immediately.
Please read the instruction carefully which includes important information about
the installation, usage and maintenance.

3A
DO NOT operate in a dirty or dusty environment. DO clean the fixture regularly.
DO NOT touch any wire during operation as there might be a hazard of electric shock.
Avoid entanglement of the power cord with other wires.
The minimum distance to objects/surface must be more than 0.5 meters.
In the event of serious operating problem, stop using the unit immediately.
Never turn on and off the unit time after time.
The housing, the lenses, or the ultraviolet filter must be replaced if they are visibly damaged.
DO NOT open the housing as there are no user serviceable parts inside.
DO NOT attempt to operate this unit if it becomes damaged. DO NOT attempt any repairs
yourself. Repairs carried out by unskilled people can lead to damage or malfunction. Please
contact the nearest authorized technical assistance center if needed.
Disconnect this product from its power source before servicing.
DO use the original packaging if the device is to be transported.
Avoid direct eye exposure to the light source while the product is on.
DO NOT operate this product if you see damage on the housing, shields, or cables. Have the
damaged parts replaced by an authorized technician at once.

4A
2. Technical Specifications
Power Voltage:
100-240V~ 50/60Hz
Power Consumption:
300W
Light Source:
12x10W RGBWA LED
108x3W CW LED
Beam Angle (50%):
RGBWA: 30°
CW: 116°
Field Angle (10%):
RGBWA: 56°
CW: 160°
Control:
DMX Channel: 75/72/16/15/10/8/7/6 Channel
Control Mode: DMX512, RDM
Firmware Upgrade via DMX link
Construction:
Display: OLED display
Data In/Out: 5-pin IP XLR (3-pin IP XLR cable is optional)
Power In/Out: Waterproof Power Connector in/out
Protection Rating: IP66
Features:
12pcs LED pixel control
0-100% smooth dimming
Outstanding strobe effect with variable speed
Double mounting brackets with adjustable angle of 180°
2 x fixed clamps for 50mm truss

5A
Dimension/Weight:
998x92x185mm, 7kgs
39.3"x3.6"x7.3"in, 15.4lbs

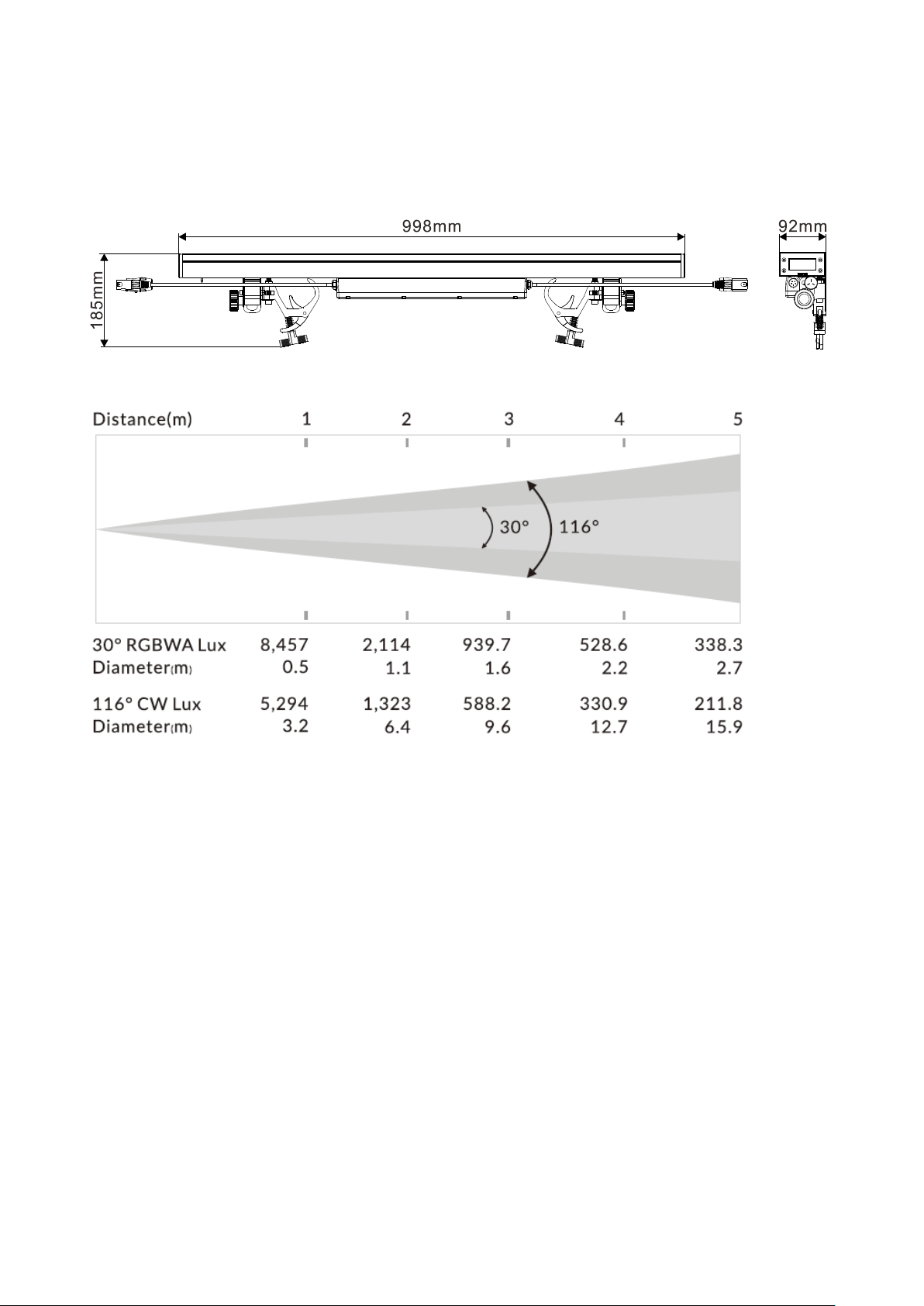

Photometric Diagram:

6A

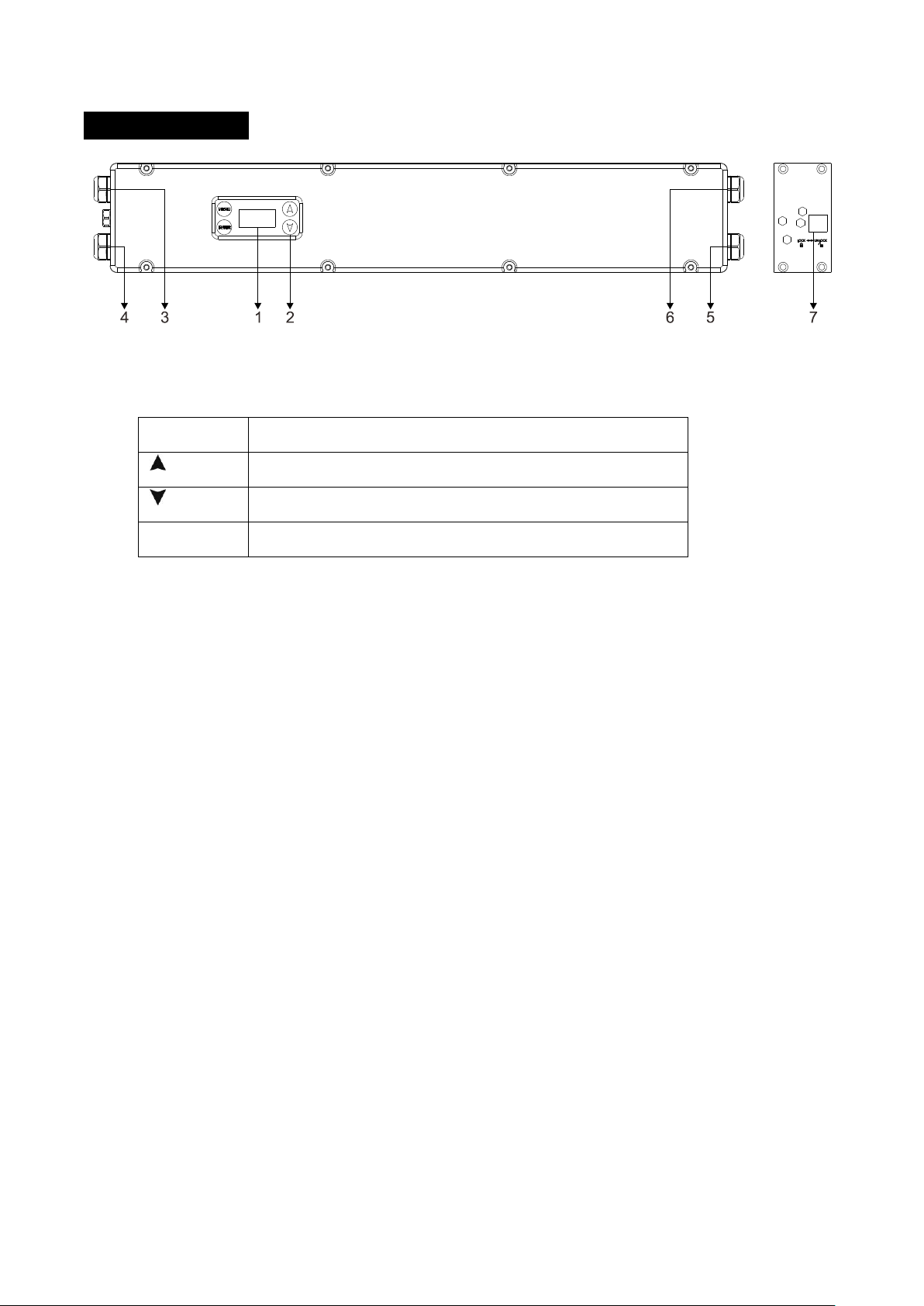

3. Control Panel
1. Display: To show the various menus and the selected function
2. Button:
MENU
To enter into move backward or leave the menu
UP
To go backward to move up in the menu
DOWN
To go forward to move down in the menu
ENTER
To perform the desired functions
3. POWER IN: To connect to supply power
4. DMX IN:
For DMX512 link, use 5-pin XLR cable to link the unit and DMX controller (3-pin XLR cable is
optional)
5. DMX OUT:
For DMX512 link, use 5-pin XLR cable to link the next units (3-pin XLR cable is optional)
6. POWER OUT: To connect to the next fixture
7. LOCK CATCH: Used for splicing other fixtures

7A
4. Fixture Installation
DO install and operate by qualified operator. Fixture(s) should be installed in areas outside walking
paths, seating areas, or away from areas were unauthorized personnel might reach the fixture by
hand. NEVER stand directly below the fixture(s) when rigging, removing or servicing.
Always ensure that the unit is firmly fixed to avoid vibration and slipping off during operation.
Ensure that the trussing or area of installation must be able to hold 10 times the weight without any
deformation. Always attach a safety cable that can hold at least 12 times the weight of the fixture
whenever installing this fixture in a suspended environment to ensure that the fixture will not fall if
the clamp fails.

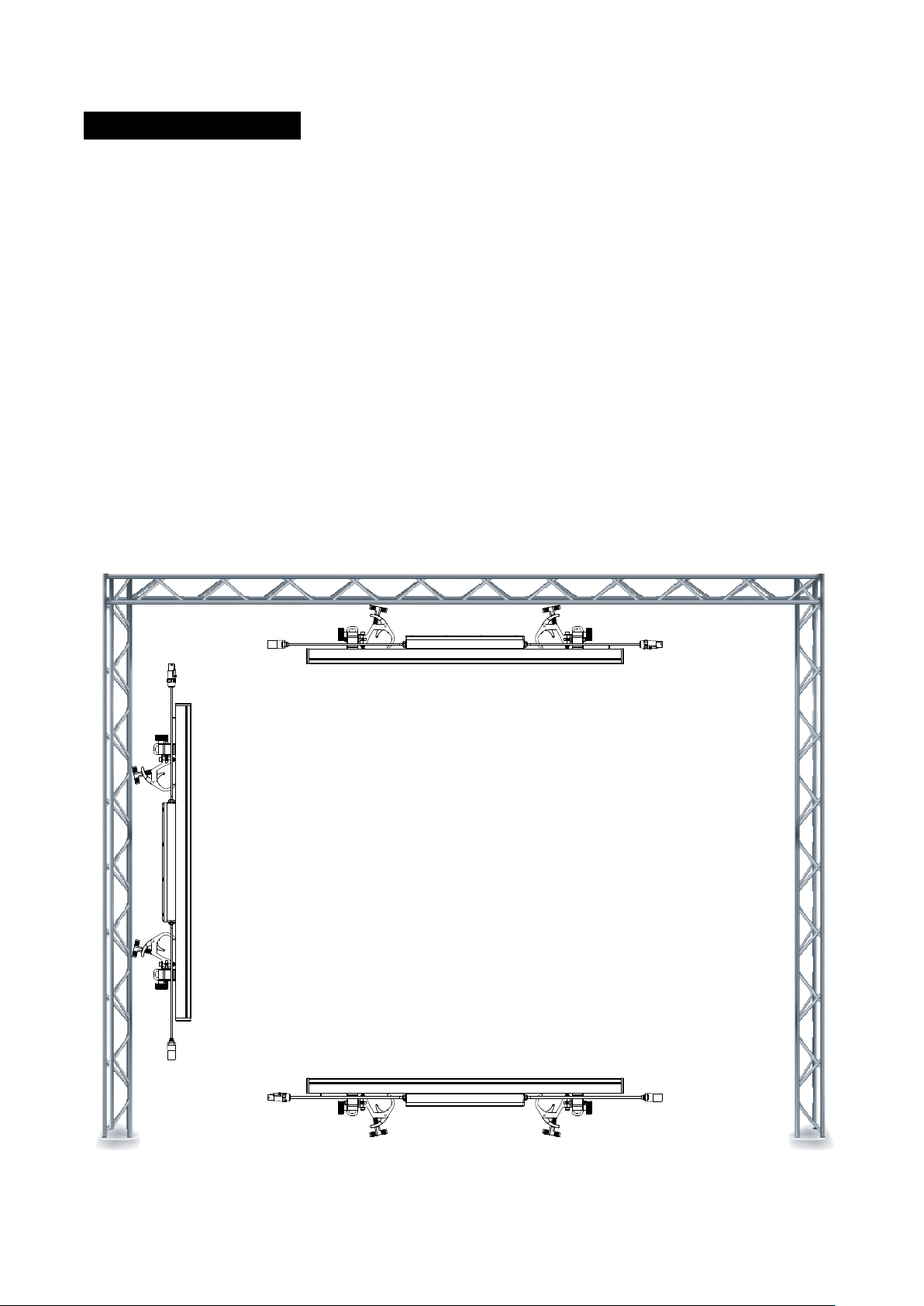

This fixture is fully operational in three different mounting positions: hanging upside-down,
mounted sideways on trussing, or fix on a flat level surface (such as the ground or a wall). Always
use and install the supplied safety cable as a safety measure to prevent accidental damage and/or
injury in the event the clamp fails.

8A
The fixture can be spliced by the lock catch. First, set the lock catch on the fixture to the “UNLOCK”
position, then align it with another fixture (the end with a slot), and finally set the lock catch to the
“LOCK”position and lock it into the slot.

9A

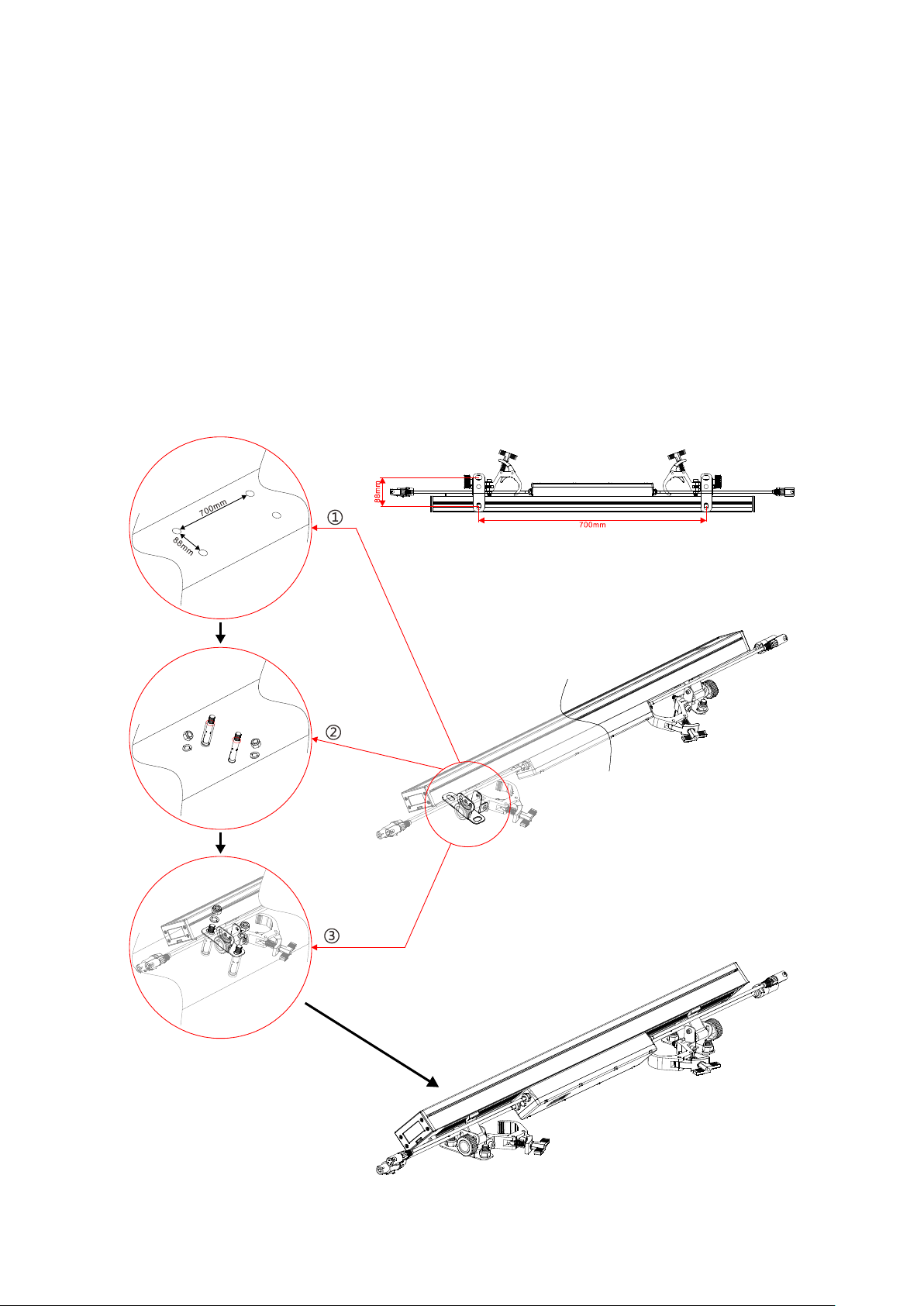

Fix the fixture on a flat level surface (such as the ground or a wall):
1. Drill four expansion screw holes (for M12 expansion screws) on a flat level surface (such as the
ground or a wall) according to the size shown in Figure ①.
2. As shown in Figure ②, unscrew the washers and nuts of the expansion screws, and insert the
expansion screw tubes and screws into the drilled screw holes.
3. As shown in Figure ③, align the holes on the brackets of the fixture with the four screws, then
put the washers and nuts of the expansion screws in turn and tighten them with a wrench.
4. After tightening the nuts, check whether the fixture is installed firmly, then adjust the fixture to
the required angle through the bracket knob.

10A
5. How To Set The Unit
5.1 Main Function
Turn on the unit, press the MENU button into menu mode, and press the UP/DOWN button until
the required function is shown on the monitor. Select the function by pressing the ENTER button.
Use the UP/DOWN button to choose the submenu, press the ENTER button to store and
automatically return to the last menu. Press the MENU button or let the unit idle 30 seconds to exit
menu mode.
The screen will be automatically locked if there is no operation for a long time, and can be unlocked
by long-pressing the MENU button.
The main functions are shown below:

11A

12A
DMX Settings
To select DMX Settings, press the ENTER button to confirm, use the UP/DOWN button to select
DMX Address, Channel Mode, No DMX Status or View DMX Value.
DMX Address
To select DMX Address, press the ENTER button to confirm. Use the UP/DOWN button to adjust the
address from 001 to 438/441/497/498/503/505/506/507, press the ENTER button to store. Press the
MENU button back to the last menu or let the unit idle 30 seconds to exit menu mode.
Channel Mode
To select Channel Mode, press the ENTER button to confirm. Use the UP/DOWN button to select
Mode1(75), Mode2(72), Mode3(16), Mode4(15),Mode5(10),Mode6(8), Mode7(7) or Mode8(6),
press the ENTER button to store. Press the MENU button back to the last menu or let the unit idle
30 seconds to exit menu mode.
No DMX Status
To select No DMX Status, press the ENTER button to confirm. Use the UP/DOWN button to select
Blackout(fixture blacks out if DMX signal stops), Hold(fixture continues to obey the last command it
received Via DMX if DMX signal stops) or Manual(the fixture will automatically read the DMX value
in the “Manual Test”menu for operation after selecting this mode), press the ENTER button to store.
Press the MENU button back to the last menu or let the unit idle 30 seconds to exit menu mode.
View DMX Value
To select View DMX Value, press the ENTER button to confirm. Use the UP/DOWN button to view
the DMX channel value. Press the MENU button back to the last menu or let the unit idle 30
seconds to exit menu mode.
Fixture Settings
To select Fixture Settings, press the ENTER button to confirm, use the UP/DOWN button to select
Dimmer Curve, Dimmer Speed, White Balance, Invert Pixel or LED Frequency.
Dimmer Curve
To select Dimmer Curve, press the ENTER button to confirm. Use the DOWN/UP button to select
Square Law, Inv SQ Law, Linear or S Curve, press the ENTER button to store. Press the MENU button
back to the last menu or let the unit idle 30 seconds to exit menu mode.

13A
Dimmer Speed
To select Dimmer Speed, press the ENTER button to confirm. Use the UP/DOWN button to select
Fast or Smooth, press the ENTER button to store. Press the MENU button back to the last menu or
let the unit idle 30 seconds to exit menu mode.
White Balance
To select White Balance, press the ENTER button to confirm. Use the UP/DOWN button to select
Red, Green, Blue, Amber, Red1, Green1, Blue1, Amber1…… or Red12, Green12, Blue12, Amber12,
press the ENTER button to store. Use the UP/DOWN button to adjust the value from 125 to 255,
press the ENTER button to store. Press the MENU button back to the last menu or let the unit idle
30 seconds to exit menu mode.
Invert Pixel
To select Invert Pixel, press the ENTER button to confirm. Use the UP/DOWN button to select No or
Yes, press the ENTER button to store. Press the MENU button back to the last menu or let the unit
idle 30 seconds to exit menu mode.
LED Frequency
To select LED Frequency, press the ENTER button to confirm. Use the UP/DOWN button to select
900Hz, 1000Hz, 1100Hz, 1200Hz, 1300Hz, 1400Hz, 1500Hz, 2500Hz, 4000Hz, 5000Hz, 6000Hz,
10KHz, 15KHz, 20KHz or 25KHz, press the ENTER button to store. Press the MENU button back to
the last menu or let the unit idle 30 seconds to exit menu mode.
Display Settings
To select Display Settings, press the ENTER button to confirm, use the UP/DOWN button to select
Display Invert, Temperature Unit or Language.

14A
Display Invert
Select Display Invert, press the ENTER button to confirm, present mode will blink on the display, use
the UP/DOWN button to select No (normal display) or Yes (invert display), press the ENTER button
to store. Press the MENU button back to the last menu or let the unit idle 30 seconds to exit menu
mode.
Temperature Unit
Select Temperature Unit, press the ENTER button to confirm. Use the UP/DOWN button to
select ℃or ℉, press the ENTER button to store. Press the MENU button back to the last menu or
let the unit idle 30 seconds to exit menu mode.
Language
Select Language, press the ENTER button to confirm, present mode will blink on the display, use the
UP/DOWN button to select English or Chinese. Press the MENU button back to the last menu or let
the unit idle 30 seconds to exit menu mode.
Fixture Test
To select Fixture Test, press the ENTER button to confirm, use the UP/DOWN button to select Auto
Test or Manual Test.
Auto Test
Select Auto Test, press the ENTER button to confirm, the unit will run built-in programs to
automatically test itself. Press the MENU button back to the last menu or exit menu mode after
auto test.
Manual Test
Select Manual Test, press the ENTER button to confirm, the present channel will show on the
display, use the UP/DOWN button to select channel, press the ENTER button to confirm, then use
the UP/DOWN button to adjust the value, press the ENTER button to store, the fixture will run as
the channel value indicates. Press the MENU button back to the last menu or exit menu mode idling
30 seconds.
(The fixture will return to the previous DMX state after exiting Manual Test menu and the Manual
Test parameters will be automatically saved after power off and restart.)

15A
Information
To select Information, press the ENTER button to confirm, use the UP/DOWN button to select
Fixture Use Hour, LED Use Hour, Temperatue, Firmware Version, RDM UID or Error Logs.
Fixture Use Hour
Select Fixture Use Hour, press the ENTER button to confirm, fixture use hour will show on the
display, press the MENU button to exit.
LED Use Hour
To select LED Use Hour, press the ENTER button to confirm, use the UP/DOWN button to select
Total LED Hour, LED On Hour or LED Hours Reset, press the ENTER button to store. To select LED
Hours Reset, press the ENTER button to confirm. Use the UP/DOWN button to select No or Yes,
press the ENTER button to confirm. To select Yes, press the ENTER button to confirm, use the
UP/DOWN button to set the password 050 to reset the LED hours, press the ENTER button to store.
Press the MENU button back to the last menu or exit menu mode let the unit idle 30 seconds.
Temperature
Select Temperature, press the ENTER button to confirm, select LED, press the ENTER button to
confirm, fixture’s current temperature and max temperature of the LED will show on the display,
press the MENU button to exit.
Firmware Version
Select Firmware Version, press the ENTER button to confirm, firmware version will show on the
display, press the MENU button back to exit.
RDM UID
Select RDM UID, press the ENTER button to confirm, RDM UID will show on the display, press the
MENU button back to exit.
Error Logs
Select Error Logs, press the ENTER button to confirm. Use the UP/DOWN button to select Fixture
Errors or Reset Error Log, press the ENTER button to store. Select Reset Error Log, press the ENTER
button to confirm. Use the UP/DOWN button to select No or Yes, press the ENTER button to store.
Select Yes, press the ENTER button to confirm. Use the UP/DOWN button to set the password 050,
press the ENTER button to store. Press the MENU button back to the last menu or let the unit idle
30 seconds to exit menu mode.

16A
Factory Restore
Select Factory Restore, press the ENTER button to confirm, use the UP/DOWN button to select No
(normal) or Yes (the fixture will reset to factory settings), press ENTER button to store. Press the
MENU button to exit.
RDM FUNCTIONS
Select the MANUFACTURER menu to display the manufacturer of the fixture.
Select the SOFTWARE VERSION menu and the program version number of the fixture will be
displayed.
Select the DMX START ADDRESS menu to change the DMX 512 address (001-512).
Select the DEVICE MODEL DESCRIPTION menu to display the model of the fixture.
Select the DEVICE LABEL menu to change the model of the fixture.
Select the DMX PERSONALITY menu to set the channel mode of the fixture (75/72/16/15/10/8/7/6
channel).
Select the DMX PERSONALITY DESCRIPTION menu to display the current channel mode of the
fixture.
Select the DEVICE HOURS menu to display the running time of the fixture.
5.2 Home Position Adjustment
Press the MENU button into menu mode, then press the ENTER button for about 3 seconds into
offset mode to adjust the home position. Select the function by pressing the ENTER button. Use the
UP/DOWN button to choose the submenu, press the ENTER button to store and automatically
return to the last menu. Press MENU button to exit.

17A
Red
Enter offset mode, select Red, press the ENTER button to confirm, the present position will blink on
the display, use the UP/DOWN button to offset the value from 0 to 255, press the ENTER button to
store. Press the MENU button to exit.
Green
Enter offset mode, select Green, press the ENTER button to confirm, the present position will blink
on the display, use the UP/DOWN button to offset the value from 0 to 255, press the ENTER button
to store. Press the MENU button to exit.
Blue
Enter offset mode, select Blue, press the ENTER button to confirm, the present position will blink on
the display, use the UP/DOWN button to offset the value from 0 to 255, press the ENTER button to
store. Press the MENU button to exit.
White
Enter offset mode, select White, press the ENTER button to confirm, the present position will blink
on the display, use the UP/DOWN button to offset the value from 0 to 255, press the ENTER button
to store. Press the MENU button to exit.

18A
Amber
Enter offset mode, select Amber, press the ENTER button to confirm, the present position will blink
on the display, use the UP/DOWN button to offset the value from 0 to 255, press the ENTER button
to store. Press the MENU button to exit.
LED White
Enter offset mode, select LED White, press the ENTER button to confirm, the present position will
blink on the display, use the UP/DOWN button to offset the value from 0 to 255, press the ENTER
button to store. Press the MENU button to exit.
Red1
Enter offset mode, select Red1, press the ENTER button to confirm, the present position will blink
on the display, use the UP/DOWN button to offset the value from 0 to 255, press the ENTER button
to store. Press the MENU button to exit.
Green1
Enter offset mode, select Green1, press the ENTER button to confirm, the present position will blink
on the display, use the UP/DOWN button to offset the value from 0 to 255, press the ENTER button
to store. Press the MENU button to exit.
Blue1
Enter offset mode, select Blue1, press the ENTER button to confirm, the present position will blink
on the display, use the UP/DOWN button to offset the value from 0 to 255, press the ENTER button
to store. Press the MENU button to exit.
White1
Enter offset mode, select White1, press the ENTER button to confirm, the present position will blink
on the display, use the UP/DOWN button to offset the value from 0 to 255, press the ENTER button
to store. Press the MENU button to exit.
Amber1
Enter offset mode, select Amber1, press the ENTER button to confirm, the present position will
blink on the display, use the UP/DOWN button to offset the value from 0 to 255, press the ENTER
button to store. Press the MENU button to exit.
LED White1
Enter offset mode, select LED White1, press the ENTER button to confirm, the present position will
blink on the display, use the UP/DOWN button to offset the value from 0 to 255, press the ENTER
button to store. Press the MENU button to exit.

19A
……
Red12
Enter offset mode, select Red12, press the ENTER button to confirm, the present position will blink
on the display, use the UP/DOWN button to offset the value from 0 to 255, press the ENTER button
to store. Press the MENU button to exit.
Green12
Enter offset mode, select Green12, press the ENTER button to confirm, the present position will
blink on the display, use the UP/DOWN button to offset the value from 0 to 255, press the ENTER
button to store. Press the MENU button to exit.
Blue12
Enter offset mode, select Blue12, press the ENTER button to confirm, the present position will blink
on the display, use the UP/DOWN button to offset the value from 0 to 255, press the ENTER button
to store. Press the MENU button to exit.
White12
Enter offset mode, select White12, press the ENTER button to confirm, the present position will
blink on the display, use the UP/DOWN button to offset the value from 0 to 255, press the ENTER
button to store. Press the MENU button to exit.
Amber12
Enter offset mode, select Amber12, press the ENTER button to confirm, the present position will
blink on the display, use the UP/DOWN button to offset the value from 0 to 255, press the ENTER
button to store. Press the MENU button to exit.
LED White12
Enter offset mode, select LED White12, press the ENTER button to confirm, the present position will
blink on the display, use the UP/DOWN button to offset the value from 0 to 255, press the ENTER
button to store. Press the MENU button to exit.
