ACME BP-183 RGBW S R DXX User manual

BP-183 RGBW S AR DXX

TABLE OF CONTENTS
1. Safety Instructions.................................................................................................. 2
2. Technical Specifications .......................................................................................... 3
3. How To Set The Fixture........................................................................................... 4
3.1 Control Panel .................................................................................................... 4
3.2 Main Functions................................................................................................. 5
4. How To Control The Fixture.................................................................................. 10
4.1 DMX Controller............................................................................................... 10
4.2 DMX 512 Configuration .................................................................................. 10
5. DMX512 Connections........................................................................................... 12
6. Troubleshooting ................................................................................................... 13
7. Cleaning And Maintenance .................................................................................. 13
1B

1. Safety Instructions
WARNING
Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that
they also receive this instruction booklet.
Unpack and check carefully there is no transportation damage before using the unit.
Before operating, ensure that the voltage and frequency of power supply match the power
requirements of the unit.
It’s important to ground the yellow/green conductor to earth in order to avoid electric shock.
The unit is for indoor use only. Use only in a dry location.
The unit must be installed in a location with adequate ventilation, at least 50cm from adjacent
surfaces. Be sure that no ventilation slots are blocked.
Disconnect main power before replacement or servicing.
Make sure there are no flammable materials close to the unit while operating as it is fire hazard.
Use safety cable when installing this unit. DO NOT handle the unit by taking its head only, but
always by taking its base.
Maximum ambient temperature is Ta: 40 degrees C. DO NOT operate it where the temperature is
higher than this.
Unit surface temperature may reach up to 75 degrees C. DO NOT touch the housing with
bare-hands during its operation. Turn off the power and allow about 15 minutes for the unit to
cool down before replacing or serving.
In the event of a serious operating problem, stop using the unit immediately. Never try to repair
the unit by yourself. Repairs carried out by unskilled people can lead to damage or malfunction.
Please contact the nearest authorized technical assistance center. Always use the same type
spare parts.
DO NOT touch any cables during operation as high voltage may cause electric shock.
Please read the instructions carefully which includes important
information about the installation, operation and maintenance.
2B

Warning:
To prevent or reduce the risk of electrical shock or fire, do not expose the unit to rain or
moisture.
The housing and lenses must be replaced if they are visibly damaged.
Installation:
The unit should be mounted via its screw holes on the bracket. Always ensure that the unit is firmly
fixed to avoid vibration and slipping while operating and make sure that the structure to which you
are attaching the unit is secure and is able to support a weight of 10 times of the fixtures weight.
Always use a safety cable that can hold 12 times of the weight of the fixture when installing.
The equipment must be installed by professionals and it must be installed in a place where is out
of the reach of people and no one can pass by or under it.
2. Technical Specifications
IP66 rated LED Spotlight with rich, saturated color mixing effect via specially designed lens
provides outstanding light output;
Compact design with great heat ventilation in a rugged die-cast aluminum housing to ensure
reliable performance under harsh environments;
With Photocell (light sensor) feature, units can light up automatically when the environment is
getting dark;
LED touch-panel display for easy set-up navigation; It also comes with great built-in shows
(fade) without DMX control
Perfect for illumination of building façade, hotels, landscapes, theme park and more.
Input Voltage: AC 100-240V, 50/60Hz
Power Consumption: 48W
LED: 18 x 3W LEDs (R:4, G:5, B:5, W:4)
Beam Angle: 6°, 15°, 25°, 40°, 60°, 80°
Weight: 3.8Kgs

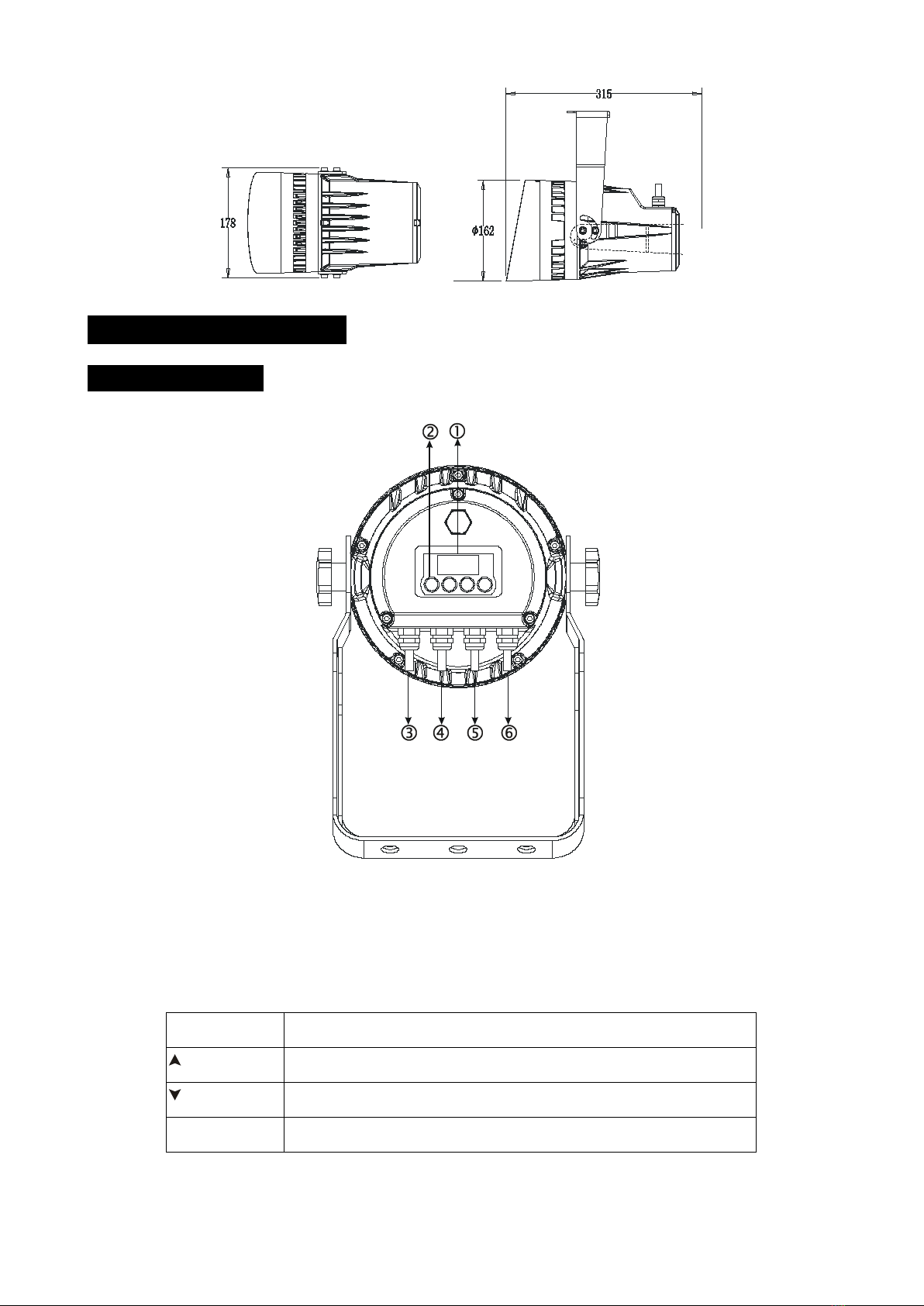

Dimension: 315 x 178 x 162mm
3B

3. How To Set The Fixture
3.1 Control Panel
1. Function Display:
Used To show the various menus and the selected functions
2. Button:
MENU
To select the programming functions
DOWN
To go backward in the selected functions
UP
To go forward in the selected functions
ENTER
To confirm the selected functions
3. DMX IN:
4B

Water proof cable with 3-pin XLR connectors for DMX 512 operation
4. POWER IN:
Water proof power cable with connectors for power input
5. POWER OUT:
Water proof cable with connectors for power output
6. DMX OUT:
Water proof cable with connectors for DMX 512 operation with 3-pin XLR plug
3.2 Main Functions
To select any functions, press the MENU button until the required one is shown on the display.
Select the function by the ENTER button and the display will blink. Use the DOWN/UP button to
change the mode. Once the required mode has been selected, press the ENTER button to setup or
it will automatically return to the main functions without any change after idling one minute. Back
to the functions without any change press the MENU button.

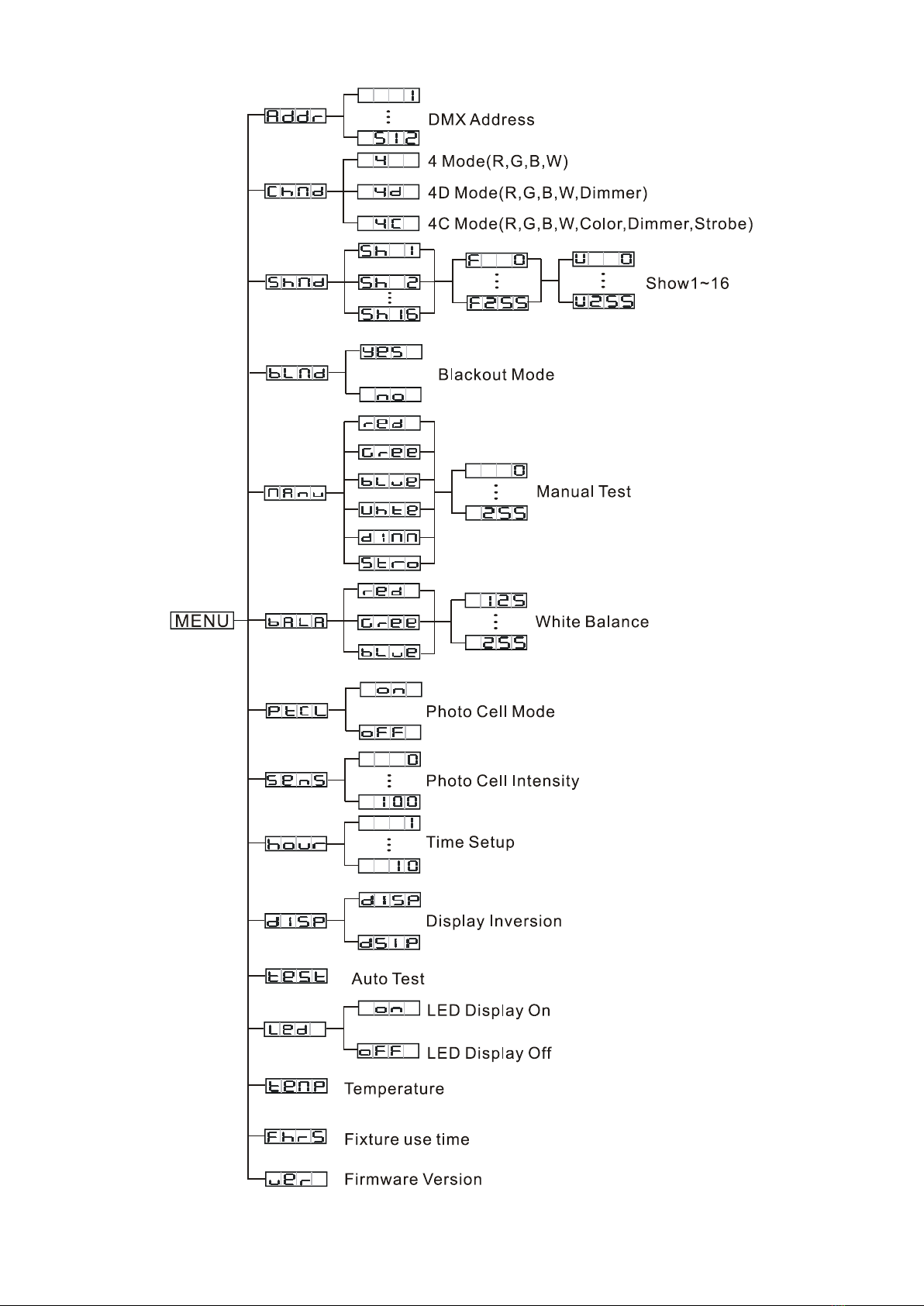

The main functions are shown below:
5B

6B

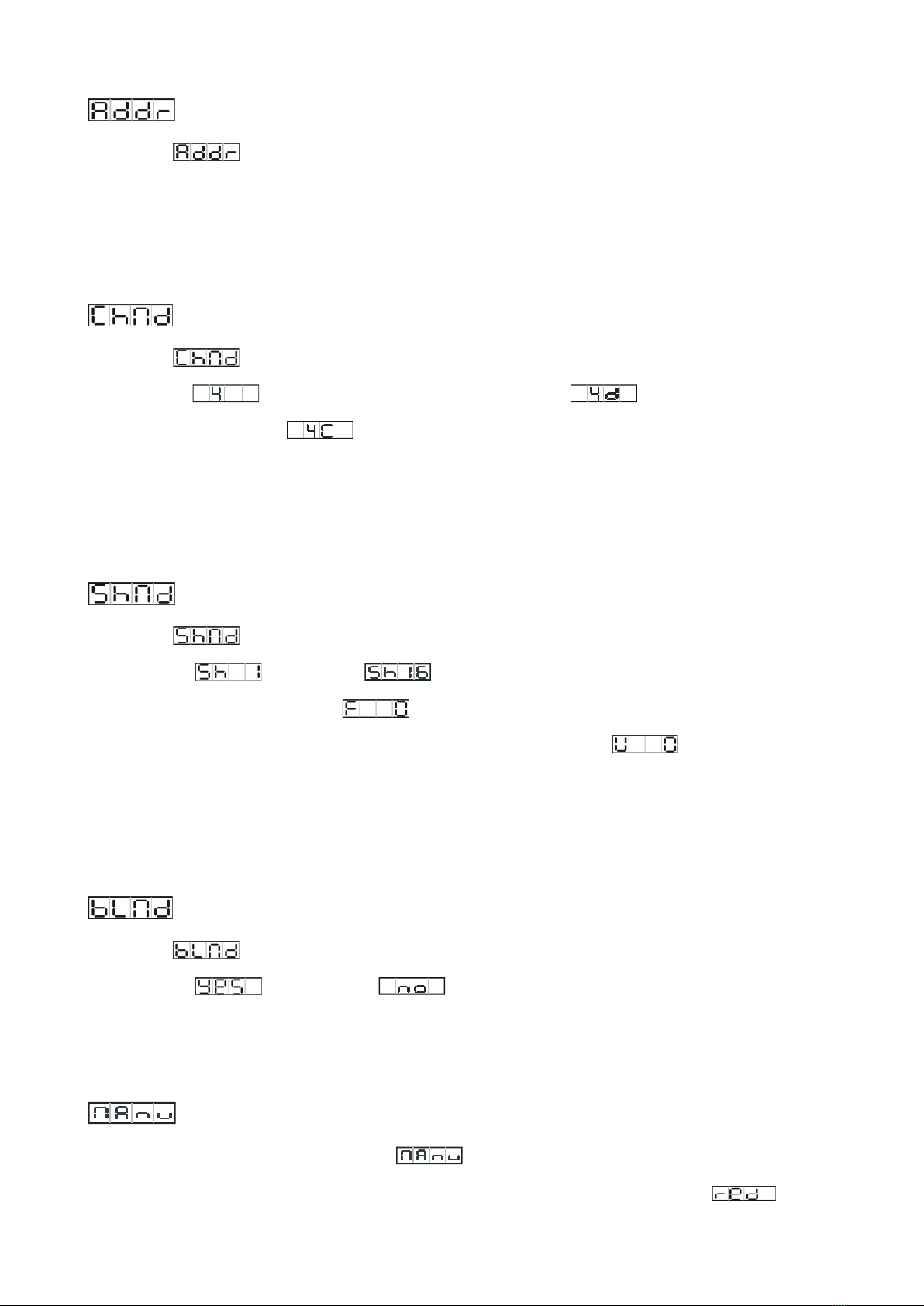

DMX 512 Address
Select the , press the ENTER button and the display will blink. Use the DOWN/UP button
to change the DMX 512 address between 1 and 512. Once the address has been selected, press the
ENTER button to save or automatically exit menu mode without any change after one minute. Back
to the previous functions without any change press the MENU button.
Channel mode
Select the , press the ENTER button and the display will blink. Use the DOWN/UP button
to select the (4 Channels: Red, Green, Blue, White), (5 Channels: Red, Green,
Blue, White, Dimmer) or (7 Channels: Red, Green, Blue, White, Color, Dimmer, Strobe)
Mode. Once select the required mode, press the ENTER button to save or automatically exit menu
mode without any change after one minute. To go back to the functions without any change press
the MENU button.
Show mode
Select the , press the ENTER button and the display will blink. Use the DOWN/UP button
to select the (show 1)…. (show 16). Once select, press the ENTER button to
setup. press the ENTER button，will blinking on the display, use the DOWN/UP button
adjust the fade time (0~255), press the ENTER button to store and will blinking on the
display, use the DOWN/UP button adjust the white time (0~255), press the ENTER button to store
or automatically return to the main functions without any change after one minute. To go back to
the previous functions without any change press the MENU button.
Blackout mode
Select the , press the ENTER button and the display will blink. Use the DOWN/UP button
to select the (blackout) or (normal). Once selected, press the ENTERbutton
to setup or automatically exit menu mode without any change after one minute. To go back to the
functions without any change press the MENU button.
Manual Mode
Press the MENU button up to when the is shown on the display. Press the ENTER button
and the display will blink. Use the DOWN/UP button to select the (Red),
7B

(Green), (Blue), (White), (Dimmer) or (Strobe).
Once selected, press the ENTER button to setup, then use the DOWN/UP button to adjust the
value (0~255) or automatically exit menu mode without any change after one minute. To go back
to the functions without any change press the MENU button.
White Balance
Press the MENU button up to when the is showing on the display. Pressing the ENTER
button and the display will blink. Use the DOWN/UP button to select the (Red)，
(Green), or (Blue) mode. Once selected, press the ENTER button to setup,
then use the DOWN/UP button to adjust the value (125~255) or automatically exit menu mode
without any change after one minute. To go back to the functions without any change press the
MENU button.
Photo Cell
Select the , press the ENTER button and the display will blink. Use the DOWN/UP button
to select the (Be controlled by sunlight) or (Not be controlled by sunlight)，
Once select, press the ENTER button to setup or automatically return to the main functions
without any change after one minute. Back to the previous functions press the MENU button.
Photo Cell Intensity
Select the , press the ENTER button and the display will blink. Use the DOWN/UP button
to adjust the intensity vale between and . Once selected, press the ENTER
button to setup or automatically return to the main functions without any change after one
minute. Back to the previous functions press the MENU button.
Time Setup
Select the , press the ENTER button and the display will blink. Use the DOWN/UP button
to adjust the (1 hour) … (10 hours) mode. Once select, press the ENTER
button to setup or automatically return to the main functions without any change after one
minute. Back to the previous functions press the MENU button.
Display Inversion
Press the MENU button up to when the is showing on the display. Pressing the ENTER
8B

button and the display will blink. Use the DOWN/UP button to select the (normal) or
(inverse), Once the mode has been selected, press the ENTER button to setup or
automatically return to the main functions without any change after one minute. To go back to the
previous functions without any change press the MENU button.

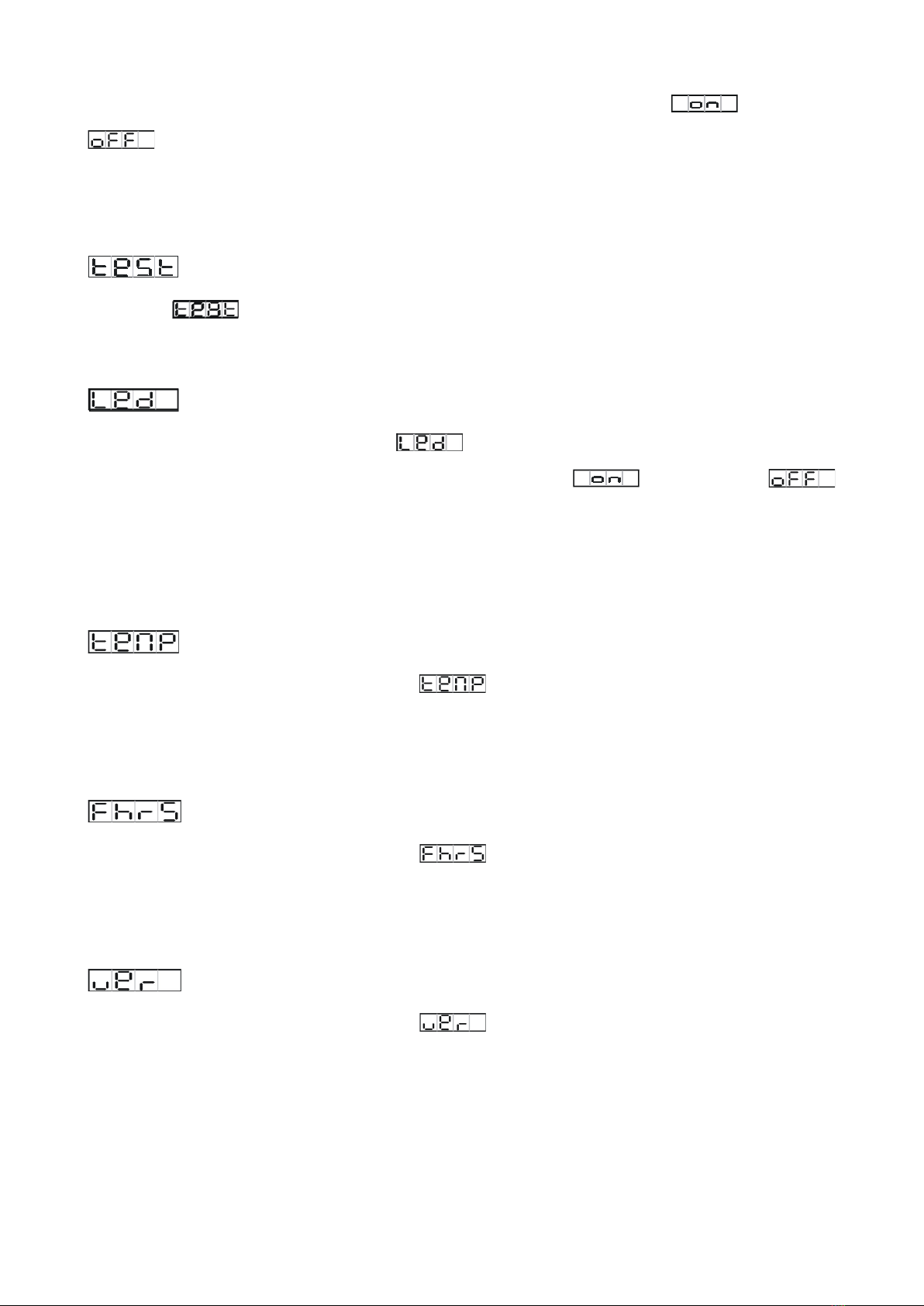

Auto Test
Select the , press the ENTER button and the unit will run self-test by built-in program. To go
back to the functions press the MENU button again.
LED Display
Press the MENU button up to when the is shown on the display. Press the ENTER button
and the display will blink. Use the DOWN/UP button to select (display on) or
(display off 20 seconds after exit menu) mode. Once select, press the ENTER button to setup or
exit menu mode without any change after one minute. Back to the functions without any change
press the MENU button again.
Temperature Test
Press the MENU button up to when the is blinking on the display. Press the ENTER
button and the display will show the temperature of the unit. To go back to the functions press the
MENU button again.
Fixture Hours
Press the MENU button up to when the is blinking on the display. Press the ENTER
button and the display will show the number of working hours of the unit. To go back to the
functions press the MENU button.
Software version
Press the MENU button up to when the is blinking on the display. Press the ENTER
button and the display will show the version of software of the unit. To go back to the functions
press the MENU button again.
9B

4. How To Control The Fixture
You can operate the unit by DMX controller:
No need to turn the unit off when you change the DMX address, as new DMX address setting will
be affected at once. The unit will be ready to receive DMX signal or run the built in programs.
4.1 DMX Controller
Use universal DMX controller to control the units, you have to set DMX address from 1 to 512
channel so that the units can receive DMX signal.
Press the MENU button up to when the is showing on the display. Press the ENTER
button and the display will blink. Use the DOWN/UP button to change the DMX512 address. Once
the address has been selected, press and keep the ENTER button pressed up to when the display
stops blinking or storing automatically 8 seconds later. To go back to the functions without any
change press the MENU button again.
Please refer to the following diagram to address your DMX adsress for the first 4 units
Channel Mode Unit 1 Address Unit 2 Address Unit 3 Address Unit 4 Address
4 Channels 1 5 9 13
5 Channels 1 6 11 16
7 Channels 1 8 15 22
4.2 DMX 512 Configuration
4 Channels Mode:
Channel Value Function
1
0 - 255
RED
0% 100%
2
0 - 255
GREEN
0% 100%
3
0 - 255
BLUE
0% 100%
4
0 - 255
WHITE
0% 100%
10B

5 Channels Mode:
Channel Value Function
1
0 - 255
RED
0% 100%
2
0 - 255
GREEN
0% 100%
3
0 - 255
BLUE
0% 100%
4
0 - 255
WHITE
0% 100%
5
0 - 255
DIMMER
0% 100%
7 Channels Mode:
Channel Value Function
1
0 - 255
RED
0% 100%
2
0 - 255
GREEN
0% 100%
3
0 - 255
BLUE
0% 100%
4
0 - 255
WHITE
0% 100%
5
0 - 7
8 - 15
16 – 23
24 - 31
…
232 - 239
240 - 247
248 - 255
COLOR WHEEL
OFF
Preset Color 1
Preset Color 2
Preset Color 3
…
Preset Color 30
Preset Color 31
Preset Color 32
6
0 - 255
DIMMER
0% 100%
11B

7
0 - 7
8 - 15
16 - 131
132 - 139
140 - 181
182 - 189
190 - 231
232 - 239
240 - 247
248 - 255
STROBE
OFF
OPEN
STROBE, SLOW TO FAST
OPEN
FAST CLOSE SLOW OPEN
OPEN
FAST OPEN SLOW CLOSE
OPEN
RANDOM STROBE
OPEN
5. DMX512 Connections
1. If you using a controller with 5 pins DMX output, you need to use a 5 to 3 pin adapter-cable.
2. Connect the unit together in a “daisy chain” by XLR plug from the output of the unit to the
input of the next unit. The cable can not branched or split to a “Y” cable. DMX 512 is a very
high-speed signal. Inadequate or damaged cables, soldered joints or corroded connectors can
easily distort the signal and shut down the system.
3. The DMX output and input connectors are pass-through to maintain the DMX circuit, when
one of the units’ power is disconnected.
4. Each lighting unit needs to have an address set to receive the data sent by the controller. The
address number is between 0-511 (usually 0 & 1 are equal to 1).
12B

5. The end of the DMX 512 system should be terminated to reduce signal errors.
6. 3 pin XLR connectors are more popular than 5 pin XLR.
3 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+)
5 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+)
Pin 4/Pin 5: Not used.
6. Troubleshooting
If the fixture does not work, no light, please check the connection of power cable and signal line,
also measure the mains voltage on the main connector.
7. Cleaning And Maintenance
The cleaning must be carried out periodically to optimize light output. Cleaning frequency depends
on the environment in which the fixture operates: moist, smoky or particularly dirty surrounding
can cause greater accumulation of dirt on the fixture.
Clean with lint-free cloth using normal glass cleaning liquid.
Always dry the parts carefully.
Clean the surface at least every 30 days.
13B

Declaration of Conformity
We declare that our products (lighting equipments) comply with the following
specification and bears CE mark in accordance with the provision of the
Electromagnetic Compatibility (EMC) Directive 89/336/EEC.
EN55103-1: 2009 ; EN55103-2: 2009; EN62471: 2008;
EN61000-3-2: 2006 + A1:2009 + A2:2009; EN61000-3-3: 2008.
&
Harmonized Standard
EN60598-2-17:1989 + A2:1991; EN60598-1:2008+ A11: 2009
EN 62471:2008; EN 62493: 2010
Safety of household and similar electrical appliances
Part 1: General requirements
14B

Innovation, Quality, Performance
