ACME Oxygen User manual

- 1 -
CONTENTS
01/ Safety Instructions.................................................................................................. 2
02/ Technical Specifications ........................................................................................ 6
03/ Control Panel........................................................................................................... 8
04/ Fixture Installation.................................................................................................. 9
05/ How To Set The Unit............................................................................................11
5.1 Main Functions..............................................................................................11
5.2 Home Position Adjustment ......................................................................... 25
06/ Control By Universal DMX Controller.............................................................. 29
6.1 DMX512 Connection...................................................................................29
6.2 Address Setting..............................................................................................30
6.3 DMX512 Configuration...............................................................................30
07/ Error Information ..................................................................................................39
08/ Troubleshooting ....................................................................................................43
09/ Fixture Cleaning....................................................................................................44

- 2 -
01/ Safety Instructions
WARNING
Please keep this User Guide for future consultation. If you sell the unit to another user, be
sure that they also receive this instruction manual.
Important:
Damages caused by the disregard of this user manual are not subject to warranty. The dealer
will not accept liability for any resulting defects or problems.
Unpack and check carefully to ensure that there is no transportation damage before
using the unit.
This product is for indoor use only. Use only in a dry location.
DO install and operate by qualified operator.
DO NOT allow children to operate the fixture.
Use safety chain when fixing the unit. Handle the unit by carrying its base instead of
head only.
The unit must be installed in a location with adequate ventilation, at least 50cm from
adjacent surfaces.
Be sure that no ventilation slots is blocked, otherwise the unit will be overheated.
Before operation, ensure that you are connecting this product to the proper voltage in
accordance with the specifications in this manual or on the product’s specification label.
It’s important to ground the yellow/green conductor to earth in order to avoid electric
shock.
Minimum ambient temperature TA: 0℃. Maximum ambient temperature TA: 40℃.Do
not operate this product at a lower or higher temperature.
DO NOT connect the device to any dimmer pack.
Keep flammable materials away from the fixture while operating to avoid fire hazard.
Make sure the power cord is not crimped or damaged; replace it immediately if damaged.
Unit’s surface temperature may reach up to 75 ℃. DO NOT touch the housing
bare-handed during its operation.
Avoid any flammable liquids, water or metal from entering the unit. Once it happens, cut
Please read the instruction carefully which includes important information
about the installation, usage and maintenance.

- 3 -
off the mains power immediately.
DO NOT operate in a dirty or dusty environment. DO clean the fixture regularly.
DO NOT touch any wire during operation as there might be a hazard of electric shock.
Avoid entanglement of the power cord with other wires.
The minimum distance to objects/surface must be more than 0.5 meters.
In the event of serious operating problem, stop using the unit immediately.
Never turn on and off the unit time after time.
The housing, the lenses, or the ultraviolet filter must be replaced if they are visibly
damaged.
DO NOT open the housing as there are no user serviceable parts inside.
DO NOT attempt to operate this unit if it becomes damaged. DO NOT attempt any
repairs yourself. Repairs carried out by unskilled people can lead to damage or
malfunction. Please contact the nearest authorized technical assistance center if needed.
Disconnect this product from its power source before servicing.
DO use the original packaging if the device is to be transported.
Avoid direct eye exposure to the light source while the product is on.
DO NOT operate this product if you see damage on the housing, shields, or cables. Have
the damaged parts replaced by an authorized technician at once.

- 4 -
01/ Consignes de sécurité
ATTENTION
Veuillez conserver ce guide de l'utilisateur pour une consultation future. Si vous vendez
l'appareil à un autre utilisateur, assurez-vous qu'il reçoive également ce manuel
d'instructions.
Important:
Les dommages causés par le non-respect de ce manuel d'utilisation ne sont pas couverts par la
garantie. Le revendeur n'acceptera aucune responsabilité pour les défauts ou problèmes qui en
résultent.
Déballez et vérifiez soigneusement qu'il n'y a pas de dommages dus au transport avant
d'utiliser l'appareil.
Ce produit est destiné à un usage intérieur uniquement. Il doit donc être utilisé
uniquement dans un endroit sec.
L’installation et la mise en fonctionnement doit être effectué par un opérateur qualifié.
NE PAS permettre aux enfants d'utiliser l'appareil.
Utilisez une chaîne de sécurité lors de la fixation de l'unité. Manipulez l'appareil en
portant sa base au lieu de la tête uniquement.
L'unité doit être installée dans un endroit avec une ventilation adéquate, à au moins
50cm des surfaces adjacentes.
Assurez-vous qu'aucune fente d'aération du luminaire n'est obstruée, sinon il risque de
surchauffer.
Avant toute utilisation, assurez-vous que vous connectez ce luminaire à la tension
appropriée conformément aux spécifications que vous trouverez dans ce manuel ou sur
l'étiquette des spécifications collée sur la base du luminaire.
Il est important de relier le file jaune/vert à la terre afin d'éviter tout choc électrique.
Température ambiante minimale TA: 0℃. Température ambiante maximale TA: 40℃.
N'utilisez pas ce luminaire à des températures inférieures ou supérieures.
NE PAS connecter le luminaire à un pack de gradateurs.
Gardez les matériaux inflammables à l'écart du luminaire pendant le fonctionnement
Veuillez lire attentivement les instructions qui contiennent des informations
importantes sur l'installation, l'utilisation et l'entretien.

- 5 -
pour éviter tout risque d'incendie.
Assurez-vous que le cordon d'alimentation n'est pas pincé ou endommagé; remplacez-le
immédiatement s'il est endommagé.
La température de surface de l'unité peut atteindre 75℃. NE PAS toucher les capots à
mains nues pendant son fonctionnement.
Évitez que des liquides inflammables, de l'eau ou du métal ne pénètrent dans l'appareil. Si
cela se produit, coupez immédiatement l'alimentation secteur.
NE PAS utiliser le luminaire dans un environnement sale ou poussiéreux. Cette appareil
doit être nettoyer régulièrement.
NE touchez AUCUN file pendant le fonctionnement car il pourrait y avoir un risque de
choc électrique.
Évitez l'enchevêtrement du cordon d'alimentation avec d'autres fils.
La distance minimale de projection sur des objets ou sur des surfaces doit être supérieure
à 0.5 mètres.
En cas de problème de fonctionnement grave, arrêtez immédiatement d'utiliser l'appareil.
N'allumez et n'éteignez jamais ce luminaire à maintes reprises.
Le boîtier, les lentilles ou le filtre ultraviolet doivent être remplacés s'ils sont visiblement
endommagés.
NE PAS ouvrir le boîtier car il ne contient aucune pièce réparable par l'utilisateur.
NE PAS mettre ce luminaire en fonctionnement s'il est endommagé. N'effectuez pas de
réparations vous-même. Les réparations ne doivent être effectuées par des personnes
non qualifiées, cela peut entraîner des dommages ou des dysfonctionnements. Veuillez
contacter le centre d'assistance technique agréé le plus proche si nécessaire.
Débranchez ce produit du secteur avant de procéder à l'entretien.
Utiliser l'emballage d'origine si l'appareil doit être transporté.
Évitez une exposition directe des yeux à la source lumineuse lorsque le produit est
allumé.
N'utilisez PAS ce produit si vous constatez des dommages sur le boîtier, les blindages ou
les câbles. Faites remplacer immédiatement les pièces endommagées par un technicien
agréé.

- 6 -
02/ Technical Specifications
Power Voltage
100-240V~ 50/60Hz
Power Consumption
340W
Light Source
7x40W RGBW LED
Color Temperature
2500K-8000K
Beam Angle
4.5°-36.5°
Field Angle
8.5°-56.5°
Dimmer/Strobe
0-100% smooth dimming; outstanding strobe effect with variable
speed
Movement
Pan
540°
Tilt
230°
Pan/Tilt Resolution
16 bit
Automatic pan/tilt position correction
Control
DMX Channel
17/37 Channels
Control Mode
DMX512
RDM
Primary/Secondary Mode
Firmware Upgrade
via DMX link or USB disk
Construction
Display
OLED display
Data In/Out
5-pin XLR (3-pin XLR is optional)
Power In/Out
Power Connector in/out
Protection Rating
IP20
Description for power cord set should be used: Listed SJT flexible cord with rating: 300V,
105°C, 16AWG x 3C, molded with 5-15P attachment plug and terminated with cord
connector model SAC3FCA with rating 250V, 20A by NINGBO HAISHU DISTRICT
SEETRONIC ELECTRONIC CO., LTD. The power cord shall be at least 914mm (lt is to be
measured from the face of attachment plug to the face of connector).
Features
Pixel control, uniform RGBW color mixing and rainbow effect
Motorized liner zoom system
Compact design, small size, fast and silent operation
Automated color calibration system to ensure a consistent output
Dimensions
216x170x345mm
8.5"x6.7"x13.6"in
Weight
6.3kgs
14lbs

- 7 -
Photometric Diagram:

- 8 -
03/ Control Panel
1. Display
To show the various menus and the selected function
2. Buttons
MENU
To enter into move backward or leave the menu
UP
To go backward to move up in the menu
DOWN
To go forward to move down in the menu
ENTER
To perform the desired functions
3. POWER IN
To connect to supply power
4. POWER OUT
To connect to the next fixture
5. DMX OUT
For DMX512 link, use 5-pin XLR cable to link the next units to
output DMX signal (3-pin XLR cable is optional)
6. DMX IN
For DMX512 link, use 5-pin XLR cable to link the unit and DMX
controller to input DMX signal (3-pin XLR cable is optional)
7. FIRMWARE
UPGRADE
Used to upgrade fixture’s firmware

- 9 -
04/ Fixture Installation
DO install and operate by qualified operator. Fixture(s) should be installed in areas
outside walking paths, seating areas, or away from areas were unauthorized personnel
might reach the fixture by hand. NEVER stand directly below the fixture(s) when rigging,
removing or servicing.
Always ensure that the unit is firmly fixed to avoid vibration and slipping off during
operation. Ensure that the trussing or area of installation must be able to hold 10 times
the weight without any deformation. Always attach a safety cable that can hold at least
12 times the weight of the fixture whenever installing this fixture in a suspended
environment to ensure that the fixture will not fall if the clamp fails.

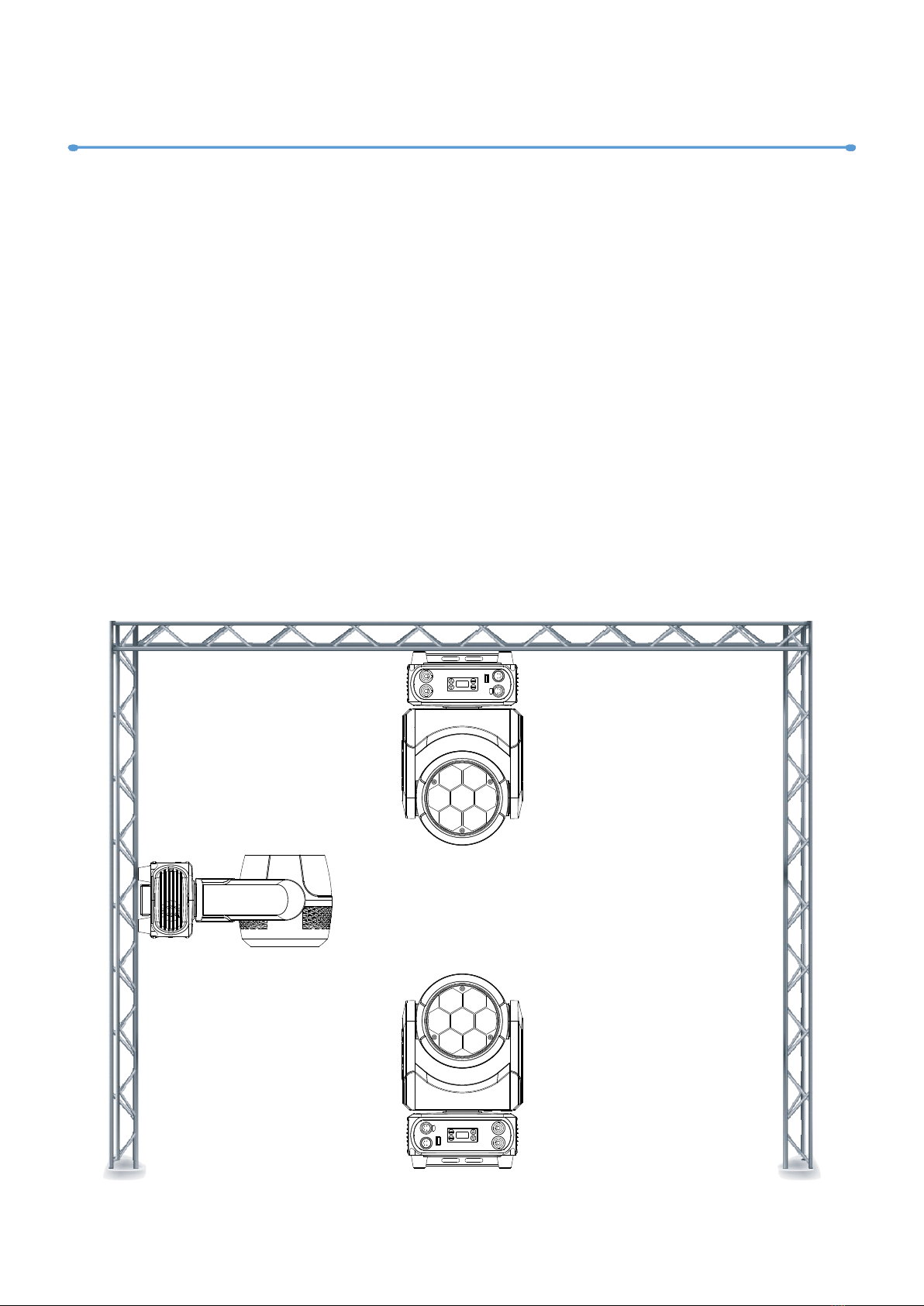

This fixture is fully operational in three different mounting positions: hanging
upside-down, mounted sideways on trussing, or set on a flat level surface. Always use
and install the supplied safety cable as a safety measure to prevent accidental damage
and/or injury in the event the clamp fails.

- 10 -

- 11 -
05/ How To Set The Unit
5.1 Main Functions
To access the control menus, press the [MENU] button.
Navigate the menu structure, using the [ENTER], [UP] and [DOWN] buttons.
To select a menu option or to confirm a selection, press the [ENTER] button.
To return to a higher level in the menu structure without making a change, press the
[MENU] button, or wait 30 seconds.
The main functions are shown below:
MENU
SUBMENU
OPTIONS
DMX Settings
DMX Address
1-496 (17 CH)
(Default=1)
1-476 (37 CH)
Channel Mode
Mode 1 (17)
Mode 2 (37)
No DMX Status
Blackout
Hold
Manual
Pri. Sec.
View DMX Value
Fixture Settings
Pan Invert
No
Yes
Tilt Invert
No
Yes
P/T Feedback
No
Yes
Zoom Invert
No
Yes
Fan Mode
Auto
Silent
Dimmer Curve
Linear
Square Law
Inv SQ Law
S Curve
Dimmer Speed
Fast
Smooth

- 12 -
MENU
SUBMENU
OPTIONS
White Balance
Red
125-255
Green
125-255
Blue
125-255
Red 1
125-255
Green 1
125-255
Blue 1
125-255
……
……
Red 7
125-255
Green 7
125-255
Blue 7
125-255
Color Calibration
Off
On
Calibration Mode
High CRI
High Output
Pri/Sec Mode
Secondary
Primary
Display Settings
Display Invert
No
Yes
Temperature Unit
°C
°F
Display Warning
Off
On
Language
English
Chinese
Auto Test
Manual Test
Mode 1
Mode 2
Clear
No/Yes
Clear
No/Yes
Pan
0-255
Pan
0-255
Tilt
0-255
Tilt
0-255
Zoom
0-255
Zoom
0-255
Dimmer
0-255
Dimmer
0-255
Shutter
0-255
Shutter
0-255
Red
0-255
Red 1
0-255
Green
0-255
Green 1
0-255
Blue
0-255
Blue 1
0-255
White
0-255
White 1
0-255
CTO
0-255
……
……
Color Macro
0-255
Red 7
0-255

- 13 -
MENU
SUBMENU
OPTIONS
Pixel
0-255
Green 7
0-255
Pixel Rotating
0-255
Blue 7
0-255
White 7
0-255
Show Program
Set Scene Totals
0-50
Edit Scene Color
1-50
Red
0-255
Green
0-255
Blue
0-255
White
0-255
Fade Time
0-255
Hold Time
0-255
Pan POS
0-255
Tilt POS
0-255
Zoom POS
0-255
Information
Fixture Use Hour
LED Use Hour
Total LED Hour
LED On Hour
LED Hours Reset
No
Yes
Password=050
Temperature
Current
Max temp
LED’s
Fan State
Head
Base
Upgrade File
Firmware Version
RDM UID
Error Logs
Fixture Errors
Reset Error Log
No
Yes
Password=050
Reset Functions
Pan/Tilt Reset
No
Yes
Effect Reset
No
Yes
All Reset
No
Yes
Factory Restore
No
Yes

- 14 -
DMX Settings
Enter the control menu and select DMX Settings, press ENTER. Use the UP/DOWN button
to select DMX Address, Channel Mode, No DMX Status or View DMX Value.
DMX Address
Channel Mode
No DMX Status
Select No DMX Status, press ENTER.
Use UP/DOWN button to select one of the following status:
Blackout (Fixture blacks out if DMX signal stops)
Hold (The device continues to operate in the current mode with the last
active DMX values until the signal returns)
Manual (The device accepts the DMX value stored in the ‘Manual Test’
menu)
Pri. Sec. (Primary/Secondary Mode)
Confirm your selection with ENTER.
To exit the menu, press MENU, or wait 30 seconds.
Select Channel Mode, press ENTER.
Use UP/DOWN button to select between Mode 1 (17) and Mode 2 (37),
confirm your selection with ENTER.
To exit the menu, press MENU, or wait 30 seconds.
Select DMX Address, press ENTER.
Use UP/DOWN button to select an address, confirm your selection with
ENTER.
CHANNEL MODE
DMX ADDRESS
Mode 1 (17)
1-496
Mode 2 (37)
1-476
To exit the menu, press MENU, or wait 30 seconds.

- 15 -
View DMX Value
Fixture Settings
Enter the control menu and select Fixture Settings, press ENTER. Use the UP/DOWN button
to select Pan Invert, Tilt Invert, P/T Feedback, Zoom Invert, Fan Mode, Dimmer Curve, Dimmer
Speed, White Balance, Color Calibration, Calibration Mode or Pri/Sec Mode.
Pan Invert
Tilt Invert
P/T Feedback
Select Pan Invert, press ENTER.
Use UP/DOWN button to select No (pan invert deactivated) or Yes (pan
invert activated), confirm your selection with ENTER.
To exit the menu, press MENU, or wait 30 seconds.
Select P/T Feedback, press ENTER.
Use UP/DOWN button to select No (pan/tilt feedback deactivated) or
Yes (pan/tilt feedback activated), confirm your selection with ENTER.
To exit the menu, press MENU, or wait 30 seconds.
Select Tilt Invert, press ENTER.
Use UP/DOWN button to select No (tilt invert deactivated) or Yes (tilt
invert activated), confirm your selection with ENTER.
To exit the menu, press MENU, or wait 30 seconds.
Select View DMX Value, press ENTER.
Use UP/DOWN button to select the desired DMX channel, for which the
value is to be displayed.
To exit the menu, press MENU, or wait 30 seconds.

- 16 -
Zoom Invert
Fan Mode
Dimmer Curve
Dimmer Speed
Select Fan Mode, press ENTER.
Use UP/DOWN button to select Auto or Silent, confirm your selection
with ENTER.
To exit the menu, press MENU, or wait 30 seconds.
Select Zoom Invert, press ENTER.
Use UP/DOWN button to select No (zoom invert deactivated) or Yes
(zoom invert activated), confirm your selection with ENTER.
To exit the menu, press MENU, or wait 30 seconds.
Select Dimmer Speed, press ENTER.
Use UP/DOWN button to select Fast or Smooth, confirm your selection
with ENTER.
To exit the menu, press MENU, or wait 30 seconds.
Select Dimmer Curve, press ENTER.
Use UP/DOWN button to select Linear, Square Law, Inv SQ Law or S
Curve, confirm your selection with ENTER.
To exit the menu, press MENU, or wait 30 seconds.

- 17 -
White Balance
Color Calibration
Calibration Mode
Pri/Sec Mode
Select Pri/Sec Mode, press ENTER.
Use UP/DOWN button to select Secondary or Primary, confirm your
selection with ENTER.
To exit the menu, press MENU, or wait 30 seconds.
Select Calibration Mode, press ENTER.
Use UP/DOWN button to select High CRI or High Output, confirm your
selection with ENTER.
To exit the menu, press MENU, or wait 30 seconds.
Select Color Calibration, press ENTER.
Use UP/DOWN button to select Off or On, confirm your selection with
ENTER.
To exit the menu, press MENU, or wait 30 seconds.
Select White Balance, press ENTER.
Use UP/DOWN button to select Red, Green, Blue, Red 1, Green 1, Blue
1 …… or Red 7, Green 7, Blue 7, confirm your selection with ENTER.
Use UP/DOWN button to select a value between 125 and 255, confirm
your selection with ENTER.
To exit the menu, press MENU, or wait 30 seconds.

- 18 -
Display Settings
Enter the control menu and select Display Settings, press ENTER. Use the UP/DOWN button
to select Display Invert, Temperature Unit, Display Warning or Language.
Display Invert
Temperature Unit
Display Warning
Language
Auto Test
Select Display Warning, press ENTER.
Use UP/DOWN button to select Off or On, confirm your selection with
ENTER.
To exit the menu, press MENU, or wait 30 seconds.
Select Auto Test, press ENTER.
The device immediately performs an automatic self-test.
To end the automatic self-test and exit the menu, press MENU, or wait
30 seconds.
Select Language, press ENTER.
Use UP/DOWN button to select English or Chinese, confirm your
selection with ENTER.
To exit the menu, press MENU, or wait 30 seconds.
Select Temperature Unit, press ENTER.
Use UP/DOWN button to select °C or °F, confirm your selection with
ENTER.
To exit the menu, press MENU, or wait 30 seconds.
Select Display Invert, press ENTER.
Use UP/DOWN button to select No (display normal) or Yes (display
inverted), confirm your selection with ENTER.
To exit the menu, press MENU, or wait 30 seconds.

- 19 -
Manual Test
Show Program
Enter the control menu and select Show Program, press ENTER. Use the UP/DOWN button
to select Set Scene Totals, Edit Scene Color, Fade Time, Hold Time, Pan POS, Tilt POS or Zoom
POS.
Set Scene Totals
Edit Scene Color
Select Edit Scene Color, press ENTER.
Use UP/DOWN button to select a value between 1and 50, confirm your
selection with ENTER.
Use UP/DOWN button to select Red, Green, Blue or White, confirm your
selection with ENTER.
Use UP/DOWN button to select a value between 0and 255, confirm
your selection with ENTER.
To exit the menu, press MENU, or wait 30 seconds.
Select Set Scene Totals, press ENTER.
Use UP/DOWN button to select a value between 0and 50, confirm your
selection with ENTER.
To exit the menu, press MENU, or wait 30 seconds.
Select Manual Test, press ENTER.
Use UP/DOWN button to select the channel for which the manual test
is to be performed, confirm your selection with ENTER.
Use UP/DOWN button to select a value, confirm your selection with
ENTER.
To exit the menu, press MENU, or wait 30 seconds.
(The device returns to its original DMX state after the manual test. The
test values are saved automatically when the device is switched off.)
