ACME Stag Par MP-200 User manual

MP-200
User Manual
Please read the manual carefully before using

1A
CONTENTS
1. Safety Instructions..........................................................................................2
2. Technical Specifications..................................................................................3
3. How To Set The Unit ......................................................................................5
3.1 Control panel............................................................................................5
3.2 Main Functions .........................................................................................6
4. How to Control the Unit ..............................................................................12
4.1 Master/Slave Built In Preprogrammed Function ......................................12
4.2 DMX Controller ......................................................................................12
5. DMX 512 Configurations..............................................................................14
6. DMX 512 Connections .................................................................................15
7. Troubleshooting............................................................................................16
8. Fixture Cleaning............................................................................................17

2A
1. Safety Instructions
WARNING
yPlease keep this User Guide for future consultation. If you sell the unit to another user, be
sure that they also receive this instruction booklet.
yUnpack and check carefully there is no transportation damage before using the unit.
yBefore operating, ensure that the voltage and frequency of power supply match the power
requirements of the unit.
yIt’s important to ground the yellow/green conductor to earth in order to avoid electric
shock.
yThe unit is for indoor use only. Use only in a dry location.
yThe unit must be installed in a location with adequate ventilation, at least 50cm from
adjacent surfaces. Be sure that no ventilation slots are blocked.
yMake sure there are no flammable materials close to the unit while operating as it is fire
hazard.
yUse safety cable when fixes this unit. DO NOT handle the unit by taking its head only, but
always by taking its base.
yMaximum ambient temperature is Ta: 40℃. DO NOT operate it where the temperature is
higher than this.
yUnit surface temperature may reach up to 85℃. DO NOT touch the housing bare-hand
during its operation. Turn off the power and allow about 15 minutes for the unit to cool
down before replacing or serving.
yIn the event of serious operating problem, stop using the unit immediately. Never try to
repair the unit by yourself. Repairs carried out by unskilled people can lead to damage or
malfunction. Please contact the nearest authorized technical assistance center. Always use
the same type spare parts.
yDO NOT touch any wire during operation as high voltage might be causing electric shock.
Please read the instruction carefully, it includes important
information about the installation, usage and maintenance.

3A
Warning:
yTo prevent or reduce the risk of electrical shock or fire, do not expose the unit to rain or
moisture.
yDO NOT open the unit within five minutes after switching off.
yThe housing, the lenses, or the ultraviolet filter must be replaced if they are visibly
damaged.
Caution:
There are no user serviceable parts inside the unit. DO NOT open the housing or attempt
any repairs yourself. In the unlikely event your unit may require service, please contact your
nearest dealer.
Installation:
The unit should be mounted via its screw holes on the bracket. Always ensure that the unit
is firmly fixed to avoid vibration and slipping while operating. And make sure that the
structure to which you are attaching the unit is secure and is able to support a weight of 10
times of the unit’s weight. Also always use a safety cable that can hold 12 times of the
weight of the unit when installing the fixture.
The equipment must be fixed by professionals. And it must be fixed at a place where is out
of the touch of people and has no one pass by or under it.
2. Technical Specifications
◇DMX Channels: 4/5/7 channels
◇Two Operation Modes: DMX, Master/Slave
◇Excellent built-in lighting shows under Master/Slave mode
◇LED display for easy navigation
For 230V 50Hz power supply, maximum fixtures that can be connected on one power cable is 8;
For 120V 60Hz power supply, maximum fixtures that can be connected on one power cable is 4;

4A
◇Electronic strobe smooth dimming with wash effect
◇Quad color with flicker-free
yVoltage：AC 100~240V, 50/60Hz
yPower Consumption：122W
yLED: 12pcsx10WCREELEDs
yFuse: T6.3A
yBeam Angle: 10°

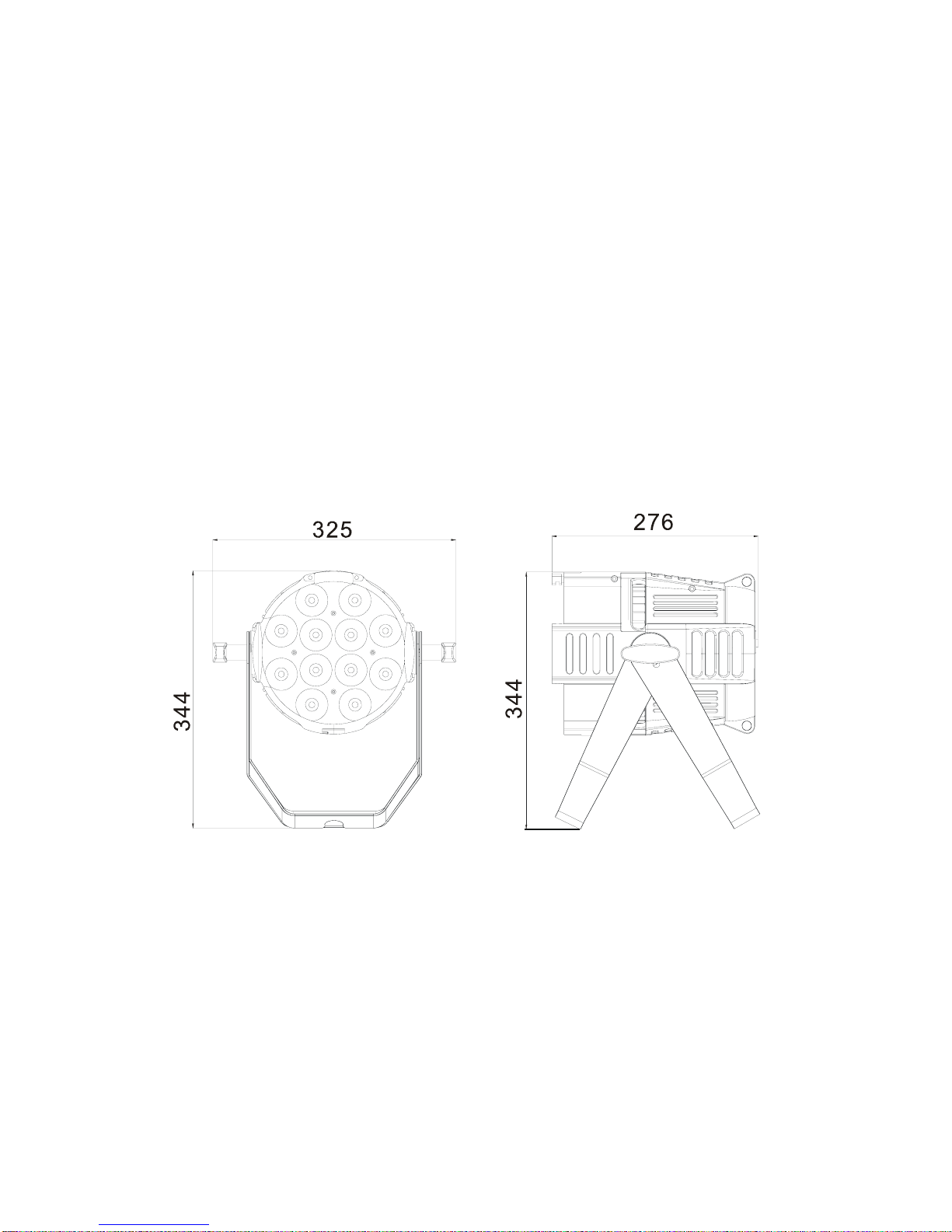

yDimension：325 x 276x 344mm
yWeight：6.6Kgs

5A
3. How To Set The Unit

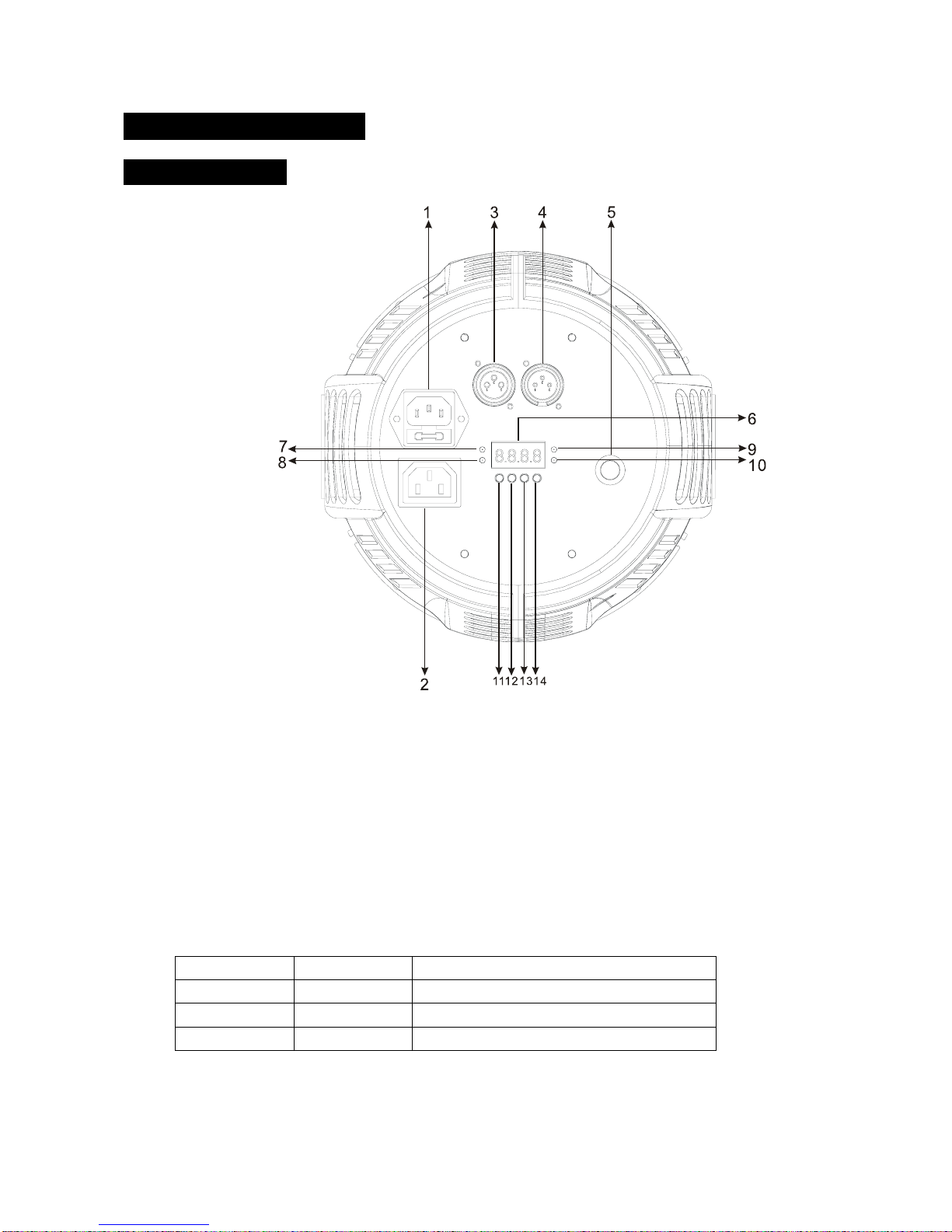

3.1 Control panel
1. Mains Input: Used to connect to supply mains power for the fixture.
2. Mains Output: Used to connect to the next fixture.
3. DMX Output: Used to output the DMX signal to the next fixture by a 3-pin XLR plug cable.
4. DMX Input: For DMX512 link, use 3-pin XLR plug cable to input the DMX signal.
5. Microphone: Used to receive the Sound to control the fixture.
6. Display: Used to show the various menus and the selected functions.
LED:
7. MASTER On Master Mode
8. SLAVE On Slave Mode
9. DMX On DMX input present
10. SOUND Flashing Sound activation

6A
Button:
11. MENU To select the programming functions
12. DOWN To go backward in the selected functions
13. UP To go forward in the selected functions
14. ENTER To confirm the selected functions
3.2 Main Functions
To select any of the given functions, press the MENU button up to when the required one is
showing on the display. Select the function by ENTER button and the display will blink. Use
DOWN and UP button to change the mode. Once the required mode has been selected,
press the ENTER button to setup, to go back to the functions without any change press the
MENU button again. Hold and press the MENU button about one second or wait for one
minute to exit the menu mode.
The main functions are showing below:

7A

8A
DMX 512 Address
Select the , press the ENTER button and the display will blink. Use the DOWN and UP
button to change the DMX 512 Address. Once the required address has been selected, press
the ENTER button to save or automatically return to the main functions without any change
after one minute. Back to the previous functions without any change press the MENU button.
Channel Mode
Select the , press the ENTER button and the display will blink. Use the DOWN and UP
button to select the (4Channels:Red, Green, Blue, White), (5 Channels:Red,
Green, Blue, White, Dimmer) or (7 Channels: Red, Green, Blue, White, Color, Dimmer,
Strobe) Mode. Once the required mode has been selected, press the ENTER button to setup
or automatically return to the main functions without any change after one minute. To go
back to the functions without any change press the MENU button.
Slave Mode
Select the , press the ENTER button and the display will blink. Use the DOWN and UP
button to select the (Slave 1) or (Slave 2) mode. Once the slave mode has
been selected, press the ENTER button to setup or automatically return to the main functions
without any change after one minute. To go back to the functions without any change press
the MENU button again.
Show Mode
Select the , press the ENTER button and the display will blink. Use the DOWN and UP
button to select the (Random show) or (color) or (fade).
When you selected the , press the ENTER button, and then use the DOWN and UP
button to select the (Color 1) … (Color 9), press the ENTER button and use
the DOWN and UP button to adjust the brightness intensity from (Dimmer 0) to

9A
(Dimmer 255); select the (Color 10), press the ENTER button, and select the
(Red), (Green),… (Dimmer), pressing the ENTER button and adjust the
brightness intensity from to .
When you selected the (Fade mode), press the ENTER button, and then use the
DOWN and UP button to adjust the fade speed from (Speed 1, the slowest) to
(Speed 3: the fastest).
Once you have finished the settings, press the ENTER button to setup or automatically exit
menu mode without any change after one minute. To go back to the last function without any
change press the MENU button.
Dimmer Mode
Press the MENU button up to when is showing on the display. Pressing the ENTER
button and the display will blink. Use the DOWN and UP buttons to select the
(Dimmer Mode 1: Optically Linear) or (Dimmer mode 2: Square Law) or
(Dimmer mode 3: Inverse Square Law) or (Dimmer mode 4: S-cure) mode. Once the
mode has been selected, press the ENTER button to setup or automatically return to the main
functions without any change after one minute. To go back to the functions without any
change press the MENU button again.
Optically Linear: The increase in light intensity appears to be linear as DMX value is
increased.
Square Law: Light intensity control is finer at low levels and coarser at high levels.

10A
Inverse Square Law: Light intensity control is coarser at low levels and finger at high levels.
S-cure: Light intensity control is finger at low levels and high levels and coarser at medium
levels.

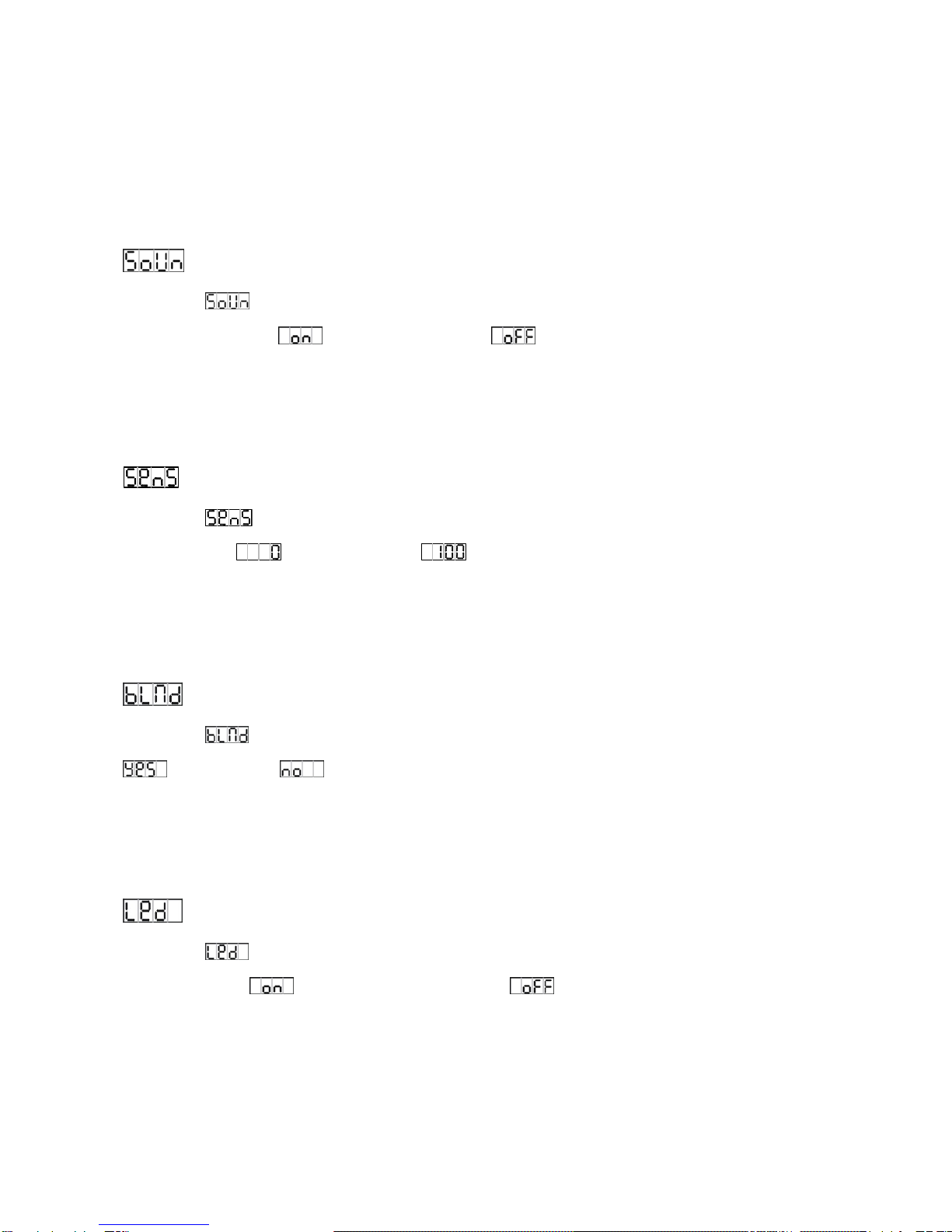

Sound Mode
Select the , press the ENTER button and the display will blink. Use the DOWN and UP
button to select the (Sound mode on) or (Sound mode off). Once select, press
the ENTER button to setup or automatically exit menu mode without any change after one
minute. To go back to the functions without any change press the MENU button
Sound Sense
Select the , press the ENTER button, use the DOWN and UP button to adjust sensitivity
level between (the lowest) and (most sensitive). Press the ENTER button to
setup or automatically exit menu mode without any change after one minute. To go back to
the functions without any change press the MENU button.
Blackout mode
Select the , press the ENTER button and use the DOWN and UP button to select the
(blackout) or (normal). Press the ENTER button to setup or automatically exit
menu mode without any change after one minute. To go back to the functions without any
change press the MENU button.
LED display
Select the , press the ENTER button and the display will blink. Use the DOWN and UP
button to select (LED display always on) or ( LED display off 20 seconds after
exit menu) mode. Once select, press the ENTER button to setup or exit menu mode without
any change after one minute. Back to the functions without any change press the MENU
button again.

11A
Display Inverse
Select the , press the ENTER button and the display will blink. Use the ENTER button to
change the display mode between (Display normal) and (Display Inversion,
good for installing in the ceilings). Press the ENTER button to setup. Back to the functions
without any change press the MENU button.
White Balance
Select the , press the ENTER button and the display will blink. Use DOWN and UP
button to select the (Red), (Green) or (Blue), press the ENTER button to
confirm, then use DOWN and UP button to adjust the value from to , press the
ENTER button to store, automatically return to the main functions without any change after
one minute.
Manual Test
Select the , press the ENTER button, and use the DOWN and UP button to select
(Red), (Green) or … or (strobe), press the ENTER button to confirm and use
the DOWN and UP button to adjust the value. Once select press the ENTER button to setup
or automatically exit menu mode without any change after one minute. To go back to the last
function without any change press the MENU button.
Auto Test
Select the , press the ENTER button and the unit will run the built-in programmer for
self-test. To go back to the functions press the MENU button.
Fixture Temperature
Select the , press the ENTER button and the display will show the temperature of the
unit. To go back to the functions press the MENU button again.

12A
Fixture use time
Select the , press the ENTER button and the display will show the number of working
hours of the unit. To go back to the functions press the MENU button.
Software version
Select the , press the ENTER button and the display will show the version of software of
the unit. To go back to the functions press the MENU button again.
4. How to Control the Unit
You can operate the unit in two ways:
1. By master/slave built-in preprogram function
2. By DMX controller
No need to turn the unit off when you change the DMX address, as new DMX address setting
will be affected at once.
4.1 Master/Slave Built In Preprogrammed Function
The fixture will allow you to link 2 fixtures together and operate without a controller. In
Master/Slave mode, the first fixture whose DMX input jack has with nothing connect will be
master automatically, set other units to slave 1 or slave 2 via menu, then the first unit will
control the others to give an automatic, sound activated, synchronized light show. This
function is good when you want an instant show. Any fixture can act as a Master or as a Slave.
2-light show
In slave mode, slave 1 means the unit works as master, slave 2 means 2-light show. In order
to create a great light show, you can set the second unit to slave 2 to get contrast movement
to each other, even if you have two units only.
4.2 DMX Controller
Use universal DMX controller to control the units, you have to set the DMX address from 1 to
512 channel so that the units can receive DMX signal.

13A
Press the MENU button up to when the is showing on the display. Press the ENTER
button and the display will blink. Use the DOWN and UP button to change the DMX512
address. Once the address has been selected, press and keep the ENTER button pressed up to
when the display stops blinking or storing automatically one minute later. To go back to the
functions without any change press the MENU button again.
Please refer to the following diagram to address your DMX512 channel for the first 4 units：

14A
5. DMX 512 Configurations
4/5/7 Channels Mode:

15A

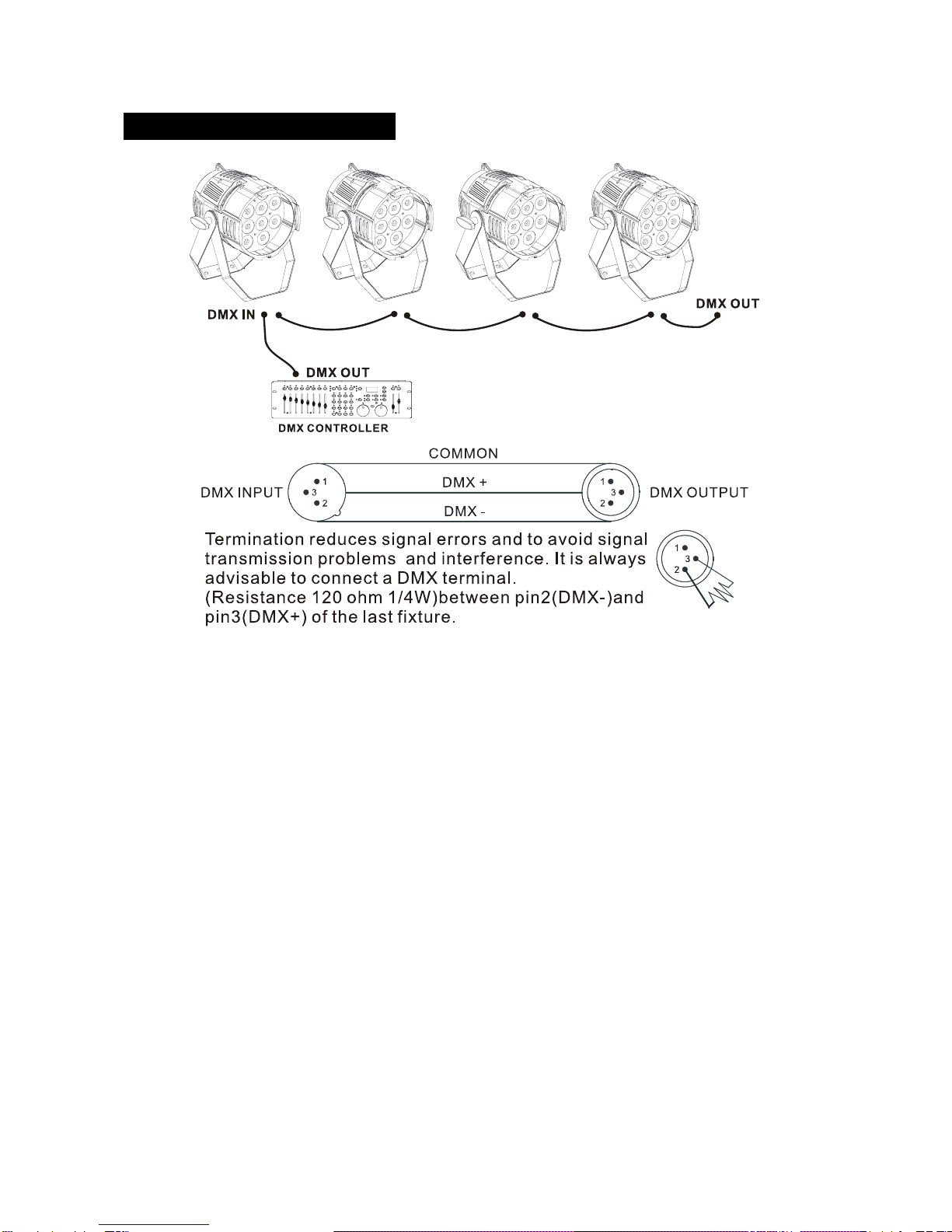

6. DMX 512 Connections
1. If you using a controller with 5 pins DMX output, you need to use a 5 to 3 pin
adapter-cable.
2. At last unit, the DMX cable has to be terminated with a terminator. Solder a 120 ohm
1/4W resistor between pin 2(DMX-) and pin 3(DMX+) into a 3-pin XLR-plug and plug it in
the DMX-output of the last unit.
3. Connect the unit together in a `daisy chain` by XLR plug from the output of the unit to the
input of the next unit. The cable can not branched or split to a `Y` cable. DMX 512 is a
very high-speed signal. Inadequate or damaged cables, soldered joints or corroded
connectors can easily distort the signal and shut down the system.
4. The DMX output and input connectors are pass-through to maintain the DMX circuit,
when one of the units’ power is disconnected.
5. Each lighting unit needs to have an address set to receive the data sent by the controller.
The address number is between 0-511 (usually 0 & 1 are equal to 1).
6. The end of the DMX 512 system should be terminated to reduce signal errors.

16A
7. 3 pin XLR connectors are more popular than 5 pin XLR.
3 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+)
5 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+),
Pin 4/Pin 5: Not used.
7. Troubleshooting
Following are a few common problems that may occur during operation. Here are some
suggestions for easy troubleshooting:
A. The unit does not work, no light and the fan does not work
1. Check the connection of power and main fuse.
2. Measure the mains voltage on the main connector.
3. Check the power on LED.
B. Not responding to DMX controller
1. DMX LED should be on. If not, check DMX connectors, cables to see if link properly.
2. If the DMX LED is on and no response to the channel, check the address settings and
DMX polarity.
3. If you have intermittent DMX signal problems, check the pins on connectors or on PCB of
the unit or the previous one.
4. Try to use another DMX controller.
5. Check if the DMX cables run near or run alongside to high voltage cables that may cause
damage or interference to DMX interface circuit.
C. No response to the sound
1. Make sure the unit does not receive DMX signal.
2. Check microphone to see if it is good by tapping the microphone
D. One of the channels is not working well
1. The stepper motor might be damaged or the cable connected to the PCB is broken.
2. The motor’s drive IC on the PCB might be out of condition

17A
8. Fixture Cleaning
The cleaning of internal and external optical lenses and/or mirrors must be carried out
periodically to optimize light output. Cleaning frequency depends on the environment in
which the fixture operates: damp, smoky or particularly dirty surrounding can cause greater
accumulation of dirt on the unit’s optics.
yClean with soft cloth using normal glass cleaning fluid.
yAlways dry the parts carefully.
yClean the external optics at least every 20 days. Clean the internal optics at least every
30/60 days.

Declaration of Conformity
We declare that our products (lighting equipments) comply with the following
specification and bears CE mark in accordance with the provision of the
Electromagnetic Compatibility (EMC) Directive 89/336/EEC.
EN55103-1: 2009 ; EN55103-2: 2009; EN62471: 2008;
EN61000-3-2: 2006 + A1:2009 + A2:2009; EN61000-3-3: 2008.
&
Harmonized Standard
EN 60598-1:2008 + All:2009; EN 60598-2-17:1989 + A2:1991; EN
62471:2008; EN 62493: 2010
Safety of household and similar electrical appliances
Part 1: General requirements

Innovation, Quality, Performance
