ACME Xperior 700SZ Spot User manual

XperiorTM 700SZ Spot
User Guide
Please read these instructions carefully before use

1C
TABLE OF CONTENTS
1. Safety Instruction...................................................................................... 2
2. Installation................................................................................................. 4
3. Technical Specification ............................................................................ 5
4. Description ................................................................................................ 8
4.1 Description of the fixture..........................................................................................8
4.2 Control Panel...........................................................................................................8
5. Gobo and Lamp......................................................................................... 9
5.1 Inserting/Exchanging rotating gobos .......................................................................9
5.2 Lamp .....................................................................................................................10
6. How To Set The Unit ................................................................................11
6.1 Power On Display..................................................................................................11
6.2 Main Function........................................................................................................12
6.3. Home Position Adjustment ...................................................................................22
6.4. Error Information...................................................................................................25
7. Control By Universal DMX Controller ................................................... 27
7.1 Connection ............................................................................................................27
7.2 Channel Mode Setting...........................................................................................28
7.3 Address Setting.....................................................................................................28
7.4 DMX 512 Configuration .........................................................................................29
7.5 Lighting Library Download.....................................................................................36
8. Update Software...................................................................................... 37
9. Troubleshooting...................................................................................... 37
10. Maintenance and Cleaning................................................................... 38

2C
1. Safety Instruction
WARNING
Please keep this User Guide for future consultation. If you sell the unit to another user, be
sure that they also receive this instruction manual.
Important:
Damages caused by the disregard of this user manual are not subject to warranty.
The dealer will not accept liability for any resulting defects or problems.
yUnpack and check carefully that there is no transportation damage before using the
unit.
yThe unit is for indoor use only. Use only in a dry location.
yDo install and operate by qualified operator.
yDo not allow children to operate the fixture.
yUse safety chain when fixing the unit. Handle the unit by carrying its base instead of
head only.
yThe unit must be installed in a location with adequate ventilation, at least 50cm from
adjacent surfaces.
yBe sure that no ventilation slots are blocked, otherwise the unit will be overheated.
yBefore operating, ensure that the voltage and frequency of power supply match the
power requirements of the unit.
yIt’s important to ground the yellow/green conductor to earth in order to avoid electric
shock.
yMaximum ambient temperature TA: 40 . Don’t operate it wh℃en the temperature is
higher.
yDon’t connect the device to any dimmer pack.
yDuring initial start-up some smoke or smell may arise. This is a normal process and
does not necessarily mean that the device is defective, and it will decrease gradually
within 15 minutes.
yMake sure there are no flammable materials close to the unit while operating to avoid
fire hazard.
yExamine the power wires carefully, replace them immediately if there is any damage.
yUnit’s surface temperature may reach up to 85 . Don’t touch the housing bare℃-handed
Please read carefully the instruction manual, which includes
important information about the installation, usage and maintenance.

3C
during its operation, and allow about 15 minutes for cooling the unit down before
replacing bulb or maintenance as it could be very hot.
yAvoid any inflammable liquids, water or metal objects entering the unit. Once it
happens, cut off the mains power immediately.
yDo not operate in dirty or dusty environment, do clean fixtures regularly.
yDo not touch any wire during operation as there might be a hazard of electric shock.
yAvoid power wires together twist other cables.
yThe minimum distance between light output and the illuminated surface must be more
than 2.5 meters.
yDisconnect mains power before fuse/lamp replacement or servicing.
yReplace fuse/lamp only with the same type.
yIn the event of serious operating problem, stop using the unit immediately.
yNever turn on and off the unit time after time.
yThe housing, the lenses, or the ultraviolet filter must be replaced if they are visibly
damaged.
yDo not open the unit as there are no user serviceable parts inside.
yNever try to repair the unit by yourself. Repairs carried out by unskilled people can lead
to damage or malfunction. Please contact the nearest authorized technical assistance
center if needed.
yDisconnect the mains power if the fixture is has not been used for a long time.
yDo use the original packing materials before transporting it again.
Caution
yTo prevent or reduce the risk of electrical shock or fire, do not expose the unit to rain or
moisture.
yHot lamp explosion hazard. Do not open the unit within 15 minutes after switching off.
yDo replace the bulb once it is damaged, deformed or life-expired.
yDo not look directly at the light while the bulb is on.
yNever touch bulb with bare fingers, as it is very hot after using.
yDo not start on the unit without bulb enclosure or when housing is damaged.
Product Items
yUser manual
y2 x Omega clamps

4C
2. Installation
Unpacking the fixture (for flight case pack only)
1.Stop the flight case via the brake sheet above the wheels.
2.Unlock the lock modules (1) and open the cover board.
3.Prop the cover board with lid bracket.
4.Take out the fixture.
5.Unlock the lock module (2) take out omega clamps.
Installation:
1. Bolt each clamp (1) to the Omega holder with screw and lock nut through the hole in the
holder.
2. Fasten the omega holders (2) on the bottom of the base by inserting quick-lock
fasteners (3) into the holes of the base and tighten fully clockwise.
3. Hang the fixture to the support (4) through clamp and fasten the screws (5). Fasten the
safety cable (6) through the bottom of the base and over the support.
Fig.1 Fig.2
Attention:
yAlways ensure that the structure to which you are attaching the unit is secure and is
able to support a weight of 10 times of the unit’s weight.
yAlso always use a safety cable that can hold 12 times of the weight of the unit when
installing the fixture.
yAlways ensure that the unit is firmly fixed to avoid vibration and slipping while
operating.
yThe equipment must be fixed by professionals. And it must be fixed at a place where is
out of the touch of people and has no one pass by or under it.

5C
3. Technical Specification
Power supply
- AC 100V~240V 50/60Hz
Power Consumption
- 881W (230V)
- 919W (120V)
Fuse
- T 15 A
Lamp
- Philips MSR Gold 700/2 Mini FastFit
Battery backup display
- Setting DMX address or other functions without connecting to mains power.
- Battery for LCD display charges automatically when the fixtures connects to the mains
power.
- No need to change battery.
Wireless control (for the unit with wireless receiver built-in only)
- Wirelessly controlled by W-DMX (option).
- Each W-DMX is sending out 512 channels of DMX.
- License free band of 2.45 GHz
Optical system
- High efficiency optical system, delivering extremely powerful output
- High quality diachronic lenses
- Beam angle: 15°~35°
Movement
- Pan: 540°
- Tilt: 270°
- Pan/Tilt moving speed adjustable.
- Automatic Pan/Tilt correction.
- Easy calibration and maintenance by magnetic home positioning.
- Pan/Tilt position lock for transporting protection.
Shutter/Dimmer
- Blackout, 0~100% smooth dimming, independent shutter and various strobe effect.
Color wheel

6C
- Color wheel: 7 diachronic colors + open.
- Rainbow effect in both directions.
- Easy calibration and maintenance by magnetic home positioning.
CMY
- CMY speed adjustable.
- Optional multiple preset colors and macros available.
Gobo wheel
- Gobo size: Ø26.8mm (Ø24mm for image)
- Gobo Wheel 1: 7 rotating, index able, easily replaceable gobos + open.
- Gobo Wheel 2: 8 metallic gobos + open.
- Easy calibration and maintenance by magnetic home positioning.
- Module design for easy assembly and service.
Prism
- 3 facets prism with rotating effect.
Frost
- Variable, separate effect.
Focus
- Focus effect.
Iris
-Motorized, stepless.
Zoom
- Motorized linear zoom for smooth adjustment of beam size and beam sharpness.
Cool
- Fan cooled
Protocols
- DMX 512
- Date input/output: 3/5 Pin XLR socket
Weight
- 23.2kgs
Dimension
- 447× 369×597 mm

7C
Photometric diagram
DMX Channels
Mode
CH Mode 1 22-CH Mode 2 22-CH Mode 3 29-CH
1 Pan Shutter Pan
2 Pan Fine Dimmer Pan Fine
3 Tilt Cyan Tilt
4 Tilt Fine Magenta Tilt Fine
5 Pan /Tilt Speed Yellow Pan /Tilt Speed
6 Shutter Color Function
7 Dimmer Gobo 1 Pan/Tilt Macro
8 Color R-Gobo 1 Pan/Tilt Macro Speed
9 Cyan R-Gobo 1 Fine Color
10 Magenta Gobo 2 Cyan
11 Yellow Prism Magenta
12 Preset Color R-prism Yellow
13 Gobo 1 Iris Preset Color
14 R-Gobo 1 Focus CMY Speed
15 Gobo 2 Zoom Color Macro
16 Prism Pan Gobo 1
17 R-Prism Pan Fine R-Gobo 1
18 Iris Tilt R-Gobo 1 Fine
19 Frost Tilt Fine Gobo 2
20 Zoom Pan/Tilt Speed Prism
21 Focus Frost R-Prism
22 Function Function R-Prism Fine
23 Frost

8C
24 Iris
25 Zoom
26 Focus
27 Shutter
28 Dimmer
29 Dimmer Fine
4. Description

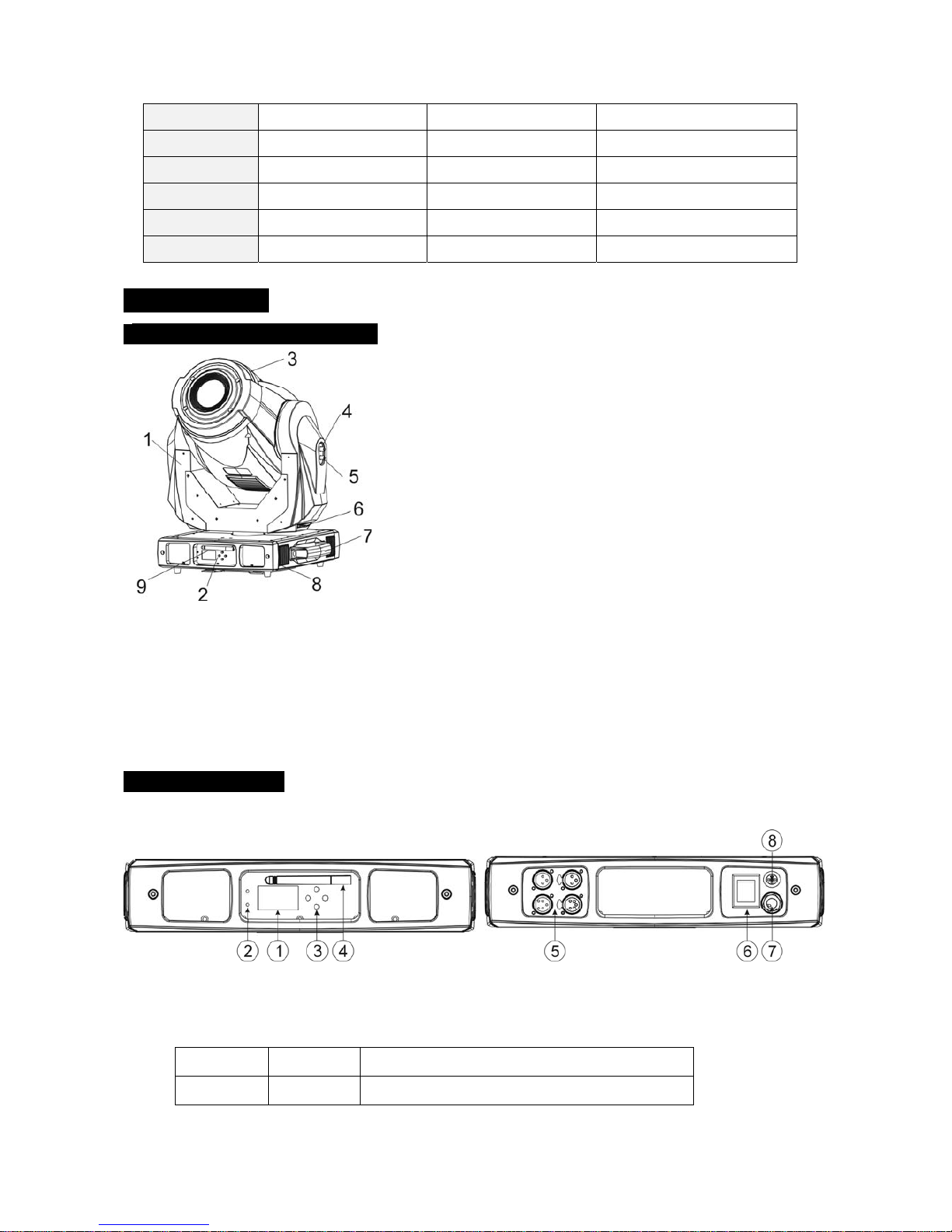

4.1 Description of the fixture
The head can be locked for transportation protection-the tilt lock button (4) is pressed and
the pan lock/unlock lever (6) is in lock position. To unlock the head, press the tilt unlock
button (5) and move the pan lock/unlock lever (6) to unlock position.
Caution: The head and arm must be unlocked before operation!
4.2 Control Panel
Front view Rear view
○
1 Monitor (Batter Back-up display):
○
2LED
POWER On Power on
DMX On DMX input present
1.Arm
2.Front panel
3.head
4.Tilt lock button (Black)
5.Tilt unlock button (Gray)
6.Pan lock
7.Handle
8.Base
9.
A
ntenna
(
for XP-700SZ WT onl
y)

9C
○
3Button
MENU To enter into move backward or leave the menu
UP To go backward to move up in the menu
DOWN To move down in the menu
ENTER To perform the desired functions
○
4 Antenna (for XP-700SZ WT only)
Receive wireless signal from a wide range
○
5 DMX input/output:
For DMX 512 operation, use 3/5-pin XLR plug cable to link the units together
○
6 Power Switch:
Turns On/Off the power
○
7 PowerCable:
To connect to the mains supply
○
8 Fuse (T 15 A):
Protect the unit from damage of over current.
5. Gobo and Lamp

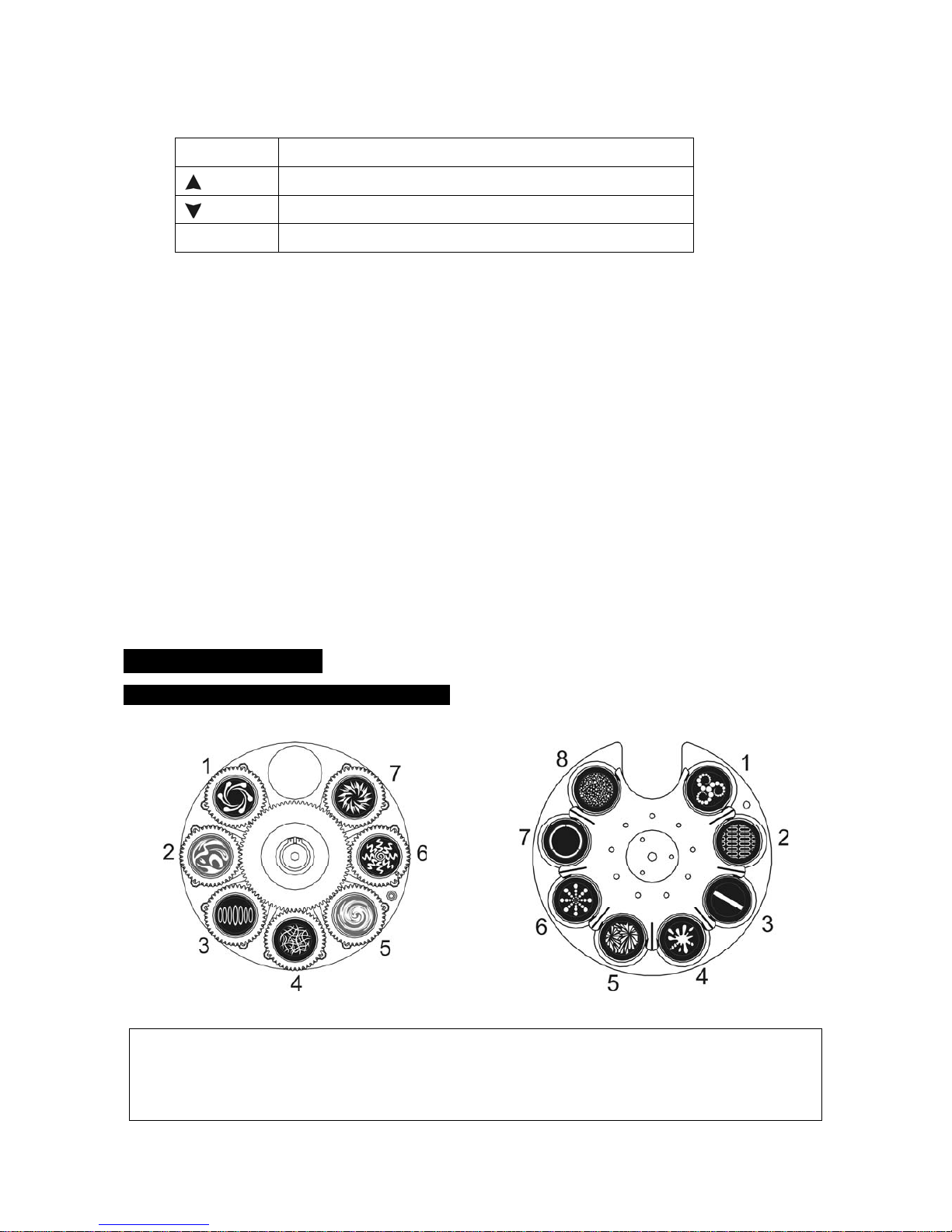

5.1 Inserting/Exchanging rotating gobos
GOBO WHEEL 1 (replaceable) GOBO WHEEL 2
DANGER!
Install the gobos with the device switched off only.
Unplug from mains before changing gobos!

10C
CAUTION: Never unscrew the screws of the rotating gobo as the ball bearing will
otherwise be opened!
Please follow the steps below to insert/change rotating gobos
1. Open the cover by loosening the fastening screws on the cover.
2. Push the gobo plate (follow the direction 1) and gently pull out the plate (follow the
direction 2).
3. Take out the ring with an appropriate tool. Do not touch the surface of the glass gobo.
4. Remove the original gobo and inset a new one (glazy side towards the lamp). Insert the
ring to secure it in the gobo holder.
5. Install the gobo plate back into the gobo wheel. Make sure the gobo plate is installed
under the pressure plate.
5.2 Lamp
MSR/ MSD Gold 700/2 MiniFastFit
yBecause of its high internal pressure, there might be a risk that the Discharge
lamp would explode during operation. The lamp emits intense UV radiation which
is harmful to the eyes and skin. The high luminance of the arc can cause severe
damage to the retina if you take a close look at the lamp.
yTo protect the lamp, always turn off the lamp first (via control panel or DMX
controller) and let the unit run at least five minutes to cool down before switching
off the mains supply. Never handle the lamp or luminaries when it is hot.
yDo not touch the bulb with bare hands. If this happens, clean the lamp with
denatured alcohol and wipe it with a lint free cloth before installation.
yThe lamp generates UV radiation. Never operate the lamp without appropriate
shielding.
yWhen lighting up, the lamp operates at high pressure and there is a slight risk of arc

11C
tube rupture. The risk increases with age, temperature and improper handling of the
lamp. Do not use the lamp longer than its lifespan.
yMake sure the lamp is located in the center of the reflector for the best projection.
Change Lamp
WARNING
1. Turn off the power.
2. Unscrew the two screws (A), open the lamp cover, turn it to
the position as the sketch shown below.
3. Hold the base of the lamp, anticlockwise turn until it is parallel
to the groove.
4. Inset a new lamp follow the groove, turn it clockwise
to fix the lamp.
5. Tighten the screws (A) to fix the lamp cover.
6. Turn the screws (B) to adjust the lamp position be
sure it is located in the center of the reflector for the
best projection.
6. How To Set The Unit
6.1 Power On Display
Every time you turn on the unit, it will run built-in program to reset all motors to their home
position, the display will show as fig.4, you may hear some noises for about 20 seconds. It
will show warning sign if it goes wrong during resetting and you can press the MENU button
to view the error information. After that the unit will be ready to receive DMX signal and the
display will show as fig.5.
In case of replacement of the lamp or maintenance, do not open the
fixture within 15 minutes until the unit cools down after switching off.

12C
Fig.4 Fig.5
Explanation of fig.5:
Lamp 40°CPresent temperature of base CPU is 40°C
001 Present start address
Md.1 22Ch. Present channel mode is mode 1 (22 channels mode)
Lamp 30°CPresent temperature of lamp is 30°C
Warning signal blinking direct resetting error
6.2 Main Function
Turn on the unit, press MENU button into menu mode, press UP and DOWN button until the
required function is shown on the monitor. Select the function by ENTER button. Use UP
and DOWN button to choose the submenu, press the ENTER button to store and
automatically return to the last menu. Press MENU button or let the unit idle one minute to
exit menu mode.
In the event of disconnecting with mains power, press UP button for one minute to enter
into menu mode. Press MENU button or let the unit idle one minute to exit.
The main functions are shown below（the grayed boxes are preset settings）:

13C
Lamp Setting
On/Off OFF
ON
State/Power On OFF
ON
Off Via Dmx No
Yes
On if Dmx On No
Yes
Off if Dmx Off No
Yes
Cooling Mode
Auto
High
Ignition Delay
0-255S
Low Power Delay
0-255S
AutoTest
ManualTest
Fixture Test
Fixture Information
Fixture use time
Fireware Version
Lamp On time
Exit
Reset Time
Display Setting BacklightAuto Off No
Yes
Display Inverse No
Yes
Temperature Unit C
F
Backlight Intensity 1-10
MENU
(1)
Fixture Setting
Pan Inverse No
Yes
Tilt Inverse No
Yes
Bl.o. P/T Moving No
Yes
Bl.o. Color Change No
Yes
Bl.o. Gobo Change No
Yes
DMX Functions
DMXAddress 1
512
View DMX Value
DMX Channel Mode
Mode 1(22)
Mode 2(22)
Mode 3(29)
WDMX Setting
Active
Retransmit
Reset Menory
No
Yes
No
Yes
No
Yes
P/TFeedback No
Yes

14C
DMX Functions
Enter menu mode, select DMX Functions, press ENTER button to confirm, use UP
and DOWN button to select DMX Address, DMX Channel Mode, View DMX Value or
WDMX Setting.
DMX Address—DMX512 address setting
Select DMX Address, press ENTER button to confirm, the present address will blink on
the display, use UP and DOWN button to adjust the address from 0to 512, press
ENTER button to store. Press MENU button back to the last menu or let the unit idle
one minute to exit menu mode.
DMX Channel Mode—channel mode
Select DMX Channel Mode, press ENTER button to confirm, present channel mode
will blink on the display, use UP and DOWN button to select Mode1 (22 channels
mode) or Mode 2 (22 channels mode) or Mode 3 (29 channels mode), press ENTER
button to store. Press MENU button back to the last menu or let the unit idle one minute
to exit menu mode.
View DMX Value
Select View DMX Value, press ENTER button to confirm. Channel function and its
value will show on the display, use UP and DOWN button to view other DMX value.

15C
Press MENU button back to the last menu or let the unit idle one minute to exit menu
mode.
WDMX Setting—wireless control setting
(For the unit with wireless receiver built-in only)
Select WDMX Setting, press ENTER button to confirm. Use UP and DOWN button to
select Active, Retransmit or Reset Memory, press ENTER button to store. Press
MENU button back to the last menu or let the unit idle one minute to exit menu mode.
Active
Select Active, press ENTER button to confirm, use UP and DOWN button to
select Yes (wireless control available) or No (wireless control unavailable), press
ENTER button to store. Press MENU button back to the last menu or let the unit
idle one minute to exit menu mode.
(Set wireless control to be available, the power indicate LED will strobe)
Retransmit
Select Retransmit, press ENTER button to confirm, use UP and DOWN button
to select Yes or No, press ENTER button to store. Press MENU button back to
the last menu or let the unit idle one minute to exit menu mode.
Reset Memory
Select Reset Memory, press ENTER button to confirm, use UP and DOWN
button to select Yes (refuse wireless signal) or No , press ENTER button to store.
Press MENU button back to the last menu or let the unit idle one minute to exit
menu mode.
Fixture Setting
Enter menu mode, select Fixture Setting, press ENTER button to confirm, use UP and
DOWN button to select Pan Inverse, Tile Inverse, BL.O. P/T Moving, BL.O. Color
Change or BL.O. Gobo Change.

16C
Pan Inverse
Select Pan Inverse, press ENTER button to confirm, present mode will blink on the
display, use UP and DOWN button to select No (normal) or Yes (pan inverse), press
ENTER button to store. Press MENU button back to the last menu or let the unit idle
one minute to exit menu mode.
Tilt Inverse
Select Tilt Inverse, press ENTER button to confirm, present mode will blink on the
display, use UP and DOWN button to select No (normal) or Yes (tilt inverse), press
ENTER button to store. Press MENU button back to the last menu or let the unit idle
one minute to exit menu mode.
P/T Feedback — pan/tilt Feedback
Select P/T Feedback, press ENTER button to confirm, present mode will blink on the
display, press UP/DOWN button to select No (Pan or tilt’s position will not feedback
while out of step.) or Yes (Feedback while pan/tilt out of step. ), press ENTER button to
store. Press MENU button back to the last menu or let the unit idle one minute to exit
menu mode.
BL.O. P/T Moving — Blackout while pan/tilt moving
Select BL.O. P/T Moving, press ENTER button to confirm, present mode will blink on
the display, use UP and DOWN button to select No (normal while pan/tilt moving) or
Yes (blackout while pan/tilt moving), press ENTER button to store. Press MENU button
back to the last menu or let the unit idle one minute to exit menu mode.
BL.O. Color Change — Blackout while change color
Select BL.O. Color Change, press ENTER button to confirm, present mode will blink
on the display, use UP and DOWN button to select No (normal while changing color) or
Yes (blackout while change color), Press MENU button back to the last menu or let the
unit idle one minute to exit menu mode.
BL.O. Gobo Change — Blackout while change gobo
Select BL.O. Gobo Change, press ENTER button to confirm, present mode will blink
on the display, use UP and DOWN button to select No (normal while changing gobo) or

17C
Yes (blackout while changing gobo), press ENTER button to store. Press MENU button
back to the last menu or let the unit idle one minute to exit menu mode.
Lamp Setting
Attention: The lamp will not be on unit detected temperature is lower than 45 ° C.
Enter menu mode, select Fixture Setting, press ENTER button to confirm, use UP and
DOWN button to select On/Off, State/Power on, Off Via DMX, On if DMX on, Off if
DMX off, Cooling Mode, Ignition Delay or Low Power Delay..
On/Off — Turn on/off the lamp
Select On/Off, press ENTER button to confirm, present mode will blink on the display,
use UP and DOWN button to select On (lamp on) or Off (lamp off), press ENTER
button to store. Press MENU button back to the last menu or let the unit idle one minute
to exit menu mode.
State/Power On — Lamp state while power on
Select State/Power On, press ENTER button to confirm, present mode will blink on the
display, use UP and DOWN button to select On (Lamp on while power on) or Off (Lamp
off while power on), press ENTER button to store. Press MENU button back to the last
menu or let the unit idle one minute to exit menu mode.
Off Via DMX — Turn off the unit via DMX controller
Select Off Via DMX, press ENTER button to confirm, present mode will blink on the
display, use UP and DOWN button to select Yes (turn off the unit via DMX controller
available) or No (turn off the unit via DMX controller impracticable), press ENTER
button to store. Press MENU button back to the last menu or let the unit idle one minute
to exit menu mode.
(When you operate the unit via DMX controller, set the value of channel “special
function” to “lamp off”, waiting for 5 seconds, then the lamp will be off if you choose
“yes” mode).
On If DMX On — Lamp turns on when DMX signal is detected
Select On If DMX On, press ENTER button to confirm, present mode will blink on the

18C
display, use UP and DOWN button to select Yes (Lamp turns on when DMX signal is
detected) or No (keep the present state), press ENTER button to store. Press MENU
button back to the last menu or let the unit idle one minute to exit menu mode.(If the
lamp is off via DMX signal, you can reconnect the DMX controller to make the lamp on).
Off If DMX Off — lLamp turns off when DMX signal is cut off
Select Off If DMX Off, press ENTER button to confirm, present mode will blink on the
display, use UP and DOWN button to select Yes (Lamp turns off when DMX signal is
cut off), press ENTER button to store. Press MENU button back to the last menu or let
the unit idle one minute to exit menu mode.
Cooling Mode
— Lamp turns off when DMX signal is cut off
Select Cooling Mode, press ENTER button to confirm, present mode will blink on
the display, use UP and DOWN button to select Auto (fans speed adjust automatically)
or High (fans run in high speed), press ENTER button to store. Press MENU button
back to the last menu or let the unit idle one minute to exit menu mode.
Ignition Delay — Delay time between power on and lamp on
Select Ignition Delay, press ENTER button to confirm, present mode will blink on the
display, use UP and DOWN button to adjust the delay time from 0S to 255S, press
ENTER button to store. Press MENU button back to the last menu or let the unit idle
one minute to exit menu mode.
Low Power Delay
— Delay time between reduce lamp power and shutter off the unit
Select Low Power Delay, press ENTER button to confirm, present mode will blink on
the display, use UP and DOWN button to adjust the delay time from 0S to 255S, press
ENTER button to store. Press MENU button back to the last menu or let the unit idle
one minute to exit menu mode.
(If you set the low power delay time to 3S, the lamp will run in half power 3 seconds
after the unit shutter off)
Display Setting
Enter menu mode, select Display Setting, press ENTER button to confirm, use UP

19C
and DOWN button to select Display Inverse, Backlight Auto Off, Backlight Intensity
or Temperature unit.
Display Inverse
Select Display Inverse, press ENTER button to confirm, present mode will blink on the
display, use UP and DOWN button to select No (normal display) or Yes (inverse
display), press ENTER button to store. Press MENU button back to the last menu or let
the unit idle one minute to exit menu mode.
Backlight Auto Off
Select Backlight Auto Off, press ENTER button to confirm, present mode will blink on
the display, use UP and DOWN button to select No (display always on) or Yes (display
goes off one minute after exiting menu mode), press ENTER button to store. Press
MENU button back to the last menu or let the unit idle one minute to exit menu mode.
Backlight Intensity
Select Backlight Intensity, press ENTER button to confirm, present mode will blink on
the display, use UP and DOWN button to adjust backlight intensity from 1 (dark) to 10
(bright), press ENTER button to store. Press MENU button back to the last menu or let
the unit idle one minute to exit menu mode.
Temperature Unit
Select Temperature Unit, press ENTER button to confirm, present mode will blink on
the display, use UP and DOWN button to select ℃or ℉, press ENTER button to store.
Press MENU button back to the last menu or let the unit idle one minute to exit menu
mode.
Fixture Test
Enter menu mode, select Fixture Test, press ENTER button to confirm, use UP and
DOWN button to select Auto Test or Manual Test
Auto Test
Select Auto Test, press ENTER button to confirm, the unit will run built-in programs to
