ACME ANIMA C User manual

CONTENTS
1. Safety Instructions ......................................................................................... 2
2. Technical Specifications ................................................................................. 3
3. Control Panel ................................................................................................. 5
4. Installation ..................................................................................................... 5
5. How To Set The Unit....................................................................................... 7
5.1 Main Function.......................................................................................... 7
5.2 Home Position Adjustment .................................................................... 12
6. Control By Universal DMX Controller ........................................................... 13
6.1 DMX512 Connection.............................................................................. 13
6.2 Address Setting ...................................................................................... 14
6.3 DMX512 Configuration........................................................................... 15
7. Error Information......................................................................................... 25
8. Troubleshooting........................................................................................... 25
9. Fixture Cleaning ........................................................................................... 26
1B

1. Safety Instructions
WARNING
Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that
they also receive this instruction manual.
Important:
Damages caused by the disregard of this user manual are not subject to warranty. The dealer will
not accept liability for any resulting defects or problems.
Unpack and check carefully that there is no transportation damage before using the unit.
This product is for indoor use only. Use only in a dry location.
DO install and operate by qualified operator.
DO NOT allow children to operate the fixture.
Use safety chain when fixing the unit. Handle the unit by carrying its base instead of head only.
The unit must be installed in a location with adequate ventilation, at least 50cm from adjacent
surfaces.
Be sure that no ventilation slots are blocked, otherwise the unit will be overheated.
Before operating, ensure that the voltage and frequency of power supply match the power
requirements of the unit.
It’s important to ground the yellow/green conductor to earth in order to avoid electric shock.
Minimum ambient temperature TA: 0℃. Maximum ambient temperature TA: 40℃.
DO NOT connect the device to any dimmer pack.
Make sure there are no flammable materials close to the unit while operating to avoid fire
hazard.
Examine the power wires carefully; replace them immediately if there is any damage.
Unit’s surface temperature may reach up to 60℃. DO NOT touch the housing bare-handed
during its operation.
Avoid any inflammable liquids, water or metal objects entering the unit. Once it happens, cut
off the mains power immediately.
DO NOT operate in dirty or dusty environment, do clean fixtures regularly.
Please read the instruction carefully which includes important information about
the installation, usage and maintenance.
2B

DO NOT touch any wire during operation as there might be a hazard of electric shock.
Avoid power wires together twist other cables.
The minimum distance between light output and the illuminated surface must be more than
0.5 meters.
In the event of serious operating problem, stop using the unit immediately.
Never turn on and off the unit time after time.
The housing, the lenses, or the ultraviolet filter must be replaced if they are visibly damaged.
DO NOT open the unit as there are no user serviceable parts inside.
Never try to repair the unit by yourself. Repairs carried out by unskilled people can lead to
damage or malfunction. Please contact the nearest authorized technical assistance center if
needed.
Disconnect the mains power if the fixture is has not been used for a long time.
DO use the original packing materials before transporting it again.
DO NOT look directly at the light while the LED is on.
DO NOT start on the unit without LED enclosure or when housing is damaged.
2. Technical Specifications
Power Voltage:
AC 100~240V, 50/60Hz
Power Consumption:
105W
Light Source:
36x3W RGB LED
Beam Angle:
4°/8°/12°/25°/45°
Dimmer/Shutter:
Smooth dimmer from 0-100%; outstanding variable speed strobe effect
Control:
DMX Channel: 1 0 8/1 5/1 1/3 Channels
Control Mode: DMX512
Firmware Upgrade via DMX link
3B

Construction:
Display: OLED display
Data In/Out: 3-pinXLR (5-pin XLR is optional)
Power In/Out: Power connector in/out
Protection Rating: IP20
Features:
Compact design, light in weight
Multiple units can be split-jointed horizontally with connecting board
LED can be controlled pixel by pixel, delivering versatile effects
Dimensions/ Weight:
500x85x500mm, 9.3kgs
19.7”x3.3”x19.7”in, 20.5lbs

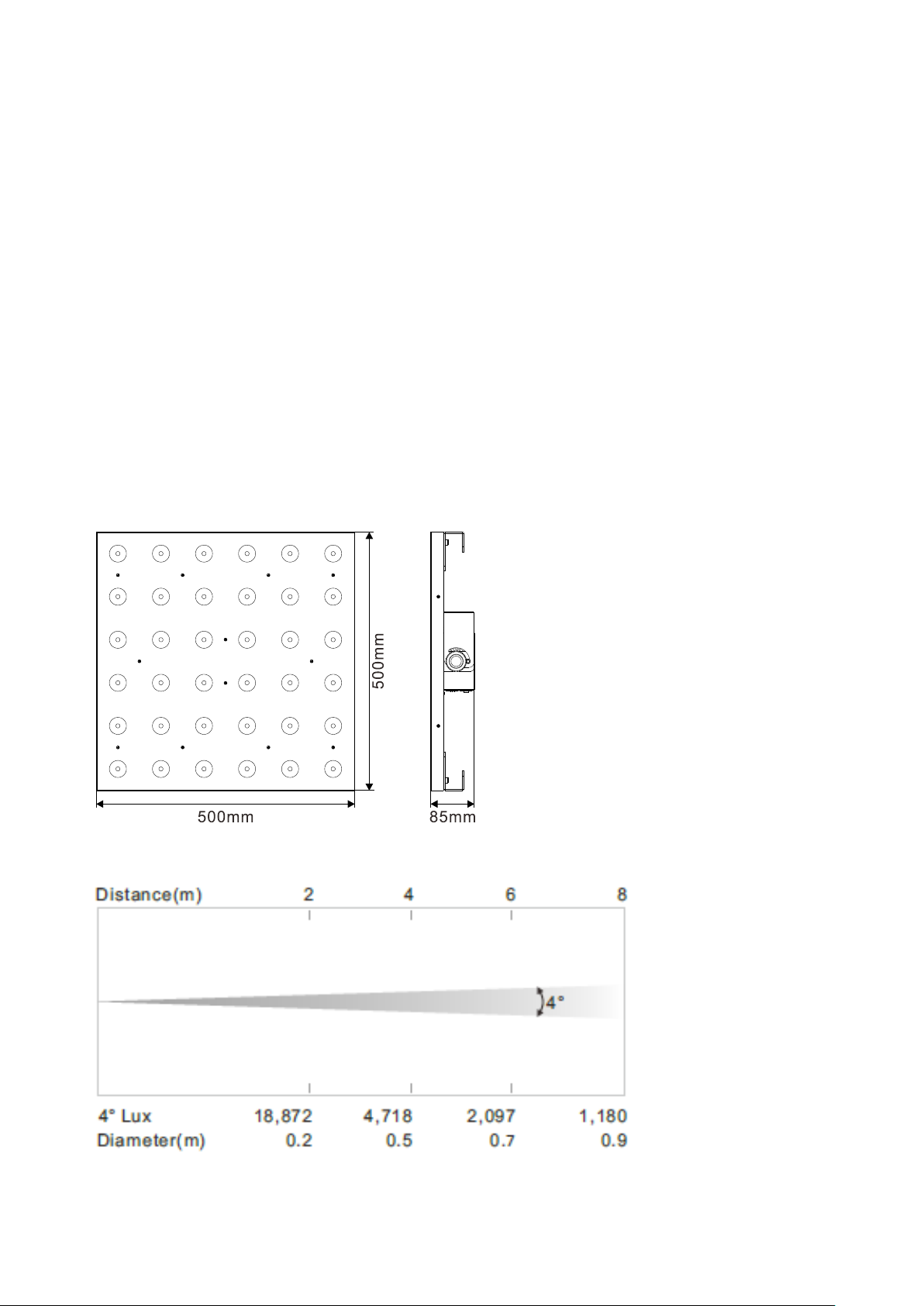

Photometrics Diagram:
4B

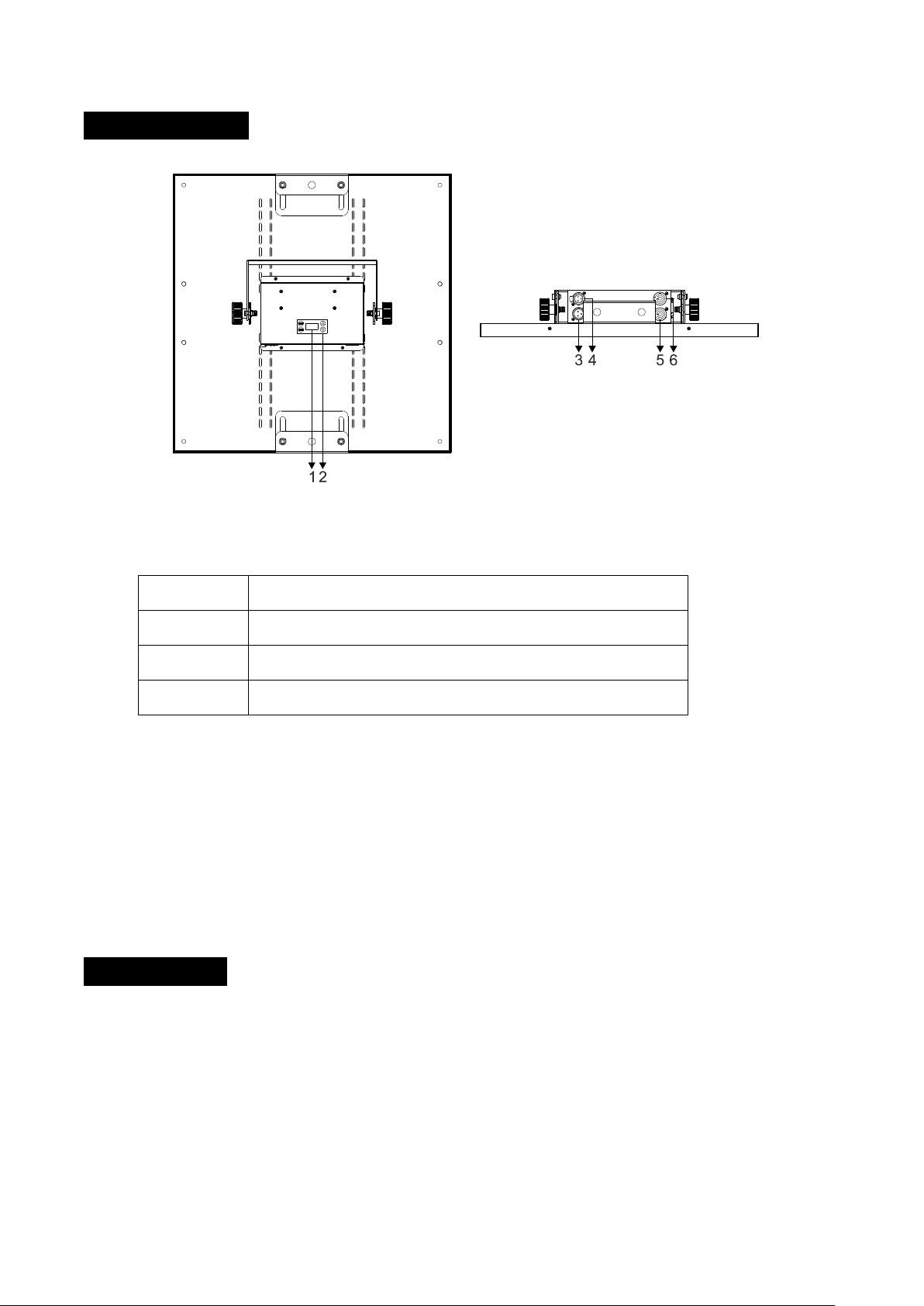

3. Control Panel
1. Display: To show the various menus and the selected function
2. Button:
MENU
To enter into move backward or leave the menu
UP
To go backward to move up in the menu
DOWN
To go forward to move down in the menu
ENTER
To perform the desired functions
3. DMX IN:
For DMX512 link, use 3-pin XLR cable to link the unit and DMX controller (5-pin XLR is optional)
4. DMX OUT:
For DMX512 link, use 3-pin XLR cable to link the next units (5-pin XLR is optional)
5. POWERCON IN: Connects to supply power
6. POWERCON OUT: Connects to the next fixture
4. Installation
Always ensure that the unit is firmly fixed to avoid vibration and slipping while operating and make
sure that the structure to which you are attaching the unit is secure and is able to support a weight
of 10 times of the fixtures weight. Always use a safety cable that can hold 12 times of the weight of
the fixture when installing.
The equipment must be installed by professionals. It must be installed in a place where is out of the
reach of people and no one can pass by or under it.
5B

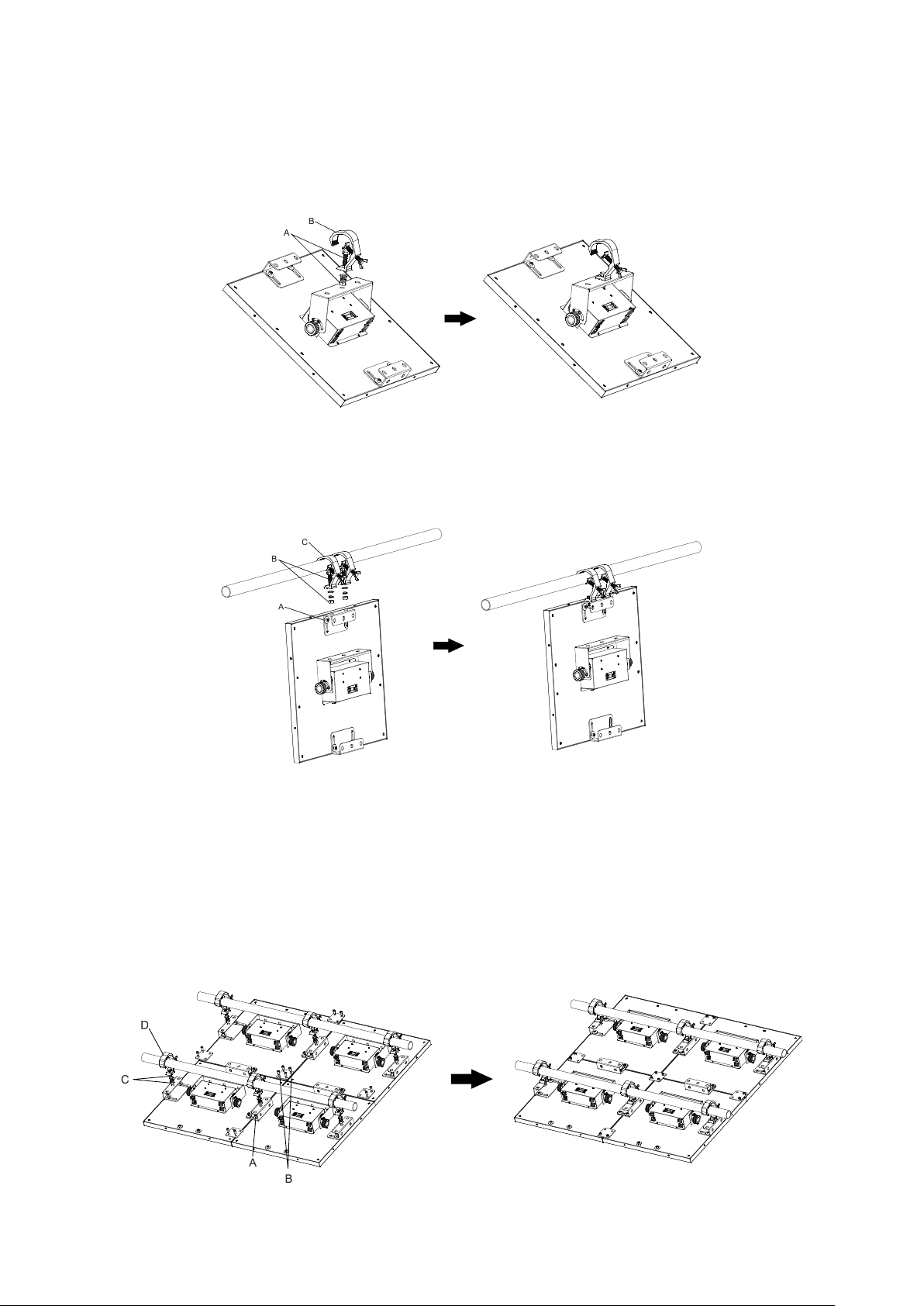

1. Installation parallel to the plane
As shown in the figure, fix the clamp (B) on the hanger of the fixture by using screws and nuts (A)
and lock the clamp (B) on the truss.
2. Installation vertical to the plane
As shown in the figure, fix the clamp (C) on the splicing plate (A) of the fixture by using screws and
nuts (B) and lock the clamp (C) on the truss.
3. Multi-machine assembly
As shown in the figure, loosen the screws (A) of the splicing plate of the fixture. Then join the
fixtures together in pairs and move the splicing plate, tighten the screws and fix them on the two
fixtures; Fix the connecting plate (B) on the four corners of the fixtures by using screws and nuts so
that the fixtures are spliced and fastened to each other; Fix the clamp (D) on the splicing plate of
the fixture by using screws and nuts (C) and lock the clamp (D) on the truss.
6B

5. How To Set The Unit
5.1 Main Function
Turn on the unit, press the MENU button into menu mode, and press the UP/DOWN button until
the required function is shown on the monitor. Select the function by the ENTER button. Use the
UP/DOWN button to choose the submenu, press the ENTER button to store and automatically
return to the last menu. Press the MENU button or let the unit idle 30 seconds to exit menu mode.
The main functions are shown below:
7B

DMX Settings
To select DMX Settings,press the ENTER button to confirm, use the UP/DOWN button to select
DMX Address, Channel Mode, No DMX State or View DMX Value.
DMX Address
To select DMX Address, press the ENTER button to confirm. Use the UP/DOWN button to adjust the
address from 001 to 405/498/502/510, press the ENTER button to store. Press the MENU button back
to the last menu or let the unit idle 30 seconds to exit menu mode.
Channel Mode
To select Channel Mode, press the ENTER button to confirm. Use the UP/DOWN button to select
Mode1(108), Mode2(15), Mode3(11) or Mode4(3), press the ENTER button to store. Press the
MENU button back to the last menu or let the unit idle 30 seconds to exit menu mode.
No DMX State
To select No DMX State, press the ENTER button to confirm. Use the UP/DOWN button to select
Hold(fixture continues to obey the last command it received Via DMX if DMX signal stops),
Blackout(fixture blacks out if DMX signal stops), or Manual(the fixture will automatically read the
DMX value in the “Manual Test” menu for operation after selecting this mode), press the ENTER
button to store. Press the MENU button back to the last menu or let the unit idle 30 seconds to exit
menu mode.
View DMX Value
To select View DMX Value, press the ENTER button to confirm. Use the UP/DOWN button to view
the DMX channel value. Press the MENU button back to the last menu or let the unit idle 30
seconds to exit menu mode.
Fixture Settings
To select Fixture Settings, press the ENTER button to confirm, use the UP/DOWN button to select
Dimmer Curve, Dimmer Speed or White Balance.
Dimmer Curve
To select Dimmer Curve, press the ENTER button to confirm. Use the DOWN/UP button to select
Linear, Square Law, Inv SQ Law or S Curve, press the ENTER button to store. Press the MENU button
back to the last menu or let the unit idle 30 seconds to exit menu mode.
8B

Optically Linear: The increase in light intensity appears to be linear as DMX value is increased.
Square Law: Light intensity control is finer at low levels and coarser at high levels.
Inverse Square Law: Light intensity control is coarser at low levels and finger at high levels.
S-Curve: Light intensity control is finger at low levels and high levels and coarser at medium levels.
Dimmer Speed
To select Dimmer Speed, press the ENTER button to confirm. Use the UP/DOWN button to select
Fast or Smooth, press the ENTER button to store. Press the MENU button back to the last menu or
let the unit idle 30 seconds to exit menu mode.
White Balance
To select White Balance, press the ENTER button to confirm. Use the UP/DOWN button to select
Red, Green, Blue, Red1, Green1, Blue1…… or Red36, Green36, Blue36, press the ENTER button to
store. Press the MENU button back to the last menu or let the unit idle 30 seconds to exit menu
mode.
Display Settings
To select Display Settings, press the ENTER button to confirm, use the UP/DOWN button to select
Display Invert, Temperature Unit, Display Warning or Fixture Language.
Display Invert
Select Display Invert, press the ENTER button to confirm, present mode will blink on the display, use
the UP/DOWN button to select Off (normal display) or On (invert display), press the ENTER button
to store. Press the MENU button back to the last menu or let the unit idle 30 seconds to exit menu
mode.
Temperature Unit
Select Temperature Unit, press the ENTER button to confirm. Use the UP/DOWN button to
select
℃
or
℉
, press the ENTER button to store. Press the MENU button back to the last menu or
let the unit idle 30 seconds to exit menu mode.
9B

Display Warning
Select Display Warning, press the ENTER button to confirm, present mode will blink on the display,
use the UP/DOWN button to select Off or On. Press the MENU button back to the last menu or let
the unit idle 30 seconds to exit menu mode.
Fixture Language
Select Fixture Language, press the ENTER button to confirm, present mode will blink on the display,
use the UP/DOWN button to select English or Chinese. Press the MENU button back to the last
menu or let the unit idle 30 seconds to exit menu mode.
Auto Test
To select Auto Test, press the ENTER button to confirm, the unit will run built-in programs to
automatically test its functions. Press the MENU button back to the last menu or exit menu mode
after auto test.
Manual Test
To select Manual Test,press the ENTER button to confirm, use the UP/DOWN button to select

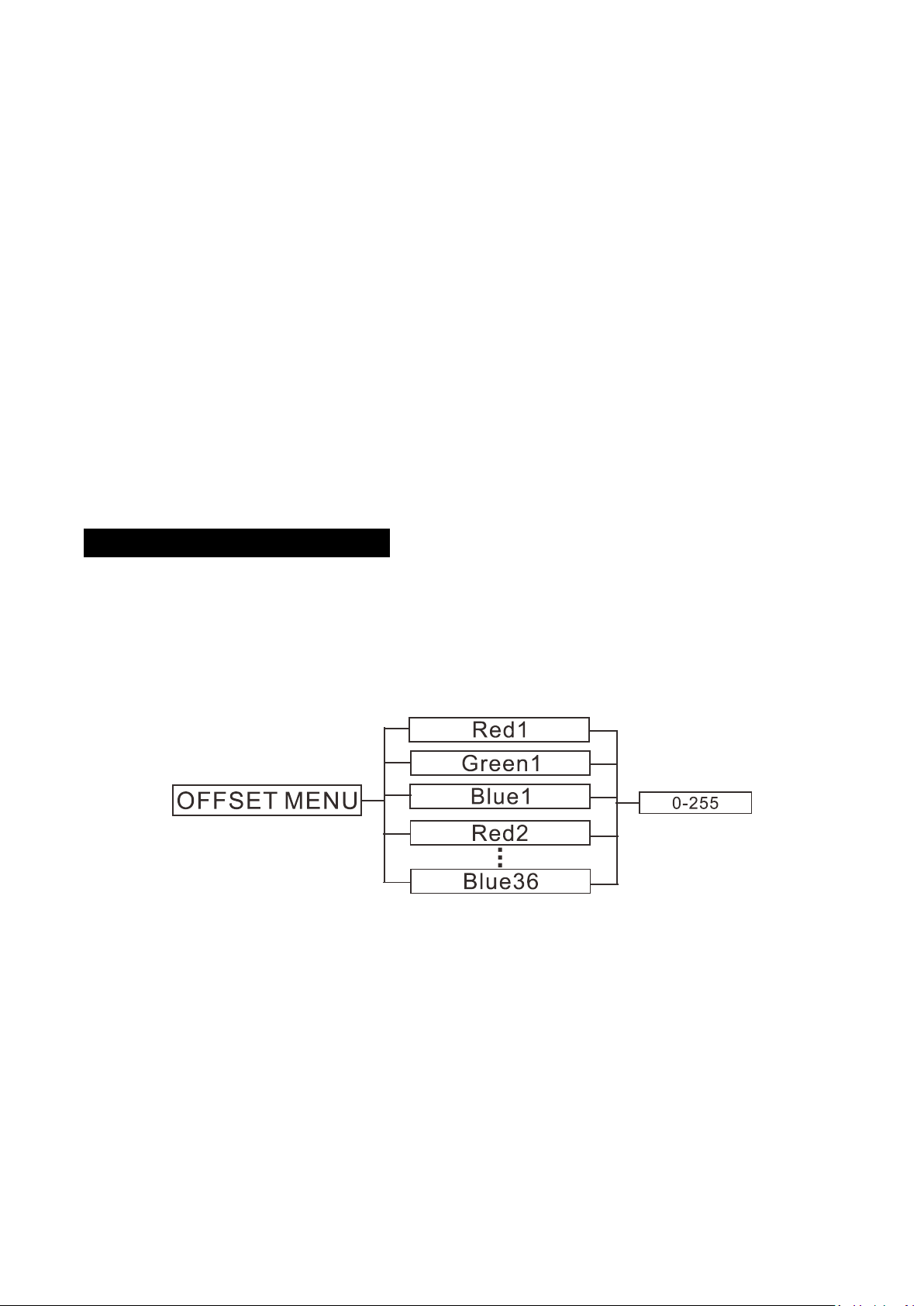

Mode, Clear, Red1, Green1, Blue1……Red36, Green36, Blue36 or Red, Green, Blue, Shutter,
Dimmer,press the ENTER button to confirm, use the UP/DOWN button to adjust the value from 0
to 255, press the ENTER button to store. Press the MENU button back to the last menu or let the
unit idle 30 seconds to exit menu mode.
Information
To select Information, press the ENTER button to confirm, use the UP/DOWN button to select
Temperatue, Fixture Use Hour, LED Use Hour, Firmware Version, RDM UID or Error Logs.
Temperature
Select Temperature, press the ENTER button to confirm, use the UP/DOWN button to select LED or
PCBA, press the ENTER button to confirm, LED’s or PCBA’s temperature of the unit will show on the
display, press the MENU button to exit.
Fixture Use Hour
Select Fixture Use Hour, press the ENTER button to confirm, fixture use hour will show on the
display, press the MENU button to exit.
10B

LED Use Hour
To select LED Use Hour, press the ENTER button to confirm, use the UP/DOWN button to select
Total LED Hour, LED On Hour or LED Hours Reset, press the ENTER button to store. Use the
UP/DOWN button to select LED Hours Reset, press the ENTER button to confirm, use the
UP/DOWN button to set the password 050 to reset the LED hours, press the ENTER button to store.
Press the MENU button back to the last menu or exit menu mode let the unit idle 30 seconds.
Firmware Version
Select Firmware Version, press the ENTER button to confirm, firmware version will show on the
display, press the MENU button back to exit.
RDM UID
Select RDM UID, press the ENTER button to confirm, RDM UID will show on the display, press the
MENU button back to exit.
Error Logs
Select Error Logs, press the ENTER button to confirm. Use the UP/DOWN button to select Fixture
Errors or Reset Error Log, press the ENTER button to store. Select Reset Error Log, press the ENTER
button to confirm. Use the UP/DOWN button to select No or Yes, press the ENTER button to store.
Select Yes, press the ENTER button to confirm. Use the UP/DOWN button to set the password 050,
press the ENTER button to store. Press the MENU button back to the last menu or let the unit idle
30 seconds to exit menu mode.
Factory Restore
Select Factory Restore,press the ENTER button to confirm, use the UP/DOWN button to select No
(normal) or Yes (the fixture will reset to factory settings), press ENTER button to store. Press the
MENU button to exit.
11B

RDM FUNCTIONS
Select the MANUFACTURER menu to display the manufacturer of the fixture.
Select the SOFTWARE VERSION menu and the program version number of the fixture will be
displayed.
Select the DMX START ADDRESS menu to change the DMX 512 address (001-512).
Select the DEVICE MODEL DESCRIPTION menu to display the model of the fixture.
Select the DEVICE LABEL menu to change the model of the fixture.
Select the DMX PERSONALITY menu to set the channel mode of the fixture (108/15/11/3 channel).
Select the DMX PERSONALITY DESCRIPTION menu to display the current channel mode of the
fixture.
Select the DEVICE HOURS menu to display the running time of the fixture.
5.2 Home Position Adjustment
Press the MENU button into menu mode, then press the ENTER button for about 3 seconds into
offset mode to adjust the home position. Select the function by the ENTER button. Use the
UP/DOWN button to choose the submenu, press the ENTER button to store and automatically
return to the last menu. Press MENU button to exit.
Red1
Enter offset mode, select Red1, press the ENTER button to confirm, the present position will blink
on the display, use the UP/DOWN button to offset the value from 0 to 255, press the ENTER button
to store. Press the MENU button to exit.
Green1
Enter offset mode, select Green1, press the ENTER button to confirm, the present position will blink
on the display, use the UP/DOWN button to offset the value from 0 to 255, press the ENTER button
to store. Press the MENU button to exit.
12B

Blue1
Enter offset mode, select Blue1, press the ENTER button to confirm, the present position will blink
on the display, use the UP/DOWN button to offset the value from 0 to 255, press the ENTER button
to store. Press the MENU button to exit.
……
Red36
Enter offset mode, select Red36, press the ENTER button to confirm, the present position will blink
on the display, use the UP/DOWN button to offset the value from 0 to 255, press the ENTER button
to store. Press the MENU button to exit.
Green36
Enter offset mode, select Green36, press the ENTER button to confirm, the present position will
blink on the display, use the UP/DOWN button to offset the value from 0 to 255, press the ENTER
button to store. Press the MENU button to exit.
Blue36
Enter offset mode, select Blue36, press the ENTER button to confirm, the present position will blink
on the display, use the UP/DOWN button to offset the value from 0 to 255, press the ENTER button
to store. Press the MENU button to exit.
6. Control By Universal DMX Controller

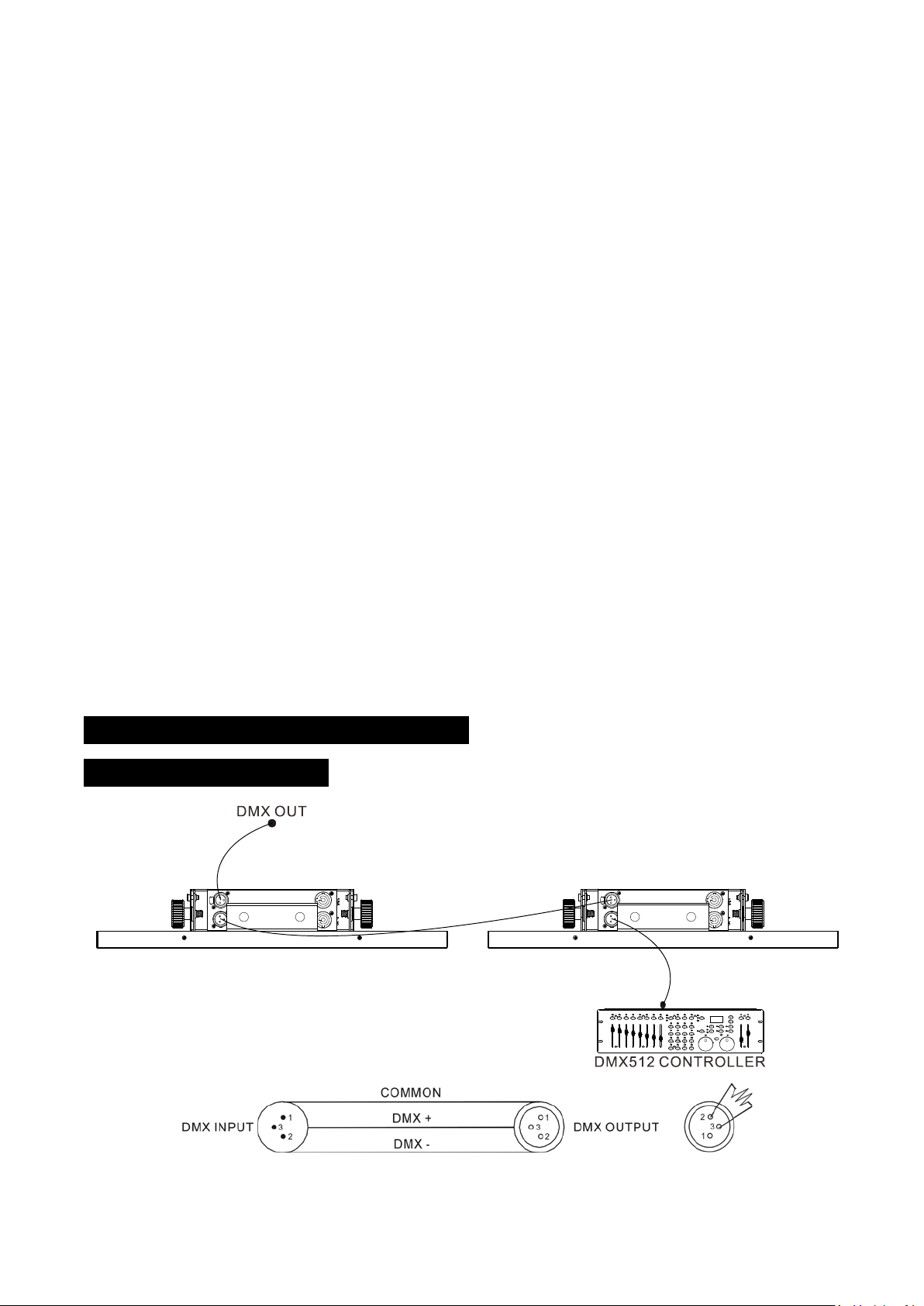

6.1 DMX512 Connection
13B

1. At last unit, the DMX cable has to be terminated with a terminator. Solder a 120-o h m 1/4 W
resistor between pin 2(DMX-) and pin 3(DMX+) into a 3-pin XLR-plug and plug it in the DMX-output
of the last unit.
2. Connect the unit together in a “daisy chain” by XLR plug cable from the output of the unit to
the input of the next unit. The cable cannot be branched or split to a “Y” cable. DMX 512 is a very
high-speed signal. Inadequate or damaged cables, soldered joints or corroded connectors can easily
distort the signal and shut down the system.
3. The DMX output and input connectors are pass-through to maintain the DMX circuit, when one
of the units’ power is disconnected.
4. Each lighting unit needs to have a DMX address to receive the data by the controller. The
address number is between 1-512.
5. The end of the DMX 512 system should be terminated to reduce signal errors.
6. 3 pin XLR connectors are more popular than 5 pins XLR.
3 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+)
5 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+), Pin4, Pin5 not used.
6.2 Address Setting
If you use a universal DMX controller to control the units, you have to set DMX address from 1 to
512 so that the units can receive DMX signal.
Press the MENU button to enter menu mode, select DMX Settings, press the ENTER button to
confirm, use the UP/DOWN button to select DMX Address, press the ENTER button to confirm, the
present address will blink on the display, use the UP/DOWN button to adjust the address from 001
to 512, press the ENTER button to store. Press the MENU button back to the last menu or let the
unit idle 30 seconds to exit menu mode.
Please refer to the following diagram to address your DMX512 channel for the first 4 units.
Channel mode
Unit 1
Address
Unit 2
Address
Unit 3
Address
Unit 4
Address
108 channels 1 109 217 325
15 channels 1 16 31 46
11 channels 1 12 23 34
3 channels 1 4 7 10
14B

6.3 DMX512 Configuration
Please refer to below configurations to control the fixtures
Attentions:
1. The unit will maintain the last condition until reset if you cut-off the DMX signal.
2. For the channel Function, keep the value for about 3 seconds, then the corresponding function
will take into effect.
108 Channels (Mode 1):
CHANNEL VALUE FUNCTION
1
000-255
RED1
0%

100%
2
000-255
GREEN1
0%

100%
3
000-255
BLUE1
0%

100%
4
000-255
RED2
0%

100%
5
000-255
GREEN2
0%100%
6
000-255
BLUE2
0%

100%
…… …… ……
106
000-255
RED36
0%

100%
107
000-255
GREEN36
0%

100%
108
000-255
BLUE36
0%

100%
15 Channels (Mode 2):
CHANNEL VALUE FUNCTION
1
000-255
RED (RING 1)
0%

100%
2
000-255
GREEN (RING 1)
0%

100%
3
000-255
BLUE (RING 1)
0%100%
15B

4
000-255
RED (RING 2)
0%

100%
5
000-255
GREEN (RING 2)
0%

100%
6
000-255
BLUE (RING 2)
0%100%
7
000-255
RED (RING 3)
0%

100%
8
000-255
GREEN (RING 3)
0%100%
9
000-255
BLUE (RING 3)
0%

100%
10
000
001-004
005-009
010-013
014-018
019-022
023-027
028-031
032-036
037-040
041-045
046-049
050-054
055-058
059-063
064-067
068-072
073-076
077-081
082-085
086-090
091-094
095-099
100-103
104-108
109-112
113-117
118-121
122-126
127-130
131-135
136-139
140-144
CTO (8000K-2500K)
Close
8000K
7900K
7800K
7700K
7600K
7500K
7400K
7300K
7200K
7100K
7000K
6900K
6800K
6700K
6600K
6500K
6400K
6300K
6200K
6100K
6000K
5900K
5800K
5700K
5600K
5500K
5400K
5300K
5200K
5100K
5000K
4900K
16B

145-148
149-153
154-157
158-162
163-166
167-171
172-175
176-180
181-184
185-189
190-193
194-198
199-202
203-207
208-211
212-216
217-220
221-225
226-229
230-234
235-238
239-243
244-247
248-255
4800K
4700K
4600K
4500K
4400K
4300K
4200K
4100K
4000K
3900K
3800K
3700K
3600K
3500K
3400K
3300K
3200K
3100K
3000K
2900K
2800K
2700K
2600K
2500K
11
000-009
010-014
015-019
020-024
025-029
030-034
035-039
040-044
045-049
050-054
055-059
060-064
065-069
070-074
075-079
080-084
085-089
090-094
095-099
100-104
105-109
110-114
COLOR MACRO
Open
LEE 790-Moroccan Pink
LEE 157-Pink
LEE 332-Special Rose Pink
LEE 328-Follies Pink
LEE 345-Fuchsia Pink
LEE 194-Surprise Pink
LEE 181-Congo Blue
LEE 071-Tokyo Blue
LEE 120-Deep Blue
LEE 079-Just Blue
LEE 132-Medium Blue
LEE 200-Double CT Blue
LEE 161-State Blue
LEE 201-Full CT Blue
LEE 202-Half CT Blue
LEE 117-Steel Blue
LEE 353-Lighter Blue
LEE 118-Light Blue
LEE 116-Medium Blue Green
LEE 124-Dark Green
LEE 139-Primary Green
17B

115-119
120-124
125-129
130-134
135-139
140-144
145-149
150-154
155-159
160-164
165-169
170-174
175-179
180-201
202-207
208-229
230-234
235-239
240-244
245-249
250-255
LEE 089-Moss Green
LEE 122-Fern Green
LEE 738-JAS Green
LEE 088-Lime Green
LEE 100-Spring Yellow
LEE 104-Deep Amber
LEE 179-Chrome Orange
LEE 105-Orange
LEE 021-Gold Amber
LEE 778-Millennium Gold
LEE 135-Deep Gold Amber
LEE 164-Flame Red
Open
Clockwise Rotation, Fast to Slow
Stop
Counter-clockwise Rotation, Slow to Fast
Open
Random Color: Fast
Random Color: Medium
Random Color: Slow
Open
12
000-007
008-015
016-131
132-139
140-181
182-189
190-231
232-239
240-247
248-255
STROBE
Close
Opne
Strobe from Slow to Fast
Open
Fast Close Slow Open
Open
Fast Open Slow Close
Open
Random Strobe
Open
13
000-255
DIMMER
0%100%
14 000-255 DIMMER FINE
15
000-029
030-039
040-049
050-059
060-069
070-079
080-089
090-099
100-109
110-119
SPECIAL FUNCTION
Null
Dimmer Curve Linear
Dimmer Curve Square Law
Dimmer Curve Inv SQ Law
Dimmer Curve S
Null
Null
Null
Null
Null
18B

120-129
130-139
140-179
180-189
190-199
200-209
210-219
220-229
230-255
Null
Null
Null
Dimmer Speed Fast
Dimmer Speed Smooth
Null
Null
Null
Null
11 Channels (Mode 3):
CHANNEL VALUE FUNCTION
1
000-255
RED
0%

100%
2
000-255
GREEN
0%100%
3
000-255
BLUE
0%

100%
4
000
001-004
005-009
010-013
014-018
019-022
023-027
028-031
032-036
037-040
041-045
046-049
050-054
055-058
059-063
064-067
068-072
073-076
077-081
082-085
086-090
091-094
095-099
100-103
CTO (8000K-2500K)
Close
8000K
7900K
7800K
7700K
7600K
7500K
7400K
7300K
7200K
7100K
7000K
6900K
6800K
6700K
6600K
6500K
6400K
6300K
6200K
6100K
6000K
5900K
5800K
19B
