ACME SABER Mini User manual

CONTENTS
1. Safety Instruction ...................................................................................2
2. Technical Specification............................................................................4
3. Control Panel ..........................................................................................5
4. Color/Gobo and Lamp ............................................................................6
4.1 Color/Gobo.......................................................................................6
4.2 Light Source ......................................................................................7
4.3 Change The Lamp .............................................................................7
5. How To Set The Unit ...............................................................................9
5.1 Main Function...................................................................................9
5.2 Home Position Adjustment.............................................................13
6. Control By Universal DMX Controller....................................................15
6.1 DMX512 Connection.......................................................................15
6.2 Address Setting...............................................................................16
6.3 DMX512 Configuration ...................................................................16
7. Troubleshooting....................................................................................19
8. Fixture Cleaning....................................................................................19
1C

1. Safety Instruction
WARNING
Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that
they also receive this instruction manual.
Important:
Damages caused by the disregard of this user manual are not subject to warranty. The dealer will
not accept liability for any resulting defects or problems.
Unpack and check carefully that there is no transportation damage before using the unit.
This product is for indoor use only. Use only in a dry location.
DO install and operate by qualified operator.
DO NOT allow children to operate the fixture.
Use safety chain when fixing the unit. Handle the unit by carrying its base instead of head only.
The unit must be installed in a location with adequate ventilation, at least 50cm from adjacent
surfaces.
Be sure that no ventilation slots are blocked, otherwise the unit will be overheated.
Before operating, ensure that the voltage and frequency of power supply match the power
requirements of the unit.
It’s important to ground the yellow/green conductor to earth in order to avoid electric shock.
Minimum ambient temperature TA: 0℃. Maximum ambient temperature TA: 40℃.
DO NOT connect the device to any dimmer pack.
During initial start-up some smoke or smell may arise. This is a normal process and does not
necessarily mean that the device is defective, and it will decrease gradually within 15 minutes.
Make sure there are no flammable materials close to the unit while operating to avoid fire
hazard.
Examine the power wires carefully; replace them immediately if there is any damage.
Unit’s surface temperature may reach up to 85℃. DO NOT touch the housing bare-handed
during its operation.
Avoid any inflammable liquids, water or metal objects entering the unit. Once it happens, cut
Please read the instruction carefully which includes important information about
the installation, usage and maintenance.
2C

off the mains power immediately.
DO NOT operate in dirty or dusty environment, do clean fixtures regularly.
DO NOT touch any wire during operation as there might be a hazard of electric shock.
Avoid power wires together twist other cables.
The minimum distance between light output and the illuminated surface must be more than 8
meters.
Disconnect mains power before fuse/lamp replacement or servicing.
Replace fuse/lamp only with the same type.
In the event of serious operating problem, stop using the unit immediately.
Never turn on and off the unit time after time.
The housing, the lenses, or the ultraviolet filter must be replaced if they are visibly damaged.
DO NOT open the unit as there are no user serviceable parts inside.
Never try to repair the unit by yourself. Repairs carried out by unskilled people can lead to
damage or malfunction. Please contact the nearest authorized technical assistance center if
needed.
Disconnect the mains power if the fixture is has not been used for a long time.
DO use the original packing materials before transporting it again.
Hot lamp explosion hazard. DO NOT open the unit within 15 minutes after switching off.
DO replace the bulb once it is damaged, deformed or life-expired.
DO NOT look directly at the light while the bulb is on.
Never touch bulb with bare fingers, as it is very hot after using.
DO NOT start on the unit without bulb enclosure or when housing is damaged.
Installation:
The fixture should be mounted via its Omega Quick Release Clamp bracket. Always ensure that the
unit is firmly fixed to avoid vibration and slipping while operating and make sure that the structure
to which you are attaching the unit is secure and is able to support a weight of 10 times of the
fixtures weight. Always use a safety cable that can hold 12 times of the weight of the fixture when
installing.
The equipment must be installed by professionals. It must be installed in a place where is out of the
reach of people and no one can pass by or under it.
3C

2. Technical Specification
Power Voltage:
AC 100~240V, 50/60Hz
Power Consumption:
200W
Light Source:
OSRAM SIRIUS HRI 100W
Color Temperature:
9000K
Beam Angle:
3°
Movement:
Pan: 540°
Tilt: 270°
Color Wheel:
1 color wheel with 14 colors plus open
Gobo Wheel:
1 fixed gobo wheel with 15 gobos plus open
Control:
DMX Channel: 12 channels
Control Mode: DMX, Pri./Sec., Sound Active
Firmware Upgrade: Update via DMX link
Construction:
Display: LCD display
Data In/Out: 3-pin XLR(5-pin XLR is optional)
Power In/Out: Power Connector in/out
Protection Rating: IP20
Features:
Prism: 8 facet prism rotating in both directions
0~100% smooth dimming
Various strobe speeds
4C

Dimension/Weight:
284x255x387mm, 9.2kgs
11.2”x10”x15.2”in, 20.3lbs
Photometrics Diagram:
3. Control Panel
5C

1. Button:
MENU
To select the programming functions
DOWN
To go forward in the selected functions
UP
To go backward in the selected functions
ENTER
To confirm the selected functions
2. MICROPHONE:
To receive music for sound active
3. LED:
DMX
On
DMX input present
SOUND
Flashing
Sound activation
4. DISPLAY:
Used to show the various menus and the selected function
5. FUSE(T 5A):
Protects the unit from over-voltage or short circuit
6. POWER IN/OUT:
Used to connect to supply power/Used to connect to the next fixture
7. DMX IN/OUT:
Use 3-pin XLR cable to link the units and input/output DMX signal (5-pin XLR is optional)
4. Color/Gobo and Lamp
4.1 Color/Gobo
DANGER!
Install the color wheel/gobo wheel with the device switched off only.
Unplug from mains before changing the color wheel/gobo wheel!
6C

4.2 Light Source
OSRAM SIRIUS HRI 100W
Because of its high internal pressure, there might be a risk that the Discharge lamp
would explode during operation. The lamp emits intense UV radiation which is harmful
to the eyes and skin. The high luminance of the arc can cause severe damage to the
retina if you take a close look at the lamp.
To protect the lamp, always turn off the lamp first (via control panel or DMX controller)
and let the unit run at least five minutes to cool down before switching off the mains
supply. Never handle the lamp or luminary when it is hot.
Do not touch the bulb with bare hands. If this happens, clean the lamp with denatured
alcohol and wipe it with a lint free cloth before installation.
The lamp generates UV radiation. Never operate the lamp without appropriate shielding.
When lighting up, the lamp operates at high pressure and there is a slight risk of arc tube
rupture. The risk increases with age, temperature and improper handling of the lamp. Do not
use the lamp longer than its lifespan.
Make sure the lamp is located in the center of the reflector for the best projection.
4.3 Change The Lamp
Do not use this lamp more than 6000 hours, using the lamp any longer than its set life could
seriously damage your unit. Periodically checking the lamp running time, when the lamp reaches
the 6000 hour mark, or close to it, we strongly suggest you switch the lamp out. Clear the RESET
TIME after you have replaced the lamp.
To replace the lamp:
1. Ensure that the fixture is detached from power and has cooled down completely. It is a good
idea to allow the fixture to run for 10 minutes after the lamp has been turned off, so that the
cooling fans have time to works.
2. Loosen the screws on the head of the fixture and open the fixture head covers. Remove the fan.
7C

3. Lift the lamp out of its recess, disconnect the lamp and connect a new lamp that must be the
same type with the old one. And then place the new lamp into the lamp recess.
Finally reinstall the head cover, fastening it securely before reapplying power.
Warning:
The installing direction of lamp:
8C

5. How To Set The Unit
5.1 Main Function
Turn on the unit, press the MENU button into menu mode, press the UP/DOWN button until the
required function is shown on the monitor. Select the function by the ENTER button. Use the
UP/DOWN button to choose the submenu, press the ENTER button to store and automatically
return to the last menu. Press the MENU button or let the unit idle 30 seconds to exit menu mode.
The main functions are shown below:
9C

10C

DMX Address
To select DMX Address, press the ENTER button to confirm. Use the UP/DOWN button to adjust the
address from 001 to 512. Once the address has been selected, press the ENTER button to setup.
Press and hold the MENU button for about one second or wait for 30 seconds to exit the menu
mode.
Show Mode
To select Show Mode, press the ENTER button to confirm. Use the DOWN/UP button to select
Show 1, Show 2, Show 3 or Show 4. Once the mode has been selected, press the ENTER button to
setup. Press and hold the MENU button about one second or wait for 30 seconds to exit the menu
mode.
Pri./Sec. Mode
To select Pri./Sec. Mode, press the ENTERbutton to confirm. Use the DOWN/UP button to select
Pri., Sec. 1 or Sec. 2. Once the mode has been selected, press the ENTER button to setup. Press and
hold the MENU button about one second or wait for 30 seconds to exit the menu mode.
DMX State
To select DMX State, press the ENTER button to confirm. Use the DOWN/UP button to select
Pri.Sec., Hold or Blackout. Once selected, press the ENTER button to setup. Press and hold the
MENU button about one second or wait for 30 seconds to exit the menu mode.
Sound State
To select Sound State, press the ENTER button to confirm. Use the DOWN/UP button to select
On(sound on) or Off(sound off). Once the mode has been selected, press the ENTER button to setup.
Press and hold the MENU button about one second or wait for 30 seconds to exit the menu mode.
Sound Sense
To select Sound Sense, press the ENTER button to confirm. Use the DOWN/UP button to adjust the
value from 0to 100. Once selected, press the ENTER button to setup. Press and hold the MENU
button about one second or wait for 30 seconds to exit the menu mode.
11C

Pan Inverse
To select Pan Inverse, press the ENTER button to confirm. Use the DOWN/UP button to select No or
Yes. Once the mode has been selected, press the ENTER button to setup. Press and hold the MENU
button about one second or wait for 30 seconds to exit the menu mode.
Tilt Inverse
To select Tilt Inverse, press the ENTER button to confirm. Use the DOWN/UP button to select No or
Yes. Once the mode has been selected, press the ENTER button to setup. Press and hold the MENU
button about one second or wait for 30 seconds to exit the menu mode.
Back Light
To select Back Light, press the ENTER button to confirm. Use the DOWN/UP button to select On(LED
display always on) or Off(LED display off when not use). Once selected, press the ENTER button to
setup. Press and hold the MENU button about one second or wait for 30 seconds to exit the menu
mode.
Auto Test
To select Auto Test,press the ENTER button and the unit will run self-test by built-in program. Press
and hold the MENU button about one second or wait for 30 seconds to exit the menu mode.
Fixture Time
To select Fixture Time, press the ENTER button and the display will show the number of working
hours of the unit. Press and hold the MENU button about one second or wait for 30 seconds to exit
the menu mode.
Lamp Time
To select Lamp Time, press the ENTER button and the display will show the number of working
hours of the lamp. Press and hold the MENU button about one second or wait for 30 seconds to exit
the menu mode.
12C

Lamp On
To select Lamp On, press the ENTER button to confirm. Use the DOWN/UP button to select
On(Lamp on) or Off(Lamp off). Once selected, press the ENTER button to setup. Press and hold the
MENU button about one second or wait for 30 seconds to exit the menu mode.
Lamp Power On
To select Lamp Power On, press the ENTER button to confirm. Use the DOWN/UP button to select
On(Lamp on when power on) or Off(Lamp off when power on). Once selected, press the ENTER
button to setup. Press and hold the MENU button about one second or wait for 30 seconds to exit
the menu mode.
Firmware Version
To select Firmware Version, press the ENTER button and the display will show the version of
software of the unit. Press and hold the MENU button about one second or wait for 30 seconds to
exit the menu mode.
Defaults
To select Defaults, press the ENTER button to confirm. Use the DOWN/UP button to select No or
Yes. Once selected, press the ENTER button to setup. Press and hold the MENU button about one
second or wait for 30 seconds to exit the menu mode.
Reset
To select Reset, press the ENTER button and all channels of the unit will return to their standard
position.

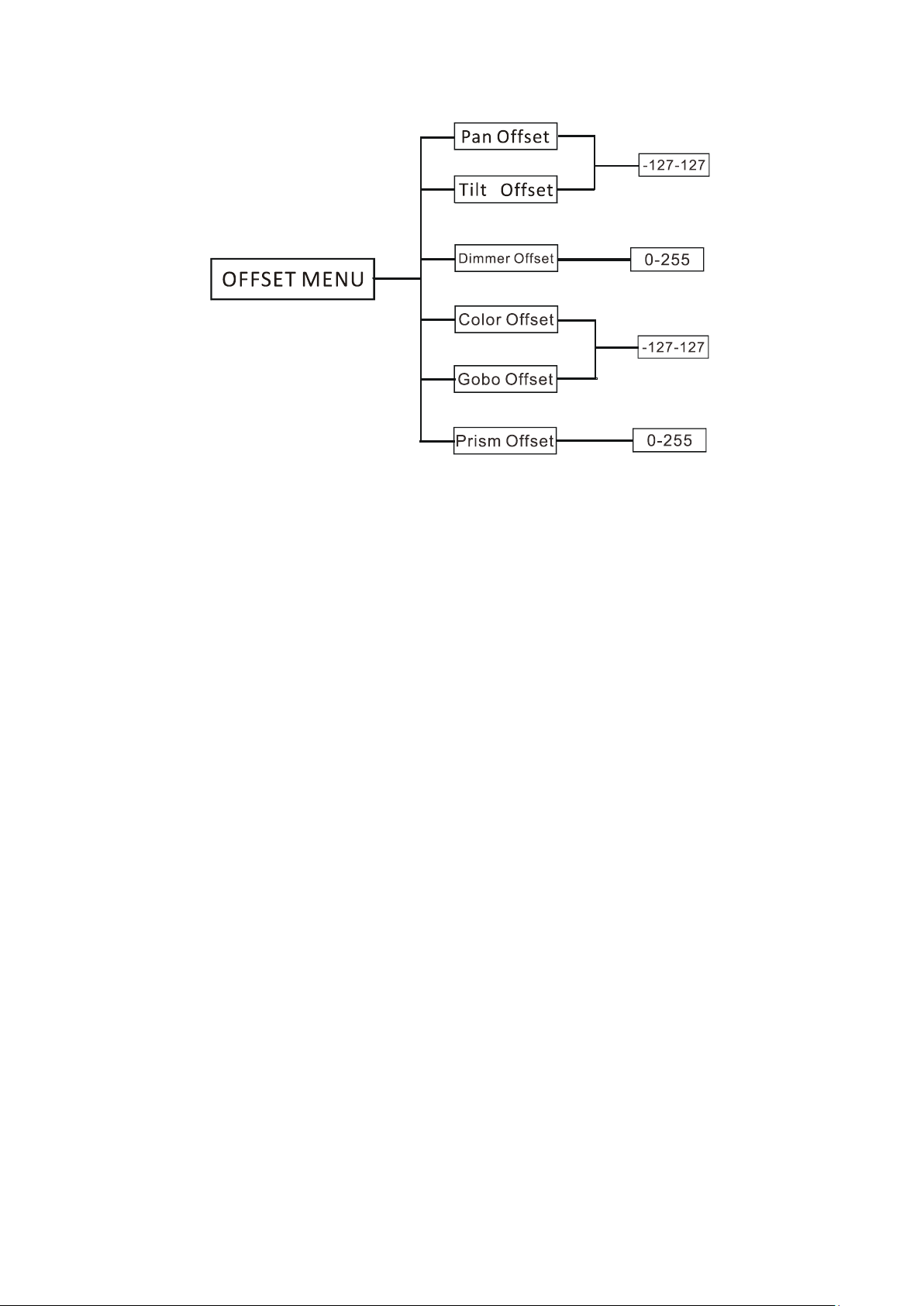

5.2 Home Position Adjustment
Press the MENU button for at least 3 seconds then press the ENTER button for at least 5 seconds
into offset mode to adjust the home position for the motors. Use Up and Down button to adjust the
value, press the ENTER button to setup. Back to the functions without any change press MENU
button.
13C

PAN OFFSET
To select the Pan Offset, press the ENTER button to confirm. Use the DOWN/UP button to adjust
the value from -127 to 127, press the ENTER button to store. Press the MENU button to exit.
TILT OFFSET
To select the Tilt Offset, press the ENTER button to confirm. Use the DOWN/UP button to adjust the
value from -127 to 127, press the ENTER button to store. Press the MENU button to exit.
DIMMER OFFSET
To select the Dimmer Offset, press the ENTER button to confirm. Use the DOWN/UP button to
adjust the value from 0 to 255, press the ENTER button to store. Press the MENU button to exit.
COLOR OFFSET
To select the Color Offset, press the ENTER button to confirm. Use the DOWN/UP button to adjust
the value from -127 to 127, press the ENTER button to store. Press the MENU button to exit.
GOBO OFFSET
To select the Gobo 1 Offset, press the ENTER button to confirm. Use the DOWN/UP button to adjust
the value from -127 to 127, press the ENTER button to store. Press the MENU button to exit.
Prism OFFSET
To select the Prism Offset, press the ENTER button to confirm. Use the DOWN/UP button to adjust
the value from 0 to 255, press the ENTER button to store. Press the MENU button to exit.
14C

6. Control By Universal DMX Controller
6.1 DMX512 Connection
1. At last unit, the DMX cable has to be terminated with a terminator. Solder a 120-o h m 1/4 W
resistor between pin 2(DMX-) and pin 3(DMX+) into a 3-pin XLR-plug and plug it in the DMX-output
of the last unit.
2. Connect the unit together in a “daisy chain” by XLR plug cable from the output of the unit to
the input of the next unit. The cable cannot be branched or split to a “Y” cable. DMX 512 is a very
high-speed signal. Inadequate or damaged cables, soldered joints or corroded connectors can easily
distort the signal and shut down the system.
3. The DMX output and input connectors are pass-through to maintain the DMX circuit, when one
of the units’ power is disconnected.
4. Each lighting unit needs to have a DMX address to receive the data by the controller. The
address number is between 1-512.
5. The end of the DMX 512 system should be terminated to reduce signal errors.
6. 3 pin XLR connectors are more popular than 5 pins XLR.
3 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+)
5 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+), Pin4, Pin5 not used.
15C

6.2 Address Setting
If you use a universal DMX controller to control the units, you have to set DMX address from 1 to
512 so that the units can receive DMX signal.
Press the MENU button to enter menu mode, select DMX Address, press the ENTER button to
confirm, the present address will blink on the display, use the UP/DOWN button to adjust the
address from 1 to 512, press the ENTER button to store. Press the MENU button back to the last
menu or let the unit idle 30 seconds to exit menu mode.
Please refer to the following diagram to address your DMX512 channel for the first 4 units.
Channel mode
Unit 1
Address
Unit 2
Address
Unit 3
Address
Unit 4
Address
12 channels 1 13 25 37
6.3 DMX512 Configuration
Please refer to below configurations to control the fixtures
Attentions:
1. The unit will maintain the last condition until reset if you cut-off the DMX signal.
2. For the channel Function, keep the value for about 3 seconds, then the corresponding function
will take into effect.
12 Channels Mode:
CHANNEL VALUE FUNCTION
1
000-255
PAN
0°

540°
2 000-255 PAN FINE
3
000-255
TILT
0°

270°
4 000-255 TILT FINE
5
000-255
PAN/TILT SPEED
fast to slow
6
000-255
DIMMER
0%

100%
7
000-007
008-015
016-131
STROBE
Standby
Open
Strobe, Slow to Fast
16C

132-139
140-181
182-189
190-231
232-239
240-247
248-255
Open
Fast Close Slow Open
Open
Fast Open Slow Close
Open
Random Strobe
Open
8
000-008
009-016
017-025
026-033
034-042
043-050
051-059
060-067
068-076
077-084
085-093
094-101
102-110
111-118
119-127
128-189
190-193
194-255
COLOR
Open
Color1
Color2
Color3
Color4
Color5
Color6
Color7
Color8
Color9
Color10
Color11
Color12
Color13
Color14
Rotation: Fast to Slow
Stop
Rotation: Slow to Fast
9
000-003
004-007
008-011
012-015
016-019
020-023
024-027
028-031
032-035
036-039
040-043
044-047
048-051
052-055
056-059
060-063
064-068
069-072
073-076
077-080
GOBO
Open
Gobo1
Gobo2
Gobo3
Gobo4
Gobo5
Gobo6
Gobo7
Gobo8
Gobo9
Gobo10
Gobo11
Gobo12
Gobo13
Gobo14
Gobo15
Gobo1 Shaking
Gobo2 Shaking
Gobo3 Shaking
Gobo4 Shaking
17C

081-084
085-089
090-093
094-097
098-101
102-105
106-110
111-114
115-118
119-122
123-126
128-189
190-193
194-255
Gobo5 Shaking
Gobo6 Shaking
Gobo7 Shaking
Gobo8 Shaking
Gobo9 Shaking
Gobo10 Shaking
Gobo11 Shaking
Gobo12 Shaking
Gobo13 Shaking
Gobo14 Shaking
Gobo15 Shaking
Rotation: Fast to Slow
Stop
Rotation: Slow to Fast
10 000-007
008-255
PRISM
No Effect
Prism Effect
11
000-127
128-189
190-193
194-255
R-PRISM
Index: 0°360°
Rotation: Fast to Slow
Stop
Rotation: Slow to Fast
12
000-079
080-084
085-089
090-094
095-099
100-109
110-119
120-129
130-139
140-199
200-209
210-229
230-239
240-249
250-255
FUNCTION
Null
Pan/Tilt Motors reset
Color motor reset
Gobo motor reset
Shutter/Dimmer/Prism reset
Enable blackout while pan/tilt move
Enable blackout while color change
Enable blackout while gobo change
Lamp On
Null
Reset All
Null
Lamp Off
Null
Sound Function
18C

7. Troubleshooting
Following are a few common problems that may occur during operation. Here are some
suggestions for easy troubleshooting:
A. The unit does not work, no light and the fan does not work
1. Check the connect power and main fuse.
2. Measure the mains voltage on the main connector.
3. Check the power on LED to see if it can be light up or not.
B. Not responding to DMX controller
1. DMX LED should be on. If not, check DMX connectors, cables to see if they are linked properly.
2. If the DMX LED is on and no response to the channel, check the address settings and DMX
polarity.
3. If you have intermittent DMX signal problems, check the pins on connectors or on PCB of the
unit or the previous one.
4. Try to use another DMX controller.
5. Check to see if the DMX cables run near or run alongside high voltage cables that may cause
damage or interference to DMX interface circuit.
C. One of the channels is not working well
1. The stepper motor might be damaged or the cable connected to the PCB is broken.
2. The motor’s drive IC on the PCB might be out of condition.
D. The lamp is cutting out intermittently
1. The lamp is not working well. Check the mains voltage either too high or too low.
2. Internal temperature may be too high. Check if replacement of fan is needed on the head.
8. Fixture Cleaning
The cleaning of internal and external optical lenses and/or mirrors must be carried out periodically
to optimize light output. Cleaning frequency depends on the environment in which the fixture
operates: damp, smoky or particularly dirty surrounding can cause greater accumulation of dirt on
the unit’s optics.
Clean with soft cloth and use normal glass to clean fluid.
Always dry the parts carefully.
Clean the external optics at least every 20 days. Clean the internal optics at least every 30 days.
19C
