ACME Dynamic 25 Spin LED?GF25 User manual








LED‐GF25





UserManual
Pleasereadtheinstructioncarefullybeforeuse


1A

CONTENTS

1.SafetyInstructions....................................................................................................2
2.TechnicalSpecifications ............................................................................................3
3.HowToSetTheUnit .................................................................................................4
3.1RearPanel...........................................................................................................4
3.2MainFunction ....................................................................................................5
4.HowtoControltheUnit ...........................................................................................9
4.1Master/SlaveBuiltInPreprogrammedFunction ................................................9
4.2EasyController..................................................................................................10
4.3DMXController.................................................................................................10
5.DMX512Configuration ...........................................................................................11
6.DMXConnection ....................................................................................................12
7.Troubleshooting......................................................................................................13
8.FixtureCleaning......................................................................................................14





2A
1.SafetyInstructions

WARNING
yPleasekeepthisUserManualforfutureconsultation.Ifyouselltheunittoanotheruser,be
surethattheyalsoreceivethisinstructionbooklet.
yUnpackandcheckcarefullythereisnotransportationdamagebeforeusingtheunit.
yBeforeoperating,ensurethatthevoltageandfrequencyofpowersupplymatchthepower
requirementsoftheunit.
yIt’simportanttogroundtheyellow/greenconductortoearthinordertoavoidelectricshock.
yTheunitisforindooruseonlyanduseonlyinadrylocation.
yTheunitmustbeinstalledinalocationwithadequateventilation,atleast50cmfromadjacent
surfaces.Besurethatnoventilationslotsareblocked.
yPleasedisconnectmainspowerbeforefusereplacementorservicing.
yPleasereplacefuseonlywiththesametype.
yPleasemakesuretherearenotflammablematerialsclosetotheunitwhileoperatingasitis
firehazard.
yPleaseusesafetycablewhenfixesthisunit.
yMaximumambienttemperatureisTA:40℃anddon’toperateitwherethetemperatureis
higherthanthis.
yUnitsurfacetemperaturemayreachupto60℃.DONOTtouchthehousingbare‐handduring
itsoperation.
yDONOTconnectthedevicetoanydimmerpackorpowerpack.
yDONOTlookdirectlyattheLEDlightbeamwhilethefixtureison.
yThehousingmustbereplacediftheyarevisiblydamaged.
yDONOTtouchanywireduringoperationashighvoltagemightbecausingelectricshock.




For230V50Hzpowersupply,maximumfixturesthatcanbeconnectedtogetherfromthesameoutletis13pcs;
For120V60Hzpowersupply,maximumfixturesthatcanbeconnectedtogetherfromthesameoutletis8pcs;
Pleasereadtheinstructionscarefullywhichincludesimportant
informationabouttheinstallation,operationandmaintenance.

3A
Caution:
Therearenouserserviceablepartsinsidetheunit.DONOTopenthehousingorattemptany
repairsyourself.Intheunlikelyeventyourunitmayrequireservice,pleasecontactyournearest
dealer.
Installation:
Theunitshouldbemountedviaitsscrewholesonthebracket.Alwaysensurethattheunitis
firmlyfixedtoavoidvibrationandslippingwhileoperating.Andmakesurethatthestructureto
whichyouareattachingtheunitissecureandisabletosupportaweightof10timesoftheunit’s
weight.Alsoalwaysuseasafetycablethatcanhold12timesoftheweightoftheunitwhen
installingthefixture.
Theequipmentmustbefixedbyprofessionals.Anditmustbefixedataplacewhereisoutofthe
touchofpeopleandhasnoonepassbyorunderit.

2.TechnicalSpecifications
yLEDgoboflowerwith25WLED,deliveringpowerful,eye‐catchingeffects
y4DMXchannels:Strobe,Gobo/Color,ReflectorandDimmer
y8goboswithdichroiccolorsplusopen
ySmoothdimmingandvariousstrobeeffects
y3operationmodes:DMX,Master/Slaveoperation,SoundActivation
yGreatbuilt‐inshowsundermaster/slavemodetriggeredbymusic
yLEDdisplayforeasynavigation
yOptionaleasycontrollerCA‐8orCA‐9forinstantlightingshows
yLowheat,lowpowerconsumption;nodutycycle,runsallnight
yIdealforpubs,clubs,discos,MobileDJsandmore.

yPowerVoltage:AC100~240V,50/60Hz
yPowerConsumption:45.8W
yFuse:T2A
yLED:1x25WCREELEDs

4A
yWeight:3.7kgs
yDimension:395x240x193mm


3.HowToSetTheUnit

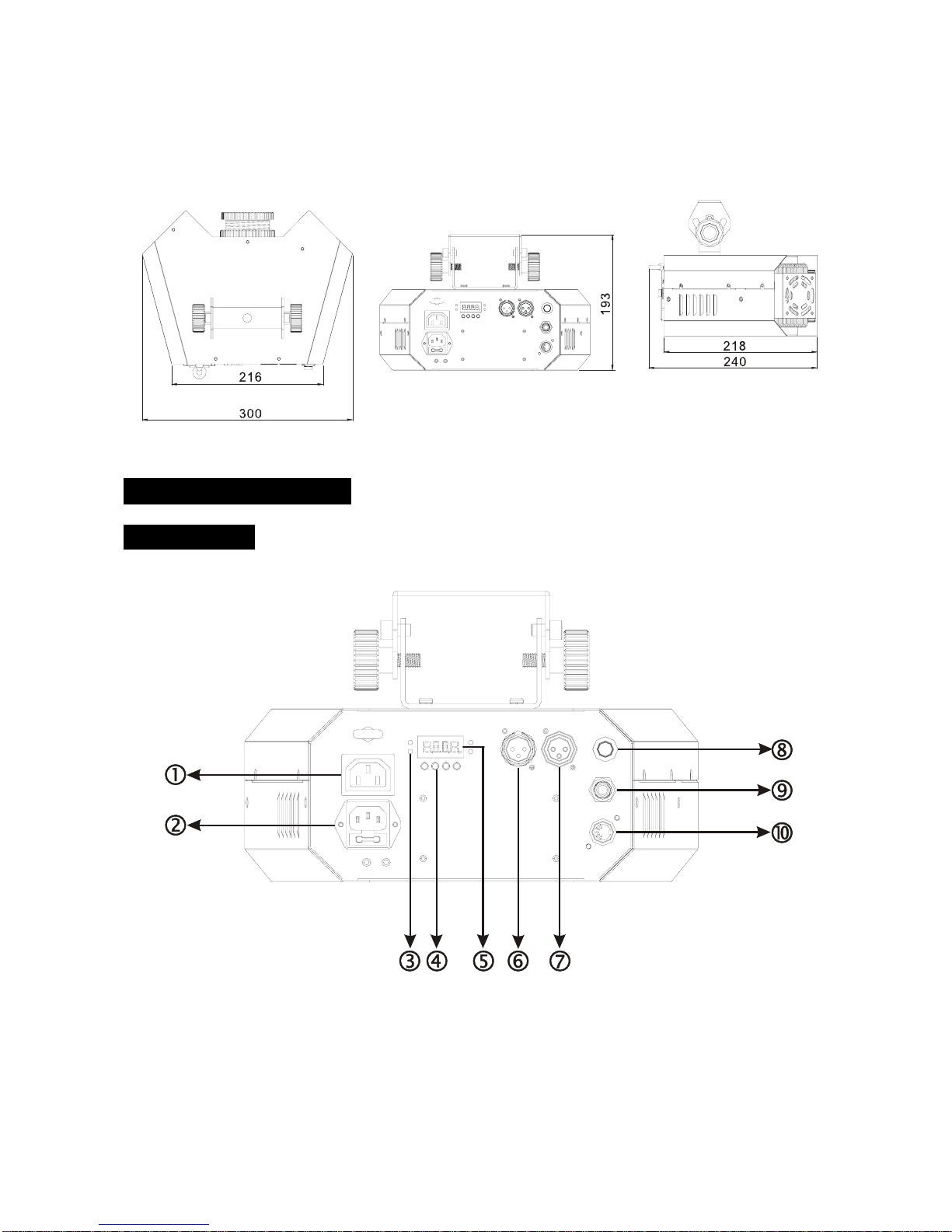

3.1RearPanel


1.POWEROUT:Usedtoconnecttonextunit
2.POWERIN:Usedtoconnecttomainssupply


5A
3.LED:
DMXOnDMXinputpresent
MASTEROnMasterMode
SLAVEOnSlaveMode
SOUNDFlashingSoundactivation
4.Button:
MENUToselecttheprogrammingfunctions
DOWNTogobackwardintheselectedfunctions
UPTogoforwardintheselectedfunctions
ENTERToconfirmtheselectedfunctions
5.FunctionDisplay:Usedtoshowthevariousmenusandtheselectedfunctions.
6.DMXIN:ForDMX512link,use3‐pinXLRplugcabletoconnecttotheDMXcontrollerand
inputtheDMXsignal;
7.DMXOUT:ForDMX512link,use3‐pinXLRplugcabletolinkthenextfixtureandoutputthe
DMXsignal;
8.Microphone:Usedtoreceivemusicforthesoundactivation;
9.Onlyforremotecontrol:UsedtoconnecttotheoptionalCA‐8tocontroltheunitforStand
by,FunctionandModefunction;
10.Onlyforwirelessreceiver:UsedtoconnecttotheoptionalCA‐9tocontroltheunitfor
Standby,FunctionandModefunction;
3.2MainFunction
Toselectanyfunctions,presstheMENUbuttonuntiltherequiredfunctionisshowingonthe
display.SelectthefunctionbypressingtheENTERbuttonandthedisplaywillblink.Usethe
DOWNandUPbuttontochangethemode.Oncetherequiredmodehasbeenselected,pressthe
ENTERbuttontosetuptogobacktothefunctionswithoutanychangespresstheMENUbutton
again.HoldandpresstheMENUbuttonforonesecondorwaitforoneminutetoexitthemenu
mode.

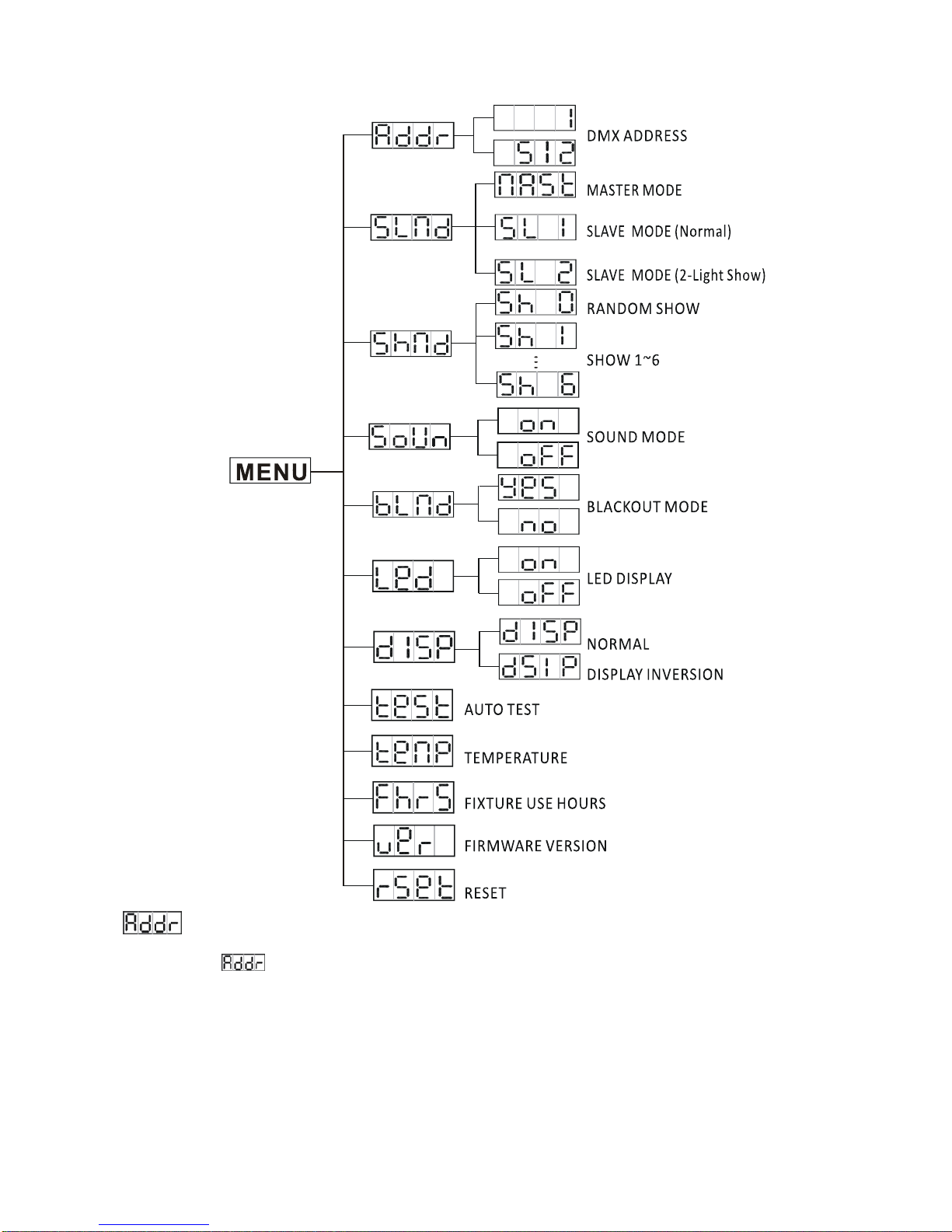

Themainfunctionsareshownbelow:


6A

DMX512ADDRESS
Toselectthe,presstheENTERbuttontoshowtheDMXADDRESSonthedisplay.Usethe
DOWN/UPbuttontoadjusttheaddressfrom1to512.Oncetheaddresshasbeenselected,press
theENTERbuttontosetup,togobacktothefunctionswithoutanychangespresstheMENU
buttonagain.HoldandpresstheMENUbuttonforonesecondorwaitforoneminutetoexitthe
menumode.

7A
SLAVEMODE
Toselectthe,presstheENTERbuttontoshowtheSLAVEMODEonthedisplay.Usethe
DOWN/UPbuttontoselectthe  (MASTER),  (SLAVE1,normal)or  (SLAVE2,
2lightshow)modes.Oncethemodehasbeenselected,presstheENTERbuttontosetup,togo
backtothefunctionswithoutanychangespresstheMENUbuttonagain.Holdandpressthe
MENUbuttonforonesecondorwaitforoneminutetoexitthemenumode.

SHOWMODE
Toselectthe,presstheENTERbuttontoshowtheSHOWMODEonthedisplay.Usethe
DOWN/UPbuttontoselectthe  (Randomshow),  (Show1)or…or(Show
6)mode.Oncethemodehasbeenselected,presstheENTERbuttontosetup,togobacktothe
functionswithoutanychangespresstheMENUbuttonagain.HoldandpresstheMENUbuttonfor
onesecondorwaitforoneminutetoexitthemenumode.

SOUNDMODE
Toselectthe,presstheENTERbuttontoshowtheSOUNDMODEonthedisplay.Usethe
DOWN/UPbuttontoselectthe  (soundon)or  (soundoff)mode.Oncethemode
hasbeenselected,presstheENTERbuttontosetup,togobacktothefunctionswithoutany
changespresstheMENUbuttonagain.HoldandpresstheMENUbuttonforonesecondorwait
foroneminutetoexitthemenumode.

BLACKOUTMODE
Toselectthe,presstheENTERbuttontoshowtheBALCKOUTMODEonthedisplay.Use
theDOWN/UPbuttontoselectthe  (blackout)or  (normal)mode.Oncethe
modehasbeenselected,presstheENTERbuttontosetup,togobacktothefunctionswithoutany
changespresstheMENUbuttonagain.HoldandpresstheMENUbuttonforonesecondorwait
foroneminutetoexitthemenumode.


8A
LEDDISPLAY
Toselectthe,presstheENTERbuttontoshowtheBALCKOUTMODEonthedisplay.Use
theDOWN/UPbuttontoselectthe  (LEDdisplayon)or(LEDdisplayoff)mode.
Oncethemodehasbeenselected,presstheENTERbuttontosetup,togobacktothefunctions
withoutanychangespresstheMENUbuttonagain.HoldandpresstheMENUbuttonforone
secondorwaitforoneminutetoexitthemenumode.

DISPLAYINVERSE
Toselectthe,presstheENTERbuttontoselectthe  (normal)or  (inversion),
pressENTERbuttontosetup.BacktothefunctionswithoutanychangepressMENUbutton.

AUTOTEST
Toselectthe,presstheENTERbuttontoshowtheTESTonthedisplayandtheunitwillrun
aself‐test.TogobacktothefunctionswithoutanychangespresstheMENUbuttonagain.Hold
andpresstheMENUbuttonforonesecondorwaitforoneminutetoexitthemenumode.

TEMPERATURE
Toselectthe,presstheENTERbuttontoshowtheTEMPERATUREonthedisplayandthe
displaywillshowthetemperatureoftheunit.Togobacktothefunctionswithoutanychanges
presstheMENUbuttonagain.HoldandpresstheMENUbuttonforonesecondorwaitforone
minutetoexitthemenumode.

FIXTUREUSEHOURS
Toselectthe,presstheENTERbuttontoshowtheFIXTUREUSEHOURSonthedisplayand
thedisplaywillshowthenumberofworkinghoursoftheunit.Togobacktothefunctions
withoutanychangespresstheMENUbuttonagain.HoldandpresstheMENUbuttonforone
secondorwaitforoneminutetoexitthemenumode.


9A
SOFTWARE VERSION
To select the , press the ENTER buon to show the SOFTWARE VERSION on the display and
the display will show the version of soware of the unit . To go back to the funcons without any
changes press the MENU buon again. Hold and press the MENUbuon for one second or wait
for one minute to exit the menu mode.
RESET
To select the , press the ENTER buon to show the RESET on the display. Press the ENTER
buon and all channels of the unit will return to their standard posion.
4. How to Control the Unit
You can operate the unit in three ways:
1. By master/slave built-in preprogram funcon
2. By easy controller
3. By DMX controller
No need to turn the unit off when you change the DMX address, as new DMX address seng will
be affected at once. Each me you turn the unit on, it will show “ ” on the display. Aer that
the unit will be ready to receive DMX signal or run the built in programs.
4.1 Master/Slave Built In Preprogrammed Funcon
By linking the units in master/slave connecon, the first unit will control the other units to give an
automac, sound acvated, synchronized light show. This funcon is good when you want an
instant show. You have to set the first unit in master mode and select (random
show), (show 1) or …or (show 6). Its DMX input jack will have nothing plugged into
it, and its master LED will be constantly on and sound LED will flash to the music. The other units
will have to select (normal) or (2 light show) mode, Their DMX cables plugged into
the DMX input jacks (daisy chain) and the slave LED lights will be constantly on.
Please Note: The Acme Dynamic range of effects, including the Spin, Roller Barrel and Scan, have
been designed to operate together to provide superb synchronised coordinated lightshows. For the
best results, when using a combinaon of fixtures in master/slave mode, please make the Roller
Barrels the first fixtures in the chain.

10A
2‐lightshow
Inslavemode,  meanstheunitworksasthemasterunitand  means2‐lightshow.
Inordertocreateagreatlightshow,youcanset  onthesecondunittogetcontrast
movementtoeachother,evenifyouhavetwounitsonly.

4.2EasyController
Theeasyremotecontrolisusedonlyinmaster/slavemode.Byconnectingtothe
1/4 ” microphonejackofthefirstunit,youwillfindthattheremotecontrolleronthe
firstunitwillcontrolalltheotherunitsforStandby,FunctionandModeselection.
.







4.3DMXController
UsingauniversalDMXcontrollertocontroltheunits,youhavetosetDMXaddressfrom1to512
channelsothattheunitscanreceiveDMXsignal.
PresstheMENUbuttonuptowhenthe  isshowingonthedisplay.PressENTERbuttonand
thedisplaywillblink.UseDOWNandUPbuttontochangetheDMX512address.Oncetheaddress
hasbeenselected,pressandkeepENTERbuttonpresseduptowhenthedisplaystopsblinkingor
storingautomatically7secondslater.Togobacktothefunctionswithoutanychangepressthe
MENUbuttonagain.

PleaserefertothefollowingdiagramtoaddressyourDMX512channelforthefirst4units.


BlackoutBlackouttheunit
Function
1.Sync.Strobe
2.Asyncstrobe
3.SoundStrobe
Show1‐6Showgobo
ModeSound
(LEDOFF)
Show
(LEDSlowBlinking)LEDOn

11A
5.DMX512Configuration
4ChannelsMode:









12A

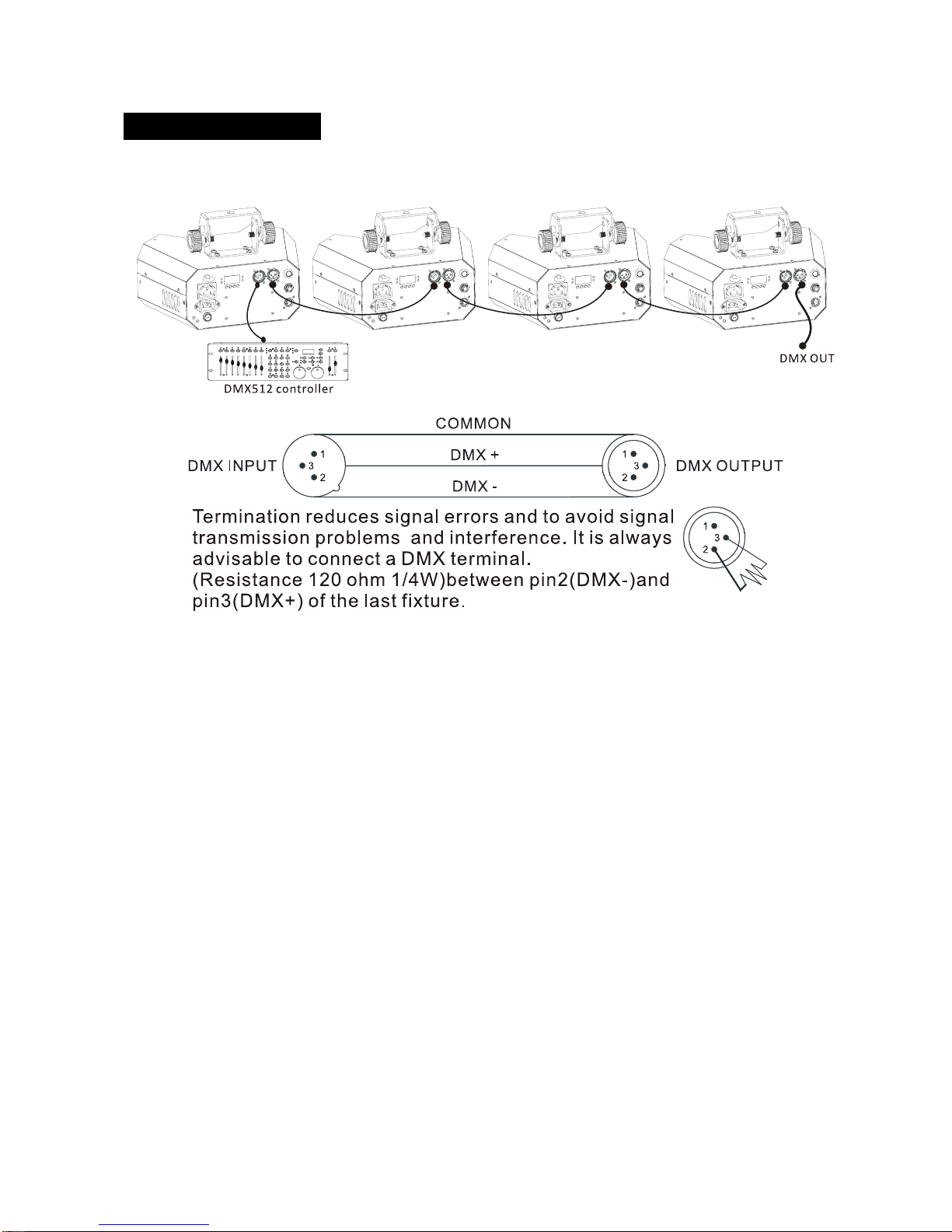

6.DMXConnection
Unit1Unit2Unit3Unit4


1. Connectthefixturetogetherina“daisychain”byXLRplugcablefromtheoutputofthefixture
totheinputofthenextfixture.Thecablecannotbebranchedorsplittoa“Y”cable.
Inadequateordamagedcables,solderedjointsorcorrodedconnectorscaneasilydistortthe
signalandshutdownthesystem
2. TheDMXoutputandinputconnectorsarepass‐throughtomaintaintheDMXcircuitwhenone
oftheunits’powerisdisconnected.
3. Atlastfixture,theDMXcablehastobeterminatedwithaterminatortoreducesignalerrors.
Soldera120‐ohm1/4 W resistorbetweenpin2(DMX‐)andpin3(DMX+)intoa3‐pinXLR‐plug
andplugitintheDMX‐outputofthelastfixture.
4. Eachlightingfixtureneedstohaveanaddresssettoreceivethedatasentbythecontroller.
Theaddressnumberisbetween0‐511(usually0&1areequalto1).
5. 3pinXLRconnectorsaremorepopularthan5pinsXLR.
3pinXLR:Pin1:GND,Pin2:Negativesignal(‐),Pin3:Positivesignal(+)


13A
7.Troubleshooting
Followingareafewcommonproblemsthatmayoccurduringoperation.Herearesome
suggestionsforeasytroubleshooting:
A. Thefixturedoesnotwork,nolight
1. Checktheconnectionofpowerandmainfuse.
2. Measurethemainsvoltageonthemainconnector.
B.NotrespondingtoDMXcontroller
1. DMXLEDshouldbeon.Ifnot,checkDMXconnectors,cablestoseeiflinkproperly.
2. IftheDMXLEDisonandnoresponsetothechannel,checktheaddresssettingsandDMX
polarity.
3. IfyouhaveintermittentDMXsignalproblems,checkthepinsonconnectorsoronPCBofthe
fixtureorthepreviousone.
4. TrytouseanotherDMXcontroller.
5. CheckiftheDMXcablesrunnearorrunalongsidetohighvoltagecablesthatmaycause
damageorinterferencetoDMXinterfacecircuit.
C.Somefixturesdon’trespondtotheeasycontroller
1. YoumayhaveabreakintheDMXcabling.
2. ChecktheLEDfortheresponseofthemaster/slavemodesignal.
D.Noresponsetothesound
1. MakesurethefixturedoesnotreceiveDMXsignal.
2. Checkmicrophonetoseeifitisgoodbytappingthemicrophone.
E.Oneofthechannelsisnotworkingwell
1. ThesteppermotormightbedamagedorthecableconnectedtothePCBisbroken.
2. Themotor’sdriveIConthePCBmightbeoutofcondition.



14A
8.FixtureCleaning
Thecleaningmustbecarriedoutperiodicallytooptimizelightoutput.Cleaningfrequency
dependsontheenvironmentinwhichthefixtureoperates:damp,smokyorparticularlydirty
surroundingcancausegreateraccumulationofdirtontheunit’soptics.
yCleanwithsoftclothusingnormalglasscleaningfluid.
yAlwaysdrythepartscarefully.
yCleantheexternalopticsatleastevery30days.


DeclarationofConformity

Wedeclarethatourproducts(lightingequipments)complywiththefollowing
specificationandbearsCEmarkinaccordancewiththeprovisionofthe
ElectromagneticCompatibility(EMC)Directive89/336/EEC.

EN55103‐1:2009;EN55103‐2:2009;EN62471:2008;
EN61000‐3‐2:2006+A1:2009+A2:2009;EN61000‐3‐3:2008.

&
HarmonizedStandard

EN60598‐1:2008+All:2009;EN60598‐2‐17:1989+A2:1991;EN62471:2008;
EN62493:2010
Safetyofhouseholdandsimilarelectricalappliances
Part1:Generalrequirements










15A



































Innovation,Quality,Performance
