ACME BW-54-10FC II RL User manual

TABLE OF CONTENTS
1. Safety Instructions.........................................................................................................2
2. Techical Specfications ..................................................................................................3
3. Installation......................................................................................................................4
4. How To Set The Fixture .................................................................................................5
4.1 Control Panel..........................................................................................................5
4.2 Main Functions.......................................................................................................6
5. How To Control The Unit.............................................................................................10
5.1 Master/Slave Built In Preprogrammed Function...............................................11
5.2 DMX Controller.....................................................................................................11
5.3 DMX 512 Configuration .......................................................................................12
5.4 DMX512 Connection............................................................................................14
6. Troubleshooting...........................................................................................................15
7. Cleaning and Maintenance..........................................................................................16
1B

1. Safety Instructions
WARNING
Please keep this User Guide for future consultation. If you sell the unit to another user,
be sure that they also receive this instruction booklet.
Caution
：
All fixtures are intact from the manufacturer, please operate follow up the user manual,
artificial fault are not under guarantee repair.
Unpack and check carefully there is no transportation damage before using the unit.
Do install and operate by operator.
Use safety chain when fixes the unit.
The unit must be installed in a location with adequate ventilation, at least 50cm from
adjacent surfaces.
Be sure that no ventilation slots are blocked, otherwise the unit will be overheated.
Before operating, ensure that the voltage and frequency of power supply match the
power requirements of the unit.
It’s important to ground the yellow/green conductor to earth in order to avoid electric
shock.
Maximum ambient temperature is Ta: 40℃. DO NOT operate it where the temperature
is higher than this.
Don’t connect the device to any dimmer pack.
First run, there will be smoke or smells, and all disappearing a few minutes later.
Make sure there are no flammable materials close to the unit while operating, as it is fire
hazard.
Look over power wires carefully, replace immediately if there is any damage.
Unit surface temperature may reach up to 85℃. Don’t touch the housing bare-hand
during its operation.
Never run on for a long time lest shortening lifespan.
Avoid any inflammable liquids, water or metal objects entering the unit. Once it happen,
cut off the mains power immediately.
Do not operate in dirty and dusty environment, also cleaning fixtures regularly.
Please read the instructions carefully
which includes
important information about the installation, operation
and maintenance.
2B

Do not allow children to operate the fixture.
Do not touch any wire during operation as there might be a hazard of electric shock.
Avoid power wires together arounding other cables.
Replace fuse only with the same type.
In the event of serious operating problem, stop using the unit immediately.
Never turn on and off the unit time after time.
The housing, the lenses, or the ultraviolet filter must be replaced if they are visibly
damaged.
Do not open the unit as there are no user serviceable parts inside. Never try to repair
the unit by yourself. Repairs carried out by unskilled people can lead to damage or
malfunction. Please contact the nearest authorized technical assistance center.
Disconnect the mains power if the fixture is not used for a long time.
Do use original packing materials once transport it again.
Do not look directly at the LED light beam while the fixture is on.
To protect the machine, power off 10s rear can electrify.
2. Techical Specfications
BW-54-10FC II RL: 54pcs x10W CREE Quad Color Building Wash with Built-in LED
Display for Rental Application.
BW-54-10FC II WT RL: with Built-in Wireless Receiver and LED Display for Rental
Application.
Light source
：
10W LED x 54pcs
Voltage
：
AC 100-240V/50Hz~60Hz
Power consumption
：
568W
Lens Option
：
20°, 30°, 40°, 60°
IP
：
66
Dimension
：
748X446X422 mm
Weight
：
43.1kg
3B

446
748
422

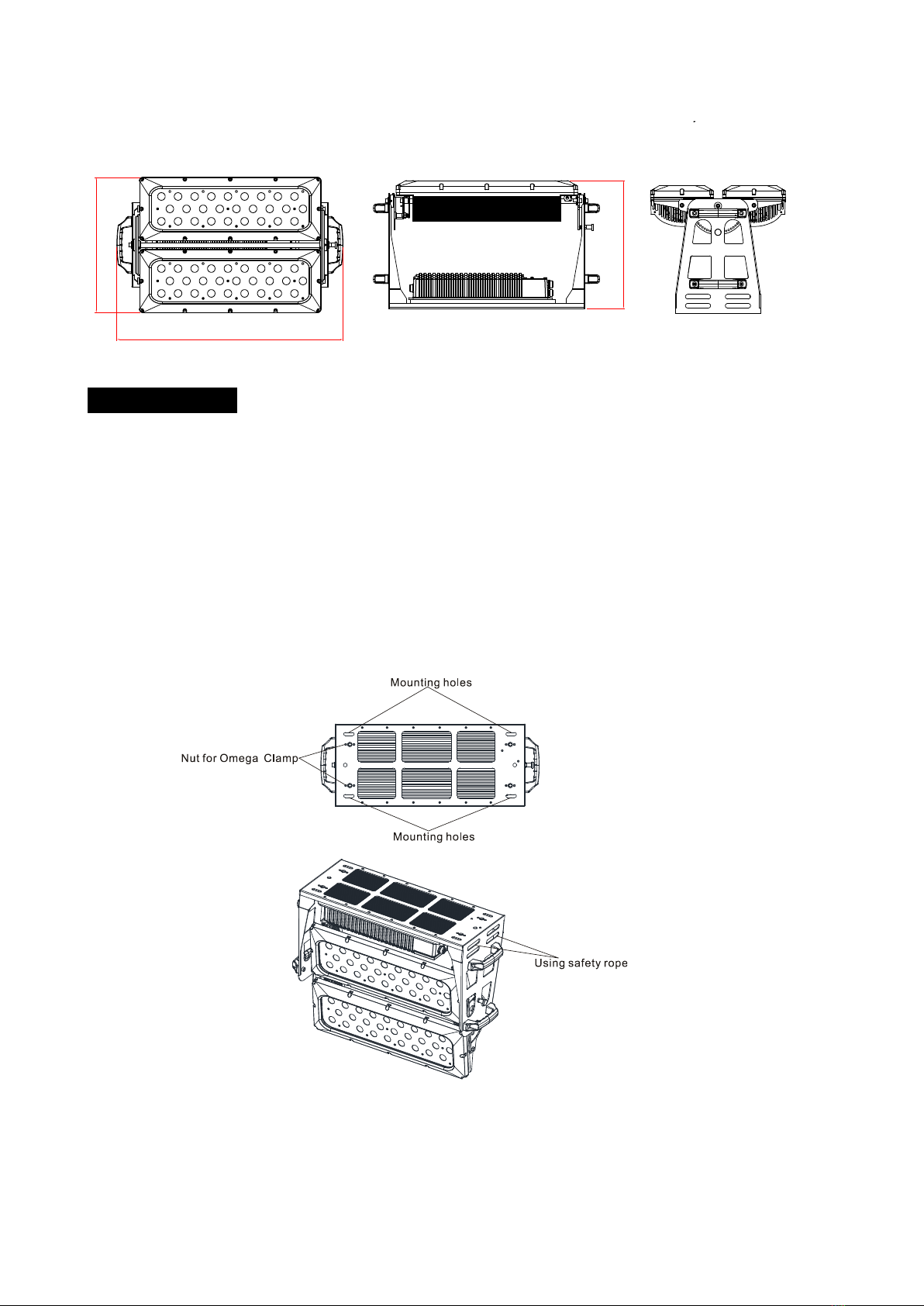

3. Installation
The fixture can be placed directly on the stage floor which can support 10 times of the
fixture’s weight or can be rigged on the structure via two omega clamps in the positions you
want. Ensure that the structure (truss, wall) to which you are attaching the unit is secure.
Mounting holes are intended for permanent installation on the flat surface, especially in the
wall installation. Safety ropes that can hold 12 times of the weight of the fixture are needed
when you want to hang the fixture. Enhanced care has to be considered during the
installation.
The equipment must be fixed by professionals.
Note：Range of mounting height is 0~30m.
When using the fixture as fixed installation at outdoor place, please remove the Nut for
Omega Clamp to avoid rusting.
4B

4. How To Set The Fixture
4.1 Control Panel
①：
Power
Water proof connectors for power input.
②：
DMX input
Water proof connectors for DMX 512 operation,
3-pin XLR cable to input DMX signal.
③：
DMX output
Water proof connectors for DMX 512 operation,
3-pin XLR cable to output DMX signal.
④：
Display and Button:
Display: To show the menu and the selected functions.
Button:
Caution: If the unit is used for fixed installation outdoor, be sure to put the metal cover
equipped on top of the LED display, failing to do it may cause the water infiltration problem
after been used for more than 1 year outdoor.
MENU
To select the programming functions
DOWN
To go backward in the selected functions
UP
To go forward in the selected functions
ENTER
To confirm the selected functions
5B

4.2 Main Functions
Open the metal cover and remove it then you can set the menu manually. To select any
functions, press MENU button until the required one is shown on the display. Select the
function by ENTER button and the display will blink. Use DOWN and UP button to change
the mode. Once the required mode has been selected, press ENTER button to setup or it
will automatically return to the main functions without any change after idling one minute.
Back to the functions without any change press MENU button. The main functions are
shown below:
Once you set to , after running in show mode for 1
minute without any change or restarting the unit, the key board
become locked. Press ENTER button to enable the menu, the
display will show
, press UP and DOWN button until it
shows password you have set before,
then press ENTER to
unlock. initial password is .
6B

7B

DMX 512 Address Setting
1. Press the MENU button until is displayed. Press ENTER.
2. The current address will now be displayed and flashing. Press the UP or DOWN
buttons to find your desired address. When you have found your desired DMX address
press ENTER to confirm or automatically exit menu mode without any change after one
minute. Back to the functions without any change press MENU button.

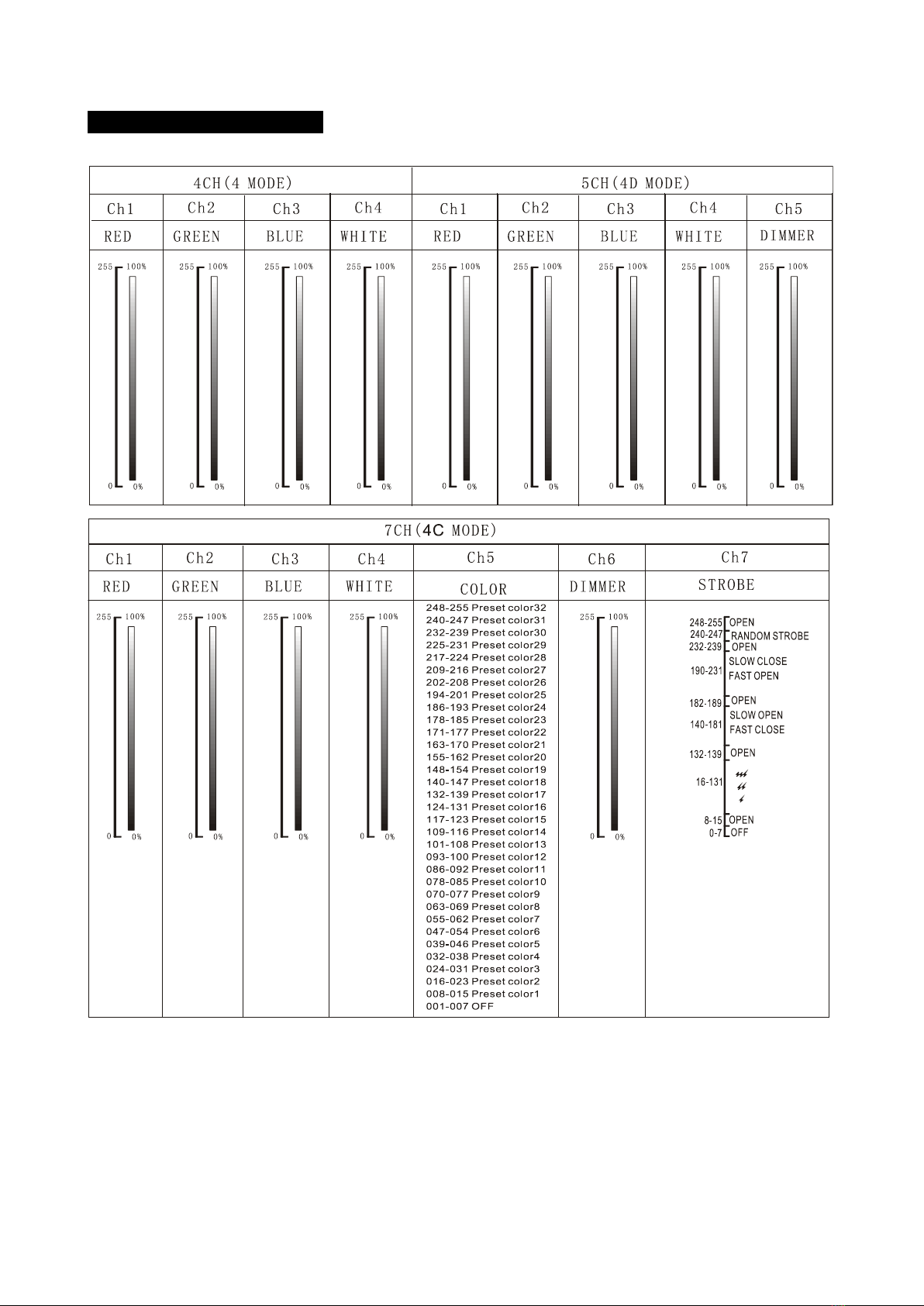

Channel Mode
1. Press the MENU button until is displayed. Press ENTER. Either
（4channel mode）or （5 channel mode）or (7 channel mode)
or
(8 channel mode) or （10channel mode）will be displayed.
2. Press the UP or DOWN buttons to choose your desired DMX mode and press ENTER
to confirm and exit. Or automatically exit menu mode without any change after one
minute. Back to the functions without any change press the MENU button.
Fade Mode
1. Press the MENU button until is displayed. Press ENTER.
2. Press the UP or DOWN buttons to adjust the fade speed to your desire, 0 being the
fastest fade and 255 being the slowest.
3. When you find your desired fade speed, press ENTER to confirm or automatically exit
menu mode without any change after one minute, Back to the functions without any
change press MENU button.
Color Setup
1. Press the MENU button until is displayed. Press ENTER. will now be
displayed, press ENTER, Use the UP or DOWN buttons to adjust to your desired
intensity(0~255). Press ENTER after the intensity adjustment.
2. After you press ENTER then press UP and will be displayed, press ENTER,
Use the UP or DOWN buttons to adjust the value from 0 to 255.
3. Follow these steps to make adjustments of and until your desired color
is reached. After adjusting , press ENTER then press the UP button.
4. （Dimmer）will be displayed, press ENTER, this is the master dimmer control. In
this submenu you can adjust the intensity of your created color. Use the UP or DOWN
buttons to adjust the intensity from 0 to 255.
5. Press ENTER once you have adjusted the master dimmer, Press the UP button and
（Strobe）will be displayed. This is the strobe function. If you choose to activate
strobe, press ENTER. Use the UP or DOWN buttons to adjust the speed of the strobe,
choose 0 to turn the strobe off and 255 being the fastest strobe. Press ENTER once
8B

you have made your adjustments.
6. Once your desired color and settings are reached, press ENTER to confirm or
automatically exit menu mode without any change after one minute, Back to the
functions without any change press MENU button.
Adjust White Balance
1. Press the MENU button until is displayed. Press ENTER. Either (Red
1), (Green 1), (Blue 1), (Red 2), (Green 2) or
(Blue 2) will be displayed.
2. Press the UP or DOWN buttons to find your desired color and press ENTER to confirm.
3. Using the UP or DOWN buttons adjust the value (125~255) to your desire.
4. When you find your desired White Balance value, press ENTER to confirm or
automatically exit menu mode without any change after one minute. Back to the
functions without any change press MENU button.
Cipher Setup
1. Press the MENU button until is displayed. Press ENTER.
2. will now be displayed and flashing. Press the UP or DOWN buttons to adjust
the password (0~9999) to your desire.
3. When you find your desired password, press ENTER to confirm or automatically exit
menu mode without any change after one minute. Back to the functions without any
change press MENU button.
Key Lock
1. Press the MENU button until is displayed. Press ENTER. Either or
will be displayed.
2. Press the UP or DOWN buttons to select (lock the key board) or
(normal). Once select, press ENTER to confirm or automatically exit menu mode
without any change after one minute, Back to the functions without any change press
MENU button.
Blackout Mode
1. Press the MENU button until is displayed, Press ENTER. Either or
will be displayed.
2. To activate Blackout, press UP or DOWN buttons until is displayed, press
ENTER to confirm and exit, the fixture will now be in Blackout mode. To deactivate
Blackout mode, select and press ENTER.
9B

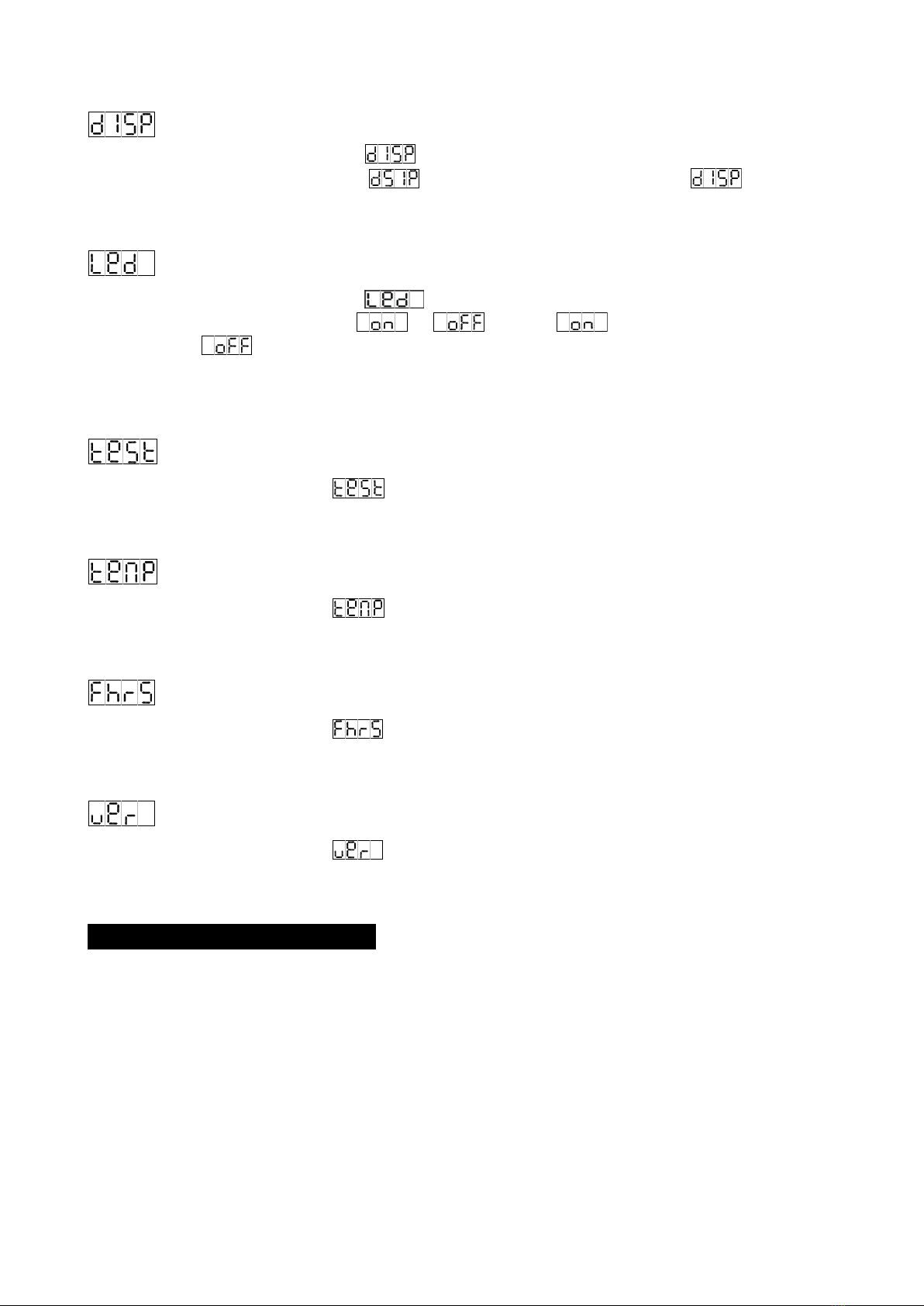

Display Inversion
1. Press the MENU button until is displayed, Press ENTER.
2. Press the UP button to select , the display will reverse 180°,or to change
the display back. Press ENTER when you made your desired setup.
LED Mode
1. Press the MENU button until is displayed, Press ENTER.
2. The display will show either or . Select to keep display on at all
times, or to switch to have the LED display switch off after 60 seconds. Once
select, press ENTER to confirm or automatically exit menu mode without any change
after one minute, Back to the functions without any change press MENU button.
Self Test
Press the MENU button until is displayed. Press ENTER and the fixture will now run
a self test program. To stop the self test press the MENU button.
Temperature Test
Press the MENU button until is displayed. Press ENTER and the temperature of
the fixture will be displayed. Press ENTER to exit.
Fixture Hours
Press the MENU button until is displayed. Press ENTER and the display will show
the number of working hours of the unit. Press ENTER to exit.
Software version
Press the MENU button until is displayed. Press ENTER and the software version
will now be displayed. Press ENTER to exit.
5. How To Control The Unit
You can operate the unit in four ways:

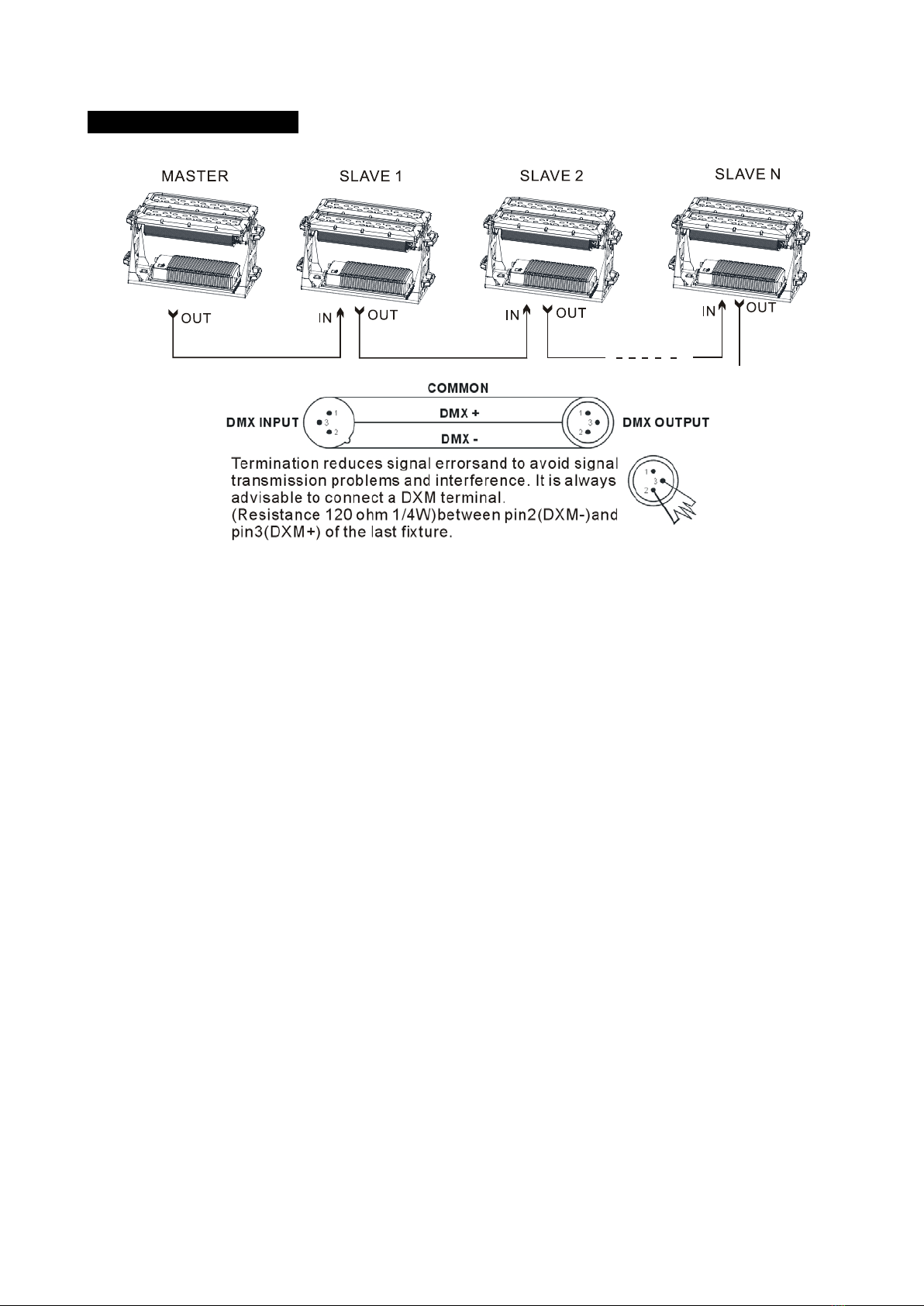

1. By master/slave built-in preprogram function
2. By DMX controller
3. BY VD-T
4. BY XP-W512 RX (Only for BW-54-10FC
Ⅱ
WT RL)
VD-T is a specially designed handy setup tool for all Visio integral fixtures and Controllers.
By connecting VD-T to any fixture via XLR, you can easily setup DMX Address, Channel
Modes, White Balance, Manual Colors, and Fade Speed functions. If you use VD-T to
10B

control the unit, you can follow User Manual of VD-T.
5.1
Master/Slave Built In Preprogrammed Function
By linking the units in master/slave connection, the first unit will control the other units to
give an automatic, synchronized light show. This function is good when you want an instant
show. In Master/Slave mode, the first fixture whose DMX input jack has with nothing
connect will be master automatically, set other units to slave mode.
5.2
DMX Controller
Use universal DMX controller to control the units, you have to set DMX address from 1 to
512 channel so that the units can receive DMX signal.
Press the MENU button up to when the is showing on the display. Press ENTER
button and the display will blink. Use DOWN and UP button to change the DMX512
address. Once the address has been selected, press and keep ENTER button pressed up
to when the display stops blinking or storing automatically 8 seconds later. To go back to
the functions without any change press the MENU button again.
Please refer to the following diagram to address your DMX512 channel for the first 4 units：
4 Channels：
5 (4D) Channels:
7 (4C) Channels:
8 (24) Channels:
10 (24D) Channels:
11B

5.3 DMX 512 Configuration
12B

13B

5.4 DMX512 Connection
1. If you using a controller with 5 pins DMX output, you need to use a 5 to 3 pin
adapter-cable.
2. At last unit, the DMX cable has to be terminated with a terminator. Solder a 120 ohm
1/4W resistor between pin 2(DMX-) and pin 3(DMX+) into a 3-pin XLR-plug and plug it
in the DMX-output of the last unit.
3. Connect the unit together in a `daisy chain` by XLR plug from the output of the unit to
the input of the next unit. The cable can not branched or split to a `Y` cable. DMX 512 is
a very high-speed signal. Inadequate or damaged cables, soldered joints or corroded
connectors can easily distort the signal and shut down the system.
4. The DMX output and input connectors are pass-through to maintain the DMX circuit,
when one of the units’ power is disconnected.
5. Each lighting unit needs to have an address set to receive the data sent by the
controller. The address number is between 0-511 (usually 0 & 1 are equal to 1).
6. The end of the DMX 512 system should be terminated to reduce signal errors.
7. 3 pin XLR connectors are more popular than 5 pin XLR.
3 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+)
5 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+), Pin 4/Pin 5:
Not used.
14B

6. Troubleshooting
Following are a few common problems that may occur during operation and some
suggestions for easy troubleshooting:
Problem
Possible Cause
Action
The unit does not work, no
light. Incorrect power cable
connection.
Check the connection of
power.
Incorrect mains voltage. Measure the mains voltage
on the main connector.
The unit does not respond
properly to the DMX control.
Incorrect DMX cable
connection. Check DMX connectors and cables to see if link properly.
Repair or replace damaged
wires.
Incorrect address assignment
to the units. Check the addresses of the units and the protocol
settings.
Unfinished data connection. Insert a terminal plug in the
output jack of the last unit of
the connection.
It has been set up an
operating mode different from
the DMX mode used.
C
heck the operating mode set
up.
Try to use another DMX
controller.
15B

7. Cleaning and Maintenance
The unit must be cleaned periodically to optimize light output. Cleaning frequency depends
on the environment where the unit will operate: deposits of dust, smokes or other wastes
will reduce the light output performances.
Clean regularly the glass of the unit with soft cotton towel dampened with a
glass-cleaning liquid or distilled water.
Wash the housing with a soft brush or sponge and a mild, non-abrasive washing
detergent.
Remove smoke and other wastes by a cotton towel dampened with isopropyl alcohol.
Be careful when cleaning the components.
Always dry the parts carefully by a clean, soft, non-scratching towel or by compressed air.
Maintenance and service operations are only to be carried out by a qualified perso
DANGER!
Disconnect from the mains before starting any cleaning or maintenance work.
16B

17B

Declaration of Conformity
We declare that our products (lighting equipments) comply with the following
specification and bears CE mark in accordance with the provision of the
Electromagnetic Compatibility (EMC) Directive 89/336/EEC.
EN55103-1: 2009 ; EN55103-2: 2009; EN62471: 2008;
EN61000-3-2: 2006 + A1:2009 + A2:2009; EN61000-3-3: 2008.
&
Harmonized Standard
EN60598-2-17:1989 + A2:1991; EN60598-1:2008+ A11: 2009
EN 62471:2008; EN 62493: 2010
Safety of household and similar electrical appliances
Part 1: General requirements
18B

Innovation, Quality, Performance
