ACME XP-5000WZ User manual

UserManual
Please read the instruc on carefully before use
XP-5000WZ

TABLE OF CONTENTS
1. Safety Instruction ................................................................................................... 2
2. Technical Specification ........................................................................................... 3
3. Control Panel.......................................................................................................... 5
4. Lamp ...................................................................................................................... 6
4.1 Lamp................................................................................................................. 6
4.2 Change The Lamp.......................................................................................... 7
5. How To Set The Unit ............................................................................................... 8
5.1 Main Function.................................................................................................. 8
5.2 Home Position Adjustment........................................................................... 16
5.3 Error Information........................................................................................... 19
6. Control By Universal DMX Controller.................................................................... 20
6.1 DMX Connections......................................................................................... 20
6.2 Channel Mode Setting.................................................................................. 21
6.3 Address Setting............................................................................................. 21
6.4 DMX Control.................................................................................................. 22
7. Troubleshooting ................................................................................................... 30
8. Check、Cleaning and Maintenance Schedule .................................................... 32
A 1C

1. Safety Instruction
WARNING
Please keep this User Manual for future consultation. If you sell the unit to another user, be sure that
they also receive this instruction manual.
Important:
Damages caused by the disregard of this user manual are not subject to warranty. The dealer
will not accept liability for any resulting defects or problems.
Unpack and check carefully that there is no transportation damage before using the unit.
The unit is for indoor use only. Use only in a dry location.
Do install and operate by qualified operator.
Do not allow children to operate the fixture.
Use safety chain when fixing the unit. Handle the unit by carrying its base instead of head only.
The unit must be installed in a location with adequate ventilation, at least 50cm from adjacent
surfaces.
Be sure that no ventilation slots are blocked; otherwise the unit will be overheated.
Before operating, ensure that the voltage and frequency of power supply matches the power
requirements of the unit.
It’s important to ground the yellow/green conductor to earth in order to avoid electric shock.
Maximum ambient temperature TA: 40℃. Don’t operate it when the temperature is higher.
Don’t connect the device to any dimmer pack.
During initial start-up some smoke or smell may arise. This is a normal process and does not
necessarily mean that the device is defective, and it will decrease gradually within 15 minutes.
Make sure there are no flammable materials close to the unit while operating to avoid fire hazard.
Examine the power wires carefully; replace them immediately if there is any damage.
Unit’s surface temperature may reach up to 85℃. Don’t touch the housing bare-handed during its
operation, and allow about 15 minutes for cooling the unit down before replacing bulb or
maintenance as it could be very hot.
Avoid any inflammable liquids, water or metal objects entering the unit. Once it happens, cut off
the mains power immediately.
Please read the instruction manual carefully which includes important
information about the installation, usage and maintenance.
A 2C

Do not operate in dirty or dusty environment; do clean the fixture regularly.
Do not touch any wire during operation as there might be a hazard of electric shock.
Avoid power wires twist other cables.
The minimum distance between light output and the illuminated surface must be more than 12
meters.
Disconnect mains power before fuse/lamp replacement or servicing.
Replace fuse/lamp only with the same type.
In the event of serious operating problem, stop using the unit immediately.
Never turn on and off the unit time after time.
The housing, the lenses, or the ultraviolet filter must be replaced if they are visibly damaged.
Do not open the unit as there are no user serviceable parts inside.
Never try to repair the unit by yourself. Repairs carried out by unskilled people can lead to damage
or malfunction. Please contact the nearest authorized technical assistance center if needed.
Disconnect the mains power if the fixture is has not been used for a long time.
Do use the original packing materials before transporting it once again.
To prevent or reduce the risk of electrical shock or fire, do not expose the unit to rain or moisture.
Hot lamp explosion hazard. Do not open the unit within 15 minutes after switching off.
Do replace the bulb once it is damaged, deformed or life-expired.
Do not look directly at the light while the bulb is on.
Never touch bulb with bare fingers, as it is very hot after using.
Do not start on the unit without bulb enclosure or when housing is damaged.
2. Technical Specification

Power supply:
AC 230V, 50Hz

Power Consumption:
1715W

Lamp:
Osram Lok-it1400W/PS Brilliant

CRI:
≥90
A 3C


Display:
LCD display
(Battery backup for user operation without connecting to the mains)

Optical system:
High efficient Optical system.
Delivering extremely powerful output.
High quality lens.

Movement:
Pan: 540°
Tilt: 270°
Pan/Tilt Resolution: 16 bit
Fixation: Pan/Tilt lock

Dimmer/Shutter:
0~100% smooth dimming，Various strobe speeds

Color wheel:
Color Wheel 1: 6 colors plus open with rainbow effect
Color Wheel 2: 6 colors plus open with rainbow effect
Linear CMY color mixing
Linear CTO color correction

Control Mode:
DMX, Art-Net, RDM, Wireless (optional)

Data In/Out:
3-pin and 5-pin XLR

Beam Angle:
10° ~ 55°


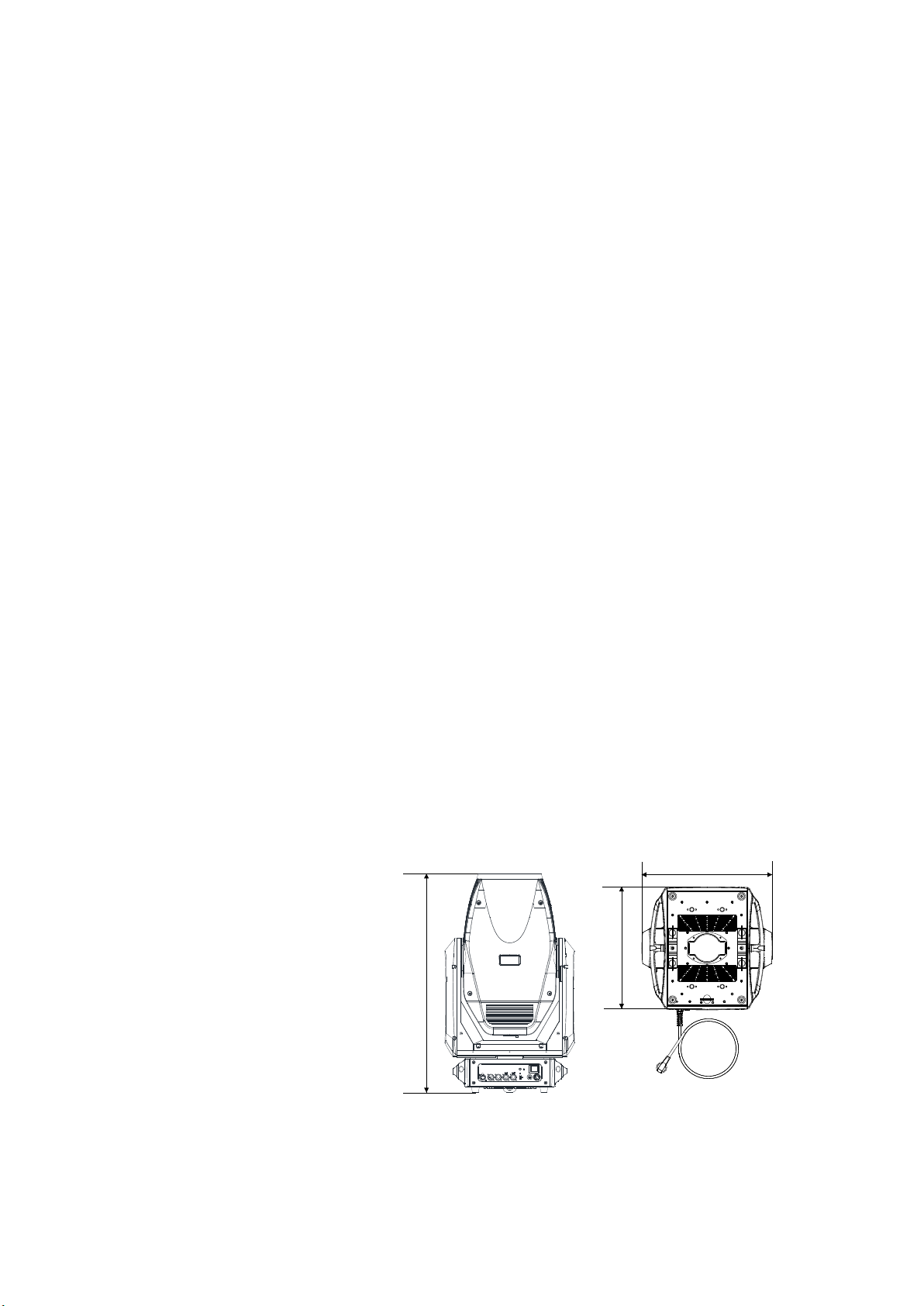

Dimension/Weight:
454x429x766mm，38kg
17.8"x16.8"x30.1"in，83.8lbs
766mm
454mm
427 mm
A 4C

Photometrics Diagram
Distance(m)
5 10 15 20
。
10Lux 115000 28000 12500 6800
。
70Lux 2400 800
360 260
Diameter(m) 1.05 2.1 3.15 4.2
Diameter(m) 6.37 12.74 19.11 25.48
。
55
。
10

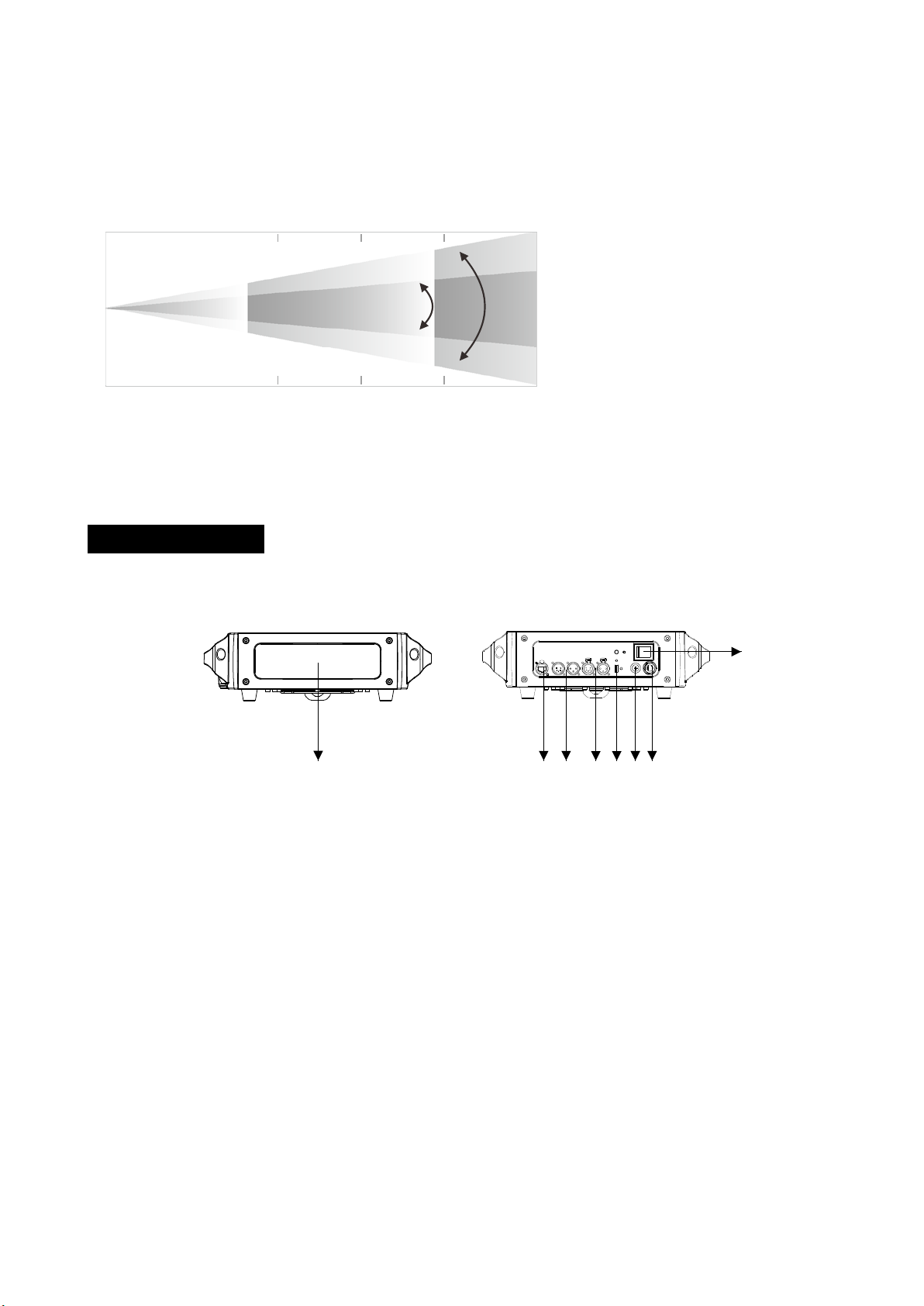

3. Control Panel
Front View Rear View
1234567
8
1. FUNCTION DISPLAY:
Shows the various menus and the selected functions;
2. ETHERNET:
Transfers fixture’s information to a main controller;
3. DMX IN:
DMX 512 operation, use3/ 5-pin XLR cable to link the unit and DMX controller;
4. DMX OUT:
DMX 512 operation, use 3/5-pin XLR cable to link the next units;
5. Firmware Upgrade(USB Slot)
：
USB Slot is used to upgrade the unit firmware.
6. FUSE (AC250V/T 15A):
Protect the unit from damage of over voltage or short circuit;
A 5C

7. POWER:
Connect to the mains supply;
8. POWER SWITCH:
Turns On/Off the power;
4. Lamp
4.1 Lamp
Osram Lok-it1400W/PS Brilliant
：
Because of its high internal pressure, there might be a risk that the Discharge lamp would explode
during operation. The lamp emits intense UV radiation which is harmful to the eyes and skin. The
high luminance of the arc can cause severe damage to the retina if you take a close look at the
lamp.
2. To protect the lamp, always turn off the lamp first (via control panel or DMX controller) and let
the unit run at least five minutes to cool down before switching off the mains supply. Never
handle the lamp or luminary when it is hot.
3. Do not touch the bulb with bare hands. If this happens, clean the lamp with denatured alcohol
and wipe it with a lint free cloth before installation.
4. The lamp generates UV radiation. Never operate the lamp without appropriate shielding.
5. When ling up, the lamp operates at high pressure and there is a slight risk of arc tube rupture. The
risk increases with age, temperature and improper handling of the lamp. Do not use the lamp longer
than its lifespan.
6. Make sure the lamp is located in the center of the reflector for the best projection.
A 6C

4.2 Change The Lamp
Loosen the screw at the rear side of the fixture and open the lamp compartment cover.
Remove the old lamp and turn the lamp left in order to take the lamp out, put a new lamp that
must be the same type as the old one. And then place the new lamp into the lamp holder and turn
A 7C

the lamp right in order to fix. Finally reinstall the lamp compartment cover, fastening it securely
before turning on power.
5. How To Set The Unit
5.1 Main Function
Turn on the unit, press the MENU button into menu mode, and press the UP/DOWN button until the
required function is shown on the monitor. Select the function by the ENTER button. Use the
UP/DOWN button to choose the submenu, press the ENTER button to store and automatically return
to the last menu. Press the MENU button or let the unit idle one minute to exit menu mode.
In the event of disconnecting with mains power, press the UP button for one minute to enter into
menu mode. Press MENU button or let the unit idle one minute to exit.

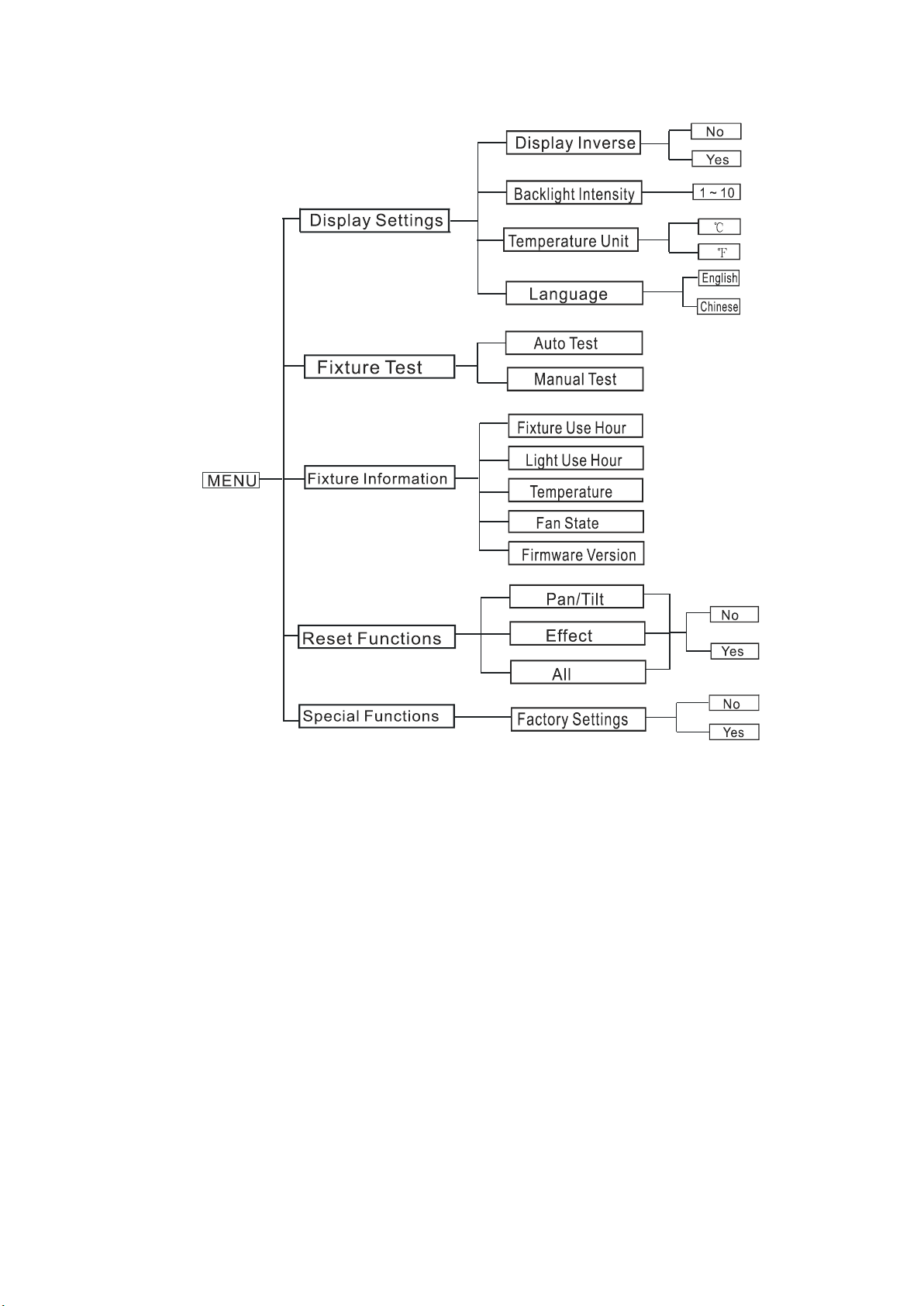

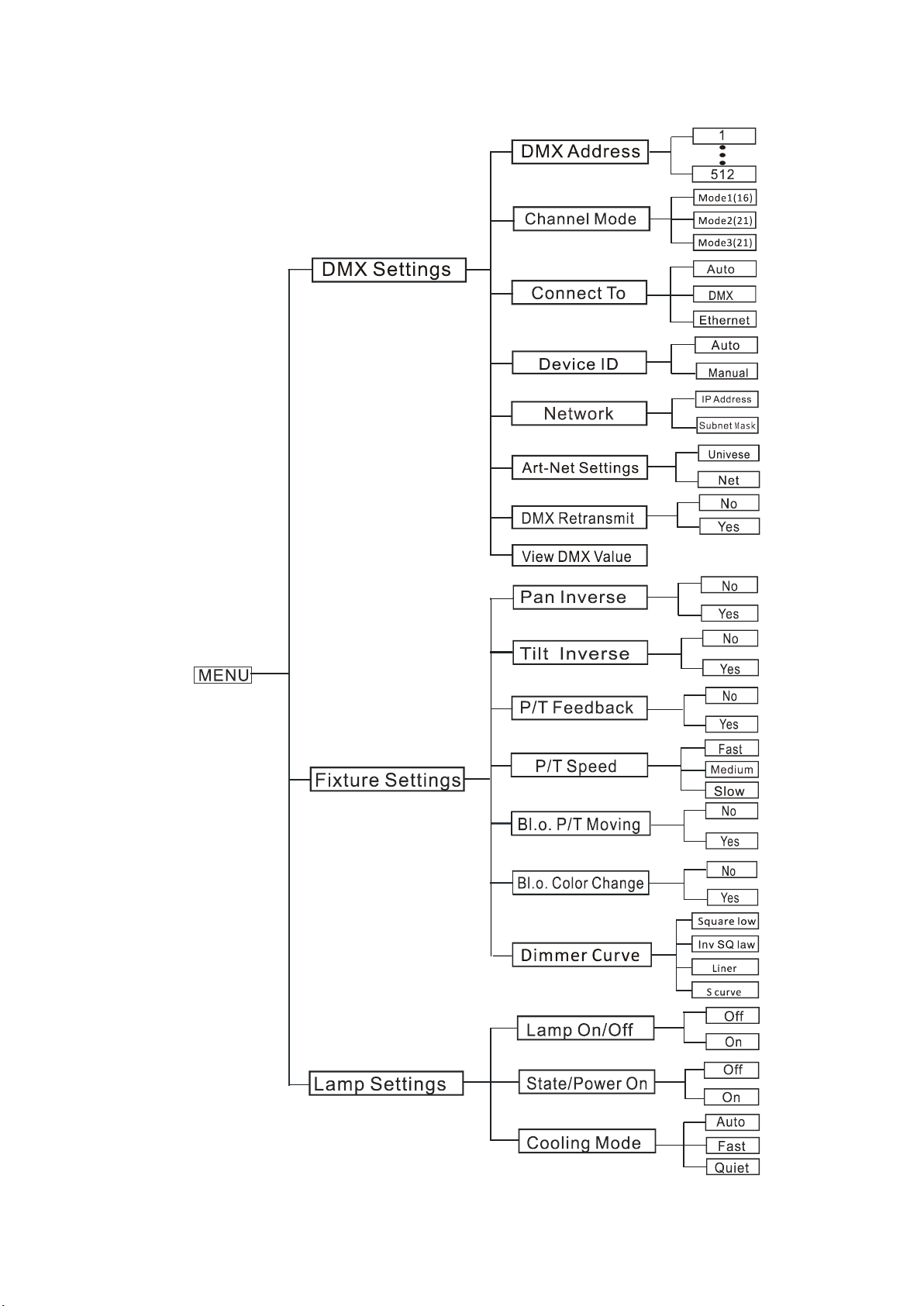

The main functions are shown below:
A 8C

A 9C

DMX Settings
To select DMX Settings, press the ENTER button to confirm, use the UP/DOWN button to select DMX
Address,Channel Mode,Connect To,Device ID、IP Address、Art-Net Setting、DMX Retransmit
or View DMX Value.
DMX Address
To select DMX Address, press the ENTER button to confirm. Use the UP/DOWN button to adjust
the address from 1to 512, press the ENTER button to store. Press the MENU button back to the
last menu or let the unit idle one minute to exit menu mode.
Channel Mode
To select Channel Mode, press the ENTER button to confirm. Use the UP/DOWN button to select
A 10C

16 Channel,21 Channel or 21 Channel mode, press the ENTER button to store. Press the MENU
button back to the last menu or let the unit idle one minute to exit menu mode.
Connect To
To select Connect To, press the ENTER button to confirm. Use the UP/DOWN button to select
Auto, DMX or Ethernet, press the ENTER button to store. Press the MENU button back to the last
menu or let the unit idle one minute to exit menu mode.
Device ID
To select Device ID, press the ENTER button to confirm. Use the UP/DOWN button to select Auto
or Manual, press the ENTER button to store. Press the MENU button back to the last menu or let
the unit idle one minute to exit menu mode.
Network
To select Network, Use the UP/DOWN button to select IP Address or Subnet Mask, press the
ENTER button to confirm and the display will show the current IP Address of the unit. To go back
to the functions press the MENU button again. Hold and press the MENU button about one
second or wait for one minute to exit the menu mode.
Art-net Setting
To select Art-net Setting, press the ENTER button to confirm. Use the UP/DOWN button to select
Universe or Net, press the ENTER button to store. Press the MENU button back to the last menu
or let the unit idle one minute to exit menu mode.
DMX Retransmit
To select DMX Retransmit, press the ENTER button to confirm. Use the UP/DOWN button to
select No (normal) or Yes (DMX Retransmit), press the ENTER button to store. Press the MENU
button back to the last menu or let the unit idle one minute to exit menu mode.
View DMX Value
To select View DMX Value, press the ENTER button to confirm. Use the UP/DOWN button to view
the DMX channel value. Press the MENU button back to the last menu or let the unit idle one
minute to exit menu mode.
Fixture Settings
To select Fixture Settings, press the ENTER button to confirm, use the UP/DOWN button to select Pan
A 11C

Inverse,Tile Inverse,P/T Feedback, P/T Speed,BL.O. P/T Moving,BL.O. Color Change or Dimmer
Curve.
Pan Inverse
To select Pan Inverse, press the ENTER button to confirm. Use the UP/DOWN button to select No
(normal) or Yes (pan inverse), press the ENTER button to store. Press the MENU button back to
the last menu or let the unit idle one minute to exit menu mode.
Tilt Inverse
To select Tilt Inverse, press the ENTER button to confirm. Use the UP/DOWN button to select No
(normal) or Yes (tilt inverse), press the ENTER button to store. Press the MENU button back to the
last menu or let the unit idle one minute to exit menu mode.
P/T Feedback
To select P/T Feedback, press the ENTER button to confirm. Use the UP/DOWN button to select
No (Pan or tilt’s position will not feedback while out of step) or Yes (Feedback while pan/tilt out of
step), press the ENTER button to store. Press the MENU button back to the last menu or let the
unit idle one minute to exit menu mode.
P/T Speed
To select P/T Speed, press the ENTER button to confirm. Use the UP/DOWN button to select Fast,
Medium or Slow, press the ENTER button to store. Press the MENU button back to the last menu
or let the unit idle one minute to exit menu mode.
BL.O. P/T Moving —Blackout while pan/tilt moving
To select BL.O. P/T Moving, press the ENTER button to confirm. Use the UP/DOWN button to
select No (normal while pan/tilt moving) or Yes (blackout while pan/tilt moving), press the ENTER
button to store. Press the MENU button back to the last menu or let the unit idle one minute to
exit menu mode.
BL.O. Color Change — Blackout while color changing
To select BL.O. Color Change, press the ENTER button to confirm. Use UP/DOWN button to select
No (normal while changing color) or Yes (blackout while color changing), press the ENTER button
to store. Press the MENU button back to the last menu or let the unit idle one minute to exit
menu mode.
A 12C

Dimmer Curve
To select Dimmer Curve, press the ENTER button to show the DIMMER CURVE on the display, use
the UP/DOWN button to select Square Law, Inverse Squ. Linear,or S-curve. Once selected, press
the ENTER button to store. Press the MENU button back to the last menu or let the unit idle one
minute to exit menu mode.
Square Law: Light intensity control is finer at low levels and coarser at high levels.
Inverse Square Law: Light intensity control is coarser at low levels and finger at high levels.
Linear: The increase in light intensity appears to be linear as DMX value is increased.
S-cure: Light intensity control is finger at low levels and high levels and coarser at medium levels.
Lamp Settings
To select Lamp Settings, press the ENTER button to confirm, use the UP/DOWN button to select Lamp
On/Off,State/Power on or Cooling Mode.
Lamp On/Off
To select Lamp On/Off, press the ENTER button to confirm. Use the UP/DOWN button to select
Off (lamp off) or On (lamp on), press the ENTER button to store. Press the MENU button back to
the last menu or let the unit idle one minute to exit menu mode.
State/Power On
To select State/Power On, press the ENTER button to confirm. Use the UP/DOWN button to select
Off (Lamp off while power on) or On (Lamp on while power on), press the ENTER button to store.
Press the MENU button back to the last menu or let the unit idle one minute to exit menu mode.
Cooling Mode
To select Cooling Mode, press the ENTER button to confirm. Use the UP/DOWN button to select
Auto, Fast or Quiet, press the ENTER button to store. Press the MENU button back to the last
A 13C

menu or let the unit idle one minute to exit menu mode.
Display Settings
To select Display Settings, press the ENTER button to confirm, use the UP/DOWN button to select
Display Inverse,Backlight Intensity or Temperature Unit.
Display Inverse
To select Display Inverse, press the ENTER button to confirm. Use the UP/DOWN button to select
No (normal) or Yes (display inverse), press the ENTER button to store. Press the MENU button
back to the last menu or let the unit idle one minute to exit menu mode.
Backlight Intensity
To select Backlight Intensity, press the ENTER button to confirm. Use the UP/DOWN button to
adjust the value from 1to 10, press the ENTER button to store. Press the MENU button back to
the last menu or let the unit idle one minute to exit menu mode.
Temperature Unit
To select Temperature Unit, press the ENTER button to confirm. Use the UP/DOWN button to
select
℃
or
℉
, press the ENTER button to store. Press the MENU button back to the last menu or
let the unit idle one minute to exit menu mode.
Language
To select Language, press the ENTER button to confirm. Use the UP/DOWN button to select
English or Chinese, press the ENTER button to store. Press the MENU button back to the last
menu or let the unit idle one minute to exit menu mode.
Fixture Test
To select F ixture Test , press the ENTER button to confirm, use the UP/DOWN button to select Auto
Test or Manual Test
Auto Test
To select Auto Test, press the ENTER button to confirm, the unit will run built-in programs to
automatically test pan, tilt, shutter, color, gobo, gobo rotation, prism, prism rotation, focus,
dimmer and lamp on/off. Press the MENU button back to the last menu or exit menu mode after
auto test.
A 14C

Manual Test
To select Manual Test, press the ENTER button to confirm, the present channel will show on the
display, use the UP/DOWN button to select channel, press the ENTER button to confirm, then use
the UP/DOWN button to adjust the value, press the ENTER button to store, the fixture will run as
the channel value indicates. Press the MENU button back to the last menu or exit menu mode
idling one minute.
(All channels value will become 0 after exiting Manual Test menu)
Fixture Information
To select Fixture Information, press the ENTER button to confirm, use the UP/DOWN button to select
Fixture Use Hour,Light Use Hour,Temperature, Fan State or Firmware Version.
Fixture Use Hour
Select Fixture Use Hour, press the ENTER button to confirm, fixture use time will show on the
display, press the MENU button to exit.
Light Use Hour
To select Light Use Hour, press the ENTER button to confirm, lamp on time will show on the
display, press the ENTER button to confirm, use the UP/DOWN button to select Exit or Reset Time,
press the ENTER button to confirm. Press the MENU button back to the last menu or exit menu
mode idling one minute.
Temperature
Select Temperature, press the ENTERbutton to confirm, fixture state will show on the display,
press the MENU button to exit.
Fan State
Select Fan State, press the ENTERbutton to confirm, fixture state will show on the display, press
the MENU button to exit.
Firmware Version
To select Firmware Version, press the ENTER button to confirm, firmware version will show on the
display, press the MENU button back to exit.
A 15C

Reset Functions
To select Reset Function, press the ENTER button to confirm, use the UP/DOWN button to select
Pan/Tilt,Effect or All.
Pan/Tilt —Reset Pan/Tilt
To select Pan/Tilt, press the ENTER button to confirm, use the UP/DOWN button to select Yes
(the unit will run built-in program to reset pan and tilt to their home positions) or No, press the
ENTER button to store. Press the MENU button back to the last menu or let the unit idle one
minute to exit menu mode.
Effect
To select Effect, press the ENTER button to confirm, use the UP/DOWN button to select Yes (the
unit will run built-in program to reset shutter to their home positions) or No, and press the ENTER
button to store. Press the MENU button to exit.
All — Reset All
To select All, press the ENTER button to confirm, use the UP/DOWN button to select Yes (the unit
will run built-in program to reset all motors to their home positions) or No, press ENTER button to
store. Press the MENU button to exit.
Special Functions
To select Special Functions, press the ENTER button to confirm, and select Factory Settings.
Factory Settings
To Select Factory Setting, Use the UP/DOWN button to select Yes (the fixture will reset to factory
settings) or No(Normal),press the ENTER button to confirm. Press the MENU button back to the
last menu or exit menu mode idling one minute.
5.2 Home Position Adjustment
Press the MENU button into menu mode, then press and hold the ENTER button for about 3 seconds
into offset mode to adjust the home position. Select the function by the ENTER button. Use the
UP/DOWN button to select the submenu, press the ENTER button to store and automatically return to
A 16C

the last menu. Press the MENU button to exit.
Encoder Calibrate- Encoder Calibrate home position adjustment
Enter offset mode, select Encoder Calibrate, press the ENTER button to confirm. Use the UP/DOWN
button to offset the Encoder Calibrate, press the ENTER button to store. Press the MENU button to
exit.
Pan - pan home position adjustment
Enter offset mode, select Pan, press the ENTER button to confirm. Use the UP/DOWN button to offset
the value from -128 to 127, press the ENTER button to store. Press the MENU button to exit.
Tilt - Tilt home position adjustment
Enter offset mode, select Tilt, press the ENTER button to confirm. Use the UP/DOWN button to offset
the value from -128 to 127, press the ENTER button to store. Press the MENU button to exit.
A 17C

Shutter- Shutter home position adjustment
Enter offset mode, select Shutter, press the ENTER button to confirm. Use the UP/DOWN button to
offset the value from 0to 255, press the ENTER button to store. Press the MENU button to exit.
Dimmer - Dimmer home position adjustment
Enter offset mode, select Dimmer, press the ENTER button to confirm. Use the UP/DOWN button to
offset the value from 0to 255, press the ENTER button to store. Press the MENU button to exit.
Color 1 - Color home position adjustment
Enter offset mode, select Color 1, press the ENTER button to confirm. Use the UP/DOWN button to
offset the value from -128 to 127, press the ENTER button to store. Press the MENU button to exit.
Color 2 – Gobo1 home position adjustment
Enter offset mode, select Color 2, press the ENTER button to confirm. Use the UP/DOWN button to
offset the value from -128 to 127, press the ENTER button to store. Press the MENU button to exit.
Iris- Iris home position adjustment
Enter offset mode, select Iris, press the ENTER button to confirm. Use the UP/DOWNbutton to offset
the value from 0to 255, press the ENTER button to store. Press the MENU button to exit.
Zoom - Zoom home position adjustment
Enter offset mode, select Zoom press the ENTER button to confirm. Use the UP/DOWN button to
offset the value from 0to 255, press the ENTER button to store. Press the MENU button to exit.
Cyan - Cyan home position adjustment
Enter offset mode, select Cyan press the ENTER button to confirm. Use the UP/DOWN button to offset
the value from 0to 255, press the ENTERbutton to store. Press the MENU button to exit.
Magenta - Magenta home position adjustment
Enter offset mode, select Magenta press the ENTER button to confirm. Use the UP/DOWN button to
A 18C

offset the value from 0to 255, press the ENTER button to store. Press the MENU button to exit.
Yellow - Yellow home position adjustment
Enter offset mode, select Yellow press the ENTER button to confirm. Use the UP/DOWN button to
offset the value from 0to 255, press the ENTER button to store. Press the MENU button to exit.
CTO- CTO home position adjustment
Enter offset mode, select CTO, press the ENTER button to confirm. Press the ENTER button to store.
Press the MENU button to exit.
5.3 Error Information
Lamp Startup Fail
It appears when there is no lamp or some wires are damaged.
Temperature Sense Error
It appears when temperature check board is damaged.
Lamp Too Hot Power Off
It appears when temperature is detected higher than 110℃. Check if the unit is properly ventilated, or
fans or temperature check board may is damaged.
Lamp Too Hot Low Power
It appears when temperature is detected higher than 105℃, the unit will run on a low power level.
Maintenance Fixture
It appears when the maintenance remaining time becomes 0S, please enter menu mode and reset the
time.
Lamp On Over 700 Hour
It appears when the lamp has been on over 700 hours, please turn off the lamp.
Memory Initial Fail
It appears when the memory IC is damaged.
CPU-B Error, CPU-C Error, CPU-D Error
A 19C
