ACME HYGIEA User manual

CONTENTS
1. Safety Instructions ................................................................................................. 2
2. Technical Specifications.......................................................................................... 4
3. Control Panel ......................................................................................................... 6
4. Color/Gobo and Lamp............................................................................................ 7
4.1 Color/Gobo ...................................................................................................... 7
4.2 Light Source...................................................................................................... 7
4.3 Changing the Lamp........................................................................................... 8
4.4 Lamp Replacement Warning ............................................................................ 9
5. How To Set The Unit............................................................................................... 9
5.1 Main Function .................................................................................................. 9
5.2 Home Position Adjustment............................................................................. 16
6. Control By Universal DMX Controller.................................................................... 18
6.1 DMX512 Connection ...................................................................................... 18
6.2 Address Setting .............................................................................................. 19
6.3 DMX512 Configuration................................................................................... 19
7. Error Information ................................................................................................. 25
8. Troubleshooting ................................................................................................... 28
9. Fixture Cleaning ................................................................................................... 29
1A

1. Safety Instructions
WARNING
Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that
they also receive this instruction manual.
Important:
Damages caused by the disregard of this user manual are not subject to warranty. The dealer will
not accept liability for any resulting defects or problems.
Unpack and check carefully to ensure that there is no transportation damage before using the
unit.
This product is for indoor use only. Use only in a dry location.
DO install and operate by qualified operator.
DO NOT allow children to operate the fixture.
Use safety chain when fixing the unit. Handle the unit by carrying its base instead of head only.
The unit must be installed in a location with adequate ventilation, at least 50cm from adjacent
surfaces.
Be sure that no ventilation slots is blocked, otherwise the unit will be overheated.
Before operation, ensure that you are connecting this product to the proper voltage in
accordance with the specifications in this manual or on the product’s specification label.
It’s important to ground the yellow/green conductor to earth in order to avoid electric shock.
Minimum ambient temperature TA: 0℃. Maximum ambient temperature TA: 40℃.Do not
operate this product at a lower or higher temperature.
DO NOT connect the device to any dimmer pack.
During initial start-up some smoke or smell may arise. This is a normal process and does not
necessarily mean that the device is defective, and it will decrease gradually within 15 minutes.
Keep flammable materials away from the fixture while operating to avoid fire hazard.
Make sure the power cord is not crimped or damaged; replace it immediately if damaged.
Unit’s surface temperature may reach up to 85℃. DO NOT touch the housing bare-handed
during its operation.
Please read the instruction carefully which includes important information about
the installation, usage and maintenance.
2A

Avoid any flammable liquids, water or metal from entering the unit. Once it happens, cut off
the mains power immediately.
DO NOT operate in a dirty or dusty environment. DO clean the fixture regularly.
DO NOT touch any wire during operation as there might be a hazard of electric shock.
Avoid entanglement of the power cord with other wires.
The minimum distance to objects/surface must be more than 8 meters.
Disconnect mains power before fuse/lamp replacement or servicing.
Replace fuse/lamp only with the same type.
In the event of serious operating problem, stop using the unit immediately.
Never turn on and off the unit time after time.
The housing, the lenses, or the ultraviolet filter must be replaced if they are visibly damaged.
DO NOT open the housing as there are no user serviceable parts inside.
DO NOT attempt to operate this unit if it becomes damaged. DO NOT attempt any repairs
yourself. Repairs carried out by unskilled people can lead to damage or malfunction. Please
contact the nearest authorized technical assistance center if needed.
Disconnect this product from its power source before servicing.
DO use the original packaging if the device is to be transported.
Hot lamp explosion hazard. DO NOT open the unit within 15 minutes after switching off.
DO replace the bulb once it is damaged, deformed or life-expired.
Avoid direct eye exposure to the light source while the product is on.
Never touch bulb with bare fingers, as it is very hot after using.
DO NOT operate this product if you see damage on the housing, shields, or cables. Have the
damaged parts replaced by an authorized technician at once.
Installation:
The fixture should be fixed on the clamp. Always ensure that the unit is firmly fixed to avoid
vibration and slipping off during operation. Ensure that the trussing or area of installation must be
able to hold 10 times the weight without any deformation. Always install a safety cable that can
hold at least 12 times the weight of the fixture when installing.
DO install and operate by qualified operator. It must be installed in a place where there is out of the
reach of people.
3A

2. Technical Specifications
Power Voltage:
100-240V~ 50/60Hz
Power Consumption:
175W
Light Source:
OSRAM SIRIUS HRI 100W
Color Temperature:
9000K
Beam Angle:
3°
Movement:
Pan: 540°
Tilt: Infinity
Pan/Tilt Resolution: 16-bit
Dimmer/Shutter:
Smooth dimming from 0-100%; outstanding strobe effect with variable speed
Color wheel:
1 x color wheel with 14 colors plus white
Gobo wheel:
1 x static gobo wheel with 15 gobos plus open
Control:
DMX Channel: 14/12 Channels
Protocols: DMX512, RDM
Firmware Upgrade via DMX link
Construction:
Display: LCD display
Data In/Out: 3-pin XLR (5-pin XLR is optional)
Power In/Out: Power Connector in/out
Protection Rating: IP20
4A

Features:
Standard mode: Ra>70
8 facet prism+16 facet prism, both of them can rotate in both directions
Dimension/Weight:
268x194x401mm, 10kgs
10.6"x7.6"x15.8"in, 22.1lbs

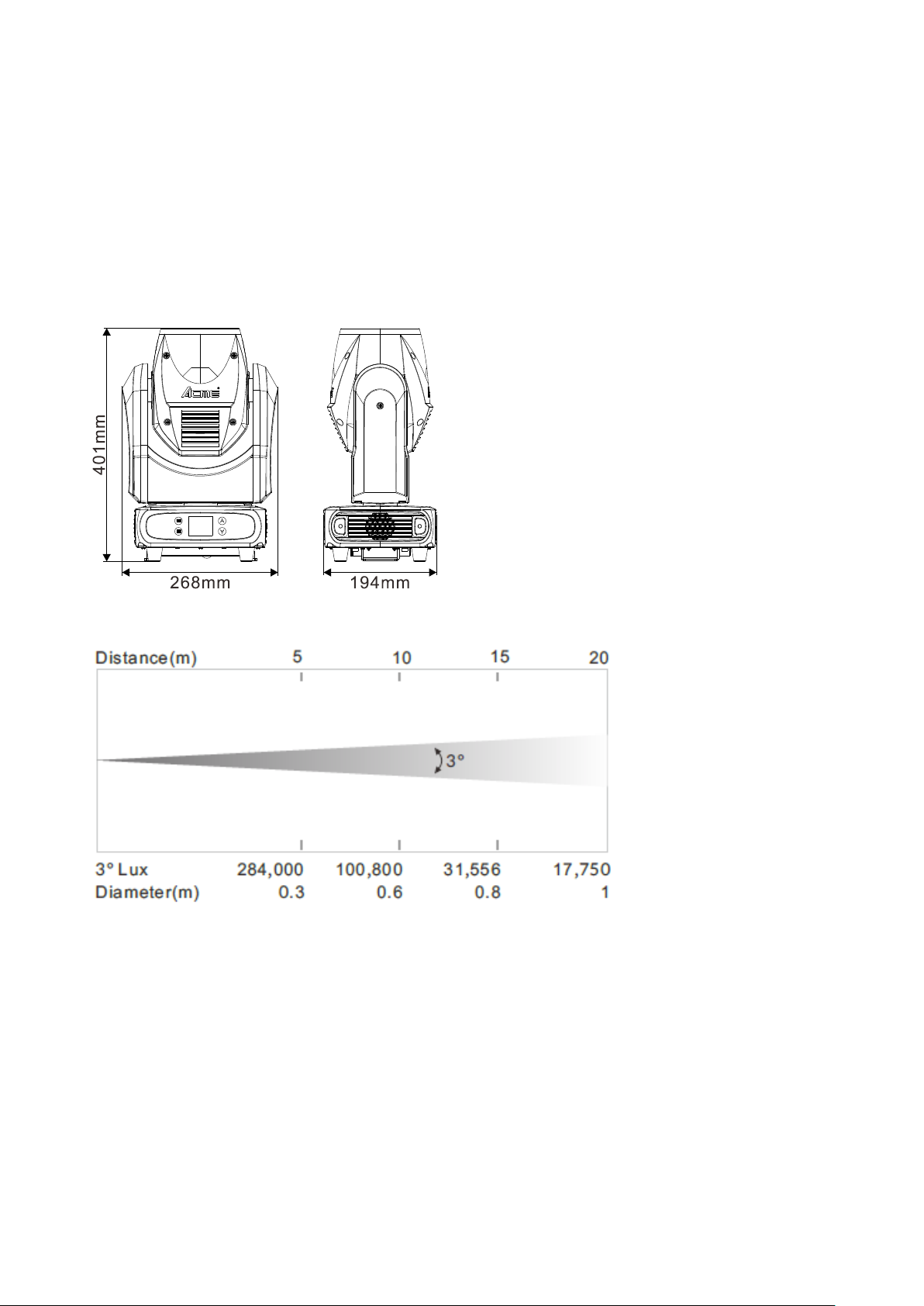

Photometric Diagram:
5A

3. Control Panel
1. DISPLAY:To show the various menus and the selected function
2. Button:
MENU
To enter into move backward or leave the menu
UP
To go backward to move up in the menu
DOWN
To go forward to move down in the menu
ENTER
To perform the desired functions
3. DMX IN:
For DMX512 link, use 3-pin XLR cable to link the unit and DMX controller (5-pin XLR is optional)
4. DMX OUT:
For DMX512 link, use 3-pin XLR cable to link the next units (5-pin XLR is optional)
5. POWERCON IN: To connect to supply power
6. POWERCON OUT: To connect to the next fixture
7. FUSE(T 3.15A): Protect the unit from damage of over current
6A

4. Color/Gobo and Lamp
4.1 Color/Gobo
DANGER!
Install the color wheel/gobo wheel with the device switched off only.
Unplug from mains before changing the color wheel/gobo wheel!
4.2 Light Source
OSRAM SIRIUS HRI 100W
Because of its high internal pressure, there might be a risk that the Discharge lamp
would explode during operation. The lamp emits intense UV radiation which is harmful
to the eyes and skin. The high luminance of the arc can cause severe damage to the
retina if you take a close look at the lamp.
To protect the lamp, always turn off the lamp first (via control panel or DMX controller)
and let the unit run at least five minutes to cool down before switching off the mains
supply. Never handle the lamp or luminary when it is hot.
Do not touch the bulb with bare hands. If this happens, clean the lamp with denatured
alcohol and wipe it with a lint free cloth before installation.
The lamp generates UV radiation. Never operate the lamp without appropriate shielding.
When lighting up, the lamp operates at high pressure and there is a slight risk of arc tube
rupture. The risk increases with age, temperature and improper handling of the lamp. Do not
use the lamp longer than its lifespan.
Make sure the lamp is located in the center of the reflector for the best projection.
7A

4.3 Changing the Lamp
Attention: The entire light path and lens of the luminaire must be thoroughly cleaned before
changing the bulb.
Do not use this lamp more than 6000 hours, using the lamp any longer than its set life could
seriously damage your unit. Periodically checking the lamp running time, when the lamp reaches
the 6000 hour mark, or close to it, we strongly suggest you switch the lamp out. Reset the lamp
time after you have replaced the lamp.
To replace the lamp:
1. Ensure that the fixture is detached from power and has cooled down completely. It is a good
idea to allow the fixture to run for 10 minutes after the lamp has been turned off, so that the
cooling fans have time to works.
2. Loosen the screws(A) on the head of the fixture and open the fixture head covers.
3. Adjust the centrifugal screw(B). Unplug the leads of the lamp and lift the lamp out of its recess,
disconnect the lamp and connect a new lamp that must be the same type with the old one. And
then place the new lamp into the lamp recess.
Finally reinstall the head cover, fastening it securely before reapplying power.
8A

Warning:
The installing direction of lamp:
4.4 Lamp Replacement Warning
When the lamp reaches 5700 hours of usage, the display will flash the message “Replace Lamp
Soon” for up to 5 minutes. During this period, the fixture will still work normally.
When the lamp reaches 6000 hours of usage, the display will flash the message “Replace Lamp
Now” for up to 10 minutes. After 10 minutes, the fixture will return to normal operation.
When the lamp is continuously used overtime, the display will flash the message “Lamp
Timeout Use, Replace Lamp Now” for up to 10 minutes. After 10 minutes, the fixture will return
to normal operation.
Attention: Damages caused by the failure to replace the bulb in time are not subject to warranty.
5. How To Set The Unit
5.1 Main Function
Turn on the unit, press the MENU button into menu mode, and press the UP/DOWN button until
the required function is shown on the monitor. Select the function by pressing the ENTER button.
Use the UP/DOWN button to choose the submenu, press the ENTER button to store and
automatically return to the last menu. Press the MENU button or let the unit idle 30 seconds to exit
menu mode.

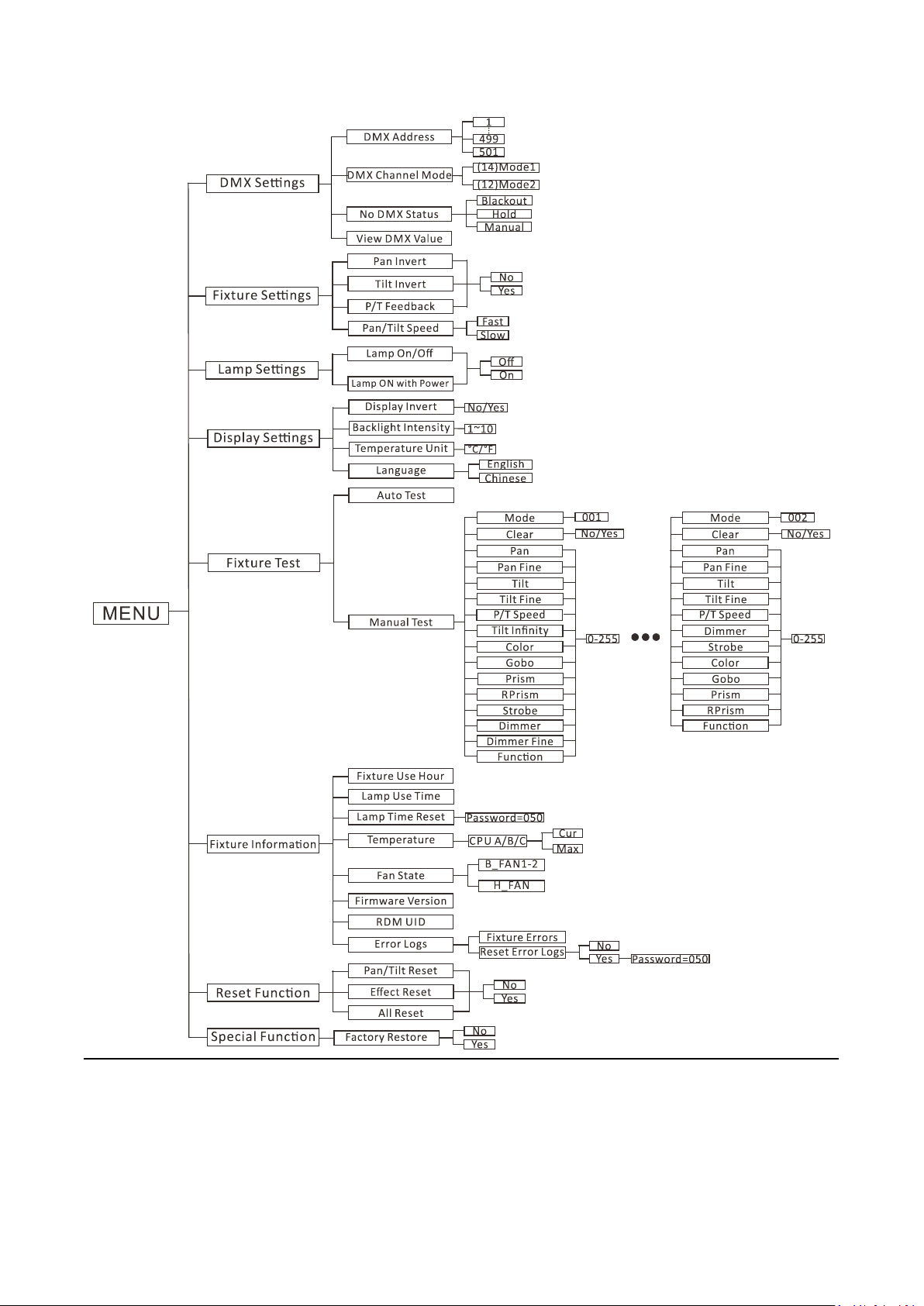

The main functions are shown below:
9A

10A

DMX Settings
To select DMX Settings, press the ENTER button to confirm, use the UP/DOWN button to select
DMX Address, DMX Channel Mode, No DMX Status or View DMX Value.
DMX Address
To select DMX Address, press the ENTER button to confirm. Use the UP/DOWN button to adjust the
address from 001 to 499/501, press the ENTER button to store. Press the MENU button back to the
last menu or let the unit idle 30 seconds to exit menu mode.
DMX Channel Mode
To select DMX Channel Mode, press the ENTER button to confirm. Use the UP/DOWN button to
select (14)Mode1 or (12)Mode2, press the ENTER button to store. Press the MENU button back to
the last menu or let the unit idle 30 seconds to exit menu mode.
No DMX Status
To select No DMX Status, press the ENTER button to confirm. Use the UP/DOWN button to select
Blackout(fixture blacks out if DMX signal stops), Hold(fixture continues to obey the last command it
received Via DMX if DMX signal stops) or Manual(the fixture will automatically read the DMX value
in the “Manual Test” menu for operation after selecting this mode), press the ENTER button to store.
Press the MENU button back to the last menu or let the unit idle 30 seconds to exit menu mode.
View DMX Value
To select View DMX Value, press the ENTER button to confirm. Use the UP/DOWN button to view
the DMX channel value. Press the MENU button back to the last menu or let the unit idle 30
seconds to exit menu mode.
Fixture Settings
To select Fixture Settings, press the ENTER button to confirm, use the UP/DOWN button to select
Pan Invert, Tilt Invert, P/T Feedback or Pan/Tilt Speed.
Pan Invert
To select Pan Invert, press the ENTER button to confirm. Use the UP/DOWN button to select
No(normal) or Yes(pan invert), press the ENTER button to store. Press the MENU button back to the
last menu or let the unit idle 30 seconds to exit menu mode.
11A

Tilt Invert
To select Tilt Invert, press the ENTER button to confirm. Use the UP/DOWN button to select
No(normal) or Yes(tilt invert), press the ENTER button to store. Press the MENU button back to the
last menu or let the unit idle 30 seconds to exit menu mode.
P/T Feedback
To select P/T Feedback, press the ENTER button to confirm. Use the UP/DOWN button to select
No(Pan or tilt’s position will not feedback while out of step) or Yes(Feedback while pan/tilt out of
step), press the ENTER button to store. Press the MENU button back to the last menu or let the unit
idle 30 seconds to exit menu mode.
Pan/Tilt Speed
To select Pan/Tilt Speed, press the ENTER button to confirm. Use the UP/DOWN button to select
Fast or Slow, press the ENTER button to store. Press the MENU button back to the last menu or let
the unit idle 30 seconds to exit menu mode.
Lamp Settings
To select Lamp Settings, press the ENTER button to confirm, use the UP/DOWN button to select
Lamp On/Off or Lamp ON with Power.
Lamp On/Off
To select Lamp On/Off, press the ENTER button to confirm. Use the UP/DOWN button to select
Off(lamp off) or On(lamp on), press the ENTER button to store. Press the MENU button back to the
last menu or let the unit idle 30 seconds to exit menu mode.
Lamp ON with Power
To select Lamp ON with Power, press the ENTER button to confirm. Use the UP/DOWN button to
select Off(Lamp off while power on) or On(Lamp on while power on), press the ENTER button to
store. Press the MENU button back to the last menu or let the unit idle 30 seconds to exit menu
mode.
Display Settings
To select Display Settings, press the ENTER button to confirm, use the UP/DOWN button to select
Display Invert, Backlight Intensity, Temperature Unit or Language.
12A

Display Invert
To select Display Invert, press the ENTER button to confirm. Use the UP/DOWN button to select
No(normal display) or Yes(invert display), press the ENTER button to store. Press the MENU button
back to the last menu or let the unit idle 30 seconds to exit menu mode.
Backlight Intensity
To select Backlight Intensity, press the ENTER button to confirm. Use the UP/DOWN button to
adjust backlight intensity from 001(dark) to 010(bright), press the ENTER button to store. Press the
MENU button back to the last menu or let the unit idle 30 seconds to exit menu mode.
Temperature Unit
To select Temperature Unit, press the ENTER button to confirm. Use the UP/DOWN button to
select
℃
or
℉
, press the ENTER button to store. Press the MENU button back to the last menu or
let the unit idle 30 seconds to exit menu mode.
Language
To select Language, press the ENTER button to confirm. Use the UP/DOWN button to select English
or Chinese, press the ENTER button to store. Press the MENU button back to the last menu or let
the unit idle 30 seconds to exit menu mode.
F ixture Test
To select F ix tur e Test , press the ENTER button to confirm, use the UP/DOWN button to select Auto
Test or Manual Test.
Auto Test
Select Auto Test, press the ENTER button to confirm, the unit will run built-in programs to
automatically test pan, tilt, color, gobo, prism, prism rotation, strobe, dimmer, function, etc. Press
the MENU button back to the last menu or exit menu mode after auto test.
Manual Test
Select Manual Test, press the ENTER button to confirm, the present channel will show on the
display, use the UP/DOWN button to select channel, press the ENTER button to confirm, then use
the UP/DOWN button to adjust the value, press the ENTER button to store, the fixture will run as
the channel value indicates. Press the MENU button back to the last menu or exit menu mode idling
30 seconds.
(The fixture will return to the previous DMX state after exiting Manual Test menu and the Manual
Test parameters will be automatically saved after power off and restart.)
13A

Fixture Information
To select Fixture Information, press the ENTER button to confirm, use the UP/DOWN button to
select Fixture Use Hour, Lamp Use Time, Lamp Time Reset, Temperature, Fan State, Firmware
Version, RDM UID or Error Logs.
Fixture Use Hour
To select Fixture Use Hour, press the ENTER button to confirm, fixture use hour will show on the
display, press the MENU button to exit.
Lamp Use Time
To select Lamp Use Time, press the ENTER button to confirm, lamp use time will show on the
display, press the MENU button to exit.
Lamp Time Reset
To select Lamp Time Reset, press the ENTER button to confirm. Use the UP/DOWN button to set
the password 050, press the ENTER button to reset the lamp time, press the MENU button to exit.
Temperature
To select Temperature, press the ENTER button to confirm, the current and max temperature of the
fixture’s CPU A/B/C will show on the display, press the MENU button to exit.
Fan State
To select Fan State, press the ENTER button to confirm, fan state will show on the display, press the
MENU button to exit.
Firmware Version
To select Firmware Version, press the ENTER button to confirm, firmware version will show on the
display, press the MENU button back to exit.
RDM UID
To select RDM UID, press the ENTER button to confirm, RDM UID will show on the display, press the
MENU button back to exit.
Error Logs
Select Error Logs, press the ENTER button to confirm. Use the UP/DOWN button to select Fixture
Errors or Reset Error Logs, press the ENTER button to store. Select Reset Error Logs, press the
ENTER button to confirm. Use the UP/DOWN button to select No or Yes, press the ENTER button to
store. Select Yes, press the ENTER button to confirm. Use the UP/DOWN button to set the password
050, press the ENTER button to store. Press the MENU button back to the last menu or let the unit
14A

idle 30 seconds to exit menu mode.
Reset Function
To select Reset Function, press the ENTER button to confirm, use the UP/DOWN button to select
Pan/Tilt Reset, Effect Reset or All Reset.
Pan/Tilt Reset
To select Pan/Tilt Reset, press the ENTER button to confirm, use the UP/DOWN button to select
No(normal) or Yes (the unit will run built-in program to reset pan and tilt to their home positions),
press the ENTER button to store. Press the MENU button to exit.
Effect Reset
To select Effect Reset, press the ENTER button to confirm, use the UP/DOWN button to select No or
Yes(the unit will run built-in program to reset effect to their home positions), press the ENTER
button to store. Press the MENU button to exit.
All Reset
To select All Reset, press the ENTER button to confirm, use the UP/DOWN button to select No or
Yes(the unit will run built-in program to reset all motors to their home positions), press ENTER
button to store. Press the MENU button to exit.
Special Function
Factory Restore
To select Factory Restore,press the ENTER button to confirm, use the UP/DOWN button to select
No(normal) or Yes(the fixture will reset to factory settings), press ENTER button to store. Press the
MENU button to exit.
15A

RDM FUNCTIONS
Select the MANUFACTURER menu to display the manufacturer of the fixture.
Select the SOFTWARE VERSION menu and the program version number of the fixture will be
displayed.
Select the DMX START ADDRESS menu to change the DMX 512 address (001-512).
Select the DEVICE MODEL DESCRIPTION menu to display the model of the fixture.
Select the DEVICE LABEL menu to change the model of the fixture.
Select the DMX PERSONALITY menu to set the channel mode of the fixture (1 4/1 2 channel).
Select the DMX PERSONALITY DESCRIPTION menu to display the current channel mode of the
fixture.
Select the DEVICE HOURS menu to display the running time of the fixture.
Select the LAMP HOURS menu to display the running time of the lamp.
Select the LAMP STATE menu to turn on/off the lamp.
Select the PAN INVERT menu and the fixture will run the pan invert mode.
Select the TILT INVERT menu and the fixture will run the tilt invert mode.
Select the RESET DEVICE menu, the WARM RESET/COLD RESET option will be displayed. When
WARM RESET is selected, the fixture will start a warm reset, and exit when COLD RESET is selected.
5.2 Home Position Adjustment
Press the MENU button into menu mode, then press the ENTER button for about 3 seconds into
offset mode to adjust the home position. Select the function by pressing the ENTER button. Use the
UP/DOWN button to choose the submenu, press the ENTER button to store and automatically
return to the last menu. Press MENU button to exit.
16A

Pan
Enter offset mode, select Pan, press the ENTER button to confirm, the present position will blink on
the display, use the UP/DOWN button to offset the value from -128 to 127, press the ENTER button
to store. Press the MENU button to exit.
Tilt
Enter offset mode, select Tilt, press the ENTER button to confirm, the present position will blink on
the display, use the UP/DOWN button to offset the value from -128 to 127, press the ENTER button
to store. Press the MENU button to exit.
Strobe
Enter offset mode, select Strobe, press the ENTER button to confirm, the present position will blink
on the display, use the UP/DOWN button to offset the value from 0 to 255, press the ENTER button
to store. Press the MENU button to exit.
Color
Enter offset mode, select Color, press the ENTER button to confirm, the present position will blink
on the display, use the UP/DOWN button to offset the value from -128 to 127, press the ENTER
button to store. Press the MENU button to exit.
Gobo
Enter offset mode, select Gobo, press the ENTER button to confirm, the present position will blink
on the display, use the UP/DOWN button to offset the value from -128 to 127, press the ENTER
button to store. Press the MENU button to exit.
Prism
Enter offset mode, select Prism, press the ENTER button to confirm, the present position will blink
on the display, use the UP/DOWN button to offset the value from -128 to 127, press the ENTER
button to store. Press the MENU button to exit.
17A

6. Control By Universal DMX Controller
6.1 DMX512 Connection
1. At last unit, the DMX cable has to be terminated with a terminator. Solder a 120-o h m 1/4 W
resistor between pin 2(DMX-) and pin 3(DMX+) into a 3-pin XLR-plug and plug it in the DMX-output
of the last unit.
2. Connect the unit together in a “daisy chain” by XLR plug cable from the output of the unit to
the input of the next unit. The cable cannot be branched or split to a “Y” cable. DMX 512 is a very
high-speed signal. Inadequate or damaged cables, soldered joints or corroded connectors can easily
distort the signal and shut down the system.
3. The DMX output and input connectors are pass-through to maintain the DMX circuit, when one
of the units’ power is disconnected.
4. Each lighting unit needs to have a DMX address to receive the data by the controller. The
address number is between 1-512.
5. The end of the DMX 512 system should be terminated to reduce signal errors.
6. 3 pin XLR connectors are more popular than 5 pins XLR.
3 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+)
5 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+), Pin4, Pin5 not used.
18A

6.2 Address Setting
If you use a universal DMX controller to control the units, you have to set DMX address from 1 to
512 so that the units can receive DMX signal.
Press the MENU button to enter menu mode, select DMX Settings, press the ENTER button to
confirm, use the UP/DOWN button to select DMX Address, press the ENTER button to confirm, the
present address will blink on the display, use the UP/DOWN button to adjust the address from 001
to 512, press the ENTER button to store. Press the MENU button back to the last menu or let the
unit idle 30 seconds to exit menu mode.
Please refer to the following diagram to address your DMX512 channel for the first 4 units.
Channel mode
Unit 1
Address
Unit 2
Address
Unit 3
Address
Unit 4
Address
14 channels 1 15 29 43
12 channels 1 13 25 37
6.3 DMX512 Configuration
Please control the fixture by referring to the configurations below
Attentions:
1. The unit will maintain the last condition until reset if you cut-off the DMX signal.
2. For the channel Function, keep the value for about 3 seconds, then the corresponding function
will take into effect.
19A
