ACME TOUR PIXEL BAR 1010 II User manual

CONTENTS
1. Safety Instructions ......................................................................................... 2
2. Technical Specifications ................................................................................. 4
3. How To Set The Unit....................................................................................... 5
3.1 Control Panel ........................................................................................... 5
3.2 Main Functions ........................................................................................ 6
4. Control By Universal DMX Controller ........................................................... 12
4.1 DMX512 Connections ............................................................................ 12

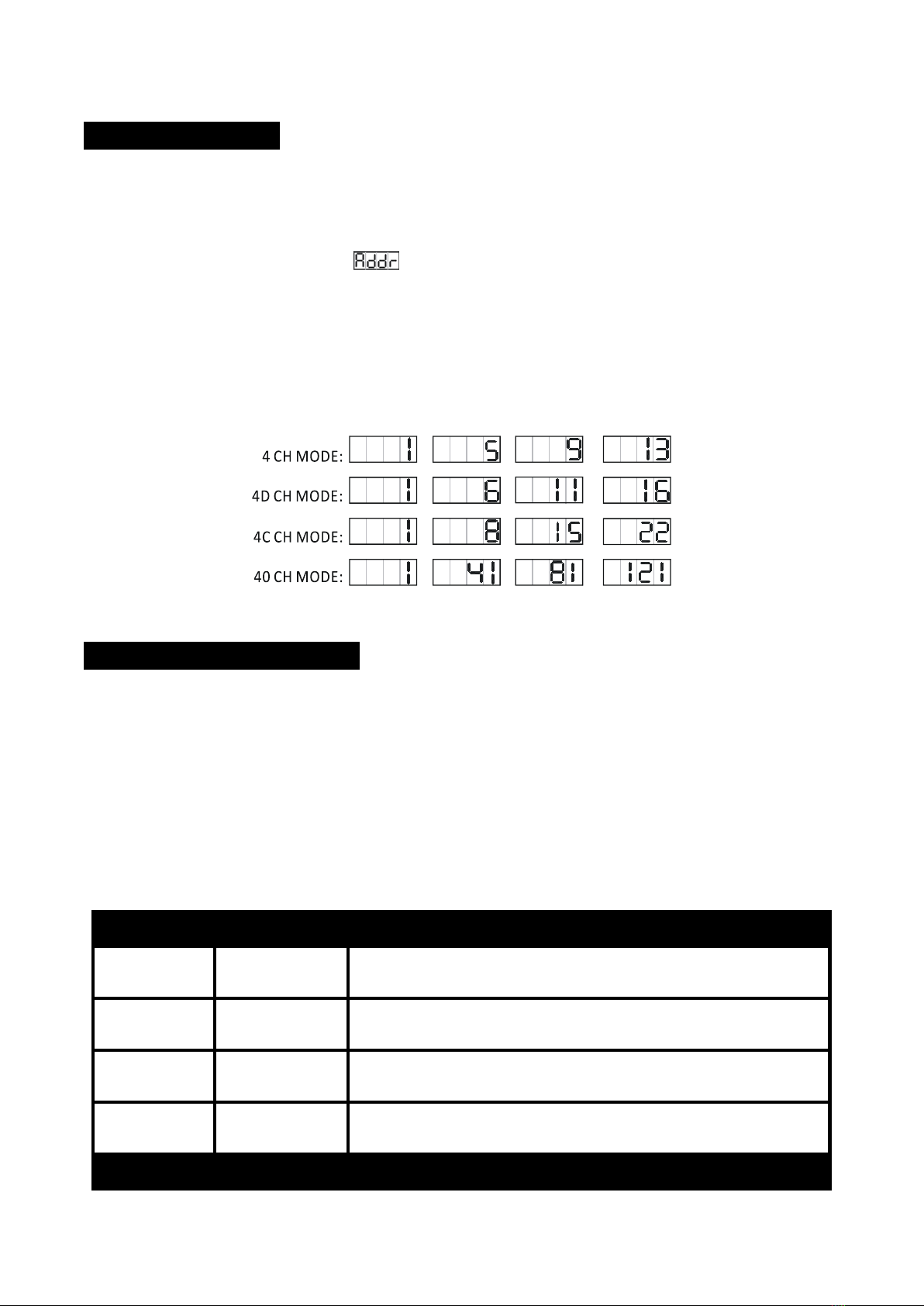

4.2 Address Setting ...................................................................................... 13
4.3 DMX512 Configurations ......................................................................... 13
5. Troubleshooting........................................................................................... 17
6. Fixture Cleaning ........................................................................................... 17
1D

1. Safety Instructions
WARNING
Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that
they also receive this instruction manual.
Important:
Damages caused by the disregard of this user manual are not subject to warranty. The dealer will
not accept liability for any resulting defects or problems.
Unpack and check carefully that there is no transportation damage before using the unit.
This product is suitable for indoor use and wet locations. Do not immerse in water.
DO install and operate by qualified operator.
DO NOT allow children to operate the fixture.
Use safety chain when fixing the unit. Handle the unit by carrying its base instead of head only.
The unit must be installed in a location with adequate ventilation, at least 50cm from adjacent
surfaces.
Be sure that no ventilation slots are blocked, otherwise the unit will be overheated.
Before operating, ensure that the voltage and frequency of power supply match the power
requirements of the unit.
It’s important to ground the yellow/green conductor to earth in order to avoid electric shock.
Minimum ambient temperature TA: 0℃. Maximum ambient temperature TA: 40℃.
DO NOT connect the device to any dimmer pack.
During initial start-up some smoke or smell may arise. This is a normal process and does not
necessarily mean that the device is defective, and it will decrease gradually within 15 minutes.
Make sure there are no flammable materials close to the unit while operating to avoid fire
hazard.
Examine the power wires carefully; replace them immediately if there is any damage.
Unit’s surface temperature may reach up to 70℃. DO NOT touch the housing bare-handed
during its operation.
Please read the instruction carefully which includes important information about
the installation, usage and maintenance.
2D

Avoid any inflammable liquids, water or metal objects entering the unit. Once it happens, cut
off the mains power immediately.
DO NOT operate in dirty or dusty environment, do clean fixtures regularly.
DO NOT touch any wire during operation as there might be a hazard of electric shock.
Avoid power wires together twist other cables.
In the event of serious operating problem, stop using the unit immediately.
Never turn on and off the unit time after time.
The housing, the lenses, or the ultraviolet filter must be replaced if they are visibly damaged.
DO NOT open the unit as there are no user serviceable parts inside.
Never try to repair the unit by yourself. Repairs carried out by unskilled people can lead to
damage or malfunction. Please contact the nearest authorized technical assistance center if
needed.
Disconnect the mains power if the fixture is has not been used for a long time.
DO use the original packing materials before transporting it again.
DO NOT look directly at the light while the LED is on.
DO NOT start on the unit without LED enclosure or when housing is damaged.
Installation:
The fixture should be mounted via its Omega Quick Release Clamp bracket. Always ensure that the
unit is firmly fixed to avoid vibration and slipping while operating and make sure that the structure
to which you are attaching the unit is secure and is able to support a weight of 10 times of the
fixtures weight. Always use a safety cable that can hold 12 times of the weight of the fixture when
installing.
The equipment must be installed by professionals. It must be installed in a place where is out of the
reach of people and no one can pass by or under it.
3D

2. Technical Specifications
Power Voltage:
AC 100~240V, 50/60Hz
Power Consumption:
130W
Light Source:
10x15W RGBW LED
Beam Angle:
10°
Dimmer/Shutter:
0~100% smooth dimming, adjustable electronic strobe effect
Control:
DMX Channel: 4/5/7/4 0 Channels
Control Mode: DMX512
Firmware Upgrade: Update via DMX link
Construction:
Display: LED display
Data In/Out: 3-pin waterproof connector
Power In/Out: Power cord out
Protection Rating: IP65
Features:
Efficient LED lens, uniform color mixing, which makes the light effect better
LEDs can be controlled pixel by pixel
Equal distance design, horizontal stitching can achieve dynamic water effects, vertical stitching can
achieve matrix effect
IP65 design is suitable for fixed installation or mobile performance
Moreover, the fixture can be adjusted to 180° backward and forward by double mounting brackets
Adding the atomized paper, the full angle can reach 60 °, it can expand the effective wash range
(optional)
4D

Extra installation of the barn door can prevent glare and stray light effectively (optional)
Dimensions/Weight:
953x104x112mm, 10.6kgs
37.5"x4.1"x4.4"in, 23.4lbs
112 mm
104 mm
Photometrics Diagram:
3. How To Set The Unit
3.1 Control Panel
1. DMX IN:
Water proof connectors for DMX512 operation, use 3-pin XLR cable to input DMX signal
2. POWER IN: Water proof connectors for power input
5D

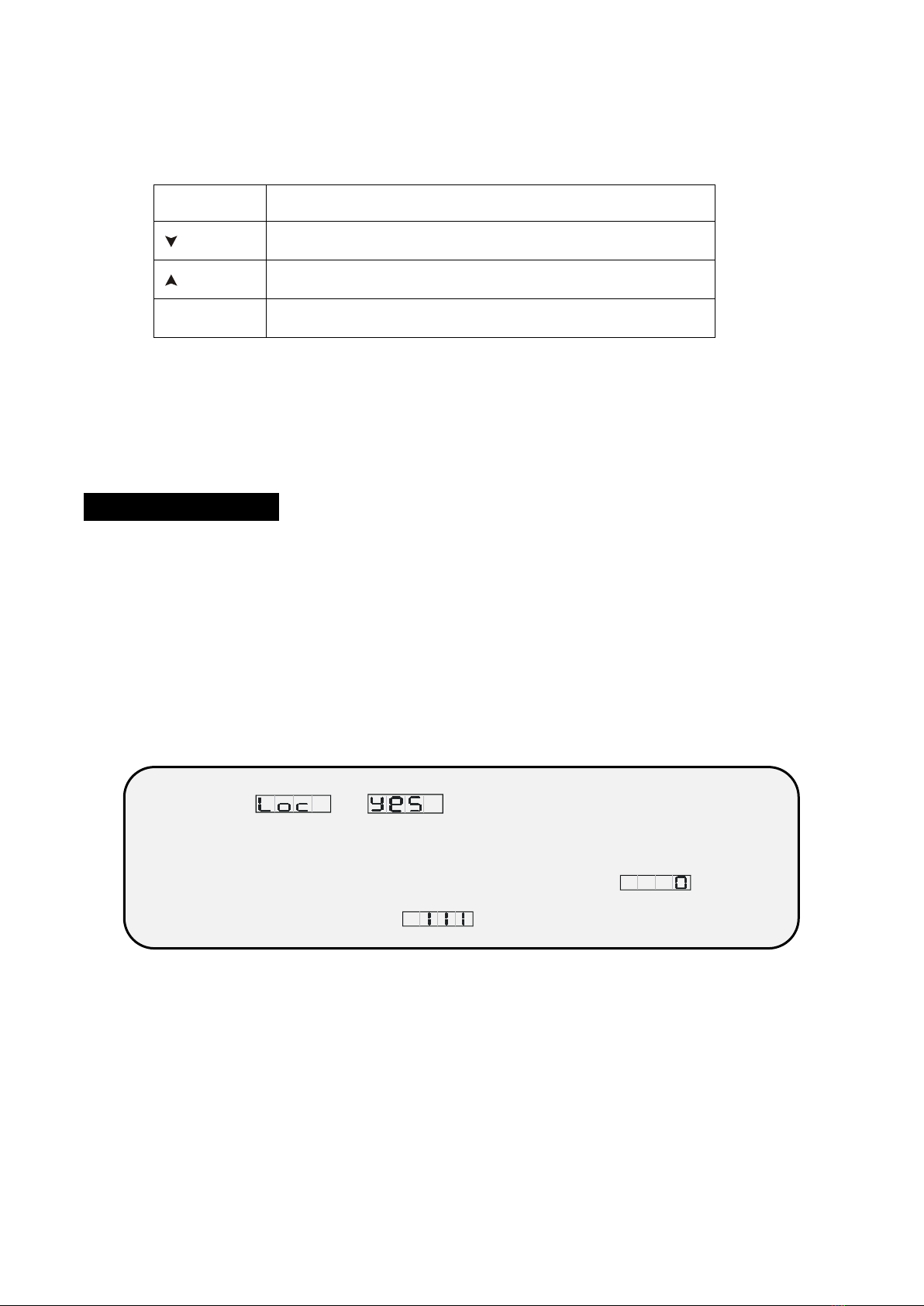

3. Function Display: To show the various menus and the selected functions
4. Button:
MENU To select the programming functions
DOWN To go forward in the selected functions
UP To go backward in the selected functions
ENTER To confirm the selected functions
5. POWER OUT: Water proof connectors for power output
6. DMX OUT:
Water proof connectors for DMX512 operation, use 3-pin XLR cable to output DMX signal
3.2 Main Functions
To select any functions, press the MENU button until the required one is shown on the display.
Select the function by the ENTER button and the display will blink. Use the DOWN/UP button to
change the mode. Once the required mode has been selected, press the ENTER button to setup or it
will automatically return to the main functions without any change after idling 7 seconds. Back to
the functions without any change press the MENU button.

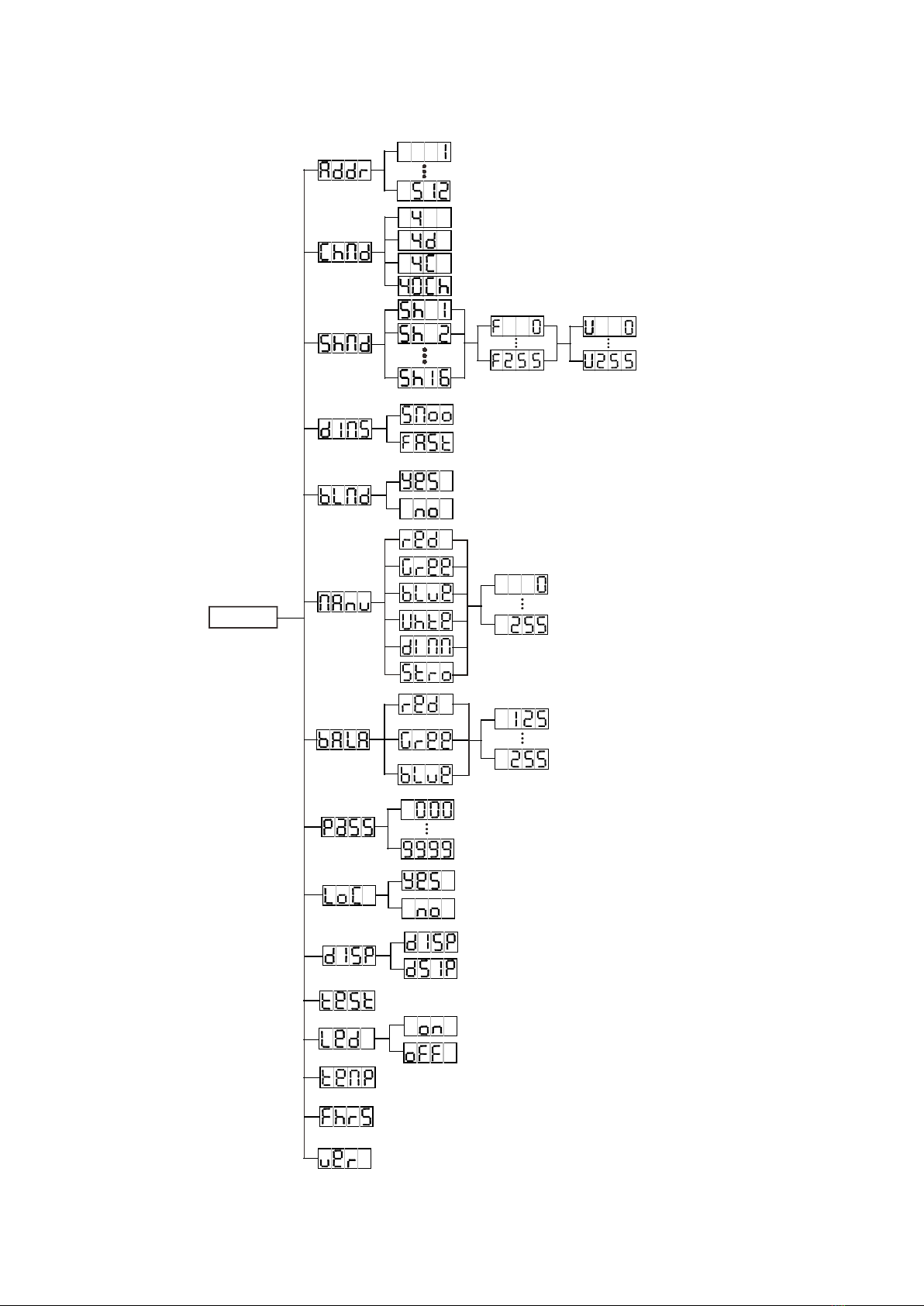

The main functions are shown below:
Once you set to , after running in show mode for 5 minutes
without any change or restarting the unit, the key board become locked. Press the
ENTER button to enable the menu, the display will show , press the
UP/DOWN button until it shows , then press the ENTER to unlock.
6D

MENU
DMXADDRESS
CHANNEL MODE
SHOW MODE
BLACKOUT MODE
MANUAL TEST
WHITE BALANCE
PASSWORD
LOCK
DISPLAY INVERSION
NORMAL
AUTO TEST
LED DISPLAY
FIXTURE TEMPERATURE
FIXTURE USE HOURS
FIRMWARE VERSION
DIMMER SPEED
7D

DMX ADDRESS
To select , press the ENTER button to show DMX ADDRESS on the display. Use the DOWN/UP
buttons to adjust the address from 1 to 512. Once the address has been selected, press the ENTER
button to setup. To go back to the functions without any changes press the MENU button again.
Press and hold the MENU button for about one second or wait for 7 seconds to exit the menu
mode.
CHANNEL MODE
To select , press the ENTER button to show CHANNEL MODE on the display. Use the
DOWN/UP button to select 4, 4D, 4C or 40 channel modes. Once the mode has been selected, press
the ENTER button to setup. To go back to the functions without any changes press the MENU
button again. Press and hold the MENU button for about one second or wait for 7 seconds to exit
the menu mode.
SHOW MODE
To select , press the ENTER button to show SHOW MODE on the display. Use the DOWN/UP
buttons to select (show 1) or … (show 16), and then press the ENTER button to
confirm, the (fade time) will blink on the display, use the DOWN/UP button to adjust the
fade time (0-255); and press the ENTER button again, the will blink to display, use the
DOWN/UP button to adjust the wait time (0-255). Press and hold the MENU button for about one
second or wait for 7 seconds to exit the menu mode.
DIMMER SPEED
To select , press the ENTER button to show DIMMER SPEED on the display. Use the
DOWN/UP button to select (smooth) or (fast). Once the mode has been selected,
press the ENTER button to setup. To go back to the functions without any changes press the MENU
button again. Press and hold the MENU button for about one second or wait for 7 seconds to exit
8D

the menu mode.
BLACKOUT MODE
To select , press the ENTER button to show BLACKOUT MODE on the display. Use the
DOWN/UP buttons to select (blackout) or (normal) mode. Once the mode has
been selected, press the ENTER button to setup. To go back to the functions without any changes
press the MENU button again. Press and hold the MENU button for about one second or wait for 7
seconds to exit the current mode.
MANUAL TEST
To select , press the ENTER button to show MANUAL TEST on the display. Use the DOWN/UP
button to select (red), (green), (blue), (white), (dimmer) or
(strobe) on the display. Once the mode has been selected, press the ENTER button to
confirm. Use the DOWN/UP buttons to specify a value for the chosen effect from 0to 255. To go
back to the functions without any changes press the MENU button again. Press and hold the MENU
button for about one second or wait for 7 seconds to exit the menu mode.
WHITE BALANCE
To select , press the ENTER button to show WHITE BALANCE on the display. Use the
DOWN/UP button to select (red), (green) or (blue). Once selected, press the
ENTER button to confirm .Use the DOWN /UP buttons to change its value (125 to 255). Once the
address has been selected, press the ENTER button to setup. To go back to the functions without
any changes press the MENU button again. Press and hold the MENU button for about one second
or wait for 7 seconds to exit the menu mode.
9D

PASSWORD
To select , press the ENTER button to show PASSWORD on the display. Use the DOWN/UP
buttons to change the password (000 to 9999). Once the address has been selected, press the
ENTER button to setup. To go back to the functions without any changes press the MENU button
again. Press and hold the MENU button for about one second or wait for 7 seconds to exit the menu
mode.
LOCK
To select , press the ENTER button to show LOCK on the display. Use the DOWN/UP buttons
to select (blackout) or (normal) mode. Once the mode has been selected, press
the ENTER button to setup. To go back to the functions without any changes press the MENU
button again. Press and hold the MENU button for about one second or wait for 7 seconds to exit
the current mode.
DISPLAY INVERSE
To select , press the ENTER button to show DISPLAY INVERSE on the display. Use the
DOWN/UP buttons to select (normal) or (inversion) mode. Once the mode has
been selected, press the ENTER button to setup. To go back to the functions without any changes
press the MENU button again. Press and hold the MENU button for about one second or wait for 7
seconds to exit the current mode.
AUTO TEST
To select , press the ENTER button to show AUTO TEST on the display and the unit will run a
self-test . To go back to the functions without any changes press the MENU button again. Press and
hold the MENU button for about one second or wait for 7 seconds to exit the current mode.
10D

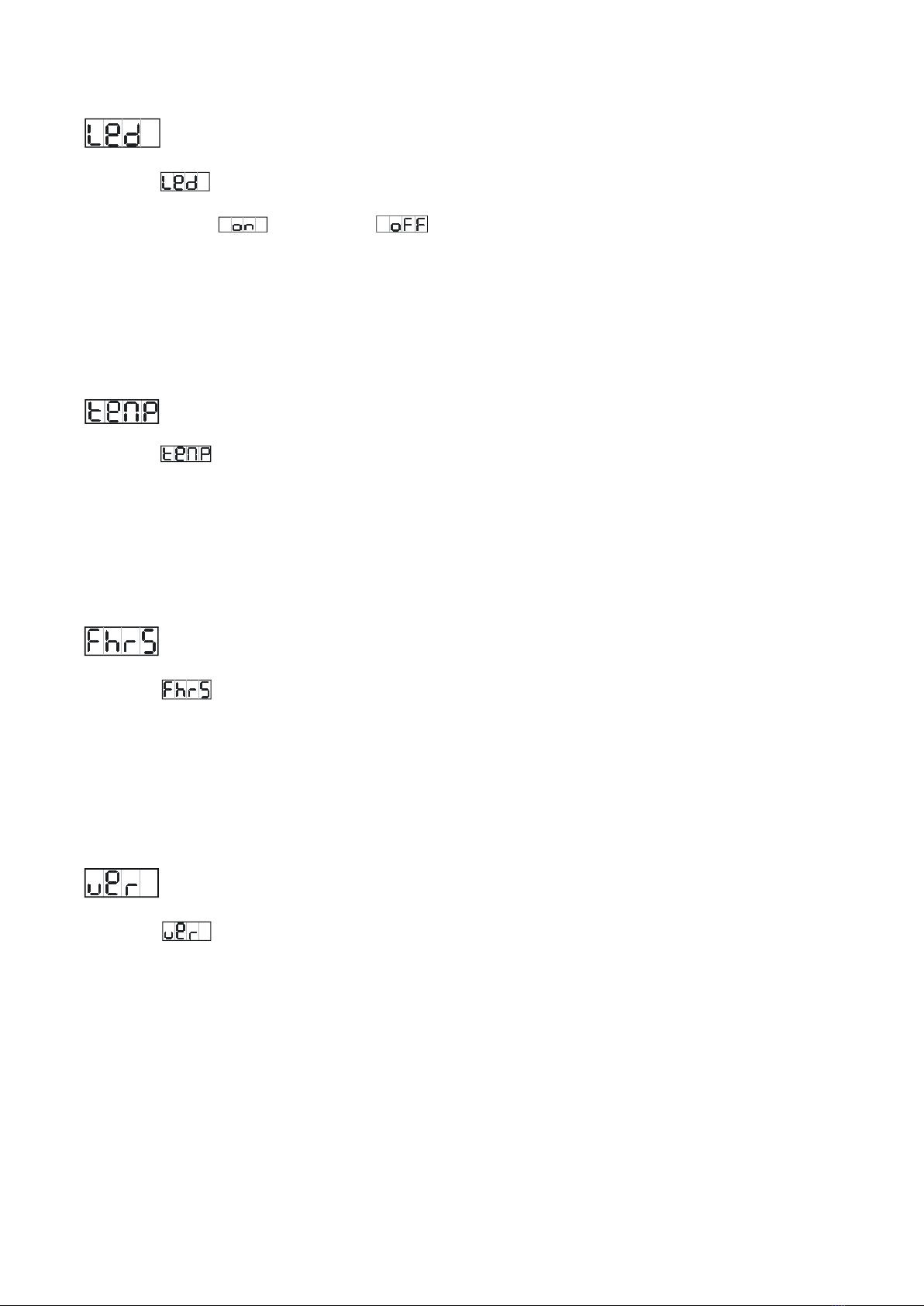

LED DISPLAY
To select , press the ENTER button to show LED DISPLAY on the display. Use the DOWN/UP
button to select (LED on) or (LED off) mode. Once the mode has been selected,
press the ENTER buttons to setup. To go back to the functions without any changes press the MENU
button again. Press and hold the MENU button for about one second or wait for 7 seconds to exit
the current mode.
FIXTURE TEMPERATURE
To select , press the ENTER button to show the FIXTURE TEMPERATURE on the display and
the display will show the temperature of the unit. To go back to the functions without any changes
press the MENU button again. Press and hold the MENU button for about one second or wait for 7
seconds to exit the menu mode.
FIXTURE USE HOURS
To select , press the ENTER button to show FIXTURE USE HOURS on the display and the
display will show the number of working hours of the unit . To go back to the functions without any
changes press the MENU button again. Press and hold the MENU button for about one second or
wait for 7 seconds to exit the current mode.
FIRMWARE VERSION
To select , press the ENTER button to show FIRMWARE VERSION on the display and the
display will show the version of software of the unit . To go back to the functions without any
changes press the MENU button again. Press and hold the MENU button for about one second or
wait for 7 seconds to exit the current mode.
11D

4. Control By Universal DMX Controller
4.1 DMX512 Connections
1. At last unit, the DMX cable has to be terminated with a terminator. Solder a 120-o h m 1/4 W
resistor between pin 2(DMX-) and pin 3(DMX+) into a 3-pin XLR-plug and plug it in the DMX-output
of the last unit.
2. Connect the unit together in a “daisy chain” by XLR plug cable from the output of the unit to
the input of the next unit. The cable cannot be branched or split to a “Y” cable. DMX 512 is a very
high-speed signal. Inadequate or damaged cables, soldered joints or corroded connectors can easily
distort the signal and shut down the system.
3. The DMX output and input connectors are pass-through to maintain the DMX circuit, when one
of the units’ power is disconnected.
4. Each lighting unit needs to have a DMX address to receive the data by the controller. The
address number is between 1-512.
5. The end of the DMX 512 system should be terminated to reduce signal errors.
6. 3 pin XLR connectors are more popular than 5 pins XLR.
3 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+)
5 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+), Pin4, Pin5 not used.
12D

4.2 Address Setting
Use universal DMX controller to control the units, you have to set DMX address from 1 to 512
channels so that the units can receive DMX signal.
Press the MENU button, and the will blink on the display. Use the DOWN/UP button to
change the DMX512 address. Once the address has been selected, press and keep ENTER button
pressed up to when the display stops blinking or storing automatically 7 seconds later. To go back to
the functions without any change press the MENU button again.
Please refer to the following diagram to address your DMX512 channel for the first 4 units.
4.3 DMX512 Configurations
Please refer to below configurations to control the fixtures
Attentions:
1. The unit will maintain the last condition until reset if you cut-off the DMX signal.
2. For the channel Function, keep the value for about 3 seconds, then the corresponding function
will take into effect.
4 Channels Mode:
CHANNEL VALUE FUNCTION
1
000-255
RED
0%

100%
2
000-255
GREEN
0%

100%
3
000-255
BLUE
0%

100%
4
000-255
WHITE
0%

100%
13D

5 Channels Mode: 4D
CHANNEL VALUE FUNCTION
1
000-255
RED
0%

100%
2
000-255
GREEN
0%

100%
3
000-255
BLUE
0%

100%
4
000-255
WHITE
0%

100%
5
000-255
DIMMER
0%

100%
7 Channels Mode: 4C
CHANNEL VALUE FUNCTION
1
000-255
RED
0%

100%
2
000-255
GREEN
0%

100%
3
000-255
BLUE
0%

100%
4
000-255
WHITE
0%

100%
5
000-007
008-015
016-023
024-030
031-038
039-046
047-054
055-061
062-069
070-077
078-085
086-092
093-100
101-108
109-116
COLOR
OFF
Color 1
Color 2
Color 3
Color 4
Color 5
Color 6
Color 7
Color 8
Color 9
Color 10
Color 11
Color 12
Color 13
Color 14
14D

117-123
124-131
132-140
140-147
148-154
155-162
163-170
171-178
179-185
186-193
195-201
202-209
210-216
217-224
225-232
233-240
241-247
248-255
Color 15
Color 16
Color 17
Color 18
Color 19
Color 20
Color 21
Color 22
Color 23
Color 24
Color 25
Color 26
Color 27
Color 28
Color 29
Color 30
Color 31
Color 32
6
000-255
DIMMER
0%

100%
7
000-007
008-015
016-131
132-139
140-181
182-189
190-231
232-239
240-247
248-255
STROBE
OFF
Open
Strobe, slow to fast
Open
Slow open, fast close
Open
Slow close, fast open
Open
Random strobe
Open
15D

40 Channels Mode:
CHANNEL VALUE FUNCTION
1
000-255
RED1
0%

100%
2
000-255
GREEN1
0%

100%
3
000-255
BLUE1
0%

100%
4
000-255
WHITE1
0%

100%
5
000-255
RED2
0%

100%
6
000-255
GREEN2
0%

100%
7
000-255
BLUE2
0%

100%
8
000-255
WHITE2
0%

100%
… … …
37
000-255
RED10
0%

100%
38
000-255
GREEN10
0%

100%
39
000-255
BLUE10
0%

100%
40
000-255
WHITE10
0%

100%
16D

5. Troubleshooting
Following are a few common problems that may occur during operation. Here are some suggestions
for easy troubleshooting:
A. The unit does not work, no light and the fan does not work
1. Check the connection of po we r.
2. Measure the mains voltage on the main connector.
3. Check the power on LED.
B. Not responding to DMX controller
1. Check DMX connectors and cables to see if link properly.
2. Check the address settings and DMX polarity.
3. If you have intermittent DMX signal problems, check the pins on connectors or on PCB of the
unit or the previous one.
4. Try to use another DMX controller.
5. Check if the DMX cables run near or run alongside to high voltage cables that may cause
damage or interference to DMX interface circuit.
C. One of the channels is not working well
1. The stepper motor might be damaged or the cable connected to the PCB is broken.
2. The motor’s drive IC on the PCB might be out of condition.
6. Fixture Cleaning
The cleaning must be carried out periodically to optimize light output. Cleaning frequency depends
on the environment in which the fixture operates: damp, smoky or particularly dirty surrounding
can cause greater accumulation of dirt on the unit’s optics.
Clean with soft cloth using normal glass cleaning fluid.
Always dry the parts carefully.
Clean the external optics at least every 20 days. Clean the internal optics at least every 30 days.
17D

Declaration of Conformity
We declare that our products (lighting equipments) comply with the
following specification and bears CE mark in accordance with the provision
of the Electromagnetic Compatibility (EMC) Directive 2014/30/EU.
EN 55032: 2015; EN61000-3-2: 2014;
EN 61000-3-3: 2013; EN 55103-2: 2009.
&
Harmonized Standard
EN 60598-1: 2015; EN 60598-2-17: 1989+A2:1991;
EN 62493: 2015.
Safety of household and similar electrical appliances
Part 1: General requirements
18D

Innovation, Quality, Performance
