AGCO RoGator RG900/
1100/1300 Hawkeye®
Installation Manual
P/N 016-0171-588 Rev. E 11/19 E28863

016-0171-686 Rev. A 8/18 E31924
We Solve Great Challenges.
DISCLAIMER
While every effort has been made to ensure the accuracy of this document, Raven Industries assumes no
responsibility for omissions and errors. Nor is any liability assumed for damages resulting from the use of
information contained herein.
Raven Industries shall not be responsible or liable for incidental or consequential damages or a loss of anticipated
benefits or profits, work stoppage or loss, or impairment of data arising out of the use, or inability to use, this
system or any of its components. Raven Industries shall not be held responsible for any modifications or repairs
made outside our facilities, nor damages resulting from inadequate maintenance of this system.
As with all wireless and satellite signals, several factors may affect the availability and accuracy of wireless and
satellite navigation and correction services (e.g. GPS, GNSS, SBAS, etc.). Therefore, Raven Industries cannot
guarantee the accuracy, integrity, continuity, or availability of these services and cannot guarantee the ability to
use Raven systems, or products used as components of systems, which rely upon the reception of these signals or
availability of these services. Raven Industries accepts no responsibility for the use of any of these signals or
services for other than the stated purpose.

Table of Contents
P/N 016-0171-588 Rev. E i
Chapter 1 Important Information.......................................................................................... 1
Safety ...............................................................................................................................................................................1
Agricultural Chemical Safety ..............................................................................................................................................1
Electrical safety ........................................................................................................................................................................2
Recommendations and Best Practices ................................................................................................................3
Hose Routing ...........................................................................................................................................................................3
Wire Routing ............................................................................................................................................................................3
Chapter 2 Introduction............................................................................................................. 5
Overview of the Installation Process ....................................................................................................................5
Required Components .........................................................................................................................................................6
Tools and Materials Needed ..............................................................................................................................................6
Point of Reference ..................................................................................................................................................................6

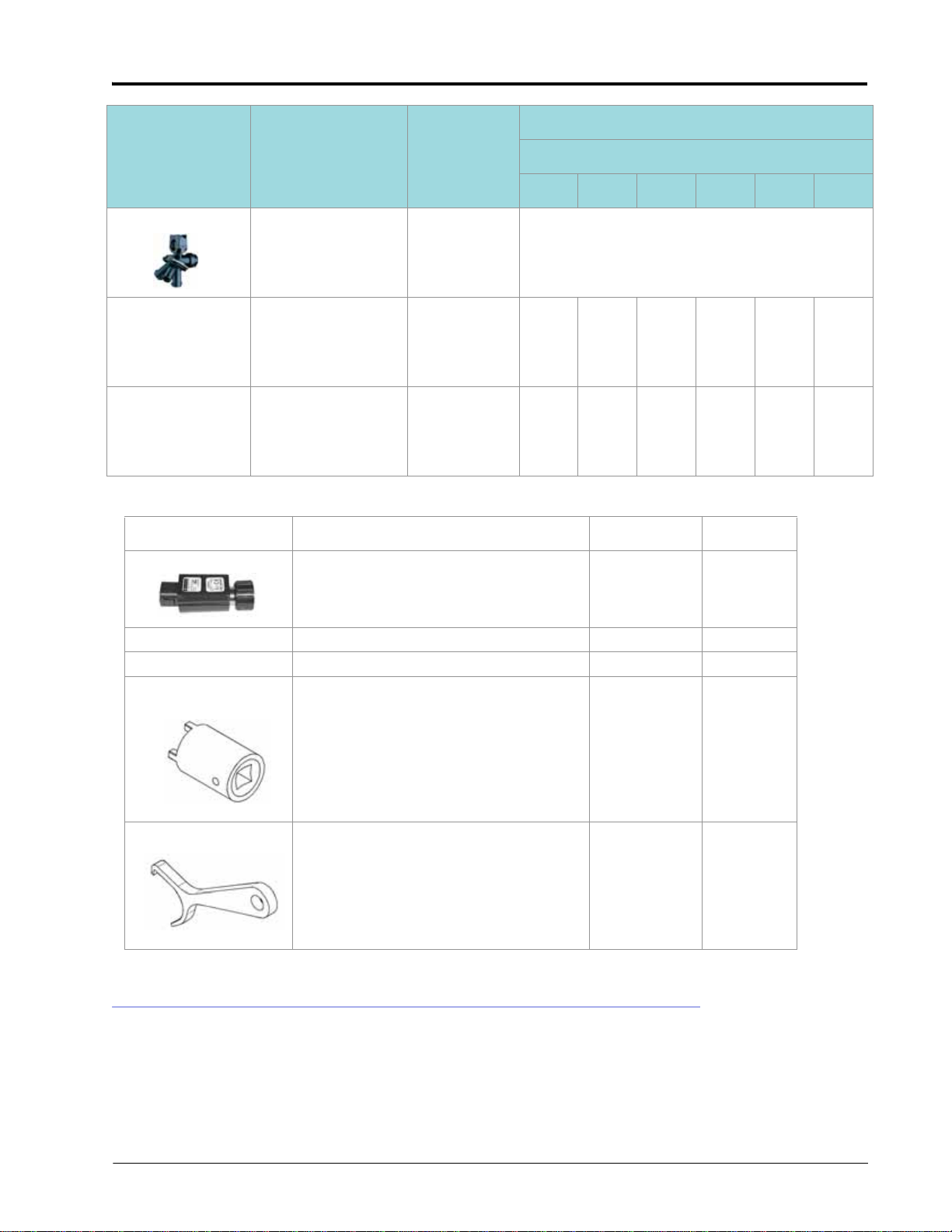

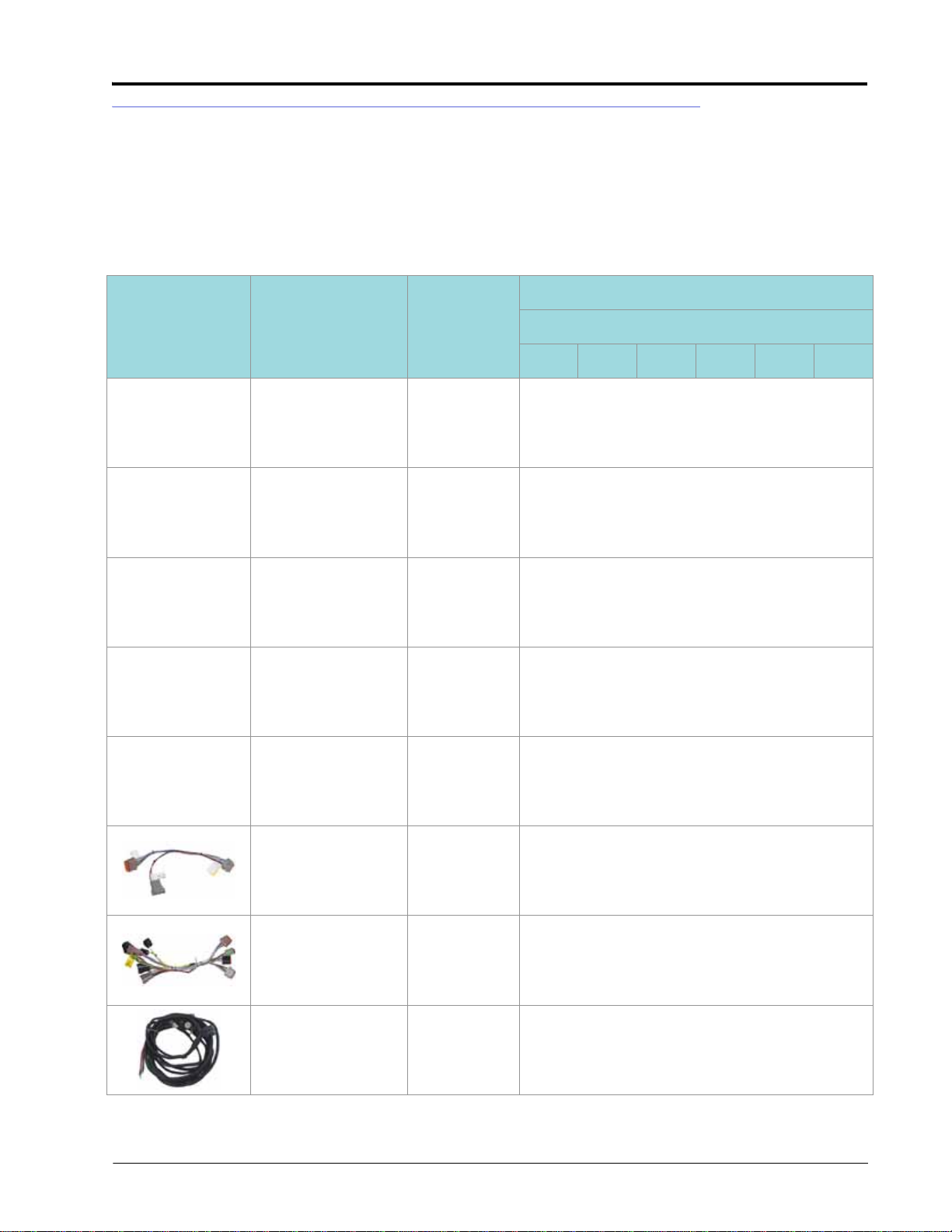

Kit Contents ...................................................................................................................................................................7
Updates ...........................................................................................................................................................................9
Chapter 3 Installation Preparation ...................................................................................... 11
Chapter 4 Nozzle Control Valve Installation..................................................................... 13

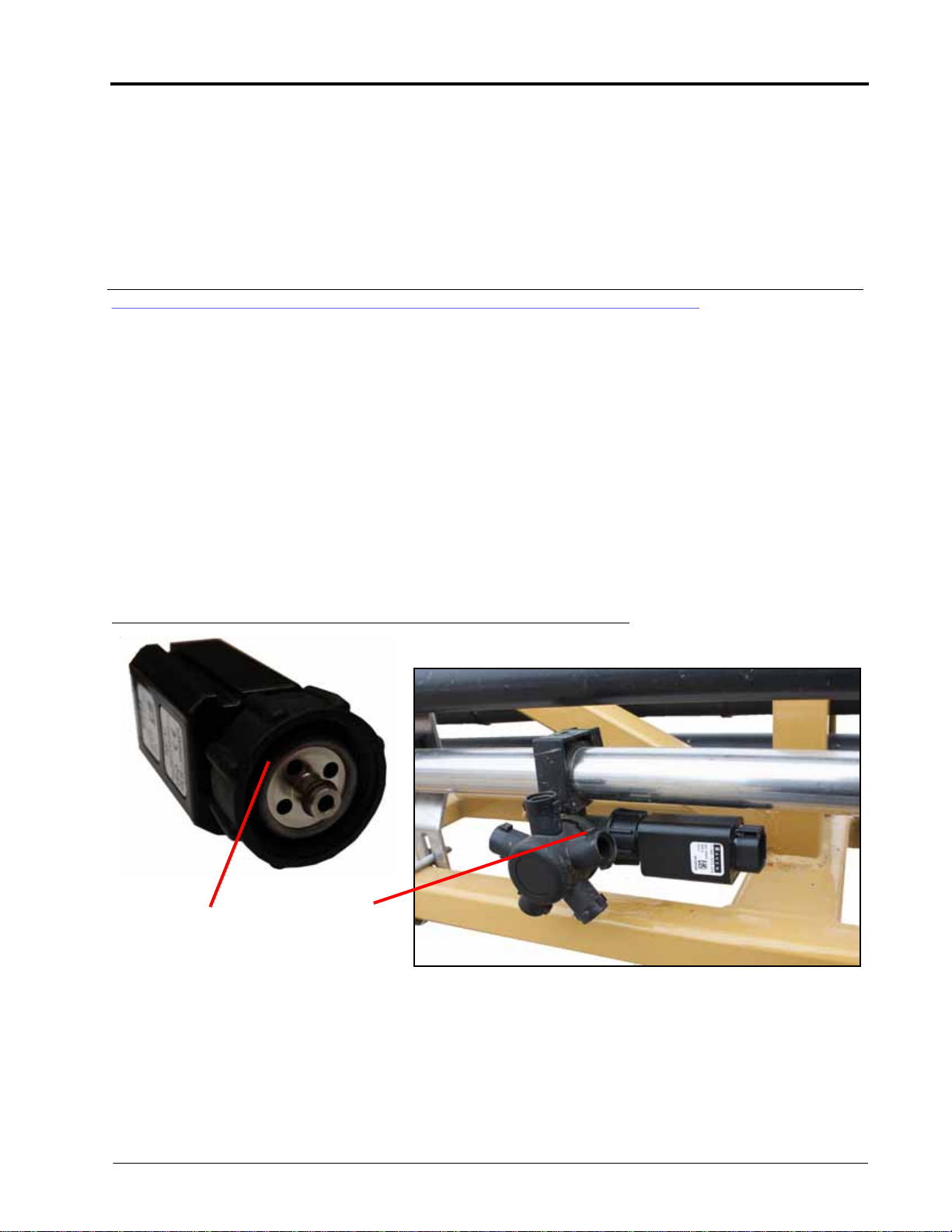

Hawkeye Nozzle Control Valve Installation ....................................................................................................13
Best Practices and Recommendations .........................................................................................................................13

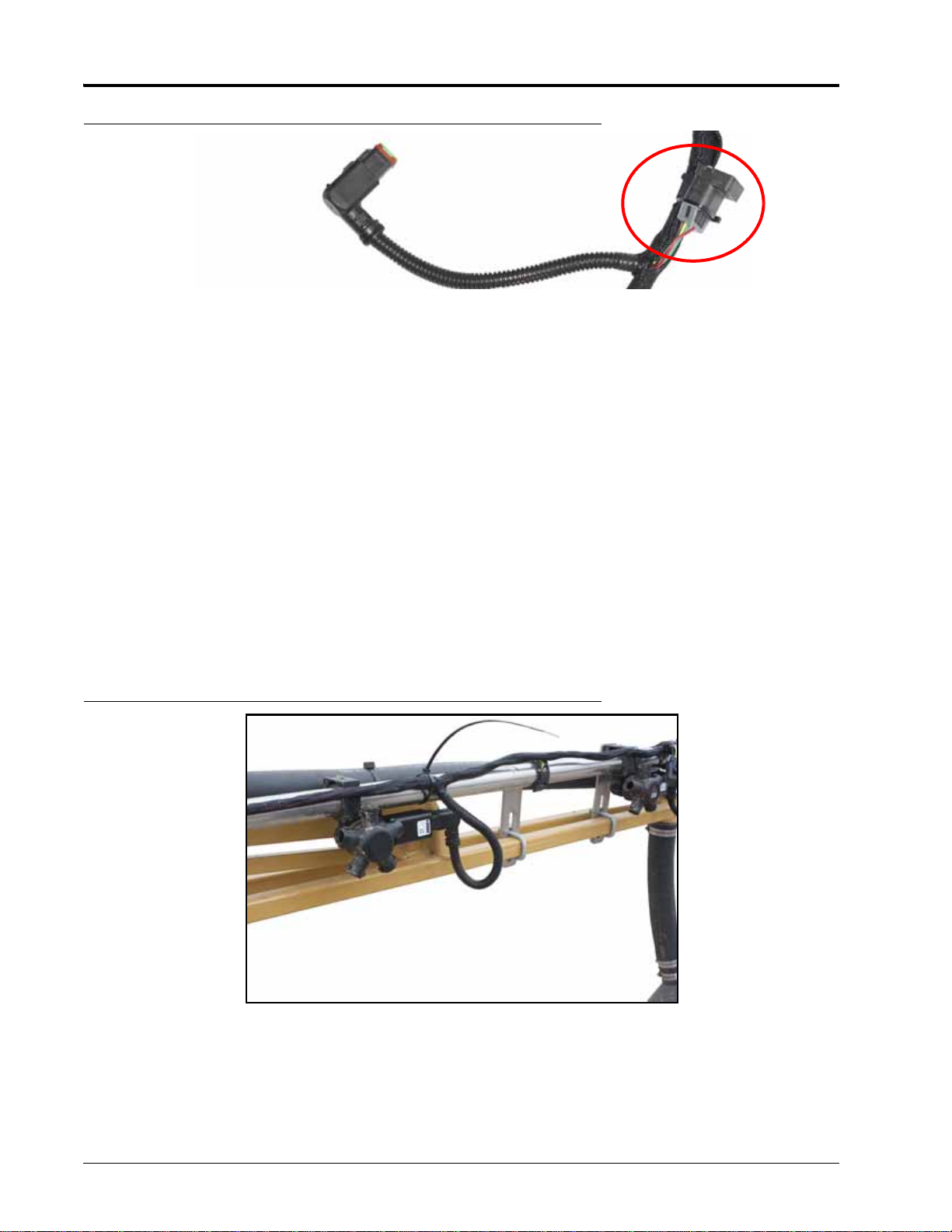

Boom Cable Routing and Connection ..............................................................................................................15
Best Practices and Recommendations .........................................................................................................................15
Secondary Boom Cable Routing and Connections .................................................................................................15
Primary Boom Cable Routing and Connections .......................................................................................................17
Chapter 5 ISOBUS ECU Mounting and Connection......................................................... 19
Product Controller II ECU Installation ...............................................................................................................19
Best Practices and Recommendations .........................................................................................................................19
Electrical Box Preparation .................................................................................................................................................19
Mounting Plate Preparation and ECU Installation ...................................................................................................21
ECU Electrical Connections ...............................................................................................................................................22
Chapter 6 Chassis Cable Installation................................................................................... 29
Chassis Cable Routing and Connection ...........................................................................................................29
Best Practices and Recommendations .........................................................................................................................29
Electrical Box Connection ..................................................................................................................................................29
Center Rack Routing and Boom Cable Connections ..............................................................................................29
Battery Compartment and Connections ......................................................................................................................30
System Diagram ........................................................................................................................................................32
Appendix A Cable and Connector Maintenance ................................................................. 35
Power and ECU Harness Maintenance .............................................................................................................35
Hawkeye Boom Harness Connector Maintenance ......................................................................................35

Table of Contents
ii AGCO RoGator RG900/1100/1300 Hawkeye® Installation Manual
Appendix B Connecting Virtual Terminal to ISOBUS......................................................... 39
Viper 4 ISOBUS Adapter Cable ............................................................................................................................39
Appendix C Connecting Sidekick PRO ICD Direct Injection Pumps to ISOBUS.......... 41
Connecting Sidekick PRO ICD Direct Injection Pumps to the ISOBUS for Rev C and Earlier 115-
7303-085 Cables ........................................................................................................................................................41

CHAPTER
1
Important Information: 1
CHAPTER 1 IMPORTANT INFORMATION
SAFETY
Follow the operation and safety instructions included with the implement and/or controller and read this manual
carefully before installing or operating this Raven system.
• Follow all safety information presented within this manual. Review implement operation with your local dealer.
• Contact a local Raven dealer for assistance with any portion of the installation, service, or operation of Raven
equipment.
• Follow all safety labels affixed to system components. Be sure to keep safety labels in good condition and
replace any missing or damaged labels. Contact a local Raven dealer to obtain replacements for safety labels.
Observe the following safety measures when operating the implement after installing this Raven system:
• Do not operate this Raven system or any agricultural equipment while under the influence of alcohol or an
illegal substance.
• Be alert and aware of surroundings and remain in the operator’s seat at all times when operating this Raven
system. •Do not operate the implement on any public road with this Raven system enabled.
•Disable this Raven system before exiting the operator’s seat.
•Determine and remain a safe working distance from obstacles and bystanders. The operator is
responsible for disabling the system when a safe working distance has diminished.
•Disable this Raven system prior to starting any maintenance work on the implement or components
of this Raven system.
• Do not attempt to modify or lengthen any of the system control cables. Extension cables are available from a
local Raven dealer.
AGRICULTURAL CHEMICAL SAFETY
Follow all federal, state, and local regulations regarding the handling, use, and disposal of agricultural chemicals,
products, and containers. Triple-rinse and puncture or crush empty containers before properly disposing of them.
Contact a local environmental agency or recycling center for additional information.
• Always follow safety labels and instructions provided by the chemical manufacturer or supplier.
NOTICE
WARNING

CHAPTER 1
2 AGCO RoGator RG900/1100/1300 Hawkeye® Installation Manual
• Always wear appropriate personal protective equipment as recommended by the chemical and/or equipment
manufacturer.
• When storing unused agricultural chemicals:
•Store agricultural chemicals in the original container and do not transfer chemicals to unmarked
containers or containers used for food or drink.
•Store chemicals in a secure, locked area away from human and livestock food.
•Keep children away from chemical storage areas.
• Fill, flush, calibrate, and decontaminate chemical application systems in an area where runoff will not reach
ponds, lakes, streams, livestock areas, gardens, or populated areas.
• Follow all label instructions for chemical mixing, handling, and disposal.
• Avoid direct contact with agricultural chemicals or inhaling chemical dust or spray particulate. Seek immediate
medical attention if symptoms of illness occur during, or soon after, use of agricultural chemicals or products.
• After handling or applying agricultural chemicals:
•Thoroughly wash hands and face after using agricultural chemicals and before eating, drinking, or
using the restroom.
•Thoroughly flush or rinse equipment used to mix, transfer, or apply chemicals with water after use
or before servicing any component of the application system.
ELECTRICAL SAFETY
• Always verify that power leads are connected to the correct polarity as marked. Reversing the power leads
could cause severe damage to the Raven system or other components.
• To prevent personal injury or fire, replace defective or blown fuses with only fuses of the same type and
amperage.
• Do not connect the power leads to the battery until all system components are mounted and all electrical
connections are completed.
• Always start the machine before initializing this Raven system to prevent power surges or peak voltage.
• To avoid tripping and entanglement hazards, route cables and harnesses away from walkways, steps, grab bars,
and other areas used by the operator or service personnel when operating or servicing the equipment.
CAUTION

Important Information: 3
IMPORTANT INFORMATION
RECOMMENDATIONS AND BEST PRACTICES
HOSE ROUTING
The word “hose” is used to describe any flexible, fluid carrying components. Use the following guidelines and
recommendations when connecting and routing hoses while installing or maintaining this Raven system:
• Leave protective caps/covers over hose ends until connecting the end into the hydraulic system to help
prevent contaminants from entering the system.
• Follow existing hose runs already routed on the implement as much as possible. Proper hose routing should:
•Secure hoses and prevent hoses from hanging below the implement.
•Provide sufficient clearance from moving components and operational zones around shafts;
universal joints and suspension components; pulleys, gears, belts, and chains; moving linkages,
cylinders, articulation joints, etc.
•Protect hoses from field debris and surrounding hazards (e.g. tree limbs, fence posts, crop stubble,
dirt clumps or rocks that may fall or be thrown by the implement).
•Protect hoses from sharp bends, twisting, or flexing over short distances and normal implement
operation.
•Ensure sufficient length for free movement of the implement during normal operation and prevent
pulling, pinching, catching, or rubbing, especially in articulation and pivot points. Clamp hoses
securely to force controlled movement of the hose.
•Avoid abrasive surfaces and sharp edges such as sheared or flame cut corners, fastener threads or
cap screw heads, hose clamp ends, etc.
•Avoid areas where the operator or service personnel might step or use as a grab bar.
• Do not connect, affix, or allow hoses to come into contact with components with high vibration forces, hot
surfaces, or components carrying hot fluids beyond the temperature rating of hose components.
•Hoses should be protected or shielded if routing requires the hose to be exposed to conditions
beyond hose component specifications.
• Avoid routing hoses in areas where damage may occur due to build up of material (e.g. dirt, mud, snow, ice,
etc.).
WIRE ROUTING
The word “harness” is used to describe any electrical cables and leads, both bundled and unbundled. Use the
following guidelines and recommendations when connecting and routing harnesses while installing or
maintaining this Raven system:
• Leave protective caps/covers over harness connectors until needed to avoid dirt and moisture from
contaminating electrical circuits.
• Secure the harness to the frame or solid structural members at least every 12 in [30 cm].
• Follow existing harness runs already routed on the implement as much as possible. Proper harness routing
should: •Secure harnessing and prevent the harness from hanging below the implement.
•Provide sufficient clearance from moving components and operational zones around shafts;
universal joints and suspension components; pulleys, gears, belts, and chains; moving linkages,
cylinders, articulation joints, etc.
•Protect harnessing from field debris and surrounding hazards (e.g. tree limbs, fence posts, crop
stubble, dirt clumps or rocks that may fall or be thrown by the implement).

CHAPTER 1
4 AGCO RoGator RG900/1100/1300 Hawkeye® Installation Manual
•Protect harnessing from sharp bends, twisting, or flexing over short distances and normal
implement operation.
•Connectors and splices should not be located at bending points or in harness sections that move.
•Ensure sufficient length for free movement of the implement during normal operation and prevent
pulling, pinching, catching, or rubbing, especially in articulation and pivot points. Clamp harnessing
securely to force controlled movement of the harness.
•Avoid abrasive surfaces and sharp edges such as sheared or flame cut corners, fastener threads or
cap screw heads, hose clamp ends, etc.
• Do not connect, affix, or allow harnessing to come into contact with components with high vibration forces, hot
surfaces, or components carrying hot fluids beyond the temperature rating of harness components.
•Harnessing should be protected or shielded if routing requires the hose to be exposed to
conditions beyond harnessing component specifications.
• Avoid routing harnesses in areas where damage may occur due to build up of material (e.g. dirt, mud, snow,
ice, etc.).
• Avoid routing harnesses in areas where the operator or service personnel might step or use as a grab bar.
IMPORTANT: Avoid applying direct spray or pressure washing of electrical components and connections. High pressure
streams and sprays can penetrate seals, cause corrosion, or otherwise damage electrical components.
When performing maintenance:
• Inspect electrical components and connectors for corrosion, damaged pins or housings, etc. Repair or replace
components or harnessing as necessary.
• Ensure connectors are kept clean and dry. Apply dielectric grease to the sealing surfaces of all connections
exposed to moisture, dirt, debris, and other contaminates. Repair or replace harnessing as necessary.
• Clean electrical components with pressurized air, aerosol electrical cleaning agent, or low pressure rinse.
• Remove visible surface water from electrical components and connections using pressurized air or an aerosol
cleaning agent. Allow components to dry thoroughly before reconnecting cables.

CHAPTER
2
P/N 016-0171-588 Rev. E 5
CHAPTER 2 INTRODUCTION
Hawkeye® nozzle control is a pressure based product control system designed for precise sprayer application in a
variety of conditions. Pressure based application control provides accurate control of droplet size which reduces
spray drift during field operations.
Hawkeye is compatible with the ISOBUS communication platform which allows the system to work with most ISO
Virtual Terminals (VTs) and Task Controllers on the market. This manual is intended to provide installation
instructions on the following equipment:
TABLE 1. AGCO RoGator Make and Model Information

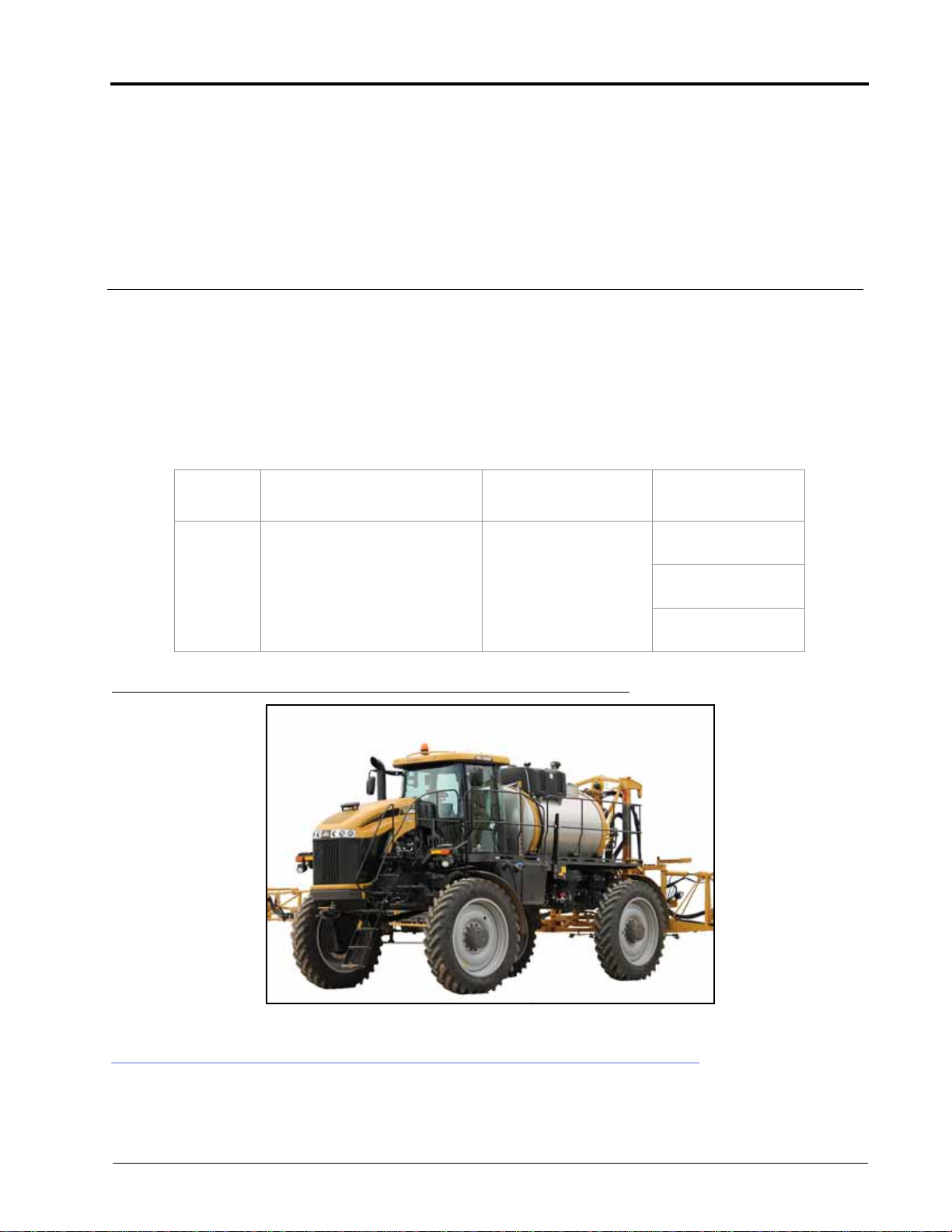

FIGURE 1. RoGator 1300B
OVERVIEW OF THE INSTALLATION PROCESS
The recommended process for installing the Hawkeye nozzle control system is as follows:
Make Model Model Years Boom
Configuration
AGCO RoGator 900, 1100, and 1300 2012 through 2017
120’ Boom
20” and 15” Spacing
100’ Boom
20” and 15” Spacing
90’ Boom
20” and 15” Spacing

CHAPTER 2
6 AGCO RoGator RG900/1100/1300 Hawkeye® Installation Manual
1. Check Hawkeye kit contents. See the Kit Contents section on page 7.
2. Replace existing strainer with an 80 mesh (or finer) strainer for use with the Hawkeye nozzle control system.
See the Hawkeye Installation Preparation section on page 7.
3. Remove spray tips and flush each section individually for a minimum of 20 seconds to thoroughly flush the
boom.
4. Mount Hawkeye nozzle control valves. See the Hawkeye Nozzle Control Valve Installation section on page 8.
5. Route and connect the secondary and primary boom cables. See the Boom Cable Routing and Connection
section on page 10.
6. Mount the Hawkeye product controller II ECU. See the Product Controller II ECU Installation section on page 13.
7. Route and connect chassis cable. See the Chassis Cable Routing and Connection section on page 19.
REQUIRED COMPONENTS
The following components must be installed with the Hawkeye nozzle control system:
• Updated software on field computers or control monitors. Contact your local RoGator dealer for the latest
version of C1000 software.
• PWM pump control valve
• Raven compatible flow meter
• Raven compatible pressure transducer
• 80 mesh (or finer) strainer
NOTE: Do not use air induction tips with the Hawkeye nozzle control system. A fan or cone style spray tip is
required for the Hawkeye system to operate properly.
TOOLS AND MATERIALS NEEDED
The following tools are recommended for completing the installation:
• SAE and metric sized wrenches and tools
•1-1/2”holesaw
• Drill bit set and drill
• Dielectric grease (supplied)
• Cable ties (supplied)
POINT OF REFERENCE
The instructions provided in this manual assume the installer is standing behind the machine, looking toward the
machine cabin.

P/N 016-0171-588 Rev. E 7
INTRODUCTION
KIT CONTENTS
TABLE 2. AGCO RoGator 900, 1000, 1300 (120’ Boom, 20” Spacing) Kit (P/N 117-1007-020)
AGCO RoGator 900, 1100, 1300 (100’ Boom, 20” Spacing) Kit (P/N 117-1007-021)
AGCO RoGator 900, 1100, 1300 (90’ Boom, 20” Spacing) Kit (P/N 117-1007-022)
AGCO RoGator 900, 1100, 1300 (120’ Boom, 15” Spacing) Kit (P/N 117-1007-023)
AGCO RoGator 900, 1100, 1300 (100’ Boom, 15” Spacing) Kit (P/N 117-1007-024)
AGCO RoGator 900, 1100, 1300 (90’ Boom, 15” Spacing) Kit (P/N 117-1007-025)
Picture Item Description Part Number
Qty.
117-1007-
020 021 022 023 024 025
Not Pictured Manual-Hawkeye® Calibration and
Operation 016-0171-584 1
Not Pictured Manual - AGCO RoGator 1300
Hawkeye Installation 016-0171-588 1
Not Pictured Quick Start Guide -
Hawkeye Start-Up 016-0171-598 1
Not Pictured Cable, Adapter, Viper 4 to 3-Pin
ISOBUS 115-0172-247 1
Not Pictured Cable, RoGator
ISOCan 115-0172-325 1
Cable- AGCOBoom
Sense Retrofit 115-7303-084 1
Cable - AGCO Logic
Power/CAN Retrofit 115-7303-085 1
Cable - AGCO
Chassis Cable 115-7303-086 1

CHAPTER 2
8 AGCO RoGator RG900/1100/1300 Hawkeye® Installation Manual
ECU - ISO Product
Controller II 063-0173-704 1
ECU - ISO Boom
Sense/Speed 063-0173-635 1
Cable - Primary RG
900/1100/1300 (120’,
20”) 115-7303-068 2
Cable - Primary RG
900/1100/1300 (100’,
20”) 115-7303-109 2 2
Cable, Left Primary
RG 900/1100/1300
(120’, 15”) 115-7303-123 1
Cable,RightPrimary,
RG 900/1100/1300
(120’, 15”) 115-7303-140 1
Cable, Left Primary
RG 900/1100/1300
(90’/100’, 15”) 115-7303-129 1 1
Cable,RightPrimary,
RG 900/1100/1300
(120’, 15”) 115-7303-158 1 1
Cable - Secondary
RG 900/1100/1300
(120’, 20”) 115-7303-069 2
Cable - Secondary
RG 900/1100/1300
(100’, 20”) 115-7303-110 2
Cable - Secondary
RG 900/1100/1300
(90’, 20”) 115-7303-128 2
Cable - Secondary,
RG 900/1100/1300
(120’, 15”) 115-7303-124 2
Cable - Secondary,
RG 900/1100/1300
(100’, 15”) 115-7303-131 2
Cable - Secondary,
RG 900/1100/1300
(90’, 15”) 115-7303-130 2
Picture Item Description Part Number
Qty.
117-1007-
020 021 022 023 024 025

P/N 016-0171-588 Rev. E 9
INTRODUCTION
TABLE 3. Hawkeye Service Kit Components (P/N 117-1005-057)
UPDATES
Raven software and documentation updates may be made available periodically on the Raven Applied Technology
web site:
Nozzle Body, Triple
Nozzle, 1” Wet
Boom, Hypro 334-0002-196 2
Hawkeye Nozzle
Control Valve, Hypro 063-0173-673 72 60 54 95 79 71
O-Ring, Viton,
Green Coated, -115,
56 Pack
219-1005-
115M 221222
Picture Item Description Part Number Quantity
Hawkeye Nozzle Control Valve, Hypro 063-0173-673 1
Not Pictured Kit, Seal, Hawkeye Valve, Hypro 117-1005-051 3
Not Pictured Hawkeye Valve Jumper 115-7303-139 2
Hawkeye Valve Tool 321-0000-457 2
Hawkeye Fly Nut Wrench 321-0000-459 1
Picture Item Description Part Number
Qty.
117-1007-
020 021 022 023 024 025

CHAPTER 2
10 AGCO RoGator RG900/1100/1300 Hawkeye® Installation Manual
www.ravenhelp.com
At Raven Industries, we strive to make your experience with our products as rewarding as
possible. One way to improve this experience is to provide us with feedback on this manual.
Your feedback will help shape the future of our product documentation and the overall service we
provide. We appreciate the opportunity to see ourselves as our customers see us and are eager
to gather ideas on how we have been helping or how we can do better.
To serve you best, please send an email with the following information to
[e-mail]
-AGCO RoGator RG900/1100/1300 Hawkeye® Installation Manual
-P/N 016-0171-588 Rev. E
-Any comments or feedback (include chapter or page numbers if applicable).
-Let us know how long have you been using this or other Raven products.
We will not share your email or any information you provide with anyone else. Your feedback is
valued and extremely important to us.
Thank you for your time.

CHAPTER
3
P/N 016-0171-588 Rev. E 11
CHAPTER 3 INSTALLATION PREPARATION
Perform the following procedure to prepare fir the Hawkeye® nozzle control installation.
1. Rinse and fill the tank with clean water.
2. Move the equipment to an open area suitable for testing application system operation and rinsing the boom
plumbing.
3. Unfold the boom and enable the application control system. Verify that all control hardware (e.g. control valves,
section valves, etc.) and spray tips function as expected.
4. Operate the system until all chemicals are rinsed from the boom supply lines.
5. Disable the application control system and de-pressurize the boom.
6. Replace existing carrier line strainer(s) with an 80 mesh strainer. An 80 mesh (or finer) strainer is required for
use with the Hawkeye nozzle control system.
7. If turret style nozzle bodies are installed on the implement, rotate the turret to an open spray position, if
available. If an open spray position is not available, or for nozzle bodies without a turret, remove the spray tips
from the boom and set aside for later use.
8. Enable the application control system and run clean water for at least 20 seconds to rinse any remaining debris
from the boom plumbing and nozzle bodies.
9. Remove the cap and diaphragm from the nozzle bodies.
FIGURE 1. Nozzle Body Cap and Diaphragm Removed
CAUTION
Chemical residues may be present. Thoroughly
bleed pressure from chemical lines and rinse the
system with clean water prior to installing or
servicing fittings, hoses, valves, or nozzles in the
application system.
Cap and Diaphragm
Removed

CHAPTER 3
12 AGCO RoGator RG900/1100/1300 Hawkeye® Installation Manual

CHAPTER
4
P/N 016-0171-588 Rev. E 13
CHAPTER 4 NOZZLE CONTROL VALVE
INSTALLATION
HAWKEYE NOZZLE CONTROL VALVE INSTALLATION
After rinsing the debris out of the plumbing, mount the Hawkeye® nozzle control valves to the existing nozzle
bodies.
BEST PRACTICES AND RECOMMENDATIONS
• Do not connect battery leads until all cables are installed and connected.
• If a dual channel turret nozzle body is installed on the implement, always mount the Hawkeye nozzle control
valve to the straight nozzle port to avoid excessive pressure drop across the nozzle.
• If there are obstacles that interfere with the Hawkeye valve installation it may be necessary to purchase a
different brand of nozzle body with a threaded port on the opposite side.
GENERAL VALVE INSTALLATION
FIGURE 1. Valve Face O-Ring and Nozzle Control Valve
1. Place the supplied o-ring on the inside of the fly nut flush with the valve body face.
NOTE: If using TeeJet QJS (straight) nozzle bodies, use the green coated (size 115) o-ring. For AGCO Hypro
nozzle bodies, use the green coated (size 115) o-ring. For TeeJet QJ (turret) nozzle bodies, use the
brown/gray (size 116) o-rings.
Valve Body Face O-
Ring
Nozzle
Body

CHAPTER 4
14 AGCO RoGator RG900/1100/1300 Hawkeye® Installation Manual
FIGURE 2. Green Coated and Brown/Gray O-Rings
2. Thread the fly nut onto the nozzle body.
3. Orient the nozzle control valve so that the label is easily readable.
4. Hand tighten the swivel nut to secure the nozzle control valve to the nozzle body. Do not over tighten.
NOTE: Frequently check the nozzle control valve fly nuts to ensure they are secure.
VALVE MOUNTING INTERFERENCE AND OBSTRUCTIONS
In some locations on the spray boom, boom equipment or hardware may interfere with mounting the Hawkeye
nozzle control valves. In these locations, there are a few options to get around the interferences:
1. Rotate the nozzle control valve so the round, low profile side of the NCV is towards the interference.
FIGURE 3. Modified Nozzle Control Valve Installation
2. Loosen the brackets and slide them down, out of the way of the NCV. Verify the brackets still adequately
support the components as intended. Do not remove the brackets completely.
3. If the first two options do not solve the interference, swap the AGCO nozzle body for a triple nozzle body
(provided in the kit) with the threaded connection for the Hawkeye valve facing away from the interference.
Green Coated
Brown/Gray
Straight Nozzle Body Turret Nozzle Body

4
P/N 016-0171-588 Rev. E 15
NOZZLE CONTROL VALVE INSTALLATION

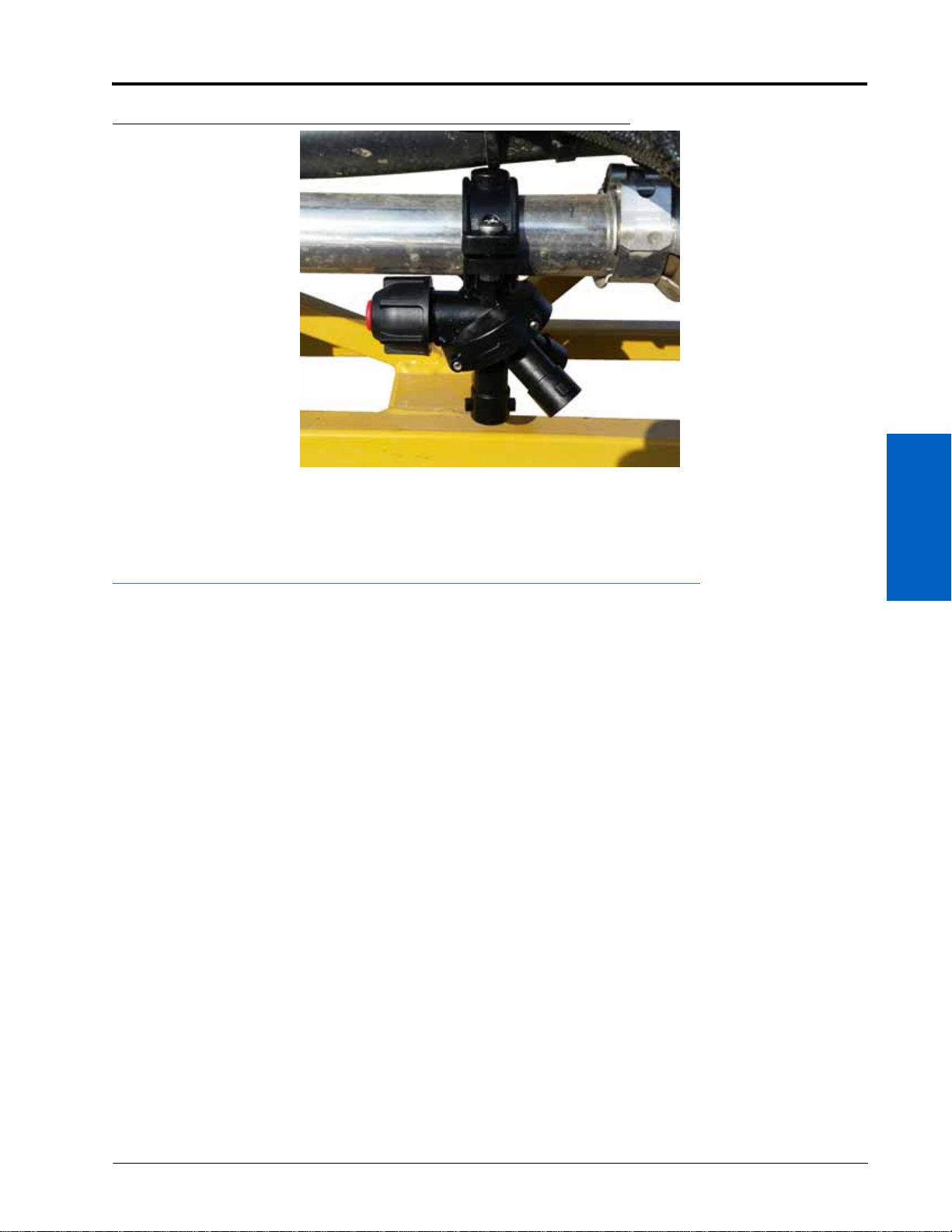

FIGURE 4. Triple Nozzle Body Installed
NOTE: Avoid removing of any existing boom hardware or support brackets where applicable during
installation of the Hawkeye nozzle control valves.
BOOM CABLE ROUTING AND CONNECTION
BEST PRACTICES AND RECOMMENDATIONS
• Route the Hawkeye primary and secondary boom cables along existing cables or plumbing to avoid cable
damage.
• Route cables to avoid pinch points and to avoid stretching the cable during folding and unfolding operations.
Pay special attention to cable routing near folding or break-away points.
• Route cables through existing cable retention devices as appropriate.
• When securing the primary and secondary boom cables on the implement, begin at the outer boom tips.
Adjust the cable position to provide sufficient slack between valve tee branches while working toward the
center of the implement.
• Route the boom cables on the inside of the boom frame when available.
• Secure cables using a zip tie at each nozzle control valve tee branch, and one between each tee branch along
the cable length.
SECONDARY BOOM CABLE ROUTING AND CONNECTIONS
NOTE: Please review the Best Practices and Recommendations section on page 15 before routing or securing
the boom cables on the implement. Do not connect or secure the cable until instructed to do so in
the procedure.
1. Locate the terminator on each of the secondary boom cables (refer to the Kit Contents section on page 7).

CHAPTER 4
16 AGCO RoGator RG900/1100/1300 Hawkeye® Installation Manual
FIGURE 5. Secondary Cable ISOBUS Powell Terminator
NOTE: Verify the terminators are secured to the main cable trunk using a zip tie through the connector
retainer clip. If terminators are not secured, wire breakage could occur.
2. Route the secondary boom cables so they are located at the outer tips of the left and right boom.
3. Starting from the mid-boom fold point, feed the terminator end of the secondary boom cable through the
boom framework along existing cable or plumbing runs and through any existing cable retention devices as
appropriate.
NOTE: If there is interference between the connector and boom components, remove the 90° back shell
from the connector. Refer to Figure 7 on page 17.
4. If not already applied, apply a single short burst of corrosion inhibitor (Corrosion X HD (Raven P/N 222-0000-
020 or available from http://www.corrosionx.com/corrosionx-heavy-duty.html)) into the NCV connection. Be
sure the corrosion inhibitor has coated the NCV contacts and recessed portions of the connector.
NOTE: To determine is corrosion inhibitor has been applied, inspect for a thick liquid in the bottom of the
connector.
5. Starting with the nozzle control valve at the outer end of the boom, begin connecting the valve tee branches to
the nozzle control valves.
FIGURE 6. Securing Valve Branches
6. At each valve branch, adjust the cable as necessary to provide slack between nozzle control valve connections.
The large round connector on the secondary boom cable should reach to the mid-boom fold point after all
nozzle control valves are connected.
Powell Active
Terminator
