About this operating manual 1
1.1 Diagrams
1.1.1 Warnings and signal words
Warnings are marked with a vertical bar with a
triangular safety symbol and the signal word. The
signal words "DANGER", "WARNING" or "CAUTION"
describe the severity of the potential danger and have
the following meanings:
DANGER
Indicates a direct threat with high risk for
severe physical injury, such as loss of
limbs or death.
WARNING
Indicates a possible threat with moderate
risk for severe physical injury or death.
CAUTION
Indicates a threat with low risk for light or
moderately severe physical injuries.
1.1.2 Further instructions
IMPORTANT
Indicates a risk for damage to the
implement.
CMS-T-00000081-D.1
CMS-T-005676-C.1
CMS-T-00002415-A.1
CMS-T-00002416-A.1
1 | About this operating manual
MG7387-EN-II | B.1 | 12.01.2022 1

ENVIRONMENTAL INFORMATION
Indicates a risk for environmental
damage.
NOTE
Indicates application tips and instructions for
optimal use.
1.1.3 Instructions
Numbered instructions
Actions that have to be performed in a specific
sequence are represented as numbered instructions.
The specified sequence of the actions must be
observed.
Example:
1. Instruction 1
2. Instruction 2
1.1.3.1 Instructions and responses
Reactions to instructions are marked with an arrow.
Example:
1. Instruction 1
Reaction to instruction 1
2. Instruction 2
1.1.3.2 Alternative instructions
Alternative instructions are introduced with the word
"or".
CMS-T-00000473-B.1
CMS-T-005217-B.1
CMS-T-005678-B.1
CMS-T-00000110-B.1
1 | About this operating manual
Diagrams
MG7387-EN-II | B.1 | 12.01.2022
2

Example:
1. Instruction 1
or
Alternative instruction
2. Instruction 2
Instructions with only one action
Instructions with only one action are not numbered,
but rather shown with a arrow.
Example:
Instruction
Instructions without sequence
Instructions that do not require a specific sequence
are shown as a list with arrows.
Example:
Instruction
Instruction
Instruction
1.1.4 Lists
Lists without an essential order are shown as a list
with bullets.
Example:
Point 1
Point 2
1.1.5 Item numbers in figures
A framed number in the text, e.g. a
1
, indicates an
item number in an adjacent figure.
CMS-T-005211-C.1
CMS-T-005214-C.1
CMS-T-000024-A.1
CMS-T-000023-B.1
1 | About this operating manual
Diagrams
MG7387-EN-II | B.1 | 12.01.2022 3

1.2 Other applicable documents
A list of other applicable documents can be found in
the Appendix.
1.3 Your opinion is important
Dear reader, our operating manuals are updated
regularly. Your suggestions for improvement help us
to create ever more user-friendly operating manuals.
Please send us your suggestions by post, fax or
email.
Fax: [phone]
Postfach 51
AMAZONEN-WERKE H. Dreyer SE & Co. KG
Technische Redaktion
D-49202 Hasbergen
E-Mail: [email protected]
CMS-T-00000616-B.1
CMS-T-000059-C.1
1 | About this operating manual
Other applicable documents
MG7387-EN-II | B.1 | 12.01.2022
4

Safety and responsibility 2
2.1 Road traffic
Do not use the control computer or control
terminal during road travel
If the driver is distracted, it can result in accidents
and injuries or even death.
Do not operate the control computer or
control terminal during road travel.
2.2 Maintenance and storage
A short circuit can cause damage
When repair work is performed on the tractor or
on a towed or mounted implement, there is a risk
of short circuit.
Before you perform repair work,
disconnect all connections between the
control terminal or control computer and the
tractor.
Overvoltage can cause damage
If welding work is performed on the tractor or
on a towed or mounted implement, the control
computer or control terminal can be damaged by
overvoltage.
Before welding,
disconnect all connections between the
control terminal or control computer and the
tractor.
CMS-T-00004961-B.1
CMS-T-00003620-C.1
CMS-T-00003621-D.1
2 | Safety and responsibility
MG7387-EN-II | B.1 | 12.01.2022 5

Improper cleaning can cause damage
Clean the control computer or control
terminal only with a moist, soft cloth.
Incorrect operating temperature and storage
temperature can cause damage
If the operating temperature and storage
temperature are not observed, there can damage
to the control computer or control terminal,
therefore resulting in malfunctions and dangerous
situations.
Operate the control computer or control
terminal only at temperatures from -20°C to
+65°C
Store the control computer or control terminal
only at temperatures from -30°C to +80°C
2.3 Design changes
Unauthorised changes and unauthorised use
Unauthorised changes and unauthorised use can
impair your safety and affect the service life
and/or function of the control terminal.
Only make changes to the control computer
or control terminal that are described in the
operating manual for the control computer or
control terminal.
Use the control computer or control terminal
according to its intended use.
Do not open the control computer or control
terminal.
Do not pull on the lines.
CMS-T-00003622-C.1
2 | Safety and responsibility
Design changes
MG7387-EN-II | B.1 | 12.01.2022
6

2.4 Display
Risk of accident due to faulty display screens
If the display is faulty or the view on the screen
is limited, functions can be accidentally activated
and therefore trigger implement functions. This
can result in injury or death.
If the view on the display screen is limited,
stop operations.
If the display screen is faulty,
restart the control computer or the control
terminal.
Risk of accident due to improper swiping
gesture
With improper swiping gestures, buttons of the
implement controls can be accidentally actuated
and therefore trigger implement functions. This
can result in injury or even death.
Start the swipe gesture at the edge of the
display.
CMS-T-00003624-B.1
2 | Safety and responsibility
Display
MG7387-EN-II | B.1 | 12.01.2022 7

Intended use 3
The control computer is used to control
agricultural implements.
The operating manual is part of the control
computer. The control computer is solely intended
for use in compliance with this operating manual.
Uses of the control computer that are not
described in this operating manual can lead to
serious personal injuries or even death and to
implement and material damage.
Uses other than those specified under the
intended use are considered as improper. The
manufacturer is not liable for any damage
resulting from improper use, solely the operator is
responsible.
CMS-T-00005429-B.1
3 | Intended use
MG7387-EN-II | B.1 | 12.01.2022
8

Product description 4
4.1 Function of the control computer
The AmaSpread 2 control computer controls the
implement functions and serves as a display terminal.
The control computer offers the following
functions:
Starting or stopping fertiliser spreading
Determining the calibration factor for rate-precise
fertiliser spreading while driving
Switching other fertiliser spreading functions
Filling the implement
Managing products
Calling up the documentation
Switching the work lights on or off
Calling up information
CMS-T-00008270-B.1
CMS-T-00008235-B.1
4 | Product description
MG7387-EN-II | B.1 | 12.01.2022 9

4.2 Overview of the control computer
1
2
3
4
5
6
CMS-I-00006023
1
Work lights
2
Display
3
Menu selection
4
Switching on and off
5
Input and navigation
6
Work menu
4.3 Menu selection
Various data is shown in the menus. The data can be
adjusted.
CMS-I-00006024
CMS-T-00008793-B.1
CMS-T-00008246-B.1
4 | Product description
Overview of the control computer
MG7387-EN-II | B.1 | 12.01.2022
10

ha
The "Documentation" menu shows the work
data.
DOCUMENTATION
CMS-I-00006025
The "Products" menu shows the product
data and enables product-specific implement settings.
FERT.
Application rate
Calibration factor
Working width
Calcium cyanamide
Other fertiliser settings
CMS-I-00006026
kg
The "Scale" menu determines the
calibration factor with the scale.
1
Automatic calibration is selected
2
Hopper content
3
Calibration factor
4
Start the manual calibration
WAAGE
Einstellungen
1.36
296 kg
2567 kg
1234
CMS-I-00006059
The "Work" menu shows the work data and
controls the implement during operation.
0
kg/ha
0
kg/ha
100%100%
0 .0
km/h
958.80
ha
ON
1.48
4794
kg
0
1/min
CMS-I-00006211
4 | Product description
Menu selection
MG7387-EN-II | B.1 | 12.01.2022 11

The "Hopper" menu contains "Filling",
"Emptying" and "Tilting", if a tilt sensor is installed.
HOPPER
Filling
Emptying
Tilting
CMS-I-00006057
The "Implement" menu enables implement
settings.
IMPLEMENT
Speed
Low level and rate control
Terminal
CMS-I-00006056
The second page of the "Implement" menu
shows the implement data and enables implement
settings.
IMPLEMENT
Info
Diagnostics
Setup
CMS-I-00006227
4 | Product description
Menu selection
MG7387-EN-II | B.1 | 12.01.2022
12

4.4 Buttons
4.4.1 Input keys and navigation keys
Increase value or navigate upwards in the list
Reduce value or navigate downwards in the
list
Cancel input or back to the previous menu
Confirm
CMS-I-00006030
4.4.2 Function keys in the Work menu
Arrangement of the function keys
CMS-I-00006029
Open or close both shutters Open or close the left shutter Open or close the right shutter
CMS-T-00008247-B.1
CMS-T-00008248-A.1
CMS-T-00008249-B.1
4 | Product description
Buttons
MG7387-EN-II | B.1 | 12.01.2022 13

Increase the spread rate on both
sides by the rate increment Set the spread rate to 100 % Reduce the spread rate on both sides by the rate increment
Switch on part-width
sections from the left
Increase the spread rate
on the left by the rate
increment when pressing
the button for at least 3
seconds
Switch off part-width
sections from the left
Reduce the spread rate
on the left by the rate
increment when pressing
the button for at least 3
seconds
Switch on part-width
section from the right
Increase the spread rate
on the right by the rate
increment when pressing
the button for at least 3
seconds
Switch off part-width
sections from the right
Reduce the spread rate
on the right by the rate
increment when pressing
the button for at least 3
seconds
Switch border
spreading on or off
Switch boundary
spreading on or off
Switch ditch
spreading on or off Raise limiter Lower limiter

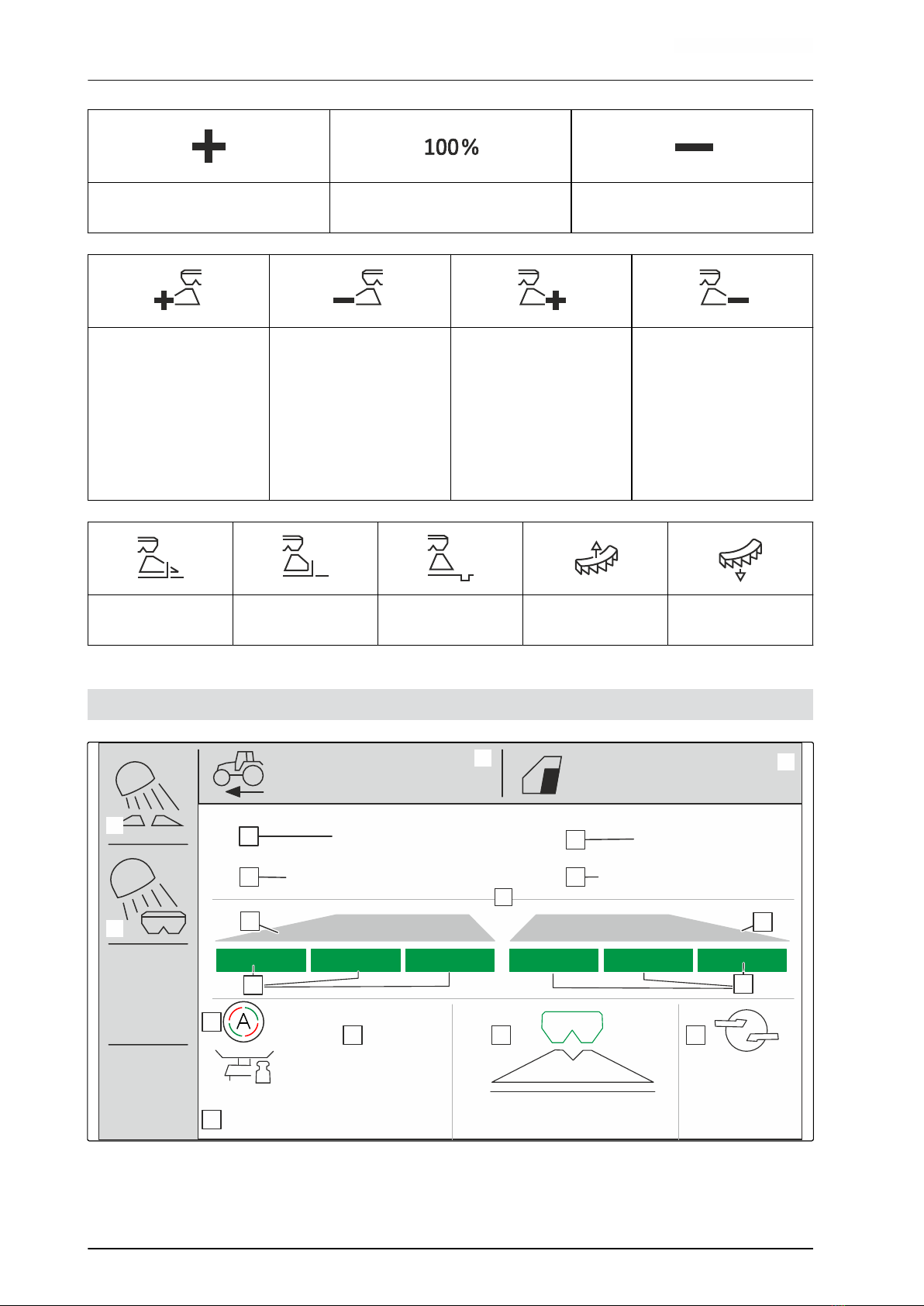

4.5 Work display
0
kg/ha
0
kg/ha
100%100%
0 .0
km/h
958.80
ha
ON
1.48
4794
kg
0
1/min
15
16
17 18
7
1
2
3
4
5
69
8
11
12
10 13 14
CMS-I-00006058
CMS-T-00008827-A.1
4 | Product description
Work display
MG7387-EN-II | B.1 | 12.01.2022
14

1
Spread rate on the left
2
Spread rate on the left in %
3
Spread rate on the right
4
Spread rate on the right in %
5
Spread fan on the left
6
Part-width sections on the left
7
Spreading switched on or off on both sides
8
Spread fan on the right
9
Part-width sections on the right
10
Automatic calibration switched on
11
Calibration factor
12
Hopper fill level
13
Spreading method
14
Spreading disc speed
15
Work area lighting
16
Hopper lighting
17
Forward speed
18
Worked area
4 | Product description
Work display
MG7387-EN-II | B.1 | 12.01.2022 15

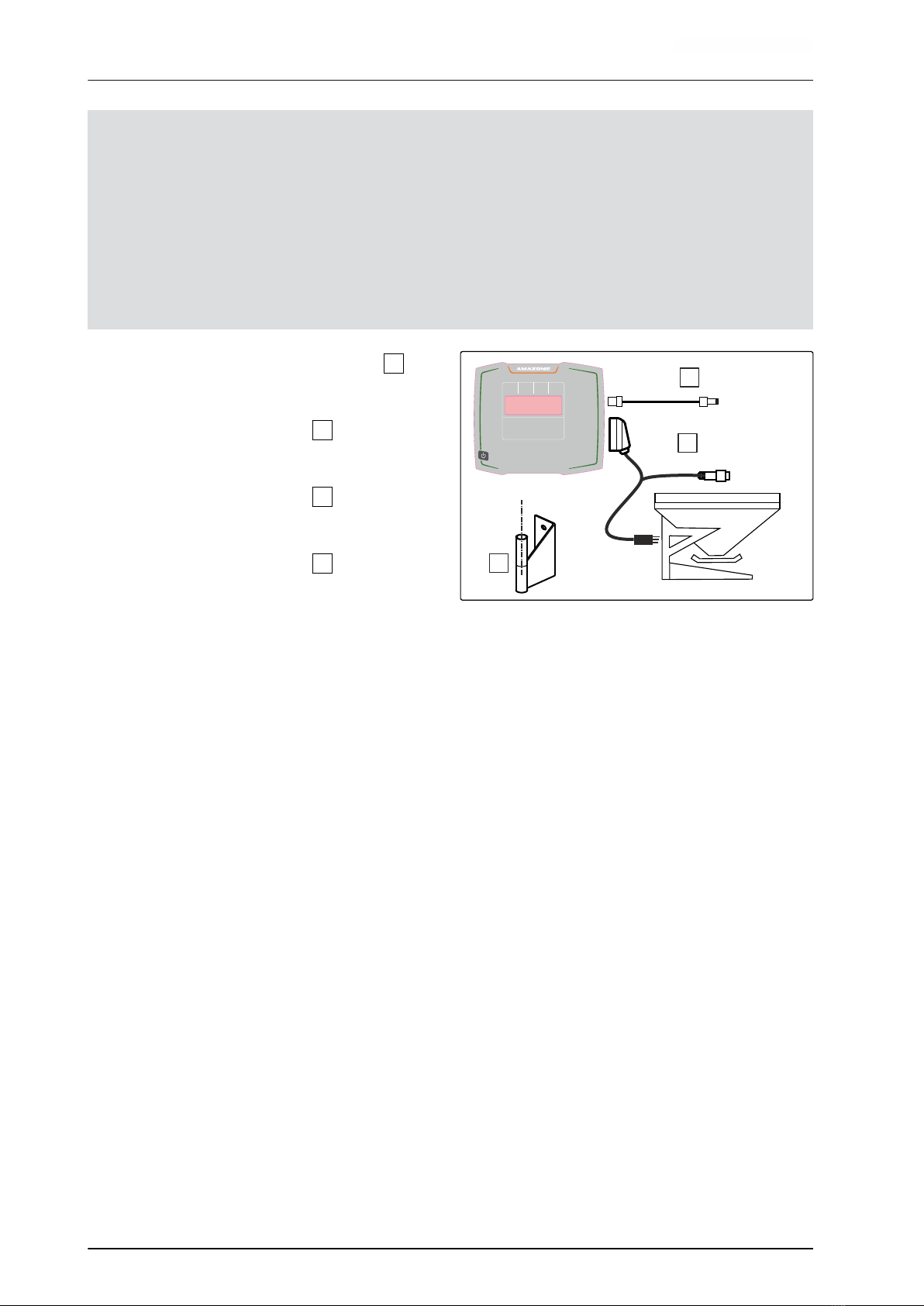

Connecting the control computer 5
1. Place the control computer on the holder
3
in
the tractor cab.
2. Connect the connection cable
1
to the tractor
power supply.
3. Connect the connection cable
1
to the
control computer.
4. Connect the connection cable
2
for the speed
signal to the signal socket.
12 V
Imp./100m
3
1
2
CMS-I-00006212
CMS-T-00008829-B.1
5 | Connecting the control computer
MG7387-EN-II | B.1 | 12.01.2022
16
