Anderson RBM Series User manual

Self-Loading Trailer
RBM
404676
Operator's Manual
2018–2019

Anderson Group Self-Loading Trailer – Operator's Manual 3
Table of contents
How to reach us 5
Starting guidelines 7
Anderson limited warranty 9
About this manual 11
1 Introduction 13
1.1 Overview 13
1.2 Technical specifications 13
1.3 Options 18
1.4 Machine identification 18
1.5 Safety and maintenance pictograms 19
2 Safety precautions 23
2.1 Basic safety guidelines 23
2.2 Safety tips for transport 25
2.3 Safety tips for hitching 27
2.4 Safety tips for maintenance and repairs 27
2.5 Waste recovery 29
3 Getting started 31
3.1 Hitching to the tractor and unhitching 31
3.2 Connecting the hydraulic and electrical systems 33
4 Adjustments 37
4.1 Adjusting the hitch 37
4.2 Adjusting the jack height 38
4.3 Adjusting the bale guides 40
4.4 Adjusting the forks 41
4.5 Adjusting the front stopper (RBM2000 and RBM2000S) 43
4.6 Adjusting the pusher travel 44
4.7 Adjusting the bale retaining support 46
5 Operation 49
5.1 Controls 49
5.2 Loading bales 50

4 Operator's Manual – Self-Loading Trailer Anderson Group
5.3 Unloading bales 54
6 Troubleshooting 55
6.1 Hydraulic controls (RBM2000) 55
6.2 Sensors (RBM2000) 57
6.3 Common problems 58
7 Maintenance 61
7.1 Maintenance schedule 63
7.2 Greasing 65
7.3 Adjusting the pusher chain tension 70
7.4 Adjusting the pusher transmission chain tension 71
7.5 Tire pressure 72
7.6 Maintaining and adjusting the axles 72
7.7 Maintaining and adjusting the brakes (available as an option) 80
7.8 Maintaining the high-pressure filter (RBM2000) 84
7.9 Maintaining the hydraulic jack 85
7.10 Cleaning 85
7.11 Storage 85

Anderson Group Self-Loading Trailer – Operator's Manual 5
How to reach us
When contacting us, please have the following information ready:
lThe product model and serial number;
lYour name, address and phone number;
lThe purchase date and invoice number;
lThe dealer’s name, address and phone number and the sales representative’s name;
lA detailed description of your problem.
Please always call your representative first. If your representative is absent or helping another
customer, our support team can provide immediate assistance. The Anderson service department
works in partnership with your dealer. Together, we will ensure any problems you encounter are
resolved quickly and efficiently.
You can reach our service department at:
Address: ANDERSON GROUP
5125 De la Plaisance
Chesterville, QC G0P 1J0
CANADA
Phone: [phone]
Fax: [phone]
Email: [e-mail]
Website: www.grpanderson.com

Anderson Group Self-Loading Trailer – Operator's Manual 7
Starting guidelines
Before starting your Anderson equipment, we strongly recommend that you:
lCarefully read and understand the contents of this manual
lFollow all safety guidelines
lFollow the start-up procedures
NOTE: This manual contains important information about
equipment maintenance and use. Please give it to the new
owner when selling or transferring it.

Anderson Group Self-Loading Trailer – Operator's Manual 9
Anderson limited warranty
lThe one-year warranty begins on the date the new equipment is sold to the customer.
lIf during the year following the purchase of a new equipment, your Anderson equipment fails
to function properly due to defective design, materials, manufacturing or assembly, our
company will repair your equipment free of charge.
lKeep your original invoice or a photocopy. Please refer to your invoice when ordering parts or
inquiring about your equipment's operating procedures or your warranty.
lAn authorized Anderson dealer must replace and/or repair equipment parts. This only applies
to parts and labour. All work must be preauthorized by the Anderson customer service
department.
lThe customer will be responsible for transporting the equipment to/from the authorized
dealer.
lThe dealer will describe the terms of this warranty to the customer before the retail sale and
will record the date of purchase, serial number and equipment description.
lTo have equipment repaired under warranty, the customer must advise the dealer of the
problem as soon as possible and request that the repairs be made according to the terms of
the applicable warranty.
lGiven that we are always seeking to improve our products, our company reserves the right to
modify our equipments, their characteristics and their parts at any time without prior notice or
obligation.
lIn no event will Anderson be liable for any incidental or consequential damages or injuries,
including but not limited to loss of profits, rental of substitute equipment, or other commercial
or personal loss or damages arising as a result of a fundamental breach or breach of a
fundamental term.
Notwithstanding the foregoing:
Warranty policies, procedures and provisions
summary
Purpose of warranty:
The fundamental responsibility of the warranty is to correct defects in material and workmanship of
the products sold by Anderson Group Inc. (hereafter called "Anderson"). This outline is intended to
help you understand Anderson’s warranty policies and ensure that you receive the best service
possible for your Anderson equipment.
lThe warranty is limited to 1 year (12 months). This specified period begins on the date the
new equipment is sold to the customer.

10 Operator's Manual – Self-Loading Trailer Anderson Group
lThe warranty is non-transferable in the event of resale unless the resale is through an
authorized Anderson dealer.
Warranty exemptions:
lYour warranty may be voided if Anderson determines that the equipment has been subjected
to bad treatment or negligence, inappropriate use, insufficient maintenance, improper
protection during storage or damage due to vandalism, bad weather, natural elements,
collision or an accident.
lThe warranty is void if your equipment has been modified in any way without Anderson's
express authorization.
lThe warranty does not cover towing expenses or service calls.
lNo warranty is extended to regular service items such as fluids, paint and tires.
lCertain parts, such as the Honda engine and battery, are covered under warranties from their
respective manufacturers. Details on these warranties can be obtained from your dealer.
lWarranty does not cover damage caused by harsh weather conditions or unstable ground
conditions. Such as frozen parts on the equipment or performance issues on inadequate
terrain.
lNo warranty is issued for performance issues, such as downtime and capacity issues.
No dealer warranty:
lExcept for conditions or warranties which may not be excluded by law, the selling dealer
makes no warranty of its own on any item warranted by Anderson unless it delivers to the
purchaser a separate written warranty document specifically warranting the item. The selling
dealer has no authority to make any representation or promise on behalf of Anderson or to
modify the terms or limitations of this warranty in any way.
Anderson’s responsibilities:
lIn the event that parts must be shipped from Anderson, freight will be paid by Anderson and
will be shipped by the most economical means to arrive in the shortest possible time. Air, Next
Day Air, Priority and other special shipment methods requested by the dealer will be at the
customer’s expense.

Anderson Group Self-Loading Trailer – Operator's Manual 11
About this manual
Disclaimer
The illustrations and information in this manual are accurate as of printing. Anderson Group reserves
the right to modify its machines without prior notice.
Conventions
“Danger!” messages identify information that
should be read to prevent serious or fatal injuries to
people and animals.
“Attention!” messages identify information that
should be read to prevent minor injuries to people
and animals or damage to the machine.
“Important!” messages identify information that is
particularly important for the use and maintenance
of the machine.
NOTE: Notes provide additional information about the section
content.

Anderson Group Self-Loading Trailer – Operator's Manual 13
1 Introduction
Congratulations! You have just acquired an Anderson self-loading trailer, a quality machine designed
specifically for handling round bales.
1.1 Overview
The following figures show the main components ofthe RBM1400, RBM2000 and RBM2000S trailer
models.
Figure 1 — Main Components of the Self-Loading Trailers
1.2 Technical specifications
The RBM2000 and RBM2000S models can load two levels of bales, while the RBM1400 model can
only load one level of bales.
The RBM2000S model is identical to the RBM2000, but does not have a control computer.

14 Operator's Manual – Self-Loading Trailer Anderson Group
1.2.1 RBM1400
Figure 2 — RBM1400 Dimensions
Table 1 — RBM1400 Dimensions and Weights
Width (A) 2.55 m (100 in.)
Height (B) 3.61 m (142 in.)
Platform length (C) 9.3 m (366 in.)
Total length (D) 11.8 m (463 in.)
Platform height (E) 1.44 m (57 in.)
Distance between the grabber and the centre of the trailer (F) 2.77 m (109 in.)
Total width with arm extended (G) 5.54 m (218 in.)
Maximum height when unloading (H) 3.45 m (136 in.)
Tare weight 5,508 kg (12,145 lb.)
GVWR (gross vehicle weight rating) 19,000 kg (41,888 lb.)

Anderson Group Self-Loading Trailer – Operator's Manual 15
Table 2 — RBM1400 General Specifications
Load capacity 13,492 kg (29,743 lb.)
Maximum number of
bales
1.2 m x 1.2 m (4 ft. x 4 ft.) bales: 14 bales
1.2 m x 1.5 m (4 ft. x 5 ft.) bales: 14 bales
1.2 m x 1.6 m (4 ft. x 5.5 ft.) bales: 14 bales
1.2 m x 1.8 m (4 ft. x 6 ft.) bales: 14 bales
1.5 m x 1.5 m (5 ft. x 5 ft.) bales: 12 bales
1.5 m x 1.6 m (5 ft. x 5.5 ft.) bales: 12 bales
1.5 m x 1.8 m (5 ft. x 6 ft.) bales: 12 bales
Maximum weight per
bale
964 kg (2,125 lb.): Bales 1.2 m (4 ft.) in length
1,124 kg (2,478 lb.): Bales 1.5 m (5 ft.) in length
Bale dimensions Diameter: Up to 1.8 m (72 in.)
Electrical power supply Connection to a cigarette lighter socket with a minimum current of 10
amps.
Tires Dimensions: 550/45-22.5
Recommended pressure: 3.2 bar (45 psi)
Required tractor 100 hp (minimum)
Minimum tractor hydraulic flow: 38 Lpm(10 gpm)
Minimum tractor hydraulic pressure: 172 bar (2,500 psi)
3 dual-effect hydraulic control systems

16 Operator's Manual – Self-Loading Trailer Anderson Group
1.2.2 RBM2000 and RBM2000S

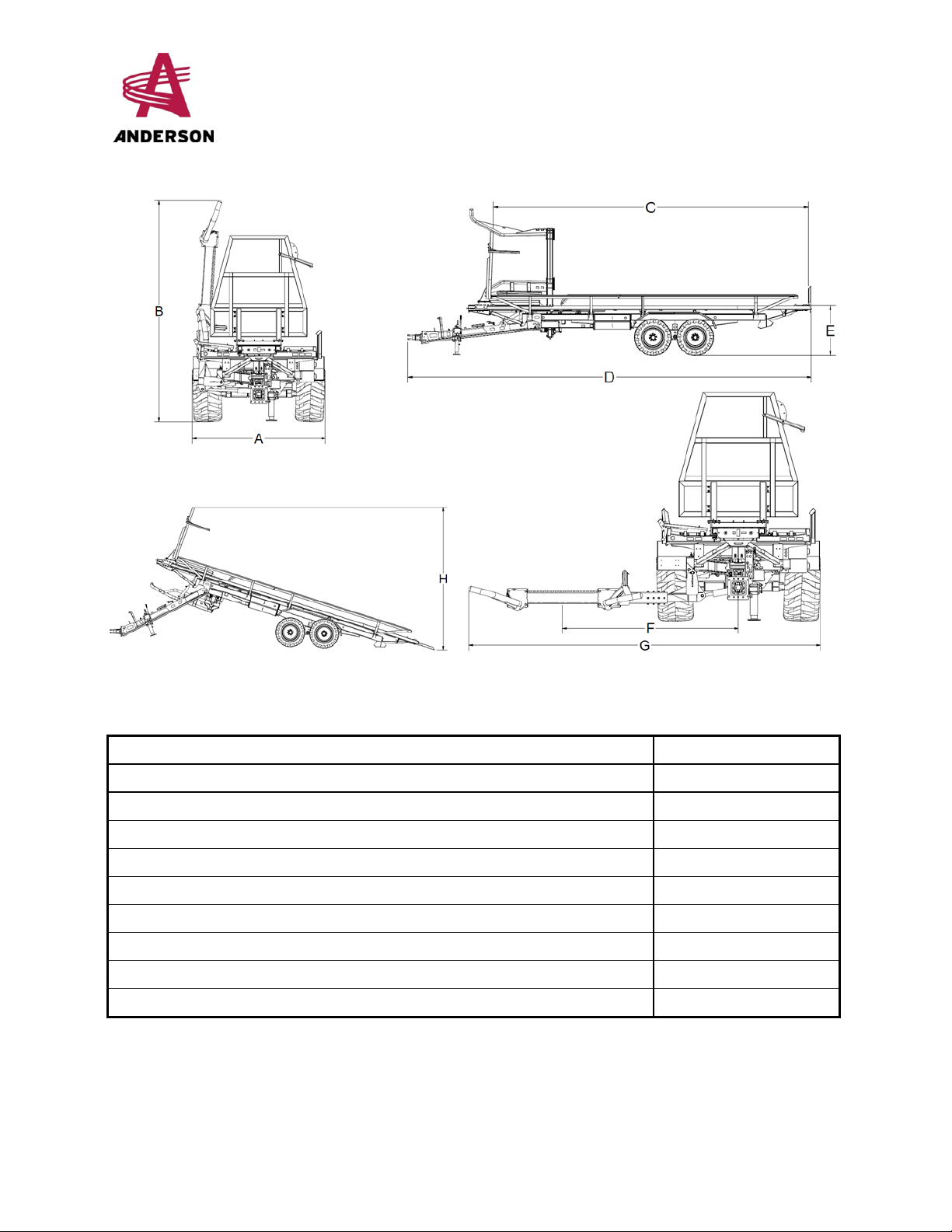

Figure 3 — RBM2000 and RBM2000S Dimensions
Table 3 — RBM2000 and RBM2000S Dimensions and Weights
Width (A) 2.55 m (100 in.)
Height (B) 3.61 m (142 in.)
Platform length (C) 9.3 m (366 in.)
Total length (D) 11.8 m (463 in.)
Platform height (E) 1.44 m (57 in.)
Distance between the grabber and the centre of the trailer (F) 2.72 m (109 in.)
Total width with arm extended (G) 5.54 m (218 in.)
Maximum height when unloading (H) 4.78 m (188 in.)
Tare weight 5,828 kg (1,285 lb.)
GVWR (gross vehicle weight rating) 19,000 kg (41,888 lb.)

Anderson Group Self-Loading Trailer – Operator's Manual 17
Table 4 — RBM2000 and RBM2000S General Specifications
Load
capacity
13,172 kg (29,038 lb.)
Maximum
number of
bales
1.2 m x 1.2 m (4 ft. x 4 ft.) bales: 20 bales
1.2 m x 1.5 m (4 ft. x 5 ft.) bales: 20 bales
1.2 m x 1.6 m (4 ft. x 5.5 ft.) bales: 20 bales
1.2 m x 1.8 m (4 ft. x 6 ft.) bales: 20 bales
1.5 m x 1.5 m (5 ft. x 5 ft.) bales: 17 bales
1.5 m x 1.6 m (5 ft. x 5.5 ft.) bales: 17 bales
1.5 m x 1.8 m (5 ft. x 6 ft.) bales: 17 bales
Maximum
weight per
bale
659 kg (1,452 lb.): Bales 1.2 m (4 ft.) in length
775 kg (1,708 lb.): Bales 1.5 m (5 ft.) in length
Bale
dimensions
Diameter: Up to 1.8 m (72 in.)
Electrical
power supply
RBM2000: Connection to the tractor battery (cable comes with the trailer) or any
other 12 V outlet that can provide a minimum current of 20 amps.
RBM2000S: Connection to a cigarette lighter socket with a minimum current of
10 amps.
Tires Dimensions: 550/45-22.5
Recommended pressure: 3.2 bar (45 psi)
Required
tractor
130 hp (minimum)
Minimum tractor hydraulic flow: 38 Lpm(10 gpm)
Minimum tractor hydraulic pressure: 172 bar (2,500 psi)
2 dual-effect hydraulic control systems (RBM2000)
4 dual-effect hydraulic control systems (RBM2000S)

18 Operator's Manual – Self-Loading Trailer Anderson Group
1.3 Options
The following table shows the optional parts available for your trailer.
Table 5 — Optional Parts for the RBM Self-Loading Trailers
Option RBM1400 RBM2000 RBM2000S
Air brake X X
Hydraulic brake X X X
Ring hitch X X
Dual hitch X X X
Hydraulic selector valve1X X
Bale spacer X X X
Backup camera X X X
1.4 Machine identification
A 5 x 10 cm (2 x 4 in.) nameplate is located near the trailer arm. It displays the following information
about your equipment:
lModel
lSerial number
lTare weight
lGross weight
lManufacturing year
NOTE: You must always have this information on hand when
ordering replacement parts or requesting assistance from
our customer service department.
You can record the identification information of your equipment in Figure 4.
1Used when the tractor has only two hydraulic systems. This valve allows you to control the pusher
and unloading functions on the same oil outlet.

Anderson Group Self-Loading Trailer – Operator's Manual 19
Figure 4 — Nameplate
Do not remove the plates affixed to your
equipment.
1.5 Safety and maintenance pictograms
The RBM1400 and RBM2000 trailers have a number of pictograms that illustrate the main safety and
maintenance considerations. Ensure that you see and understand them.
Table 6 — Safety and Maintenance Pictograms
Pictogram Meaning
Warning! Check the tightening torque on the
lug nuts.
Lubricate with grease at the frequency
recommended in section 7.2.
Lubricate with oil at the frequency recom-
mended in section 7.1.

20 Operator's Manual – Self-Loading Trailer Anderson Group
Pictogram Meaning
Warning! Carefully read and understand the
contents of the operator’s manual before
using the machine.
Warning! Install the locking pin and safety
chain on the trailer's anchor.
Warning! Crushing hazard. Never walk under-
neath suspended loads. Before beginning
maintenance, install the necessary
restraints.
Warning! Risk of collision with a moving part.
Keep a safe distance away.
Warning! Before doing any maintenance or
repairs, turn off the engine, remove the key
from the ignition, and refer to chapter 7
Maintenance.
Warning! Pressurized hydraulic hoses.See
chapter 7 Maintenance.
