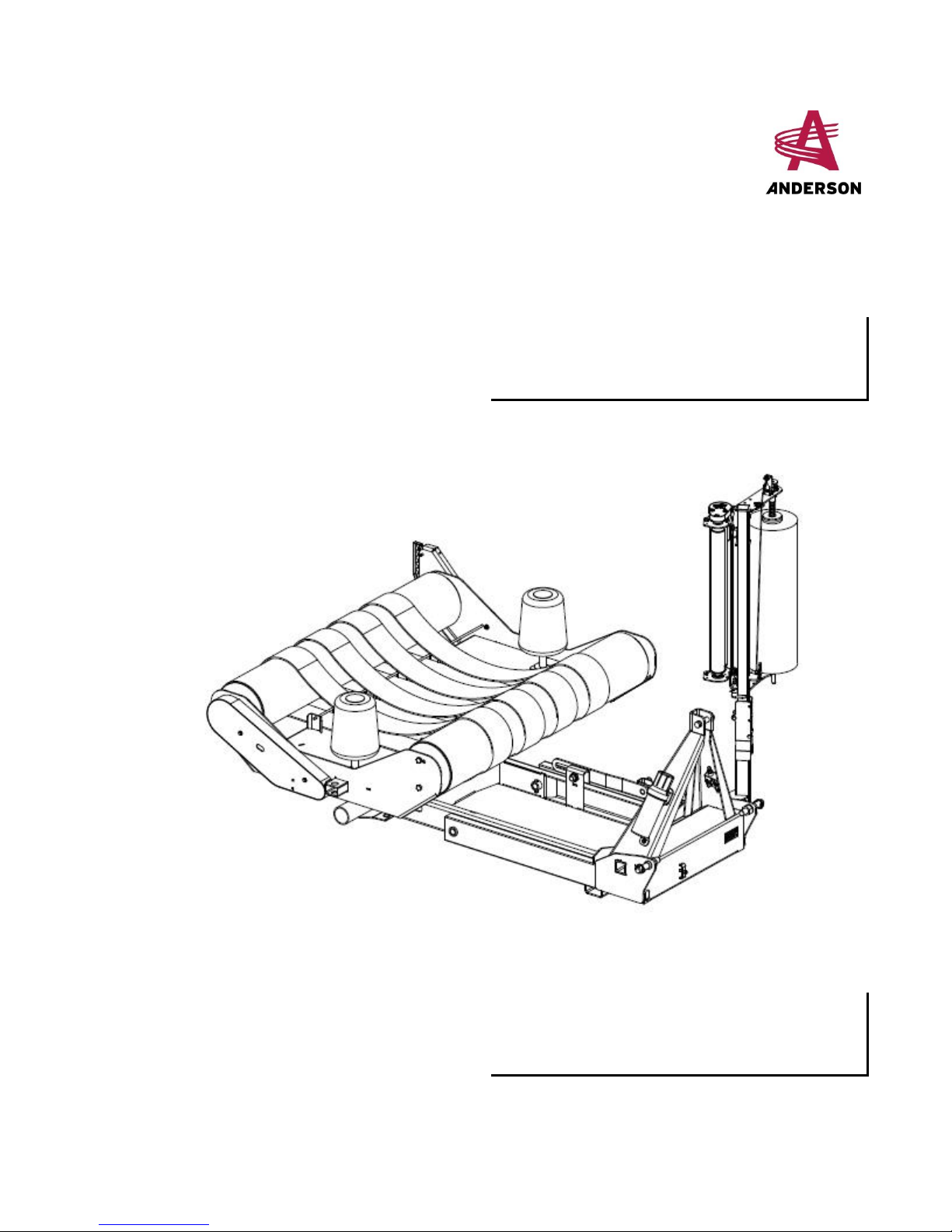

Anderson RB-200 User manual

Round Bale Wrapper
RB-200
404601-1
Operator's Manual
2017

Anderson Group Round Bale Wrapper RB-200 – Operator's Manual 3
Table of Contents
How to Reach Us 4
Starting Guidelines 4
Anderson Limited Warranty 4
About This Manual 6
1 Introduction 7
1.1 General Presentation 7
1.2 Technical Specifications 8
1.3 Tips and Recommendations for High-quality Sil-
age 8
2 Safety Measures 10
2.1 Safety Labels 11
3 Preparation and Start-up 13
3.1 Before You Start 13
3.2 Moving Your Bale Wrapper 13
3.3 Attaching the Wrapper to the Tractor 13
3.4 Adjusting the Tilting Table 14
3.5 Attaching the Hydraulic Couplings 14
3.6 Installing the Roll of Plastic Film 15
3.7 Testing the Stretcher's Functioning 16
3.8 Removing the Plastic Cutter Safety Device 16
4 Wrapping 17
4.1 Making Adjustments 17
4.2 Wrapping the First Bale 17
4.3 Unloading a Bale 17
4.4 Placing and Wrapping Subsequent Bales 18
4.5 End of Wrapping 19
5 Functioning of the IG-C3 Bale Counter 20
5.1 Operating 20
5.2 Use 20
5.3 Programming - Advanced Settings 21
6 Common Adjustments 22
6.1 Adjusting the Two Guide Rollers 22
7 Maintenance 23
7.1 Maintenance and Adjustment Schedule 23
7.2 Greasing Every 200 Bales 23
7.3 Lubrication and Greasing Every 50 Hours 24
7.4 Cleaning 24
8 Storage 25
9 Troubleshooting 26

4 Operator's Manual – Round Bale Wrapper RB-200 Anderson Group
How to Reach Us
When communicating with us, please have the following
information on hand:
lThe product’s model and serial number;
lYour name, address, and telephone number;
lThe purchase date and invoice number;
lThe dealer’s name, address, and telephone number
and the sales assistant’s name;
lThe most accurate description possible of your
problem.
Call your dealer first
Please always call your representative first. However, if
your dealer is absent or already helping other customers,
our support team can provide immediate assistance.
Anderson service department works in partnership with
your dealer. Together, we will ensure any problems you
encounter are resolved quickly and efficiently.
You may reach our service department at:
Address: ANDERSON GROUP
5125 De la Plaisance
Chesterville, QC
CANADA G0P 1J0
Telephone: [phone]
Fax: [phone]
E-mail: [e-mail]
Website: www.grpanderson.com
Starting Guidelines
Before starting your Anderson machine, we strongly
recommend you:
lCarefully read and understand this manual’s
content
lComply with all safety instructions
lFollow the start-up procedures
NOTE: This manual contains important
information regarding machine
maintenance and use. Please give it to the
new owner when selling or transferring
your machine.
Anderson Limited Warranty
lThe one-year warranty begins on the date the new
equipment is sold to the customer.
lIf your equipment is used for commercial or rental
purposes, this warranty will only be valid for a
period of 1 year or a maximum of 5000 bales for
trailers, individual bale wrappers, and inline
wrappers.
lIf during the year following the purchase of a new
machine, your Anderson equipment fails to
function properly due to defective design,
materials, manufacturing, or assembly, our
company will repair your equipment free of charge.
lKeep your original invoice or a photocopy. Please
refer to your invoice whenever you order parts,
have questions about the operating procedures of
your machine, or for any questions you may have
concerning your warranty.
lReplacement or repair of equipment parts must be
performed by an authorized Anderson dealer. This
includes parts and labour only. All work must be
preauthorized by the Anderson customer service
department.
lThe customer will be responsible for transporting
the equipment to / from the authorized dealer.
lThe dealer will describe the terms of this warranty
to the customer before the retail sale and will
record the date of purchase, the serial number, and
the equipment description.
lTo have equipment repaired under the warranty;
the customer must advise his dealer as soon as
possible of the problem and request that the
repairs be made according to the terms of the
applicable warranty.
lUnderstanding that it is our desire to always
improve on our products, our company reserves
the right to modify its machines, their
characteristics, and their parts at any time without
advance notice or obligation.
lIn no event will Anderson be liable for any
incidental or consequential damages or injuries,
including but not limited to loss of profits, rental of
substitute equipment, or other commercial or
personal loss or damages arising as a result of a
fundamental breach or breach of a fundamental
term.
Notwithstanding the foregoing

Anderson Group Round Bale Wrapper RB-200 – Operator's Manual 5
Warranty Policies,
Procedures, & Provisions
Summary
Purpose of Warranty:
The fundamental responsibility of warranty is to correct
defects in material and workmanship of the products sold
by Group Anderson Inc. (hereafter called ‘’Anderson’’).
This outline is intended to assist you in awareness of
Anderson’s Warranty Policies and to assure that you obtain
the best service possible for your Anderson machine.
lWarranty is limited to 1- year (12months). This
specified period begins on the date the new
equipment is sold to the customer.
lWarranty is non-transferable in the event of resale
unless the resale is through an authorized
Anderson dealer.
Warranty Exemptions:
lYour warranty may be voided if Anderson
determines that the equipment has been subjected
to bad treatment or negligence, has been used
inappropriately, has not received necessary
maintenance, not been appropriately protected
during storage, damaged by vandalism, bad
weather, natural elements, collision, or an
accident.
lThe warranty is void if your equipment has been
modified in any way without Anderson express
authorization.
lThe warranty does not cover towing expenses or
service calls.
lNo warranty is extended to regular service items
such as fluids, paint, tires.
lCertain parts, such as the Honda engine and
battery are covered under warranties from their
respective manufacturers. Details on these
warranties can be obtained from your dealer.
lWarranty does not cover damage caused by harsh
weather conditions or unstable ground conditions.
Such as frozen parts on the equipment or
performance issues on inadequate terrain.
lNo warranty is issued for performance issues.
Including downtime and capacity issues.
No Dealer Warranty:
lExcept for conditions or warranties which may not
be excluded by law, the selling dealer makes no
warranty of its own on any item warranted by
Anderson Group unless it delivers to the purchaser
a separate written warranty document specifically
warranting the item. The selling dealer has no
authority to make any representation or promise on
behalf of Anderson or to modify the terms or
limitations of this warranty in any way.
Anderson’s Responsibilities:
lIn the event that parts must be shipped from
Anderson, freight will be paid by Anderson and will
be shipped by the most economical means to arrive
in the shortest possible time. Air, Next Day Air,
Priority and other special shipment methods
requested by the Dealer will be at the Customer’s
expense.

6 Operator's Manual – Round Bale Wrapper RB-200 Anderson Group
About This Manual
This technical manual will inform you about maintaining
your wrapper and using it safely.
Disclaimer
Illustrations
The illustrations and information contained in this manual
are accurate as of printing. Anderson Group reserves the
right to modify its machines without notice.
Conventions
Danger! messages flag information
that must be read to prevent serious
injury, including death, to people
and livestock.
Warning! messages flag information
that must be read prevent injury to
people and livestock and damage to
the machine.
This symbol indicates that the
materials or substances used
constitute a hazard for the
environment. It is important to take
precautionary measures to protect
the environment.
NOTE: Notes provide additional information
about the section content.

Anderson Group Round Bale Wrapper RB-200 – Operator's Manual 7
1 Introduction
Congratulations! You have just purchased an Anderson
wrapper. Your wrapper is a quality piece of machinery for
wrapping single round bales.
1.1 General Presentation

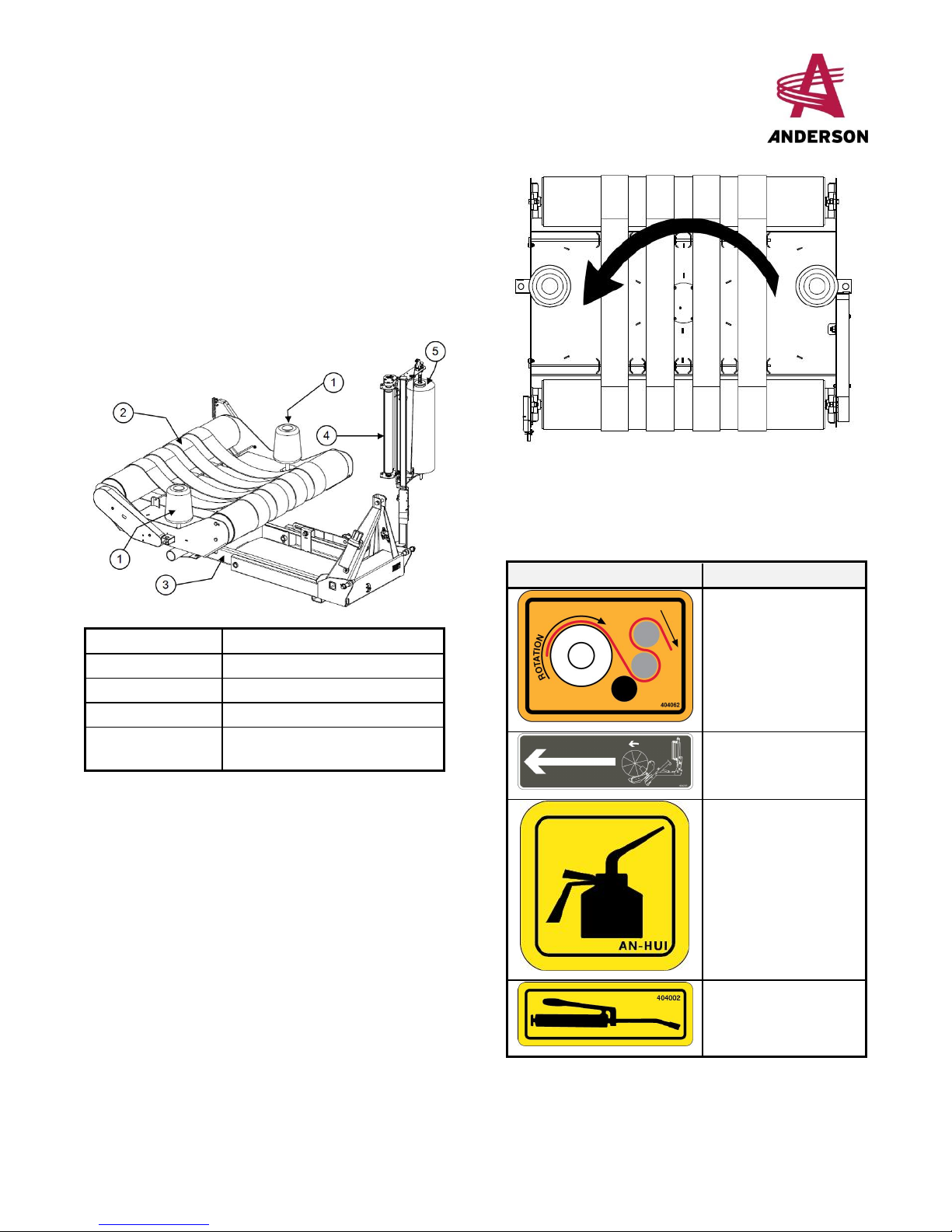

The following illustration shows the main components of
the RB-200 Wrapper.
1 Guide Rollers
2 Rotating Table
3 Tilting Table
4 Stretchers
5 Supports for the Rolls of Plastic
Film
Figure 1 – Main Components of the Wrapper
The rotating table will turn counterclockwise (Figure 2).
Figure 2 - Direction of the Rotating Table
The following table illustrates and describes the wrapper's
labels.
Table 1 – Labels on the Bale Wrapper
Label Description
How to install the
plastic film
The direction in which
bales are unloaded
Lubrication point (oil)
Grease point (with
grease gun)

8 Operator's Manual – Round Bale Wrapper RB-200 Anderson Group
1.2 Technical Specifications
Figure 3 – Size
Table 2 – Dimensions and Weights
Selection Dimension
Length (A) 2.58 m (100.5 in.)
Length at unloading 2.34 m (92.15 in.)
Width (B) 1.62 m (63.95 in.)
Width at unloading 1.85 m (72.68 in.)
Height (C) 1.86 m (73.24 in.)
Total weight 614 kg (1350 lb)
Table 3 – General Specifications
Selection Specification
Bale dimensions Length: 1.2 or 1.52 m (4
or 5 ft.)
Diameter: 1.2 to 1.68 m
(48 to 66 in.)
Stretchers Number: 1
Length: 76 cm (30 in.)
Plastic film Roll width: 76 cm (30
in.)
Stretch capacity: 55%
Hydraulic system Type: Open
Pressure: 2100 psi
(max.)
Rate: 30 LPM (8 GPM)
1.3 Tips and Recommendations for High-qual-
ity Silage
The Anderson Round Bale Wrapper is the ideal machine for
making excellent silage bales. For the best possible bales,
you must also know how and when to harvest, and how
wrap your feed stock.
When should you cut your hay for a quality har-
vest?
A good quality harvest starts with two conditions: The
right amount of sugar in the growing plants and an
adequate level of humidity once cut. When these
conditions are combined, all you need to do is wrap
quickly and remove as much of the air as possible from the
bales. If you are able to do this correctly, you will have
excellent silage.
The quality of the raw material also influences the quality
of the silage. For good silage, you must harvest your hay
when the plants are at their peak nutritional values. When
hay is cut at its peak sugar levels, it will ferment well and
have an optimal level of protein. Plants are considered to
be in their vegetative stage at this time. For grasses
(timothy grass, millet, brome grass, orchard grass, etc.),
you should cut at the beginning of ear emergence or just
before maturity. For legumes (alfalfa, red or white clover,
lotus, etc), you should cut when the flower is about 10%
developed.
Mature crops give a better return and contain more fibre.
However, once wrapped, they tend to deteriorate after just
a few months. A precocious cut gives a more flavourful
product. It also leads to a quick regrowth and makes
second and third cuttings possible.
The quality of the product also depends on hay
harvesting, raking or curing methods. For example, large
regular field crops produce bales that are more solid and
even.
It is important not to contaminate the fodder with soil,
manure or other residues from previous harvests.
When is the best time for baling?
After drying your hay, you will decide when to bale your
fodder. This will depend on the level of humidity, which
should have decreased enough but not too much. For
fodder to stay good for at least a year, the ideal level of
humidity should be around 50% for both grasses and
legumes, with a possible range of 40% to 55%.
Two easy and effective ways to determine the level of
humidity in your hay are an easy, well-known test using a
microwave or humidity tester.
If your baled hay contains too much humidity, butyric acid
will form and could prevent the fermentation necessary to
conserving your silage. Such hay must be used within 3
months.

Anderson Group Round Bale Wrapper RB-200 – Operator's Manual 9
How can you obtain a quality bale?
During baling, the tractor driver has a large impact on the
quality of the future silage. We recommend proceeding
slowly and keeping the tractor’s power take-off at high
rpm to obtain high-density bales. You should also ensure
that you bales are firm and even. They will be easier to
wrap and they will produce continuous and more airtight
bale rows and silage with higher nutritional value.
When should you wrap your bales?
We recommend wrapping your bales as soon as possible
after baling, since this is when fermentation within the
bale begins. We recommend waiting no longer than 12
hours and a much shorter period if the outside
temperature is high.

10 Operator's Manual – Round Bale Wrapper RB-200 Anderson Group
2 Safety Measures
Your Anderson Bale Wrapper was designed to minimize the
risks for the operator. You should never use it in any way
other than for its intended purpose. Misuse of the machine
may cause you or others serious injury.
The wrapper has a hydraulic system and moving
mechanical parts.All these elements may cause serious and
even deadly injuries to people and livestock. Therefore, it
is strongly recommended that you carefully read all the
following advice.
Operator Qualities and Skills
Before operating your Anderson Wrapper, familiarize
yourself with the procedures in this manual and insist that
all other users also follow them. Be sure anyone using your
wrapper :
lIs responsible
lHas been properly trained to operate the wrapper
safely
lKnows the emergency telephone numbers
lKnows where to find your first aid kit
Using the Wrapper
Only use the wrapper to wrap round hay bales 1.2-1.52 m
(4- 5 ft.) in length and 1.68 m (66 in.) and less in
diameter. Avoid all other uses, such as transporting
people, livestock or hay bales.
Safety Perimeter
It is essential you are not interrupted during the operation
of this machine. You must be the only person to move
around and especially behind the wrapper during
operation.
Maintain a 5-meter security perimeter
(16 ft) around the machine, when in
operation. Remove all people,
especially children and animals, from
the wrapping site. Failure to do so
may cause serious, even deadly,
injuries.
Safe Hitching to the Tractor
To make sure the machine does not move while wrapping,
choose a flat location.
The wrapper should be hitched to the tractor's mobile
hydraulic bars (3-point hitch) and these hitches should be
locked with the pins (Figure 4.
Figure 4 - Safe Hitching
Basic Safety Guidelines
Never stand on the wrapper or allow
anyone using the wrapper to stand
on it.
Climbing on the machine may lead to
serious injury, even death. This is
one of the main causes of accidents
related to the use of the wrapper.
Before starting the wrapper:
lLocate and understand all warning stickers on the
wrapper.
lKnow how to stop your wrapper in the case of an
emergency.
lMake sure that all the tractor's options and levers
are in the neutral position (OFF) before starting the
engine.
lRemove any hay or other debris that may be stuck
in any of the moving parts of the machine to be
sure that they move freely when the wrapper is
running.
lImmediately replace any defective or worn parts.
NOTE: Please refer to 7 for a full description of
the required maintenance.
While operating the wrapper:
lKeep your hands and feet far from moving parts:
chains, gears, blade, etc. Be cautious with the
plastic cutter blade.

Anderson Group Round Bale Wrapper RB-200 – Operator's Manual 11
lWear protective clothing. Avoid scarves and loose
clothing (pants, shirts or coats) that may get stuck
in the equipment’s moving parts.
lWear suitable hearing protection. Hearing
protection will reduce the risk of hearing loss,
which can be caused by continuous exposure to
the noise from the wrapper.
lUse a mask approved for working in dusty
conditions.
lIf you are working in the evening or at night,
ensure that the lighting is sufficient to operate in
complete safety.
lEnsure you have a working extinguisher available.
lAlways leave the protective screens and other
safety devices in place. If these parts are removed
or damaged, do not use your wrapper until they
have been fixed or replaced.
Before repairing or replacing anything on your wrapper:
lStop the tractor engine.
lRemove the tractor’s ignition key in order to be
certain it will not start accidentally while you are
working.
lRelease the oil pressure before walking under
certain hydraulically lifted parts and be cautious
with the plastic cutter blade.
Hydraulic Oil Handling
Hydraulic fluid is a flammable substance. Keep it in its
original container or in approved packaging and always be
careful when you fill the tank. Once filling is complete, put
the tank cap back on and tighten it firmly. Then wipe up
any oil that may have been spilled. Never add oil when the
engine is hot or running. Have a working fire extinguisher
on the baling site at all times.
A pressurized oil leak can cause serious injury. Do not use
your hands to locate a leak. Instead, use an object, such as
a piece of cardboard. Turn off the engine and release the
pressure before unplugging or replugging the lines. Firmly
tighten all couplings before turning on the engine or
reapplying hydraulic pressure.
Should any hydraulic oil have contact
with your skin, quickly consult a
doctor familiar with such injuries.
Any untreated contact with hydraulic
oil may lead to serious injury, in the
hours to follow, including
amputation.

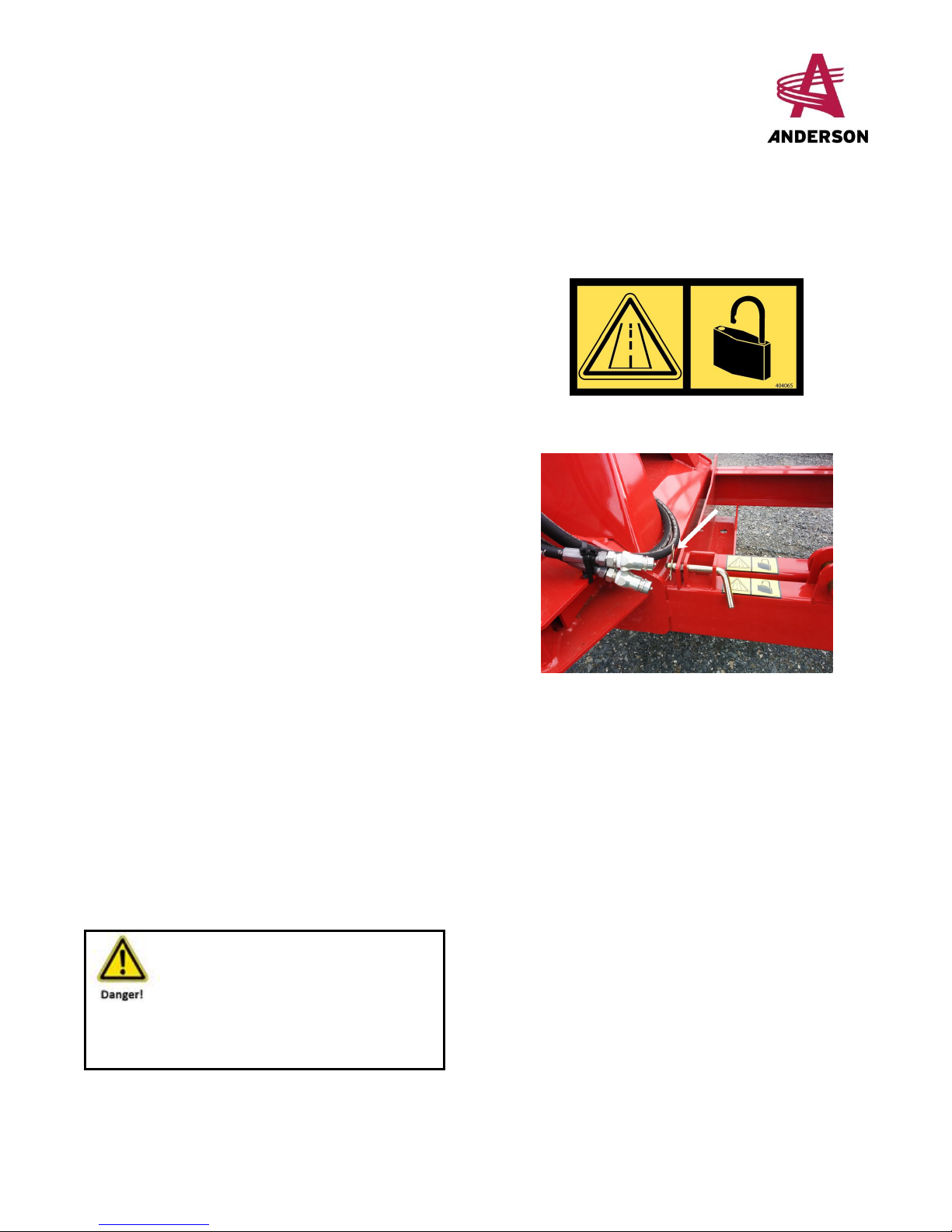

Moving the Bale Wrapper
If driving on public roads, you must follow all applicable
signage rules in effect in your area.
When moving the wrapper, the parts with the label shown
in Figure 5 must be locked, as illustrated in Figure 6.
Figure 5 - Label for Parts that Must be Locked
During Transportation
Figure 6 - Moving Parts to Lock
2.1 Safety Labels
The following table shows the labels found on the wrapper
and explains their meaning.

12 Operator's Manual – Round Bale Wrapper RB-200 Anderson Group
Table 4 – Safety Labels on the Wrapper
Label Meaning
Danger of getting
caught in the
gearwheels or belts.
Do not put your hands
or any other body part
close to a moving part
of the wrapper.
Danger of being
caught or crushed by
the machine or a bale
when the machinery is
in operation.
Keep a minimum
distance of over 5
meters (16 ft.) from
the wrapper when in
operation.
Danger of a bale
tipping.
Do not exceed the
rotation speed of 30
RPM.
Danger when
transporting the
machine.
Lock the parts
identified with this
label with a pin.
Label Meaning
Danger to hands
Do not put your hands
or any other body part
close to the blade of
the plastic film cutter.

Anderson Group Round Bale Wrapper RB-200 – Operator's Manual 13
3 Preparation and Start-up
3.1 Before You Start
Before using your wrapper, please check that:
lThe tractor has adequate hydraulic oil.
lThe stretcher rollers are clean. Wash them as
needed with penetrating oil, denatured alcohol or
paint thinner.
lYour wrapper is well lubricated and oiled (See
section 7.1).
lThe bale counter is properly programmed (see
Chapter 5 ).
lYour wrapper is properly hitched to the tractor
(See section 3.3).
lThe height of the tilting table is properly adjusted
(see section 3.4).
lThe plastic cutter safety is removed (see section
3.8).
3.2 Moving Your Bale Wrapper
Your wrapper can be moved short and medium distances.
It can be fully lifted by tractor when it is properly attached
to the tractor's hydraulic bars. When you move your
wrapper, make sure to follow all of the safety measures
and the recommendations laid out in this section.
Safety When Moving Your Wrapper
Line up your bale wrapper with your tractor's hydraulic
bars and use the pins to hitch them (Figure 6 ). When
using public roads, follow the traffic rules in effect in your
area for agricultural machinery, including those governing
the operation of agricultural machinery by minors.
Regardless of how you choose to
move your wrapper, no one should be
on the machine while it is moving.
No person or animal should be within
5 meters (16 ft.) of the wrapper
before moving it.
3.3 Attaching the Wrapper to the Tractor
Be sure to attach the wrapper to the movable hydraulic
bars (three-point hitch) (Figure 7 and Figure 8 ) and lock
these hitches with the pins.
Figure 7 - Attaching the Lower Hydraulic Bars
Figure 8 - Attaching the Upper Hydraulic Bars

14 Operator's Manual – Round Bale Wrapper RB-200 Anderson Group

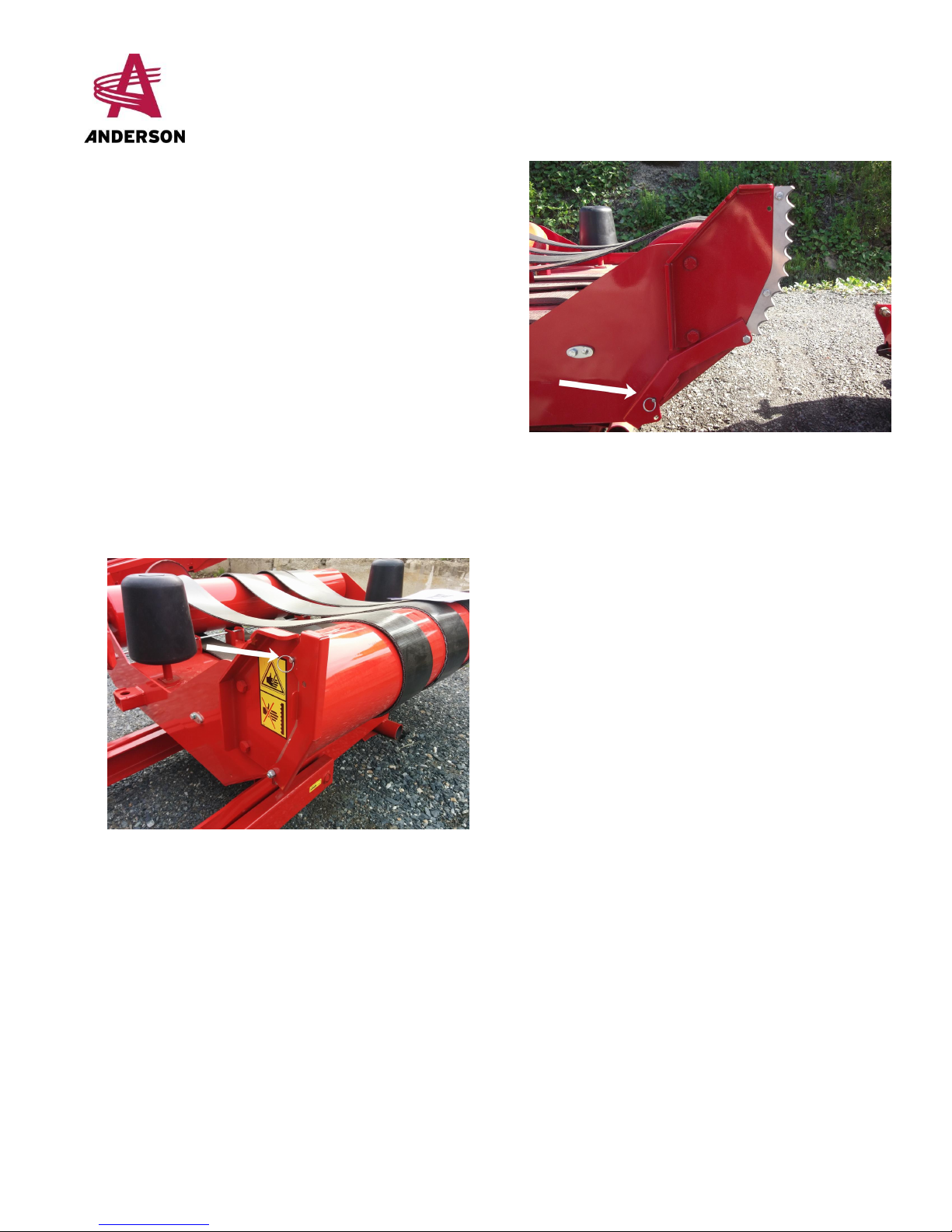

3.4 Adjusting the Tilting Table
1. Remove the pins from the moving parts shown in
Figure 9.
Figure 9 - Moving Parts
2. Adjust the height of the tilting table vis-à-vis the
base of the wrapper and screw or unscrew the
upper hydraulic bar from the tractor (Figure 10).
Figure 10 - TheTractor's Upper Hydraulic
Bar
The tilting table should not
touch the wrapper's base.
There should be a space
between the two moving parts
when they are unlocked and
the tilting table is properly
adjusted.
The adjustment is good when the plastic film
moves freely above the plastic cutter blade when
the table rotates during wrapping (Figure 11).
Figure 11 - Plastic Cutter

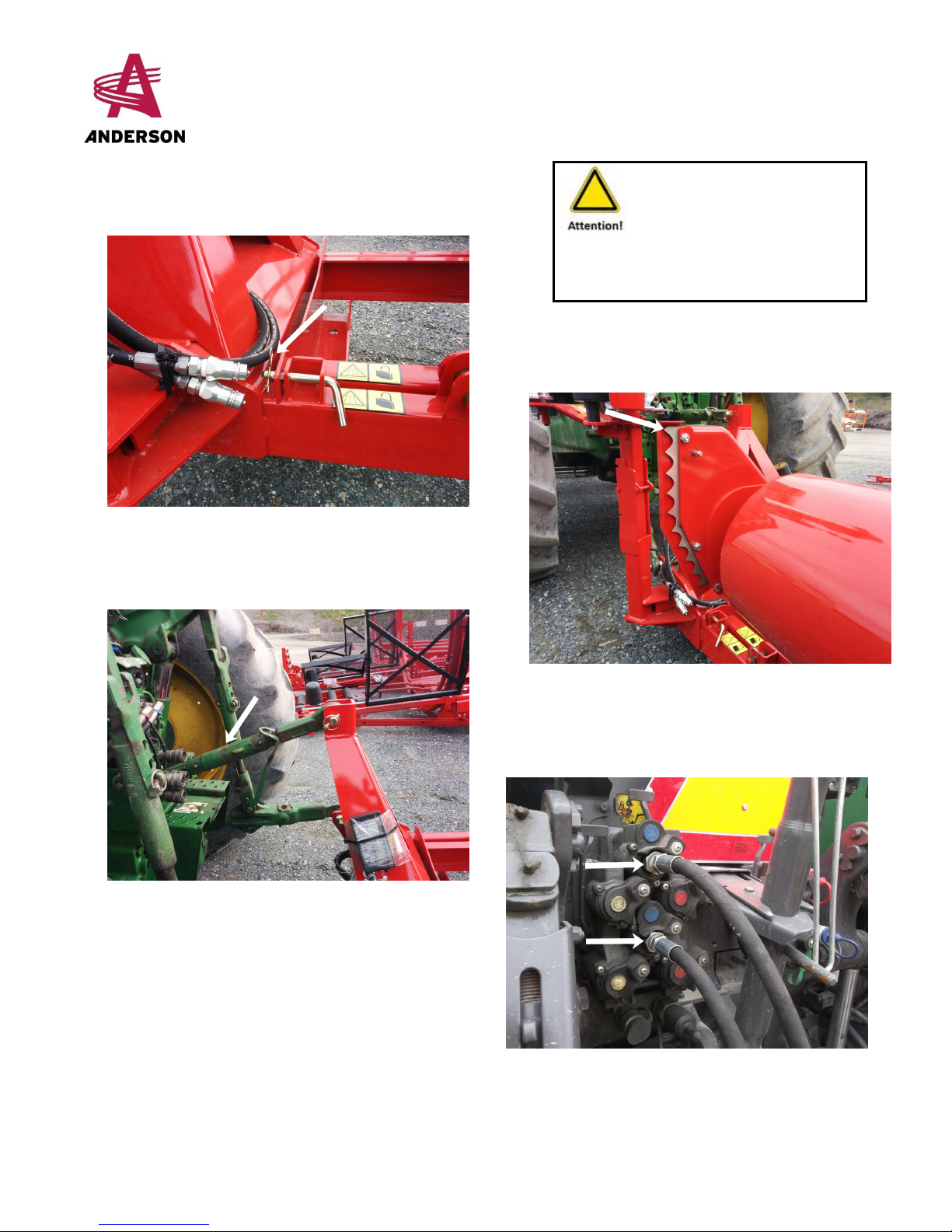

3.5 Attaching the Hydraulic Couplings
Attach the two (2) hydraulic couplings to the tractor
(Figure 12).
Figure 12 – Hydraulic Couplings

Anderson Group Round Bale Wrapper RB-200 – Operator's Manual 15

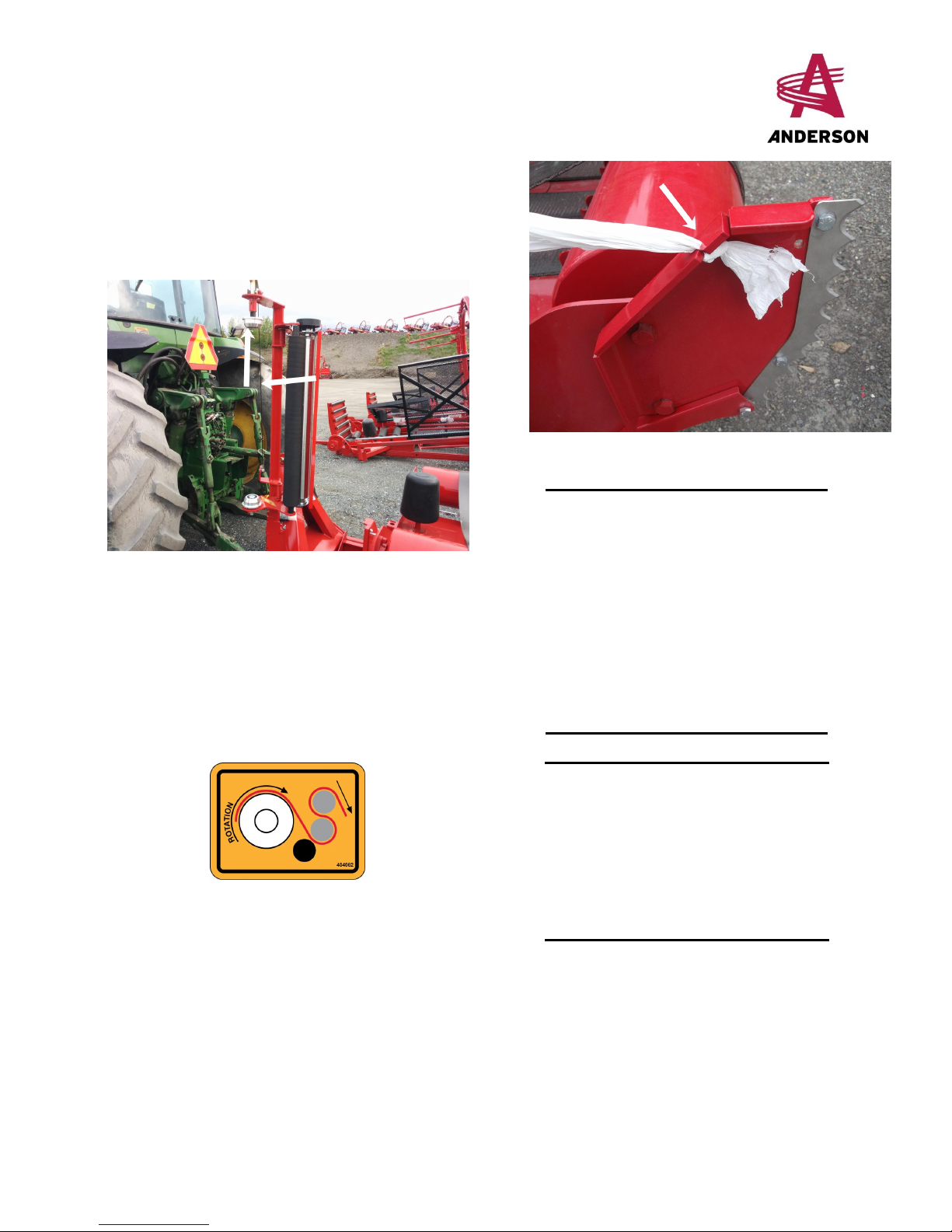

3.6 Installing the Roll of Plastic Film
To install the roll of film, proceed as follows:
1. Push the upper spool upwards to flatten the upper
retaining spring (Figure 13).
Remove the empty roll, if applicable.
Figure 13 - Installing a Roll of Plastic Film
2. Install the new roll between the two spools.
3. Pull on the cable to release the upper spool (Figure
13). The upper spool should fit into the roll to hold
it in place.
4. Feed the film through the rollers of the stretcher
(Figure 14). Pass the film first through the black
rubber free wheel and the nearest aluminium roll,
then between the two aluminium rolls.
Figure 14 – Installing the Plastic Film
5. Pull on the plastic film until you have enough to tie
a knot at the end.
6. Knot the film and then secure it with the hook
found next to the plastic cutter, as shown in Figure
15. To accomplish this task, a bale ready to be
wrapped should be on the machine (see section
4.2).
Figure 15 – Attaching the Plastic Film
NOTE: The plastic film can become
soft and sticky if it is left for a
long time in the heat of the
sun. You will notice when the
film is being applied that it
may break more often or
holes begin to appear in the
plastic when on the wrapped
bale. Make sure to store your
rolls of plastic film in a cool
dark place where they are
shielded from the sun.
NOTE: The rollers of the stretcher
should always be clean and
should turn freely to keep the
plastic film from jamming or
tearing.
If needed, see section 7.4 to
learn how to clean and
maintain the stretcher rolls.

16 Operator's Manual – Round Bale Wrapper RB-200 Anderson Group
3.7 Testing the Stretcher's Functioning
To make sure your stretcher is working properly:
1. Draw a 25 cm (10 in.) horizontal line on your roll
of plastic film with a marker.
2. Turn your rotating table about one turn and stop
it.
3. When your line has completely crossed the
aluminium rolls, measure it on the bale.
If the mark stretches up to 16.5 inches, your stretcher is
working properly.
If the plastic film is not stretching properly, check the
stretcher's gearwheels. Also check if the roll of plastic and
the free wheel turn freely. Clean the aluminium rollers as
needed (see section 7.4).
3.8 Removing the Plastic Cutter Safety
Device
1. Remove the pin holding the plastic cutter safety
device in place (Figure 16)
Figure 16 - Pin for the Plastic Cutter Safety
Device
2. Tilt the safety device towards the ground
3. Put the pin back in place to maintain the safety
device in the position shown in Figure 17.
Figure 17 - Position of the Plastic Cutter
Safety Device for Wrapping

Anderson Group Round Bale Wrapper RB-200 – Operator's Manual 17
4 Wrapping
This section describes the method that the Anderson
Group recommends for wrapping your bales. The steps
you must follow are:
1. Adjusting the wrapper
2. Installing and wrapping the first bale
3. Unloading the first bale
4. Installing and wrapping subsequent bales
This section will also describe what to do once you have
finished wrapping.
4.1 Making Adjustments
Make adjustments to wrap a bale according to your
preferences. You can adjust the following components:
lBale size (support rolls)
lNumber of turns of plastic film on each bale (see
Chapter 5 ).
NOTE: Refer to Chapter 6 to learn
how to make these
adjustments.
4.2 Wrapping the First Bale
1. Place a bale between the guide rollers from the
opposite side of the stretcher, if possible.
The bale will turn counterclockwise.
2. Attach the plastic film near the plastic cutter
(Figure 18).
Figure 18 - Plastic Film
3. Pull your tractor's hydraulic lever to turn the
rotating table.
When the bale has almost reached the maximum
programmed number of turns, you will see the bale
counter screen blink and hear three beeps. (For
how to program the bale counter, see section 5.3).
The wrapper will not stop
automatically when the
number of turns has been
reached.
4. Stop the wrapper when the table is aligned: the
bale axis should be parallel to the tractor's axle and
the blade of the plastic cutter should be pointed
towards the bale being unloaded (Figure 19).
Figure 19 - Position of the wrapper for
unloading
5. On the bale counter, the total number of bales
increases by 1 and, after 15 seconds, the number
of turns per bale returns to 0.
4.3 Unloading a Bale
Tilting the table when it is
improperly aligned can cause major
damage to your machine.

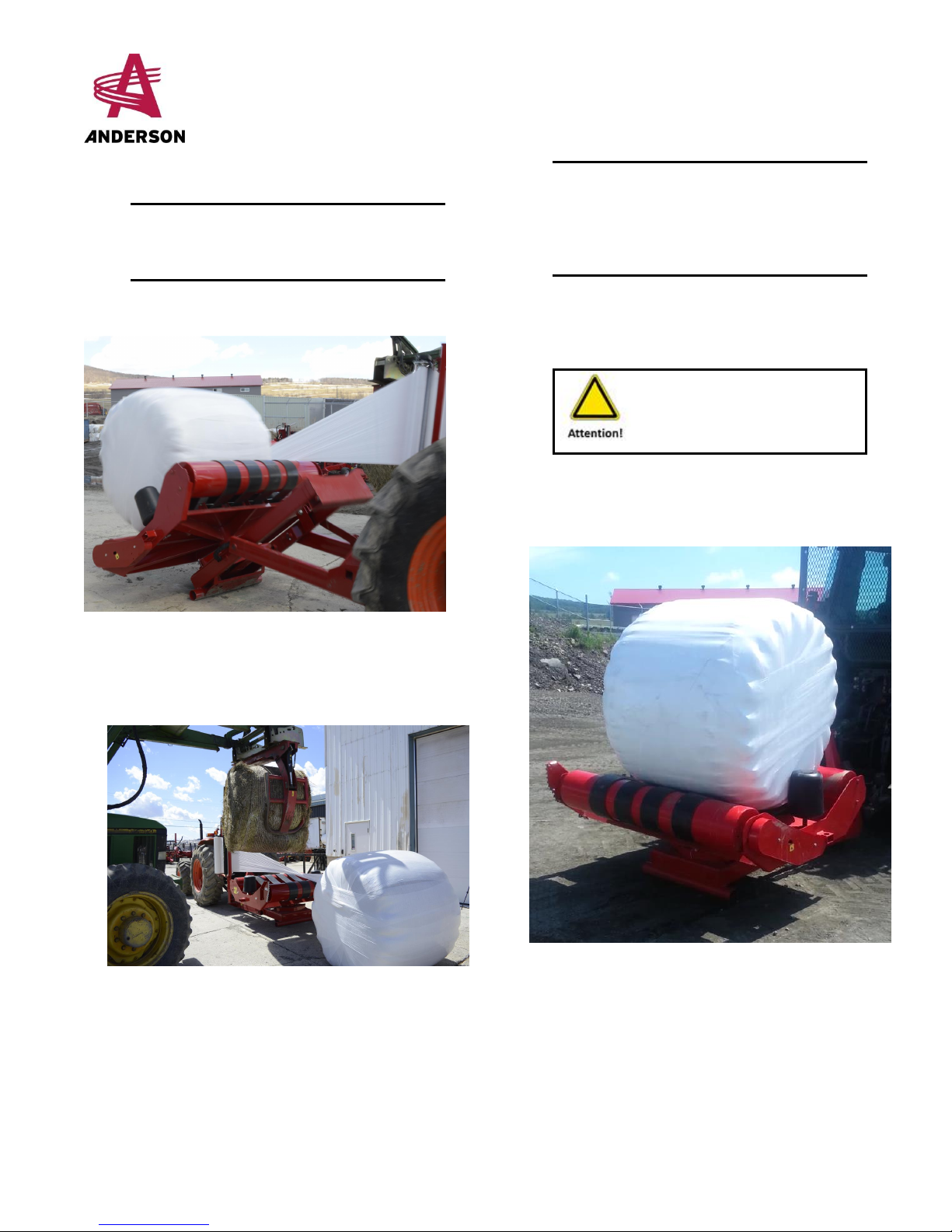

18 Operator's Manual – Round Bale Wrapper RB-200 Anderson Group
1. To tilt the table, pull the lever that activates the
tractor's hydraulic bars (the 3-point hitch).
NOTE: The plastic film has not yet been
cut. It will be cut when the next
bale is wrapped.
2. Once the bale is on the ground, lower the table by
lowering the tractor's hydraulic bars (Figure 20).
Figure 20 - Unloading a Bale
4.4 Placing and Wrapping Subsequent Bales
1. Place a new bale between the feed rollers. The bale
should be placed on the plastic film (Figure 21).
Figure 21 - Placing the Second Bale
The bale will turn counterclockwise.
2. Pull your tractor's hydraulic lever to turn the
rotating table.
NOTE: During this operation, the plastic
cutter will cut the film between the
previous bale and the new bale.
The bale placed on the ground can
therefore be recuperated.
When the bale has almost reched the maximum
number of turns programmed, you will see the bale
counter blink and hear three beeps. (For how to
program the bale counter, see section 5.3).
The wrapper will not stop
automatically when the
number of turns has been
reached.
3. Stop the wrapper when the table is aligned: the
bale axis should be parallel to the tractor's axle and
the blade of the plastic cutter should be pointed
towards the bale being unloaded (Figure 22).
Figure 22 – Position of the Wrapper for
Unloading
4. On the bale counter, the total number of bales
increases by 1 and, after 15 seconds, the number
of turns per bale returns to 0.

Anderson Group Round Bale Wrapper RB-200 – Operator's Manual 19
4.5 End of Wrapping
When your bales are stored, make sure each bale you have
wrapped is waterproof.
If needed, close any openings with tape so fermentation
starts quickly. Use the tape recommended by your plastic
film supplier.

20 Operator's Manual – Round Bale Wrapper RB-200 Anderson Group
5 Functioning of the IG-C3 Bale
Counter
The IG-C3 bale counter makes it possible for you to count
the number of bales wrapped per day. It also allows you to
set, based on the number of turns, the quantity of plastic
film to use on each bale.
The bale counter runs on a rechargeable battery. Use the
a.c./d.c. charger, as needed. The bale counter is placed
on the tractor, near the driver.
The module includes:
lA liquid-crystal screen with two lines
lFour key pads

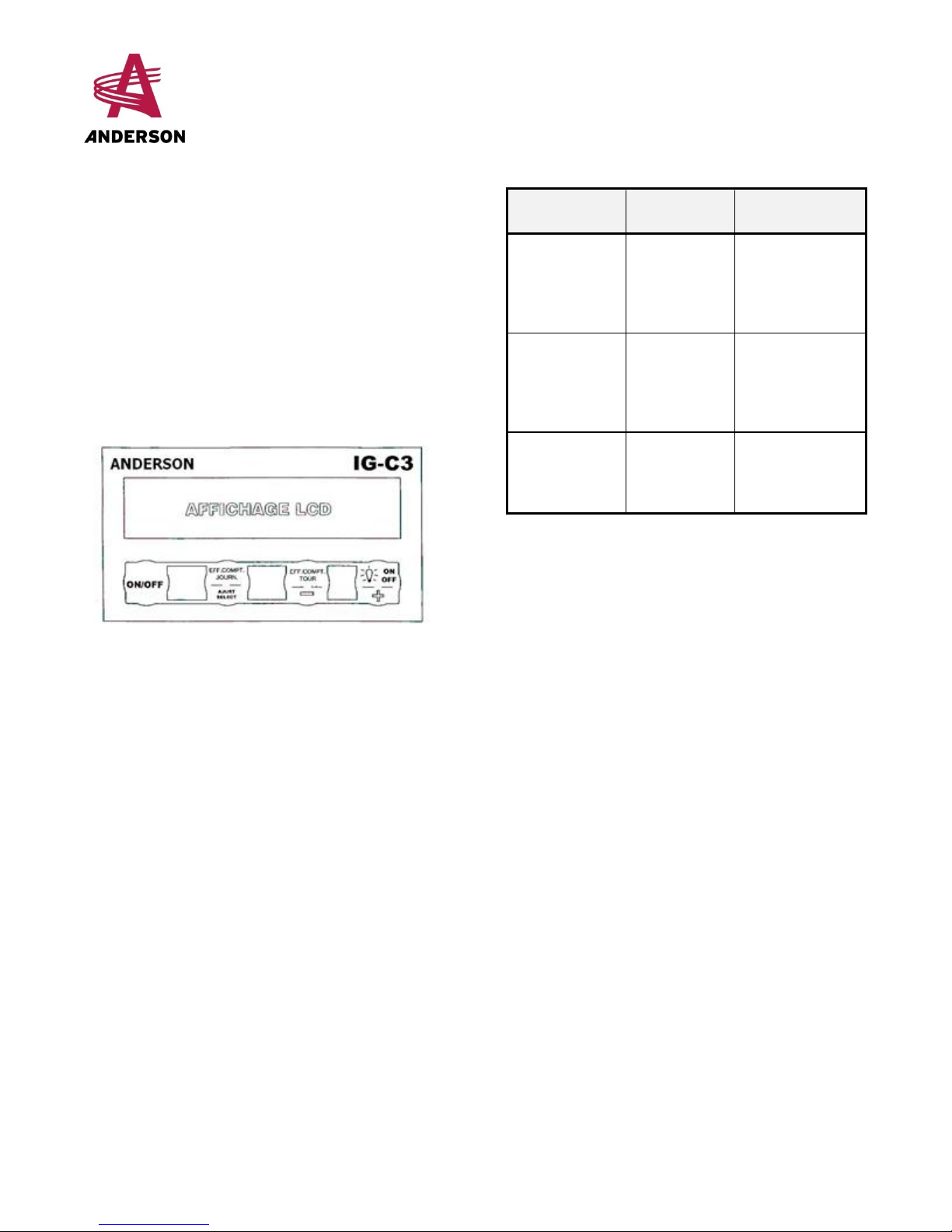

Figure 23 - Bale counter screen
5.1 Operating
Push the ON/OFF key at the far left of the counter to turn
it on. The screen will display Anderson.
The start screen will display after five seconds. Table 5
describes the items on the start screen.
Table 5 - Bale Counter Screen
Location on
the Screen Visual Content
Upper left Turns: 00 Number of wraps
per bale. The
number of turns
increases as you
wrap.
Second line Bales (D): 000 Total number of
bales wrapped.
The bale counter
will start at zero
every day.
Upper right MAX: 18 Maximum number
of wraps
programmed for
each bale.
The counter will switch into low-energy mode if not used
for five minutes.
5.2 Use
Reset the Bale Counter to Zero
The bale counter will automatically reset to zero every day.
It can also be manually reset for testing or other reasons.
To do this:
1. Push the EFF. COMPT. TOUR key
2. Push the YES key to confirm you wish to reset the
counter to 0.
Reset the Turn Counter to Zero
The turn counter will automatically reset to zero every time
a bale is unloaded. It can also be manually reset for testing
or if the wrapping cycle of a bale is interrupted before
unloading. To do this:
1. Push the EFF. COMPT. TOUR key TOUR key.
2. Push the YES key to confirm you wish to reset the
turn counter to 0.
Turning ON/OFF the Screen Lighting
The internal battery uses 10 times less energy when the
screen is not lit.
To turn off the screen, push the ON/OFF key to the right
of the counter.
