AT&T SB8735 User manual

User’s manual
SB8735
IP Phone

Congratulations
on your purchase of this AT&T product. Before using this AT&T product, please
read the Important safety information of this manual. Please thoroughly
read this user’s manual for all the feature operations and troubleshooting
information necessary to install and operate your new AT&T product. You
can also visit our website at www.telephones.att.com or call 1 (800)
222-3111. In Canada, dial 1 [phone].
Model number: SB8735
Type: IP Phone
Serial number:
Purchase date:
Place of purchase:
Both the model and serial numbers of your AT&T product can be found on the
bottom of the phone.
Save your sales receipt and original packaging in case it is necessary to return
your telephone for warranty service.
© 2013 Advanced American Telephones. All Rights Reserved. AT&T and
the AT&T logo are trademarks of AT&T Intellectual Property licensed to
Advanced American Telephones, San Antonio, TX 78219. Printed in China.
T
Compatible with
Hearing Aid T-Coil
TIA-1083
Telephones identified with this logo have reduced noise and interference when
used with most T-coil equipped hearing aids and cochlear implants. The TIA-1083
Compliant Logo is a trademark of the Telecommunications Industry Association.
Used under license.

Parts checklist
Your telephone package contains the following items. Save your sales receipt
and original packaging in the event warranty service is necessary.
Handset with coiled
cord installed
User's manual
Phone
Phone power
adapter
Ethernet cable
Quick start guide
Wall mount bracket
User’s manual
SB8735
IP Phone
Quide start guide
SB8735
IP Phone
Replacement directory card

1
Navigation keys
While in menus, press or to scroll through the menus, highlight
items or change settings. Press to enter the selected item, or
press to return to the previous menu.
While entering names or numbers, press or to move the cursor
to the left or right.
•
•
MENU
Press to enter the menu.•
SELECT
While in the menu, press to
select an item or save an
entry or setting.
•
MESSAGE
Press to enter the message
menu.
•
MESSAGE WAITING
indicator
Flashes when there are new
messages in the private
mailbox.
•
Liquid cystral display
Provides information and
controls for using the
phone.
•
Soft keys
Four keys that produce different
actions depending on the LCD
labels
•
Getting started
Quick reference guide
CANCEL
While in a menu, press to
cancel an operation and exit
the menu display.
•
DIRECTORY
Press to view directory
information.
•
CALL HISTORY
Press to view caller ID information.•

Getting started
Quick reference guide
2
REDIAL
Press to view the last
10 numbers dialed.
•
TRANSFER
Press to transfer a call to
an extension.
•
MUTE
During a call, press to
mute the microphone.
•
p/VOLUME/q
During a call, press to
adjust the listening volume.
During message playback,
press to adjust the
playback volume.
Press to adjust the ringer
volume when in idle mode.
•
•
•
FLASH
During a call, press to
answer an incoming call
when you receive a call
waiting alert .
•
DND
Press to enter do-not-
disturb mode.
•
HEADSET
When a corded headset
is connected to the
phone, press to make,
answer or hang up a
call.
•
CONFERENCE
Press to add another
extension or outside line to
an existing cal.
•
HOLD
Press to place an
outside call on hold .
•
LOWER
When assigning or dialing a one-touch
number, press to switch to the lower
location (the second 16 locations) of a
programmable key.
•
Programmable keys
Provide access to various
call functions, which are
determined by your system
administrator.
•
SPEAKER
Press to turn on the
speakerphone. Press again
to turn it off.
•
MIC

3
This section assumes that your network infrastructure is established and that the
SIP PBX service has been ordered and configured for your location.
Install the phone close to a router or network switch. If you are not using PoE,
install the phone near a power outlet not controlled by a wall switch. The phone
can be placed on a flat surface or vertically mounted on the wall.
Avoid placing the phone too close to:
Communication devices such as television sets, VCRs, or other cordless telephones.
Excessive heat sources.
Noise sources such as a window with traffic outside, motors, microwave ovens,
refrigerators, or fluorescent lighting.
Excessive dust sources such as a workshop or garage.
Excessive moisture.
Extremely low temperature.
Mechanical vibration or shock such as on top of a washing machine or
work bench.
NOTE: The Deskset shall be installed and used such that parts of the user’s
body other than the hands are maintained at a distance of approximately
20 cm (8 inches) or more.
•
•
•
•
•
•
•
Getting started
Installation

4
Getting started
Phone installation
Make sure you plug in the Ethernet cable before powering up
the phone.
Plug the end of the coiled handset cord into the
Use only Supplied Adapter L4 L3/4 L2 L1/2
5.1
MS2085 Engraving: MS2015 Engraving:
Use only Supplied Adapter
jack on the left side of the telephone.
1.

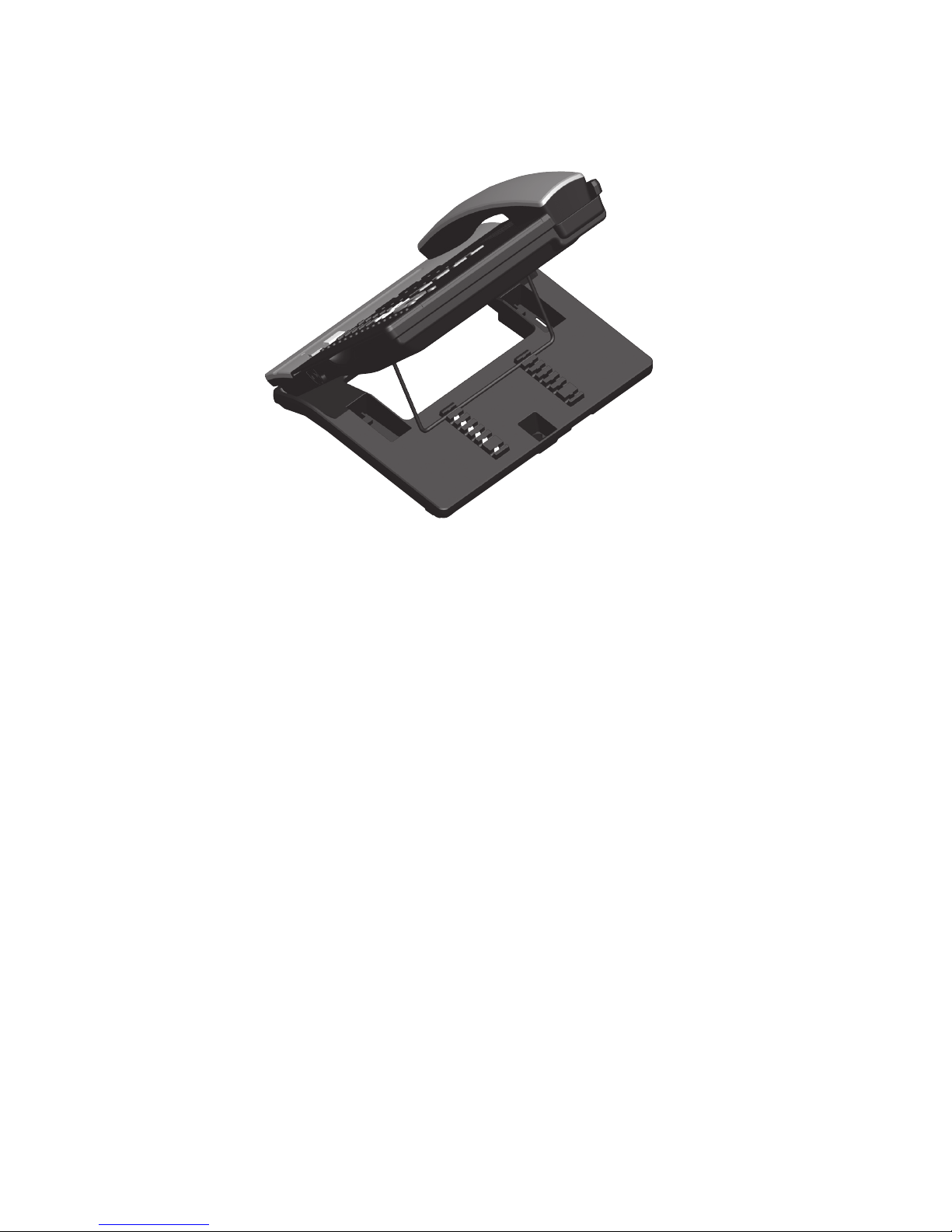

Lift the kickstand as the arrow indicates below to release it from the
groove. There are seven pairs of grooves designed to hold the phone at
different angles for optimum visibility.
2.
Getting started
Phone installation

5
Getting started
Phone installation
Plug one end of the Ethernet cable into the Ethernet jack at the back of
the phone, and plug the other end of the Ethernet cable into the router.
(Continued on next page)
4.
Snap the kickstand into the desired grooves until it locks into place.3.

6
Getting started
Phone installation
Router
Plug the large
end of the phone
power adapter into
an electrical outlet
not controlled by a
wall switch. (If PoE
cannot be provided
through Ethernet
cable.)
Plug one end of the
Ethernet cable into the
Ethernet jack at the back
of the phone.
Plug the other end of
the Ethernet cable into
the router connecting to
your console.
Route the Ethernet
cable and power cord
through these slots.
Plug the small end
of the phone power
adapter into the power
jack at the back of the
phone. (If PoE cannot
be provided through
Ethernet cable.)
Router
Plug the power adapter into an electrical outlet not controlled by a
wall switch if you are not using PoE.
5.
The port next to the power jack
at the back of the phone does
not have any function currently.
It is not available for connection
of other equipments.

7
Getting started
Phone installation
To share a network connection with a PC:
Unplug the end of Cat.-5 Ethernet cable from your computer. Plug it into the
Network port on the back of the phone.
Plug one end of another Cat.-5 Ethernet cable into the PC port on the phone.
Plug the other end into your computer.
If a PC is connected to your LAN through a phone, any phone resets and power
or network interruptions will disrupt the PC’s connections to the network.
1.
2.
•
