1. Overview of A2X(W)/A20LTE
A2X(W)/A20LTE
Type
POE
Power adapter
Wi
-
Fi
1000M
4G(LTE)/3G
A2
1
Yes
Optional
accessory
No
No
No
A
20
W
No
Necessary
Y
es
No
No
A26
Yes
Optional
accessory
No
Yes
No
A20WAC
No
Necessary
Yes
(2.4G+5G)
No
No
A20LTE
No
Necessary
NO
No
Yes

A2X(W)/A20LTE IP Phone User Manual
ATCOM TECHNOLOGY CO., LIMITEwww.atcom.cn7
1.1. Interface
Power Input
DC 5V
-
1000mA or POE
L
AN
Port
RJ45
PC
Port
RJ45
Headset Jack
RJ9
Handset Jack
RJ9
LTE Nano card Port
Nano
-
SIM card port(A20LTE)
1.2. Hardware
LCD
132*52
CPU
400MHz Dual
-
Core
LED
Indicator
1 Status Light
, 2 line
indicators
1.3. LTE data parameters

A2X(W)/A20LTE IP Phone User Manual
ATCOM TECHNOLOGY CO., LIMITEwww.atcom.cn8
LTE
Frequency band
LTE FDD: B1/ B3/ B8
LTE TDD: B38/ B39/ B40/ B41
TDSCDMA: B34/ B39
WCDMA :B1/ B8
LTE
Version
3GPP E
-
UTRA Realease 11
Bandwidth
1.4 /3 /5 /10/20MHz
Antenna
DL MIMO
, Support receive diversity
Data
L
TE
LTE FDD: Max 1500Mbps (DL) Max 50Mbps (UL)
LTE TDD: Max 130Mbps (DL) Max 35Mbps (UL)
DC
-
HSPA+
Max 42Mbps (DL) Max 5.76Mbps (UL)
UMTS
Max
384
Mbps (DL) Max
384
Mbps (UL)
TD
-
SCDMA
Max 4
.
2Mbps (DL) Max
2.2
Mbps (UL)
CDMA
Max
3.1
Mbps (DL) Max
1.8
Mbps (UL)
EDGE
Max
236.8K
bps (DL) Max
236.8K
bps (UL)
GPRS
Max
85.6K
bps (DL) Max
85.6K
bps (UL)
1.4. Software
 Sip 2.0 (RFC3261) and other related SIP RFCs
 6 SIP accounts registration
 STUN
 Jitter Buffer, VAD,CNG
 G711A, G711U, G722, G726-16, G726-24, G726-32, G726-40, G729, L16, iLBC_13_3,
iLBC_15_2, OPUS
 Echo Cancellation
 SIP Domain name, Authentication and Backup SIP Server
 DTMF（RFC2833, Inband, SIP INFO)
 Call transfer, Call forward, 5-way conference, Call hold, Call back
 DND(Do Not Disturb), Auto answer, Blacklists, Block Call-ID, Block Anonymous call, Dial
plan, IP call
 Phone book with 1000 contacts and 50 blacklists
 Call History with 400 records include answered calls, missed calls, dialed calls and forward
calls
 Auto update via HTTP, HTTPS, FTP, TFTP, DHCP, RPS and PNP

A2X(W)/A20LTE IP Phone User Manual
ATCOM TECHNOLOGY CO., LIMITEwww.atcom.cn9
 Syslog
 SNTP, NTP
 Customized Ringtone
 Daylight Saving time
 VLAN, OpenVPN, Span to PC port, QoS
 802.1X, LLDP
 Enterprise WIFI
 WEB access with different login level
 Soft button: soft button *3
 Redundancy SIP server
 Multi-language: English, French, Hebrew, Russian, Spanish, Simplified or Traditional
Chinese, Persian, Polish, Portuguese, Turkish, German, Italian
 Support 2.4GHz and 5GHz WiFi
 Support 4G(LTE) & 3G
1.5. Network
 LAN/PC: Support Bridge mode
 Support VLAN
 SupportOpen VPN
 IPv6
 Support DHCP, STATIC IP
 Primary/SecondaryDNS Server
 Support QoS
 Support LLDP
 Support 802.1X
 Support Span pc port
 Support Enterprise WIFI
 Web access via HTTP&HTTPS
 A20W support 2.4GHz WiFi with 802.11n protocol
 A20WAC support 2.4GHz WiFi and 5GHz WiFi with 802.1Ac protocol
 A20LTE support 4G(LTE) and 3G access
1.6. Management and Maintenance
 Support firmware updating under safe mode
 Support different level user management
 Configuration via web , keyboard
 Support multi-language
 Firmware and configuration file auto provision
 Support system log

A2X(W)/A20LTE IP Phone User Manual
ATCOM TECHNOLOGY CO., LIMITEwww.atcom.cn10
1.7. Protocol
 IEEE 802.3 /802.3 u 10 Base T / 100Base TX
 DHCP: Dynamic Host Configuration Protocol
 SIP RFC3261, RFC3262, RFC3263, RFC3264, RFC3265, RFC2543, RFC3489, RFC3842,
RFC3515, RFC2976, RFC3428, RFC2327, RFC2782, RFC1889
 TCP/IP: Transfer Control Protocol/Internet Protocol
 RTP: Real-time Transport Protocol
 RTCP:RTP Control Protocol
 DNS: Domain Name Server
 TFTP: Trivial File Transfer Protocol
 HTTP:Hypertext Transfer Protocol
 FTP:File Transfer Protocol
1.8. Compliant and Certified Standard
 CE: AGC01180140201E2，AGC01180140202E2
 Comply with ROHS in EU
 Comply with ROHS in China

 Operation temperature: lower than 60° C
 Storage temperature: lower than 60° C
 Humidity: 10 to 90% no dew
1.9. Packing list
Model
A2X(W)
Telephone
1 Unit
Handset
1 Unit
Handset cable
1 Unit
Stand bracket
1 Unit
Wall bracket
1 Unit
Power adapter
Optional for A21,A26
Standard for A20W, A20WAC,A20LTE

A2X(W)/A20LTE IP Phone User Manual
ATCOM TECHNOLOGY CO., LIMITEwww.atcom.cn11
Network Cable
1 Unit
，
1.5 meters
Quickstart Guide
1 Unit
Headset
Optional
1.10. Connection
1.10.1. Connect wired network
A2X(W)/A20LTE is able to be connected with network via LAN port. Under the Bridge mode,
other devices (Laptop, IP phone) is able to access network via the PC port of A2X(W).
The topology is as follows:
1.10.2. Connect WiFi network
A20W and A20WAC is able to connect the WiFi.
The topology is as follows:

A2X(W)/A20LTE IP Phone User Manual
ATCOM TECHNOLOGY CO., LIMITEwww.atcom.cn12
1.10.3. Connect LTE network
If enable LTE setting, A20LTE get service network.
(Note: The A20LTE phone can communicate with other devices through the LTE data
acquisition network. The acquired LTE data network is the public network of the carrier. At this
time, the phone web interface cannot be accessed.)
The topology is as follows:
1. Press Menu → LTE Setting, enable LTE feature
2. After enable LTE, press ↓ key, you can see Network service, Network type,
Signal strength and IMSI.

A2X(W)/A20LTE IP Phone User Manual
ATCOM TECHNOLOGY CO., LIMITEwww.atcom.cn13
1.11. Installation
1.11.1. Connecting port introduction
The A2X(W) connecting port introduction, please refer as below picture:
The A20LTE connecting port introduction,
From as below picture show the connecting port and insert the standard Nano-SIM card into
the back cover way:
(Note: please don’t plug in and off Nano card when the phone connected power)

A2X(W)/A20LTE IP Phone User Manual
ATCOM TECHNOLOGY CO., LIMITEwww.atcom.cn14
1.11.2. Installation instruction
1. Stand bracket installation instruction
A. Put the bottom side of the IP phone upside and press one-side joints of stand bracket
into the slot, please refer the picture as below:

A2X(W)/A20LTE IP Phone User Manual
ATCOM TECHNOLOGY CO., LIMITEwww.atcom.cn15
B. Press the other side joints into the slot according to the direction of the arrow:
C. It is the right picture after fixing the stand bracket below:

A2X(W)/A20LTE IP Phone User Manual
ATCOM TECHNOLOGY CO., LIMITEwww.atcom.cn16
D. Disassemble the stand bracket:
Push the spring joint of stand and pull the stand according to the direction of the arrow.
When the joints are pulled out of the slot, you can take off the stand bracket

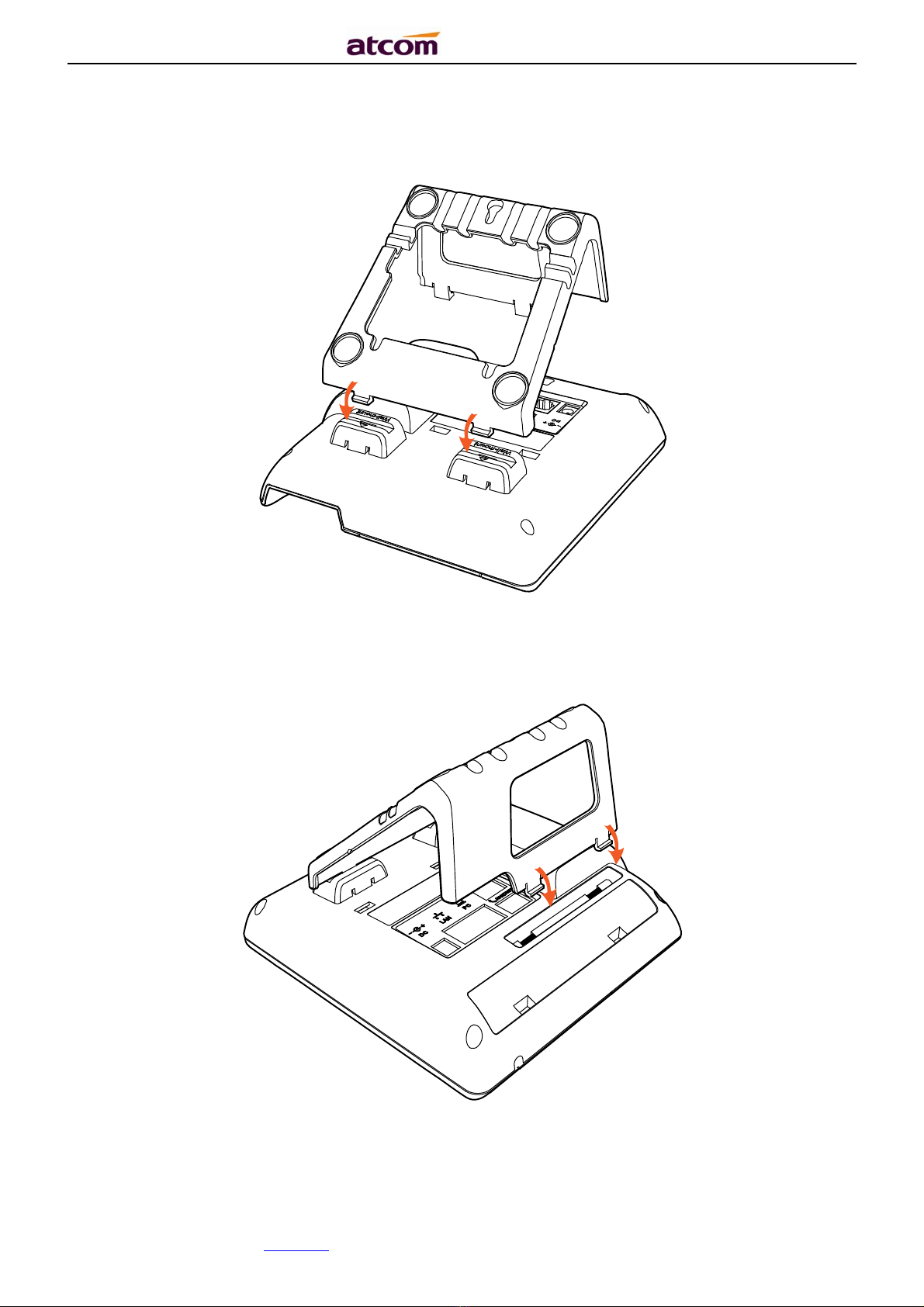

2. Wall-hung Installation
A. Put the bottom side of the IP phone upside and press one-sidejoints of wall-hung stand
bracket into the slot, please refer the picture as below:

A2X(W)/A20LTE IP Phone User Manual
ATCOM TECHNOLOGY CO., LIMITEwww.atcom.cn17
B. Press the other side joints into the slot according to the direction of the arrow

A2X(W)/A20LTE IP Phone User Manual
ATCOM TECHNOLOGY CO., LIMITEwww.atcom.cn18
C. After install the wall-hung stand bracket, press one-sidejoints of stand bracket into the
slot, please refer to the picture as below:
D. Press the other side joints into the slot according to the direction of the arrow
E. Knock in nails or screws on the wall according to the proportion of the distance between
the hanging holes as below:

A2X(W)/A20LTE IP Phone User Manual
ATCOM TECHNOLOGY CO., LIMITEwww.atcom.cn19
F. It is the right picture after fixing the stand bracket below:
G. Disassemble the stand bracket:

A2X(W)/A20LTE IP Phone User Manual
ATCOM TECHNOLOGY CO., LIMITEwww.atcom.cn20
Push the spring joint of stand and pull the stand according to the direction of the arrow.
According to the direction of the arrow:
2. Call Function
2.1. Answer the calls
When there is an incoming call, phone will remind user with ringing. There are 3 ways to
answer the call:
A. Answer by handset
Pick up the handset and talk with the caller. If you want to hang up, just put back the handset.
When you are talking with the handset and want to switch to speaker or headset mode, please
press key or key,and then put down the handset.
B. Answer by speaker
