Bay-Tek Lil Ticket Monster User manual

SERVICE MANUAL
PLACE SERIAL NUMBER
LABEL HERE

2
FACTORY CONTACT INFORMATION
All games are proudly manufactured at our factory in Pulaski, Wisconsin, USA
Open Monday - Friday
8 AM - 5 PM C.S.T.
BAY TEK ENTERTAINMENT
Pulaski Industrial Park
1077 East Glenbrook Drive
Pulaski, WI 54162 USA
SIGN UP TO RECEIVE OUR E-MAILS!
Stay up to date on the latest game information, new product launches, early notification of
parts specials, updates of retro fit parts, software upgrades, best practices and more!
Visit baytekent.com and enter your email to sign up!
You can also register your new game at baytekent.com/register
SALES
Phone: [phone] Ext. 2
Fax: [phone]
Email: [e-mail]
PARTS
Phone: [phone] Ext. 1101
Email: [e-mail]
SERVICE
Phone: [phone] Ext. 1102
Email: [e-mail]

3
TABLE OF CONTENTS
FACTORY CONTACT INFORMATION ………...………….………….. 2
TABLE OF CONTENTS …………………..……………….…………….. 3
WELCOME TO LIL’ TICKET MONSTER ……….…….……………….. 4
GAME SPECIFICATIONS …………….……………………………….. 5
SAFETY PRECAUTIONS ……………………...……………………….. 6
REMOVABLE MARQUEE ……..………..………………..…………….. 6
GAME SET UP …………………………………………………..…. 7 - 12
CARD SWIPE INSTALLATION ……………………………………….. 13
AVAILABLE BLANKING PLATES …………………………………….. 13
GAME PLAY THEORY OF OPERATION …………………………… 14
MAIN MENU FUNCTIONS ……………………………………………. 15
AUDIO SETTINGS ……………………………………….…….. 16
PAYOUT SETTINGS MENU ……………………………………. 17
TICKET PATTERNS ………………………………………… 18 - 19
GAME SETTINGS MENU ………….……...………….……… 20
STATISTICS MENU …………………………………………….. 20
DIAGNOSTIC MENU ……………...……………………..…….. 21
HOW TO LOCATE CIRCUIT BOARDS …………………………..…. 22
DIPSWITCH SETTINGS ………………………………………………. 22
CIRCUIT BOARD LAYOUT …………………………………………… 23
WIRING DIAGRAMS ……………………………………………… 24 - 28
TROUBLESHOOTING GUIDE …………….…………….………. 29 - 34
BILL ACCEPTOR DIAGNOSTICS …………………………………… 34
POWER SUPPLY DIAGNOSTICS …………………………………… 35
HOW TO CHANGE SOFTWARE ………………….…………………. 36
I/O AUX BOARD PINOUT …………….…………..…………………… 36
HOW TO OPEN THE FRONT PLEXI ……………………………. 37
HOW TO REMOVE ARROW SENSOR ……………………………. 37
HOW TO ADJUST ARROW SENSOR ……………………………. 38
HOW TO ADJUST BRAKE TENSION ……………………………. 38
HOW TO REMOVE HOME SENSOR ……………………………. 39
HOW TO REPLACE MONITOR ………...………………….…..… 39
HOW TO REPLACE SOLENOID ………...………………….…. 40 - 42
HANDLE ASSY EXPLODED VIEW …………….…………………… 43
DECAL DIAGRAM ……………………………………………………… 44
PARTS LIST …………………...……………………………....…… 45 - 46
PARTS PICTURES ………………………………………………… 47 - 49
MAINTENANCE LOG ………………………………………………….. 50
TECHNICAL SUPPORT ……………………………………………….. 51
WARRANTY …………………………………………………………….. 52
S
Manual Revision 1/26/2022 - Software Version: 1.0

4
WELCOME TO LIL TICKET MONSTER
Congratulations on your purchase!
The beloved Lil’ Monsters : Burb, Grunt, and Toot are delighted to be a part
your game room! The Lil’ Monsters are fun and friendly to all age groups,
creating multi-generation appeal to anyone that steps through your doors!
Please take a moment to read through this manual and be sure to contact our
factory if you have any questions, or would like some more information.
Thank you for your purchase!
Your business is important to us and we hope you enjoy this product as much
as we do!
Your Friends at Bay Tek Entertainment

5
GAME INSPECTION
Please inspect the game for any damaged, loose, or missing parts.
If damage is found, please contact your freight carrier first.
Then, contact Bay Tek Entertainment’s Service Department at
[phone] Ext. 1102
Or email us at [e-mail] for further assistance.

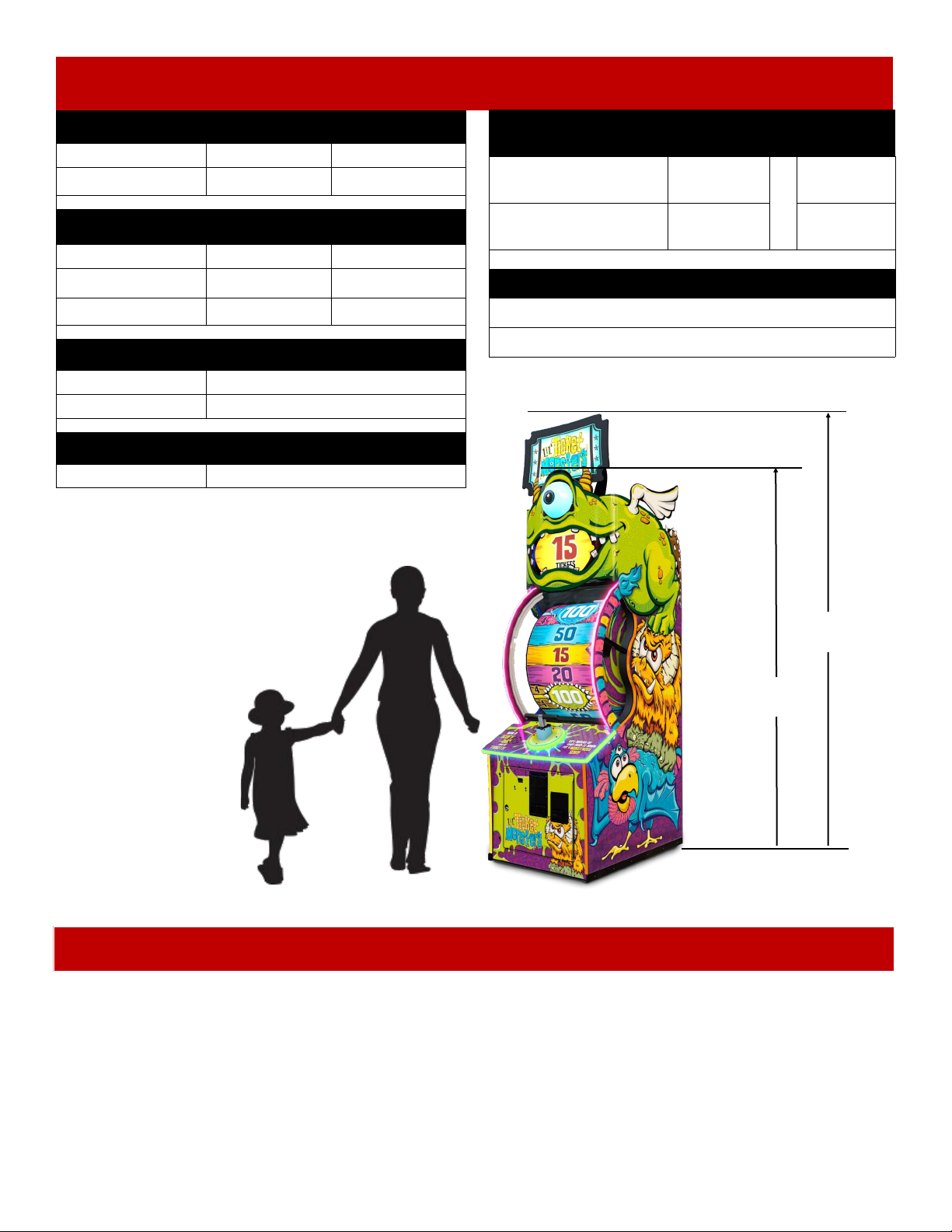

GAME SPECIFICATIONS
WEIGHT
GAME WEIGHT 386 lbs. 175 kg
SHIP WEIGHT 471 lbs. 214 kg
GAME DIMENSIONS
WIDTH 30.75” 79 cm
DEPTH 43" 110 cm
HEIGHT 106.25" 270 cm
OPERATING TEMPERATURE
FAHRENHEIT 45 - 80 F
CELSIUS 7.2 - 26.7 C
SHIPPING DIMENSIONS
PALLET 60”x 40”x 92” 471 lbs. class 125
POWER REQUIREMENTS
INPUT VOLTAGE 100-120
VAC
220-240
VAC
INPUT FREQUENCY 60 Hz 50/60 Hz
MAX OPERATING CURRENT
2.8 AMPS @ 115 VAC
1.4 AMPS @ 230 VAC
106.25”
270 cm
91”
231 cm
Note: The marquee artwork can be removed
to lower game to 7’ 6” (90 Inches)

6
The marquee artwork
can be removed to
accommodate a
lower ceiling height.
Remove the marquee
artwork to lower game
to 7’ 7” (91 Inches)
SAFETY PRECAUTIONS
REMOVABLE MARQUEE
8’ 10 1/4”
(106.25 Inches)
7’ 7”
(91 Inches)

7
The game will arrive on one pallet.
Please inspect the pallet for shipping damage
and report immediately to the freight company
if any damage is found.
Remove the cardboard from the pallet.
Carefully remove the plastic wrap securing the printed plexi wrapped to the
side of the cabinet. Save this printed plexi for later installation.
Remove the large plastic bag from the cabinet and proceed to assembly
instructions.
LIL TICKET MONSTER GAME SETUP
Unlock the front door using a H95 key.
Tools Needed:
1 step ladder (4-6 foot) #2 square bit screwdriver
9/16” wrench Phillips screwdriver 11/32” wrench
Remove the hardware kit (Part # A5KIT-LTM), wood
blocks and service manual from the coin box.
Remove the eyeball light to be installed later.
Close and lock coin box door, remove key to allow the
front door to close fully.
Unlock the coin box door using a A05/E00 key.
Remove the protection plastic from the front plexi.
Remove the keys from the small plastic bag taped to the top
console.
Important!

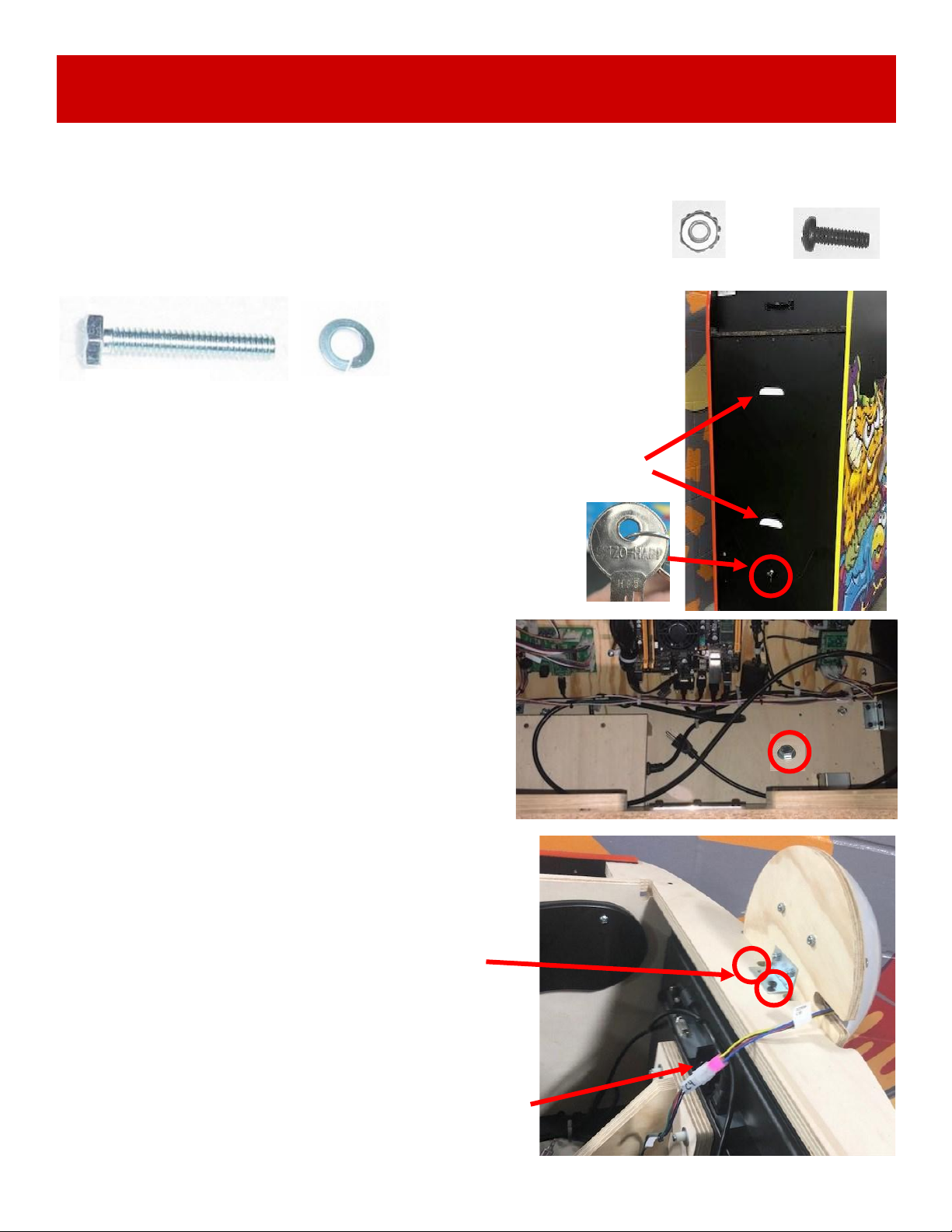

Remove the first of 2 shipping bolts using a 9/16”
wrench.
There is another shipping bolt accessed from the
back door.

8
LIL TICKET MONSTER GAME SETUP
Replace the back door and remove the game from
the pallet.
Unlock the back door using a H95 key.
Remove the back door by using both handles to lift upwards and pull
out.
Important!
Remove the 2nd of 2 shipping bolts using a 9/16”
wrench.
Ensure the shipping bolt from the front door is also
removed.
Hardware kits consist of:
32 of A5SCPH151 used to install the eyeball light and printed plexi wrap.
2 of A5SCPH230 and 2 of A5NULO030 used to secure plexi wrap below
monitor.
1 of A5BOHH060 , 1 of A5WASI020, and 1 of A5WAFL060 are to be
saved with the wood blocks and used to support the wheel in case of
a future solenoid replacement.
A5WASI020
A5BOHH060 A5WAFL060
A5SCPH230A5NULO030
A5SCPH151
Connect the CE22506 cable from eyeball light to the
game cable CE22505 located in the top of the game.
Using a ladder, carefully position the eyeball light on
top of the game by positioning it inline with pilot holes.
Secure using 2 of the black screws from the
hardware kit using a #2 square bit screwdriver.
A5SCPH151

9
LIL TICKET MONSTER GAME SETUP
Rotate upper marquee in place:
Remove the lower bolt (A5BOPH320) from both left
and right sides of marquee arm.
Leave the top bolt in place.
Rotate the marquee upward and re-insert the same
bolts previously removed into the left hole.
Do this on both arms of the marquee.
Install the printed plexi wrap.
Remove the clear protective film from both
sides of the printed plexi wrap.
The idea is to secure one screw into the left
side of the plexi, then wrap it around the game
and install screws into the right side.
The first screw to be installed will be this one.
Line up the printed plexi with this pilot hole and
insert 1 of the black screws from the hardware
kit using a #2 square bit screwdriver.
A5SCPH151

10
LIL TICKET MONSTER GAME SETUP
Pull the printed plexi wrap around the front of
the game tightly, with the eyeball light through
the round cutout in the plexi.
Continue wrapping the top of the cabinet and
get ready to insert one screw in this location.
Line up the printed plexi with this pilot hole and
insert 1 of the black screws from the hardware kit
using a #2 square bit screwdriver.
Make sure the bolt hole is centered in the hole of the
printed plexi.
A5SCPH151
Pull the printed plexi snuggly until this bolt is
centered in the hole of the printed plexi.
A5SCPH151
Insert another of the
black screws from the
hardware kit using a #2
square bit screwdriver.

11
LIL TICKET MONSTER GAME SETUP
Continue installing the black screws from
the hardware kit using a #2 square bit
screwdriver in both the left side and right
side printed plexi wrap.
There are a total of 15 screws in each side.
A5SCPH151
If the plexi bulges in spots, it may be
necessary to remove screws close to
bulge and re-install screws.

12
LIL TICKET MONSTER GAME SETUP
Remove the power cord from the coin box, and thread
the power cord through this hole, out the rear of the
cabinet and plug into a grounded outlet.
The game is now set up and ready for play!
Enter menu to adjust settings to your location specific price per play and ticket payout.
Power on game:
Open the front door and turn on the rocker switch on the power
strip along the right side of coin box.
The rocker switch is located behind the 1st power cord on the
strip
Install the 2 center bolts and nuts under the
monitor.
The printed plexi wrap is secured to small “L”
brackets using a Phillips bolt and nut from the
hardware kit.
A5SCPH230A5NULO030
Push the 2 bolts through the printed plexi, through
the hole in the “L” bracket, and secure with the nut
by reaching under the lip of the plexi.
Secure using a Phillips screwdriver and 11/32”
wrench.
Under
Plexi
view

13
Note:
- Many card swipe systems have a voltage threshold that
can be adjusted in the card swipe menu. Please set this
“Game Drive Threshold” to 2 Volts.

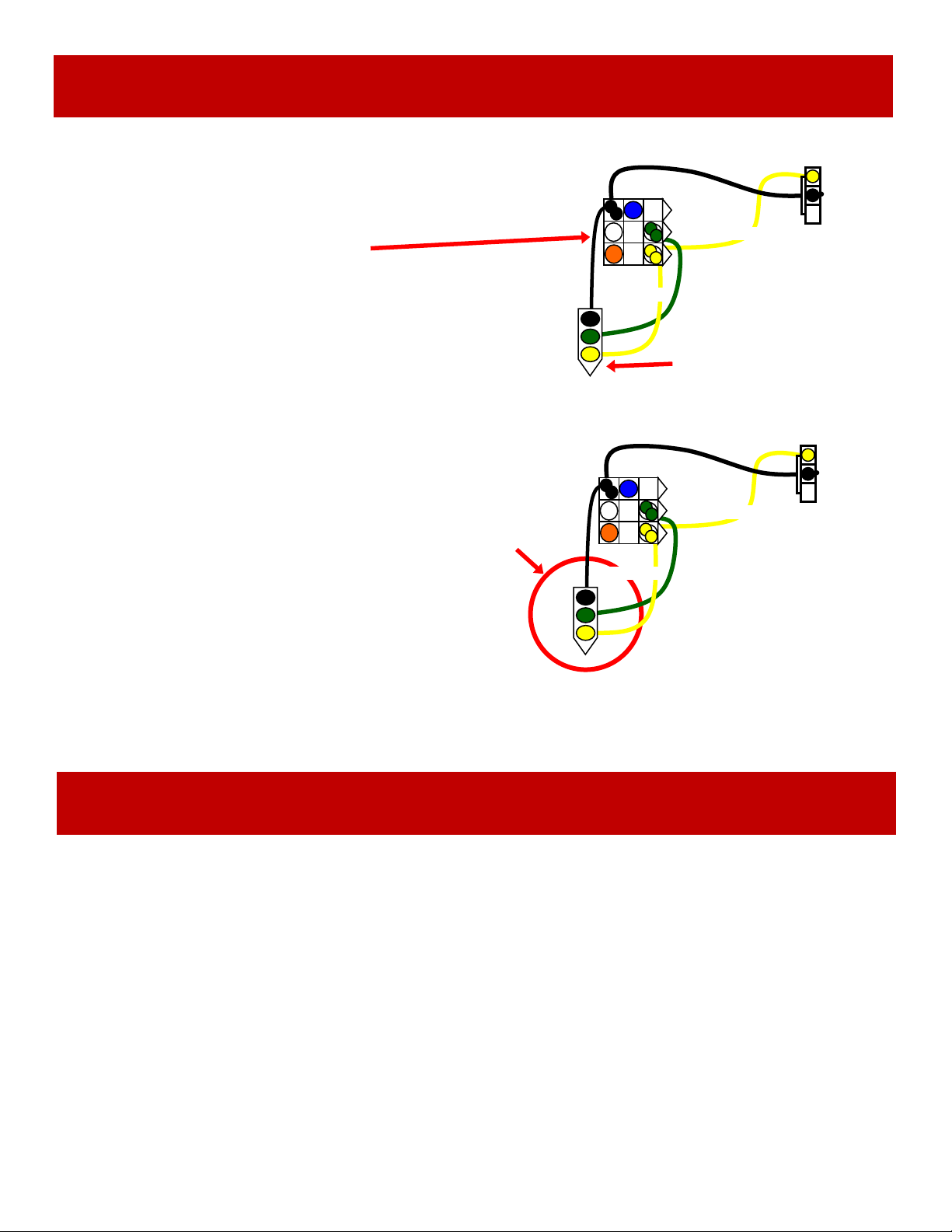

Option #2:
If your card swipe systems does not have a standard 9 pin
Molex connector, then you will have to splice wires into the
AACE26013 harness.
Black wire is ground. (common)
Green wire is coin signal.
Yellow wire is +12 Volts DC
CARD SWIPE SYSTEM INSTALLATION
The Lil Ticket Monster game is pre-wired with an UCL (Universal Card Link) connector to accept Card
Swipe systems from many different manufacture’s.
Please follow these instructions to make full use of this capability.
Menu Changes
Enter menu, go to “Payout” Menu
Verify “Credits” set to 1
Verify “Card Reader” set to “Enabled”
Check dipswitches on the I/O Aux Board in the front of game. Verify Dipswitch # 5 ON
Option #1:
Card swipe systems may come with a standard 9 pin Molex
connector. This is the UCL connector.
Simply plug this connector into your
card swipe reader.
This would normally plug
into coin mechanism.
AVAILABLE BLANKING PLATES
A5PL8900 Plate used for Bill Validator A5PL9995 Plate used instead of ticket dispenser
A5PL4200 DBA Plate for 12V Upstacker Bill Acceptor A5PL9998 Plate used instead of Coin Mechanisms
AACE26013
AACE26013
Power In
from Power
Distribution
Board
AACE26013
AACE26013
AACE26013
Power In
from Power
Distribution
Board
AACE26013

14
GAME PLAY THEORY OF OPERATION
The game is designed to give tickets after the player lifts,
then pushes down on the plunger handle.
Upon coin up, the solenoid on the left side of the wheel will
engage and provide a mechanical link from the plunger
handle to the wheel.
As the plunger is pushed down, the wheel will start spinning.
The solenoid will stay engaged, allowing the player to
plunge again to spin faster until a “Good Spin” wheel speed
is achieved.
Once the wheel is spinning at or above this “Good Spin”
wheel speed, the solenoid will disengage.
The “Good Spin” wheel speed is measured by the Wheel
Encoder Sensor located in the arrow in the right front of the
wheel.
This Wheel Encoder Sensor also detects the notched
edge around the right edge of the wheel to determine how
far away it is from the “Home Position”.
The “Home Position” is kept track of by the Home
Sensor located on the right side of the wheel.
The Home Sensor (accessed from the back of the game)
sees a reflection from a metal tab mounted on the wheel,
seeing the reflection once per rotation.
This calculation of the Wheel Encoder Sensor and the
Home Position Sensor allows the game to determine
which position the wheel lands on and provides
that amount of tickets to the player.
Solenoid
Home
Position
Sensor
Wheel
Encoder
Sensor

15
MAIN MENU FUCTIONS
MAIN MENU
Clear Credits
and Tickets
Press the MENU SELECT button 5 times to
clear credits and tickets owed
Mute ON
(No sound from game) OFF
Attract and
Volume
Press MENU SELECT to enter the
Attract and Volume Settings Menu
Payout Press MENU SELECT to enter the
Payout Settings Menu
Game
Settings
Press MENU SELECT to enter the
Game Settings Menu
Statistics Press MENU SELECT to enter the
Statistics Menu
Diagnostics Press MENU SELECT to enter the
Diagnostic Menu
Exit Press MENU SELECT button to exit menu
*** Default settings are highlighted in yellow
Software versions are shown on the
bottom left corner of the main menu
screen.
The Menu and Menu Select buttons are located
inside the front door.
Hold the MENU button down for 1 second to open
the main menu on the monitor.
Press MENU to scroll through the options, and
MENU SELECT to change the settings.
Software Version: 1.0
Doorboard Version: 1.7
Wheelboard Version: 1.0
Lightboard Version: 1.0
If “Not Found” is displayed, then the
circuit board is not communicating
to motherboard.

16
ATTRACT AND VOLUME MENU
Scroll through the options by pressing the “MENU” button.
Change selection with the “SELECT” button.
Scroll to “BACK” and press the “SELECT” button to go back
to the main menu.
Default settings are highlighted in yellow below.
Sets the game volume on a sliding scale. OFF means no game play volume.
GAME VOLUME
345OFF 12678910
ATTRACT VOLUME
345OFF 12678910
Sets the attract volume on a sliding scale. OFF means no attract volume.
ATTRACT TIME
Sets the amount of minutes between the attract mode cycles.
“DISABLED” means that there will be no attract sounds.
345DISABLED 12678910
Sets the bonus celebration volume on a sliding scale. OFF means no bonus celebration volume.
BONUS VOLUME
345OFF 12678910

17
PAYOUT SETTINGS MENU
Scroll through the options by pressing the “MENU” button.
Change selection with the “SELECT” button.
Scroll to “BACK” and press the “SELECT” button to go back to the
main menu.
Default settings are highlighted in yellow below.
12345…17 18 19 20FREE
Sets the amount of credit pulses needed to start a game.
“Free Game” means the game will always be in play mode.
CARD SWIPE
Shows the verbiage on the screen to match your locations setup.
SWIPE CARD TAP CARD INSERT CREDITS
Disabled 12345... 24 25
FIXED TICKETS
Sets the amount of tickets that will be given if the player only if “Ticket Pattern” is set to Fixed Tickets
Sets the ticket pattern for game play. Available patterns are described on the next page.
Default is $1.00 per game.
FIXED TICKETS 1234
TICKET PATTERN
REDEMPTION TYPE
Sets the wording that will show on the screen for the player.
COUPONS TICKETS POINTS
15 50 100 250
MINOR BONUS VALUES
Sets the amount of tickets for the 3 minor bonus locations on the wheel.
250 500 1000 200050 100
MAJOR BONUS VALUE
Sets the amount of tickets for the 1 major bonus location on the wheel.
CREDITS

18
TICKET PATTERNS
Minor
Bonus
Option
Decals
Major
Bonus
Option
Decals
Avg. Tix 5-15 Avg. Tix 10-20 Avg. Tix 20-45 Avg. Tix 40-60
There are 4 base ticket patterns to choose from. These base patterns can be adjusted by adding
cover-up decals to the wheel over the minor and major bonus values.
Base ticket values and minor and major bonus values can be changed in the “Payout Settings Menu”
Tickets per game shown are average payout over time.

19
How to change ticket payout:
The tickets per game can be modified by purchasing a set of cover up decals and placing them over
the existing number on the wheel. Order part # AADE22510
TICKET PATTERNS
There are 4 base ticket patterns to choose from. These base patterns can be adjusted by adding
cover-up decals to the wheel over the minor and major bonus values.
Base ticket values and minor and major bonus values can be changed in the “Payout Settings Menu”
Tickets per game shown are average payout over time.

20
GAME SETTINGS MENU
Sets the amount of seconds that the game will wait for the player to spin the wheel.
After this amount of time, the game will award 4 tickets and go to “Game Over”
“Disabled” means no timeout.
TIMEOUT
Disabled 30 60 90 120 …300
Scroll through the options by pressing the “MENU” button.
Change selection with the “SELECT” button.
Scroll to “BACK” and press the “SELECT” button to go back
to the main menu.
Default settings are highlighted in yellow below.
ENTERTAINMENT ONLY
“ON” will not dispense tickets.
OFF ON
STATISTICS MENU
Scroll through the options by pressing the
“MENU” button.
The Statistics Menu displays the:
- Total Games Played
- Total Game Time
- Average Game Time
- Number of Game Timeouts
- Total Tickets Dispensed
- Average Tickets Dispensed Per Game
- Total Bonus Tickets Dispensed
Clear Statistics - Press the “SELECT” button 5 times to Reset Statistics.
Scroll to “BACK” and press the “SELECT” button to go back to the main menu.
