Bay-Tek quik drop User manual

1

2
FACTORY CONTACT INFORMATION
BAY TEK GAMES INC.
Pulaski Industrial Park
1077 East. Glenbrook Drive
Pulaski, WI 54162 USA
PARTS
P: 920.822.3951 X 1101
F: 920.822.1496
E: [e-mail]
MON - FRI
8 AM - 5 PM C.S.T.
SERVICE
P: 920.822.3951 X 1102
F: 920.822.1496
E: [e-mail]
SALES
P: 920.822.3951
F: 920.822.8936
E: [e-mail]
All games are proudly manufactured at our factory in Pulaski, Wisconsin, USA
JOIN OUR SERVICE FIRST NETWORK!
This free service is intended to keep you up to date on the latest game
information, early notication of parts specials, pertinent technical bulletins,
updates on retro t parts, software upgrades, and much more.
Log on to: www.baytekgames.com/parts
then click on the Parts N’ Service tab, or scan the QR code below with your
Smartphone to jump straight to this game’s parts page!

3
TABLE OF CONTENTS
FACTORY CONTACT INFORMATION ..............................2
WELCOME TO: Quik Drop .......................................4
GAME SPECIFICATIONS ........................................5
LINKING KIT SETUP GUIDE ..................................6-14
LINKING KIT LED DIAGRAM ....................................15
DIP SWITCH SETTINGS .......................................16
WIRING DIAGRAMS........................................17-18
TROUBLESHOOTING ......................................19-20
DIAGNOSTICS ...............................................21
PARTS LIST .................................................22
TECHNICAL SUPPORT ........................................23
WARRANTY .................................................24

4

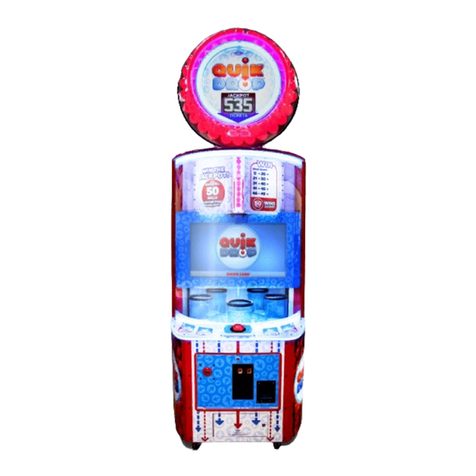

WELCOME TO: Quik Drop
Congratulations on your Quik Drop purchase!
Quik Drop’s attention-grabbing cabinet and fast-paced, addictive game play will have
your buckets overowing with prots!
Please take a moment to read through this manual and be sure to contact our factory if
you have any questions, or would like some more information.
Thank you for your purchase! Your business is important to us and we hope you enjoy
this game as much as we do!
Your Friends at Bay Tek Games
GAME INSPECTION
Inspect the game for any damaged, loose, or missing parts.
If damage is found, please contact your freight carrier rst.
Then, contact Bay Tek Games’ Service Department at 920.822.3951
or e-mail them at [email protected] for further assistance.

5
Not for use in altitudes above 2,000 meters
GAME SPECIFICATIONS
SAFETY PRECAUTIONS
WEIGHT
NET WEIGHT 600 LBS.
SHIP WEIGHT 700 LBS.
DIMENSIONS
WIDTH 38.5”
DEPTH 44”
HEIGHT 109”
(adjusts to 107”,116”,123”)
OPERATING TEMPERATURE
FAHRENHEIT 80-100
CELSIUS 26.7-37.8
POWER REQUIREMENTS
INPUT VOLTAGE
RANGE
100 to
120 VAC /220 to 240 VAC
INPUT FREQUEN-
CY RANGE 50 HZ / 60 HZ
MAX OPERATING
CURRENT
1.4 AMPS @ 115 VAC
.8 AMPS @ 230 VAC
DANGER
DO NOT perform repairs or maintenance on this game with the power ON.
Unplug the unit from the wall outlet or shut off the power strip located inside the cabinet.
!!
NOTICE
Modications to the mechanical, electrical and structural components of this game
may void its compliance certications.
!!
WARNING
Use of ammable subtances can cause sever burns or serious injury.
Always use NON-FLAMMABLE solvents for cleaning. DO NOT use gasoline, kerosene or thinners.
!!
CAUTION
Lifting heavy objects can cause back, neck or other injuries. Be sure adequate lifting and moving
devices are available when unloading, unpacking and moving this game.
!!
ATTENTION
Be sure the electrical power matches the game requirements. See the serial number located on the
back of the game cabinet. Always plug into a grounded circuit. If the supply cord is damaged, it must
be replaced by an approved cord or assembly provided by the manufacturer.
A shielded power cable must be used for the game to retain EU/EMC compliance.
!!
IN CASE OF EMERGENCY
UNPLUG THE POWER CORD.
The power cord must be accessible at all times in case of an emergency.
!!
This appliance is suitable for INDOOR, DRY locations only.

6
DUO SETUP GUIDE
Unscrew two screws
Included hardware kit for Quik Drop
Linking kit
Lay top of linking kit face down
Unscrew and remove the back

7
Remove 4 bolts
Stand bottom part of linking kit up and
slide top piece in place
Secure top to bottom with the 4 bolts
that were previously removed
Remove the back of bottom piece
DUO SETUP GUIDE

8
Red CE5861 goes up through
opening to top piece of linking
kit to connect to other red
cord(right globe). Clip into
saddle
Black CE5862 goes up
through opening to top piece
of linking kit to connect to
other black cord(left globe)
CE5863 connect to matching
cord
The cord with two housings
goes up the opening to the
top part of linking kit
DUO SETUP GUIDE

9
Then take the cord and put it
through another opening at the
top of the top linking kit to attach
to the left cord
Connect other end of cord to the right
cord on top. Then pull excess cord into
the cabinet of the top part of the
linking kit
Screw the back of the top linking kit into
place
DUO SETUP GUIDE

10
Tip the whole linking kit into a vertical
position
Take the paper template out of the box
Place paper template along top edge of
the game. Tape in place
Make sure there are no cords in line with
template screw holes before drilling.
*Use a 3/8 drill bit for holes.
DUO SETUP GUIDE

11
Use a 13/16 spade bit in the large hole
in the paper template
Drill hole all the way through
Repeat process on the other Quik Drop
DUO SETUP GUIDE

12
DUO SETUP GUIDE
Using the hardware below insert bolds into 3/8
inch holes in one side. Make sure there is one
washer on the bolt before inserting it
Included hardware: 6 bolts, 12 washers, 6 nuts
Tools needed: 1/2 wrench or socket
REPEAT LAST TWO STEPS ON THE
OTHER SIDE
Tighten bolts
by holding the
wrench on
the nut while
tightening
with the
socket

13
DUO SETUP GUIDE
Cut zip tie of black HDMI and insert
through right hole of the right Quik Drop
game and connect to circuit board
Take one of the green and yellow cords
and thread it through the right hole to the
right Quik Drop game
Unscrew screw from the steel and add
the green and yellow cord to it. Screw
back in place
Repeat process with other green and
yellow cord with the left Quik Drop game
*Steel box will be closer to the
connecting hole than the right Quik
Drop game
Take ethernet crossover cable and thread
it through both holes. This cord will allow
the two games to communicate

14
DUO SETUP GUIDE
Plug in ethernet crossover cable right above
the HDMI cord on both games
Screw the back of linking kit into place and
plug in the game
Pull up the main menu. Scroll down to Machine
ID. When standing in front of the games, they
will be numbered from left to right.The left-most
unit will be #1. Make sure the number next to
machine ID reads 1 for the left-most unit.
*VACUUM AND CLEAN GAME BEFORE POWER ON, TO
PREVENT SAWDUST SENSOR INTERFERENCE*

15
DUO LED DIAGRAM
9
8
7
5
6
3
4
12
Marquee
AACB6505
LEDs
AACB6505
LEDs
USB
1 2
3
4
5
6
7
8
9

16
DIP SWITCH SETTINGS
If there is only one quik drop(one marquee) the dip switch settings
should be set to 1 as shown above.
If there is only two quik drop(two marquees linked) the dip switch
settings should be set to 2 as shown above.

17
WIRING DIAGRAM
LINKING KIT
Quick Drop Linking Kit Wiring Diagram
AACB5800
QD Link Controller
AACB5801
LED Lights
AACB5801
LED Lights
AACB5801
LED Lights
AACB5801
LED Lights
AACB5801
LED Lights
AACB5801
LED Lights
AACB5801
LED Lights
AACB5801
LED Lights
AACB5801
LED Lights
Power Supply
AAPS1011-QD-LINK
Quick Drop Game
Quick Drop Game Linking Kit
AACE5870
Ground Wire
AACE5870
Ground Wire
A5CORD58
USB Communication
A5CORD31
Cross Over
Ethernet
A5CORD31
Cross Over Ethernet
Between the 2 motherboards
Game Power Supply Game Power Supply
Game Motherboard Game Motherboard

18
WIRING DIAGRAM
LINKING KIT 12 VOLT
# 4
# 5
# 6
# 7
# 8
# 9
Linking Kit 12 Volt Wiring Diagram
Power Supply
AAPS1011-QD-LINK
AACE5802
AC power cable
A5CORD5
Power In Cord
from wall
Line Filter
A5FI9010
A5CORD5
AC Power to
Power Supply
+ -
Marquee
Lighting
+ -
AACE5840
AACE5840
AACE5860
4
3 1
2
12 Volt
& 5 Volt
Power In
AACE5872
AACB5801
LED Lights
AACB5801
LED Lights
AACB5801
LED Lights
AACB5801
LED Lights
AACB5801
LED Lights
AACB5801
LED Lights
AACB5801
LED Lights
AACB5801
LED Lights
AACB5801
LED Lights
Red Colored
Connectors
Black Colored
Connectors
Not Colored
Connectors
# 1
# 2
# 3
AACB5800
QD Link Controller
# 4
# 5
# 7 # 9
# 8
# 6
# 1
# 2
# 3
AACE5865
AACE5869
AACE5868
AACE5867
AACE5866
AACE5864
AACE5863
AACE5861
AACE5862

19
TROUBLESHOOTING
Troubleshooting Guide
Problem Probable Cause Remedy
No power to the
unit
Unplugged.
Circuit breaker tripped.
Line filter faulty.
Bad or overloaded power
supply.
Check wall outlet cable (A5CORD5) to line filter (A5FI9010)
in back of game. Check CE5802 cable to power supply.
Reset power strip breaker switch or building
circuit breaker. Attempt to determine cause.
Replace line filter. (A5FI9010)
Refer to Power Supply Diagnostics
Marquee LED
lights are not
working
LED strip faulty
Faulty Cable
Remove marquee and examine LED strip. (AACE6542)
Check cables from LED strip to power distribution board.
(AACE6542, AACE6533, AACE6500)
Marquee LED’s
not working
12 Volts DC
LED strip faulty
Faulty Cable
Faulty Power Supply
Both LED lights are receiving 12 Volts Dc directly from
power supply. Replace LED if needed. (AACE5840)
Check cables from LED board to Power Supply
(AACE5840, AACE5860)
Check for 12 Volts from power supply. Replace Power
Supply if needed. (Part # AAPS1011-QD-LINK)
Ball Lights in
tower not
Working
( Power comes from
power supply and
goes through Link
Controller)
No 5 & 12 volts DC from
power supply
If all ball lights in tower
are not on.
If one ball light in tower is
not on.
Verify 5 Volts and 12 Volts DC at top plug of Link
Controller Board. Replace power supply if needed.
(Part # AAPS1011-QD-LINK)
Check USB communication cable to motherboard in
connecting game. Replace if needed. (A5CORD58)
Faulty Link Controller Board
Replace Link Controller Board (Part # AACB5800)
Swap cable from a working light to verify if socket on Link
Controller Board is faulty.
If faulty socket, replace Link Controller Board
If socket is ok, the cable or LED light is faulty.
Check cable and replace if needed. (AACE5861)
Replace LED light if needed. (AACB5801)

20
TROUBLESHOOTING
Linking Issues
If the Quick Drop games are not linking, there are 2 areas to investigate:
1.) Menu Settings
2.) Physical wire connections
Menu Settings
Please enter the menu of both linked games and compare to the pictures below:
Game # 1 Game # 2
Verify Machine Id is 1 - one game is set to 1, the other to 2. Verify Machine Id is 2
Verify PC Version is 1.07 or higher Verify PC Version is 1.07 or higher
Verify Link Server Version is 1.0 or higher Verify Link Server Version is 1.0 or higher
Physical wire connections
Link Server Version: This shows because of the cross-over Ethernet cable connecting the 2 motherboards.
If this is not showing correctly, re-seat the A5CORD31 cross over Ethernet cable into the ports on the
motherboards in both games.
Both ports will flash when connection is established.
Link Light Version will only show on the motherboard that is connected via USB cable to the Link Controller
board that flashes the ball lights.
LINKING ISSUES
