BEA 14412430 User manual

Instruction Manual
Skater

- 1 -
1 2 3
4
6 7
5
16 8
9 10
11 12
13 15
14

- 2 -

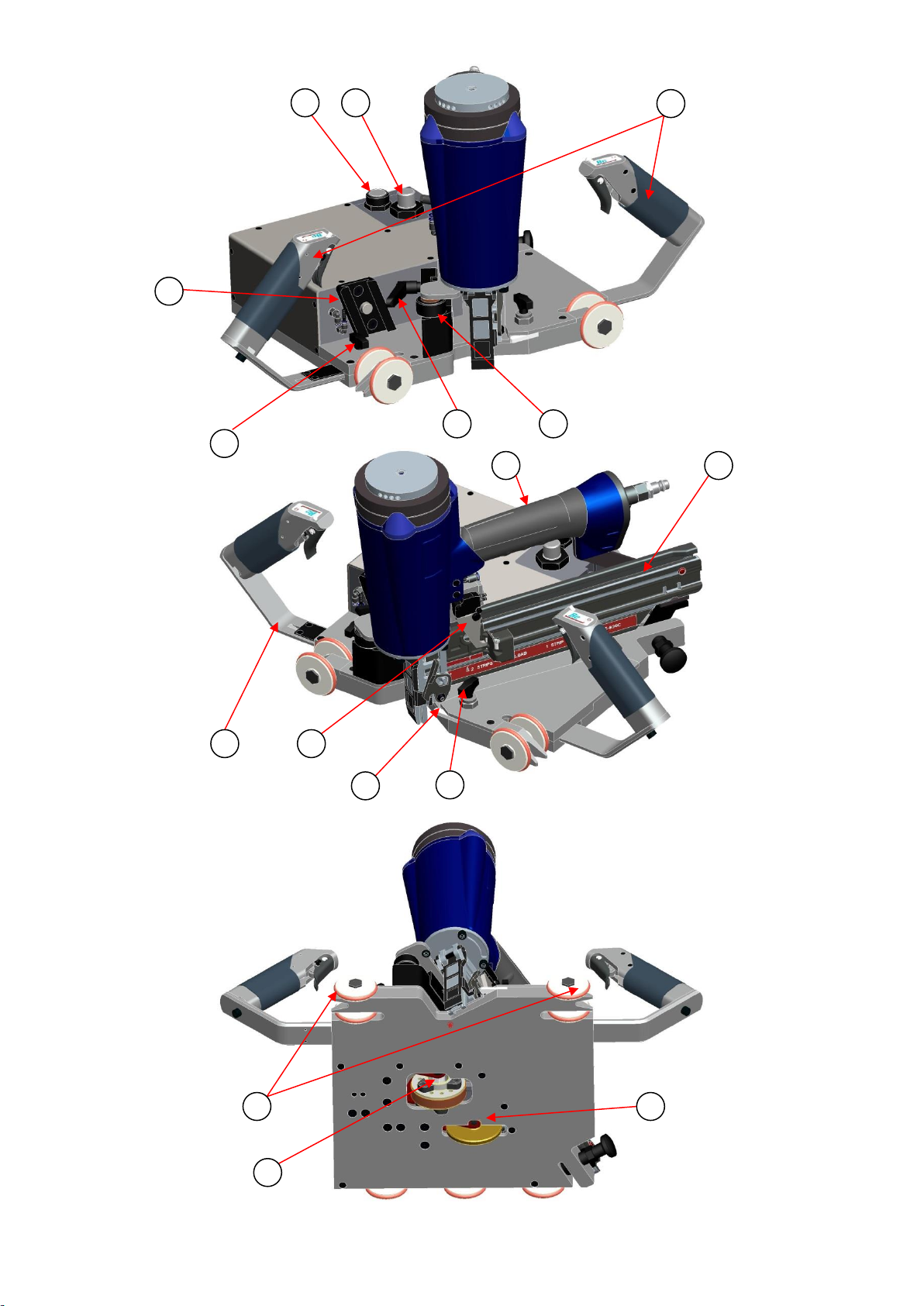

Description
1. Single shot button
2. Switch for two different stapling distances
3. Handles
4. Long handle support
5. Butterfly screw for extendable handle
6. Clamp screw for height adjustment
7. Height adjustment screw
8. Magazine
9. Extendable handle
10. Empty shot control
11. Protector
12. Butterfly screw for edge guide
13. Aiming device
14. Control wheel
15. Safety wheel
16. Main handle
How to transport the skater:
The Skater must be transported only by grapping the main handle (16).
Important:
The skater can be pushed or pulled on a surface using the two handles (3).
If the Skater shall be lifted and moved it must be grabbed on the main handle
(16).

- 3 -
Empty shot control:
The dry fire control stops the
firing of the tool when the
number of staples is low. This
protects the tool and leaves no
marks on the boards.
Setting the stapling distance
The stapling distance can be varied by the alternative use of either one cam (17) or two cams
or three cams or four cams or five cams. The control wheel comes with threaded holes which
are in a circular alignment. The cam or cams (17) must be screwed (18) into these holes by
always keeping the same gap between each other.
The factory configuration is 40mm at the left side and 50mm at the right side of the control
wheel. The threaded hole with the mark X is allways in use.
17 18
200mm [X] 100mm [2] 66.7mm [3] 50mm [4] 40mm [5]
When using the skater you may select two different stapling distances by either briefly pulling
or pushing the switch (2).
Bottom position of the switch Left side of the control wheel is active
Top position of the switch Right side of the control wheel is active
Safety
14
15
10
8
The safety wheel (15) and the control
wheel (14) ensure that the tool cannot be
fired when the skater is lifted. In addition
both wheels ensure that the tool stops
firing when reaching the edge of the board.

- 4 -
21
3
19
20
Actuation of the tool
To actuate the tool the following conditions have to be fulfilled:
The magazine (8) must be filled with enough staples so that the dry firing control does
not engage
The control wheel (14) and the safety wheel (15) have to be activated (have to be
pushed inward)
Safety stop (19) and trigger (20) have to be pressed
The skater must be moved either forward or backwards so that the control wheel and
its cam turn and consequently a shot is triggered.
1
5
9
13
6 7
Height adjustment
To avoid accidentally firing when moving
the skater on the board, all handles (3)
are equipped with a safety stop (19).
Only when the safety stop is pressed the
trigger can be used. When the trigger is
not in use the safety stop moves back in
its position.
By moving the skater on the board
fasteners are driven in a set distance.
The aiming device (13) lets you easily
follow drawn lines.
A single shot can be fired anywhere
by pressing the trigger (20) and the
single shot bottom (1) together.
One of the two handles (9) can be
extended up to 190mm by opening
the butterfly screw (5).
The driving depth can be set by lowering/ raising
the stapler. For this purpose loosen clamp crew
(6) and turn the height adjustment screw (7)
clockwise to lower the tool and to drive the
fasteners deeper. For less driving depth turn the
screw anti clockwise.
After adjustment tighten the clamp screw (6)
firmly.
The clamp screw (6) can be additionally secured
by the counter nut.

- 5 -
Available staplers for the skater
Tool: 14/65-830 Skater Tool: 180/65-835 Skater
Article code: 12000624 Article code: 12000624
Staple type: 14,155 and 16 up to 65 mm Staple type: 180 up to 65 mm
Tool: 800DC Skater
Article code: 12000629
Staple type: BDC 2.5 –3.1 from 60 –65 mm
Important!!!
For lengths greater than 65 mm only 2 shots per second are possible

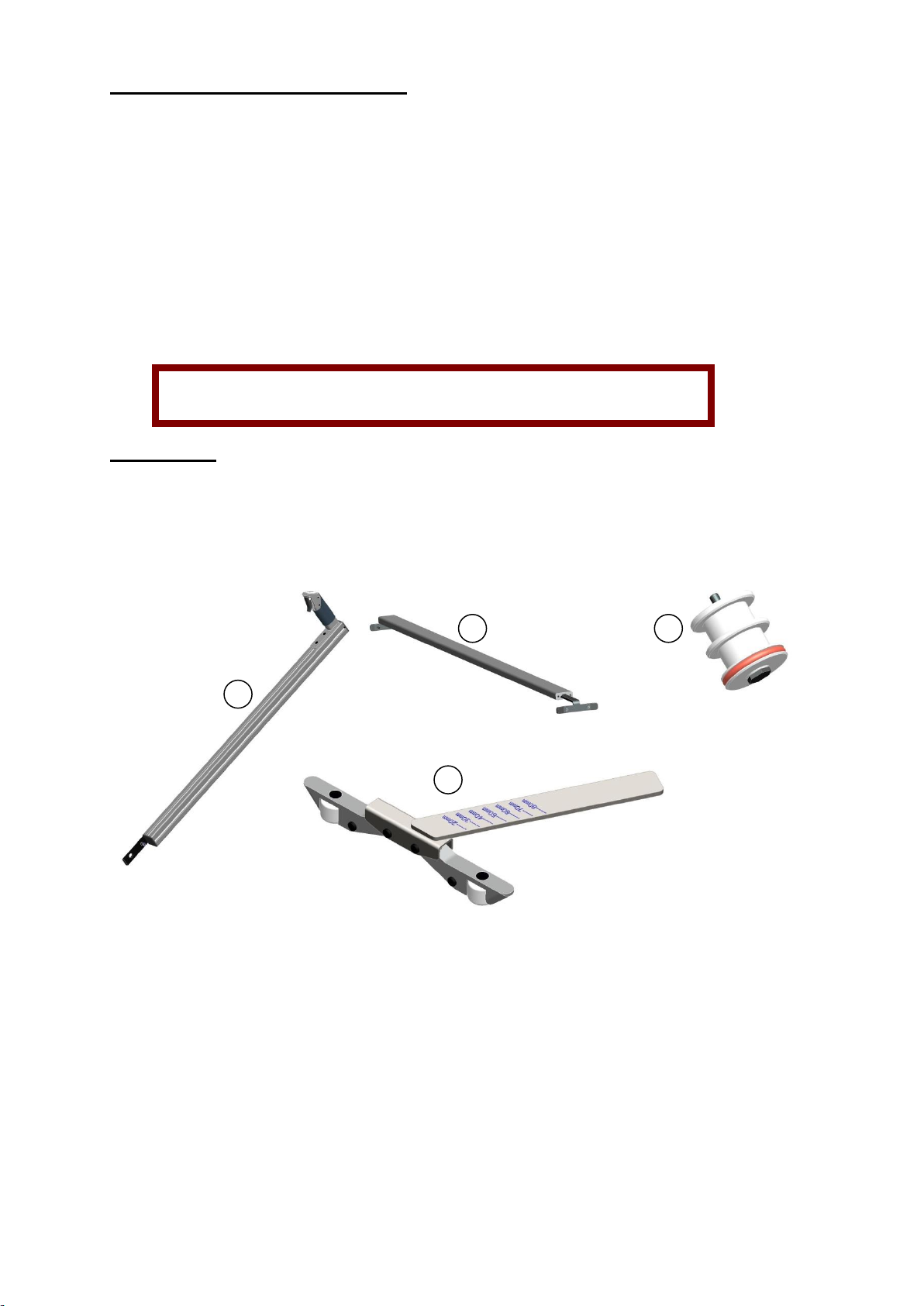

Accessories
long handle (22) for using the skater whilst walking on the board
rails (24) and an edge guide (23) for the use on the edge of the board or along the rails
festool-rail guide set (25) for use along a festool-rail
24 25
22
23
Long handle (22)
Article code: 14412429
Edge guide (23)
Article code: 14412428
Rails (24)
Article code (3m Length): 14406482
Article code (3.5m Length): 14409063
Festool rail guide set (25) (Set consists of three reels with screw)
Article code: 14412767

- 6 -

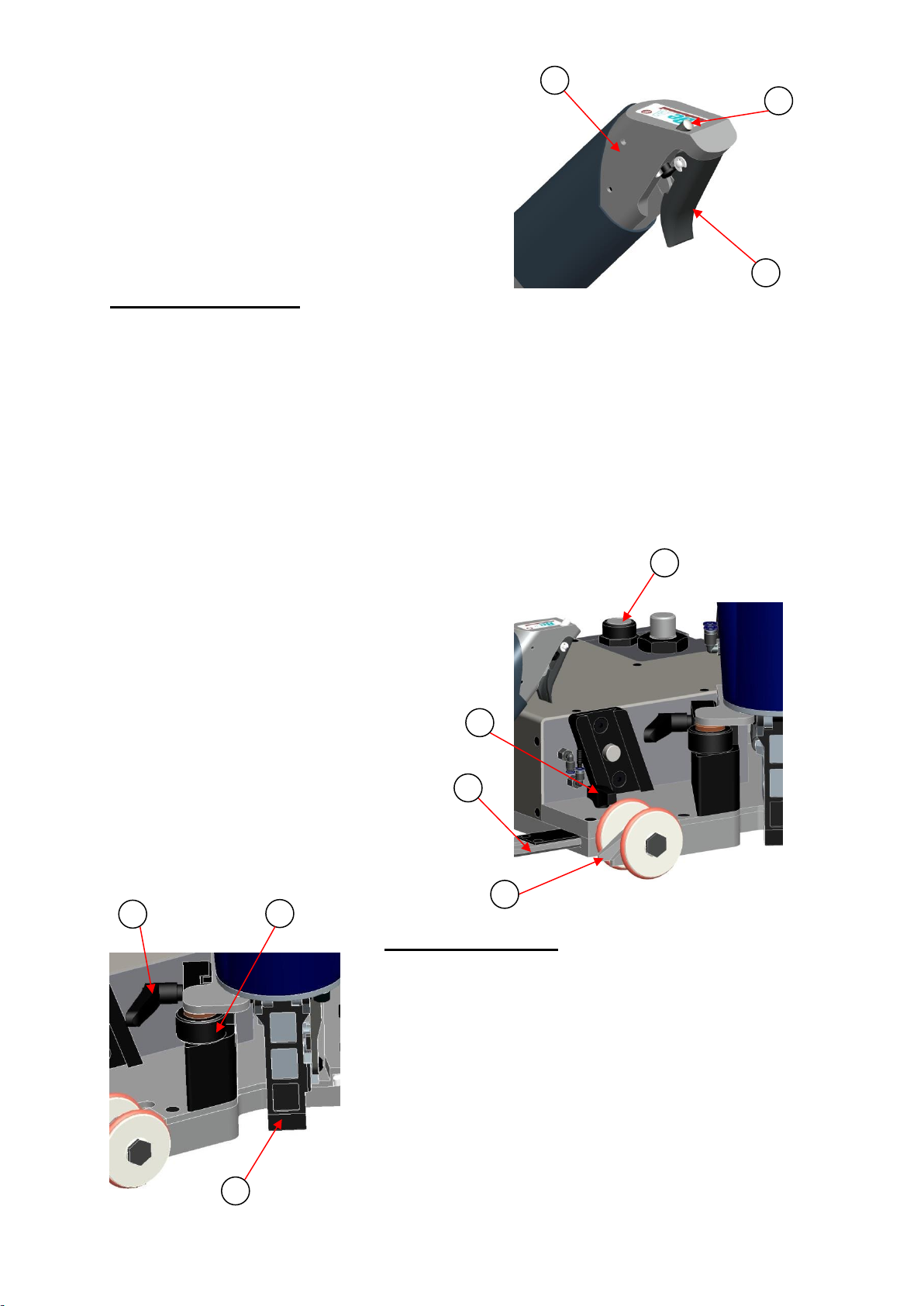

Mounting the accessories 26 4
Long handle 4
27 29
28
30
Important!!!
If the long handle is not assembled, connector A (27) must always be
open and connector B (28) must always be closed by the plug (26)!
Edge guide:
12
11
31
Festool rail guide set:
Unscrew and detach carrying wheels with AF 15mm wrench.
Fix the festool rail guide set
32
33
With the Festool rail guide the skater can be pushed or pulled through a Festool rail. It is
possible by the grooves (33) to depart two webs at a distance of 20 mm, without changing the
position of the Festool rail.
Before attaching the long handle
disconnect tool from the air supply.
Remove the plug (26) from the air
connection B (28) and store safely in (30)
on the long handle support.
Insert the long handle into the long handle
support (4) until the holding bolt (29) snaps
in.
Connect the black hose to the connector A
(27) and the blue hose to the connector B
(28)
Loosen butterfly screw (12) and take out the
protector (11).
Insert the edge guide into the slot.
Set the distance between the edge guide and
the centre of the nose piece with the help of the
scale (31). Tighten the butterfly screw again.
The edge guide can be used to guide the skater
at the edge of the board or at a table track

- 7 -

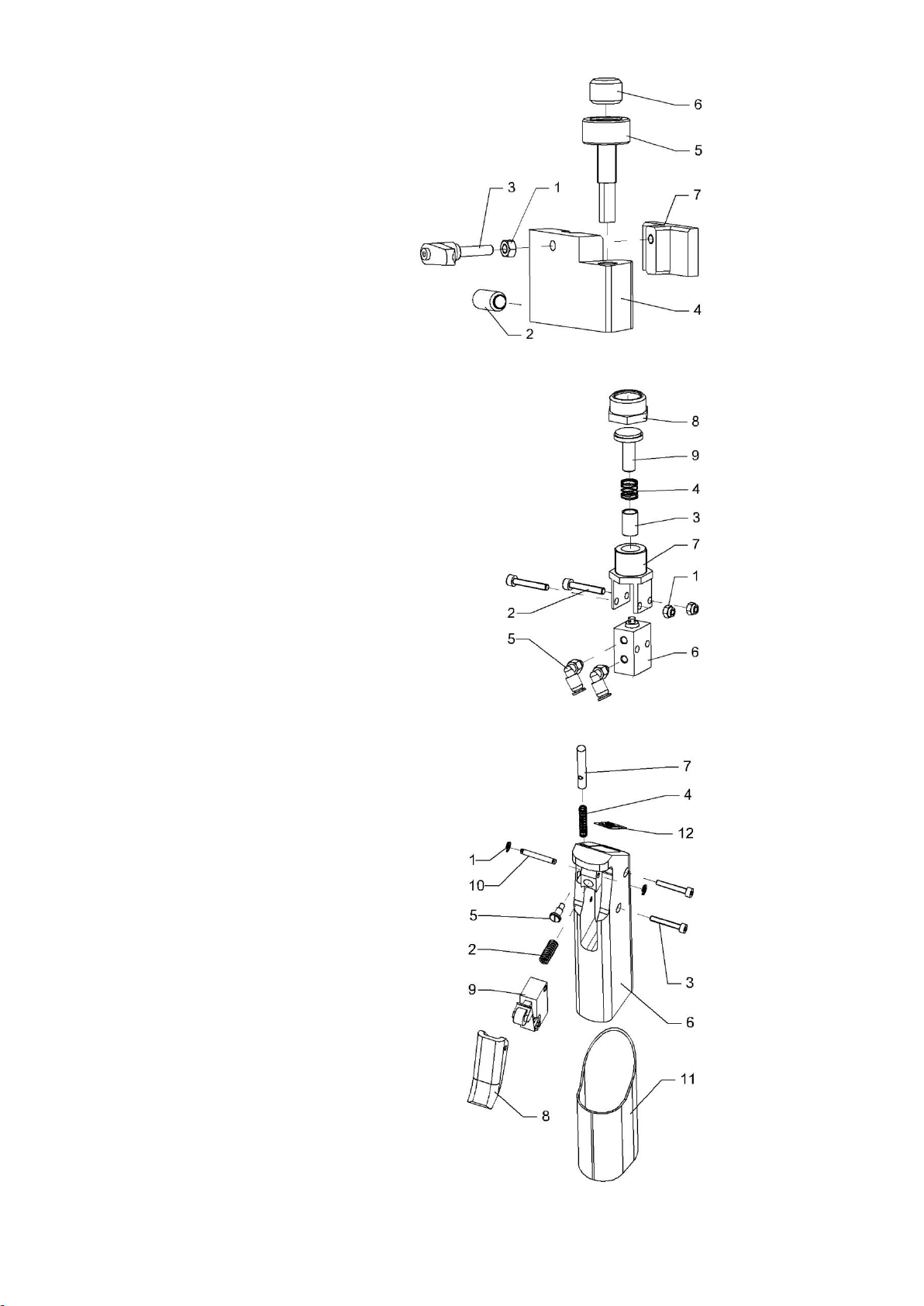

Spare part list Skater (Article code: 14412430)
1 distance switch siehe Seite 9
2 lock nut 13300436
3 13300438
4 13300439
5 13300441
6bearing bush 13300629
7countersink screw 13301078
12 13301255
13 13301259
14 13301260
15 13301263
16 13301270
17 13301271
21 13303898
8allan screw 13301097
9 13301098
10 13301137
11 13301138
20 13303014
18 3/2-control valve 13301453
19 OR element 13301472
22 o-ring 13303901
23 push-in connector 14000295
24 14000403
26 14001589
27 14001590
25 locking pin 14001587
28 butterfly screw 14412372
30 14509660
29 spiral pin 14509166
31 base 14412304
32 covering plate 14412305
33 long fitted screw 14412311
34 carrying wheel 14412312
35 short fitted screw 14412314
36 shim 14412992
37 short lever holder 14412321
38 butterfly screw holder.14412322
39 angle 80x68 14412351
40 side part 1 14412352
41 angular side part 14412354
42 cover plate 14412360
43 cover 14412431
44 height adjustment on page 8
45 single shot on page 8
46 extended trigger handleon page 9
47 handle on page 8
48 wheel rocker 1 on page 10
49 wheel rocker 2 on page 9
50 side plate 2 on page 10

- 8 -
Height adjustment
Single shot
Handle
1 screw nut 13301358
2 compression piece 13303886
3 clamp lever 14001622
4 spacer 14412928
5 damping attachment 14412307
6 damper 14412308
7 sleeper clip 14412929
1 lock nut 13300437
2 allan screw 13301109
3 bearing bush 13303891
4 pressure spring 13303892
5 push-in connector 14000295
6 valve 14001591
7 push button body 14412357
8 push button cap 14412358
9 push button 14412359
1 retain ring 13300346
2 pressure spring 13300948
4 13302779
3 allan screw 13301096
5 Fitted screw 13303888
6 lever 14412317
7 dowel 14412318
8 trigger 14412320
9 roller lever valve 13301457
10 valve handle bolt 14403761
11 handle isolation 15500680
12 label BeA 14403742

- 9 -
Distance switch
Extended trigger handle
Wheel rocker 2
1 allan screw 13301137
2 countersunk screw 13301260
3 spiral pin 14509166
4 long lever holder 14412315
5 cover sheet 14412316
6 handle on page 8
1 screw nut 13009825
2 o-ring 13300005
3 13300007
4 compression piece 13303890
5 push-in connector 14000294
6 14000295
7 valve body 14412355
8 valve spool 14412356
1 retain ring 13300351
2 lock nut 13300436
3 13300437
4 allan screw 13301096
5 13301244
6 countersunk screw 13301255
7 plain bearing bush 13303887
8 valve 14001588
9 pressure spring 14402119
10 wheel 2 14412332
11 rocker holder 14412342
12 cam switch 14412344
13 angle wheel rocker 2 14412348
14 bolt 9h6x35 14412350
15 wheel holder 14412390
16 bolt wheel 2 14412392

- 10 -
Wheel rocker 1
Side plate 2
1 retain ring 13300351
13 13303894
2 lock nut 13300436
3 13300437
4 ball bearing 13300642
5 allan screw 13301096
6 13301107
7 13301244
11 13302942
8 countersunk screw 13301271
9 13301273
10 screw nut 13301355
12 leg spring 13303889
14 valve 14001588
15 wheel 1 14412331
16 surface 14412333
17 shaft 1 14412334
18 shaft 2 14412335
19 cam 14412336
20 wheel holder 1 14412337
21 wheel holder 2 14412338
22 rocker holder 1 14412341
23 bolt 9h6x52 14412343
24 cam switch 14412344
25 support 20° 1 14412345
26 support 20° 2 14412346
27 angle wheel rocker 1 14412347
28 countersunk screw 14412371
29 roller lever valve 13301457
1 retain ring
13300348
2 countersink screw 13301271
3 pressure spring 13303905
4 push-in connector 14000294
5 14000297
6 plug 14001592
7 side part 2
14412353
8 stand-up handle support
14413050
9 spring pusher 14412362

- 11 -
DECLARATION OF CONFORMITY
BeA Skater
The manufacturer, importer of pneumatic fastener driving tools, the company
Joh. Friedrich Behrens AG,
Bogenstraße 43-45,
22926 Ahrensburg
Germany
Declares under sole responsibility that the product
to which this declaration relates, is in conformity with the following standard:
EN 12100 - 2011
"Safety of Machinery"
and EN792-13
following the provisions of the Directive Regarding Machinery (2006/42/ EC).
Responsible for documentation: Martin Theberath
Ahrensburg, August 2014
Tobias Fischer-Zernin
General Manager
