Bradley Bradmar 400 Series User manual

Installation
P.O. Box 309
Menomonee Falls, WI 53052 USA
800 BRADLEY (800 272 3539)
[phone]
bradleycorp.com
HDWP-INSTR-013 Rev. L; ECN 12-14-015G
© 2018 Bradley
Page 1 of 33 3/23/2018
Bradmar™Restroom Partitions
Overhead Braced - Series 400
(includes No-Site style)
Table of Contents
Pre-Installation Information .................. 2-3
Layout Dimensions for Brackets ................4
Mounting Brackets to Wall ................... 5-6
Leveling Screws to Pilaster ....................6
Mounting Brackets to Pilasters ...............7–8
Pilaster Mounting Hardware ...................8

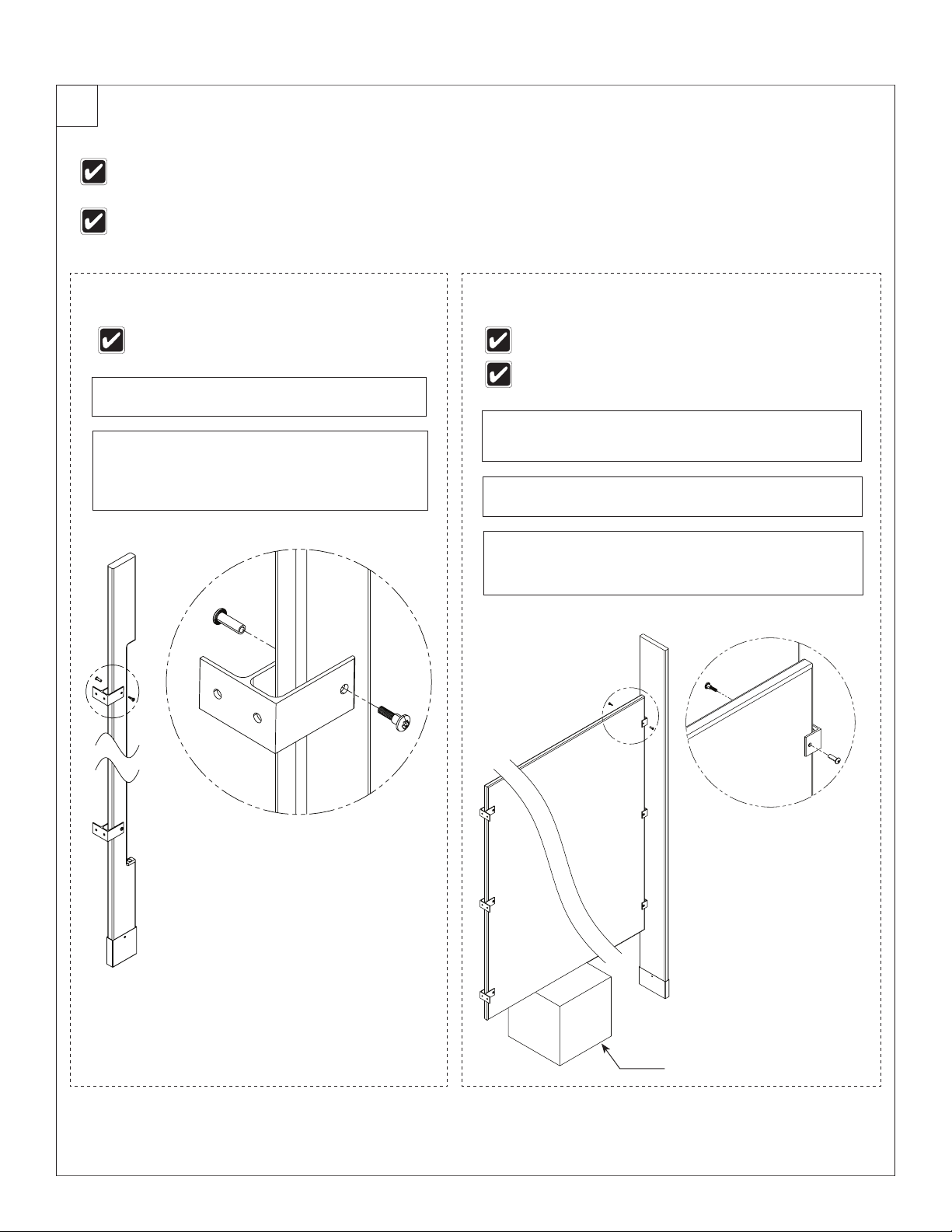

Pilasters and Panels ......................9–11
Pilaster Shoes .............................12
Headrail ..................................13

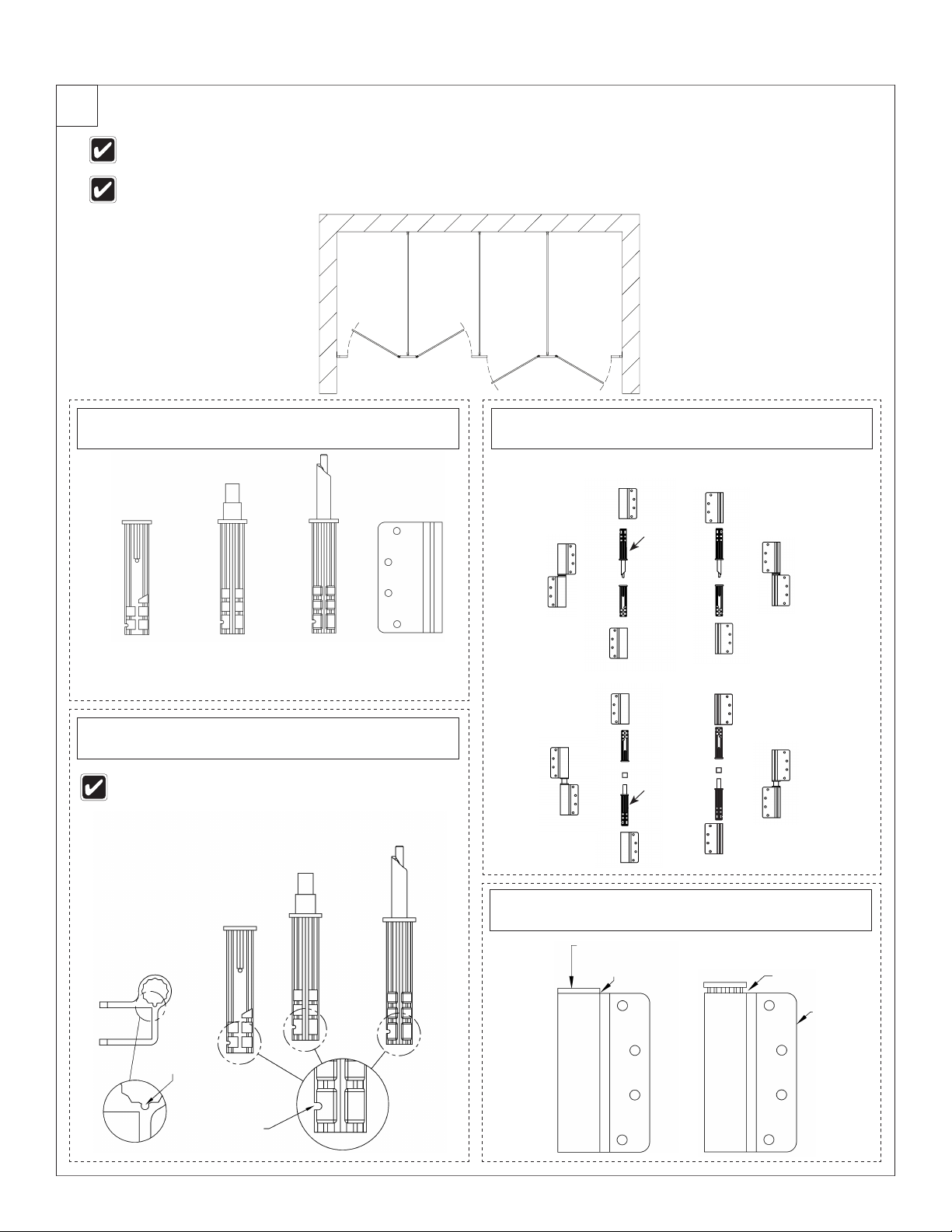

Hinges ................................14–21
Door Hardware..........................22–29
Stiffener Bracket............................30
Urinal Screens ..........................31–33
For Standard Height
Doors and Panels Only
*HDWP-INSTR-013*

2
Bradmar™Restroom Partitions, Floor-Mounted with Overhead Brace — Series 400 Installation
3/23/2018 Bradley • HDWP-INSTR-013 Rev. L; ECN 12-14-015G
WARNING
Before beginning installation, make sure that the wall and floor backing are adequate to support the secure
mounting of the toilet compartment units.
Partitions are extremely heavy and may require more than one person to position and install.
Failure to comply with these instructions may result in personal injury and/or property damage and will void
the partition warranty.
CAUTION
Personal protective equipment (PPE) is required during the installation and maintenance of this product.
NOTICE
Leave the protective masking on until installation is complete. To prevent warping, always lay the material
flat. Do not lean the material against the wall or stack unevenly. Allow 24 hours for material to adjust to site
environment. Partitions should be installed in a climate-controlled environment and shielded from direct
sunlight.
Make sure all floors and walls are clean and smooth. Remove loose impediments, such as protruding nails
and other debris which could affect installation.
Use caution when drilling. Accuracy is important.
Carefully remove components from skid, do not drag.
IMPORTANT
Review your partition layout drawings and verify the number of stalls and components before beginning
installation.
Read this installation manual completely to ensure proper installation, then file it with the owner or
maintenance department. This installation manual provides instruction for the assembly of normal partition
configurations and standard components. Non-standard configurations or components including but not
limited to curved or angled walls, partial walls, oversized panels, or modified hardware are not covered in
this manual. Compliance and conformity to local codes and ordinances is the responsibility of the installer.
Separate parts from packaging and make sure all parts are accounted for before discarding packaging
material. If any parts are missing, do not begin installation until you obtain the missing parts.
Product warranties and parts information may be found under "Products" on Bradley's website at bradleycorp.com.

3
Installation Bradmar™Restroom Partitions, Floor-Mounted with Overhead Brace — Series 400
Bradley • HDWP-INSTR-013 Rev. L; ECN 12-14-015G 3/23/2018

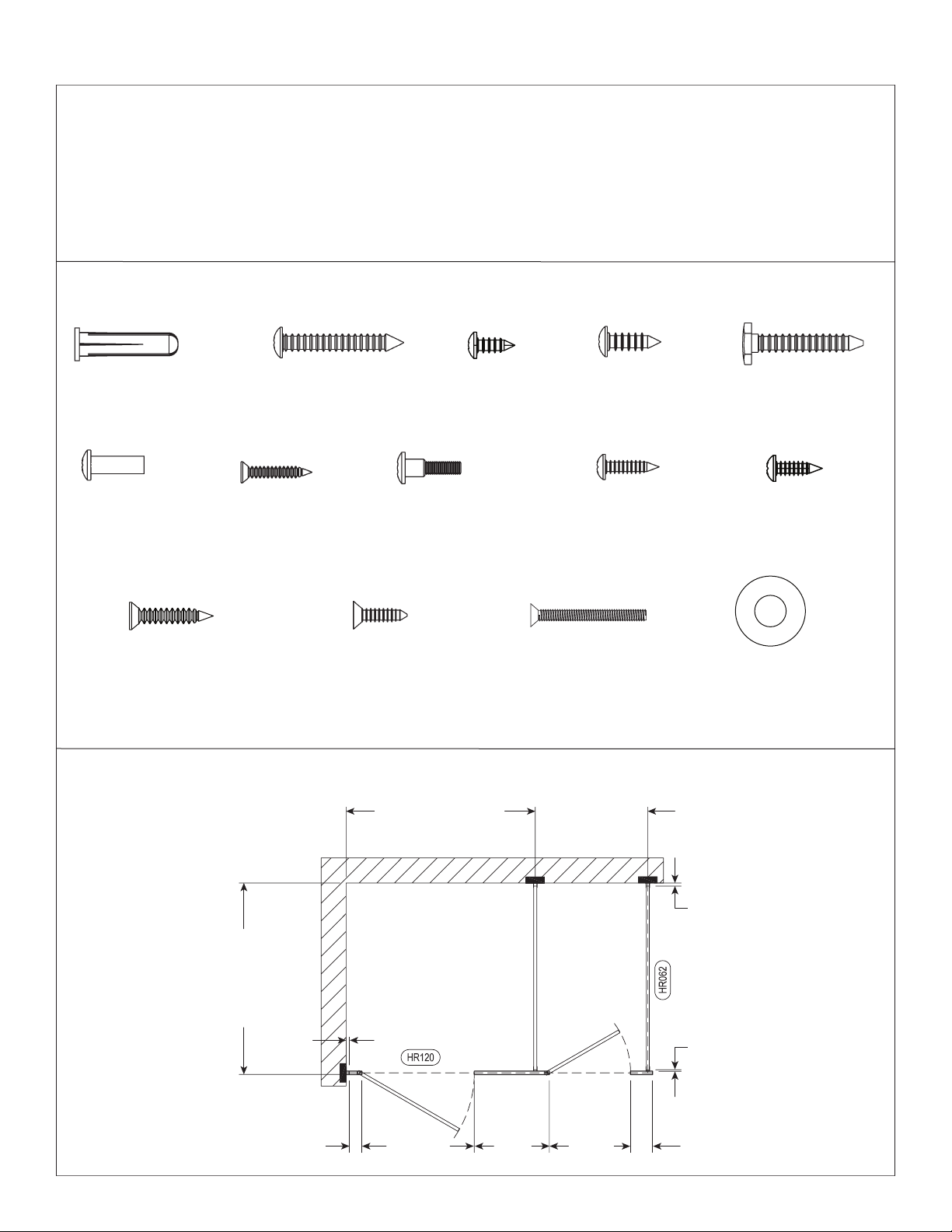

Supplies Required:
Hardware Provided
#14 x 2"
Button-Head
Sheet Metal Screw
TORX-T27 Drive
FAST-P002
#14-16 Plastic
Anchor
FAST-T373
#8 x 1"
Flat Head
Sheet Metal Screw
Phillips Drive
FAST-P006
#10-24 x 2"
Flat Head
Machine Screw
TORX-T25 Drive
FAST-S0027
9/32" x 5/8"
Flat Washer
P10-449
Example of Submittal Drawing
• Chalk line and pencil
• Flat blade and Phillips head screwdrivers
• Jigsaw or hacksaw
• Circular saw
• Two spring clamps
• 3/32", 7/64", 1/8", 5/32", 13/64", 7/32" and 1/4"
dill bits
• Power drill or screw gun with drill bit extension
• Tape measure and 4' level
• 5/16" ceramic tile and masonry drill bit
• Hammer drill
• Spacer, 14" (356mm) high and strong enough to
support the panel
#10-24 x 3/4"
Button-Head
Barrel Nut
TORX-T27 Drive
FAST-P003
#10 x 3/4"
Flat Head
Sheet Metal Screw
TORX-T25 Drive
FAST-S0006
#6 x 3/4"
Phillips Flat-Head
Sheet Metal Screw
FAST-P011
#10 x 3/4"
Button-Head
Sheet Metal Screw
TORX-T25 Drive
FAST-P005
#10-24 x 3/4"
Button-Head
Shoulder Screw
TORX-T27 Drive
FAST-P004
60-1/2"(1537mm)
Wall to Center
Line
61-1/4"
(1556mm)
to
Face
36"(914mm)
Center to Center
1"(25mm)
Gap
1/2"(13mm)
Gap
1"(25mm)
Gap
7"
(178mm)
26"
(660mm)
24"
(610mm)
19-1/2"
4
4-1/2"
5-1/2"
1-1/2"
58-3/4"
(1492mm)
58-3/4"
(1492mm)
36"
(914mm)
4"
(102mm)
#14 x 5/8"
Button-Head
Sheet Metal Screw
TORX-T27 Drive
FAST-S0016
#10 x 5/8"
Button-Head
Sheet Metal Screw
Torx-T27 Drive
FAST-S0019
#14 x 3/4"
Button-Head
Sheet Metal Screw
TORX-T27 Drive
FAST-P001
5/16" x 1-1/2"
Hex Head
Lag Screw
FAST-S008

4
Bradmar™Restroom Partitions, Floor-Mounted with Overhead Brace — Series 400 Installation
3/23/2018 Bradley • HDWP-INSTR-013 Rev. L; ECN 12-14-015G
*
*
*
**
*
*
*
*
Pilaster
Plumb Line
When installing the partition components, consult
the applicable Mills Partition submittal drawing
for compartment layout dimensions.

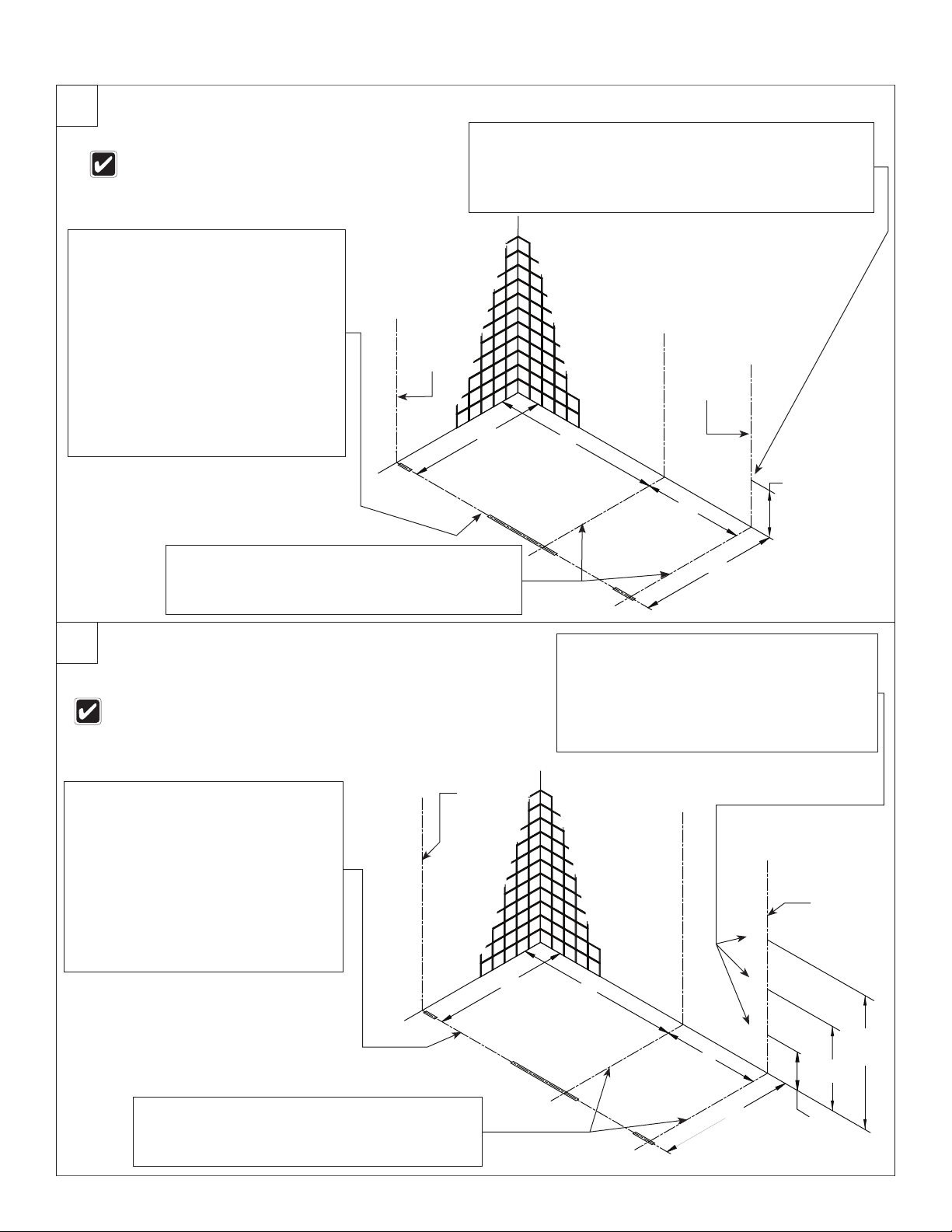

1a Layout Dimensions - Stirrup Brackets (Optional)
Pilaster Centerline: Measure from the
back wall forward to the face of the
compartment, subtract 1/2" (13mm) and
mark this location on the floor ("A"). Mark
the same measurement on the opposite
end of your layout ("A1") and draw a
straight line connecting both marks.
For Freestanding (FS) Partitions: Refer
to submittal drawings and determine
the approximate location of the outside
panels. Establish dimensions "A" and "A1"
as explained above.
A
Panel Centerline: Measure the stall width across the
back wall and place a mark at the base of the rear wall
("B"). Repeat this step for each panel, starting each
measurement from the last panel centerline ("B1").
B
Draw a plumb line on all walls from each pilaster
and panel centerline. From the highest point
in the room, measure 20" (508mm), 41-1/2"
(1054mm), and 63" (1600mm) from the floor and
place a mark on the pilaster/panel plumb line.
These marks represent the hole center line of the
stirrup brackets. Use a level to transfer that mark
to all other plumb lines ("C").
C
Panel
plumb line
63"
(1600mm)
41-1/2"
(1054mm)
"A" "B"
"B1"
"A1"
"C" "C"
"C"
"C"
"C"
"C"
"C"
"C"
"C"
20"
(508mm)
C
L
C
L
C
L
C
L
C
L
C
L
C
L
C
LC
L
C
L
Pilaster
Plumb Line
When installing the partition components, consult
the applicable Mills Partition submittal drawing
for compartment layout dimensions.
1Layout Dimensions - Continuous Brackets (Standard)
Pilaster Centerline: Measure from the
back wall forward to the face of the
compartment, subtract 1/2" (13mm) and
mark this location on the floor ("A"). Mark
the same measurement on the opposite
end of your layout ("A1") and draw a
straight line connecting both marks.
For Freestanding (FS) Partitions: Refer
to submittal drawings and determine
the approximate location of the outside
panels. Establish dimensions "A" and "A1"
as explained above.
A
Panel Centerline: Measure the stall width across the
back wall and place a mark at the base of the rear wall
("B"). Repeat this step for each panel, starting each
measurement from the last panel centerline ("B1").
B
Draw a plumb line on all walls from each pilaster and panel
centerline. From the highest point in the room, measure 14-1/2"
(369mm) from the floor and place a mark on the pilaster/panel
plumb line. Use a level to transfer that mark to all other plumb
lines ("C").
C
Panel
plumb
line
"C"
"C"
"C"
"A" "B"
"B1"
"A1"
*
*
*
14-1/2" (369mm)
To bottom of
bracket (highest
point in floor)

5
Installation Bradmar™Restroom Partitions, Floor-Mounted with Overhead Brace — Series 400
Bradley • HDWP-INSTR-013 Rev. L; ECN 12-14-015G 3/23/2018
2a Continuous Aluminum Brackets to Wall (Optional)
established level line
pilaster/panel
plumb line
floor
C
L
Place the bottom of each continuous
bracket at the established level line.
Center the bracket opening on the pilaster/
panel plumb line.
A
Insert the plastic anchors in all holes and
secure the brackets to the wall with the
#14 x 2" screws provided.
C
Single "EAR" bracket is shown here; single "EAR" brackets are for end
panels and pilasters; double "EAR" brackets are for dividing panels.
Using the bracket as a template, mark
the hole locations on the wall. Remove
the bracket and drill a Ø5/16" hole (min.
2" [51mm] deep) at each hole location.
B
On end panel and pilaster applications, position the bracket with
the ear facing toward the inside of the stall.
One-Eared
Bracket
Two-Eared
Bracket
2Continuous Stainless Steel Brackets to Wall (Standard)
established level line
pilaster plumb
line
floor
C
L
Place the bottom of each continuous
bracket at the established level line.
Center the bracket opening on the
pilaster/panel plumb line.
A
Insert the plastic anchors in all holes and
secure the brackets to the wall with the
#14 x 2" screws provided.
C
On pilaster applications, position the bracket with the ear
facing toward the inside of the stall.
Using the bracket as a template, mark
the hole locations on the wall. Remove
the bracket and drill a Ø5/16" hole (min.
2" [51mm] deep) at each hole location.
B
Brackets are used as templates, but since the hole patterns
may be different, the brackets may not be interchangeable.
Pilaster bracket is shown here; "Ear" brackets are for pilasters, and
"U" brackets are for panels.
"Ear"
Bracket
"U" Bracket
Brackets are used as templates, but since the hole patterns may
be different, the brackets may not be interchangeable.

6
Bradmar™Restroom Partitions, Floor-Mounted with Overhead Brace — Series 400 Installation
3/23/2018 Bradley • HDWP-INSTR-013 Rev. L; ECN 12-14-015G
3Leveling Screws to Pilaster
2b Stirrup Brackets to Wall (Optional)
established level line
pilaster/panel plumb line
floor
C
L
Place the center of each stirrup bracket
at the established level line. Center the
bracket opening on the pilaster/panel
plumb line.
A
Insert the plastic anchors in all holes and
secure the brackets to the wall with the
#14 x 2" screws provided.
C
Single "EAR" bracket is shown here; single "EAR" brackets are for end
panels and pilasters; double "EAR" brackets are for dividing panels.
Using the bracket as a template, mark the
hole locations on the wall. Remove the
bracket and drill a Ø5/16" hole (min. 2"
[51mm] deep) at each hole location.
B
One-Eared
Bracket
Two-Eared
Bracket
On end panel and pilaster applications, position the bracket
with the ear facing toward the inside of the stall.

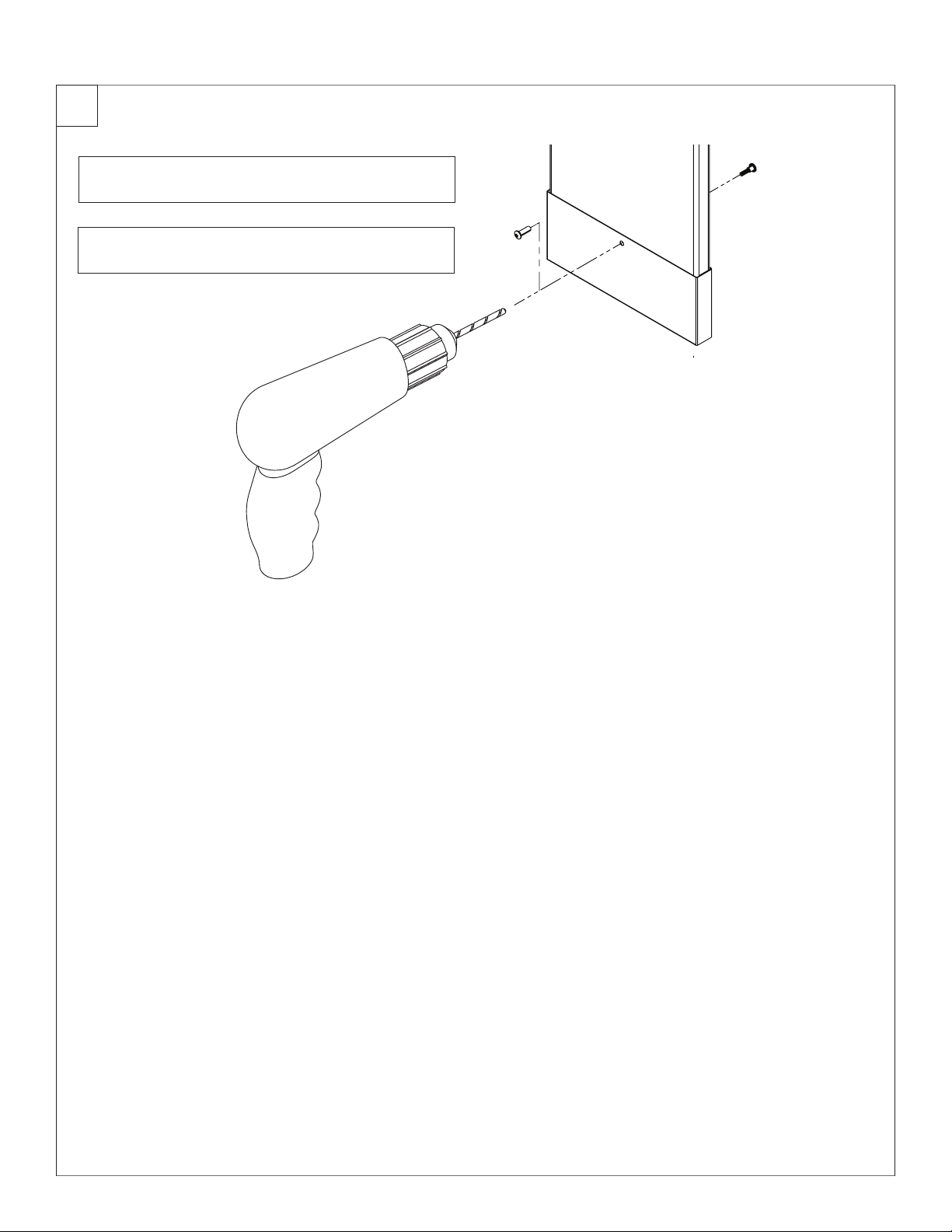

4" - 16" Pilaster: Center and drill a
Ø13/64" pilot hole, 1-1/2" (38mm) deep.
18" - 24" Pilaster: Drill (2) Ø13/64" pilot
holes, 1-1/2" (38mm) deep. Holes should
be 2" (51mm) off each end of the pilaster.
A
For integral hinge and no-site pilasters,
a notch will be present on one end of the
pilaster to indicate that it is the bottom.
Use leveling screw(s) to adjust height of
pilaster as indicated based on pilaster
width.
B
4" - 16"
Pilaster 18" - 24"
Pilaster

7
Installation Bradmar™Restroom Partitions, Floor-Mounted with Overhead Brace — Series 400
Bradley • HDWP-INSTR-013 Rev. L; ECN 12-14-015G 3/23/2018
4Continuous Brackets to Pilaster (Standard)
Refer to the submittal drawing to locate the split
dimension and layout location of each marked pilaster.
Measure 13-1/2" (343mm) and 67-1/2"
(1715mm) down from the top of each
pilaster and place a mark on the pilaster split
centerline.
A
Secure the continuous bracket to the pilaster
using the #14 x 3/4" screws provided.
C
Split Split
67-1/2"
(1715mm)
Place the continuous bracket between each
established level line. Center the bracket
opening on the pilaster split centerline. Using
the bracket as a template, mark the hole
locations on the pilaster. Remove the bracket
and drill a Ø7/32" pilot hole, 3/4" (19mm) deep
at each location.
B
Brackets are used as templates, but since the hole patterns
may be different, the brackets may not be interchangeable.
Continuous stainless steel bracket shown.
Pilaster shown is for reference only. Actual
pilaster varies depending on application.
13-1/2"
(343mm)
4a Stirrup Brackets to Pilaster (Optional)
Refer to the submittal drawing to locate the split
dimension and layout location of each marked pilaster. Measure 19" (483mm), 40-1/2" (1029mm), and 62" (1575mm)
down from the top of each pilaster and place a mark on the
pilaster split centerline.
A
Split Split
19"
(483mm)
40-1/2"
(1029mm)
Place stirrup brackets at each established level line. Center
the bracket opening on the pilaster split centerline. Using the
bracket as a template, mark the hole locations on the pilaster.
Remove the bracket and drill a Ø7/32" pilot hole, 3/4" (19mm)
deep at each location.
B
Secure the stirrup brackets to the pilasters using the
#14 x 3/4" screws provided.
C
Pilaster shown is for reference only. Actual pilaster varies
depending on application.
62"
(1575mm)
C
L
C
L

8
Bradmar™Restroom Partitions, Floor-Mounted with Overhead Brace — Series 400 Installation
3/23/2018 Bradley • HDWP-INSTR-013 Rev. L; ECN 12-14-015G
4b Alcove Brackets to Pilaster
Layouts that use stirrup brackets for pilaster and panel connections will use continuous alcove brackets.
Refer to the submittal drawing for the layout location of each alcove pilaster
Measure 13-1/2" (343mm) and
67-1/2" (1715mm) down from the top
of each pilaster and place a mark on
the side of the pilaster.
A
Center the bracket between each
mark made in Step A and push tight
against side of pilaster.
B
Using the bracket as a template,
mark the hole locations on the
pilaster. Remove the bracket and drill
Ø1/4" holes through the pilaster at
each location.
C
Secure the bracket to the pilaster
using the #10-24 x 3/4" barrel nuts
and #10-24 x 3/4" shoulder screws
provided.
D
67-1/2"
(1715mm)
13-1/2"
(343mm)
Continuous stainless steel bracket shown
5Pilaster Mounting Hardware
Starting with the pilaster closest to the wall, measure and mark the pilaster and door widths on the pilaster centerlineline.
Make sure to leave the appropriate gap between the wall and the pilaster. Place the corresponding shoe on the pilaster
centerline and center between the marks.
A
Insert plastic anchors into the holes and
secure the shoe to the anchors using
the 9/32" x 5/8" flat washer and #14 x 2"
screws provided.
C
Using the shoe as a template, mark
the hole locations on the floor. Remove
the shoe and drill Ø5/16" holes (min 2"
(51mm) deep) into the floor. Make sure
the holes are free of dirt and debris.
B
36"
(914mm)
Pilaster Centerline
24"
(610mm)
4"
(102mm)
7"
(178mm)
26"
(660mm)
This view is an example only; refer to your submittal drawings for actual sizes.
1" (25mm) Gap

9
Installation Bradmar™Restroom Partitions, Floor-Mounted with Overhead Brace — Series 400
Bradley • HDWP-INSTR-013 Rev. L; ECN 12-14-015G 3/23/2018

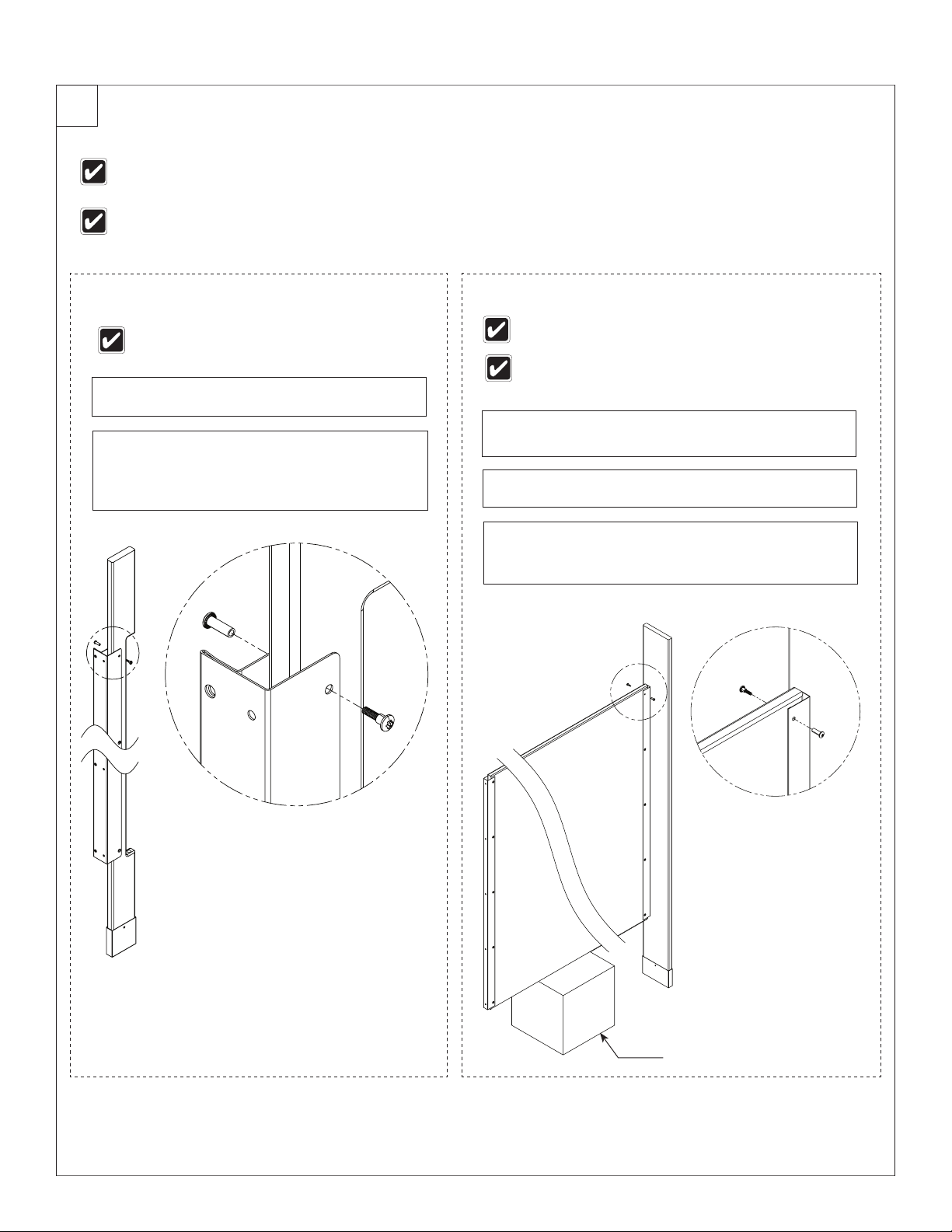

6Pilasters and Panels with Stainless Steel Continuous Brackets (Standard)
Pilasters located at walls should be mounted first. Start at one end and install a panel, then a pilaster. Continue alternating until
installation is complete. When installing in an alcove or in-corner, use an alcove bracket to secure the pilaster to the panel.
Pilasters at Wall Pilasters with Panels
Check to make sure the pilasters are plumb and level to each other. The pilaster height can be adjusted with the leveling screw that
was placed at the bottom of the pilaster (see page 5 for attaching leveling screw).
When installing pilaster at walls, the gaps range
from 1/2" to 1-1/4" (13mm to 32mm). Refer to your
submittal drawing for your gap sizes. Refer to your submittal drawing and leave the appropriate
gaps. Standard gap is 1" (25mm) between the panel and
wall and 1/2" (13mm) between the panel and pilaster.
Spacer 14" (356mm)
Place the pilaster within the shoe while at the same
time placing the pilaster within the wall bracket.
A
Using the bracket as a template, drill Ø1/4" holes
through the pilaster at each pilaster bracket hole.
Secure the pilaster to the bracket using the
#10-24 x 3/4" barrel nuts and #10-24 x 3/4" shoulder
screws provided.
B
Orientate the panel so the heatsink is on the bottom. Place
the panel on the spacer and insert the panel into the wall
bracket.
A
Place the pilaster within the shoe while at the same time
placing the bracket around the panel.
B
Using the bracket as a template, drill Ø1/4" holes through
the panel at each panel bracket hole. Secure the panel to
the bracket using the #10-24 x 3/4" barrel nuts and
#10-24 x 3/4" shoulder screws provided.
C
An aluminum heatsink is secured to one end of the panel to
indicate the bottom.

10
Bradmar™Restroom Partitions, Floor-Mounted with Overhead Brace — Series 400 Installation
3/23/2018 Bradley • HDWP-INSTR-013 Rev. L; ECN 12-14-015G
Pilasters at Wall Pilasters with Panels
6a Pilasters and Panels with Aluminum Continuous Brackets (Optional)
Pilasters located at walls should be mounted first. Start at one end and install a panel, then a pilaster. Continue alternating until
installation is complete. When installing in an alcove or in-corner, use an alcove bracket to secure the pilaster to the panel.
Check to make sure the pilasters are plumb and level to each other. The pilaster height can be adjusted with the
leveling screw that was placed at the bottom of the pilaster (see page 5 for attaching leveling screw).
Spacer 14" (356mm)
When installing pilaster at walls, the gaps range
from 1/2" to 1-1/4" (13mm to 32mm). Refer to your
submittal drawing for your gap sizes.
Place the pilaster within the shoe while at the same
time placing the pilaster within the wall bracket.
A
Using the bracket as a template, drill Ø1/4" holes
through the pilaster at each pilaster bracket hole.
Secure the pilaster to the bracket using the
#10-24 x 3/4" barrel nuts and #10-24 x 3/4" shoulder
screws provided.
B
Orientate the panel so the heatsink is on the bottom. Place the
panel on the spacer and insert the panel into the wall bracket.
A
Place the pilaster within the shoe while at the same time
placing the bracket around the panel.
B
Using the bracket as a template, drill Ø1/4" holes through the
panel at each panel bracket hole. Secure the panel to the
bracket using the #10-24 x 3/4" barrel nuts and #10-24 x 3/4"
shoulder screws provided.
C
Refer to your submittal drawing and leave the appropriate
gaps. Standard gap is 1" (25mm) between the panel and
wall and 1/2" (13mm) between the panel and pilaster.
An aluminum heatsink is secured to one end of the panel to
indicate the bottom.

11
Installation Bradmar™Restroom Partitions, Floor-Mounted with Overhead Brace — Series 400
Bradley • HDWP-INSTR-013 Rev. L; ECN 12-14-015G 3/23/2018
Pilasters located at walls should be mounted first. Start at one end and install a panel, then a pilaster. Continue alternating until
installation is complete. When installing in an alcove or in-corner, use an alcove bracket to secure the pilaster to the panel.
Pilasters at Wall Pilasters with Panels
Check to make sure the pilasters are plumb and level to each other. The pilaster height can be adjusted with the leveling screw that
was placed at the bottom of the pilaster (see page 5 for attaching leveling screw).
When installing pilaster at walls, the gaps range
from 1/2" to 1-1/4" (13mm to 32mm). Refer to your
submittal drawing for your gap sizes. Refer to your submittal drawing and leave the appropriate
gaps. Standard gap is 1" (25mm) between the panel and
wall and 1/2" (13mm) between the panel and pilaster.
Spacer 14" (356mm)
Place the pilaster within the shoe while at the same
time placing the pilaster within the wall brackets.
A
Using the bracket as a template, drill Ø1/4" holes
through the pilaster at each pilaster bracket hole.
Secure the pilaster to the bracket using the
#10-24 x 3/4" barrel nuts and #10-24 x 3/4" shoulder
screws provided.
B
Orientate the panel so the heatsink is on the bottom. Place
the panel on the spacer and insert the panel into the wall
brackets.
A
Place the pilaster within the shoe while at the same time
placing the brackets around the panel.
B
Using the bracket as a template, drill Ø1/4" holes through
the panel at each panel bracket hole. Secure the panel to
the bracket using the #10-24 x 3/4" barrel nuts and
#10-24 x 3/4" shoulder screws provided.
C
6b Pilasters and Panels with Stirrup Brackets (Optional)
An aluminum heatsink is secured to one end of the panel to
indicate the bottom.

12
Bradmar™Restroom Partitions, Floor-Mounted with Overhead Brace — Series 400 Installation
3/23/2018 Bradley • HDWP-INSTR-013 Rev. L; ECN 12-14-015G
7Pilaster Shoes
Using the hole in the shoe as a template, drill a Ø1/4" hole
through the pilaster.
A
Secure the pilaster to the shoe using the #10-24 x 3/4"
barrel nut and #10-24 x 3/4" shoulder screw provided.
B

13
Installation Bradmar™Restroom Partitions, Floor-Mounted with Overhead Brace — Series 400
Bradley • HDWP-INSTR-013 Rev. L; ECN 12-14-015G 3/23/2018
8Headrail
Make sure the pilasters are plumb and that the pilaster has been secured to the shoe. Leave the appropriate door opening
between the pilasters as shown on your submittal drawing.
Completed Headrail Assembly
The illustrations on this page show mounting hardware and fasteners for a generic application. Refer to your submittals
to determine your actual headrail configurations.
Some headrail sections may need to be cut to an appropriate size. Refer to your submittals for general headrail placement.
Headrail configurations that come to an intersection should meet over a pilaster (see completed headrail assembly view below).
Place headrail over the top of each pilaster
located at the wall and slide it tight against the
side wall. Mark the outline of the headrail on the
wall and remove the headrail.
APlace the headrail bracket on
the outline marked on the wall
and mark the locations of the
mounting holes. Remove bracket
and drill (2) Ø5/16" holes at a
minimum of 2" (51mm) deep.
Prior to securing to the wall,
enlarge the (2) back mounting
holes of the bracket to Ø1/4".
Secure the bracket to the wall
with the #14 x 2" screws and
plastic anchors provided.
B
Place headrail over the top of the pilasters and
slide it tight into the mounting bracket. Use the
mounting bracket as a template and drill a Ø7/32"
hole through the headrail. Secure the headrail to
the mounting bracket with the #10 x 5/8" screws
provided.
C
Make sure the pilaster is plumb
and that the spacing between
the pilasters for the doors is the
correct dimension. On the back
of each pilaster (starting with the
first pilaster), drill a Ø7/32" hole
through one face of the headrail
only.
Using this hole as a template,
drill a Ø1/8" pilot hole into the
pilaster, 5/8" (16mm) deep.
Secure the headrail to the back
of each pilaster with the
#10 x 5/8" screws provided.
D
For open end applications, cut the headrail to the appropriate length (if
required). Attach the bracket to the wall at the correct height (see step B).
Attach another bracket to a pilaster with #10 x 5/8" screws at the correct height
(see view below). The headrail should be level with any adjacent headrail
and should be located directly over the panel. Position each headrail onto
the brackets and secure with required fasteners (see Step C). Using a rubber
mallet, install the headrail end cap.
E
Wall

14
Bradmar™Restroom Partitions, Floor-Mounted with Overhead Brace — Series 400 Installation
3/23/2018 Bradley • HDWP-INSTR-013 Rev. L; ECN 12-14-015G
9Integral Hinges (Standard)
Top and bottom pintles are pre-lubricated for your convenience. Do not remove lubricant.
Right-hand
inswing
(RHI)
Left-hand
inswing
(LHI)
Right-hand
outswing
(RHO)
Left-hand
outswing
(LHO)
Before installing the hinges, make sure the door openings are the appropriate size, all pilasters are plumb and
secured to the shoe, and that the headrail is installed.
Refer to your submittal drawings to determine each specific door swing for your application. The door swing is
determined by facing the compartment from the outside. The image below can help determine the door swing type.
An aluminum heatsink is secured to one end of the door to indicate the bottom.
Orientate the door so the heatsink is on the bottom.
Place the top pintle into the pre-drilled hinge hole on the
bottom of the door. Use the bottom pintle to push the top
pintle into the door until it bottoms out.
A
Measure approximately 3/4" (19mm) up from the bottom
of the door and place a mark centered on the hinge side
door edge.
B
Drill a Ø1/8" pilot hole, at least 1-1/2" (38mm) deep (pilot
hole should penetrate the top pintle within the door).
Screw the set screw in flush with the door's surface.
C
Insert the bottom pintle into the lower pre-drilled hinge
hole on the pilaster. Place door onto the bottom pintle
and rotate to engage the pintles.
D
3/4"
(19mm)
Set
Screw
Top
Pintle
Bottom
Pintle

15
Installation Bradmar™Restroom Partitions, Floor-Mounted with Overhead Brace — Series 400
Bradley • HDWP-INSTR-013 Rev. L; ECN 12-14-015G 3/23/2018
9Integral Hinges - (Continued)
Place the spring and top pin into the upper pre-drilled
hinge hole on the pilaster. Push pin into the hinge hole
while at the same time moving the door into position.
Release the top pin and guide it into the top pre-drilled
hinge hole on the door.
E
Rotate the door to the desired "at rest" position. Push
down on the door while maintaining the desired "at rest"
position. (This sets the pintles in the bottom hinge).
F
With the door in the desired "at rest" position, measure
approximately 3" (76mm) down from the pilaster cutout
and place a mark centered on the pilaster edge.
G
Drill a Ø1/8" pilot hole, at least 1-1/2" (38mm) deep
(pilot hole should penetrate the bottom pintle within the
pilaster). Screw the set screw in flush with the pilaster's
surface.
H
Measure approximately 3/4" (19mm) down from the top
of the door and place a mark centered on the hinge side
door edge.
I
Drill a Ø1/8" pilot hole, at least 1-1/2" (38mm) deep (pilot
hole should penetrate the top pin within the door). Screw
the set screw in flush with the door's surface.
J
If the door is installed and pinned correctly, the door will "rise" slightly on the pintles as the door is opened.
Top Pin
Spring
3"
(76mm)
Set
Screw
3/4"
(19mm)
Set
Screw

16
Bradmar™Restroom Partitions, Floor-Mounted with Overhead Brace — Series 400 Installation
3/23/2018 Bradley • HDWP-INSTR-013 Rev. L; ECN 12-14-015G
9a Integral Hinges - No-Site (Optional)
Prior to installation, no-site doors are interchangeable between inswing and outswing applications. An aluminum
heatsink is provided loose and is required to be attached to the bottom of the door once door swing is determined.
Right-hand
inswing
(RHI)
Left-hand
inswing
(LHI)
Right-hand
outswing
(RHO)
Left-hand
outswing
(LHO)
Before installing the hinges, make sure the door openings are the appropriate size, all pilasters are plumb and
secured to the shoe, and that the headrail is installed.
Refer to your submittal drawings to determine each specific door swing for your application. The door swing is
determined by facing the compartment from the outside. The image below can help determine the door swing type.
The door "lip" will be on the inside of a stall for inswing doors and on the outside for outswing doors.
Orientate the door so the door "lip" is in the required
position for your application.
A
Locate the bottom of the door. Measure 1-3/4" (44mm)
from the edge of the lip and place a mark centered on
the bottom door edge (see detail below).
B
Drill a Ø7/64" pilot hole, 3/4" (19mm) deep. Orientate
and secure the first hole of the heatsink to the door
using a #6 x 3/4" flat head screw provided.
C
Center heatsink across door edge and using as a
template, drill pilot holes for all remaining heatsink holes.
Fully secure heatsink to door using the #6 x 3/4" flat
head screws provided.
D
1-3/4"
(44mm)
Lip
Lip
Attach door to pilaster following Step 9, letters A thru J.
E

17
Installation Bradmar™Restroom Partitions, Floor-Mounted with Overhead Brace — Series 400
Bradley • HDWP-INSTR-013 Rev. L; ECN 12-14-015G 3/23/2018
9b Continuous Spring-Loaded Piano Hinge - Stainless Steel (Optional)
Orientate the door so the heatsink is on the bottom. Place on
a 14" (356mm) spacer and set the door gaps. Standard hinge
side gap is 3/16" (5mm).
A
Position the hinge so it is plumb and centered within the 3/16"
(5mm) gap and centered top to bottom (approximately 1/2"
(13mm) down from the top of the door).
B
Right-hand
inswing
(RHI)
Left-hand
inswing
(LHI)
Right-hand
outswing
(RHO)
Left-hand
outswing
(LHO)
Closed Door
View
Continuous Piano Hinge Part # Prefix HDWP-S0209 Part # Prefix HDWP-S0208
The part numbers listed are prefixes only and
are used to identify the appropriate door kit
based on your door swing as determined above.
Inswinging doors should have hinges mounted
on the inside of the stall while outswinging doors
should have hinges mounted on the outside of
the stall.
(left hand in, right hand out,
knuckles facing front)
(right hand in, left hand out,
knuckles facing front)
Door
side Pilaster
side
Door
side
Pilaster
side
Using the hinge as a template, drill Ø1/4" holes through the
door at the top and bottom holes. Secure the hinge to the door
using the #10-24 x 3/4" barrel nuts and #10-24 x 3/4" shoulder
screws provided.
C
Check to make sure the hinge side gap is still at 3/16" (5mm).
Using the hinge as a template, drill Ø1/4" holes through the
pilaster at the top and bottom holes. Secure the hinge to the
pilaster using the #10-24 x 3/4" barrel nuts and #10-24 x 3/4"
shoulder screws provided.
D
Before installing the hinges, make sure the door openings are the appropriate size, all pilasters are plumb and
secured to the shoe, and that the headrail is installed.
Refer to your submittal drawings to determine each specific door swing for your application. The door swing is
determined by facing the compartment from the outside. The image below can help determine the door swing type.
Drill Ø1/4" holes through the remaining hinge holes on the door
and pilaster. Secure with the fasteners provided.
E
An aluminum heatsink is secured to one end of the door to
indicate the bottom.
Spacer 14" (356mm)

18
Bradmar™Restroom Partitions, Floor-Mounted with Overhead Brace — Series 400 Installation
3/23/2018 Bradley • HDWP-INSTR-013 Rev. L; ECN 12-14-015G

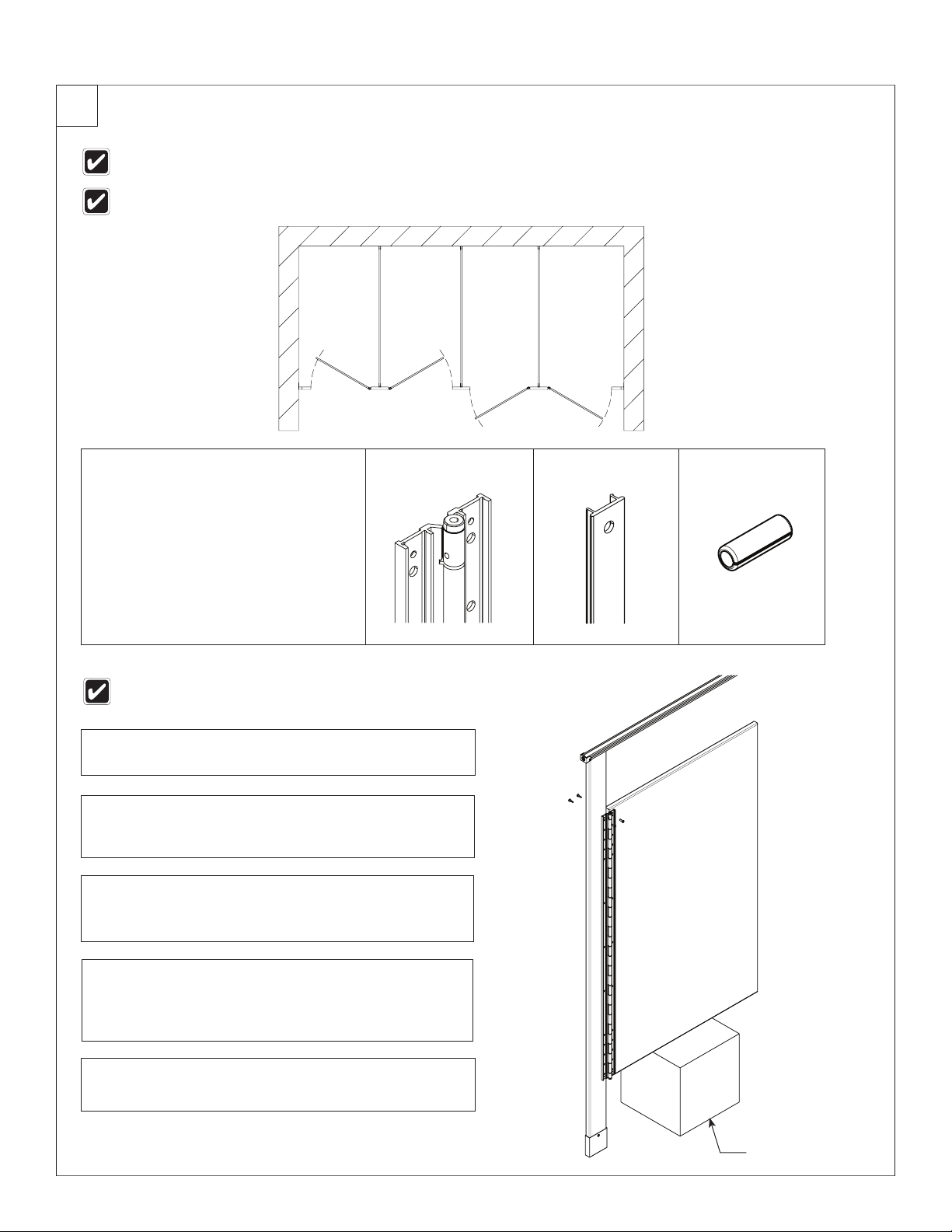

9c Continuous Spring-Loaded Piano Hinge - Aluminum (Optional)
Orientate the door so the heatsink is on the bottom. Place on
a 14" (356mm) spacer and set the door gaps. Standard hinge
side gap is 3/16" (5mm).
A
Remove the snap-on faceplates and position the hinge so it is
plumb and centered within the 3/16" (5mm) gap and centered
top to bottom (approximately 1/2" (13mm) down from the top of
the door).
B
Right-hand
inswing
(RHI)
Left-hand
inswing
(LHI)
Right-hand
outswing
(RHO)
Left-hand
outswing
(LHO)
Closed Door
View
Continuous Piano Hinge Hinge Faceplate Roll Pin
Consist of (3) parts: Hinge, Faceplate, and Roll
Pin.
Inswinging doors should have hinges mounted
on the inside of the stall while outswinging doors
should have hinges mounted on the outside of
the stall.
Using the hinge as a template, drill Ø1/4" holes through the
door at the top and bottom holes. Secure the hinge to the door
using the #10-24 x 3/4" barrel nuts and #10-24 x 3/4" shoulder
screws provided.
C
Check to make sure the hinge side gap is still at 3/16" (5mm).
Using the hinge as a template, drill Ø1/4" holes through the
pilaster at the top and bottom holes. Secure the hinge to the
pilaster using the #10-24 x 3/4" barrel nuts and #10-24 x 3/4"
shoulder screws provided.
D
Before installing the hinges, make sure the door openings are the appropriate size, all pilasters are plumb and
secured to the shoe, and that the headrail is installed.
Refer to your submittal drawings to determine each specific door swing for your application. The door swing is
determined by facing the compartment from the outside. The image below can help determine the door swing type.
Drill Ø1/4" holes through the remaining hinge holes on the door
and pilaster. Secure with the fasteners provided.
E
An aluminum heatsink is secured to one end of the door to
indicate the bottom.
Spacer 14" (356mm)

19
Installation Bradmar™Restroom Partitions, Floor-Mounted with Overhead Brace — Series 400
Bradley • HDWP-INSTR-013 Rev. L; ECN 12-14-015G 3/23/2018
9c Continuous Spring-Loaded Piano Hinge - Aluminum (Continued)
Place and hold the snap-on faceplate squarely on one
half of the hinge. Using a hammer and a soft wood block
to protect the finish, firmly tap the faceplate. Start at the
top and work downward until the entire length of the
faceplate is firmly engaged. Repeat for the additional
faceplate.
F
Using the faceplates as a template, drill Ø3/32" pilot
holes, 3/4" (19mm) deep at each hole location. Secure
faceplates to the hinge using the #8 x 1" flat head
screws provided.
G
To adjust the hinge spring tension, use a T-27 torx bit
and turn the torx head clockwise approximately one
complete revolution. Insert a 1-1/2" (38mm) long nail
into the hole through the hinge pin (the hinge pin has a
hole in two directions, allowing for adjustments every 1/4
turn).
H
Check the swing of the door. If the desired closure
speed is achieved, continue to Step J; otherwise,
remove the nail and turn the torx head another 1/4 turn.
Replace nail and check again. Continue this process
until desired closure speed is achieved.
I
When desired closure speed is achieved, hold the torx
head in place while at the same time removing the nail
and inserting the roll pin. Tap the roll pin into place with
a nail set until 1/8" (3mm) remains out from the hinge.
J

20
Bradmar™Restroom Partitions, Floor-Mounted with Overhead Brace — Series 400 Installation
3/23/2018 Bradley • HDWP-INSTR-013 Rev. L; ECN 12-14-015G
Top and
Bottom Insert
Female (2)
Bottom Insert
Male w/ Cutoff
Cam & Spacer (1)
Top Insert w/
Cam Male (1)
Aluminium
Hinge Blank (4)
Left In and Right Out Assembly
Top Hinge Set
Bottom Hinge Set
Insert
Correct Incorrect
Hinge
Blank
Aluminum Hinge Blank
Reference
Mark
Reference
Mark
Top and
Bottom Insert
Female
Bottom Insert
Male w/ Cutoff
Cam & Spacer
Top Insert Male
w/ Cam
Top Hinge Set
Bottom Hinge Set
Cam
Cutoff
Cam
Right In and Left Out Assembly
9d Aluminum Wraparound Hinge (Optional)
Hinge blanks and inserts have reference marks that are used in
setting the hinge position. The top hinge contains the cam and
the bottom hinge has the cutoff cam with spacer.
Right-hand
inswing
(RHI)
Left-hand
inswing
(LHI)
Right-hand
outswing
(RHO)
Left-hand
outswing
(LHO)
Pilaster Side
Pilaster Side
Pilaster Side
Pilaster Side
Door Side
Door Side
Door Side
Door Side
Before installing the hinges, make sure the door openings are the appropriate size, all pilasters are plumb and
secured to the shoe, and that the headrail is installed.
Refer to your submittal drawings to determine each specific door swing for your application. The door swing is
determined by facing the compartment from the outside. The image below can help determine the door swing type.
Separate the hinge components and ensure all parts are
included as shown.
AFind the hinge assembly that coincides with the door swing.
Arrange the hinge sets as shown.
B
Align the reference marks of the inserts and hinge blanks as
shown.
C
Assemble inserts into the hinge blanks making sure the
insert collar fits tightly against each of the hinge blanks.
D
