Bradley LOFT Series User manual

Installation
P.O. Box 309
Menomonee Falls, WI 53052 USA
800 BRADLEY (800 272 3539)
[phone]
bradleycorp.com
AD3-LOFT_Install Rev. B
© 2021 Bradley
Page 1 of 17 12/10/2021
Euro Style Restroom Partitions
Phenolic LT – LOFT Series
Read the instructions in this manual before beginning installation. Save these instructions
and refer to them for inspection, maintenance, and troubleshooting information.
For questions regarding the operation, installation or maintenance of this product, visit bradleycorp.com
or call 800.BRADLEY (800.272.3539).
Product warranties and parts information may also be found under “Resources” on our website at bradleycorp.com.
Table of Contents
Safety Information ...........................2
Supplies Required ...........................2
Marking & Installing U-Brackets.................3
Making Back Wall Notches (if necessary) .........4
Installing Middle and End Panels................6
Mounting Support Feet .......................6
Mounting U-Bracket on Pilaster .................7
Mounting Pilaster to Partition Panel..............8
Inserting Interior Pilaster ......................9
Attaching Doors ............................10
180° Barrel Hinge Type ....................10
110° Integral Hinge Type ...................10
Mounting Headrail ..........................11
Aligning the System & Securing the Feet ........12
Securing the Feet ..........................13
Mounting Headrail on End Panel...............14
Mounting the Door Latch .....................15
Mounting Hooks & Bumpers ..................16
Scan code to view
installation overview video

2
Euro Style Restroom Partitions, Phenolic LT — LOFT Series Installation
12/10/2021 Bradley • AD3-LOFT_Install Rev. B
Safety Information
Warning
Before beginning installation, make sure that the wall and floor backing are adequate to support the secure mounting of the toilet
compartment units.
Partitions are extremely heavy and may require more than one person to position and install.
Failure to comply with these instructions may result in personal injury and/or property damage and will void the partition warranty.
Caution
Personal protective equipment (PPE) is required during the installation and maintenance of this product.
Notice
To prevent warping, always lay the material flat. Do not lean the material against the wall or stack unevenly.
Make sure all floors and walls are clean and smooth. Remove loose impediments, such as protruding nails and other debris which
could affect installation.
To minimize break-out, always use a support block when drilling through the material.
Carefully remove components from skid, do not drag.
Important
Review your partition layout drawings and verify the number of stalls and components before beginning installation.
Read this installation manual completely to ensure proper installation, then file it with the owner or maintenance department.
This installation manual provides instruction for the assembly of normal partition configurations and standard components. Non-
standard configurations or components including but not limited to curved or angled walls, notched walls, partial walls, oversized
panels, or modified hardware are not covered in this manual. Compliance and conformity to local codes and ordinances is the
responsibility of the installer.
Separate parts from packaging and make sure all parts are accounted for before discarding packaging material. If any parts are
missing, do not begin installation until you obtain the missing parts.
Supplies Required
• Chalk line and pencil
• 4D laser level
• Power drill or screw gun with drill bit extension
• Miter saw with aluminum saw blade
• Circular saw or jigsaw
• Cordless screwdriver
• Power rivet gun
• Metric tape measure (recommend a wood folding metric ruler)
• Standard hand tools
• Metric HSS drill bits (8 mm, 5 mm, 4.2 mm)
• Scissor jacks
• Rubber hammer
• Step ladder

3
Installation Euro Style Restroom Partitions, Phenolic LT — LOFT Series
Bradley • AD3-LOFT_Install Rev. B 12/10/2021
When installing the partition components, consult the
applicable Bradley Partition submittal drawing specific to
this job for compartment layout dimensions.
Be aware of your surroundings and avoid obstructions.
1Marking & Installing U-Brackets
From the accompanying production drawing you
can see the centerline plus overall dimensions and
the dimensions of the front wall. Transfer these
measurements to the floor and appropriate walls.
A
Number the wall U-brackets while laying out the stalls.
Use the laser level to locate the drill points for each
U-bracket. Mark and then drill the locations.
B
Using the 4D laser level, locate the centerline of each
U-bracket. Measure up from the floor 100 mm and
mark the bottom of the first U-bracket. Use the first
bracket base location as a guide to locate and mark the
remaining bracket locations using the laser level.
C
Mark the drill holes for the wall connection U-brackets.
Hold the numbered brackets at these locations, line up
the U-bracket pre-drilled holes at laser centerline, and
mark the screw hole locations on the wall. Be sure to
keep the numbered brackets straight.
E
D
Drill the marked holes using an 8 mm drill bit, and
then mount the U-brackets using 8 mm x 51 mm
plastic anchors and 5.5 mm x 60 mm countersunk
screws with 6.4 mm washers.
F
If the centerline dimensions are not specified, the
cubicle is divided equally according to the dimensions
for the front side.
The dimensions from the floor for the remaining
U-brackets may vary depending on any slope in the
floor.

4
Euro Style Restroom Partitions, Phenolic LT — LOFT Series Installation
12/10/2021 Bradley • AD3-LOFT_Install Rev. B
This step may not be necessary, depending on the layout.
Determine whether the shelf is at a right angle.
If several notches are required, align the height of the
U-brackets using a laser level.
2Making Back Wall Notches (if necessary)
Measure the height of the shelf on the back wall and
subtract the specified ground clearance at that location
from this dimension.
A
Shorten the mitered pre-cut U-bracket to the correct
size. Place the U-bracket with the miter end up,
making sure that it is flush with the top of the shelf.
B
Adjust the remaining piece of the long U-bracket to the
height of the system, and then attach the U-bracket,
setting it perpendicular to the wall.
C
Transfer the notch dimension with the addition of
0.20" clearance to the partition panel, and then use a
circular saw to make the notch.
E
Adjust the short miter U-bracket, and then attach it to
the shelf.
D

5
Installation Euro Style Restroom Partitions, Phenolic LT — LOFT Series
Bradley • AD3-LOFT_Install Rev. B 12/10/2021
Place the partition panel into the notched brackets.
Level and use jacks to support the panel and to hold the
panel in place.
F

6
Euro Style Restroom Partitions, Phenolic LT — LOFT Series Installation
12/10/2021 Bradley • AD3-LOFT_Install Rev. B
3Installing Middle and End Panels
Place a small bead of silicone on both sides of the
U-bracket side walls towards the front of the bracket.
This will help reduce noise when complete.
A
Support the panel at both the front and back using
scissor jacks. Use a standard level to verify the panel
is level.
B
The corner pilaster is assembled up to a width of
400 mm to the end panel.
If gluing the feet to the floor, use the black plastic disk
that is included in the pre-pack.
Insert the stainless steel feet into the assembled
plastic bushing in the bottom of the pilasters. Verify
the loose escutcheon is in place to cover the flange of
the foot.
A
4Mounting Support Feet

7
Installation Euro Style Restroom Partitions, Phenolic LT — LOFT Series
Bradley • AD3-LOFT_Install Rev. B 12/10/2021
Verify the correct pilasters are selected by matching
the label on the pilasters with what is indicated on the
submittal drawings.
Pay close attention to the latch side versus hinge side,
in addition to the in-swing or out-swing.
5Mounting U-Bracket on Pilaster
Determine the centerline of the pilaster and then draw
a full-length line along the pilaster. There may be a
custom dimension indicated on the sumittal drawing.
Place the U-bracket on the interior pilaster flush with
the bottom, and then mark the drill holes.
A
B
Using a 4.2 mm drill bit, drill the holes through the
surface of the first panel only, and then attach the
U-bracket using 5.5 mm x 25 mm pan head screws.
Make sure the lower hole catches part of the interior
aluminum frame at the bottom edge of the pilaster.
C

8
Euro Style Restroom Partitions, Phenolic LT — LOFT Series Installation
12/10/2021 Bradley • AD3-LOFT_Install Rev. B
6Mounting Pilaster to Partition Panel
Place a small bead of silicone on the inside walls of
the U-bracket.
Place the interior pilaster onto the partition panel and
use a jack to line up the bottom edges.
Drill pilot holes through the U-bracket and into the first
wall of the panel using a 5 mm drill bit.
Be sure to mark the pilot hole locations 100 mm from
the top, 100 mm from the bottom, and then center the
third hole in the middle of the bracket.
Drill closer to the edge of the bracket to make sure the
drill bit catches the panel.
Secure the middle pilaster to the partition panel using
three aluminum 4.8 mm x 16 mm rivets at the top,
middle, and bottom locations.
A
B
C
D
Use a standard level to verify the pilasters and panels
are level and flush.
Use a standard level to verify the pilasters and panels
are level and flush.

9
Installation Euro Style Restroom Partitions, Phenolic LT — LOFT Series
Bradley • AD3-LOFT_Install Rev. B 12/10/2021
7Inserting Interior Pilaster
Place a small bead of silicone on the inside walls of
the U-bracket, and then set the end pilaster into the
bracket.
Use a jack to support the end pilaster. Verify the lower
edge of the end pilaster is flush with the U-bracket.
A
B

10
Euro Style Restroom Partitions, Phenolic LT — LOFT Series Installation
12/10/2021 Bradley • AD3-LOFT_Install Rev. B
8Attaching Doors
Place the aluminum channel with the four small
screws to the top of the door with the pin on the hinge
side.
A
Line up the top barrel hinges on the door with the
bottom barrel hinges installed on the pilasters, and
then hang the door in place.
A
Remove the rubber O-ring from the plastic cam at the
base of the pilaster (O-ring was used to secure cam
during shipping), and then place the plastic cam in the
correct position for desired "at rest" position.
B
Line up the four screws in the aluminum channel with
the slots in the corresponding pilaster. With the screws
aligned on the upper channel, simultaneously place
the door on the bottom pin with the plastic cam.
C
180° Barrel Hinge Type
110° Integral Hinge Type
The door hinges are pre-installed on the doors and
pilasters.
Doors are available with two types of hinges: 180° barrel hinge or 110° integral hinge.
Follow the instructions for the type of hinge installed on your doors.

11
Installation Euro Style Restroom Partitions, Phenolic LT — LOFT Series
Bradley • AD3-LOFT_Install Rev. B 12/10/2021

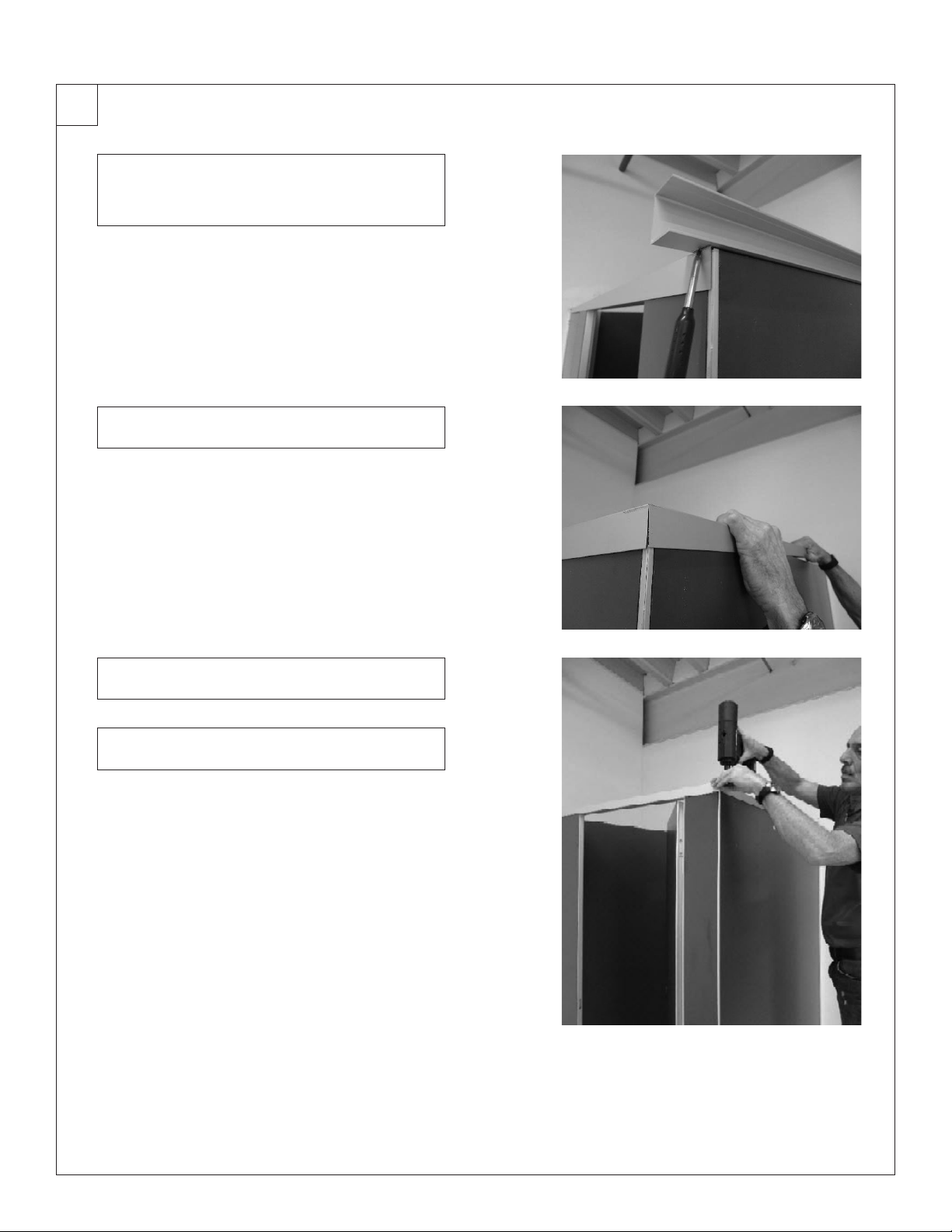

9Mounting Headrail
Verify that the pilasters against the wall are level.
Measure the length of the headrail needed. Use
a circular saw or jigsaw to cut the headrail to the
measured length.
Mark at least 2 drill holes per component along the top
of the headrail to be used for securing the headrail to
the panels.
Verify the vertical gaps between the doors and
pilasters are adjusted to 4 mm. Adjust the gap at the
top of the door to 4 mm. Spacers are recommended.
Drill the marked holes using a 5 mm drill bit (drill
through the holes of the flange while the foot is in
place), and then mount the headrail using
4.8 mm x 16 mm rivets.
A
B
D
C
E
Typically, 2 rivets are required for each component
(top of pilaster or top of door). Make sure the hole for
1 rivet is placed at least 50 mm in from the edge of the
component. In some cases, the pilaster may be too
narrow where only 1 rivet would be used.
Headrail pieces are shipped approximately 60 mm
longer than needed and must be trimmed to fit the
exact requirements.
Make sure the door is flush with the adjoining pilasters.
Use a long straight edge to make any necessary
adjustments.

12
Euro Style Restroom Partitions, Phenolic LT — LOFT Series Installation
12/10/2021 Bradley • AD3-LOFT_Install Rev. B
10 Aligning the System & Securing the Feet
After alignment is complete, mark and drill the holes
for securing the feet to the floor.
Secure the feet in place using a 6 mm drill bits with
two 4.8 mm x 38 mm screws.
B
C
To make any adjustments, raise or lower the middle
panel using a jack and move the middle pilaster from
side to side.
Be sure to use the appropriate type of bit depending on
the floor material.
Verify the vertical gaps between the door and pilasters
are adjusted to 4 mm. Adjust the gap at the top of the
door to 4 mm. Spacers are recommended.
A
Make sure the door is flush with the adjoining pilasters.
Adjust as needed.

13
Installation Euro Style Restroom Partitions, Phenolic LT — LOFT Series
Bradley • AD3-LOFT_Install Rev. B 12/10/2021
11 Securing the Feet
For the 110° integral hinge side of the pilaster, use
a 5 mm drill bit to drill a hole from inside of the stall
just above the base of the pilaster (approximately the
same height as the opposing hole that was pre-drilled
on the edge of the latch side of the pilaster) centered
in line with the tubing of the foot support.
Carefully continue to drill through the first wall of the
pilaster through the first wall of the foot tubing only.
For the latch side of the pilaster, secure the feet by
drilling through the pre-drilled holes that are located
on the edge of the pilaster. Using a 5 mm drill bit, drill
through both walls of the foot tubing. Secure the feet
using 4.8 mm x 45 mm screws.
Use a rivet gun to secure the feet in place using a
4.8 mm x 20 mm stainless steel rivet.
Use a rivet gun to secure the middle panel and the
two end pilasters with the U-brackets together using
4.8 mm x 16 mm aluminum rivets.
Press the black cover caps onto the pre-drilled holes.
A
D
B
C
E

14
Euro Style Restroom Partitions, Phenolic LT — LOFT Series Installation
12/10/2021 Bradley • AD3-LOFT_Install Rev. B
Set the approximate headrail (with the pre-cut 90°
miter against the back wall) on top of the outer panel.
Mark the headrail to the length needed. Use a circular
saw or jigsaw to cut the headrail to the measured
length.
Mark drill holes along the top of the headrail to secure
the headrail to the end panel.
Turn the headrail around and place it over the end
panel.
Drill the marked holes using a 5 mm drill bit, and
then attach the headrail using 4.8 mm x 16 mm rivets.
A
C
B
D
12 Mounting Headrail on End Panel

15
Installation Euro Style Restroom Partitions, Phenolic LT — LOFT Series
Bradley • AD3-LOFT_Install Rev. B 12/10/2021
13 Mounting the Door Latch
Insert the set screw until it is flush with the surface of
the square hole. Place the outside frame of the interior
portion of the latch onto the surface of the door.
Align the holes of the interior piece of the latch to the
outside frame of the door knob, now mounted on the
door. Bolt together using the 5 mm x 65 mm screws.
Properly set the red/white indicator.
With the indicator color windows aligned to the top and
bottom positions, insert a 5 mm x 65 mm screw into
the bottom and securely tighten.
A
B
C

16
Euro Style Restroom Partitions, Phenolic LT — LOFT Series Installation
12/10/2021 Bradley • AD3-LOFT_Install Rev. B
14 Mounting Hooks & Bumpers
Mark the location for the hook on the inside of the
door (300 mm from the top edge and center of the
door).
A
Insert the supplied rivets (4 mm x 16 mm) into the top
pre-drilled mounting hole.
C
Use a rivet gun to attach the hook to the mounting
hole.
D
Use a level to verify the hook is level, and then drill
and rivet the second hole in the hook.
E
Pre-drill the hook mounting holes using a 4 mm
drill bit. Only drill through the first wall of the door, not
the entire door.
B

17
Installation Euro Style Restroom Partitions, Phenolic LT — LOFT Series
Bradley • AD3-LOFT_Install Rev. B 12/10/2021
Attach the door bumper to the inside pilaster using
HB45 construction adhesive.
F
Use tape to hold the door bumper in place until the
adhesive dries.
G
