Dear customers,
Thank you for choosing the sPinLock 410 - the code combina-
tion lock for various applications in the furniture sector.
The sPinLock 410 is suitable for use in steel and wooden furni-
ture. It has four number wheels for free code selection and an
additional master key function with code finding possibility.
Important: Please note all warnings and read through the
entire operating manual before you begin configuration.
We hope you enjoy using your new locking system.
Sincerely, BURG F.W. Lüling KG
Introduction
The latest version of this guide is always available at:
www.burg.de
General
sPinLock 410
ARelease button BZamak housing
CGuide line DOpening for masterkey
ESetting screw
D
A
B
Default Settings
Code 0-0-0-0
C
E

sPinLock 410 | 09-2020 Rev. 01 | English | 3
sPinLock 410
32 mm
11 mm
(max.)
19 mm
58,4 mm
20 mm
Ø 56,3 mm
Scope of Delivery
Easy mounting and operation
No force application possible due to freely rotating knob
Solid zamac housing
Emergency opening and code access by master key
9,999 possible code combinations
Features
Dimensions Ø 56,3 x 32 mm
Material Housing: Zamak
Mounting socket: Zamak
Latch: Steel (nickel-plated)
Mode Privat-Modus
Number wheels 4
No. of code combinations 9,999
Locking direction L, R
Mounting hole 16 x 19 mm
Lock attachment M19 Nut
Max. door thickness 11 mm
Cam type B
Factsheet
Technical Data
Optional Accessories
AsPinLock 410 BM19 Nut
CFixing screw DLatch
Master key
Dimensions
D
B
Mounting Hole Dimesions
16 mm
Ø 19 mm
A
C
Ø 56,3 mm

sPinLock 410 | 09-2020 Rev. 01 | English | 4
Mode: Fixed Assigned Authorization (Private Mode)
In this mode a code is pre-set with which the lock can be opera-
ted. This mode is suitable for user groups where user rights do
not have to change permanently, e.g. in an office cabinet.
Master key
The lock can be opened via the master key in case the code is
lost.
Note: The master key is not included in the scope of delivery. If
required, it can be ordered separately.
Functional Description

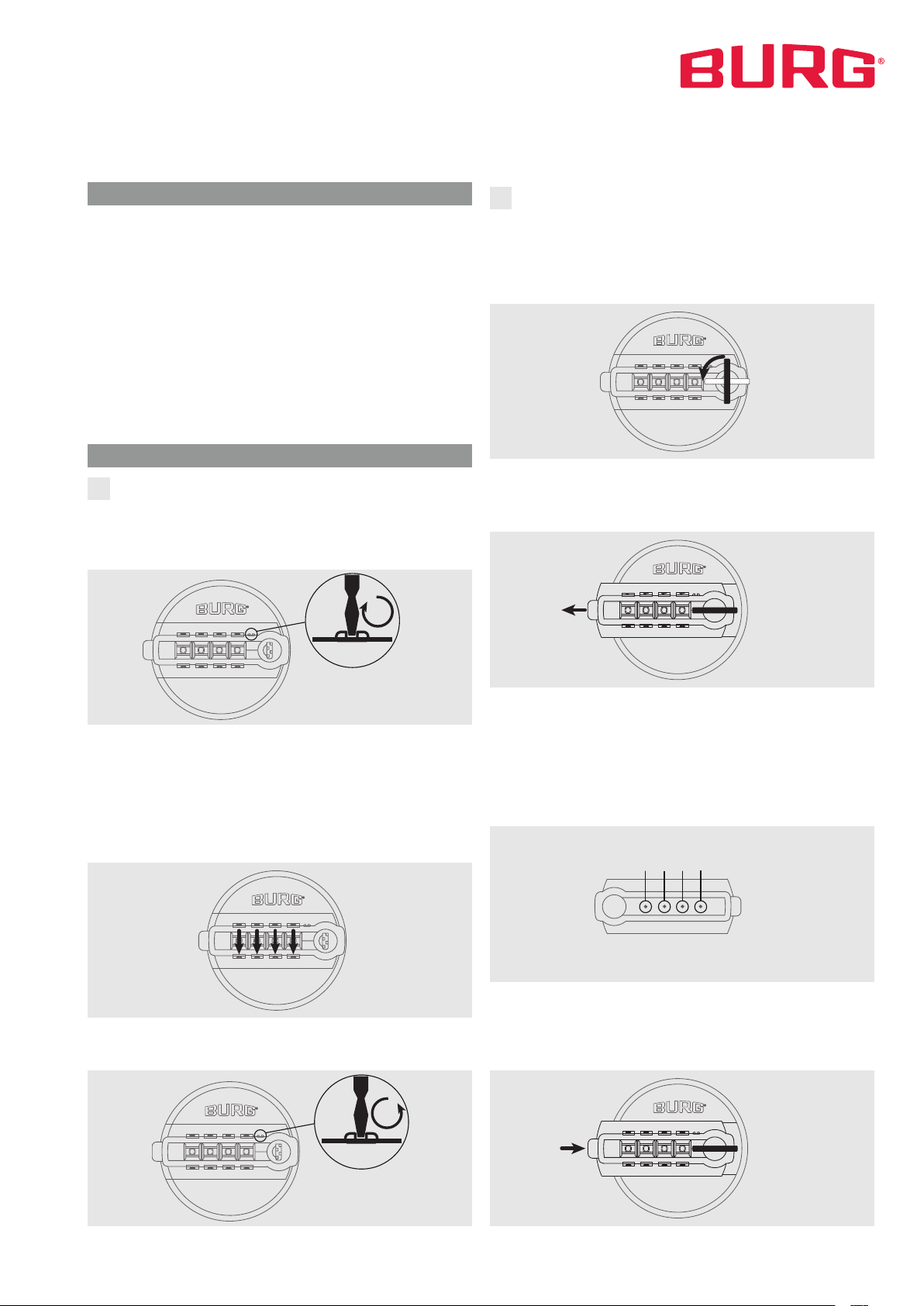

Configuration
1Set the Code
1. Bring the lock into the open state by setting the valid code
(factory setting 0-0-0-0) using the number wheels. Then turn
the setting screw 90 degrees to the right using a screwdriver.
2. While the setting screw remains in this position, carefully
turn each number wheel individually from top to bottom until
they stop, starting with the left number wheel. Make sure not
to move to the next number wheel until the previous number
wheel has stopped at the correct position. When all number
wheels are in the correct position, you can read the valid code.
2Code Finding and Master Key Opening
Using the master key you can read the valid code and open the
lock, even if the code has been lost.
1. Insert the master key into the designated opening and turn it
90 degrees to the left.
2. While the master key remains in this position, carefully pull
off the number wheel housing to the left.
3. Turn the setting screw back to the starting position.
3. Insert a needle on the back of the number wheel housing as
far as possible into the first opening from the left. Turn the cor-
responding number wheel from the front until it has stopped at
the correct position. Repeat this procedure for all four number
wheels. When all number wheels are in the correct position, you
can read the valid code.
4. Remove the needle and push the number wheel housing
carefully back onto the lock until it clicks into place. Turn the
master key back to the initial position and remove it.
