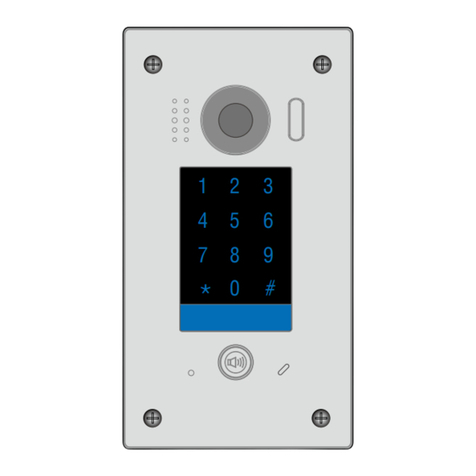

CDVI CDV96KP User manual

2 -Wire Intercom System
CDV96KP User Manual
1
4 5 6
8 9
0 #
7
2 3
*
1
4 5 6
8 9
0 #
7
2 3
*
CDV96KP CDV96KP-SF
CDV-ENG-96/KP-V2

Contents
2. Mounting.............................................................................................................. 1
1. Parts and Functions............................................................................................. 1
3.Terminal Description.. ........................................................................................... 2
9.Specications ..................................................................................................... 17
8. Precautions......................................................................................................... 17
7.Power Supply Instructions.................................................................................. 17
10.Cable Requirements.......................................................................................... 18
4. System Wiring and Connections ......................................................................... 3
5.Pan,Tilt & Zoom Function .................................................................................... 7
6. Function Setting Up ............................................................................................. 9

-1-
1.Parts and Functions
1
4 5 6
98
0 #
7
2 3
*
Camera Lens
Touch Sensitive
Digital Keypad
Speaker
Nameplate
Call Button
Microphone
93 mm
28 mm
182 mm
1
4 5 6
98
0 #
7
*
2 3
Night Light
2.Mounting
1 2
43
Connect the cable correctlyDrill holes in the wall to match the size of
screws and attach the rain cover to the wall.
CDV96KP Mounting
Rain Cover
CDV96KP
Attach the panel to the rain cover Using a screwdriver attach the keypad to
the rain cover, see diagram above.

-2-
1 2 3
Lock Control Jumper
BUS
PL
S+ S-
Main Connect Port
3.Terminal Descriptions
Placing Name Label
•Lock Control Jumper: To select the lock type.
•Main Connect Port: To connect the bus line and
the electronic locks.
Using a screwdriver remove the fixing screw, pull forward the panel and slide in the name plate.
•BUS: Connect to the bus line, no polarity.
•PL: External lock power input.
(if using the external power
supply for the locks, the S- will not be connected).
positive(power +).
•S+: Lock power(+) output.
•S-: Lock power(-) output

-3-
Basic Connection
4.System Wiring and Connections
Electric Lock Connection
Note:
1. Electronic lock of Power-on-to-unlock type should be used.
2. The door lock is limited to 12V, and holding current must be less than 250mA.
3. The door lock control is not timed from Exit Button(EB).
4. The Unlock Mode Parameter of Monitor must be set to 0 (by default).
EB
*
LOCK
BUS PL S+S-
Jumper position in
Connect one lock
2-3
1 2 3
A fail secure (power applied to unlock) electronic lock device should be used.
BUS(IM) BUS(DS)
PC6
AC~
-
+
L1 L2 PL S+ S-
Doorbell Button
Switch
1 2 3
ON
DIPS

LOCK
Take off the Jumper
POWER
SUPPLY
BUS PL S+S-
Connect one lock
Door Lock Controlled with Dry Contact
Note:
1. The external power supply must be used according
to the lock.
2. The inside relay contact is restricted to AC or DC
24V/1A.
3. The jumper must be taken off before connecting.
4. Set the Unlock Mode of Monitor for different
lock types.
•Power-on-to-unlock type: Unlock Mode=0 (by
default - monitor code 8010)
Note:
1.must connect CDV96KP correctly before setting.
2.the parameter will be saved in CDV96KP automatically,so you need only set on one monitor.
3.the above diagram is t for icon menu series monitors only, to text menu series monitors,please refer to
the corresponding user manual.
•Power-off-to-unlock type: Unlock Mode =1
- monitor code 8011
Unlock parameter setting(set in monitor)
1.Touch icon on
main menu page.
2.Touch UNLOCK
button and hold for 2s.
3.A digital keypad will be
shown.
About
Local Address 00.00
Video Standard AUTO
System Verson 00.01.00
Display Driver 1.0
Front 1.0
UI 1.0
INSTALLER SETUP 123
_
-4-

Multi Door Stations Connection
100~240VAC
DBC4A
A B C D
OFF
ON
Impedance
switch
BUS(IM) BUS(DS)
PC6
AC~
4# Camera
L1 L2 PL S+ S-
(Device Address:3)
3# Camera
L1 L2 PL S+ S-
(Device Address:2)
2# Camera
L1 L2 PL S+ S-
(Device Address:1)
1# Camera
L1 L2 PL S+ S-
(Device Address:0)
Code=15 Code=14
BUS(IM) BUS(DS)
PC6
AC~
100~240VAC
Code=0
1
4 5 6
8 9
0 #
7
2 3
*
(Device Address:0)
Basic IN-OUT(Daisy Chain) Wiring Mode
-5-

With DBC4A Wiring Mode
Code=0
OFF ON
OFF ON
DBC4A
A B C D
DBC4A
A B C D
Impedance
switch
Impedance
switch
100~240VAC
BUS(IM) BUS(DS)
PC6
AC~
Code=2
Code=1
Code=3
Code=12
Code=14
Code=13
Code=15
1
4 5 6
8 9
0 #
7
2 3
*
NOTE: DT47M( monitors) used as an example.
(Device Address:0)
-6-

123
456
789
Here are some examples:
Panview function:
Touch icon to zoom the center position.
Screen of monitor
In this case there are two panview modes:
-7-
Please Note: this function requires the CDV47-MGv2 monitor with zoom function.
It is possible to adjust the display view from the CDV96KPv2 door station byusing the
5direction pad button.
When the door station image displayed, move to
the desired position by touching
on the screen to view the image in zoom mode.
Note: The edge of pan/tilt image will not be displayed.
We have divided the screen image into nineparts, as shown
in the image on the right.
5. Pan-tilt & Zoom & Panview

1 2 3
456
7 8 9
Note: Touch the screen again to exit the panview mode.
1 2 3
456
7 8 9
Note: Touch the screen again to exit the panview mode.
-8-
1) Touch area 4: zoom to area 4, the lens moves to area 6, and
then returnsto area 4;(see details below)
2) Touch area 6: zoom area 6, the lens moves to area 4, and then
returnsto area 6;(As details below)


This section explains the settings for each function,please refer to the following table:
Programming mode:
Input the master code to enter the programming mode then enter the corresponding setting code
to set the function required. Press " " to exit the setting mode.
•# is used to confirm and to cancel/exit. Function 8 allows * & ~ functions to be reversed
(see table on pg. 10).
•Do not slide finger across the touch pad as this can cause incorrect key presses. Press each
individual key as required.
•Press 'Confirm' (#) key after entering each code number, failure to do this will result in the
operation being cancelled after 10 seconds.
-9-
6. Functions Setting Up

-00
Valid keys:0 ~ 9 1234 01
continually lit 10 seconds 02
8 &# function settings 0:Normal/1:Reverse Normal 07
9Call tone settings 0:Enable/1:Disable Enable 08
10 Interference resistant
grade settings Valid keys:0 ~ 5 2 09
11 MIC Adjustment Valid keys:0~9 7 10
12 SPK Adjustment Valid keys:0~9 7 11
13 Display Scene Valid keys:0~2 0 12
14 Night Light Level Valid keys:0~5 4 13
15 Device Address Valid keys:0~3 0 14
16 Reserve(not used) Reserve Reserve 15~17
17 Setting the code
forTemporary1
1 ~ 12 digits
Valid keys:0~9 - 18
18 Setting the code
forTemporary2
1 ~ 12 digits
Valid keys:0~9 - 19
19 Setting the code for user
group1
1 ~ 12 digits
Number of codes:40
Valid keys:0~9
- 20~59
20 Setting the code for user
group2
1 ~ 12 digits
Number of codes:40
Valid keys:0~9
- 60~99
21 Work Mode 0:A partment/1:Villa 1(villa) 100
22 Call Address Valid keys: 0 - 9 00 101
Order Function Setting range Default value Setting code
1 Reset all settings 1234
10 to 99 seconds/
illumination time
Setsthe key
3
1 ~ 12 digits
2 Setsthe master code
4 Setsthe unlock time 01 to 99 seconds 1 seconds 03
5 Setsthe unlock mode 0:opened/1:closed opened 04
6 Operation tone settings 0:on/1:off on 05
7 Reset code settings 1234 - 06
-10-

1
4 5 6
98
0 #
7
*
2 3
Each operation is indicated by the lighting up of the
different color of digital key and nameplate , and by the
sounding of the buzzer.
Input the master code.
(Default: [ ] +[#] )
- The unlock time can be set on
both monitor and door station,
and the valid value is the number
you set last time.
(white)
The color of key indicator
Beep+, Beep
Beep+, Beep Beep+, Beep Beep+, Beep Beep+, Beep
Beep+ Beep+ Beep+ Beep+
Inputting of code (ex.: 10)
range:00 or 10~99
Inputting of code (ex.: 09)
range:01~99
3.Setting the key
illumination time
4.Setting the
unlock time
2.Setting the master code
(Default 1234) (Default 10s) (Default 1s)
Inputting of new master code
(ex.: 4321)(1~12 digits)
Input the setting code.
Inputting of code
Input the setting code.
1.Reset all settings
00+#
1234+# 4321+#
01+#
10+# 09+#
Input the setting code.
02+#
Input the setting code.
03+#
(yellow)
The color of key indicator
(yellow)
The color of key indicator
(yellow)
The color of key indicator
(yellow)
The color of key indicator
The color of key indicator
(green white)
The color of key indicator The color of key indicator The color of key indicator
(green white) (green white)(green white)
-
When the “ cancel” key is pressed, the indicator will show its standby color, the buzzer beeps, and the system
exits the setting mode.
- When there isn’t any operation in 10s, the indicator will show its standby color, the buzzer beeps, and the system
exits the setting mode.
Beep, Beep+
*
(The color
of standby)
The color of
key indicator
- When setting failure, the color of key indicator will turn red , the buzzer beeps.
- All settings will restore to their
default value.
- When the keypad is powered on
or the reset function is activated
the keypad will carry out system
check, during this period the key
illumination will flash, DO NOT
TOUCH THE KEYPAD. On
completion the flashing will stop
followed by a long beep.
- The master code can be 1 to 12
digits, the same code cannot be
used for any user code. It is
recommend the default master
code is changed.
- If the key illumination time is set
to 00,the key illumination will light
up all the time when power on.
- If the key illumination time is set to
10~99,the key illumination will light
up for 10~99 seconds. In this mode
the illumination is off, touching any
key will turn the illumination on. Th
illumination will turn off after the set
time if no key is touched or after the
final key press.
-11-

Input the master code.
(Default: [ ] +[#]) Beep+, Beep
Beep+, Beep Beep+, Beep Beep+, Beep Beep+, Beep
Beep+
Beep+Beep+ Beep+
7.Reset code setting 8. &# function setting6.Setting operation tone
(Default ON) (Default Normal)(Default 0(opened))
Input the setting code.
Inputting of code
Input the setting code.
5.Setting the unlock mode
04+# 05+#
range:0:(open)/1:(close)
1+#
0/1 0/1 0/1
1+# 1+#1234+#
Input the setting code.
06+#
Input the setting code.
07+#
(ex.: 1)
Inputting of code Inputting of code Inputting of code
range:0:(on)/1:(off)
(ex.: 1)
range:0:(normal)/1:(reverse)
(ex.: 1)
*
*
*
- The unlock mode can be set on
both monitor and door station,
and the valid value is the number
you set last time.
- When the operation tone is
set to 0,pressing the digital
keypad will sent out a sound
of beep.
- When the operation tone is
set to 1,pressing the digital
keypad will blink one time.
- Cancel all the passwords except
the master code.
- Restore the master code to
default value(1,2,3,4)
- When the item is set to 0,press
the button to cancel the input,
and press the # button to confirm
the input.
- When the item is set to 1,press
the # button to cancel the input,
and press the button to confirm
the input .
(white)
The color of key indicator
(yellow)
The color of key indicator
The color of key indicator
(yellow)
The color of key indicator
The color of key indicator
(yellow)
The color of key indicator
The color of key indicator
(yellow)
The color of key indicator
The color of key indicator
(green white)
(green white) (green white) (green white)
-
When the “ cancel” key is pressed, the indicator will show its standby color, the buzzer beeps, and the system
exits the setting mode.
- When there isn’t any operation in 10s, the indicator will show its standby color, the buzzer beeps, and the system
exits the setting mode.
Beep, Beep+
*
(The color
of standby)
The color of
key indicator
- When setting failure, the color of key indicator will turn red , the buzzer beeps.
-
-12-

Input the master code.
(Default: [ ] +[#]) Beep+, Beep
Beep+, Beep Beep+, Beep
Beep+ Beep+
10.Interference resistant
grade setting
Input the setting code.Input the setting code.
9. Call tone setting
08+#
0/1
1+#
09+#
Inputting of code (ex.: 3)
range:0~5
3+#
Inputting of code (ex.: 1)
range:0(enable)/1:(disable)
(Default 2)
(Default enable)
- The larger you set the
interference resistant grade,
the stronger it will be,but the
sensitivity of the keypad will
be more lower.
- The interference resistant
grade setting also will activate
the keypad checking.
(white)
The color of key indicator
(yellow)
The color of key indicator
The color of key indicator
(green white)
(yellow)
The color of key indicator
The color of key indicator
(green white)
Beep+, Beep
Beep+
11.IMC volume adjust
setting
Input the setting code.
10+#
Inputting of code (ex.: 5)
range:0~9
5+#
(Default:7)
(yellow)
The color of key indicator
The color of key indicator
(green white)
Beep+, Beep
Beep+
12.SPK volume adjust
setting
Input the setting code.
11+#
Inputting of code (ex.: 5)
range:0~9
5+#
(Default:4)
(yellow)
The color of key indicator
The color of key indicator
(green white)
-
When the “ cancel” key is pressed, the indicator will show its standby color, the buzzer beeps, and the system
exits the setting mode.
- When there isn’t any operation in 10s, the indicator will show its standby color, the buzzer beeps, and the system
exits the setting mode.
Beep, Beep+
*
(The color
of standby)
The color of
key indicator
- When setting failure, the color of key indicator will turn red , the buzzer beeps.
- If the item is set to 0,the unit will
emit a call tone when pressing the
“CALL” button.
- If the keypad function 9 is set to
'1', the keypad will have no
response but will still call the
monitor.
- Unlock via password is still available even when the door station is
still in call mode .
- When the door station is in call mode , you can enter the Master
code (the LED turns white) to activate the volume adjusting function:
MIC adjustment: 1 (up), 4 (down);
S p eaker adjustment: 3 (up), 6 (down).
-13-

Input the master code.
(Default: [ ] +[#]) Beep+, Beep
Beep+, Beep Beep+, Beep
Beep+ Beep+
14.Night light level
setting
Input the setting code.Input the setting code.
13. Display scene setting
12+#
0/1
1+#
13+#
Inputting of code (ex.: 3)
range:0~5
3+#
Inputting of code (ex.: 1)
range:0~2
(Default 4)
(Default 0)
- Night Light Level:0~5.
-The higher the number, the brighter
the night lights.
- Scene0: Standby(blue), calling
(blue blinks rapidly), talking(blue
blinks slowly), unlock(green).
- Scene1: Standby(green), calling
(green blinks rapidly), talking
(greenblinks slowly), unlock(blue).
- Scene2: Standby(blue), calling
(yellow), talking(red), unlock(green).
(white)
The color of key indicator
(yellow)
The color of key indicator
The color of key indicator
(green white)
(yellow)
The color of key indicator
The color of key indicator
(green white)
Beep+, Beep
Beep+
15.Device address setting
Input the setting code.
14+#
Inputting of code (ex.: 0)
range:0~3
0+#
(Default:0 )
(yellow)
The color of key indicator
The color of key indicator
(green white)
- Device address Settings:
0(device address:0),1(device
address:1),2(device address:2),
3(device address:3).
-
When the “ cancel” key is pressed, the indicator will show its standby color, the buzzer beeps, and the system
exits the setting mode.
- When there isn’t any operation in 10s, the indicator will show its standby color, the buzzer beeps, and the system
exits the setting mode.
Beep, Beep+
*
(The color
of standby)
The color of
key indicator
- When setting failure, the color of key indicator will turn red , the buzzer beeps.
-14-

-15-
Input the master code.
(Default: [ ]+[#] )
(red)
ON
(blue)
OFF
Beep+, Beep
(red)
ON
(blue)
ON
Beep+, Beep
(red)
ON
(blue)
ON
Beep+, Beep
(red)
ON
(blue)
ON
Beep+, Beep
(red)
ON
(blue)
ON
Beep+, Beep
(red)
ON
(blue)
OFF
Beep+
(red)
ON
(blue)
OFF
Beep+
(red)
ON
(blue)
OFF
Beep+
(red)
ON
(blue)
OFF
Beep
Inputting of code (ex.: 2011)
1~12 digits
Inputting of code (ex.: 2012)
1~12 digits
18.Setting the code
for user group1
19.Setting the code
for user group2
17.Setting the code
forTemporary2
Input the setting code.Input the setting code.
16.Setting the code
forTemporary1
18+# 19+# 21+# 60+#
2011+#
Inputting of code (ex.: 1006)
1~12 digits
1006+#
Inputting of code (ex.: 2011)
1~12 digits
2011+# 2012+#
Input the setting code.
(ex.:21)
Input the setting code.
(ex.:60)
20~59 60~99
-
When the “ cancel” key is pressed, the LED lights off, the buzzer beeps, and the system exits the setting mode
- When there isn’t any operation in 10s, the LED lights off, the buzzer beeps, and the system exits the setting mode
(red)
OFF
(blue)
OFF
Beep, Beep+
*
- When input the correct temporary password to release the door,
the system will clear the temporary password after 60 seconds
automatically.But you should know that the password is valid within
60 seconds after inputing the correct temporary password
- The temporary1 is used to release the first lock,and the temporary
2 is used to release the second lock.
- If the password length exceeds 12 digits, the system will sent out
the sound of “beep,beep,beep,beep”,and the digitals you input before
will be cleared at the same time.
- The temporary code can not be set the same as the master code
and user code.
- The user code group1 is used to release the first lock,and the user code
group2 is used to release the second lock.
- The user code group1 and user code code group2 can contain 40
group passwords
- If the password length exceeds 12 digits, the system will sent out the
sound of “beep,beep,beep,beep”,and the digitals you input before will
be cleared at the same time.
- The user code can not be set the same as the master code and
temporary code.
NOTE: User group 2 operates part No. CDV-RLC if connected.

-16-
Input the master code.
(Default: [ ]+[#] ) Beep+, Beep
Beep+, Beep Beep+, Beep
Beep+ Beep+
21.Call address setting
Input the setting code.Input the setting code.
20.Work mode setting
0+#
- Work mode setting:
(white)
The color of key indicator
(yellow)
The color of key indicator
The color of key indicator
(green white)
(yellow)
The color of key indicator
The color of key indicator
(green white)
100+# 101+#
(Default:villa:00,16;
a partment:00~31)
(Default:1/villa)
Inputting of code (ex.: 1)
range:0(a partment)/1:(villa)
0+#
- When the work mode is villa,the call
address:00 or 16.
-
When the “ cancel” key is pressed, the indicator will show its standby color, the buzzer beeps, and the system
exits the setting mode.
- When there isn’t any operation in 10s, the indicator will show its standby color, the buzzer beeps, and the system
exits the setting mode.
Beep, Beep+
*
(The color
of standby)
The color of
key indicator
- When setting failure, the color of key indicator will turn red , the buzzer beeps.
0(apartment)/1:(villa).
- When the work mode is apartment,
the range of call
address:00~31.
Inputting of code (ex: 01)
range:Valid keys: 0 - 9

When the registered user code has been input using the keypad (1~12 digits), the LED background
indicator lights up, the buzzer sounds,and the electric door strike is unlocked.(note that you should
press "#" button(if "#" button is set to conrm button) after input the unlock code)
•The time interval during which the button must be pressed is approximately 10 seconds. If the
time interval exceeds approximately 10 seconds, the input value will be cleared.
•If you make a mistake when inputting the user code,press the" cancel" button and input the user
code again.
•The release function is forbidden and the input operation is disabled for 60 seconds if 10 times
incorrect access codes are continuously attempted. During this time,the buzzer will continuously
sound about 8 times.
Unlocking of user code
1. During calling,pressing "cancel" button can cancel the calling
2. If input the incorrect access code,the buzzer will sound of beep,beep,beep

time:
•Working temperature: -15ºC ~ +55ºC
•Dimension: 182(H)×93(W)×44(D)mm(DT601/KP)
•220(H)×120(W)×50(D)mm(DT601F/KP)
•Please clean the unit with soft cotton cloth, don't use the organic impregnant or chemical clean agent. If
necessary, please use a little pure water or dilute soap water to clean the dust.
•The unit is weather resistant. However do not spray high pressure water on access control keypad directly.
Excessive moisture may cause problems with the unit.
•You must use the right adaptor which is supplied by the manufacture or approved by the manufacture..
•Pay attention to the high voltage inside the products, please refer service only to a trained and qualified
professional.
-17-
•Power Supply : DC 24V (supplied by PS4-24V or PS5-24V);
•Power Consumption: Standby 40mA; Working status 160mA;
•Unlocking
•Camera: Color CMOS; 2.0 mega Pixel;1/2.7 170oFish Eye
1~99s
•Lock Power supply: 12Vdc, 280mA(Internal Power);
•Number of relay circuits: 2(the second lock need external device to support)
•Mounting: Surface mounting(CDV96KP)
•Flush mounting (CDV96KP-SF)
7.Unlock Operations
8. Precautions
9.Specications

The farest monitor
B
A
C
DBC4A
monitor
monitor
monitor
with two or four monitors
100~240VAC
BUS(IM) BUS(DS)
PC6
AC~
1
4 5 6
8 9
0 #
7
2 3
*
The maximum distance of the wiring is limited in the DT system. Using different cables may also affect the
maximum distance which the system can reach.
When Monitor quantity < 20
Cable Usage A B C
Twisted cable 2x0.75 mm260 60 30
Twisted cable 2x1 mm280 80 40
When Monitor quantity > 20
Cable Usage A B C
Twisted cable 2x1 mm270 30 20
Twisted cable 2x1.5 mm270 50 30
Note:If the monitor has been specied the distance,refer to the
parameter.
-18-
10.Cables Requirements
