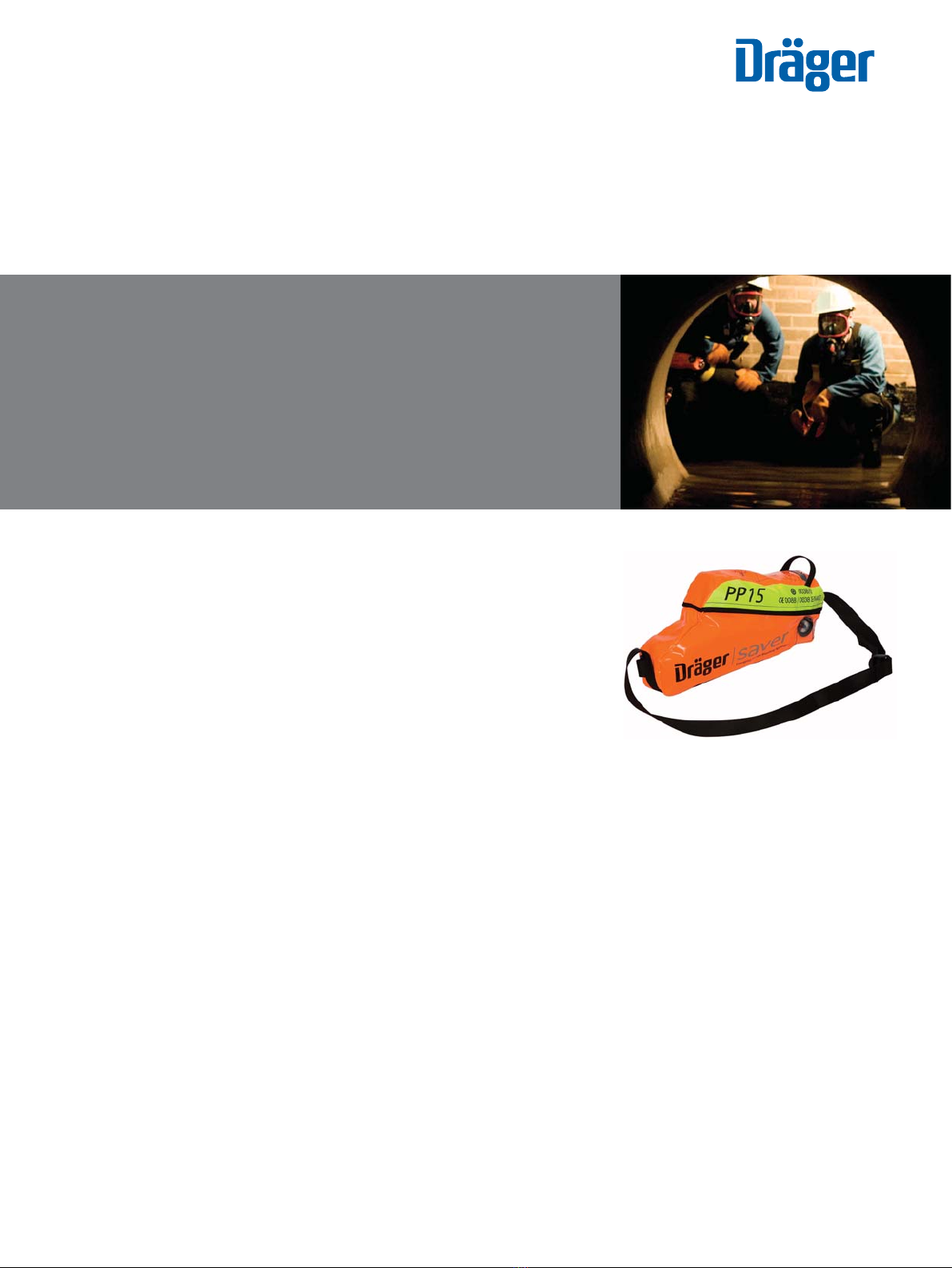

Dräger Saver PP Series User manual

The Dräger Saver PP is a positive pressure
Emergency Escape Breathing Apparatus
(EEBA), incorporating a Panorama Nova
facemask.
Developed with safety in mind it has been
especially designed to be used in con-
junction with other forms of Personal Pro-
tective Equipment like safety helmets and
ear protectors, with little or no encum-
brance.
The Dräger Saver PP is extremely compact
in design providing greater freedom of
movement and ease of storage.
The unit is contained in an instantly
recognizable orange carrying bag, incor-
porating photo luminescent panels. This
allows the unit to be seen at very low ambi-
ent light and visibility levels.
The carrying bag is interchangeable for
either chest bag or bandolier wearing posi-
tions. It’s also washable, flame retardant
and waterproof.
Activation and donning are made as
uncomplicated as possible to allow for a
safer escape. Simply open the carrying sys-
tem and the Dräger Saver PP is instantly
activated. It can be easily reset in the event
of a false alarm.
The Dräger Saver PP comes equipped with
the Panorama Nova facemask, part of the
Dräger product portfolio. The elasticated
head harness on the Dräger Panorama
Nova means the escape set is easier and
quicker to don in emergency situations.
Features of the Dräger Panarama Nova
include:
– The Dräger Panorama Nova positive
pressure face mask offers a higher
level of protection, providing low
exhalation resistance,
– A close and comfortable fit
– Self demisting visor for clear vision
The proven reliability of the pneumatic prin-
ciples used on the Dräger PA90 and
Dräger PA90 Plus, have been adapted for
use throughout the Dräger Saver range.
This design provides extremely low breath-
ing resistance and a consistent air flow rate
at all cylinder pressure levels.
The Dräger Saver PP provides breathing
air for 10 or 15 minutes, according to
cylinder size and is fully approved to
EN402 (2003), Lloyd’s Register Certificate
The Dräger Saver range of Emergency Escape Breathing
Apparatus has been designed using the latest technologies
available whilst still bearing in mind our three leading princi-
ples; reliability, quality and ease of use.
Dräger Saver PP
ST-514-2006
Dräger Saver PP
Positive pressure emergency
escape equipment
ST-6140-2007
.

02 | DRÄGER SAVER PP
of Fire Approval and Lloyd’s Register
Certificate of Type Approval. The Dräger
Saver PP also complies with SOLAS
Chapter I I-2, The Marine Equipment Direc-
tive and The Pressure Equipment Directive.
Important features of the Dräger Saver
PP include:
– Low cost of ownership
– No mandatory routine service is
required for a period of 10 years
(or according to local regulations).
– The cylinder can be charged using
standard charging connectors with
no special tools or adaptors.
A full range of accessories are available for
use with this equipment please see details:
ST-6136-2007
Lung Demand Valve
Photoluminescent panels
Dräger Panorama Nova
face mask
Cylinder contents gauge
Dräger Saver PP – In an Emergency, it’s your Escape
.

DRÄGER SAVER PP | 03
Spare Cylinder
10 min, 15 min
ST-3992-2005
Anti-Tamper Packs
pack of 5
ST-3973-2005
Anti-Static bag
10 min, 15 min
ST-3987-2005
Safety Wash
1 litre Dispenser, 1 litre Refill,
5 litre Dispenser, 5 litre Refill
ST-3989-2005
Waistbelt
ST-3986-2005
Storage Box
ST-3990-2005
Dräger Panorama Nova
face mask
ST-3988-2005
ACCESSORIES
ORDER INFORMATION
Dräger Saver PP - Dräger PA90 LDV (Positive Pressure)
Dräger Saver PP10 33 50 407
Dräger Saver PP15 33 50 404
Dräger Saver PP Plus - Dräger PA90Plus LDV (Positive Pressure)
Dräger Saver PP10 Plus 33 50 408
Dräger Saver PP15 Plus 33 50 403
Accessories
Anti-static bag for Saver PP15 33 50 648
Anti-static bag for Saver PP10 33 50 425
Saver waistbelt 33 50 396
Security tab 33 50 388
Storage cabinet 33 50 424
Wall mounting kit for cabinet 33 50 431
EEBA Cabinet 33 51 823
Safety Wash
– 1 litre Dispenser 33 80 164
– 1 litre Refill 33 80 165
– 5 litre Dispenser 33 80 166
– 5 litre Refill 33 80 167
.
