Dynojet Power commander V User manual

14-026 www.powercommander.com 14-15 Ducati M1200 - PCV F/I - 1
PARTS LIST

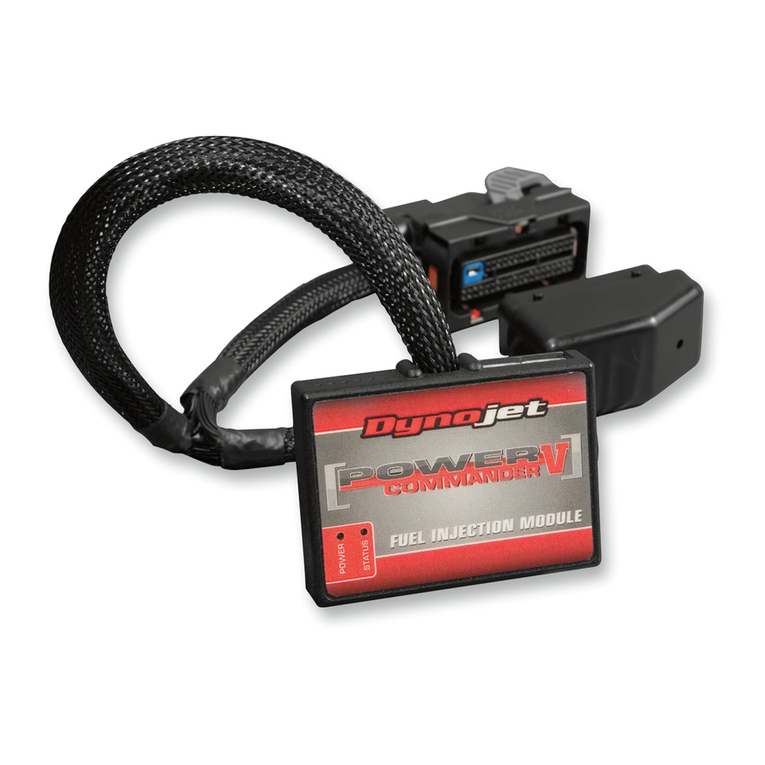

1 Power Commander
1 USB Cable
1 Installation Guide
2 Power Commander Decals
2 Dynojet Decals
2 Velcro strips
1 Alcohol swab
THE LATEST POWER COMMANDER
SOFTWARE AND MAP FILES CAN BE
DOWNLOADED FROM OUR WEB SITE AT:
www.powercommander.com
2014-2015 Ducati M1200
Installation Instructions
PLEASE READ ALL DIRECTIONS BEFORE STARTING INSTALLATION
THE IGNITION MUST BE TURNED
OFF BEFORE INSTALLATION!
2191 Mendenhall Drive North Las Vegas, NV 89081 [phone] www.powercommander.com

14-026 www.powercommander.com 14-15 Ducati M1200 - PCV F/I - 2
EXPANSION PORTS 1 & 2
Optional Accessories such as
POD-300 unit or Auto-tune kit.
POWER COMMANDER V
INPUT ACCESSORY GUIDE
Map - (Input 1 or 2) The PCV has the ability to hold
2 different base maps. You can switch on the
fly between these two base maps when you
hook up a switch to the MAP inputs. You can
use any open/close type switch. The polarity
of the wires is not important. When using the
Autotune kit one position will hold a base map
and the other position will let you activate the
learning mode. When the switch is “CLOSED”
Autotune will be activated. (Set to Switch
Input #1 by default.)
Shifter- (Input 1 or 2) These inputs are for use with the
Dynojet quickshifter. Insert the wires from the
Dynojet quickshifter into the SHIFTER inputs.
The polarity of the wires is not important. (Set
to Switch Input #2 by default.)
Speed- If your application has a speed sensor then
you can tap into the signal side of the sensor
and run a wire into this input. This will allow
you to calculate gear position in the Control
Center Software. Once gear position is setup
you can alter your map based on gear position
and setup gear dependent kill times when
using a quickshifter.
Analog- This input is for a 0-5v signal such as
engine temp, boost, etc. Once this input
is established you can alter your fuel curve
based on this input in the control center
software.
Crank- Do NOT connect anything to this port unless
instructed to do so by Dynojet. It is used to
transfer crank trigger data from one module to
another.
ACCESSORY INPUTS
Wire connections:
To input wires into the PCV first remove the rubber
plug on the backside of the unit and loosen the
screw for the corresponding input. Using a 22-24
gauge wire strip about 10mm from its end. Push the
wire into the hole of the PCV until is stops and then
tighten the screw. Make sure to reinstall the rubber
plug.
NOTE: If you tin the wires with solder it will make
inserting them easier.
CRANK
ANALOG
SPEED
INPUT 1 (Grnd)
INPUT 1
INPUT 2 (Grnd)
INPUT 2
USB CONNECTION

14-026 www.powercommander.com 14-15 Ducati M1200 - PCV F/I - 3
3 Unplug the 6 pin connector on the left shown in Figure A.
4 Unplug the 3 pin connector on the right shown in Figure A.
1 Remove the seat and lift the fuel tank up.
2 Lay the PCV in the tail section and route down the left side of the frame and go
towards the air box.
5 Plug the PCV in-line of the stock wiring (Fig. C).
6 Route the remaining connectors from the PCV down the right side of the
engine.
FIG.A
FIG.B
FIG.C

14-026 www.powercommander.com 14-15 Ducati M1200 - PCV F/I - 4
7 Unplug the stock Crank Position Sensor (Fig. D).
This is a BLACK, 3 pin connector on the right side of the engine near the coolart
overflow reservoir.
FIG.D
FIG.E
9 Attach the ground wire of the PCV to the case bolt on the left side of the
engine (Fig. F).
10 Reinstall fuel tank and seat.
NOTE: If you want to adjust the closed loop area you will either need the optional
O2 Optimizer or have your ECU reflashed.
FIG.F
Ground
8 Plug the PCV in-line of the stock CPS and wiring harness.
