English
Dear Customer,
we congratulate you on the purchase of this electronic reader. a quality
product made by Eschenbach.
As the market leader for magnifying glasses and reading aids, we at
Eschenbach can look back over many years of experience and this is
reflected in the quality, usability and design of our products.
Firmware version
These instructions apply to the firmware version "VD7_fw_v1.0.0"
installed on this device or higher.
Before first use
Read this manual carefully through before using the device for the first
time. Careful reading of this comprehensive instruction manual is the best
way to familiarise yourself with all the functions of the visolux DIGITAL
HD.
Safety information
XRisk of glare and injury! Never look directly at the light source on
the underside of the housing! Risk group 1 according to EN 62471:
2008. Exposure hazard value (EHV): 2200 seconds at 800 mm. The
limit values of the exempt group are complied with at a distance
of 1.8 m. Retinal danger due to actinic light 400 nm to 780 nm.
XDo not allow children to handle electronic devices without super-
vision.
XOnly charge the reader with the mains adapter supplied!

- 19 -
XCheck your visolux DIGITAL HD and the mains adapter and its power
cable for visible damage. If the visolux DIGITAL HD, the mains
adapter or its cable are damaged, disconnect the mains adapter
from the mains power immediately. Ask a qualified specialist to
check the product before you use it again.
XNever open the housing of the visolux DIGITAL HD. There are no
serviceable parts whatsoever inside. Opening the device will void
the guarantee.
XNever expose the visolux DIGITAL HD to moisture.
XProtect the visolux DIGITAL HD from knocks or blows and excessive
heat! Never place the visolux DIGITAL HD on a heater or in direct
sunlight!
XThe heatsink on the rear of the device dissipates the heat produced
inside during operation. Considerable warming up is normal.
XEnsure that other people, particularly children, are aware of these
risks!
Package contents
Xvisolux DIGITAL HD
XUSB cable (Type C)
XHDMI cable
XCharger with adapters for EU, GB, US, AUS
XCase
XCleaning cloth
XOperating instructions
XLanyard

- 20 -

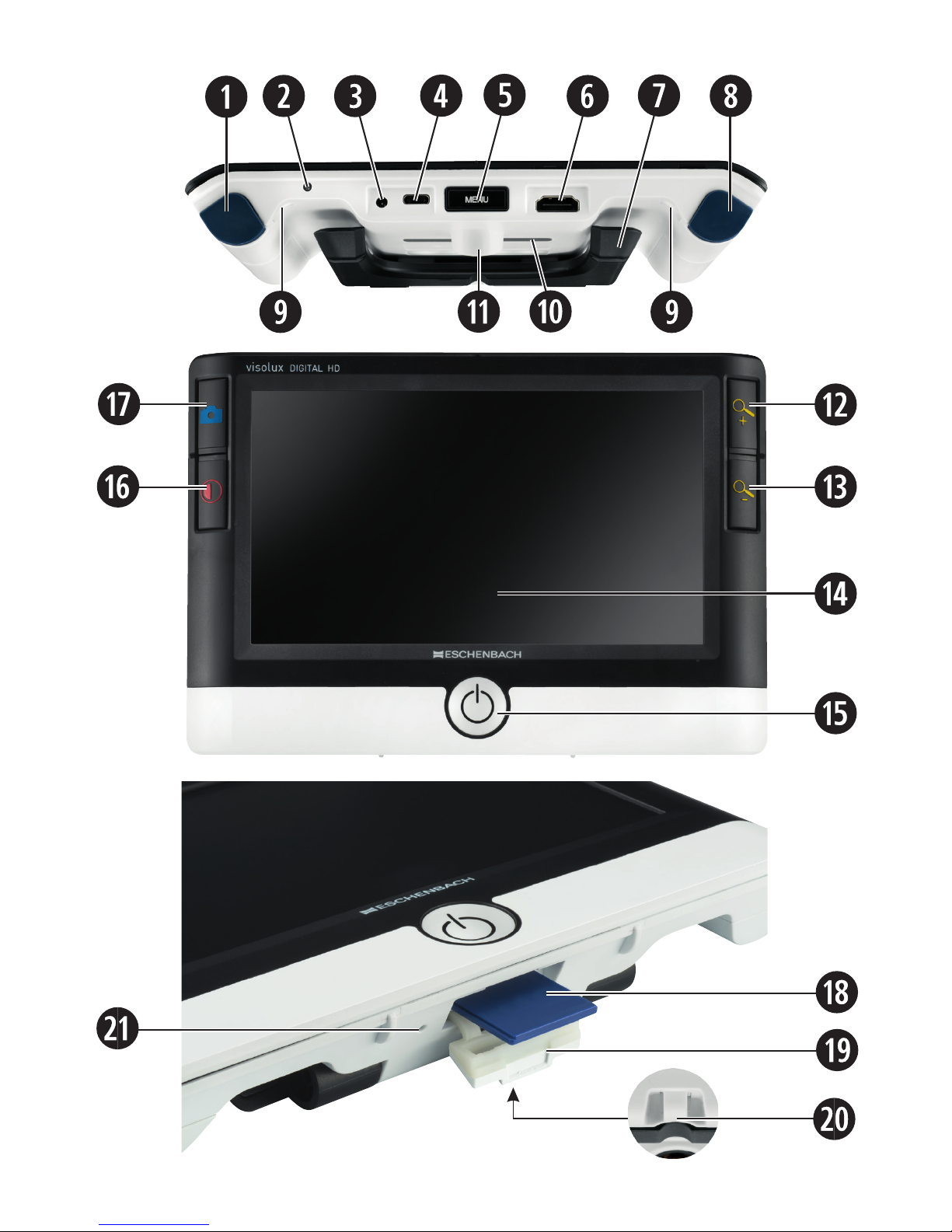

Operating elements
(Illustrations see fold-out page)
1. Right-hand scrolling button
2. Charging check LED
3. Connection for mains adapter
4. USB connection
5. "MENU" button for opening menu control
6. HDMI output
7. Fold-out stand foot
8. Left-hand scrolling button
9. LED illumination for reading material
10. Heatsink
11. Camera
12. Button for increasing zoom factor
13. Button for decreasing zoom factor
14. Display
15. On/Off button
16. button for calling up contrast functions
17. button for saving image files and confirming menu options
18. SD card
19. Cover over SD card slot
20. Eyelet for pulling lanyard through to suspend device
21. Opening above reset button

- 21 -
Operation
Charging the internal battery:
You must completely charge the internal batteries before you can use
the visolux DIGITAL HD for the first time independently of the mains
power supply!
To charge, insert the charging cable plug into the connection for the
mains adapter (e) on the visolux DIGITAL HD. Then connect the mains
adapter with the adapter appropriate for the operating location and plug
the mains adapter into a power outlet. Charging takes about 3 hours.
The charging indicator LED (w) will light up red during the charging
process. When the charging process is complete it will light up green.
Disconnect the mains adapter from the power socket and the visolux
DIGITAL HD once charging is completed.
You can use the visolux DIGITAL HD during the charging process. Using
the reader while charging will, however, prolong the charging time.
Switching on/off
Press and hold the On/Off button (h) for one second to switch the vi-
solux DIGITAL HD on. The camera image will appear in live image mode
on the display (g). 3 icons appear on the upper edge of the screen for
approx. 2 seconds to indicate the battery charge level, the current zoom
factor and the display brightness: The battery symbols have the following
meanings:

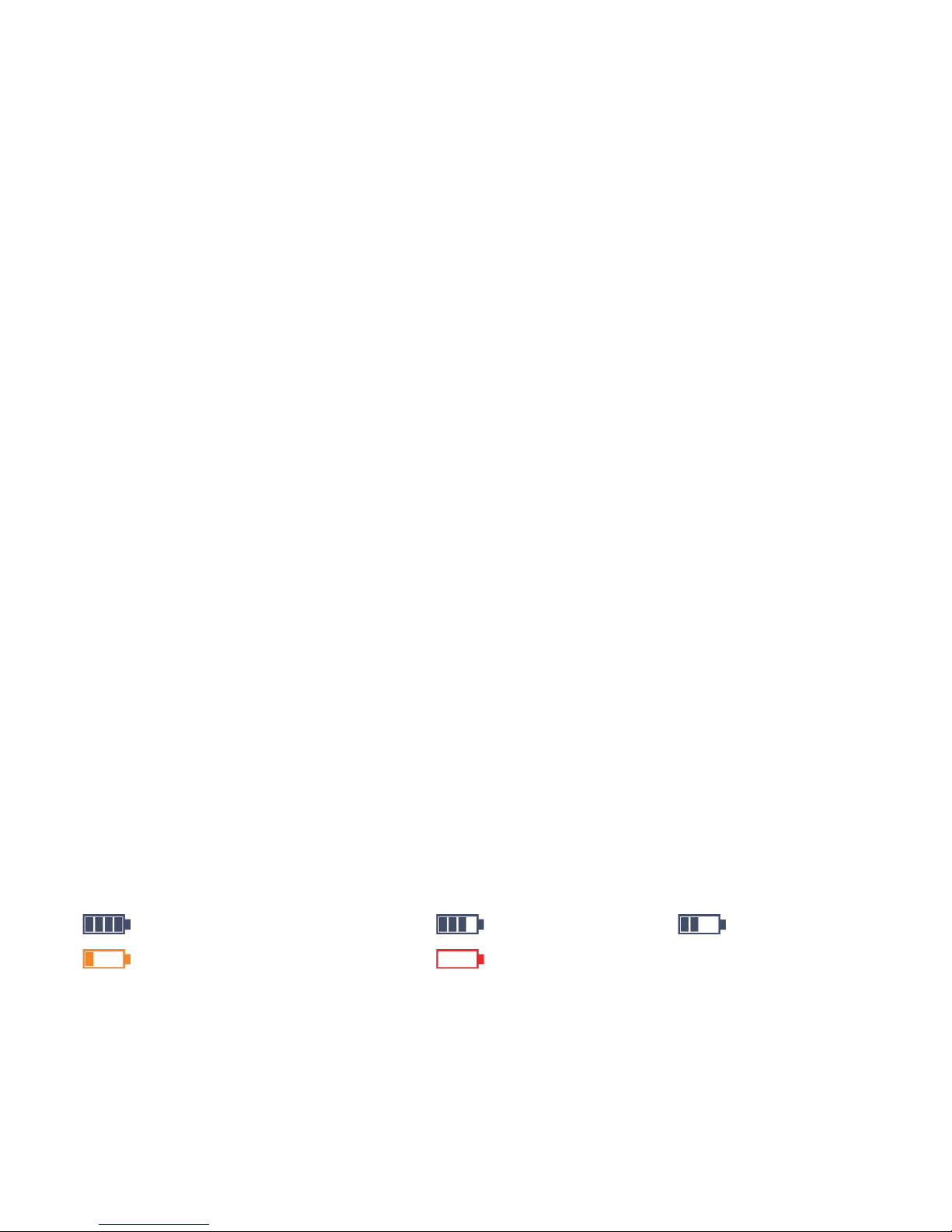

Battery fully charged 75% charge 50 % charge
25 % charge Battery empty
Press and hold the On/Off button for (h) for one second to switch the
device off. The current zoom, screen mode and brightness settings will
be saved.

- 22 -
To prolong the battery charge in the internal battery, the visolux DIGITAL
HD switches off automatically if it is not moved for more than 5 minutes.
If you want to use the reader again after this time, switch it on again.
Reading with the device
Switch the visolux DIGITAL HD on, fold the stand foot (u) out and place
the device over the reading material. The image of the area below the
camera (s) is shown on the display (g).
If you are using the device with the minimum zoom factor 2×you will
see the complete image section of 7 cm on the display. If the zoom is
increased, this image section will decrease.
DLS (Dynamic Line Scrolling)
Thanks to the scrolling function it is not necessary to move the entire
device to one side in order to read a complete newspaper column, even
at high zoom factors. Press the right-hand scroll button (q) repeatedly
or keep it pressed down to move the image section to the right. Press
the left hand scroll button (i) repeatedly or keep it pressed down to
move the image section to the left.
Press the left hand scroll button twice quickly to move the image section
to the left-hand border. This enables you to find the beginning of the next
line quickly.
Start reading.

- 23 -
Tips to improve orientation:
The stand foot is provided with notches (A) which are arranged in align-
ment with the camera axis. You can use these notches to place the
device over round objects more easily, for example to read ingredient
information on tins etc.
You will find noticeable bulges (B) on the underside which mark the
sideward limits of the visible area.
You will find noticeable markings (C) on the front side which mark the
position of the camera on the underside.

- 24 -

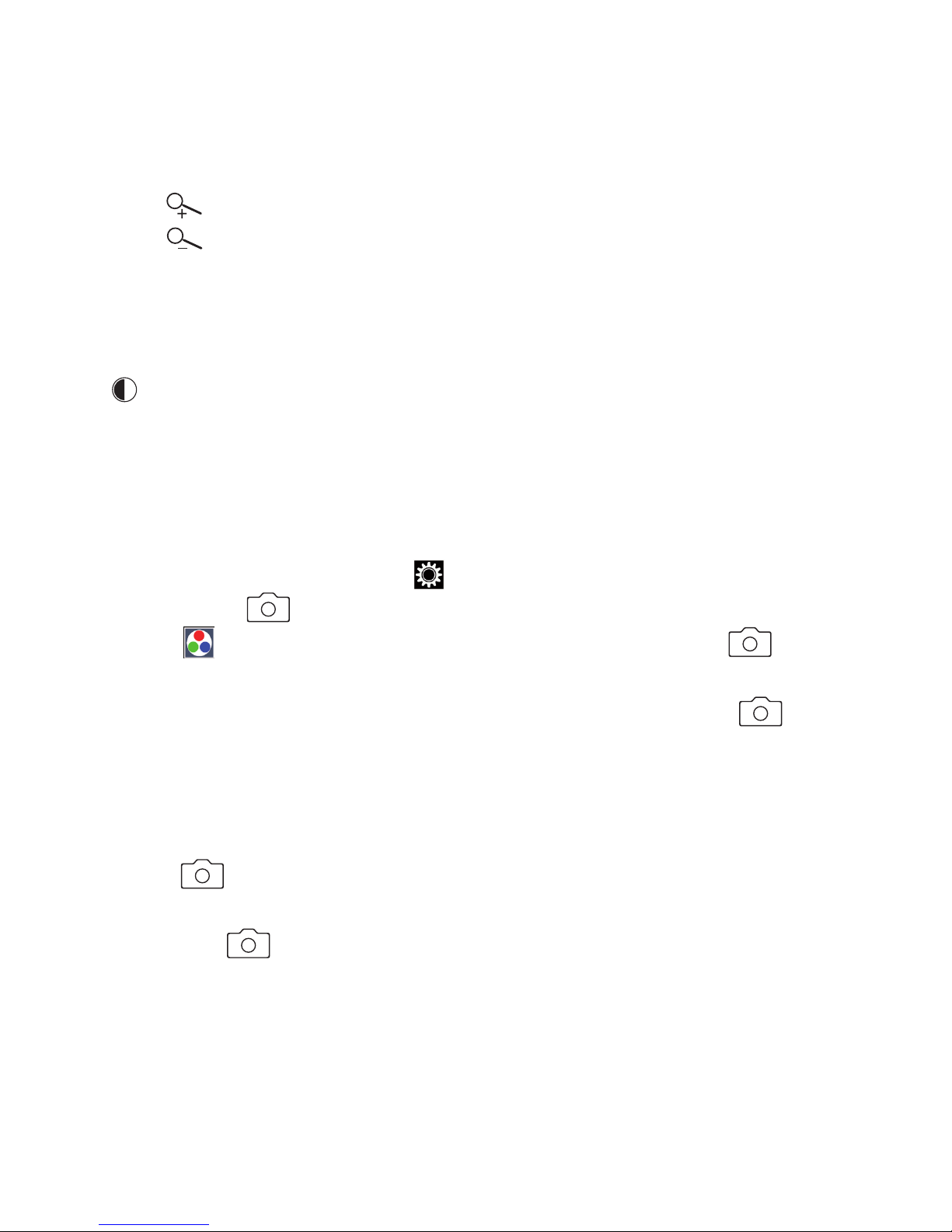

Adjusting the zoom factor
When switched on, the camera image will be shown with the zoom fac-
tor you used the previous time you switched the device on. Press and
hold the button to increase the zoom up to factor 22×. Press and
hold the button to decrease the zoom down to factor 2×. You can
also repeatedly press these buttons briefly to change the zoom factor.
False colour display
To show the camera image for contrast increase in false colours, press
the button (j). If necessary, press this button repeatedly to switch
through the various false colour modes and to return to true colour dis-
play. As delivered, the false colours are preset to b/w and w/b.
To set up further false colour displays, call up the false colour selec-
tion submenu. To do this press the MENU button (t), use the to scroll
buttons (q, i) to move to the symbol and confirm your selection
by pressing the button. After this, use the scroll buttons (q, i) to
select the symbol above and confirm this again with the button.
You can activate the required false colour combinations using the two
scroll buttons (q, i), and confirm the status change with the button.
Non-activated combinations are shown with an ×.
Press the MENU button (t), to close the settings menu.
Saving the live image as a file
Press the button (k) briefly to show the current camera image on
the display as a still image and to save it to the inserted SD card as a
file. Press the button again to return to the live image display.

- 25 -

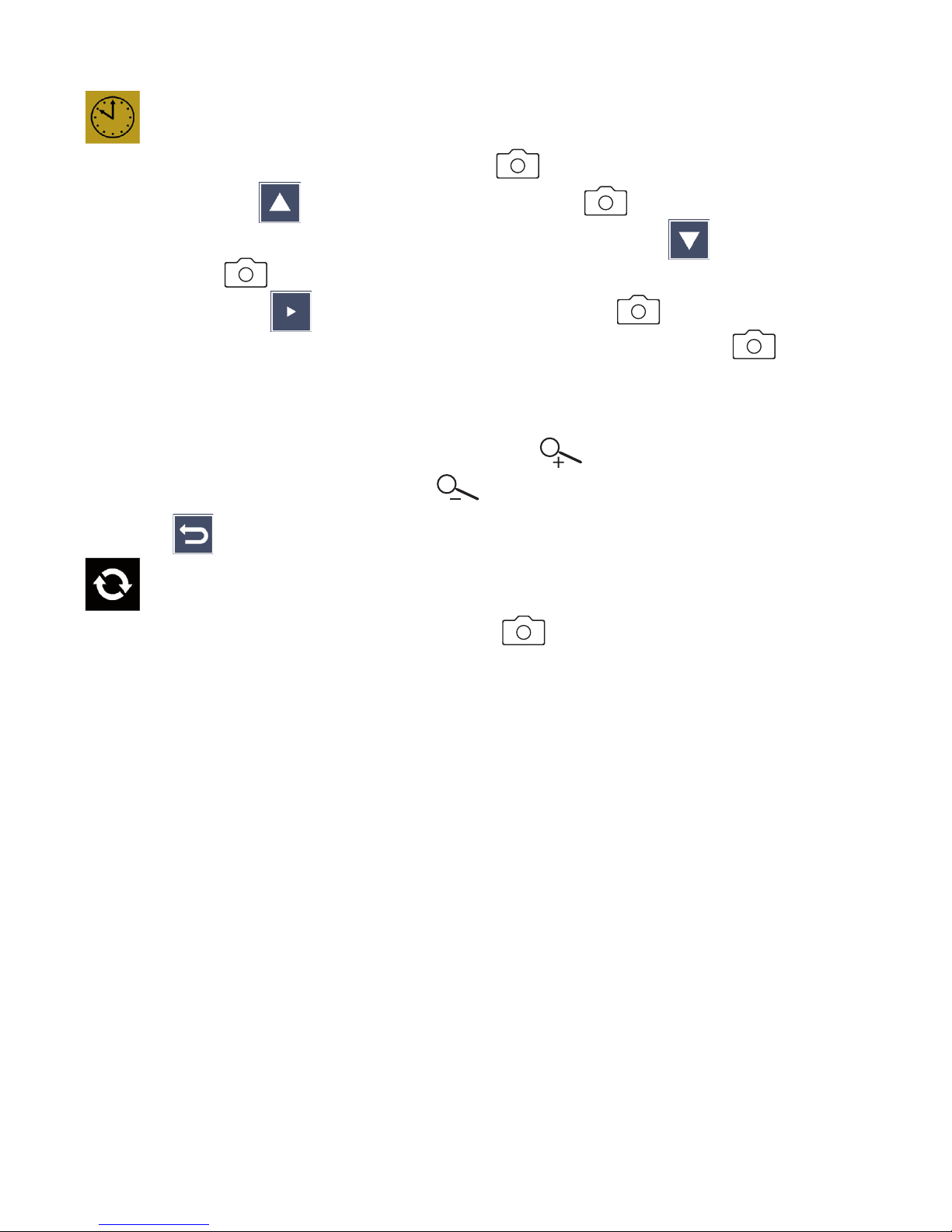

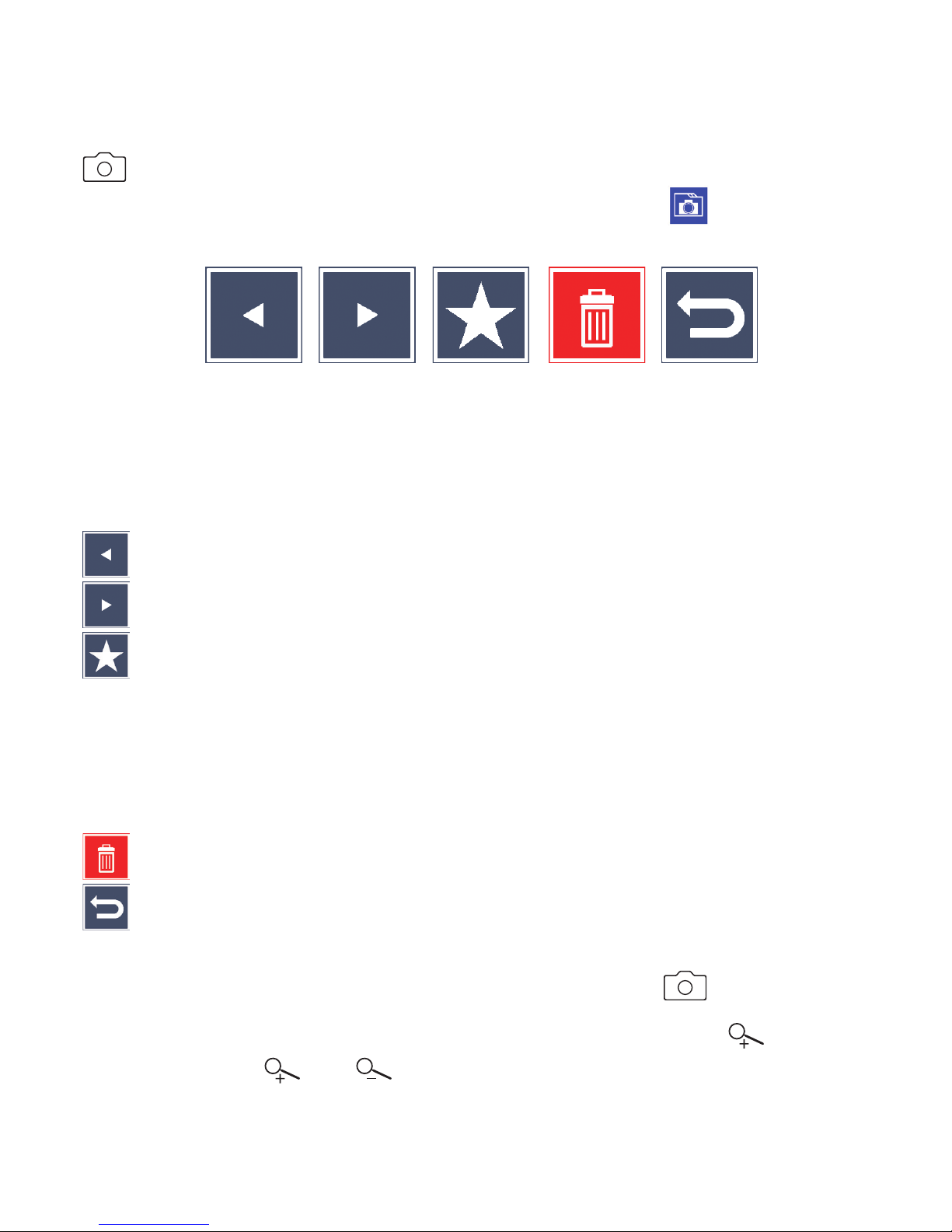

Calling up images from the SD card
To display images previously saved to the SD card, press and hold the
button for 3 seconds or open the settings menu for this purpose
described below using the MENU button (t) and the symbol. The
following menu appears:
The currently selected image file is displayed centrally below this. The
previous image is shown to the left, the next image is shown to the right.
You can use the two scroll buttons (q, i) to select the individual sym-
bols which have the functions described below:
- select the previous image file
- select the next image file
- select the currently selected file as a favourite. If you have not
selected a favourite the symbol is crossed out.
Tip: The image file marked as favourite is always displayed centrally
underneath the symbols when the menu is called up. For this
reason, only one file can ever be marked as favourite.
- delete the selected image file from the SD card
- close the menu and return to live image view
The symbol for the selected function is always shown slightly larger.
To activate the function you have selected, press the button (k).
To display the centre image file to fill the display, press the button.
You can use the and buttons to set the required zoom factor.

- 26 -
You can move a zoomed-in image section to the side on the display
using the two scroll buttons (q, i). If the zoom factor is set to 1×you
can use the left-hand scroll button to jump to the previous image file and
the right-hand scroll button to jump to the next image file.
If an image file is being shown at zoom factor 1×you can press the
MENU button (t) to re-show the described 5 menu symbols. Press the
button again to hide the symbols again.
Deleting image files
To delete the selected image file from the SD card, select the Delete
symbol and confirm with the button (k). The confirmation
symbol is now shown bottom left on the display and the cancella-
tion symbol is shown on the right. You can use the scroll buttons
(q, i) to select or . The selected symbol is always shown
slightly larger. Press the button to carry out the selected function.

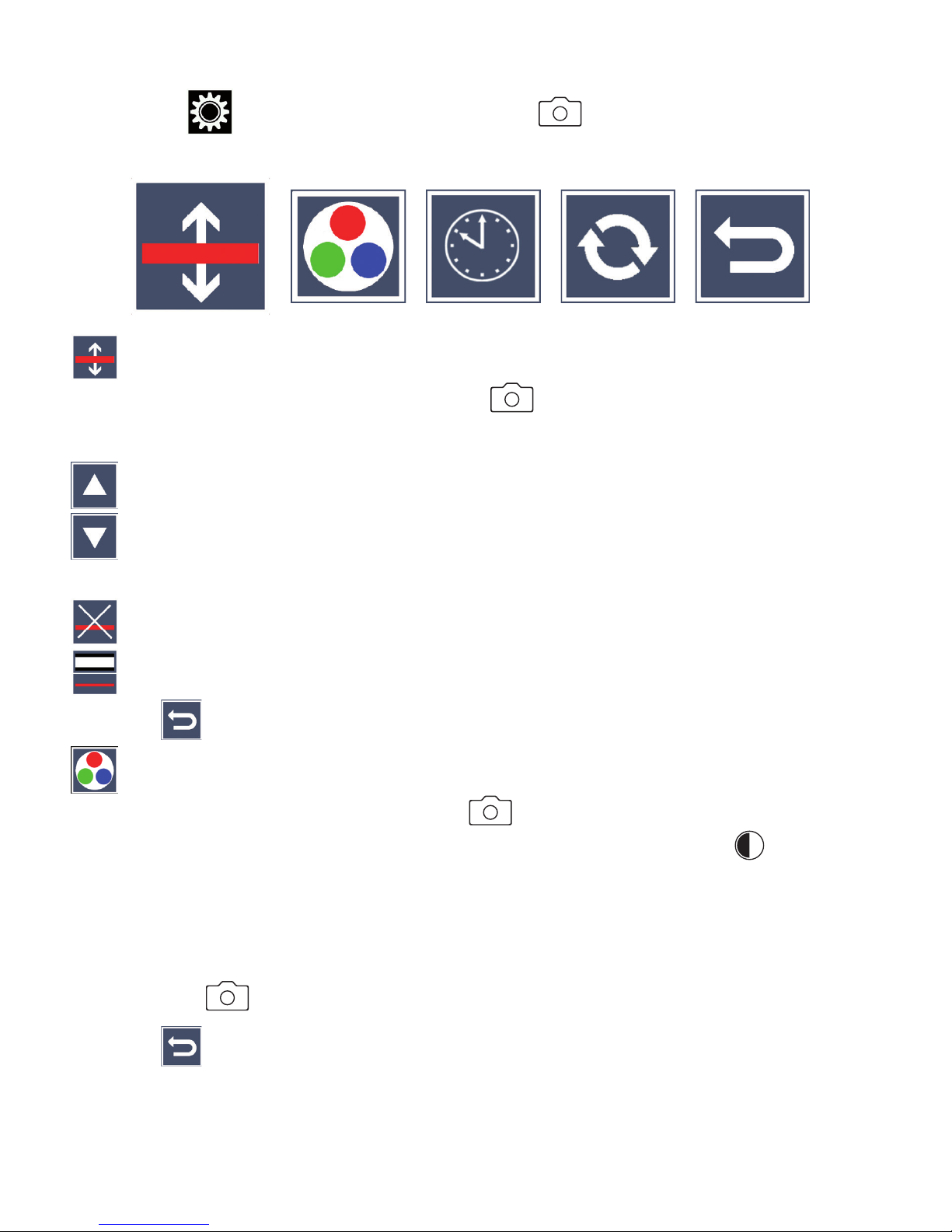

Calling up the settings menu
Press the MENU button (t) to call up the first level of the settings menu:

- 27 -
You can use the two scroll buttons (q, i) to select the individual sym-
bols which have the functions described below: The symbol for the
selected function is always shown slightly larger and sometimes with a
colour marking. To switch the selected function on or off, or to call up a
hidden submenu, press the button (k). You can also use the stated
buttons to control the functions in the submenus.
You can quit the settings menu at any time by pressing the MENU button
(t).

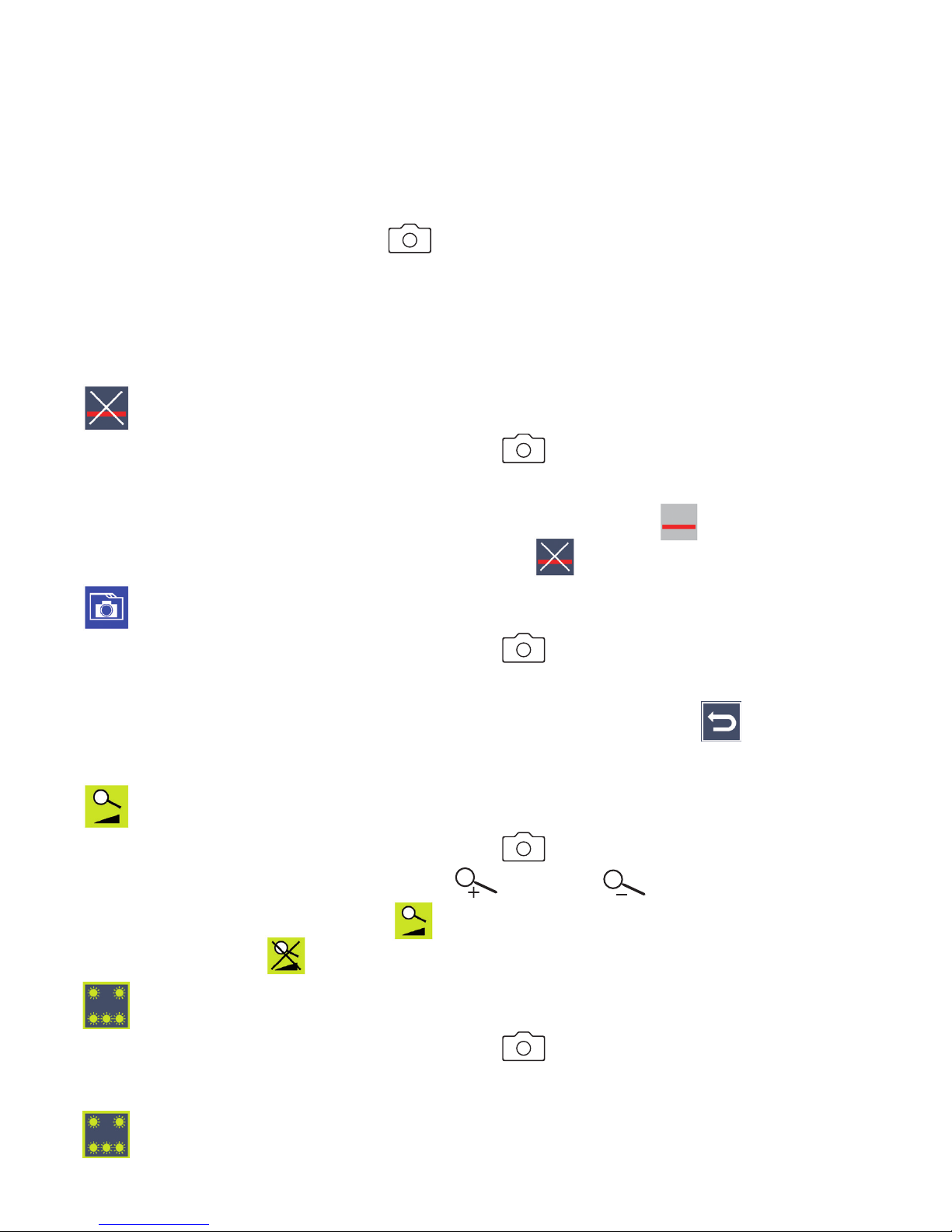

Switching reading guideline/line on/off
Select this symbol and then press the button to switch the reading
guideline/line on or off. You can adjust this more precisely later on the
menu. If the reading aid function is switched on, the symbol is dis-
played, if the function is switched off the symbol is displayed.
Managing image files on the SD card
Select this symbol and then press the button in order to call up the
submenu described in the previous chapter. If you have called up image
file management via the settings menu, you can use the symbol to
return to the first level of the settings menu.
Switching variable zoom on/off
Select this symbol and then press the button to switch the variable
zoom function on or off using the (d) and (f) buttons. If the
function is switched on, the symbol is displayed, if the function is
switched off the symbol is displayed.
Adjusting the reading material lighting
Select this symbol and then press the button to adjust the reading
material lighting using the following symbols:
- switch the complete LED lighting on or off

- 28 -
- only the bottom LED row is switched on
- the top LEDs right and left light up with half power
- the top LEDs right and left light up with full power
Confirm the selected lighting with the button.
You can use the symbol and confirm it with the button to return
to the first level of the settings menu.
Adjusting display brightness
Select this symbol and then press the button to adjust the display
brightness using the following symbols:
- display brightness = 50 %
- display brightness = 75 %
- display brightness = 100 %
You can use the symbol and confirm it with the button to return
to the first level of the settings menu.
Setting the confirmation signal
The sound setting currently selected is displayed as a symbol. Select
this symbol and then press the button to adjust the device signal
tone using the following symbols:
- signal tone 1
- signal tone 2
- no signal tone
Once you have selected the required value the device will return to dis-
playing the first menu level.

- 29 -
Switching split screen function on/off
Select this symbol and then press the button to turn the split screen
function on or off. This allows you to determine whether the built-in
display is also shown if an HDMI device is connected. If the function is
switched on, the symbol is displayed, if the function is switched off
the symbol is displayed.
If you switch this function on the refresh rate on both devices is reduced
to 30 images per second. For this reason you should only activate the
split screen if the additional display is absolutely necessary for orienta-
tion over the reading material.
Setting the reading speed
Select this symbol and then press the button to set the reading
speed for the DLS function (Dynamic Line Scolling) using the following
symbols, in other words the advance speed with which the live image
runs over the display when scrolling:
- low reading speed
- medium reading speed
- high reading speed
If you select these symbols using the scrolling buttons (q, i) the reading
speed associated with the relevant symbol is shown as an example in
the background.
Once you have selected the required value the device will return to dis-
playing the first menu level. If you wish to return to the first stage of the
setting menus without making changes, select the symbol and then
press the button.

- 30 -
Select the symbol and then press the button to call up the sec-
ond level of the settings menu:
Setting the reading guideline/line
Select this symbol and then press the button to adjust the details
of the reading guideline or reading line using the following symbols:
- Move the reading guideline upwards or zoom the reading line in
- Move the reading guideline downwards or zoom the reading line
out
- Switch the reading guideline/line on/off
- Switching between ‘red reading guideline’ or ‘reading line’
Use the symbol to return to the settings menu.
Configuring the false colour display
Select this symbol and then use the button to select the false colour
display which should be available next time you pressed the button
(j). Black and white plus inversion are activated as standard. Non-acti-
vated combinations are shown with an ×.
Select the required combinations using the two scroll buttons (q, i)
and use the button to change their status.
Use the symbol to return to the settings menu.

- 31 -
Setting the date and time
Select the symbol and then press the button to set the date and
time. Select the symbol and then use the button to increase
the number of parameters shown in white. Select the symbol and
then use the button to decrease the number of parameters shown in
white. Select the symbol and then press the button to select the
next parameter for setting. Select "24H" and then press the button
to switch between 24-hour display and the 12-hour display usually used
in English-speaking areas.
Alternatively, you can also use the button (d) to increase the value
of a selected parameter and the button (f) to decrease it.
Use the symbol to return to the settings menu.
Updating the firmware
Select this symbol and then press the button to display the current
version of firmware on the device and to update it if necessary. If you
register your visolux DIGITAL HD, you will be informed about any avail-
able software updates.
To update the firmware, please proceed as follows:
1. Connect the visolux DIGITAL HD to a PC using the USB cable sup-
plied. Ensure that the SD card is located in the card slot (l).
2. Switch the visolux DIGITAL HD on. The contents of the SD card will
now be displayed on the PC as the "ESCHENBACH" drive.
3. Use the connected PC to open the web address which was pro-
vided in the email informing you about the firmware update.
4. Download the firmware update and save it directly to the drive,
not in a drive subdirectory.
5. Disconnect the visolux DIGITAL HD from the PC using the "Safely
Remove Hardware and Eject Media" function - you can find the
symbol for this function in the operating system taskbar.

- 32 -
6. Open the settings menu, select the symbol in the second
menu level and then press the button.
7. Use the two scroll buttons (q, i) to select the symbol and
then press the button. If you want to cancel the update and
return to the previous page, select the symbol and press the
button.
During the firmware update, the "During Fw update. . . " message
appears on the display.
If the update has been successful, the visolux DIGITAL HD switches off
automatically. Never switch the device off and never remove the SD
card from the device during a firmware update. Otherwise, the visolux
DIGITAL HD could be irreparably damaged. This type of damage is not
covered by the guarantee!
HDMI connection
You can use the HDMI cable supplied to connect the device from its
HDMI output (u) to the HDMI input on another device, e.g. a television.
This enables both the camera image and the image files to be displayed
on the connected device.
USB connection
You can use the USB cable supplied to connect the device from its USB
connection (r) to the USB connection on another device, e.g. a com-
puter. The SD card inserted in the device will then be made available as
the "ESCHENBACH" drive for data operations.
Reset
If the reader stops working as described in this manual, it may be due a
fault that you can rectify yourself by resetting the reader. Insert a small,
pointed object carefully into the housing opening (2!) and press the
switch contained inside it.

- 33 -
Technical data
Displaysize: 17.9cm(7")|16:9|1024×600 px
Camera: fixed focus, 2 megapixels
Zoom range: 2× —22×, infinitely variable
Display modes: real colour, contrast-enhanced up
to 14 false colour combinations
selectable
Operating time: approx. 3:40 hours
Charging time: approx. 3 hours
Card formats supported: SD, SDHC (max. 32 GB)
Power supply charging device:
Primary: 100 V —240V~|50—60Hz|0.6A
Secondary: DC9V|2000mA
USB connection: Type C
Temperature range: +10 °C to +40 °C
Dimensions (B ×W ×D) 201 ×138 ×29 mm
Weight: 460 g
This manual is also available on the Internet at
http://www.eschenbach-optik.com/
USB®is a registered trademark of USB Implementers Forum, Inc.
HDMI and the HDMI logo are trademarks or registered trademarks of the
HDMI Licensing LLC in the USA and other countries.

- 34 -
Care instructions
XWhen cleaning the visolux DIGITAL HD, do not use any soap solutions
that contain softening agents, any alcoholic or organic solvents or
any abrasive detergents!
XDo not clean the visolux DIGITAL HD in an ultrasonic bath or under
flowing water!
XOnly use a soft, dry cloth to clean the visolux DIGITAL HD. For heavier
soiling (e.g. fingerprints), moisten the cloth slightly.
Disposal
XWhen the reader reaches the end of its useful life, do not dispose
of it with the normal household waste. This product is subject
to the European directive 2012/19/EU.
XDispose of the product or parts of the product via an approved
disposal facility or your municipal disposal facility. Please
comply with all applicable regulations. In case of doubt, contact
your disposal facility. Dispose of all packaging materials in an
environmentally responsible manner.
Warranty
Within the parameters of the applicable statutory provisions, we provide
a warranty for the functioning of the product described in this manual
with regard to faults arising in connection with manufacturing defects or
material defects. No warranty claims can be accepted for damage that
arises due to improper handling, including damage from falls or impacts.
Warranty claims can only be accepted on presentation of the sale re-
ceipt!
