E844 3PH 1 532315 - Rev.B
Translation of the original instructions ENGLISH
CONTENTS
EU Declaration of conformity ........................... 2
1. INTRODUCTION TO THIS INSTRUCTION MANUAL ..... 2
Meaning of the symbols used ........................... 3
2. SAFETY RECOMMENDATIONS ......................... 4
2.1 Installer safety ....................................... 4
2.2 Storage.............................................. 4
2.3 Waste disposal ....................................... 4
3. E844 3PH.............................................. 5
3.1 Intended use......................................... 5
3.2 Limitations of use .................................... 5
3.3 Unauthorised use .................................... 5
3.4 Product identification................................. 5
3.5 Technical specifications ............................... 5
4. INSTALLATION REQUIREMENTS....................... 6
4.1 Electrical system ..................................... 6
5. INSTALLATION ........................................ 6
5.1 Tools required ........................................ 6
5.2 Components ......................................... 7
5.3 Connections ......................................... 8
Control devices ........................................ 8
Accessories power supply............................... 9
Outputs ............................................... 9
Failsafe................................................ 9
Limitswitches ......................................... 9
Flashing light .......................................... 9
BUS 2easy devices ....................................10
Radio receiver/decoder board..........................10
Motor ................................................10
Connecting the earth..................................10
Mains power supply...................................10
6. SET-UP ...............................................11
6.1 Programming.......................................11
6.2 Operating logics.....................................13
6.3 Setup...............................................14
6.4 Restore the default values............................14
7. PUTTING INTO SERVICE ..............................14
7.1 Final checks.........................................14
7.2 Close the enclosure..................................14
7.3 Final operations.....................................14
8. ACCESSORIES.........................................15
8.1 Closing photocells...................................15
8.2 Sensitive edges .....................................15
8.3 BUS 2easy devices...................................16
Connection ...........................................16
BUS 2easy photocells..................................16
BUS 2easy control devices ............................. 17
BUS 2easy status ......................................17
BUS 2easy device registration..........................17
Checking BUS 2easy devices ...........................18
9. DIAGNOSTICS ........................................18
9.1 Firmware version....................................18
9.2 Automated system status ............................18
9.3 Alarms/Errors .......................................18
9.4 LEDs check..........................................18
10. MAINTENANCE......................................19
10.1 Routine maintenance...............................19
TABLES
 1 Technical data E844 3PH .............................5
 2 Assigning an address to the Photocells .............. 16
 3 Addressing Sensitive Edges......................... 17
 4 Addressing Control Devices......................... 17
 5 Automated system status .......................... 18
 6 Alarms/Errors ..................................... 18
 7 Status of the LEDs ................................. 18
 8 Scheduled maintenance ........................... 19

E844 3PH 2 532315 - Rev.B
Translation of the original instructions ENGLISH
1. INTRODUCTION TO THIS IN
STRUCTION MANUAL
EU DECLARATION OF CONFORMITY
The Manufacturer
Company name: FAAC S.p.A. Soc. Unipersonale
Address: ViaCalari,10-40069ZolaPredosaBOLOGNA
- ITALY
hereby declares under its own exclusive liability that the fol-
lowing product:
Description: electronic equipment
Model: E844 3PH
complies with the following applicable EU legislations:
2014/30/EU
2014/35/EU
2011/65/UE
Furthermore, the following harmonised standards have been
applied:
EN 61000-6-2:2005
EN 61000-6-3:2007+A1:2011
EN 60335-1:2012+A11:2014+A13:2017
Other standards applied:
EN 60335-2-103:2015
EN 13849-1:2015 CAT 2 PL“C”
EN 13849-2:2012
Bologna, 01-08-2020 CEO
A. Marcellan
This manual provides the correct procedures and
requirementsforinstalling E844 3PH and maintaining
it in a safe condition.
When drafting the manual, the results of the risk
assessment conducted by FAAC S.p.A. on the entire
product life cycle have been taken into account in
orderto implement effectiverisk reduction measures.
The following stages of the life cycle of the product
have been considered:
-Delivery/handling
-Assembly and installation
-Set-up and commissioning
-Operation
-Maintenance/troubleshooting
-Disposal at the end of the product’s life cycle
Risks arising from installation and using the product
have been taken into consideration; these include:
-Risks for the installation/maintenance technician
(technical personnel)
-Risks for the user of the automation system
-Risks to product integrity (damage)
InEurope, the automationof a gatefalls underthe Ma-
chinery Directive 2006/42/EC and the corresponding
harmonised standards. Anyone automating a gate
(neworexisting)isclassified asthe Manufacturerofthe
Machine. They are therefore required by law, among
otherthings, tocarry outarisk analysis of the machine
(automatic gate in its entirety) and take protective
measures to fulfil the essential safety requirements
specified in Annex I of the Machinery Directive.
FAAC S.p.A. recommends that you always comply
with the EN 12453 standard and in particular that you
adoptthe safetycriteria anddevices indicated,without
exception, including the dead-man function.
This manual also contains general information and
guidelines,whichare purelyillustrativeand notexhau-
stive, in order to facilitate the activities carried out by
the Manufacturer of the Machine in all respects with
regardtocarryingout theriskanalysis anddraftingthe
instructions foruseand maintenanceofthe machine.It
shouldbeclearly understoodthat FAACS.p.A.accepts
no liability for the reliability and/ or completeness of
the above instructions. As such, the manufacturer of
the machine must carry out all the activities required
by the Machinery Directive and the corresponding
harmonisedstandardson the basisofthe actual condi-
tionof the locations and structures wherethe product
E8443PH will be installed, prior to commissioningthe
machine.Theseactivitiesinclude the analysisof all the
risks associated with the machine and subsequent
implementation of all safety measures intended to
fulfil the essential safety requirements.

E844 3PH 3 532315 - Rev.B
Translation of the original instructions ENGLISH
MEANING OF THE SYMBOLS USED
NOTES ANDWARNINGS INTHE INSTRUCTIONS
FWARNING ELECTRIC SHOCK HAZARD - The procedure
or step described must be carried out following the
instructions provided and according to the applicable
safety regulations
!WARNING,PERSONALINJURYHAZARDORRISKOFDAM
AGETO COMPONENTS - The procedure or step described
must be carried out following the instructions provided
and according to the applicable safety regulations.
iWARNING - Details and specifications that must be
complied with in order to ensure that the system oper-
ates correctly.
RECYCLINGANDDISPOSAL -The materialsusedin manu-
facturing, the batteries and any electronic components
must not be sent to landfill. They must be taken to
authorised recycling and disposal centres
FIGURE E.g.: 1-3 see Figure 1 - detail 3.
TABLE E.g.: 1 seeTable 1.
§CHAPTER/SECTION E.g.: §1.1 see section 1.1.
LED off
LED on
LED flashing
LED flashing quickly
PERSONAL PROTECTIVE EQUIPMENT
Personal protective equipment must be worn to protect against
hazards (e.g. crushing, cutting, shearing etc.):
Obligation to wear work gloves
Obligation to wear safety footwear
SAFETY INSTRUCTIONS
GENERIC HAZARD
Personal injury hazard or risk of damage to com-
ponents
ELECTROCUTION HAZARD
Risk of electric shock from live parts
BURNING OR SCALDING HAZARD
Riskof burnsor scaldingdue tothe presenceof high-
temperature parts
RISK OF CUTTING/AMPUTATION/PUNCTURE - Cutting
hazard due to the presence of sharp components or
the use of pointed/sharp tools
RISK OF CRUSHING HANDS - Risk of crushing hands
due to moving parts
RISK OF SHEARING - Risk of shearing due to moving
parts
RISK OF IMPACT/CRUSHING/SHEARING - Risk of
impact, crushing or shearing due to moving parts
This manual contains references to European stan-
dards. The automation of a gate must fully comply
withany laws,standardsand regulationsapplicablein
the country where installation will take place.
iUnless otherwise specified, the measurements pro-
vided in the instructions are in mm.

E844 3PH 4 532315 - Rev.B
Translation of the original instructions ENGLISH
2.2 STORAGE
2. SAFETY RECOMMENDATIONS
This product has been placed on the market as a
control system for gearmotors and sliding gates and
therefore must not be put into service until the ma-
chine into which it has been incorporated has been
declared compliant with the Machinery Directive
2006/42/EC by its manufacturer.
!Incorrectinstallationand/or incorrectuseof theprod-
uct might cause serious harm to people. Read the
instructionsbeforeusingtheproductandcomplywith
them. Keeptheseinstructionsforfuturereference.
Perform installation and other activities adhering to
the sequences provided in the instructions manual.
Alwayscomplywith allthe requirements containedin
theinstructionsand warningtables atthe beginning
of the paragraphs. Always comply with the safety
recommendations.
Only the installer and/or maintenance technician is/
are authorised to carry out work on the components
ofthe automation. Donotmakeany modifications
to the original components.
Cordon off the work site (even temporarily) and pro-
hibit access/transit. For EC countries, comply with
thenationallegislationthattransposesthe European
Directive on Construction sites 92/57/EC.
The installer is responsible for the installation/test-
ing of the automation and for preparing the system
Register.
Theinstaller must demonstrateor declare that he/she
has the technical-professional competency to carry
out the installation, testing and maintenance in ac-
cordance with the requirements of these instructions.
2.1 INSTALLER SAFETY
2.3 WASTE DISPOSAL
!The packaging materials (plastic, polystyrene etc.)
must not be left within reach of children as they are
potential sources of danger.
Discard the packaging after use in the appropri-
ate containers in compliance with waste disposal
regulations.
Installation activities require special work conditions
to reduce to the minimum the risks of accidents and
serious damage. Furthermore, the suitable precau-
tionsmust betaken topreventrisksof injurytopersons
or damage.
!The installer must be in good physical and mental
condition, aware of and responsible for the hazards
that may be generated when using the product.
The work area must be kept tidy and must not be
left unattended.
Donot wearclothesor accessories(scarves,bracelets,
etc.) that may get caught in moving parts.
Always wear the personal protective equipment rec-
ommended for the type of activity to be carried out.
Therequiredlevelofworkplacelightingmustbeequal
to at least 200 lux.
After having dismantled the product, dispose of it
in compliance with the current waste disposal regu-
lations.
Components and structural materials, batteries and
electronic components must not be disposed of
together with household waste. They must be taken
to authorised disposal and recycling centres.
OperateCE markedmachineryand equipmentincom-
pliance with the manufacturer's instructions. Use
work instruments in good conditions.
Use the transport and lifting equipment recom-
mended in the instructions manual.
Use safety-compliant portable ladders of adequate
size, fitted with anti-slip devices at the top and bot-
tom, equipped with retainer hooks.
Store the product in its original packaging, in closed
and dry premises, protected from the sun and free
from dust and aggressive substances. Protect from
mechanicalstress. If storedfor morethan 3 months,
regularly check the condition of the components and
the packaging.
-Storage temperature: 5°C to 30°C.
-Percentage of humidity: 30% to 70%.

E844 3PH 5 532315 - Rev.B
202073 V.x
ww/yyyy
Translation of the original instructions ENGLISH
3. E844 3PH
3.1 INTENDED USE
The FAAC E844 3PH electronic board has been de-
signed to control FAAC 844 R 3PH and 884 MC 3PH
gearmotors for horizontal movement sliding gates
intendedfor installationinareasthat areaccessibleto
people, the main purpose of which is to provide safe
access for goods, vehicles and people to industrial,
commercial or residential buildings.
!Any other use that is not expressly specified in
these instructions is prohibited and could affect the
integrity of the product and/or represent a source
of danger.
3.2 LIMITATIONS OF USE
-Using the product in any configuration other than
that intended by FAAC S.p.A.is prohibited. It is
prohibited to modify any of the product’s com-
ponents
3.3 UNAUTHORISED USE
-Do not use on motors or devices that are intended
for purposes other than operating gates.
-Uses other than the intended use are prohibited.
-It is prohibited to install the E844 3PH on smoke
and/or fire doors.
-It is prohibited to install the E844 3PH inenviron-
ments in which there is a risk of explosion and/or
fire: the presence of flammable gases or fumes is
a serious safety hazard (the product is not ATEX
certified).
-It is prohibited to power the system with energy
sources other than those specified.
-It is prohibited to integrate commercial systems
and/or equipment other than those specified, or
use them for purposes not envisaged and author-
ised by the corresponding manufacturers.
-It is prohibited to use and/or install accessories
which have not been specifically authorised by
FAAC S.p.A.
-It is prohibitedto use theE8443PH in the presence
of faults which could compromise safety.
-Do not allow water jets of any type or size to come
into direct contact with the E844 3PH.
-Do not expose the E844 3PH to corrosive chemical
or environmental agents.
3.4 PRODUCT IDENTIFICATION
 1 Technical data E844 3PH
Power supply voltage • 380-415V~ 3PH + N
• 220-240V~ 3PH
50/60 Hz
Max power 3W
Max. motor power 1500W
Max. accessories load 24V"500 mA
Bus 2easy 500 mA
Max. flashing light load 230V~ 60 W max
Ambient operating temperature -20 °C to +55 °C
Stopping space with 844 R 3PH 8 cm
Stopping space with 884 MC 3PH 8 cm
3.5 TECHNICAL SPECIFICATIONS
E844 3PH is an electronic board designed to control a
single motor having a maximum power of 1.5 kW and
a 400 V three phase + Neutral or 230 V three phase
without Neutral power supply.
Display The board functions are programmed via a
LCD display and 3 buttons.
Limitswitch In ordertooperatecorrectly,the opening
andclosing limit switches ofthegearmotor haveto be
connected to the E844 3PH board .
End of travel slowdown The E844 3PH can adjust the
slowdown points close to the open and closed posi-
tions, in order to limit inertial forces and reduce the
vibrations of the gate when it is stopping (only in
combination with the 844 R 3PH).
Bus 2easy It is possible to connect FAAC Bus 2easy
devices (photocells, sensitive edges and control de-
vices) to the E844 3PH board.
Encoder TheE844 3PH isfittedwith a sensor forread-
ing the encoder disc in the 844 R 3PH gearmotors, via
which it is able to detect the presence of an obstacle
(only with board installed on the operator). The
sensitivity of the obstacle detection system can be
adjusted.
week/year of produc-
tion
identification code firmware
version

E844 3PH 6 532315 - Rev.B
Translation of the original instructions ENGLISH
4. INSTALLATION REQUIREMENTS
5. INSTALLATION
RISKS
PERSONAL PROTECTIVE EQUIPMENT
FALWAYS DISCONNECT THE POWER SUPPLY before
working on the board.
Ifthedisconnectswitchisnotinview,applyawarning
sign stating“WARNING - Maintenance in Progress”.
Turn the power on only after having made all the
electrical connectionsand carriedout thepreliminary
start-up checks.
!TheE844board isfittedwith aplastic coverthatsafe-
guardsagainstelectrocutionbycontactwith liveparts
of the circuit.The cover should never be removed.
5.1 TOOLS REQUIRED
!Use appropriate tools and equipment in working en-
vironmentswhich complywithapplicable legislation.
4.1 ELECTRICAL SYSTEM
FAlways shut off the power supply before performing
any work. If the disconnect switch is not in view,
apply a warning sign stating “WARNING - Mainte-
nance in Progress”.
!The electrical system must comply with applicable
legislation in the country of installation.
Use components and materials with CE marking
which are compliant with the Low Voltage Directive
2014/35/EU and EMC Directive 2014/30/EU.
The power supply line for the automation must be
fittedwithamulti-polecircuitbreaker,withasuitable
tripping threshold, a contact opening distance of at
least 3 mm and a breaking capacity that complies
with current regulations.
The power supply for the automation must be fitted
with a 30 mA differential switch.
The metal parts of the structure must be earthed.
Check that the protective earthing system com-
plies with applicable regulations in the country of
installation.
The electrical cables of the automation system must
be of a size and insulation class that is compliant
with current legislation and laid in appropriate rigid
or flexible conduits, either above or below ground.
Use separate conduits for the power supply and the
12-24V control devices / accessories cables.
Check buried cable plans to ensure that there are no
other electrical cables in proximity to the planned
digging/drilling locations to prevent the risk of
electrocution.
Check that there are no pipes in the vicinity as well.
The external electronic board must be housed in an
enclosurethathasa minimumIP 44protection rating
andfittedwith alockor anothertypeofdevicetopre-
ventaccessbyunauthorised persons. Theenclosure
must be located in an accessible and non-hazardous
areaandat least30 cmfromthe ground. Thecable
outlets must face downwards.
Theconduitfittingsandthecableglandsmustprevent
the entry of moisture, insects and small animals.
Protect extension connections using junction boxes
with an IP 67 protection rating or higher.
Theoveralllength of the BUS cables must not exceed
100 m.
Itisrecommendedtoinstallaflashinglightinavisible
position to indicate when it is moving.
The control accessories must be positioned in areas
that are always accessible and not dangerous for the
user. Itis recommendedtopositionthecontrolacces-
sorieswithinthefieldof viewoftheautomation. This
is mandatory in the case of hold-to-run controls.
The hold-to-run controls in the dead-man mode of
operation,mustcomplywith standardEN60947-5-1.
If an emergency stop button has been installed, it
must be EN13850 compliant.
Comply with the following heights from the ground:
- control accessories = minimum 150 cm
- emergency buttons = maximum 120 cm
If the manual controls are intended to be used by
disabled or infirm persons, highlight them with
suitable pictograms and make sure that these users
are able to access them.

E844 3PH 7 532315 - Rev.B
RP/DEC
MOTOR
LAMP
MAINS
2EASY
OPEN SX OPEN DX
LIMIT SW
F-+OPEN B
OPEN A
SAFE CL
CL -H
OP-H
SAFE OP
STOP
GND
GND
OUT 1
OUT 2
TEST OUT
+24V
N L1
U
V
W
L2 L3
M
3
LAMP N
GND +24V
FCC FCA
230V~
60W max
1500 W max
1
2
3
4
5
6
7
8
9
10
11
12
13
INPUT
1
F2 F1
F3
SAFE CL
SAFE OP
STOP
OP - H
CL - H
OPEN A
OPEN B
LCD
CN10
F
F
-
+
FCC
CN9
CN11
CN8
JP1
BUS MON
FCA
CN1
CN5
BUS
BUS
CN4 CN3
CN6
CN2/CN12

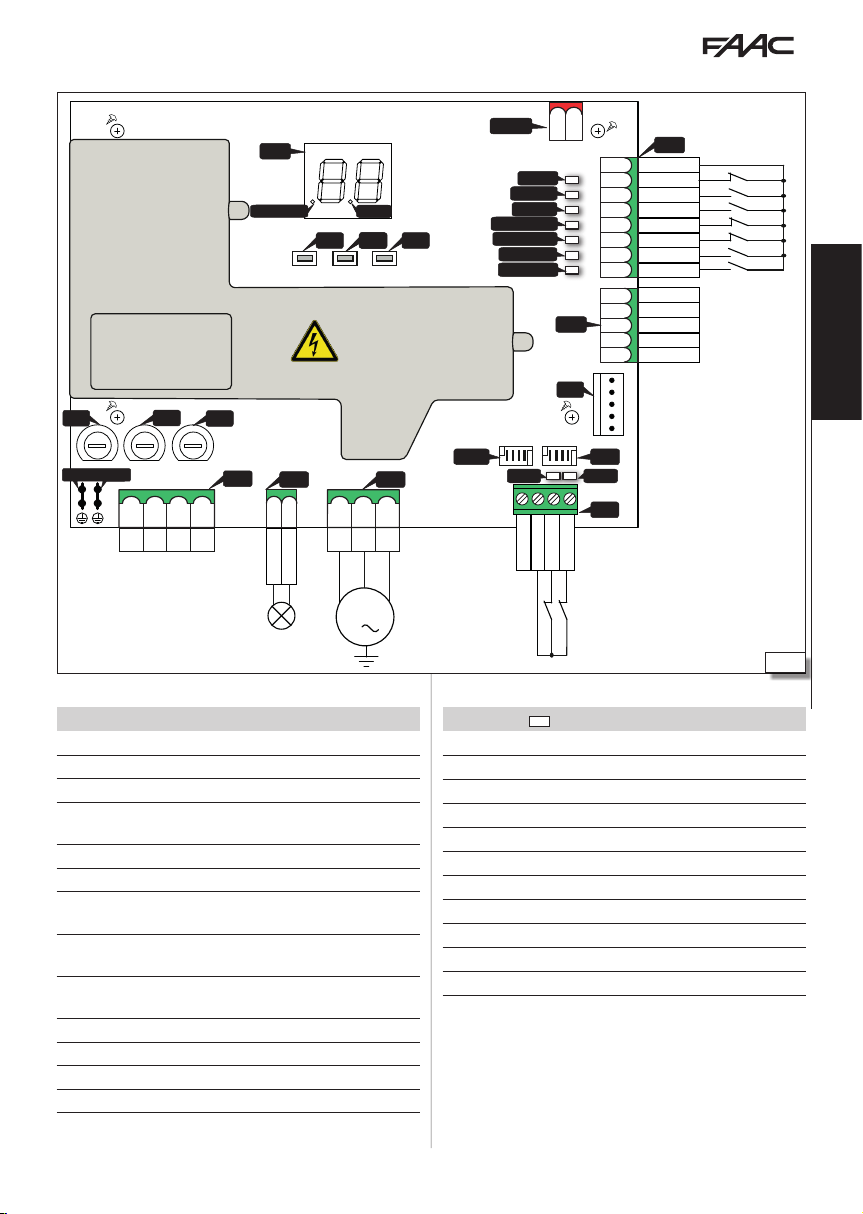

Translation of the original instructions ENGLISH
KEY:
CN1 Removableterminalboardforthemainspowersupply
CN2 / CN12 Faston connectors for earth connection
CN3 Removable terminal board for connecting the motor
CN4 Removable terminal board for connecting the flash-
ing light
CN5 Terminal board for connecting limit switch
CN6 / CN11 Quick insertion connectors for inductive limit switch
CN8 Removableterminalboardforoutputsandaccessories
power supply
CN9 Removable terminal board for connecting control
devices
CN10 Removable terminal board for connecting Bus 2easy
devices
JP1 Connector (5 pin) for FAAC radio/decoder boards
LCD Programming display
F1 F2 F3 Mains power supply fuses (8AT)
+ - F Programming buttons
Status LEDs :
STOP Stop command
CL - H Priority close command
OP - H Priority open command
SAFE CL Closing safety device
SAFE OP Opening safety device
OPEN B Partial motion command
OPEN A Total motion command
FCA Opening limit switch
FCC Closing limit switch
BUS Bus 2easy devices
BUS MON Bus 2easy line
5.2 COMPONENTS

E844 3PH 8 532315 - Rev.B
Translation of the original instructions ENGLISH

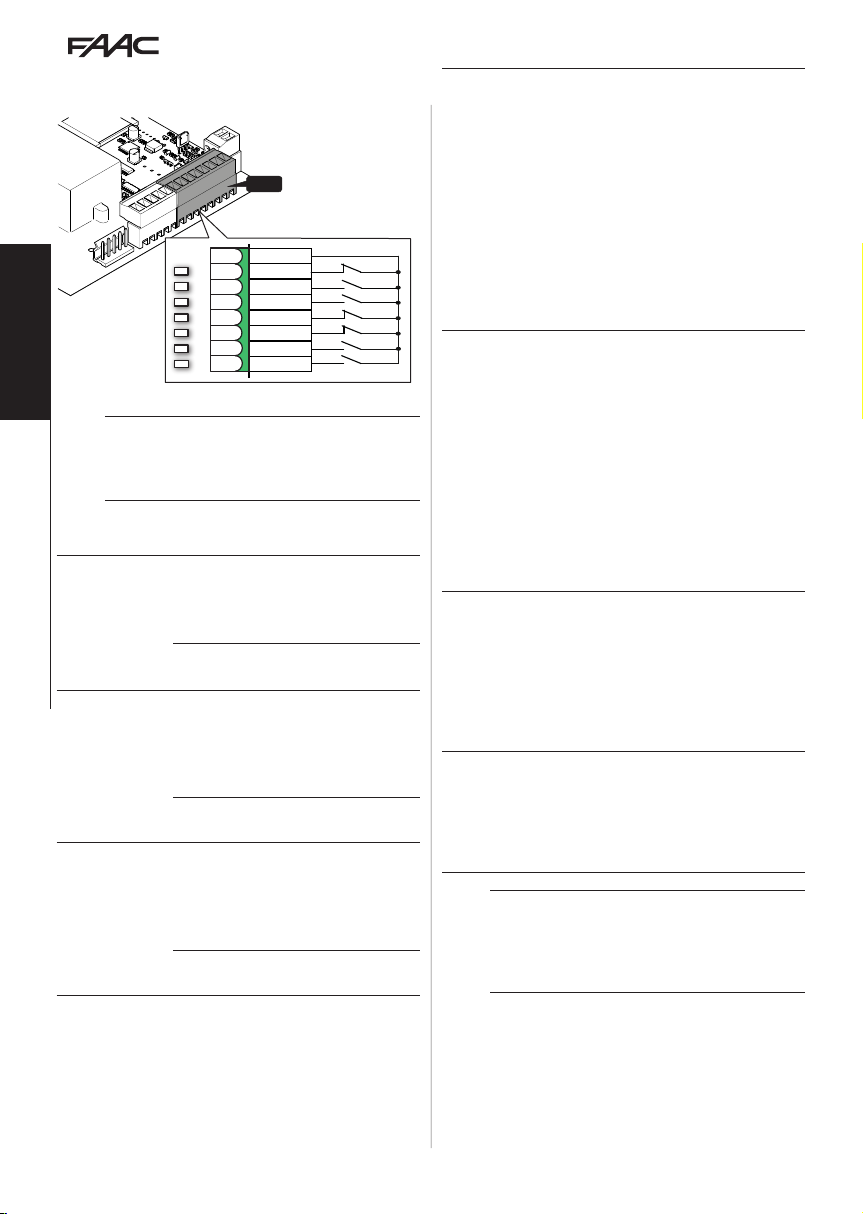

5.3 CONNECTIONS
CONTROL DEVICES
RP/DEC
MOTOR
LAMP
MAINS
2EASY
OPEN SX OPEN DX
LIMIT SW
F-+
OPEN B
OPEN A
SAFE CL
CL -H
OP-H
SAFE OP
STOP
GND
GND
OUT 1
OUT 2
TEST OUT
+24V
N L1
U
V
W
L2 L3
M
3
LAMP N
GND +24V
FCC FCA
230V~
60W max
1500 W max
1
2
3
4
5
6
7
8
9
10
11
12
13
400V~ 3PH + N
INPUT
CN9
Connect the devices to terminal board CN9.
iMultiple NO contacts on same input must be con-
nected in parallel.
Multiple NC contacts on same input must be con-
nected in series.
1 GND Common contacts
2 STOP
(Stop command)
NC contact, connect a push-button or another type of
pulse generator which, by opening a contact, causes
the automation to stop.
iIftheinput isnotused,bridge itwith GND
3 CL - H
(PRIORITY close command)
NO contact, connect a push-button that, as long as it
keeps a contact closed, commands the closing of the
gate in hold-to-run mode without any monitoring of
safety devices.
!Activation must be intentional and the
gate must be visible
4 OP - H
(PRIORITY open command)
NO contact, connect a push-button that, as long as it
keeps a contact closed, commands the opening of the
gate in hold-to-run mode without any monitoring of
safety devices.
!Activation must be intentional and the
gate must be visible
5 SAFE CL
(Safety in closing active)
Connecta sensitiveedge oranother devicethat,when
activated during closing, causes the gate to reverse
partially or completely.
This input can be configured by setting programming
function Scto connect:
- sensitive edges with NC contact
- resistive sensitive edges 8.2 k -default-
- photocells
Reverse after a sensitive edge has been activated can
be configured by setting programming function iP:
- partial reverse of 3 s (iP= Y)
- complete reverse (iP= no)
6 SAFE OP
(Safety in opening active)
Connecta sensitiveedge oranother devicethat,when
activated during opening, causes the gate to reverse
partially or completely.
This input can be configured by setting programming
function Soto connect:
- sensitive edges with NC contact
- resistive sensitive edges 8.2 k -default-
- photocells
Reverse after a sensitive edge has been activated can
be configured by setting programming function iP:
- partial reverse of 3 s (iP= Y)
- complete reverse (iP= no)
7 OPEN B
(PARTIAL motion command)
NO contact, connect a push-button or another type of
pulsegeneratorwhich,byclosingacontact,commands
the partial opening of the gate.
Thepartialopeningwidthissetin programmingfunc-
tion PO(from 1 to 20 s).
The effect that subsequent pulses have depends on
the operating logic set in programming function Lo.
8 OPEN A
(TOTAL motion command)
NO contact, connect a push-button or another type of
pulsegeneratorwhich,byclosingacontact,commands
the total opening of the gate.
The effect that subsequent pulses have depends on
the operating logic set in programming function Lo.
iBy default, the SAFE CL and SAFE OP inputs are con-
figuredtoconnect resistivetypesensitiveedges. If
one or both are not used, set function So and/or Sc
= nc and bridge with the common contacts (GND
terminal), otherwise they would be active.

E844 3PH 9 532315 - Rev.B
Translation of the original instructions ENGLISH

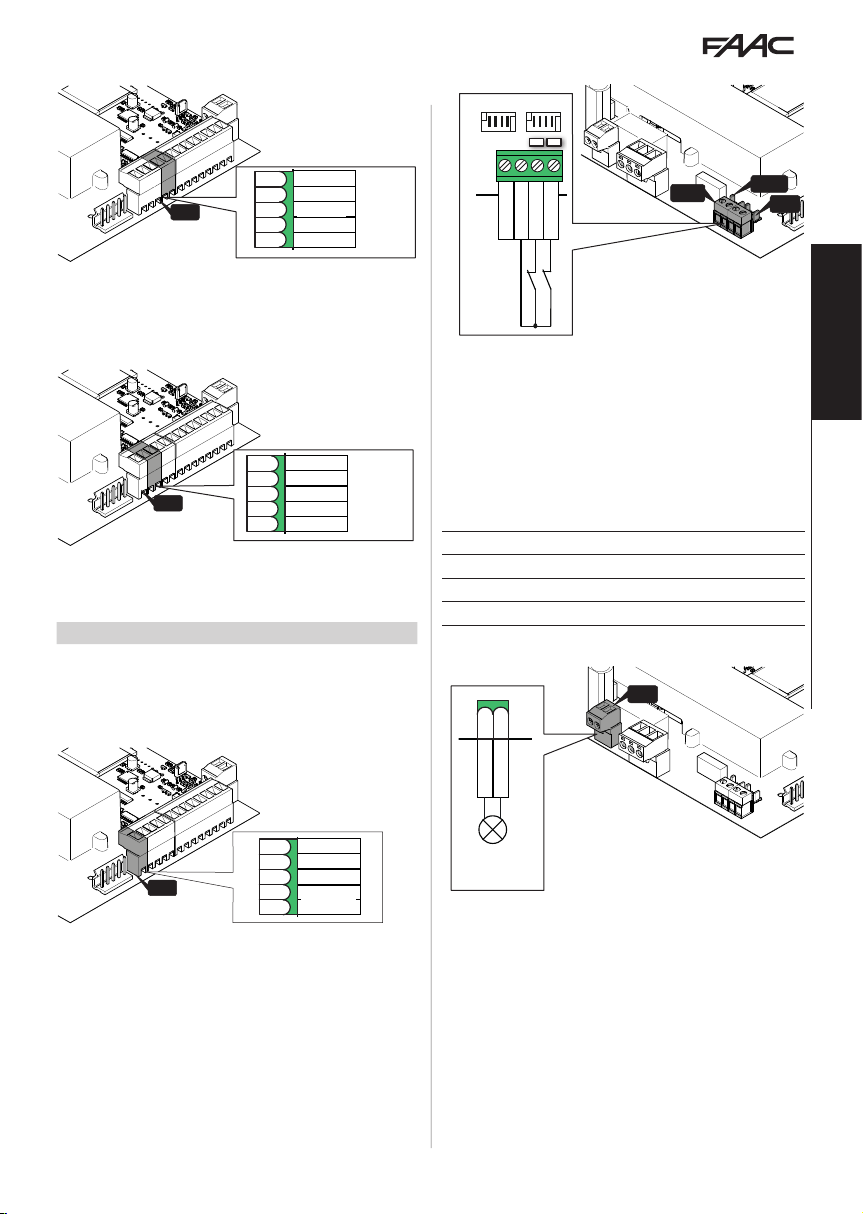

ACCESSORIES POWER SUPPLY
RP/DEC
MOTOR
LAMP
MAINS
2EASY
OPEN SX OPEN DX
LIMIT SW
F-+OPEN B
OPEN A
SAFE CL
CL -H
OP-H
SAFE OP
STOP
GND
GND
OUT 1
OUT 2
TEST OUT
+24V
N L1
U
V
W
L2 L3
M
3
LAMP N
GND +24V
FCC FCA
230V~
60W max
1500 W max
1
2
3
4
5
6
7
8
9
10
11
12
13
400V~ 3PH + N
INPUT
CN8
24V"
0.5 A max
The E844 3PH supplies 24 V"and is short-circuit
protected with a maximum current of 0.5 A for con-
nected accessories.
OUTPUTS
RP/DEC
MOTOR
LAMP
MAINS
2EASY
OPEN SX OPEN DX
LIMIT SW
F-+OPEN B
OPEN A
SAFE CL
CL -H
OP-H
SAFE OP
STOP
GND
GND
OUT 1
OUT 2
TEST OUT
+24V
N L1
U
V
W
L2 L3
M
3
LAMP N
GND +24V
FCC FCA
230V~
60W max
1500 W max
1
2
3
4
5
6
7
8
9
10
11
12
13
400V~ 3PH + N
INPUT
CN8 0.2 A max
The E844 3PH has two Open Collector outputs that
are activated according to programming functions
o1 and o2.
OUT active OUT not active
0V"open circuit
Do not exceed the maximum load of 0.2 A for each
output.
FAILSAFE
CN8
RP/DEC
MOTOR
LAMP
MAINS
2EASY
OPEN SX OPEN DX
LIMIT SW
F-+OPEN B
OPEN A
SAFE CL
CL -H
OP-H
SAFE OP
STOP
GND
GND
OUT 1
OUT 2
TEST OUT
+24V
N L1
U
V
W
L2 L3
M
3
LAMP N
GND +24V
FCC FCA
230V~
60W max
1500 W max
1
2
3
4
5
6
7
8
9
10
11
12
13
400V~ 3PH + N
INPUT
Failsafe is a functional test that is carried out before a
movementtocheck thatthedevices connected tothe
SAFE inputs are working correctly.
If the test fails, the board prevents the automation
from moving (error 05).
To enable/disable the failsafe, see programming
function FS .

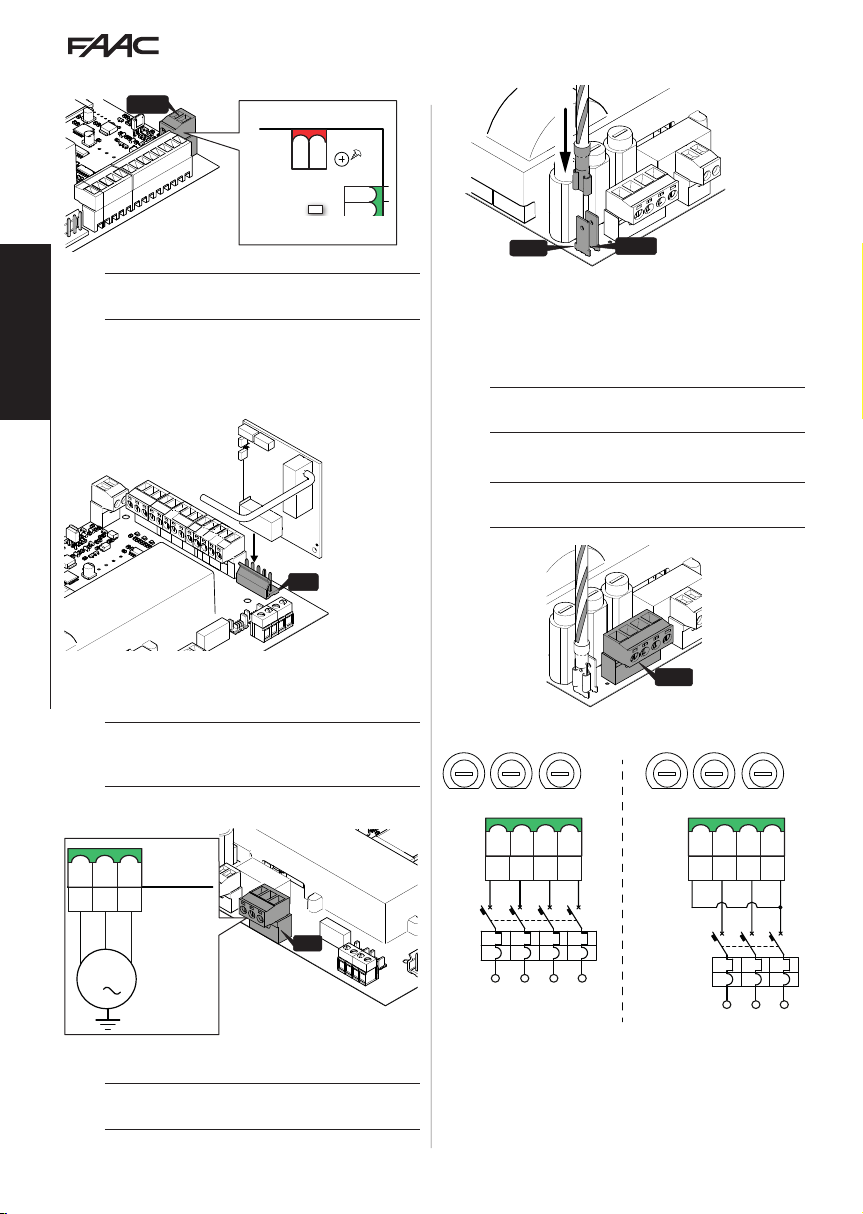

LIMIT SWITCHES
CN6
CN11
CN5
RP/DEC
MOTOR
LAMP
MAINS
2EASY
OPEN SX
OPEN DX
LIMIT SW
F-+OPEN B
OPEN A
SAFE CL
CL -H
OP-H
SAFE OP
STOP
GND
GND
OUT 1
OUT 2
TEST OUT
+24V
N L1
U
V
W
L2 L3
M
3
LAMP N
GND +24V
FCC FCA
230V~
60W max
1500 W max
1
2
3
4
5
6
7
8
9
10
11
12
13
400V~ 3PH + N
INPUT
In order for to operate correctly, the E844 3PH board
has to be connected to the opening and closing limit
switches.
For the 844 R 3PH inductive sensor, use the quick
insertion connector CN6 (open towards the right) or
CN11(open towardstheleft). Theopening direction
is determined by looking at the gate from the side on
which the gearmotor is installed.
For the 884 MC 3PH sensor, use terminal board CN5:
FCA (OPENING limit switch) NC contact
FCC (CLOSING limit switch) NC contact
GND Common contacts
+24V Accessories power
FLASHING LIGHT
CN4
RP/DEC
MOTOR
LAMP
MAINS
2EASY
OPEN SX OPEN DX
LIMIT SW
F-+OPEN B
OPEN A
SAFE CL
CL -H
OP-H
SAFE OP
STOP
GND
GND
OUT 1
OUT 2
TEST OUT
+24V
N L1
U
V
W
L2 L3
M
3
LAMP N
GND +24V
FCC FCA
230V~
60W max
1500 W max
1
2
3
4
5
6
7
8
9
10
11
12
13
400V~ 3PH + N
INPUT
The flashing light indicates that the gate is moving
and must be installed in a position that is visible from
both sides of the gate.
Connect the flashing light (230V~, max 60 W model),
to terminal board CN4.
Pre-flashing of 3 s before movement can be enabled
via programming function PF.

E844 3PH 10 532315 - Rev.B
Translation of the original instructions ENGLISH
BUS 2EASY DEVICES
RP/DEC
MOTOR
LAMP
MAINS
2EASY
OPEN SX OPEN DX
LIMIT SW
F-+OPEN B
OPEN A
SAFE CL
CL -H
OP-H
SAFE OP
STOP
GND
GND
OUT 1
OUT 2
TEST OUT
+24V
N L1
U
V
W
L2 L3
M
3
LAMP N
GND +24V
FCC FCA
230V~
60W max
1500 W max
1
2
3
4
5
6
7
8
9
10
11
12
13
400V~ 3PH + N
INPUT
CN10
iIf no BUS 2easy devices are used, leave the terminals
free.
For connecting and assigning addresses see
§ Accessories .
Do not exceed the maximum load of 0.5 A.
RADIO RECEIVER/DECODER BOARD
JP1
The quick insertion connector JP1 is specifically for
5-pin FAAC radio or decoder boards.
It is a polarised type of connector.
iIfaFAACmodel RPreceiveris used,itis recommended
toinstallthe appropriateexternalantennain orderto
obtain a sufficient range.
MOTOR
CN3
RP/DEC
MOTOR
LAMP
MAINS
2EASY
OPEN SX OPEN DX
LIMIT SW
F-+OPEN B
OPEN A
SAFE CL
CL -H
OP-H
SAFE OP
STOP
GND
GND
OUT 1
OUT 2
TEST OUT
+24V
N L1
U
V
W
L2 L3
M
3
LAMP N
GND +24V
FCC FCA
230V~
60W max
1500 W max
1
2
3
4
5
6
7
8
9
10
11
12
13
400V~ 3PH + N
INPUT
Connect the three phase wires of the electric motor.
!The gearmotor MUST be connected to the earth of
the electrical system.
CONNECTING THE EARTH
CN2 CN12
To connect the earth of the board to the earth plug
on the gearmotor, insert the cable with the crimped
fastonconnector intoCN2 or CN12. The secondfaston
connector can be used to connect the ground of the
electrical system.
!The gearmotor MUST be connected to the earth of
the electrical system.
MAINS POWER SUPPLY
FCarry out the following operations with the power
supply disconnected.
CN1
Connect the mains power supply using cables having
a minimum diameter of 2.5 mm:
MAINS
N L1 L2 L3
230 V~ 3PH
MAINS
N L1 L2 L3
400 V~ 3PH + N
The board has an 8AT fuse for each phase.

E844 3PH 11 532315 - Rev.B
2
RP/DEC
MOTOR
LAMP
MAINS
2EASY
OPEN SX OPEN DX
LIMIT SW
F-+
OPEN B
OPEN A
SAFE CL
CL -H
OP-H
SAFE OP
STOP
GND
GND
OUT 1
OUT 2
TEST OUT
+24V
N L1
U
V
W
L2 L3
M
3
LAMP N
GND +24V
FCC FCA
230V~
60W max
1500 W max
1
2
3
4
5
6
7
8
9
10
11
12
13
400V~ 3PH + N
INPUT
F
-
+
Translation of the original instructions ENGLISH
6. SETUP
RISKS
PERSONAL PROTECTIVE EQUIPMENT
!During operation, there is a risk of fingers and
hands being trapped between the rack, pinion and
gearmotor.
Carry out the steps, referring to the relative sections
for details.
1. Turnpowerontothe boardandusethediagnostics
to check the status of the connections.
2. Check the direction of rotation of the motor:
-release the gearmotor, move the gate manually to
its half-travel position and then re-lock it
-activate the open command OP-H temporarily
and make sure that the gate moves in the open-
ing direction
-if the gate moves in the closing direction, tempo-
rarily disconnect the power supply and invert two
phases of the motor (on connector CN3)
3. Releasethe gearmotor,movethegate manually to
its closed position and then re-lock it (make sure
that the FCC led switches off in this position and
that 00) appears on the display.
4. Set the type of gearmotor connected: function dF
in programming.
5. Only for 844 R 3PH: program the pre-limit switch
decelerationsinfunctionrPinprogramming. The
pre-limit switchdecelerationreducesthe inertiaof
the gate, allowing the impact forces to fall within
the limits indicated in the standard.
6. Carry outthelearning procedureforanyBUS 2easy
devices: function bU in programming.
7. Set the functions So (safety in opening) and Sc
(safety in closing) according to the type of devices
connected.
8. Carryoutthelearningprocedurefor theworktimes
(SETUP): function tL in programming.
iIn order for the SETUP procedure to be carried out,
theCLOSED limitswitchmust beengagedby thegate.
9. If the board is installed on gearmotor 844 R 3PH,
regulate the obstacle detection sensitivity: func-
tion EC in programming.
10. Complete the programming according to the
required operating characteristics.
11. Make sure that the automation system is working
properly with all the devices installed.
6.1 PROGRAMMING
■Accessing the programming menu
-Press and hold button F: the first function dF ap-
pearson the display. The function is displayedas
long as the Fbutton remains pressed.
-Release button F: the display shows the value of
the function.
■Modifying the settings
-When the display indicates the value of the func-
tion, press the +or -button to modify it.
-Press button Fto go to the next function. The
function is displayed as long as button F remains
pressed.
iThe changes are saved when you exit from program-
ming mode.
■Exiting programming mode
-Scroll through the menu until you reach the St
function andrelease thebutton.The displayreverts
to the automation status view. Alternatively,
press buttons Fand -simultaneously at any time
during programming.

E844 3PH 12 532315 - Rev.B
Translation of the original instructions ENGLISH
Function default
dF Type of gearmotor
00 844 R 3PH (400V~ 3PH)
01 884MC3PH(400V~3PH/230V~3PH)
02 844 R 3PH (230V~ 3PH)
00
Lo Operating logic
ESemi-automatic
EP Semi-automatic step by step
AAutomatic
AP Automatic step by step
SAutomatic Safety
bSemi-automatic B
CHold-to-run
EP
PA Pause time
carried out in the automatic logics
From 0 s to 9.5 min ; adjustment in steps of 1
s from 0 to 59, then in steps of 10 s
30
Pb Partial pause time
carried out in the automatic logics following
a partial opening
From 0 s to 9.5 min ; adjustment in steps of 1
s from 0 to 59, then in steps of 10 s
30
FS Failsafe
no disabled
01 enabled only on SAFE OP
02 enabled only on SAFE CL
03 enabled on SAFE OP and SAFE CL
no
EC Encoder obstacle detection sensitivity
(available only for board installed on
844 R 3PH )
00 Obstacle detection not enabled
01 (maximumsensitivity)...99 (mini-
mum sensitivity)
00
SS SOFT-START
acceleration ramp at each start
(available only for 844 R 3PH )
Yenabled
no not enabled
Y
rP Pre-limit switch deceleration
as a percentage of the travel of the gate that
wasmemorisedduringlearningprocedurefor
the work times
(available only for 844 R 3PH)
00 no slowdown
05...30 %
00
PO Partial opening width
01...20 in steps of 1 s 05
Function default
o1 Output OUT1 configuration
the output is activated according to selected
function
00
00 Always active
02 IndicatorLight(onduring opening and
when open/in pause, off when closed,
flashing during closing)
03 Courtesy Light
04 Error
05 Status OPEN/IN PAUSE
06 Status CLOSED
07 Status MOVING
08 Status EMERGENCY
09 Status OPENING
10 Status CLOSING
12 Safety device active
13 TRAFFIC LIGHT CONTROL (active when
opening/in pause/open)
t1 OUT1 timing
only for the Courtesy Light
00...99 min
02
o2 Output OUT2 configuration
the output is activated according to selected
function
00
00 Always active
02 LED
03 Courtesy Light
04 Error
05 Status OPEN/IN PAUSE
06 Status CLOSED
07 Status MOVING
08 Status EMERGENCY
09 Status OPENING
10 Status CLOSING
12 Safety device active
13 TRAFFIC LIGHT CONTROL (active when
opening/in pause/open)
t2 OUT2 timing
only for the Courtesy Light
00...99 min
02
nc Cycle counter (x1000)
00...99 in steps of 1000 00

E844 3PH 13 532315 - Rev.B
Translation of the original instructions ENGLISH
Function default
nd Cycle counter (x10)
00...99 in steps of 10 00
So SAFE OP input configuration
nc Sensitive edge with NC contact
1r 1 Resistive sensitive edge 8.2 k
2r 2 Resistive sensitive edges 8.2 k in
parallel
PH Photocell with a NC contact
1r
Sc SAFE CL input configuration
nc Sensitive edge with NC contact
1r 1 Resistive sensitive edge 8.2 k
2r 2 Resistive sensitive edges 8.2 k in
parallel
PH Photocell with a NC contact
1r
iP Sensitive edge reverse mode
YPartial reverse 3 s
no Total reverse
Y
bu Learn BUS 2easy devices
See the relative section
PF Pre-flashing for 3 s on the LAMP output
no No pre-flashing
OC Pre-flashing before every movement
CL Pre-flashing before closing
no
tL Learn work time (SETUP)
Inorderforthelearningproceduretobecarried
out,theCLOSEDlimitswitchmustbeengaged
by the gate.
Press the + and - buttons simultaneously to
start the learning function.
If no button is pressed within 2 minutes, you
automatically exit from programming mode.
St Exit from programming mode and display
the status of the automation:
00 CLOSED
01 OPEN
03 STOPPED
04 IN PAUSE
05 OPENING
06 CLOSING
09 PRE-FLASHING and then OPENS
10 PRE-FLASHING and then CLOSES
6.2 OPERATING LOGICS
The STOP command has priority over all other com-
mands and stops the automation in all the logics.
In all the logics, except B and C, the OPEN B command
partially opens the gateif it is closed, inall other states
it has the same function as the OPEN A command.
In logics B and C (separate opening and closing com-
mand logics), OPEN B only closes the gate.
■A AUTOMATIC
Thislogiconly requirestheOPEN commandto beused.
OPEN if the automation is closed, causes it to
open. The automation closes automatically after the
pause time has elapsed.
OPEN during pause, resets the pause time.
OPEN during opening, is ignored.
OPEN during closing, causes it to reopen.
Ifthe closing photocellsaretriggered duringthe pause
time, they reset the pause time.
■AP AUTOMATIC STEP-BY-STEP
Thislogiconly requirestheOPEN commandto beused.
OPEN if the automation is closed, causes it to
open. The automation closes automatically after the
pause time has elapsed.
OPEN during pause, stops it and the next OPEN
command closes it.
OPEN during opening, stops it and the next OPEN
command closes it.
OPEN during closing, causes it to reopen.
Ifthe closing photocellsaretriggered duringthe pause
time, they reset the pause time.
■SAUTOMATIC SAFETY
Thislogiconly requirestheOPEN commandto beused.
OPEN if the automation is closed, causes it to
open. The automation closes automatically after the
pause time has elapsed.
OPEN during the pause, causes it to close.
OPEN during opening, causes it to close.
OPEN during closing, causes it to reopen.
Ifthe closing photocellsaretriggered duringthe pause
time, they close the automation 3 seconds after they
have been released.
■ESEMI-AUTOMATIC
Thislogiconly requirestheOPEN commandto beused.
OPEN if the automation is closed, causes it to open.
OPEN if the automation is open, causes it to close.
OPEN during opening, stops it and the next OPEN
command closes it.
OPEN during closing, causes it to reopen.

E844 3PH 14 532315 - Rev.B
Translation of the original instructions ENGLISH
■EP SEMI-AUTOMATIC STEP-BY-STEP
Thislogiconly requirestheOPEN commandto beused.
OPEN if the automation is closed, causes it to open.
OPEN if the automation is open, causes it to close.
OPEN during opening or closing, stops it and the
next OPEN command reverses the direction.
■CHOLD-TO-RUN
This logic requires the maintained OPEN A (open) and
OPEN B (close) commands to be used.
!In the hold-to-run mode:
- the control must be activated intentionally and the
gate must be visible
- the SAFE inputs stop the movement immediately
Maintained OPEN A opens the automation.
Maintained OPEN B closes the automation.
■bSEMI-AUTOMATIC b
This logic requires the OPEN A (open) and OPEN B
(close) commands to be used.
OPEN A if the automation is closed, causes it to open.
OPEN A during opening, has no effect.
OPEN A during closing, causes it to reopen.
OPEN B if the automation is open, causes it to close.
OPEN B during closing, has no effect.
OPEN B during opening, causes it to close.
Movementstopsifthe closingphotocellsaretriggered.
6.3 SETUP
The SETUP must be carried out when the board is first
installed, each time the board is replaced or installed
in another system, or if the characteristics of the gate
change.
Set-up procedure:
-The gate MUST engage the CLOSED limit switch
(make sure that the FCC LED is off).
-Select the tl function in programming.
-Press and hold down the + and - buttons simul-
taneously, the gate starts to open and S1 appears
on the display.
-SETUP is complete when the open limit switch is
reached.
6.4 RESTORE THE DEFAULT VALUES
To restore the default values for all the functions:
-Pressand hold downthe +, -, Fbuttonssimultane-
ously for 10 seconds
-Release the buttons when the separator point
between the two digits on the display flashes
7. PUTTING INTO SERVICE
7.1 FINAL CHECKS
1. Make sure that the forces generated by the gate
are within the limits permitted by the current
regulations. Use an impact force tester in ac-
cordance with EN 12453. For non-EU countries,
of there are no specific local regulations, the force
must be less than 150 N. If necessary, make any
adjustments that may be needed by referring also
to the gearmotor instructions.
2. Carry outa completefunctional testof theautoma-
tion and all the installed devices.
3. Refer to the gearmotor instructions for any ad-
ditional tests that may be required.
7.2 CLOSE THE ENCLOSURE
Close the enclosure in which the board is housed by
referring to the specific instructions.
7.3 FINAL OPERATIONS
Make sure that the system delivery requirements
have been fulfilled (otherwise arrange for them) i.e.
thatthey correspondto the boardinstalled / replaced.

E844 3PH 15 532315 - Rev.B
1
2
5
4
3
1
2
1
2
5
4
3
1
2
1
2
5
4
3
1
2
SAFE CL/ OP
SAFE CL/ OP
GND
GND
GND
TEST OUT
+24V
+24V
+24V
+24V
+24V
+24V
TEST OUT
TEST OUT
Translation of the original instructions ENGLISH
8. ACCESSORIES
8.1 CLOSING PHOTOCELLS
!Photocells are additional type D detection devices
(accordingtoEN 12453) thatreducethe likelihood of
contact with the moving leaf, but they are not safety
devices according to standard EN 12978.
iUse photocells with a NC relay contact. If multiple
photocells are used, the contacts must be connected
in series.
Position and connect the photocells as shown in 3
according to their required use:
SAFE CL Photocell active during closing
SAFE OP Photocell active during opening
Each SAFE input to which photocells are connected
has to be configured in programming:
functions Sc/So = PH
iThe action carried out when the photocells are trig-
gered depends on the operating logic selected.
■FailSafe
Failsafe is a functional test that is carried out before a
movement. It consistsof momentarilyinterruptingthe
powersupply tothe devices and checkingthe change
in status of the input.
If the test fails, the board prevents the automation
from moving (error 05).
To carry out the test, connect the negative of the
transmitter to theTEST OUT terminal.
To enable/disable the failsafe, see programming
function FS .
8.2 SENSITIVE EDGES
!If the sensitive edge is used to protect against a
hazard, it must comply with standard EN 12978.
The E844 3PH board has two inputs for connecting
sensitive edges that are active during closing (SAFE
CL) or during opening (SAFE OP).
Theactivationof a sensitiveedge causes the direction
of movement to reverse, which can be:
-complete if iP = no in programming
-partial (3 s) if iP = Yin programming
The SAFE CL and SAFE OP inputs can be configured to
connect the following types of devices:
-with NC contact (So/Sc = nc)
-1 resistive sensitive edge 8.2 kΩ (So/Sc = 1r)
-2 resistive sensitive edges 8.2 kΩ (So/Sc = 2r) con-
nected in parallel
DO NOT connect photocells if the SAFE input is con-
figured to connect a sensitive edge.
iBy default, the SAFE CL and SAFE OP inputs are con-
figuredtoconnect resistivetypesensitiveedges. If
one or both are not used, set function So and/or Sc
= nc and bridge with the common contacts (GND
terminal), otherwise they would be active.
1. Configure the input to which the sensitive edge is
connected according to the type used (functions
So/Sc in programming).
2. If the connected device requires a functional test
tobe carried out, use theTestOUTterminal. Refer
to the instructions that come with the device for
connecting it.
■FailSafe
Failsafe is a functional test that is carried out before
a movement.
If the test fails, the board prevents the automation
from moving (error 05).
To enable/disable the failsafe, see programming
function FS .
3
■1 pair of photocells
■2 pairs of photocells

E844 3PH 16 532315 - Rev.B
2EASY
BUS
2 Easy BUS 2 Easy BUS 2 Easy
CN10
4
Translation of the original instructions ENGLISH
8.3 BUS 2EASY DEVICES
It is possible toconnectFAACBUS 2easydevices(pho-
tocells, sensitive edges, control devices) to this board.
iIfno BUS 2easy accessories areused, leaveconnector
CN10 free. Do not bridge.
CONNECTION
Connectthe BUS 2easydevices tothe CN10connector.
iThe overall length of the BUS 2easy cables must not
exceed 100 m.
The BUS line does not require a matching polarity
connection.
BUS 2EASY PHOTOCELLS
!Photocells are additional type D detection devices
(accordingtoEN 12453) thatreducethe likelihood of
contactwith themoving leaf. Thephotocellsare not
safety devices according to standard EN 12978. De-
tection devicesused as safetyaccessories (e.g. sensi-
tive edges) to protect against a hazard, must comply
with standard EN 12978.
Type of use:
FSW CL Photocell active during closing
FSW OP Photocell active during opening
FSW OP/CL Photocell always active
OPEN Photocell to control OPEN A
iThe action carried out when the photocells are trig-
gered depends on the operating logic selected.
1. Assign an address to the BUS 2easy photocells by
settingthe fourDIPswitches on boththe transmit-
ter and the corresponding receiver.
iThe transmitter and receiver of a pair of photocells
must have the same DIP switch settings.
There must never be two or more pairs of photocells
with the same DIP switch settings. If there is more
than one pair of photocells with the same address, a
conflict error is generated.
2. Register the BUS 2easy photocells (see specific
section).
3. Check the BUS 2easy devices (see specific section)
and make sure that the automation operates ac-
cording to the type of photocell installed.
 2 Assigning an address to the Photocells
Key: 0=OFF , 1=ON
1 0 0 0
FSW CL
1 0 0 1
1 0 1 0
1 0 1 1
1 1 0 0
1 1 1 0
0 0 0 0
FSW OP
0 0 0 1
0 0 1 0
0 0 1 1
0 1 1 1
0 1 0 0 FSW OP/CL
0 1 0 1
1 1 1 1 OPEN
ON
1 2 3 4
BUS 2EASY SENSITIVE EDGES
!If the sensitive edge is used to protect against a
hazard, it must comply with standard EN 12978.
Type of use:
CL EDGE Sensitive edge active during closing
OPEDGE Sensitive edge active during opening
Theactivationof a sensitiveedge causes the direction
of movement to reverse, which can be:
-complete if iP = no in programming
-partial (2 s) if iP = Yin programming
1. Assign an address to the device electronics by
setting the four DIP switches.
iNo two devices should have the same DIP switch set-
tings. If there is more than one device with the same
address, a conflict error is generated.
2. Register the device (see specific section).
3. Check the BUS 2easy devices (see the specific
section) and make sure that the sensitive edges
are working correctly. When the gate is moving,
activate the sensitive edge using an obstacle and

E844 3PH 17 532315 - Rev.B
Translation of the original instructions ENGLISH
makesurethat the automationoperatesaccording
to the type of sensitive edge installed.
 3 Addressing Sensitive Edges
Key: 0=OFF , 1=ON
11 0 1 CL EDGE
0 1 1 0 OP EDGE
BUS 2EASY CONTROL DEVICES
!Do not use the BUS 2easy line for emergency stop
commands.
1. ConfiguretheDIP switches on the deviceto assign
1 o 2 commands.
iStop NC also generates a stop when the device is
disconnected. Acommand(e.g.:OPEN A_1)must be
used on only one of the connected devices.
2. Register the device (see specific section).
3. Check the BUS 2easy devices (see specific section)
and make sure that the automation operates ac-
cording to the type of control devices installed.
 4 Addressing Control Devices
Key: 0=OFF , 1=ON
DIP switch 5 enables the device for 1 (OFF )command or 2 (ON)
commands
0 0 0 0 0 Open A_1 0 0 0 0 1 Open A_1 Open B_1
0 0 0 1 0 Open A_2 0 0 0 1 1 Open A_1 Open B_2
0 0 1 0 0 Open A_3 0 0 1 0 1 Open A_1 Stop
0 0 1 1 0 Open A_4 0 0 1 1 1 Open A_1 Close
0 1 0 0 0 Open A_5 0 1 0 0 1 Open A_2 Open B_1
0 1 0 1 0 Stop 0 1 0 1 1 Open A_2 Open B_2
0 1 1 0 0 Stop NC_1 0 1 1 0 1 Open A_2 Stop
0 1 1 1 0 Stop NC_2 0 1 1 1 1 Open A_2 Close
1 0 0 0 0 Close 1 0 0 0 1 Open A_3 Open B_3
1 0 0 1 0 Open B_1 1 0 0 1 1 Open A_3 Open B_4
1 0 1 0 0 Open B_2 1 0 1 0 1 Open A_3 StopNC_1
1 0 1 1 0 Open B_3 1 0 1 1 1 Open A_3 Close
1 1 0 0 0 Open B_4 1 1 0 0 1 Open A_4 Open B_3
1 1 0 1 0 Open B_5 1 1 0 1 1 Open A_4 Open B_4
1 1 1 0 0 / 1 1 1 0 1 Open A_4 StopNC_2*
1 1 1 1 0 / 1 1 1 1 1 Open A_4 Close
ON
1 2 3 4
ON
1 2 3 4 5
ON
1 2 3 4 5
BUS 2EASY STATUS
To verify the BUS 2easy connection, check the 2EASY
LEDs on the board:
BUS MON At least one device is in operation
NO devices in operation
BUS OK
SHORT CIRCUIT
ERROR
The status of the BUS 2easy is also shown in the bu
function in Basic Programming:
no No device registered
- At least one device has been registered
cc BUS 2easy line short-circuited
Er BUS 2easy line error
BUS 2EASY DEVICE REGISTRATION
Registration is required:
-whenthe automationsystemis firststartedor after
the board has been replaced
-following any changes (addition, replacement or
removal) to the BUS 2easy devices
Registration procedure:
TheSETUPprocedureregistersthe BUS 2easy devices
thatare connected. Alternatively,you can carry out
the following procedure.
1. With the board powered, go to the bufunction in
basic programming. If there are no devices reg-
istered, no will appear on the display, otherwise
segment 13 will be lit (5).
Press the ++and
--
simultaneously for at least 5 s.
The display flashes, then Yappears (registration
complete).
2. Release the buttons.
3. Exiting from programming mode.

E844 3PH 18 532315 - Rev.B
Translation of the original instructions ENGLISH
 5 Automated system status
display meaning
00 gate closed
01 gate open
03 gate stopped
04 gate stopped in pause
05 gate opening
06 gate closing
09 gate pre-flashing, then opens
10 gate pre-flashing, then closes
CHECKING BUS 2EASY DEVICES
1. Select parameter bu in basic programming. If
there are no devices registered, nowill appear on
thedisplay,otherwise segment13 will belit (5).
This menu can be used to check the operation of
the registered devices: activate each device and
check that the corresponding segment lights up
(5).
2. Press and hold the ++button and keep it pressed;
the segments relative to the registered devices
will come on. Each segment of the display cor-

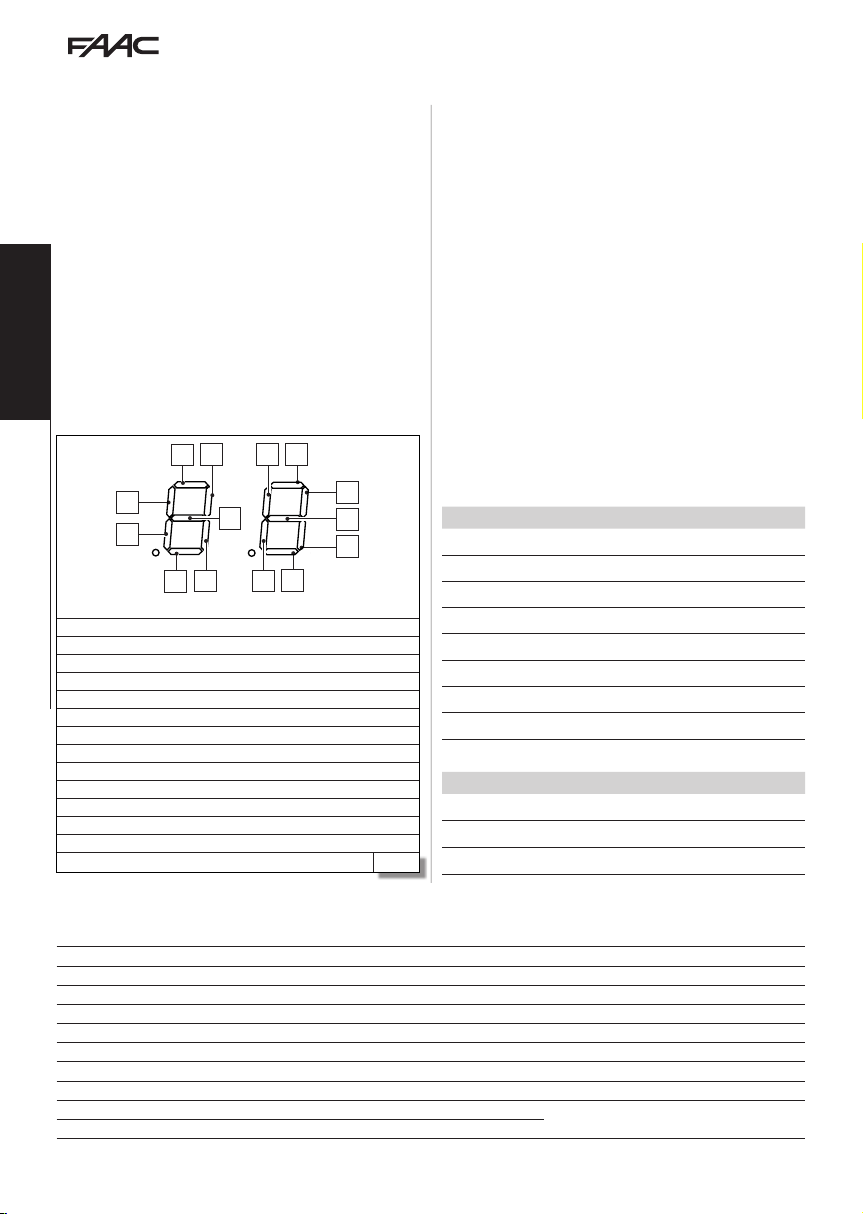

responds to a type of device:
9. DIAGNOSTICS
9.1 FIRMWARE VERSION
The firmware version is show on the display for one
second each time it is switched on.
9.2 AUTOMATED SYSTEM STATUS
The display, other than when in the programming
menu, provides information regarding the status of
the automation system ( 5).
9.3 ALARMS/ERRORS
 6 indicates the meaning of the relative codes.
9.4 LEDS CHECK
 7 boldindicatesthe conditionofthe LEDs with the
boardpowered, thegateatits halfwayposition and no
connected device active (=on ; =off).
 6 Alarms/Errors
display meaning
AL 27obstacle detected
Er 05 failsafe test failed
Er 15 motion timeout
 7 Status of the LEDs
LED meaning  
STOP Stop command not active active
CL - H Priority close command active not active
OP - H Priority open command active not active
SAFE CL Closing safety device not active active
SAFE OP Opening safety device not active active
OPEN B Partial motion command active not active
OPEN A Total motion command active not active
FCA Opening limit switch not engaged engaged
FCC Closing limit switch not engaged engaged
BUS Bus 2easy devices See § BUS 2easy devices
BUS MON Bus 2easy line
112
RP/DEC
MOTOR
LAMP
MAINS
2EASY
OPEN SX OPEN DX
LIMIT SW
F-+OPEN B
OPEN A
SAFE CL
CL -H
OP-H
SAFE OP
STOP
GND
GND
OUT 1
OUT 2
TEST OUT
+24V
N L1
U
V
W
L2 L3
M
3
LAMP N
GND +24V
FCC FCA
230V~
60W max
1500 W max
1
2
3
4
5
6
7
8
9
10
11
12
13
400V~ 3PH + N
INPUT
211
310
49
714
6
RP/DEC
MOTOR
LAMP
MAINS
2EASY
OPEN SX OPEN DX
LIMIT SW
F-+OPEN B
OPEN A
SAFE CL
CL -H
OP-H
SAFE OP
STOP
GND
GND
OUT 1
OUT 2
TEST OUT
+24V
N L1
U
V
W
L2 L3
M
3
LAMP N
GND +24V
FCC FCA
230V~
60W max
1500 W max
1
2
3
4
5
6
7
8
9
10
11
12
13
400V~ 3PH + N
INPUT
5
8
13
1 Open A control device
2 Open B control device
3 Closing photocells
4 Photocells for Open impulse
5 Opening/closing photocells
6 Close control device
7 Opening photocells
8 Stop control device
9 Closing sensitive edge
10 Not used
11 Not used
12 Opening sensitive edge
13 BUS 2easy status
14 Not used 5
