Fanvil X3U Pro User manual

Quick Installation Guide
Fanvil Technology Co., Ltd
www.fanvil.com
X3U Pro
V1.02
- 4 -P/N:CJBA100228D0
Fanvil Technology Co., Ltd
Website: www.fanvil.com
EMail: [email protected] [email protected]
Tel: [phone] Fax: [phone]
Add: 10/F Block A, Dualshine Global Science Innovation Center,
Honglang North 2nd Road, Bao'an District, Shenzhen, China
Programmable keys
1. You can configure shortcuts for the programmable keys.
2. Press Menu > Basic > Keyboard, select among the
configurable items, and select your desired type and value,
press OK key.
Do not disturb
1. Press DND soft key, and enable the device do not disturb
mode.
2. Or press Menu > Features > DND, and select the Mode and
Type, and press OK key.
Voice mail
1. To access your voice mailbox, press or Menu
> Message > Voice Message, number of messages will be
indicated if provided by your server or pbx.
2. Select the line and press Play to call.
Call list
Phonebook
Access phonebook:
Add new entry:
1. Press or Contact soft key or Menu > Contact >
Local Contacts.
2. Select All Contacts or other group.
3. To dial an entry, press Dial soft key or pickup handset
or press or .
1. Press Contact soft key, Press All Contacts or other
group > Press Add.
2. Enter name and number and press OK soft key.
1. Press key or Menu > CallLog > Local Call Logs.
2. Scroll through the list using .
3. Todial an entry, press Dial soft key or pickup handset or
press or .
Call Mute
1. Press to Mute the microphone during the call.
2. Press again to un-mute the conversation.
Call forward
1. Press Menu > Features > Call Forward.
2. Select the line, the type of forward, enter the destination
number and status, and press OK soft key.
Call transfer
Attended transfer:
Blind transfer:
1. Press key or Xfer soft key during the active conversation,
the call is put on hold.
2. Dial the second telephone number.
1. Press key or Xfer soft key during the active conversation,
the call will be on hold.
2. Then enter the 2nd telephone number and press key
or Xfer soft key.
3. When the call is answered, then press key or Xfer soft
key to complete the operation.
Putting a call on hold
1. Press key or Hold soft key, caller is put on hold.
2. Toretrieve the call press key or Resume soft key.
Note: with more than one active call, select desired call with
the navigator keys and use the corresponding soft key to
hold or resume.
Multiparty conference
1. Once in line with 1st caller, press key or Conf soft key,
1st caller is put on hold.
2. Then call the 2nd number.
3. After,2nd call is established,press key or Conf soft key to
set up the conference.

Screen icon
In hands-free mode
In headset mode
In handset mode
Mute activated
Silent mode

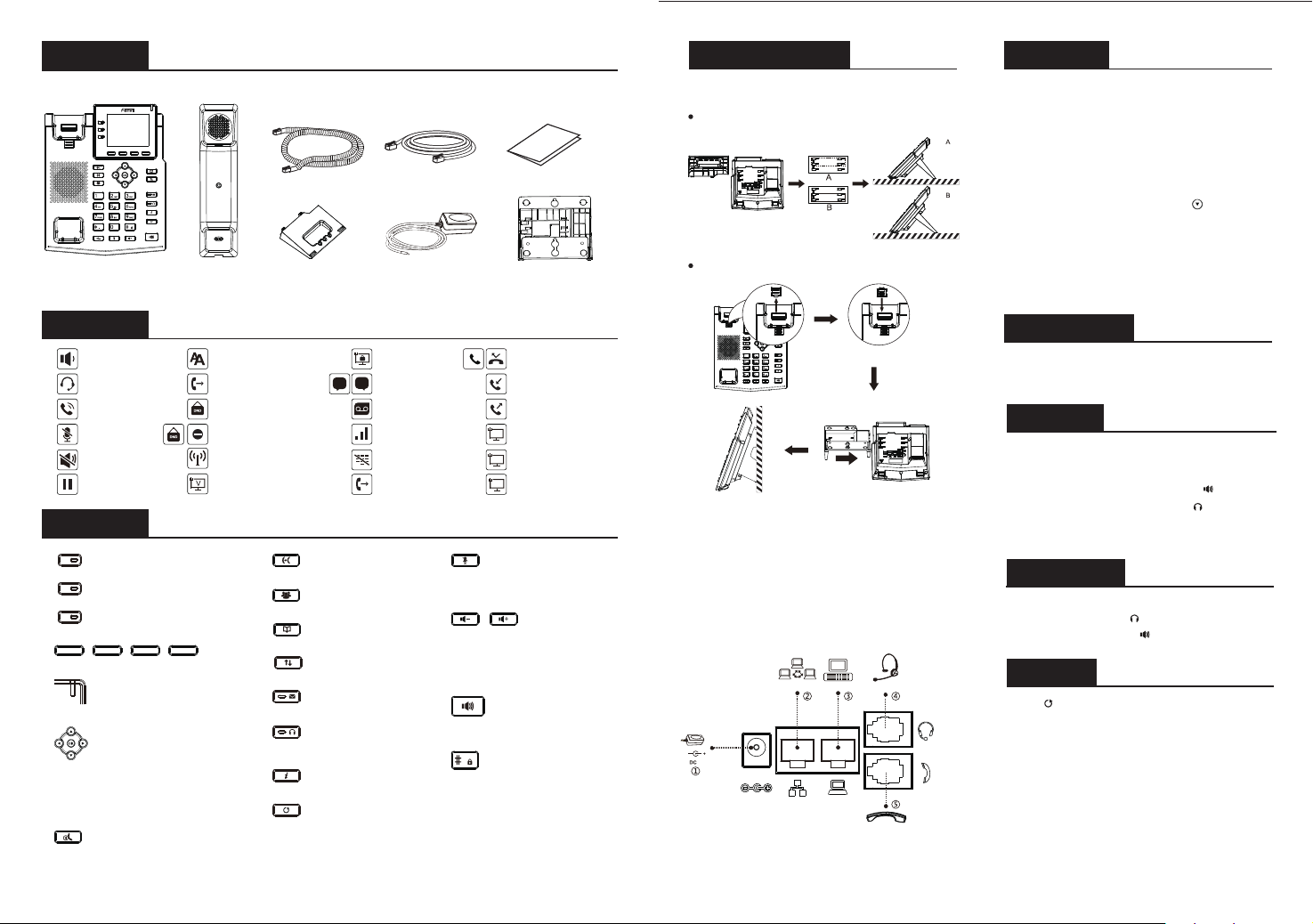

Packaging list
Soft keys
Message waiting indicator
Left and right navigation keys
Up navigation key, Shortcut
to call log
Down navigation key, Shortcut
to Status OK key, Shortcut to Menu
Hold key, Hold/Resume the call
Keys features
IP Phone Handset
Handset Cord
Stand Power Adapter
(Optional)
Ethernet Cable Quick Installation Guide
- 2 - - 3 -
Wall Stand
(Buy separately)
In idle mode: ringer off
In communication mode:
mute/un-mute a call
In idle mode or during ringing:
increase or decrease ringer volume
In communication: increase or
decrease handset, headset or
hands-free volume
Hand-free key, activate/deactivate
hands free
Long press to lock keypad.
Enter PIN to unlock keypad (default 123)
Configuration via web
1. Get the IP address from the phone: Press key,
or Menu > Status > ETH .
2. Login: Input the IP address in the web browser.The PC
and phone should be in the same IP address segment
(The default username and password are both ‘admin’.)
3. Configure:Select network/account etc, and fill the relevant
content.
4. Save the configuration.
Language setting
1. Press Menu key > Basic > Language.
2. Select the desired language and press OK soft key.
Making a call
Accepting a call
1. Pre-dialing:enter the phone number and pick up the handset.
2. Direct dialing:lift the handset and enter the phone number.
3. Handsfree:enter phone number and press or vice versa.
4. Headset: enter phone number and press or vice versa.
1. Using the handset: pick up the handset.
2. Using the headset: press .
3. Using the handsfree:press .
Call is on hold VLAN activated
VPN activated
Keypad locked
Forward call(s)
Received call(s)
Dialed call(s)
Missed call(s)
Internet connected
Internet is disconnected
X
No IP address
!
Disable do not disturb (Blue)
Auto-answering
activated
Call Forward activated
SIP hotspot activated
Configuration
Configuration viaLCD menu of phone
1. Press Menu > Advanced (default password 123)
2. Select Network: To configure the Network Settings
(IPv4/IPv6/IPv4&IPv6,DHCP/Static/PPPoE).
3. Select Accounts: To configure enable the account, fill the
SIP server address, port, user name, password etc.
4．Save the configuration.
Installation the device
Please follow the instructions in below picture to install the
device.
Bracket desktop installation
Wall mounting (Wall Stand need buy separately)
Connecting to the Device
Please connect power adapter, network, PC, handset, and
headset to the corresponding ports as described in below
picture.
①Power port: connect the power adapter.
②Network port: connecting local area network or Internet.
③PC port: the network port connect to the computer.
④Headset port: connect headset.
⑤Handset port: connect IP Phone handset.
5V
Internet PC Headset
Handset
Do not disturb
activated (Red)
New SMS
New VM Messages
Voice quality level
of call
SMS
Call transfer key
Conference key
Call logs key
Phonebook key
Voice messages key
Headset key,
Activate/deactivate Headset
Status key
Redial key, Access to redial
the last record
5. Designated line: press line key,enter phone number and
press dial key.
Line keys
Redial
1. Press redial a call number.
