Festo Cpa vi series User manual

Compact Performance

CPA Valve terminal

Pneumatics

Typ CPA..-VI

AAAA

AAA

AAAA

AAA

AAAA

AA

AAA

AAAA

AA

AAAA

AAA

AAAA

AA

AAAA

AAA

AA

AAA

AAAA

AAA

AAAA

AAA

AAAA

AAA

AAAA

AA

AAA

AAAA

AAA

AAAA

AAA

AAAA

AA

AAAA

AAA

AAAA

AA

AAA

AAAA

AAA

Author: M. Simons

Editors: H.-J. Drung, M. Holder

Translation: D. Smith

Layout: Festo, Dept. KI-TD

Type setting: KI-TD

Edition: 9808A

(Festo AG & Co., D-73726 Esslingen,

Federal Republic of Germany, 1998)

The copying, distribution and utilization of this docu-

ment as well as the communication of its contents to

others without expressed authorization is prohibited. Of-

fenders will be held liable for the payment of damages.

patent, utility model or ornamental design registration.

Printed on 100 % recycled paper

CPA... 9808A I

Order no.: 173 515

Title: MANUAL

Designation:P.BE-CPA-GB

II CPA.. 9808A

Contents

Designated use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V

Target group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V

Important user instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . VI

Notes on this manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . VIII

Product-specific terms and abbreviations . . . . . . . . . . . . . . . . . . . . . . . . XI

1. System summary

1.1 Summary of variants . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

1.2 Description of the components . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6

2. Fitting

2.1 Fitting variants . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3

2.1.1 Fitting onto a wall . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4

2.1.2 Fitting onto a hat rail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5

3. Installation

3.1 General connecting principles . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3

3.2 Connecting the CPA valve terminal. . . . . . . . . . . . . . . . . . . . . . . 3-5

3.2.1 Auxiliary pilot air. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5

3.2.2 CPA valve terminal with separation of pressure zones . . . . . . . 3-9

3.2.3 Connecting the supply, exhaust and work lines. . . . . . . . . . . . . 3-11

3.2.4 Connecting the electric cables. . . . . . . . . . . . . . . . . . . . . . . . . 3-16

4. Commissioning

4.1 Commissioning and testing the valves. . . . . . . . . . . . . . . . . . . . . 4-3

4.2 Locating faults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-11

CPA... 9808A III

5. Maintenance and conversion

5.1 General precautionary measures. . . . . . . . . . . . . . . . . . . . . . . . 5-3

5.2 Dismantling the CPA valve terminal. . . . . . . . . . . . . . . . . . . . . . 5-4

5.3 Replacing CPA valve terminal components. . . . . . . . . . . . . . . . 5-7

5.3.2 Replacing valve, reserve or additional pressure supply plates 5-7

5.3.2 Replacing/fitting the surface silencer . . . . . . . . . . . . . . . . . . . . . 5-9

5.3.3 Replacing the end plate, sub-base or manifold block . . . . . 5-10

5.4 Conversion work on the CPA valve terminal . . . . . . . . . . . . . . 5-17

5.4.1 Conversion from pushing to pushing/locking manual override 5-17

5.4.2 Conversion to internal or external pilot air . . . . . . . . . . . . . . . 5-19

5.4.3 Conversion of the CPA valve terminal to different pressure

zones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-20

5.4.4 Conversion to single solenoid or double solenoid valve

locations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-22

5.5 Adding/removing valve locations . . . . . . . . . . . . . . . . . . . . . . . 5-23

A. Technical appendix

A.1 Festo-Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-3

A.2 Technical specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-4

A.3 Index. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-9

IV CPA.. 9808A

Designated use

The CPA valve terminals described in this documenta-

tion have been designed exclusively for controlling

pneumatic actuators and may only be used in conjunc-

tion with devices and components of other manufac-

turers, where these have been recommended or ap-

proved of by Festo:

– according to designated use

– in their original state

– without modifications by the customer

– in a faultless technical state.

The specified limits for pressures, temperatures, electri-

cal data, torques, etc. must be observed.

Please observe the regulations of the relevant national

and/or local technical authorities.

Target group

This manual is intended exclusively for personnel

trained in control and automation technology who have

experience in fitting, installing, commissioning, servicing

and converting pneumatic components.

CPA... 9808A V

Important user instructions

This manual contains instructions on the possible

dangers which may occur if the CPA valve terminal is

not used correctly. These instructions are printed in

italics, are placed in a frame and are also marked with

pictograms.

Danger

categories

A distinetion is made between the following instructions:

WARNING

This means that failure to observe this instruction

may result in serious injury to personnel and/or

damage to property.

CAUTION

This means that failure to observe this instruction

may result in injury to personnel and/or damage to

property.

PLEASE NOTE

This means that failure to observe this instruction

may result in damage to property.

VI CPA.. 9808A

Pictograms and symbols supplement the danger in-

structions and draw the user’s attention to the nature of

the dangers and their consequences.

Pictograms

The following pictograms are used:

Uncontrolled movements of loose tubing.

Unexpected movements of the connected actuators.

Hight electric voltage or undefined voltage states of the

electronic components with subsequent effects in con-

nected circuits.

Electrostatically vulnerable components. These may be

damaged if their contact surfaces are touched.

Recommendations and tips are marked by the picto-

gram shown here.

•• The bullet marks activities which can be performed in

any desired sequence.

Text

markers

1. Numbers denote activities which must be carried out

in the numerical sequence indicated.

– Hyphens denote general activities.

CPA... 9808A VII

Notes on this manual

This manual contains specific information on fitting, in-

stalling, commissioning, servicing and converting the

CPA valve terminal. The manual deals only with the

pneumatic components and refers to the valve terminal

variants listed in the following table:

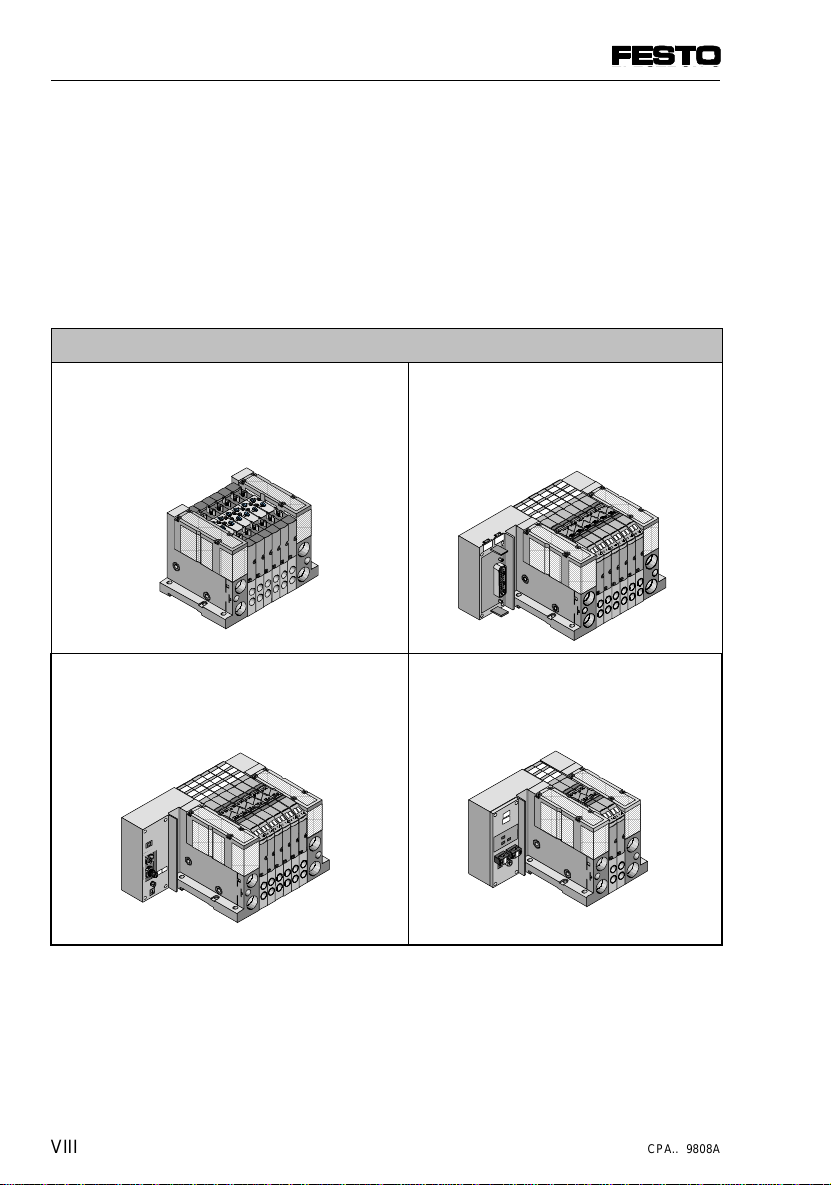

Variants of the CPA valve terminal type CPA..-VI

with individual connection (IC connection)

Information on electrics/electronics:

in this manual

with multipin connection (MP connection)

type CPA..-IMP. Information on

electrics/electronics: see sheet with

product

with CP connection type CPA..-IFB-CP and

CPA..-IFB-DN. Information on electrics/electro-

nics: see manual "CP system, installation and

commissioning

with AS-i connection type CPA..-IFB-ASI or

CPA..-IFB-ASI-Z. Information on electrics/

electronics: see sheet with product

Information on further CP modules can be found in the

manual for the relevant module. The following table

gives a summary.

AAAA

AAA

AAAA

A

AAAA

AAA

AAAA

A

AAA

AAAA

A

AAA

AAAA

A

AAA

AAAA

AA

AAA

AAAA

A

AAAA

AAA

AA

AAAA

AA

AAA

AA

AAA

AAAA

AA

AAA

AAAA

AA

AAA

AA

AAA

AAAA

AA

VIII CPA.. 9808A

Manuals on the CP system Peripherals

Manual "CP system, installation and commissioning"

Content General, basic information on the method of operation,

fitting, installation and commissioning of CP systems.

Manual "CP field bus node,

programming and

diagnostics"

"CPA valve

terminal,

pneumatics" or

"CPV valve

terminal,

pneumatics"

"CP modules,

electronics"

Content Special information

on commissioning,,

programming and

diagnostics related

to the node used.

Information on

fitting, installing

and

commissioning

CPA- or CPV-

valve terminals

Information on

fitting,

installing and

commissioning

CP-EA

modules

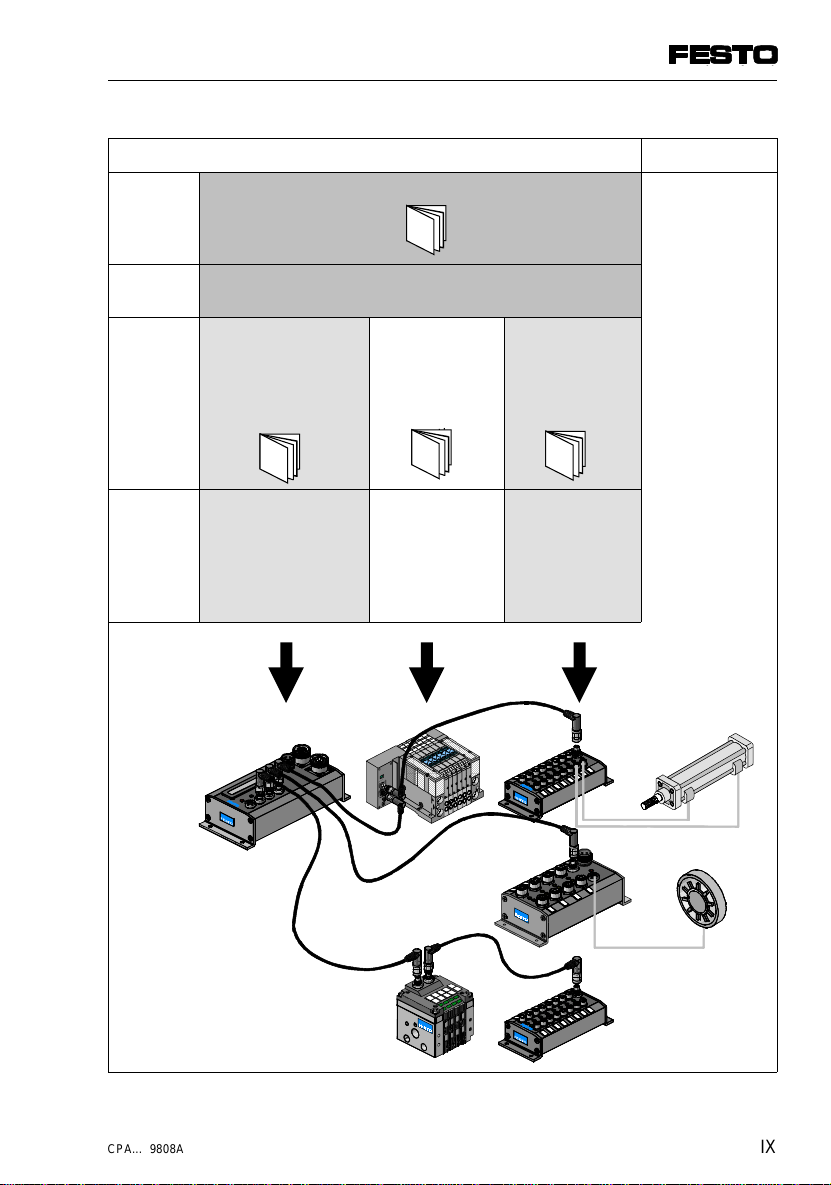

Fig. 0/1: Manuals on the CP system

AA

AAAA

AA

AAA

AA

AAA

A

AAA

AAAA

A

CPA... 9808A IX

The CPA valve terminal consists of a combination of

different plates. The main components of the CPA valve

terminal are the valve plates, sub-bases and end plates

(see diagram).

1

2

3

Valve plates

Sub-bases

End plates

Fig. 0/2: Main components of the CPA valve terminal

This manual contains the documentation for the

valve plates with Ident. code B, E, G, H, J, K, M and N

(see chapter "System summary, "Description of the

components").

AAA

AAAA

AA

AAA

AAAA

AA

AAAA

AAA

AAAA

AA

AAA

AAAA

AA

1

3

2

3

XCPA.. 9808A

Product-specific terms and abbreviations

The following product-specific terms and abbreviations

are used in this manual

Term Meaning

Additional pres-

sure supply plate Plate for supplying pressure zones in the centre of the CPA valve

terminal. In this plate the compressed air is taken from work

connection 2 so that the appropriate valve plates are supplied with

compressed air.

AS-i Actuator-Sensor-Interface

CP Compact Performance

CPA10;

CPA14

Designation of the CPA valve terminal sizes:

CPA valve terminal with micro valve plates

CPA valve terminal with mini valve plates

CP cable Special cable for connecting the various CP modules.

CP modules Common term for the various modules which can be

combined in a CP system

CP system Complete system consisting of CP field bus node and

CP modules

CPA valve terminal CPA valve terminal (type 12) for field bus systems or with IC, MP, or

AS-i connections

CPA valve terminal

with AS-i con-

nection

CPA valve terminal variant with serial connections which enable the

valve terminal to be connected to the AS-i bus.

CPA valve terminal

with CP connection CPA valve terminal variant with socket and plug which enables the

CPA valve terminal to be connected to further CP modules.

CPA valve terminal

with individual con-

nection (IC con-

nection)

CPA valve terminal on which each valve solenoid coil is individually

connected via a special cable.

CPA valve terminal

with multipin con-

nection (MP con-

nection)

CPA valve terminal variant with Sub-D plug via which all valve

solenoid coils are centrally connected.

CPA... 9808A XI

Term Meaning

Components Common term for pneumatic sub-bases, valve plates, additional

pressure supply plates, reserve plates, end plates,

electrical sub-bases (with IC, MP, CP or AS-i connections), electrical

manifold bases, sub-bases, end plate covers, silencers.

Electrical bridge Conducts the supply voltage from the manifold base to the solenoid

coils on CPA valve terminals with MP, CP or AS-i connections.

Electrical sub-base Block with multipin, CP or AS-i connection

End plate Outer left and right hand end plates of the CPA valve terminal

with connections for supplying the valves with compressed air

and for conducting the exhaust air, as well as for connecting silencers.

HHB Manual override

I/O Input/output modules

Manifold base Block for electrical linking of the valve solenoid coils with the

electrical sub-base.

Pin type Plug connector (with/without inner thread) for connecting the supply

cables to the CPA valve terminal.

Pin type with inner

thread Pin-type adapter for connecting the supply tubing with QS screw

connectors.

Reserve plate Plate without valve function, for reserving valve locations.

Sub-base Pneumatic manifold base with open or closed

compressed air channel for single solenoid, double solenoid or mid-

position valves with work connections 2 and 4.

Tubing Connects the supply lines (tubing) to the CPA valve terminal

Valve plate Plate with single solenoid valve, double solenoid valve or mid-psition

valve

XII CPA.. 9808A

Chapter 1

System summary

1. System summary

CPA... 9808A 1-1

Contens

1. System summary

1.1 Summary of variants. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

1.2 Description of the components. . . . . . . . . . . . . . . . . . . . . . . . . . 1-6

1. System summary

1-2 CPA... 9808A

1.1 Summary of variants

Festo supports your automation task at the machine

level with CPA valve terminals. The modular structure of

the CP system enables you to optimally integrate the

CPA valve terminals and I/O modules in your machine

or system.

Due to its compact structure, the CPA valve terminal

can be fitted very closely to the actuators to be control-

led. As a result, shorter compressed air tubing can be

used. Flow losses are thereby minimized and the time

required for pressurizing and exhausting the com-

pressed air tubing is reduced. This is made possible by

the use of very compact valves with sufficient flow,

thereby reducing costs.

1. System summary

CPA... 9808A 1-3

The CPA valve terminals are available with the following

types of electrical connections:

CPA valve ter-

minal

variants

MP connection

CP connection

IC connection

AS-i connection

Fig. 1/1: Variants of the CPA valve terminal

This CPA valve terminal is available with 2 to max. 22

valve locations. The electrical connection for the valve

solenoid coils is made via individual connector plugs.

Max. 44 valve coils can be controlled.

CPA valve ter-

minal with

IC connection

AAAA

AAA

AAAA

AA

AAAA

AAA

AAAA

AA

AAA

AAAA

AA

AAA

AAAA

AA

AAAA

AAA

AAAA

AA

AAAA

AAA

AAAA

AAA

AAAA

AAA

AAAA

AAA

AAAA

AA

AAA

AAAA

AAA

AAAA

AA

AAAA

AAA

AAAA

AA

AAA

AAAA

AA

1. System summary

1-4 CPA... 9808A

This CPA valve terminal is available with 2 to max. 22

single solenoid valves or 11 double solenoid valve loca-

tions. Max. 22 valve coils can be controlled. The electri-

cal connection for the valve solenoid coils is made cen-

trally via the multipin plug.

CPA valve ter-

minal with

MP con-

nection

The CPA valve terminal with CP connection is available

with 2 to max. 16 single solenoid valves or max. 8

double solenoid valve locations. Max. 16 valve coils can

be controlled. The connection to the higher-order field

bus node is made via a special ready-to-use CP cable.

CPA valve ter-

minal with

CP con-

nection

This CPA valve terminal is connected to the AS-i bus by

means of a special AS-i cable. It is available with two

types of electrical connections:

CPA valve ter-

minal with

AS-i con-

nection – with additional supply connection (load voltage can

be switched off separately)

– without additional supply connections

Both variants are available with 2 to max. 4 single sole-

noid valve locations or max. 2 double solenoid valve

locations. Max. 4 valve coils can be controlled.

All CPA valve terminal variants are available with micro

valves (width of valve 10 mm, CPV10) or with mini

valves (width of valve 14 mm, CPV14). Mixed fitting

with both types of grid dimensions is not possible on a

CPA valve terminal.

Sizes of the

CPA valve ter-

minal

1. System summary

CPA... 9808A 1-5

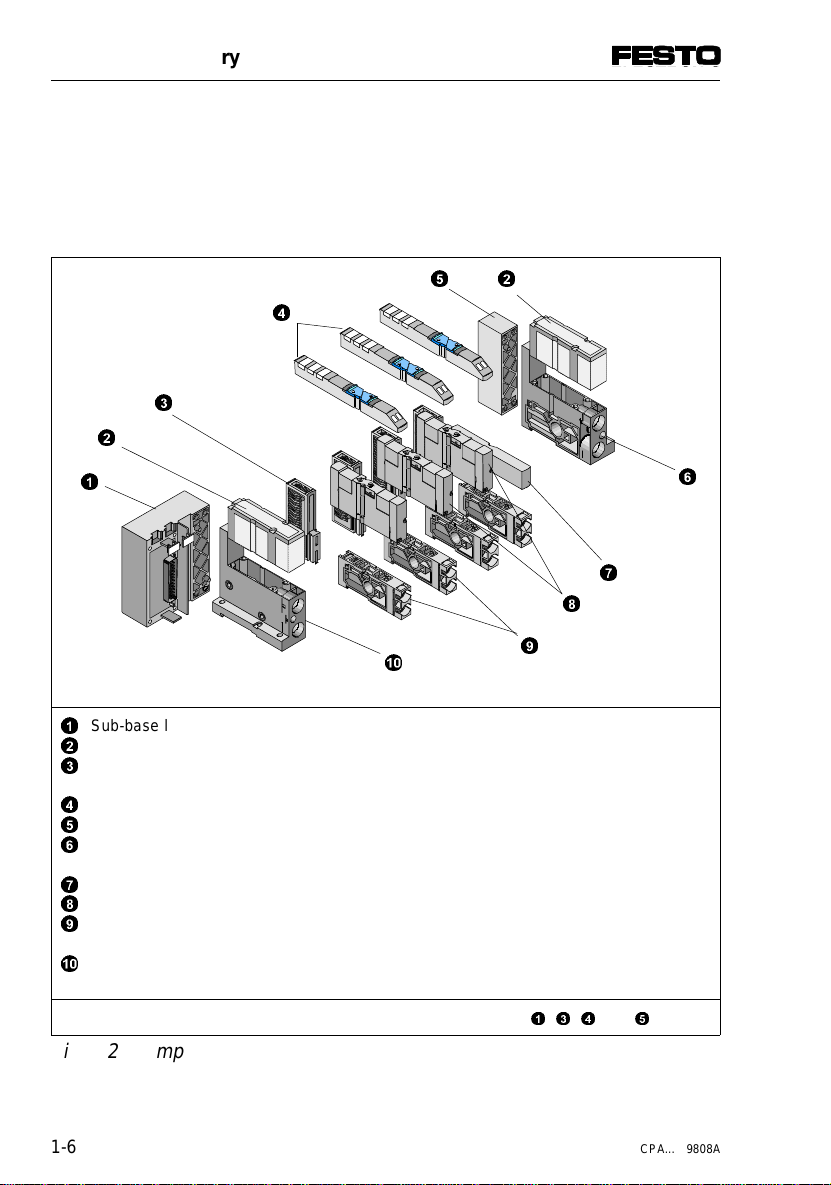

1.2 Description of the components

The CPA valve terminal consists of the following com-

ponents:

1

2

3

4

5

6

7

8

9

0

Sub-base left with MP, CP or AS-i connection

Cover or surface silencer on right or left hand end, plate

Electrical manifold block (manifold block EV1 occupies 1 address,

EV2 occupies 2 addresses)

Electrical bridge with manual override and LEDs

Sub-base right

Right-hand end plate (with supply and exhaust connections and support for the surface

silencer or end plate cover)

Reserve plate or additional pressure supply plate with integrated silencer

Valve plates fitted with single or double solenoid valves

Sub-base with work connections with/without isolation of compressed air channel 1 and

for additional pressure supply

Left-hand end plate (with supply and exhaust connections and support for the surface

silencer or end plate cover)

CPA valve terminals with IC connection without components

1

,

3

,

4

and

5

Fig. 1/2: Components of the CPA valve terminal

2

8

AAAA

AAA

AAAA

AA

AAA

AAAA

AA

AAAA

AAA

AAAA

A

AAA

AAAA

AA

1

0

6

7

5

2

3

9

4

1. System summary

1-6 CPA... 9808A

Festo CPA VI Series User manual

Popular Terminal Block manuals by other brands
