Festo VTSA-F-CB Assembly instructions

8099814

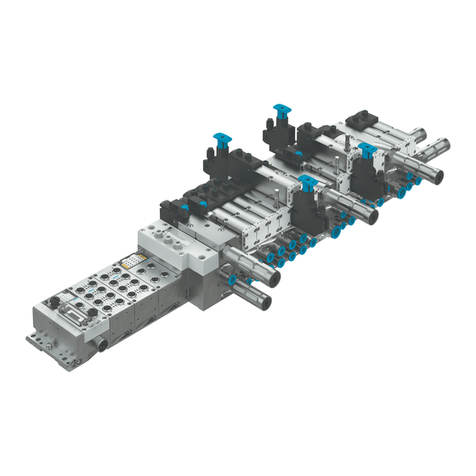

VTSA-F-CB
Valve terminal
8099814
2019-08
[8099816]
Instruc-
tions|Assembly,
Installation

Translation of the original instructions
PROFIsafe® is a registered trademark of its respective trademark holder in certain countries.
2 Festo — VTSA-F-CB — 2019-08

3Festo — VTSA-F-CB — 2019-08
1 About this document................................................................................................... 5
1.1 Other applicable documents / documentations............................................................ 5
1.2 Product labelling.......................................................................................................... 5
1.3 Specified standards...................................................................................................... 6
2 Safety........................................................................................................................... 6
2.1 General safety instructions........................................................................................... 6
2.2 Intended use................................................................................................................ 6
2.2.1 Range of application and certifications................................................................... 7
2.3 Foreseeable misuse...................................................................................................... 7
2.4 Training of qualified personnel..................................................................................... 7
3 Further information..................................................................................................... 7
4 Service..........................................................................................................................7
5 Product overview......................................................................................................... 7
5.1 Function....................................................................................................................... 7
5.1.1 Functions Pneumatics.............................................................................................7
5.1.1.1 Pressure supply to the valve terminal..................................................................... 7
5.1.1.2 Pilot air supply........................................................................................................8
5.1.1.3 Pilot exhaust air......................................................................................................8
5.1.1.4 Creation of pressure zones..................................................................................... 9
5.1.2 Electrical functions..................................................................................................9
5.1.2.1 Formation of voltage zones.....................................................................................9
5.2 Configuration................................................................................................................ 10
5.2.1 Product design........................................................................................................10
5.2.1.1 Pneumatic components.......................................................................................... 10
5.2.2 Display components............................................................................................... 14
5.2.2.1 Display elements of the pneumatic components.....................................................14
5.2.2.2 Display elements of the electrical components.......................................................15
5.2.3 Control elements of the pneumatic components.....................................................16
5.2.3.1 Manual override (MO).............................................................................................16
5.2.4 Connecting elements.............................................................................................. 18
5.2.4.1 Connecting elements of the pneumatic components.............................................. 18
5.2.4.2 Connection elements of the electrical components.................................................19
5.2.5 Labelling elements..................................................................................................19
6 Transport and storage................................................................................................. 20
7 Mounting..................................................................................................................... 20
7.1 Mounting types............................................................................................................ 20
7.2 Mounting the labelling elements.................................................................................. 20
7.2.1 Mounting/dismounting the identification holder.................................................... 20
8 Installation.................................................................................................................. 21
8.1 Installation Pneumatics................................................................................................ 21
Table of contents

8.1.1 Operation with unlubricated compressed air......................................................... 21
8.1.2 Pressure rise in the overall supply......................................................................... 22
8.1.3 Preventing back pressure...................................................................................... 22
8.1.4 Check prerequisites for vacuum or low pressure operation (valveswithIdent-
codeVV)
.. 22
8.1.5 Connecting pneumatic lines................................................................................... 22
8.1.5.1 Position and size of the pneumatic ports............................................................... 23
8.1.5.2 Common pneumatic lines....................................................................................... 25
8.1.5.3 Mounting the tubing.............................................................................................. 25
8.1.5.4 Removing the tubing.............................................................................................. 26
8.1.6 Setting pressure regulator..................................................................................... 26
8.1.6.1 Set pressure regulator with standard rotary knob.................................................. 26
8.1.6.2 Setting pressure regulator with adjusting screw.................................................... 28
8.1.6.3 Set pressure regulator with rotary knob with lock................................................. 28
8.2 Electrical installation..................................................................................................... 28
8.2.1 Switch on the power supply................................................................................... 28
8.2.2 Pin allocation......................................................................................................... 29
8.2.3 Earthing the valve terminal.................................................................................... 31
9 Commissioning.............................................................................................................32
9.1 Safe output module CPX-FVDA-P2................................................................................. 32
9.2 Commissioning Pneumatics...........................................................................................32
9.2.1 Testing pneumatic components............................................................................. 32
9.2.1.1 Determining the exhaust times of the pressure switches........................................32
9.2.1.2 Commissioning the pneumatic components with manual override (HHB)...............32
9.2.2 Completing commissioning of the pneumatic components.....................................36
9.2.2.1 Mounting the cover cap for manual override (optional).......................................... 36
9.2.2.2 Remove the cover cap for manual override (optional).............................................37
10 Technical data.............................................................................................................. 38
10.1 Ambient conditions....................................................................................................... 38
10.2 Technical data, mechanical............................................................................................38
10.3 Technical data, pneumatic.............................................................................................40
10.4 Technical data, electrical............................................................................................... 42
4 Festo — VTSA-F-CB — 2019-08

5Festo — VTSA-F-CB — 2019-08
1 About this document
This document describes the use of the above-mentioned product. Certain aspects of use are
described in other documents and must be observed.
1.1 Other applicable documents / documentations
All available documents for the product èwww.festo.com/pk.
1.2 Product labelling

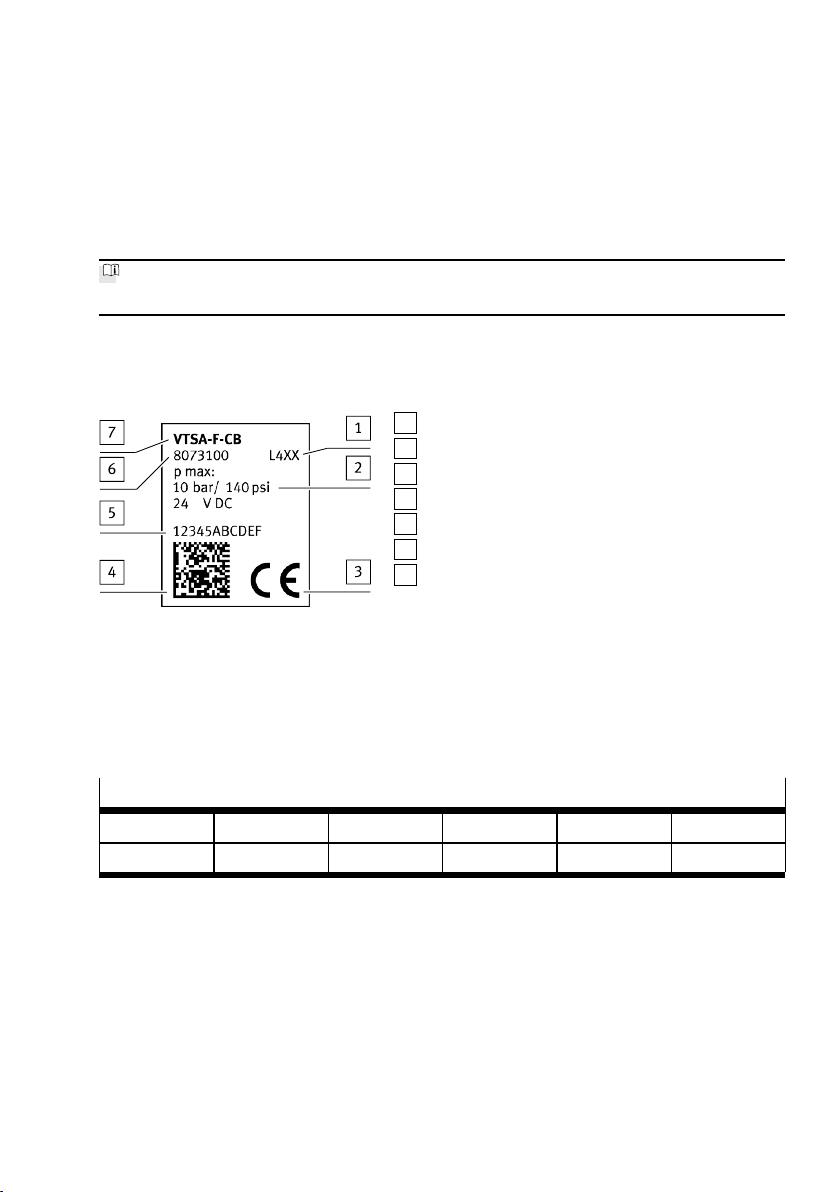

Structure of product labelling
1Serial number with manufacturing period (encoded)
2Technical data
3Product label
4Data Matrix Code
5Product key
6Part number
7Product designation
Fig. 1 Product labelling
The product labelling is located on the right side of the end plate.
Manufacturing period
In the product labelling, the first 2 characters of the serial number 1 indicate the manufacturing peri-
od in encrypted form. The letter specifies the manufacturing year and the character after it (number or
letter) indicates the manufacturing month.
Manufacturing year
H=2016 J=2017 K=2018 L=2019 M=2020 N=2021
P=2022 R=2023 S=2024 T=2025 U=2026 V=...
Tab. 1 Manufacturing year
About this document

Manufacturing month
1 January 2 February
3 March 4 April
5 May 6 June
7 July 8 August
9 September O October
N November D December
Tab. 2 Manufacturing month
1.3 Specified standards
Version
ISO 8573-1:2010-04 EN 60204-1:2018-09
IEC 60204-1:2016-10 DIN 51524-1…3:2017-06
Tab. 3 Standards specified in the document
2 Safety
2.1 General safety instructions
– Only use the product in original status without unauthorised modifications. Only the conversions
or modifications described in the documentation are permitted.
Conversions can change the function of the valve terminal. Check the conversion target with the
configurator before carrying out conversions èwww.festo.com.
– Only use the product if it is in perfect technical condition.
– Observe labelling on the product.
– Take into consideration the ambient conditions at the location of use.
– Store the product in a cool, dry, UV-protected and corrosion-protected environment. Ensure that
storage times are kept to a minimum.
– Prior to mounting, installation and maintenance work: Switch off power supply and secure it from
being switched back on.
– Prior to mounting, installation and maintenance work: Switch off compressed air supply and
secure it from being switched back on.
– For assembly and disassembly work: support the product and use suitable lifting equipment.
– Do not connect or disconnect plug connector when powered.
– Comply with the handling specifications for electrostatically sensitive devices.
– Observe further applicable documents.
2.2 Intended use
The VTSA-F-CB valve terminal is designed for switching and controlling compressed air in industrial
applications.
Safety
6 Festo — VTSA-F-CB — 2019-08

2.2.1 Range of application and certifications
Certificates and declaration of conformity for the product èwww.festo.com/sp.
The product bears the CE marking.
2.3 Foreseeable misuse
– If the load needs to be safely disconnected in safety-critical areas, use connections that have no
possibility of short circuit.
– Only use manifold sub-bases and pneumatic interfaces with a black electrical manifold module.
– Only mount pilot air valves with internal communication on the left valve position of the following
manifold sub-bases:
– VABV-S4-2HS-G18-CB-2T5
– VABV-S4-12HS-G-CB-2T5
2.4 Training of qualified personnel
Work on the product should only be conducted by qualified personnel.
The specialized personnel must be familiar with the installation and operation of electrical and pneu-
matic control systems.
Work on safety-related systems may only be carried out by safety engineering specialists.
3 Further information
– Accessories èwww.festo.com/catalogue.
– Spare parts èwww.festo.com/spareparts.
4 Service
Contact your regional Festo contact person if you have technical questions èwww.festo.com.
5 Product overview
5.1 Function
5.1.1 Functions Pneumatics
5.1.1.1 Pressure supply to the valve terminal
The valve terminal can be supplied with operating pressure by the following components:
– Pneumatic supply plate
– Right end plate
– Soft start valve
The following components can be used for additional power supplies:
– Pneumatic supply plates
– Vertical supply plates
Further information
7Festo — VTSA-F-CB — 2019-08

5.1.1.2 Pilot air supply
The pilot air can be supplied to the following components:
Characteristics Internal pilot air supply External pilot air supply
Type of pilot air supply Pilot air is branched internally
from port(1).
Pilot air is supplied externally.
Supplying component for the
first/right pressure zone
– Right end plate VABE-...R-...
– Soft start valve
VABF-…-P5A4S1…
– Pilot air valve VSVA-BT-
M32CS1-...
– Right end plate
VABE-...RZ-... : Supply to
port(14)
– Pilot air valve
VSVA-BT-M32CS2-...:
supply to port(2) of the
manifold sub-base
Supplying component for the
other pressure zones
– Soft start valve
VABF-…-P5A4S1…
– Pilot air valve
VSVA-BT-M32CS1-...
– Pilot air valve
VSVA-BT-M32CS2-...:
supply to port(2) of the
manifold sub-base
Required pilot pressure –Diagrams of the dependency
between working pressure and
pilot pressure
è 10.3 Technical data,
pneumatic
Working pressure at port(1) 3…10bar -0.9bar…10bar, depending
on the valves used
Vacuum or low-pressure opera-
tion
Not possible Possible
Tab. 4 Types of pilot air supply
Functional failure or malfunctions due to faulty pilot air supply
• Supply each pressure zone with working pressure and pilot pressure. Do not form pressure-free
zones è 5.1.1.4 Creation of pressure zones.
• Use only one supply component for the pilot air supply in each pressure zone.
• Observe the critical limits of the pilot pressure è 10.3 Technical data, pneumatic.
5.1.1.3 Pilot exhaust air
– Unducted pilot exhaust air: the pilot exhaust air is exhausted directly at each valve. If a soft start
valve or pilot air valve is used, the pilot exhaust air can only be exhausted in an unducted manner.
– Ducted pilot exhaust air: the pilot exhaust air is exhausted at the port(12) on the right end plate.
Product overview
8 Festo — VTSA-F-CB — 2019-08

Convert to ducted pilot exhaust air èDescription of VTSA-F-CB.

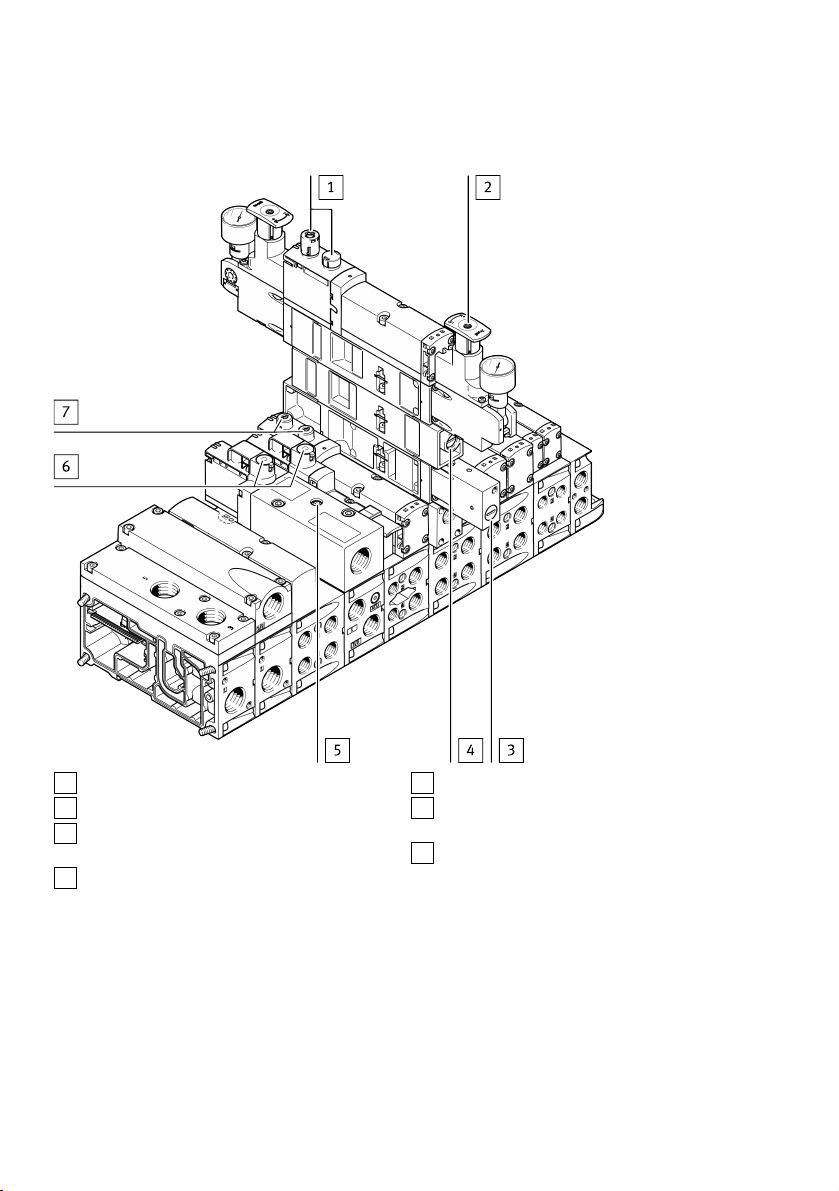

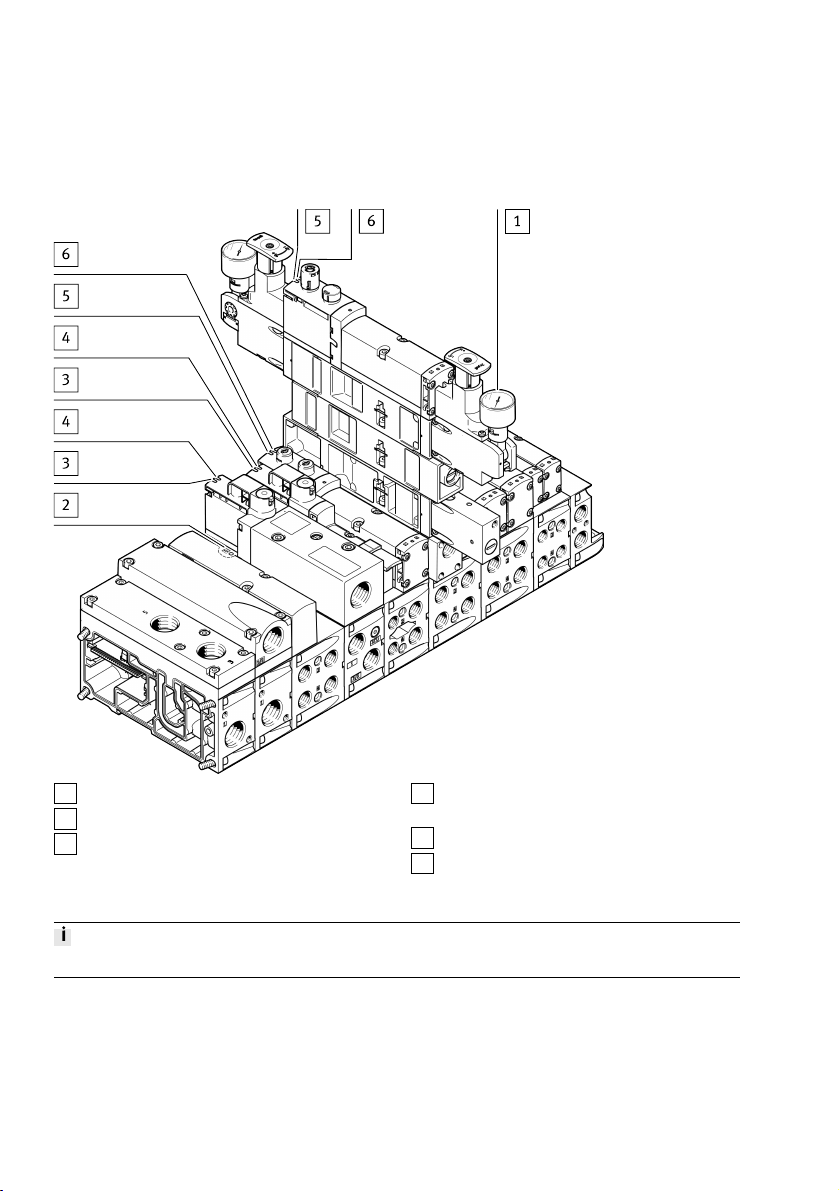

5.1.1.4 Creation of pressure zones
In order to supply valves with different pressures, pressure zones for the working air and the pilot air
can be formed within the valve terminal. The pressure zones are limited by separating seals between
the manifold sub-bases è 5.2.1.1.5. Separating seals for pressure zone formation.
Each pressure zone must be supplied with compressed air via a supplying component. Pressure-free
zones must not be created.
Pressure zones are essential in order to operate vacuum or low-pressure-compatible valves with other
valves.
5.1.2 Electrical functions
5.1.2.1 Formation of voltage zones
With the CPX terminal and the pneumatic interfaces, voltage zones can be formed in the pneumatic
part of the valve terminal.
The 24 V power supply to the valves is provided via the load voltage supply valves of the CPX terminal
(Uval).
The power for the pressure switches and the vacuum generators is supplied by the electronic power
supply (UEL/SEN). After switching off the load voltage supply, the pressure switches continue to be sup-
plied with voltage for the valves of the CPX terminal (Uval).
Further information on the power supply of the CPX terminal èDescription of the CPX system (CPX-
SYS-...).
Further information on the voltage zone concept of the valve terminal èDescription of valve terminal
VTSA-F-CB.
Product overview
9Festo — VTSA-F-CB — 2019-08

5.2 Configuration
5.2.1 Product design
5.2.1.1 Pneumatic components

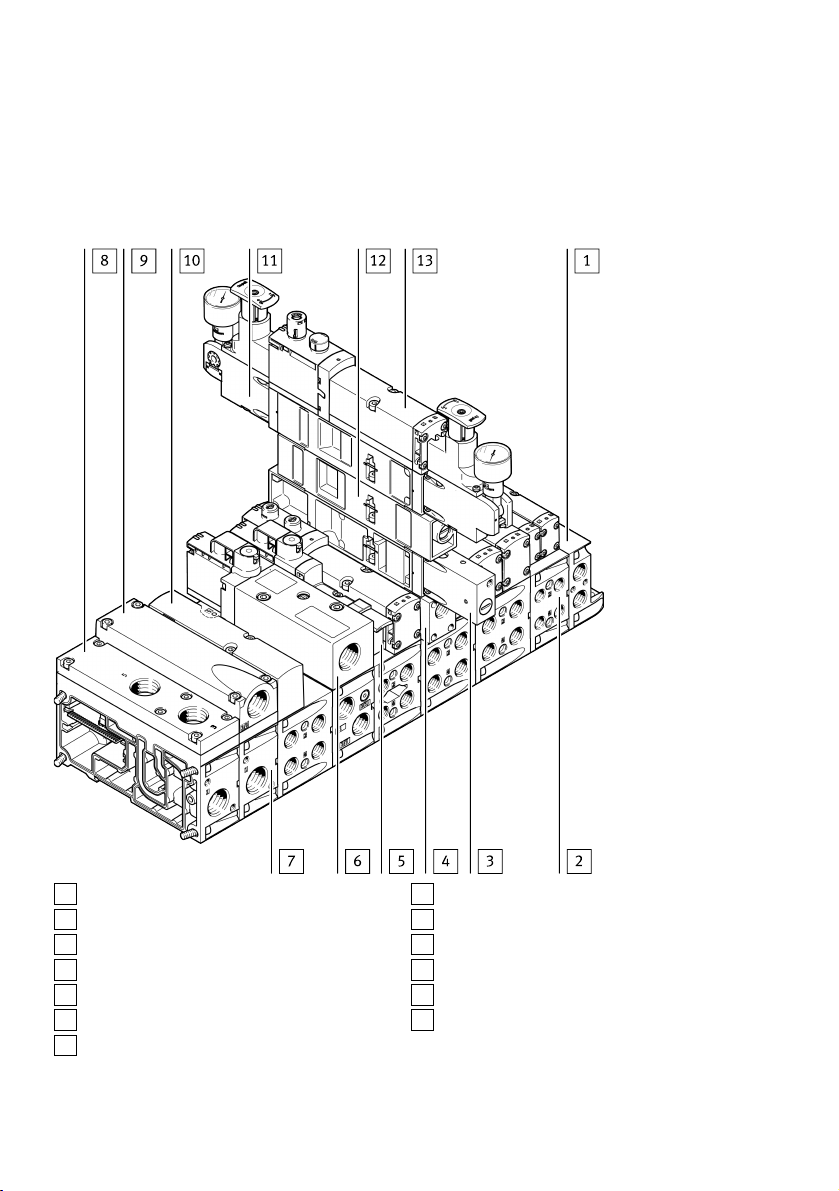

1Right end plate
2Manifold sub-base
3Vertical pressure shut-off plate
4Vertical supply plate
5Pilot air valve
6Soft start valve
7Supply plate
8Exhaust plate for separate exhaust air
9Exhaust air cover for common exhaust air
10 Cover plate
11 Pressure regulator plate
12 Throttle plate
13 Valve
Fig. 2 Pneumatic components of the valve terminal
Product overview
10 Festo — VTSA-F-CB — 2019-08

Valves
The valve terminal can be equipped with the following valves:
– 5/2-way valves
– 5/3-way mid-position valves
– 2x2/2-way valves
– 2x3/2-way valves
Unassigned valve positions can be sealed with cover plates.
Soft start valves with pressure monitoring

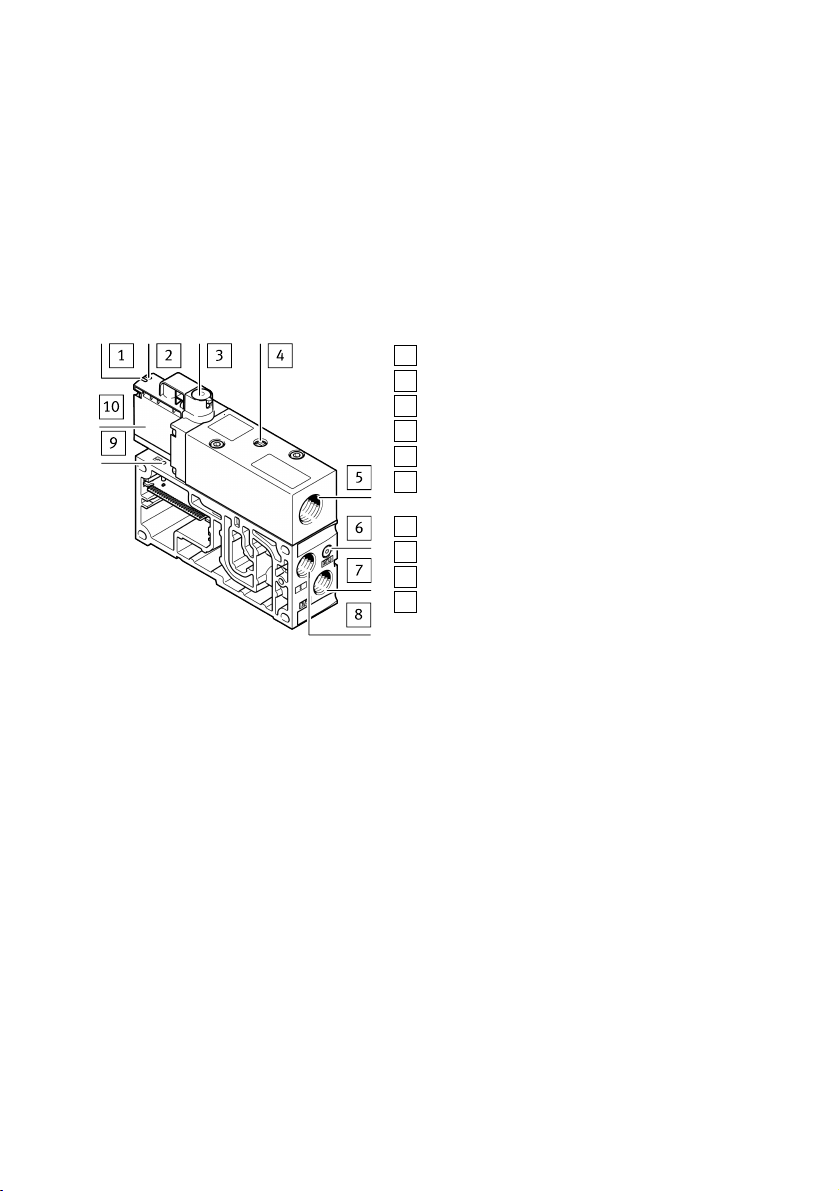

1LED for solenoid coil 14
2LED for pressure switch
3Manual override (optional)
4Air supply time flow control screw
5Exhaust port for duct (1)
6Connection for pressure tapping on the switched duct
(1)
7Exhaust port duct (3/5)
8Supply port duct (1)
9Group error LED of the soft start valve
10 Pilot control with pressure switch
Fig. 3 Soft start valve
The soft start valve can be used for the following purposes:
– adjustable, two-stage soft start of the working pressure
– single-stage soft start for the pilot air supply from port(1), depending on the variant of the soft
start valve
– exhausting the working pressure
– Exhausting the pilot pressure
– Query of the exhausted state with a pressure switch in the pilot control
The switching signal of the pressure switch is sent to the CPX terminal.
Product overview
11Festo — VTSA-F-CB — 2019-08

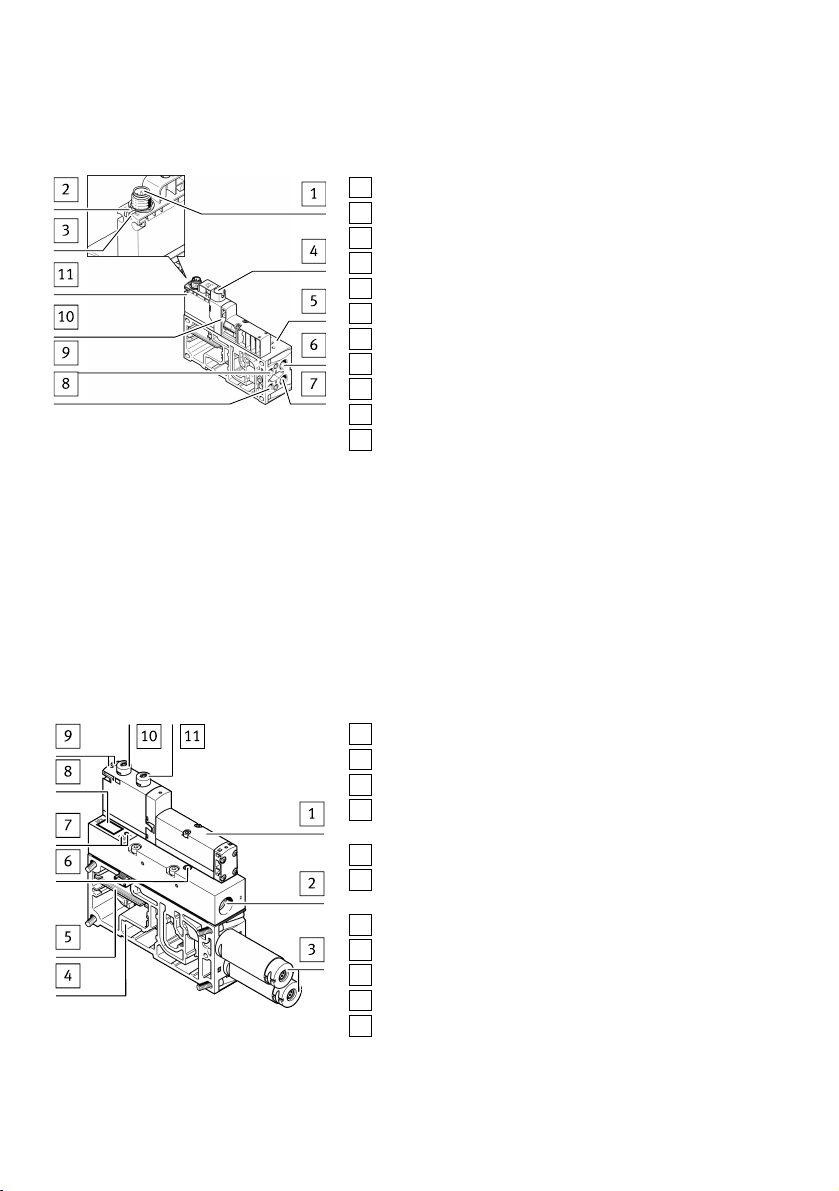

Pilot air valves with pressure sensing
1M12 connection (optional)
2LED for pressure switch
3LED for solenoid coil 14
4Manual override (optional)
5Additional valve position
6Working port (2) of the additional valve position
7Working port (4) of the additional valve position
8Exhaust port of the pilot air duct
9Supply port (external)
10 Exhaust port of the pilot air duct
11 Pilot control with pressure switch
Fig. 4 Pilot air valve
The pilot air valve can be used for the following purposes:
– Switching and exhausting the pilot air
The pilot air duct is additionally exhausted unmounted via the exhaust air opening aJon both
sides of the pilot air valve.
– Query of the exhausted state with a pressure switch in the pilot control
The switching signal of the pressure switch can be transmitted in one of the following ways:
– Internal communication: the switching signal is sent to the CPX terminal.
– M12 connection: the switching signal can be used in an external controller.
Vacuum generator (optional)
1Solenoid valve VSVA
2Vacuum port
3Silencer
4Manifold sub-base for valve terminal VTSA-F-CB
(pneumatic and electric)
5Electrical linkage to valve terminal VTSA-F-CB
6Flow control screw for adjusting the intensity of the
ejector pulse
7Status / error LED
87-segment display
9LED switching status indication for solenoid valve
10 Manual override for vacuum generation
11 Manual override ejector pulse
Fig. 5 Operating elements and connections
Product overview
12 Festo — VTSA-F-CB — 2019-08

The vacuum generator VABF is used to generate vacuum. Workpieces can be gripped and transported
with the vacuum generated and a suction gripper.
Further information èInstruction manual VABF-S4-...-CB-VH/VL-....

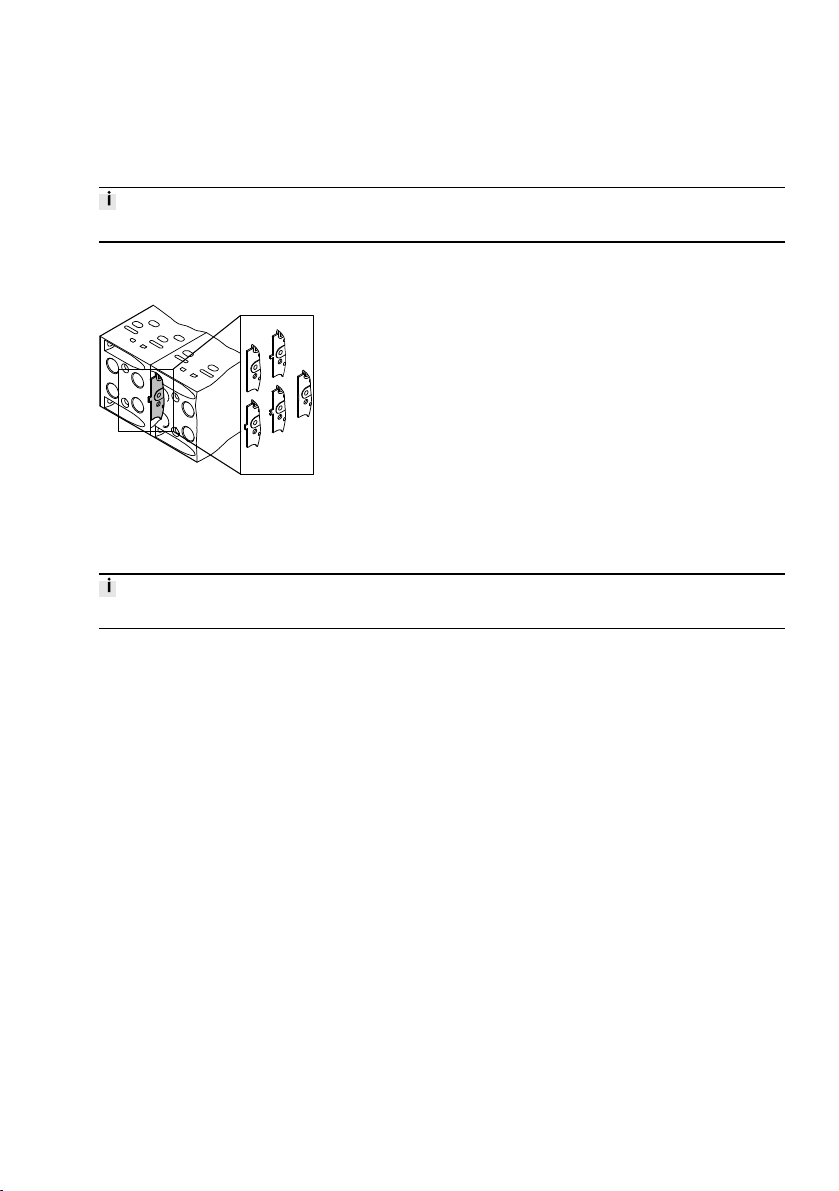

Separating seals for pressure zone formation
Fig. 6 Separating seal between manifold sub-bases
Pressure zones can be formed in the valve terminal to supply valves with different pressures. The
pressure zones are limited by separating seals between the manifold sub-bases.
Further information èDescription Valve terminal VTSA-F-CB.
Product overview
13Festo — VTSA-F-CB — 2019-08

5.2.2 Display components
5.2.2.1 Display elements of the pneumatic components
1Pressure gauge (optional)
2Group error LED of the soft start valve
3LED of solenoid coil 14 of special valves
4LED of the pressure switch of the special
valves
5Solenoid coil LED 12
6Solenoid coil LED 14
Fig. 7 Display elements of the pneumatic components
Meaning of the LED displays èDescription VTSA-F-CB.
Product overview
14 Festo — VTSA-F-CB — 2019-08

5.2.2.2 Display elements of the electrical components
1LEDs of the pneumatic interface

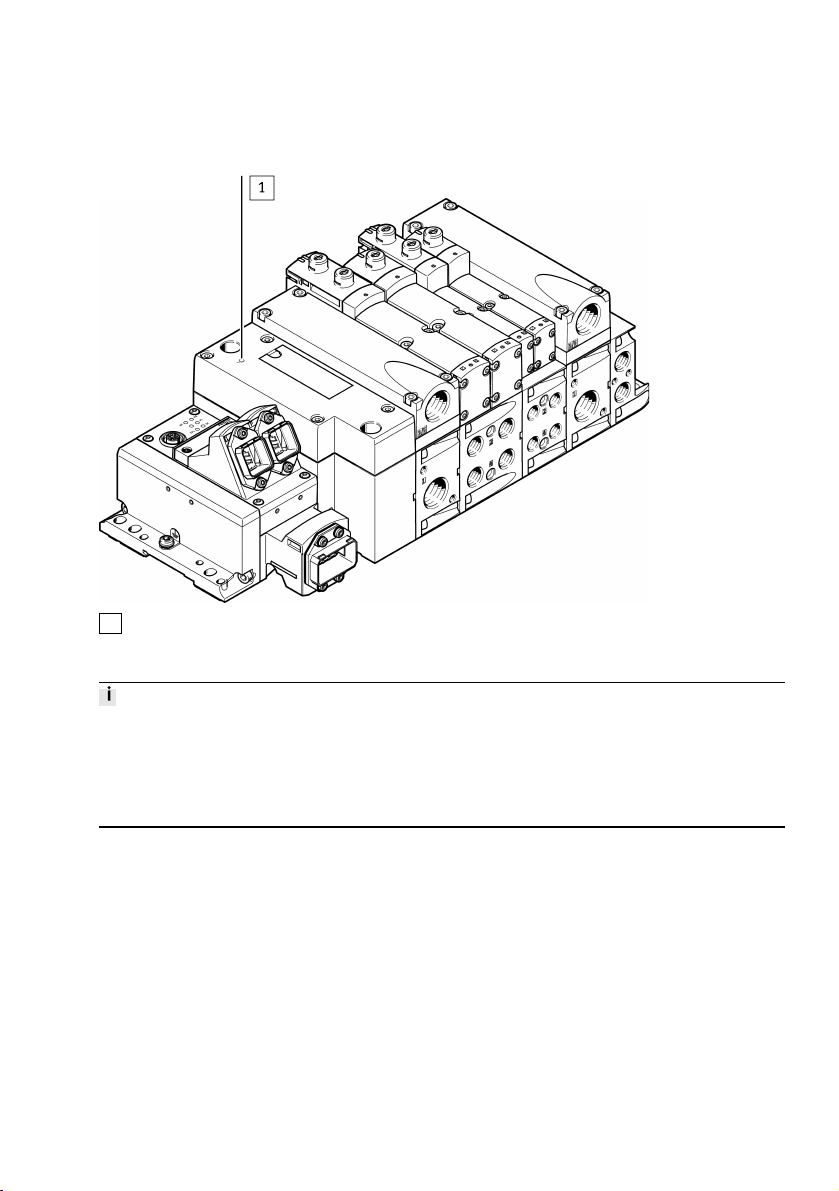

Fig. 8 Display elements of the electrical components
Depending on the variant of the pneumatic interface, the LEDs and the meaning of the LED displays
differ:
• Pneumatic interfaces VABA-S6-1-X2-CB und VABA-S6-1-X2-3V-CB èDescription of VTSA-F-CB.
• Pneumatic interfaces with integrated output module CPX-FVDA-P2 èBrief description CPX-FVDA-
P2.
Product overview
15Festo — VTSA-F-CB — 2019-08

5.2.3 Control elements of the pneumatic components
1Cover caps for manual override
2Adjusting knob
3Operating pressure plug screw for one valve
position
4Adjusting screw for controlled flow
5“Air supply time” flow control screw
7Manual override of the working valves (for
each pilot solenoid)
6Manual override of the special valves
Fig. 9 Control elements of the pneumatic components
5.2.3.1 Manual override (MO)
When the pressure supply is switched on, the manual override (MO) can be used to switch a valve to
an electrically unactuated, de-energised state.
Manual overrides of the working valves
Manual overrides are mainly used during commissioning
è 9.2.1.2 Commissioning the pneumatic components with manual override (HHB).
The valve-actuator combinations can be tested with the manual overrides .
Product overview
16 Festo — VTSA-F-CB — 2019-08

The basic functions of the manual overrides can be changed by fitting an MO cover
capè 9.2.2.1 Mounting the cover cap for manual override (optional).
Manual overrides of the special valves
Manual overrides are mainly used during commissioning
è 9.2.1.2 Commissioning the pneumatic components with manual override (HHB).
Product overview
17Festo — VTSA-F-CB — 2019-08

5.2.4 Connecting elements
5.2.4.1 Connecting elements of the pneumatic components

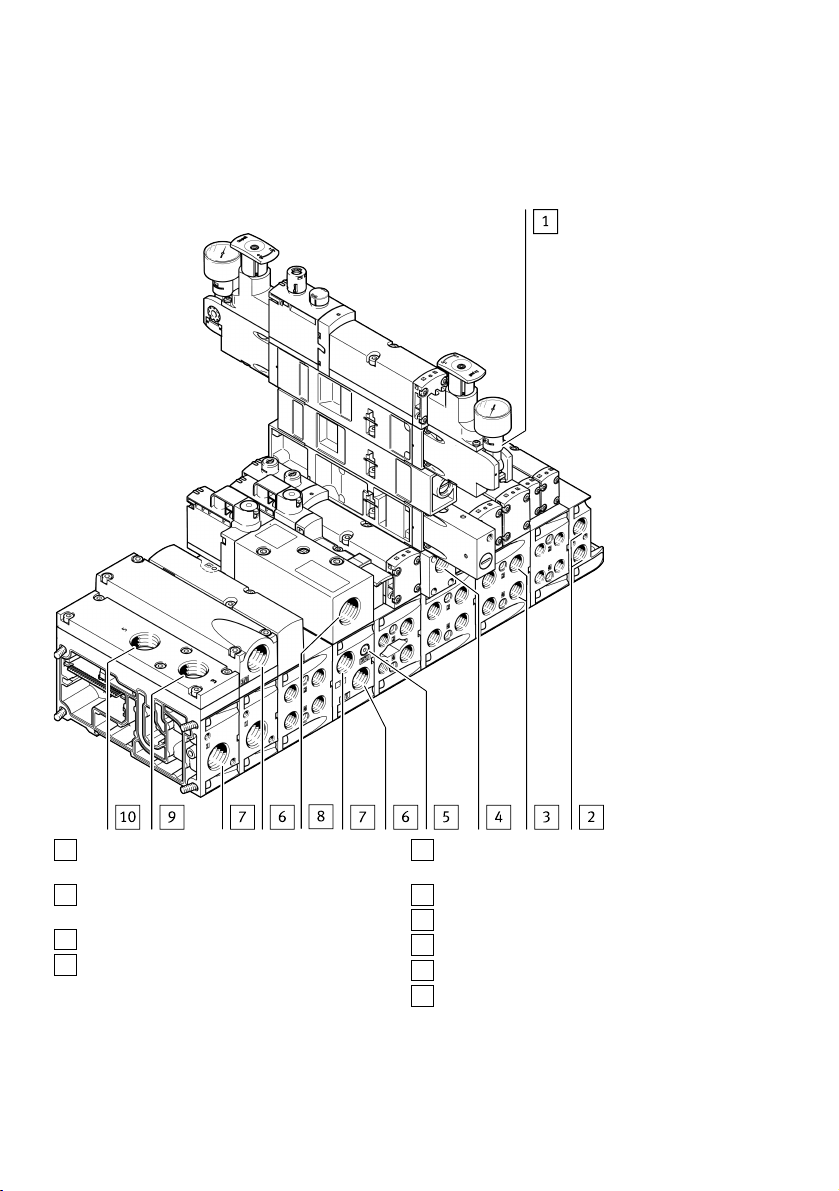

1Connection for pressure gauge (can be
turned 90°)
2Connections (12) and (14) for supplying the
external pilot air
3Working ports(2) and (4), per valve position
4Port (1) (individual operating pressure for
one valve position)
5Connection for pressure tapping on the
switched channel (1)
6Exhaust port channel (3/5)
7Supply port channel (1)
8Exhaust port for channel (1)
9Exhaust port channel (3)
10 Exhaust port channel (5)
Fig. 10 Connecting elements of the pneumatic components
Product overview
18 Festo — VTSA-F-CB — 2019-08

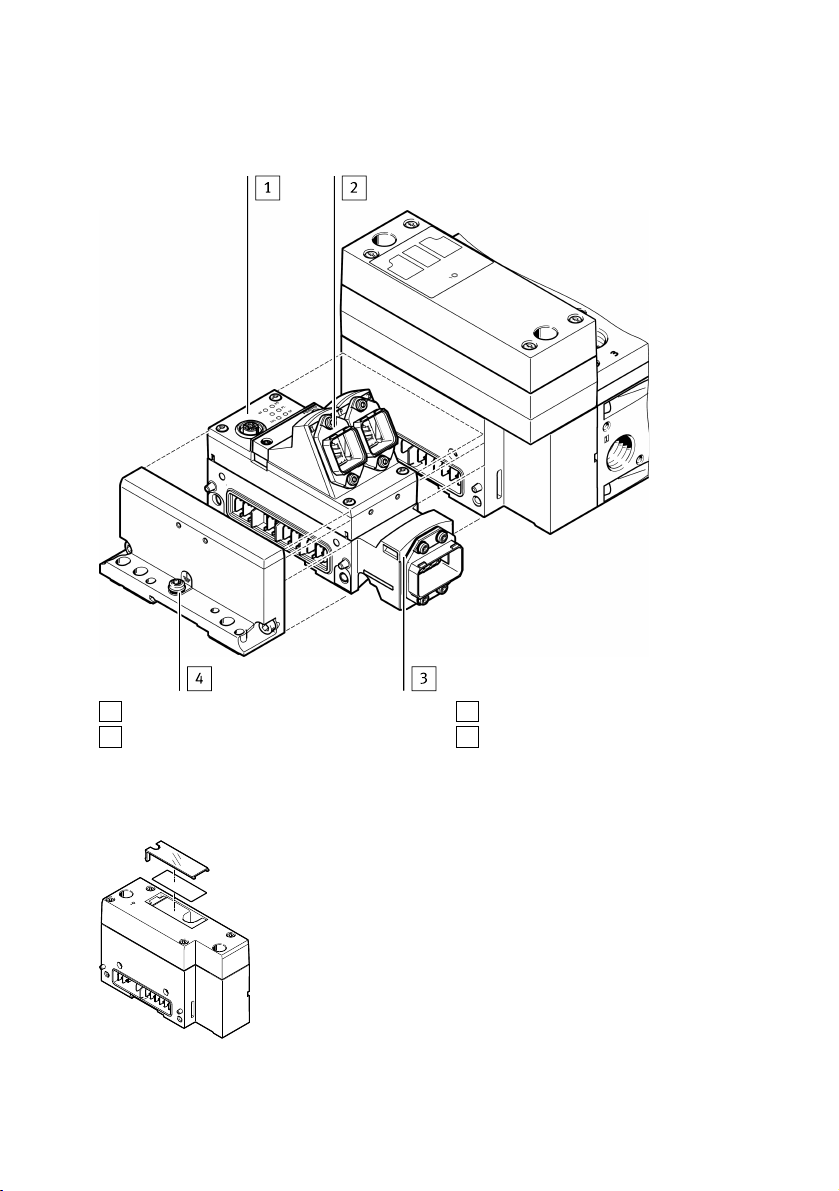

5.2.4.2 Connection elements of the electrical components
1Service interface, e.g. operator unit
2Fieldbus interface (fieldbus-specific)
3Power supply connection
4Earth terminal
Fig. 11 Connection elements of the electrical components
5.2.5 Labelling elements
Fig. 12 Inscription label for the pneumatic interface
Product overview
19Festo — VTSA-F-CB — 2019-08

Fig. 13 Inscription label holder
6 Transport and storage
Depending on the configuration, the valve terminal can weigh >15kg and have a large overall length.
– Use suitable lifting equipment for the specified weight èDelivery note.
– If present, do not remove the wooden substructure until after transport.
7 Mounting
7.1 Mounting types
Depending on the design of the CPX modules, the following mounting types are possible:
Assembly Wall Mounting system H-rail
CPX module (metal)
and VTSA/VTSA-F mod-
ule (18…52mm)
??Check mounting condi-
tions
Tab. 5 Mounting types
Mounting conditions and dynamic load èInstructions for mounting CPX-VTSA.

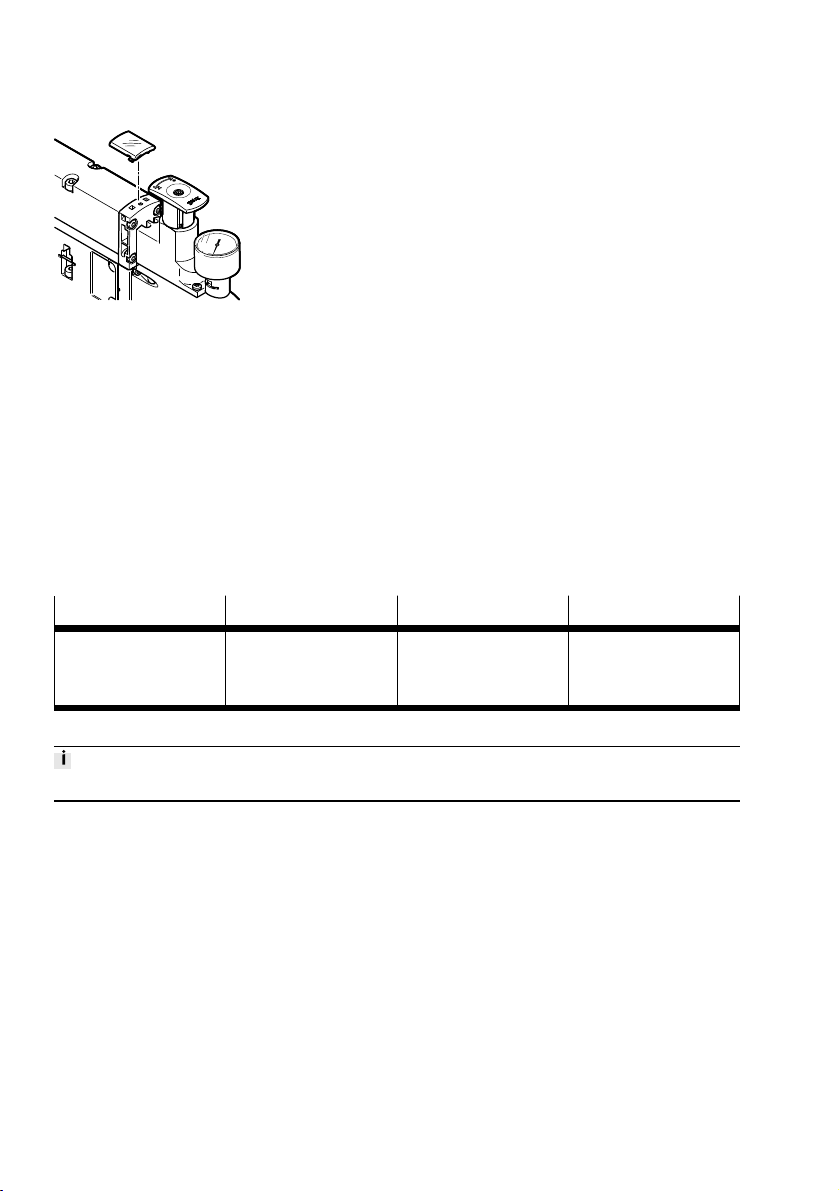

7.2 Mounting the labelling elements
7.2.1 Mounting/dismounting the identification holder
Optional identification holders can be mounted on the valves to identify pressure zones and voltage
zones. The identification holder provides space for 1 IBS-6X10 inscription label and 2 ASCF-T-Sx
labels.
Transport and storage
20 Festo — VTSA-F-CB — 2019-08
