7ENGLISH
1 ABOUT THIS MANUAL
This manual shall only be used for the reference of operation of this particular model. If the manual is used for other purposes, we will not under-
take any according consequences and responsibility.
Allinformationofthismanualshallbeprotectedbycopyrightandshallnotbecopiedandtranslatedinanypartofthisspecicationwithoutthe
written consent of manufacturer.
2 WARNING
• Power supply must be cut off when changing electrical components or maintaining and cleaning machines.
• Theplugmustbepluggedintoanoutletthatisproperlyinstalledandgrounded,topreventtheriskofreandelectricshock.
• Do not stand on this equipment.
• Do not allow children to play with and place the equipment in a place where children can touch. Please adjust the backrest to the highest position
when you leave.
• Please do not place the equipment in wet places such as bathroom to avoid electric shock or other failure; Also keep the controllers away from
water.
• Please do not place and operate the equipment in places where is painting/coating or supplying oxygen.
• Unless being monitored or instructed by personnel who can be responsible for their personal safety, the people who have physical obstacles,
tactile disorders, mental disorders, lack of experience, common sense or children, are not allowed to use the equipment.
• Please contact distributor, service center or related personal with appropriate skill and experience for repairing if the plug is damaged, in case
of any danger.
• Please make sure there is no accessible thing within the stroke during any operation of the beds.
• Operation should be processed by trained professionals.
3 PRECAUTIONS
• The equipment should be used by an experienced person who must be familiar with the product structure, performance and instructions. And
make the regular maintenance work.
• Read this manual carefully before installation, operation and adjustment. And please keep it well.
• This product shall not be used for single side or single point loading work.
• Comply with safety operation rules, do not overload the use of products, to ensure that the product safety protection equipment is complete and
reliable, eliminates unsafe factors on time.
• Tighten bolts and nuts regularly to avoid failure caused by loose, sliding, vibration and falling parts.
• During the maintenance, the operator shall not disassemble any parts of the bed at will.
• This product is not allowed to operate when it's with fault. If abnormal phenomenon or abnormal sound is found, it must be stopped for inspection
immediately, and work can be resumed after troubleshooting.
• The operator must be familiar with the precautions described in each section of the
manual to ensure the safety of person and product.
• This electric beauty bed is equipped with a three-wire power cord. The power cord
must be plugged into a three-hole outlet which is properly installed and grounded. This
is not only to prevent the risk of electric shock, but also ensure bed work properly.
• Please operate the equipment strict accordance with the warning label pasted to the
products.
• While controlling the lifting of the whole bed, the button must be pressed continuously
until the bed in a suitable position.
• Please pay attention that the continuous working times should be Max. 2Min. ON ;
18Min. OFF, when operating the motor.
• Maintenance should be processed by trained professionals.
• After each treatment, please use neutral reagent to clear the dust, stains on leather or
on wood pieces.

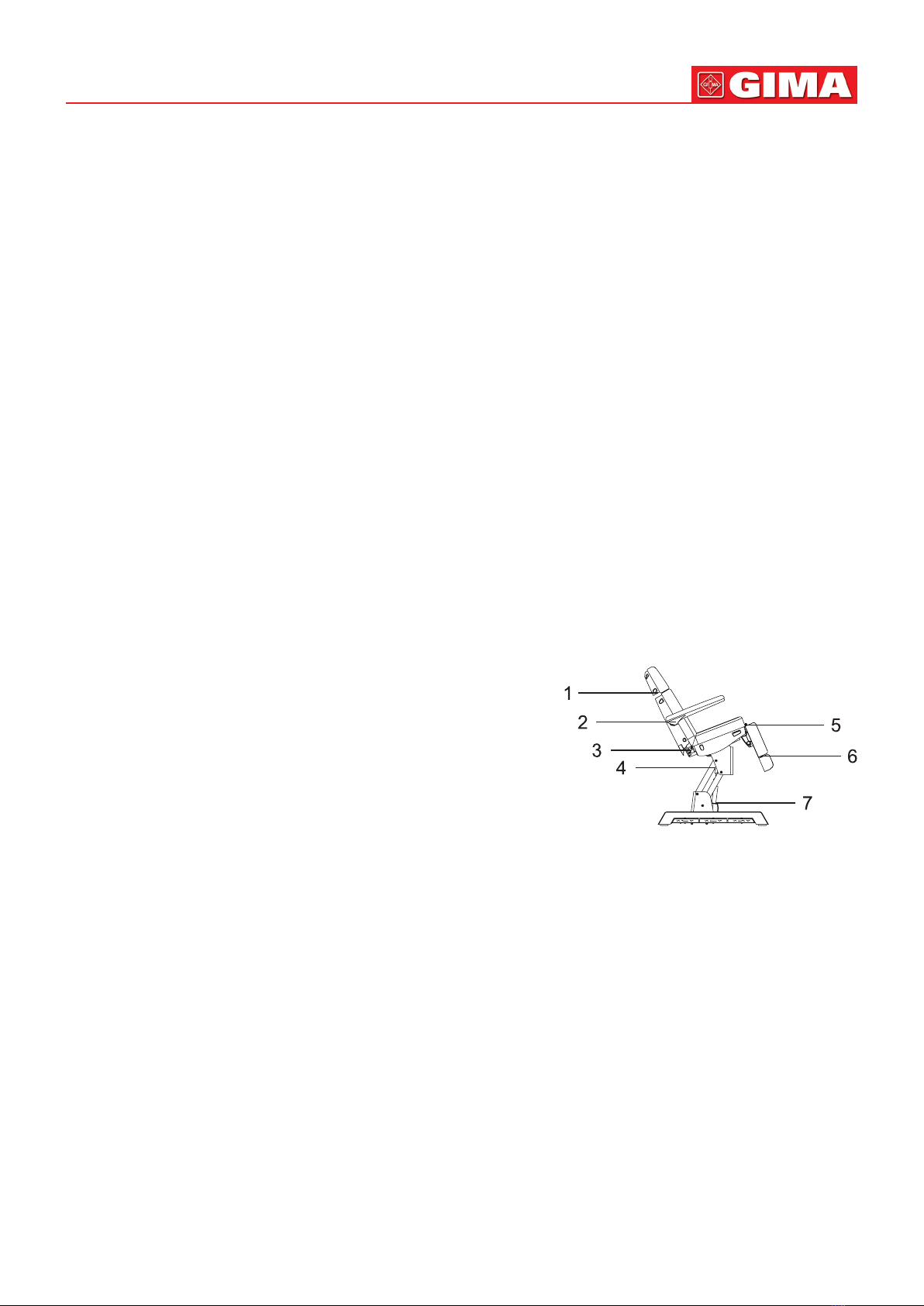

• When adjusting the backrest, seat cushion, footrest or lifting of the whole bed by hand
controller or installed foot controller, please keep your hands, feet and head away from
the position. (Please see right picture)
4 APPLICABLE RANGE
These electric beauty beds are suitable for beauty, massage and manicure treatment.
5 INSTALLATION
1.Putthebedtoaproperlocation,accordingtotheoveralllayout,thedaylightingorarticiallightingsandoperationconditionofthesalon'sorthe
home. And keep it in the clean, dry and cool environment.
2. Open the packing carton to check if the bed is intact and whether the accessories or spares are complete. Please contact distributor or us if
there's any problem.
3. Installation
 Placethebedtotheproperposition.Pleasenotethatitisunnecessarytoinstallextrascrewontheoortofastenthebed,becausetheoriginal
designhastakenthestabilityperformanceintoconsideration.Butpleaseensurethebedisplacedonarmandatground,soastoprevent
any accident. If the bed rotates or slant due to rough ground, please adjust the four pieces of plastic feet (M10x30) and nuts (M10) by hexagon
open-end wrench, which are fasten on the bottom panel, so as to ensure the bed is stable.
4. Connect the plug with power supply properly. (Details as shown below)

8
ENGLISH
6 STRUCTURE OF ELECTRIC BEAUTY BED
• This beauty bed consists of control box, motor, hardware, plastic parts and leather. Among them, the controller box is controlling the operation
of the motors and the hand controller.
• This beauty bed includes angle adjustment of the backrest, angle adjustment of the seat cushion and lifting adjustment of the whole bed which
is an overall and integral structure.
(Details as shown below)
angle adjustment of the backrest
lifting adjustment of the whole bed
angle adjustment of the seat inclination
footrest angle adjustment
Air switch
Connection box
Hand
controller

9
7 OPERATION INSTRUCTION
StandardConguration
ENGLISH
DESCRIPTION OPERATION
1 Backrest moves up Backrest goes up smoothly by pressing the button.
2 Backrest moves down Backrest goes down smoothly by pressing the button.
3 Whole bed moves up The bed goes up smoothly by pressing the button.
4 Whole bed moves down The bed goes down smoothly by pressing the button.
5 Seat inclination up Seat inclining smoothly by pressing the button.
6 Seat inclination down Seatgoesatsmoothlybypressingthebutton.
7 Footrest moves up Press the button, footrest will move up, its angle will be reduced to minimum.
8 Footrest moves down Press the button, footrest will move down, its angle will be moved to maximum.
14 Safe-lock button Keep pressing the "safe-lock button" for about two seconds, lighting up the
green light around the button, all the buttons can not be operated except safe-
lock button . Keep pressing the safe-lock button for about two seconds again,
the green button lights go out, all the buttons return to normal operation status.
15 Safe-lock button light
17 Power indicator Hand controller are connected with power supply properly, indicator light is on.
Otherwise, it won't light.
18 One-key reset button Press the button, the backrest angle will automatically move to the maximum, theseatcushionanglewillautomaticallymovetoat,footrestwillmovedownto
the maximum, the height of the bed will automatically reach the lowest position.
DESCRIPTION OPERATION
1 One-key reset button
Press the button, the backrest will automatically move up to the maximum,
theseatcushionanglewillautomaticallymovetoat,footrestwillmove
down to the minimum, the height of the bed will automatically reach the
lowest position.
2 Safe-lock button
Keep pressing the "safe-lock button" for about two seconds, lighting up the
green light around the button, all the buttons can not be operated except
safe-lock button . Keep pressing the safe-lock button for about two seconds
again, the green button lights go out, all the buttons return to normal opera-
tion status.
1. StandardConguration
(Hand controller)
2. StandardConguration
(Built-in foot controller)
3. OptionalConguration
(Foot controller)

10

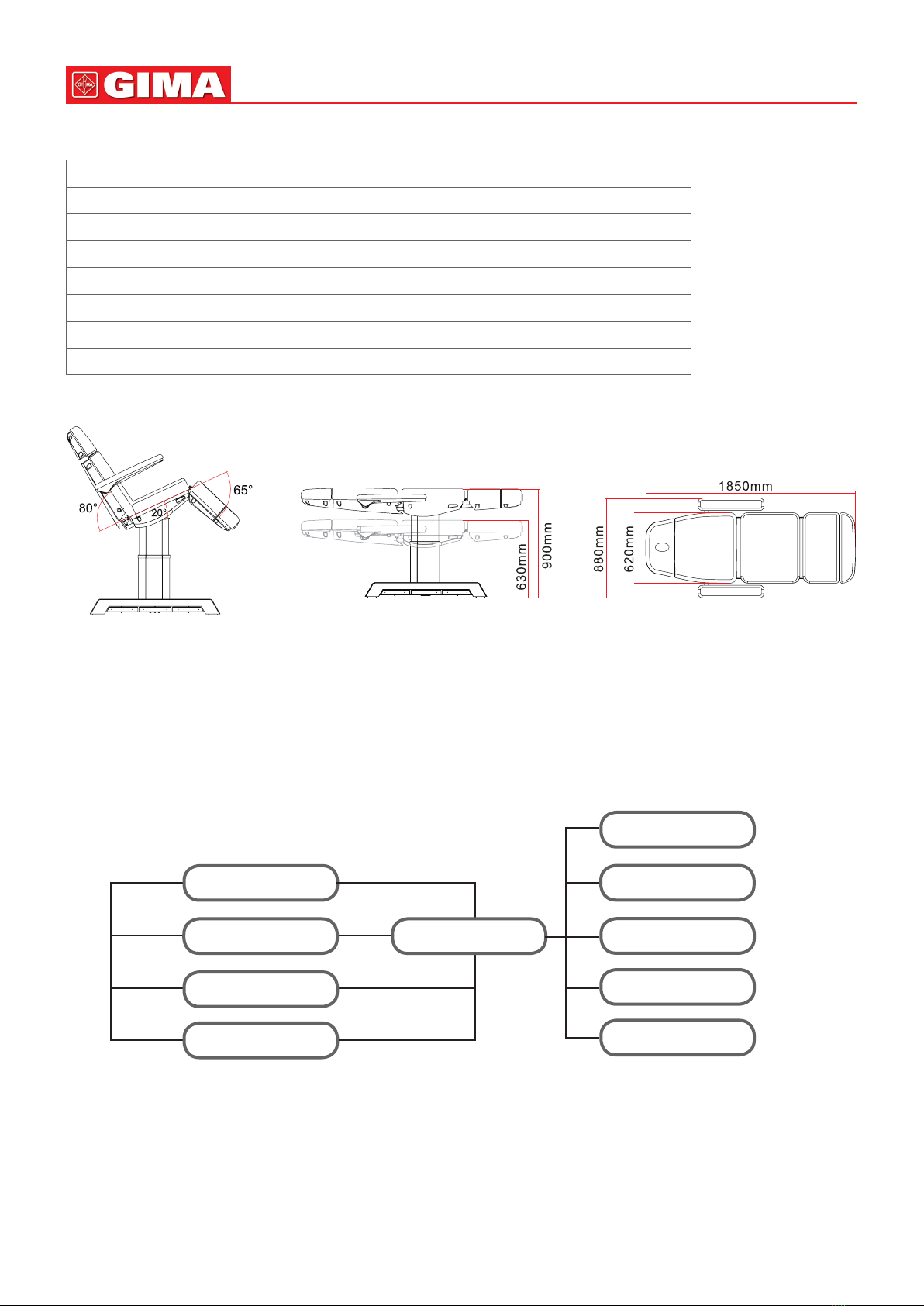

8 TECHNICAL PARAMETERS
9 MAINTENANCE
1. After every treatment, please use neutral reagent to clear the dust, stains on leather or the plastic cover. This is to prevent premature aging of
the leather and plastic cover.
2. Please lubricate the moving parts regularly (once a year).
10 CIRCUIT SYSTEM CONNECTION DIAGRAM
ENGLISH
Power AC 100-120V or AC 220-240V or AC 100-240V, 50/60Hz
Maximum Power 300W
Environment Temperature 0°C~+40°C
Relative Humidity 30%~90%
Lifting Rated Load 175 kg
Package Size 1410x690x670mm
Net Weight 98kg (2218B)
Gross Weight 109kg (2218B)
Power
Foot controller
(option)
Whole bed lifting motor
Seat inclination motor
Backrest motor
Footrest motor
Control Box
Buil-in foot controller
Hand controller
Heating system
(Option)

11
11 TROUBLESHOOTING
If problem is still not solved after above operation, please contact maintenance center or supplier to solve it.
Disposal: The product must not be disposed of along with other domestic waste. The users must dispose of this equipment by bringing
it to a specic recycling point for electric and electronic equipment.
GIMA WARRANTY TERMS
The Gima 12-month standard B2B warranty applies.
ENGLISH
THE FAULT PHENOMENON REASON SOLUTION
Can't rise or down normally
1. The power cord is unconnected or not
plugged well 1. Connect the power cord or plug it well
2. Poor quality of the hand controller or foot
controller 2. Replace the hand controller or foot controller
3. Poor quality of the built-in foot controller 3. Please contact maintenance center or supplier for trouble-
shooting.
4. Poor quality of the rocker switch
5. Poor quality of the control box
6. Repture of motor tail
7. Motor was damaged
8. Pressing the button, the bed did not move 1.Putthemovablefootrestclosetothexedfootrest,make
sure the limit switch is closed, and then press the buttons
again
2.Openthexedfootrestcoverandbackrestcoverrespec-
tively, check whether the two ends of the power cord are
loose, if the above situation occurs, please reconnect
3. If problem is still not solved after above operation, please
contact maintenance center or supplier to solve it.
Abnormal Sound
1. The rotating parts are short
of lubricating oil 1. Add lubricating oil
2. Rotating positions (such as hinge, POM
sets) are short of lubricating oil 2. Add lubricating oil
3. Motor quality problems 3. Replace the motor
