Good Way BioSpray-10C Manual

BioSpray®-10C
Surface Sanitation System
Operating and
Maintenance
Instructions
Read before operating.

BIOSPRAY®-10C 1020
2
CONTENTS:
GENERAL .....................................................................................................................................3
IMPORTANT SAFETY INSTRUCTIONS......................................................................................3
IDENTIFYING MAIN PARTS........................................................................................................4
INSTALLATION/SETUP ...............................................................................................................5
OPERATING INSTRUCTIONS ....................................................................................................6
SPRAY GUN SETTINGS............................................................................................................... 6
INCREASING THE PRESSURE.................................................................................................... 7
SHUT DOWN PROCEDURE.......................................................................................................7
CO2TANK REFILLS......................................................................................................................7-8
OTHER OPERATING INFORMATION .......................................................................................8
WHEN A “HISSING” SOUND WILL OCCUR .............................................................................8
PERSISTENT “HISSING” IS NOT NORMAL ...............................................................................8
STORAGE AND MAINTENANCE ..............................................................................................8
TECHNICAL INFORMATION .....................................................................................................9
TROUBLESHOOTING................................................................................................................. 9
PARTS BREAKDOWN (BIOSPRAY®-10C) ................................................................................. 10-11
Thank you for purchasing this Goodway Surface Sanitization System. We appreciate
your business and look forward to serving you in the future. As with all Goodway
products, you can be assured that the nest quality components and workmanship
have gone into this machine.
Please take a few minutes to read the following Operating and Maintenance
Instructions. Please pay particular attention to the safety instructions and exercise
caution when using this machine.
GOODWAY®TECHNOLOGIES CORPORATION
HVAC & FACILITY MAINTENANCE SOLUTIONS
For Sales Call: 1-800-333-7467
For Service Call: 1-800-370-2855

BIOSPRAY®-10C 1020 3
IMPORTANT SAFETY INSTRUCTIONS
To prevent operator injury and damage to the equipment, please read and observe
the following basic safety precautions:
1. Read and understand all instructions before using.
2. Keep this manual with the unit at all times.
3. Do not operate without eye protection or other necessary protective gear.
4. Consult SDS for all chemicals and for CO2OSHA exposure limits.
5. Consult Goodway or chemical manufacturer about mixing or using unspecied
chemicals with this unit.
6. Service must be performed by qualied personnel.
7. Use only Goodway specied replacement parts.
8. If the machine does not operate properly or has been damaged or exposed to
water, return it to factory for service.
9. Do not use unit with children or visitors in the immediate area.
10. Do not aim the spray toward electrical receptacles or in a direction not
intended to be sanitized or disinfected.
11. Do not operate unit when fatigued or under the inuence of alcohol or drugs.
12. Keep operation area clear of all persons.
13. Do not over reach or stand on unstable support. Keep good footing and
balance at all times.
14. Follow maintenance instructions in manual.
15. Stay alert - watch you are doing.
16. Turn off all valves while the unit is not in use.
17. Make sure that all CO2cylinders are kept in an OSHA approved area and
are supported so they don't tip over. Refer to OSHA section 1910.101 -
Compressed Gases (General Requirements).
18. Establish if the environment is safe for operation.
19. Operate only in a well ventilated area.
20. Ensure that the CO2tank doesn’t have a dip tube.
SAVE THESE INSTRUCTIONS
WARNING
GENERAL
The BioSpray®-10C unit is designed for intermittent use and will come with a 10 lb.
capacity CO2tank. Continuous use for 20 minutes will result in freezing and the tank
will need time to thaw.

BIOSPRAY®-10C 1020
4
CO2Tank
Pressure Gauge
Spray Gun
Regulator
Spray Gun
Pressure Gauge
Coil Hose
Front Stand
Wheels
Rear Door

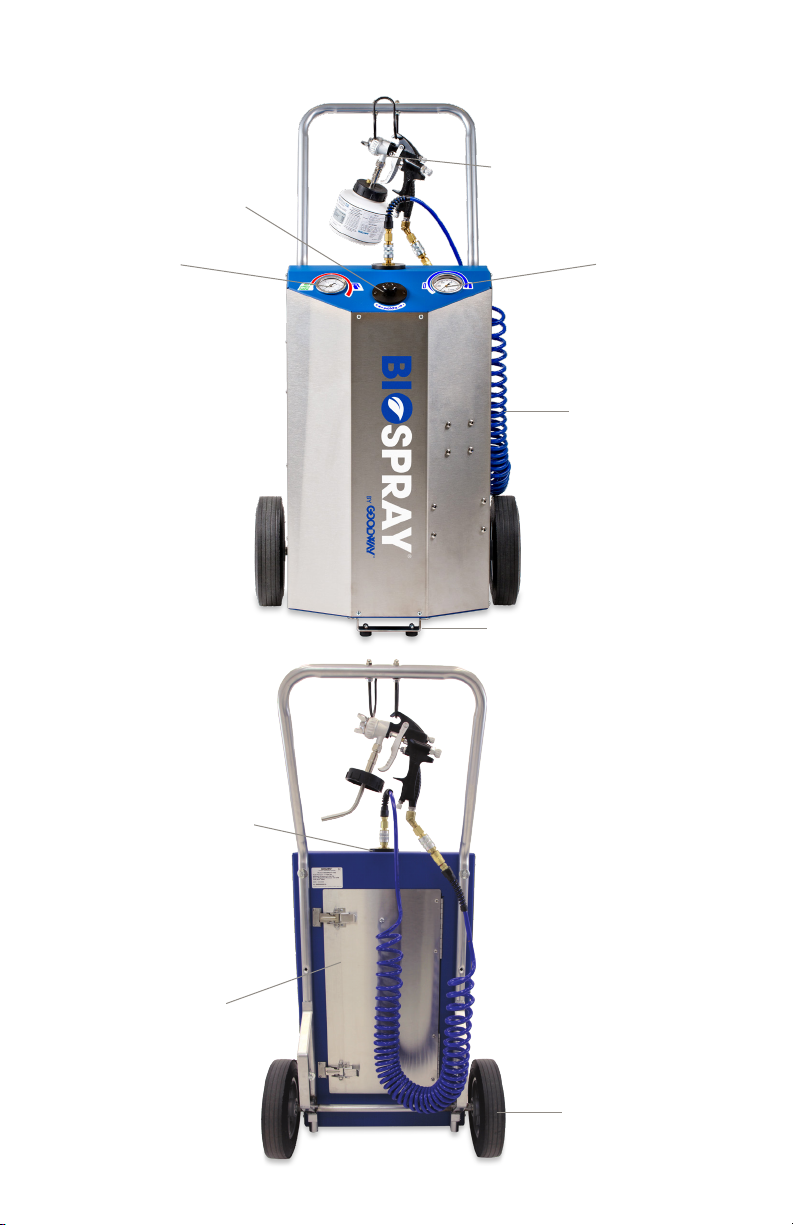

IDENTIFYING MAIN PARTS (BioSpray®-10C)
Outlet Connector

BIOSPRAY®-10C 1020 5
INSTALLATION/SETUP
1. Remove from packaging and inspect unit. If anything is damaged, contact
Goodway Technologies immediately (800-333-7467).
2. Place the surface sanitization system on a at surface.
Installing the CO2Tank (BioSpray®-10C):
1.Open the rear door
4. Attach the top and bottom strap and
tighten until tank is snug and cannot
move.
5. Tightly connect the hand nut to the
CO2tank.
2. Detach and loosen both straps that
will hold in the 10 lb. CO2tank
3. Carefully install new tank against
brackets, on top of rubber pads on
left hand side of the unit. Make sure
the connector on the tank is facing to
the right.
6. Close the rear door and latch the
door.

BIOSPRAY®-10C 1020
6
(BD)
(IM)
(TD)
(BD)
OPERATING INSTRUCTIONS
1. Attach Goodway approved formula to spray gun. NOTE: To do this, carefully
remove the foil seal on the top of the bottle, making sure that no debris gets
into the bottle, as that will impede the spraying. Be careful not to overtighten
the bottle, it only has to be snug to seal.
2. Connect the spray gun to the coil hose.
3. Connect the coil hose to the outlet connector on the top of the unit.
4. Open the CO2tank valve by turning it counter clockwise ¾ - 1 turn.
5. Open the regulator by turning it clockwise until the pressure reads between
24-26 PSI while in use. While not in use, the pressure may rise to 45 PSI+.
6. Spray evenly in an overlapping pattern until surface remains thoroughly wet.
7. For best results, we recommend Goodway alcohol based chemicals only.
8. Machine should always be used in upright position. Laying down on it's handle
bars will cause it to freeze.
SPRAY GUN SETTINGS:
1. The top dial (TD) on the back of the spray gun should
always be completely closed by turning the dial
fully CLOCKWISE.
2. The bottom dial (BD) on the back of the spray gun
controls the amount of formula to be sprayed. Before
proceeding to step 3, begin by ensuring the dial is
completely closed by turning the dial
fully CLOCKWISE.
4. Open the bottom dial (BD) by turning it COUNTER-
CLOCKWISE to the desired number of rotations for
sanitation or disinfection (see Step 4 below). Count the
number or rotations made by using the indicator mark
(IM) located on the back of the bottom dial (BD).
3. As listed on the siphon assembly cap (SC) for standard
settings of a 24” spray distance at 72º F, turn the
bottom dial (BD Above) COUNTER-CLOCKWISE: 1.5
Turns for Sanitization 3.0 Turns for Disinfection
SPRAYING PROTOCOL:
Do not apply near an ignition source. Spray evenly in an
overlapping pattern until surface remains thoroughly wet
for the desired time: At the proper setting listed in ‘Spray
Gun Settings’ Step 4, you should only have to make one
pass in an overlapping pattern to apply enough solution to
remain on the surface for the dwell time required.
1 SQ. FT.
(SC)

BIOSPRAY®-10C 1020 7
INCREASING THE PRESSURE:
When increasing the pressure of this BioSpray® unit, be aware of the following:
1. The pressure may need to be increased for spraying longer distances or for the
removal of bio-burdens.
2. The standard PSI rating for operation is 24-26 PSI while spraying. After
intermittent use at higher pressure, the regulator should be reset to
24-26 PSI.
3. To increase the pressure, turn the regulator clockwise until you reach the
desired pressure. The regulator will allow a pressure increase up to 100-120
PSI. Use ONLY intermittently at higher pressure, never continuous.
4. Increasing the pressure may also require an increase in chemical that is needed
for the application. To do this, follow the spray gun settings instructions on
page 6.
SHUT DOWN PROCEDURE:
1. Rinse the gun with clean water using the provided rinse bottle for 30 seconds.
2. Close the cylinder valve by turning it clockwise.
3. Squeeze the trigger of the spray gun half way to release the gas pressure in the
coil hose.
4. Close the regulator by turning the valve counter clockwise.
CO2TANK REFILLS:
Rell or replace CO2tanks at any CO2Compressed Gas Center in your area. In
some non-metropolitan areas, the best option may be an independent welding
supply shop.
Do not use any CO2tank with a dip tube. Using a CO2tank with a dip tube will
cause damage to the regulator.
Most CO2Compressed Gas Centers, including most independent welding supply
shops located in virtually every community and area, will create an account for your
company and provide pickup and delivery to rell or replace your tanks at little or
no additional charge, or you can take your tanks to these centers to have
them relled or replaced.
Note:
Regular, industrial grade CO2 is required for this application. Food grade CO2is
used for human consumption, and it not required for sanitizing/disinfecting food
grade surfaces.

BIOSPRAY®-10C 1020
8
OTHER OPERATING INFORMATION:
Please be advised, as part of the self-compensating regulator technology, you will
hear a slight CO2release or “hissing” sound from the center of the knob on the self-
compensating regulator from time to time. This is normal, and is a result of the
regulator compensating for pressure changes in the CO2cylinder. This compensation,
or “hissing”, is very gradual and may only be audible for a short period of time and is the
regulator maintaining pressure. The "hissing" is caused by the venting through a small
hole in the center of this regulator.
WHEN A “HISSING” SOUND WILL OCCUR:
1. After lling cylinder and connecting to the system in a hot environment. (The
temperature will rise in the cylinder, resulting in compensation).
2. After transporting unit/cylinder. (The temperature will decrease in the cylinder,
resulting in compensation).
3. When CO2cylinder is low and almost empty. (The CO2is so low that pressure
is changing constantly to accommodate the CO2release by the compensating
regulator).
4. Unit sits idle for a period of time. (Environmental conditions may change, resulting in
a temperature change in the cylinder).
PERSISTENT “HISSING” IS NOT NORMAL:
When the CO2valve is open, if there is a persistent, non-stop “hissing” sound, whether
spray gun trigger is pulled or not, check the CO2coil hose to the spray gun for damage
or leaks.
STORAGE AND MAINTENANCE
As a preventative maintenance measure, it is requested that the hoses be checked for
wear and all sealing areas are checked for leaks after each use.
Also lubricate all hinges with a food grade mineral oil at least once per year.
TIP:
Depending on your usage, volume and needs, it is recommended to have an extra
set of CO2tanks on hand, so that you can continue using your BioSpray® System
while your empty CO2 cylinders are being relled.
WARNING:
Use only 10 lb. (BioSpray®-10C) preferably aluminum tank with a 7” diameter. If a
spare tank is needed, please call Goodway Technologies at [phone] toll-free
or email us at [e-mail]. Do not use any CO2tank with a dip tube.

BIOSPRAY®-10C 1020 9
Problem Cause Solution
Constant ‘hissing’
noise
Damage to spray
gun or coil hose
Check both parts to be
sure where the damage
has occurred. Contact
Goodway Technologies
to acquire the proper
replacement parts.
Regulator frozen
or damaged
Wait for the regulator
to get back to room
temperature, then
continue use. Repair
or replace regulator if
damaged
Spray gun is
sputtering
Debris in nozzle
Packing nut is too
loose, allowing air
to leak
Remove the nozzle and
spray the compressed
air for 15 seconds.
Tighten the packing nut,
located near the trigger
of the spray gun.
Operating Pressure 24-26 PSI
Working Tank Pressure 800-1000 PSI (Full Tank)
Operating Environmental
Temperature
68°F +/- 20°F (20°C +/- 11°C)
Air Flow 5.4 CFM
Siphon Rate 160 mL/min (5.4oz/min)
Tank Safety Relief 3000 PSI
Regulator Safety Relief 150 PSI
TROUBLESHOOTING
TECHNICAL INFORMATION

BIOSPRAY®-10C 1020
10
16
13
2
4
5
14
6
8
9
7
11
10
15
12
1
3
PARTS BREAKDOWN (BioSpray®-10C)
Pos Part Number Description Qty
1 SANI-091 Cover 1
2 SANI-096 Bottle Holder 3
3 SANI-100 Bottle Stop 1
4 SANI-014 0-160 PSI Pressure Gauge, Regulator 1
5 SANI-015 0-2000 PSI Pressure Gauge, Tank 1
6 811 Handle Hook 1
7 9672 Door Hook 1
8 SANI-092 Rear Door 1
9 SANI-009 Latch, Rear Door 2
10 6226 Wheel 2
11 SANI-101 Hinge, Rear Door 5
12 9008 Foot 2
13 SANI-099 Front Stand 1
14 SANI-016 Regulator 1
15 SANI-097 Tank Bracket 1
16 SANI-098 Stop Strap Bracket 1
17 SANI-034-ASSM* Spray Gun Assembly 1
18 SANI-025-ASSM* Coil Hose Assembly 1
PARTS NUMBER (BioSpray®-10C)
*Not Shown

BIOSPRAY®-10C 1020 11
NOTES

GOODWAY®TECHNOLOGIES CORPORATION
420 West Avenue, Stamford, CT 06902 USA
Tel: [phone] · Toll-Free Tel: [phone]
Fax: [phone] · Toll-Free Fax: [phone]
Email: [e-mail]
Visit: www.goodway.com
P/N: MNL-BIOSPRAY-10C
©Copyright 2020 Goodway Technologies Corp., Stamford, CT USA
Effective date October 6, 2020
Goodway is a Trademark of Crossford International.
Goodway reserves the right to improve products; contact the factory for the latest conguration and uses.
Provides innovative maintenance solutions for a wide variety
of industries including commercial HVAC, food and beverage
processing, power generation and manufacturing.
HVAC & FACILITY MAINTENANCE SOLUTIONS
For Sales Call: 1-800-333-7467
For Service Call: 1-800-370-2855
