Good Way Hi-Flo CC-400HF Manual

CC-400HF
Hi-Flo®
COIL CLEANER
Operating and
Maintenance
Instructions
Read before operating.

CC-400HF HI-FLO 0121
2
CONTENTS:
INTRODUCTION ....................................................................................................................................2
IMPORTANT SAFETY INSTRUCTION............................................................................................... 3-4
ELECTRICAL PRECAUTIONS ...............................................................................................................4
OPERATING INSTRUCTIONS ...............................................................................................................5
GENERAL MAINTENANCE AND STORAGE .......................................................................................6
ACCESSORIES/SPARE PARTS...............................................................................................................6
SPECIFICATIONS ...................................................................................................................................6
TROUBLESHOOTING............................................................................................................................6
EXPLODED VIEW............................................................................................................................... 7-9
Thank you for purchasing Goodway’s CC-400-HF Hi-Flo® Coil Cleaner. We
appreciate your business and look forward to serving you in the future. As with
all Goodway products, you can be assured that the nest quality components and
workmanship have gone into this machine.
Please take a few minutes to read the following Operating and Maintenance
Instructions. Please pay particular attention to the safety instructions and exercise
caution when using this machine.
GOODWAY®TECHNOLOGIES CORPORATION
HVAC & FACILITY MAINTENANCE SOLUTIONS
For Sales Call: 1-800-333-7467
For Service Call: 1-800-370-2855

CC-400HF HI-FLO 0121 3
WARNING
IMPORTANT SAFETY INSTRUCTIONS
1. Read all instructions before using the unit. Failure to follow all instructions may
result in serious injury.
2. WARNING: Risk of injury: Do not direct discharge stream at yourself or
other persons!!
3. Always check the unit, hoses, ttings, etc. before each use. Do not use the unit if it
does not operate properly or has been damaged.
4. Do not use with gasoline or any other ammable liquid. Do not operate in
explosive atmospheres, such as in the presence of ammable liquids, gases
or dust.
5. If using chemical cleaners, make sure that there is adequate ventilation in the
work area.
6. Keep bystanders, children, and visitors away while operating this unit.
7. Do not use while tired or under the inuence of drugs, alcohol, or medication.
8. Do not overreach or stand on unstable support. Keep proper footing and balance
at all times.
9. Wear rubber gloves, rubber boots, goggles or face-shield, etc. Coil Cleaning
detergents, chemicals, and debris may cause injuries to the eyes and skin.
10. Call Goodway to check compatibility before using any chemical in the unit - DO
NOT use any cleaner that contains sodium hydroxide or potassium hydroxide. Do
not mix chemicals.
11. Use only Goodway-approved accessories and replacement parts.
12. Always turn machine off and relieve pressure in the hose after use.
13. Do not run the unit dry – it may damage the pump. Always ensure adequate
water supply.
14. Do not spray the unit with water or chemicals. Never expose the unit to rain. Store
unit indoors.
15. Do not allow the unit to freeze or leave in freezing temperatures.

CC-400HF HI-FLO 0121
4
16. The unit is equipped with an automatic by-pass valve that recirculates water inside
the pump when the spray gun trigger is released. Although the unit has a thermal
discharge valve for protection, avoid leaving the unit running in by-pass mode for
more than ve (5) minutes.
17. IMPORTANT: Do not carry the unit by the pump guard as it is not designed to be
used as a handle!!!
18. DO NOT ADJUST BYPASS PRESSURE: The bypass pressure is factory set –
adjustments may damage unit!
Electrical Precautions
1. Make certain that the power source conforms to the requirements of
the equipment.
2. Keep all connections dry and off the ground. Do not handle the unit or electrical
plug with wet hands.
3. Unplug the power cord when servicing the unit or leaving the machine unattended.
4. Do not pull on the power cord or pull the cord around sharp corners. Keep the cord
away from hot surfaces. When unplugging the power cord, grasp the plug – not
the cord.
5WARNING: The cords, wires, and/or cables supplied with this product may contain
chemicals, including lead or lead compounds, known to the State of California to
cause cancer and birth defects or other reproductive harm. Always wash hands
thoroughly after handling the unit.
6. GROUNDING INSTRUCTIONS: For proper protection this product must be
grounded. Always plug the power cord into a properly grounded receptacle. Never
remove the grounding prong from the power cord plug or use an adapter that
eliminates ground.
7. GROUND FAULT CIRCUIT INTERRUPTER: This unit is provided with a Ground
Fault Circuit Interrupter built into the power cord plug to prevent electrocution. DO
NOT RUN THE UNIT WITHOUT THIS DEVICE!! If replacement of the plug or cord
becomes necessary, use only identical replacement parts that include
GFCI protection.
8. EXTENSION CORDS: Use only extension cords that are intended for outdoor
use. These extension cords are identied by a marking “Acceptable for use with
outdoor appliances; store indoors while not in use.” Use only extension cords having
an electrical rating not less than the rating of the product. Do not use damaged
extension cords. Examine extension cord before using and replace if damaged. Do
not abuse extension cord and do not yank on any cord to disconnect. Keep cord
away from heat and sharp edges. Always disconnect the extension cord from the
receptacle before disconnecting the product from the extension cord.
SAVE THESE INSTRUCTIONS

CC-400HF HI-FLO 0121 5
Operating Instructions
1. Unwrap hose from unit. Attach to quick connect on output of pump.
2. Attach Spray Gun to quick connect on hose (attach Extension Lance if necessary).
3. Unwrap power cord from unit. Plug into outlet. Test and reset GFCI.
4. Attach water supply hose to unit (3 gallons per minute minimum). Make sure screen
washer is in place.
5. Turn on water. To prime the pump, squeeze the Spray Gun trigger until water exits.
6. Remove the red oil cup from the pump and replace it with the black cup in the
supplied plastic bag.
Normal Coil Cleaning:
1. Attach Yellow Rinsing Nozzle (size 1510) to Spray Gun (or Extension Lance,
if attached).
2. While holding Spray Gun trigger open, ip power switch (on rear of unit) to
“ON” position.
3. Spray condenser with plenty water to remove loose debris.
4. Remove Yellow Rinsing Nozzle from Spray Gun/Lance.
5. Attach Soap Nozzle (Stainless Steel, size 1520).
6. Make sure chemical pickup hose is in chemical container and the tip is at the bottom.
7. Apply water/chemical solution evenly to coils (siphon ratio is approximately 10:1).
8. If possible, let coil cleaner chemical sit for 5 minutes to penetrate into coils and
loosen deposits.
9. Remove Soap Nozzle, attach Yellow Rinsing Nozzle, and thoroughly rinse coils with
clean water.
10. When done, ip Power Switch to the “OFF” position and relieve pressure in hose.
Using the Wonder Wand™
1. Insert the Wonder Wand™ into the top of a condenser unit to clean coils from inside
to outside (removing debris in the opposite direction of the airow) without taking
fan and cover off of the condenser.
2. The Hi-Flo Coil Cleaner will siphon draw chemical at approximately 10:1.
3. To rinse coils with clean water using the wand attachments, remove chemical pickup
hose from chemical.

CC-400HF HI-FLO 0121
6
General Maintenance and Storage
1. If using with cleaning chemicals, run clean water through the pump
when done.
2. Periodically check oil level in pump sight glass. Use only approved oil to top off
if below dot in sight glass.
3. IMPORTANT!! Replace water seals immediately if pump leaks between head
and crankcase.
4. Store unit indoors.
ACCESSORIES/SPARE PARTS
SPECIFICATIONS
TROUBLESHOOTING
Accessory/Spare Part Part #
15° Rinsing Nozzle (Yellow) QDN-1510Y
20° Soap Nozzle QDN-LP25
18” Extension Lance 9655
Spray Gun Assembly RCC-14
Hose Assembly (12 ft) RCC-13
35” Wonder Wand - Sectional Two
Piece (Included)
WWSS-HF
Replacement Water Seal Kit for Pump RCC-10-SK
90° Brass Tip WWSS-60-90DEG
Motor/ Power Requirements 1 HP AC Motor (1φ) / 115 VAC / 15.0 Amps
Water Requirements 3.0 GPM (11.4LPM)
Maximum Inlet Water Pressure 100 PSI (7 BAR)
Maximum Outlet Water Pressure 400 PSI (28 BAR)
Weight 45 lbs (20.4 kg)
Maximum Inlet Water Temperature 125°F (52°C)
Maximum Ambient Operational
Temperature
104°F (40°C)
PROBLEM PROBABLE CAUSE REMEDY
Inconsistent and/or
erratic pressure
• Nozzle clogged
• Inadequate water supply
• Clean nozzle orice
• 3.0 GPM minimum
Motor stops abruptly • Motor Thermal breaker
tripped
• Turn off, let unit cool
Motor buzzes but fails to
start
• Inadequate Power
Supply
• Check for 115VAC/15
A min
Unit does not spray
chemical
• Wrong Nozzle Attached
• Pickup hose not in
chemical
• Attach Soap Nozzle
(size 1520)
• Put hose to bottom
of chemical

CC-400HF HI-FLO 0121 7

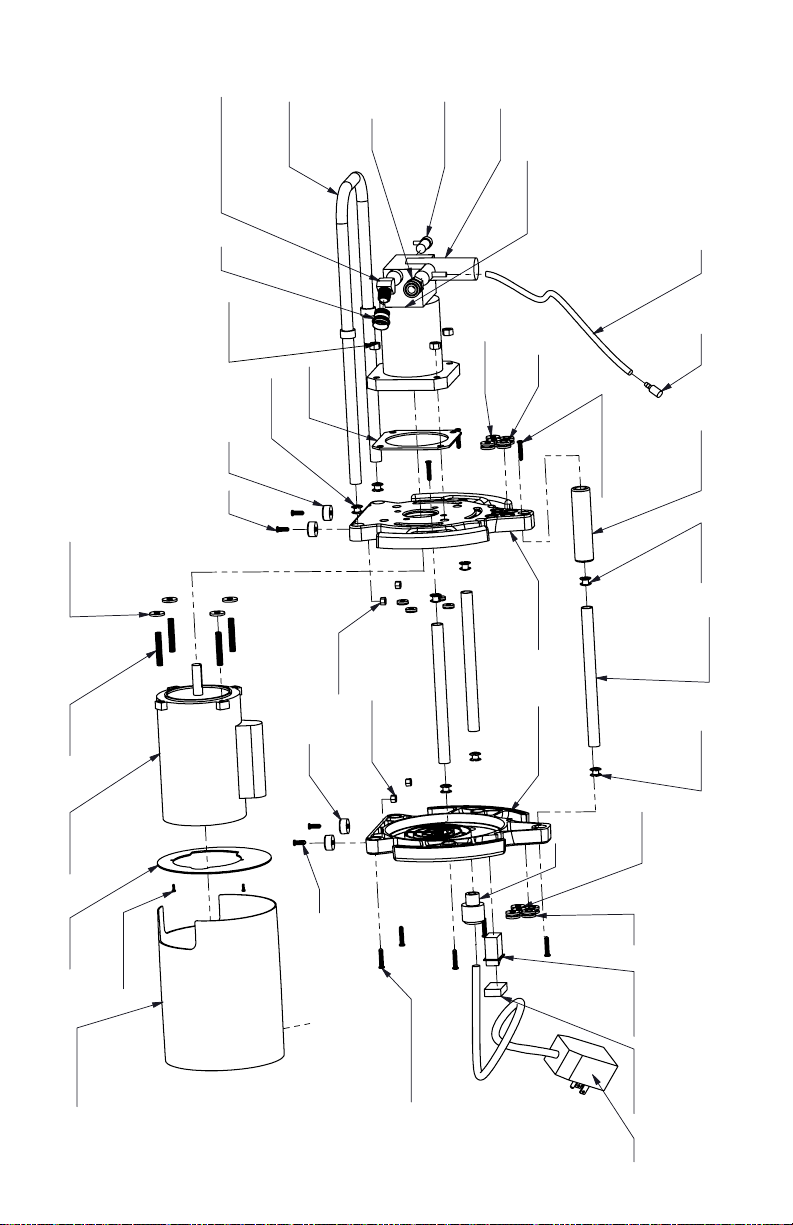

Exploded View
1039
HWS-2520-125P
3X
X2-05-04
RCC-01-G
RCC-06-1
3X
X2-05-03
2509
RCC-15-1
808
842
RCC-02-G
RCC-04
684
2X
9008
2X
RCC-12RCC-19
RCC-16-2
HWN-252
2X
802
RCC-07-1
BSL-45EL50FX50M
9527
RCC-10
HWN-37L
4X
RCC-16
935
2 ft
RCC-18
2X
X2-05-03
2X
2509
HWN-252
2X
HWS-2520-125P
5X
RCC-18
2X
RCC-10-2
RCC-15-2
X2-05-03
684
2X
9008
2X
HWS-1037
2X
RCC-10-SK
RCC-03-G

CC-400HF HI-FLO 0121
8
Part Number Description QTY.
RCC-15-1 Switch, 1.5 hp Max 1
684 Screw, 1/4-20 panhead, 3/4" L 4
802 HOSE CONNECTOR 1
808 Romex Fitting 1
842 GFCI, 115V 1
935 Hose, Braided, 1/4' ID 2
1039 Tip, For Siphon Hose 1
2509 Grommet, 1/2 ID 4
9008 Foot 4
9527 Quick Connect, Female, 3/8 1
BSL-45EL50FX50M Brass Elbow, 45 degree, 1/2M x F 1
HWN-37L Nut, Nylock, 3/8 4
HWN-252 Nut, 1/4-20 4
HWS-1037 Screw, #10, Sheet Metal, 3/8" 2
HWS-2520-125P Screw, 1/4-20, Panhead, 1.25 8
HWW-252 Washer, 1/4 4
RCC-01-G Mounting Plate, Molded, Front 1
RCC-02-G Mounting Plate, Molded, Rear 1
RCC-03-G Cover Tube 1
RCC-04 Bafe, Rear 1
RCC-06-1 Tube, 3/4 OD, 9.56 L 3
RCC-07-1 Pump Guard 1
RCC-10 Pump, 3.0 GPM 1
RCC-10-2 Thermal Relief Valve, 1/4 NPT 1
RCC-10-SK Seal Kit, RCC-10 1
RCC-12 Motor, 1 HP, 56F 1
RCC-15-2 Cover, for 530-117 Switch 1
RCC-16 Heat Shield, Complete Set 1
RCC-16-2 Heat Shield, Washer, Motor 4
RCC-17-2 Heat Shield, Washer, Pump 4
RCC-18 Grommet, 3/8 ID 6
RCC-19 Motor Set Screw, 3/8-16, 2.25'"L 4
X2-05-03 Star Nut, Tube Connector 8
X2-05-04 Foam Grip, 1/2 ID. 5.25 1

CC-400HF HI-FLO 0121 9
ON/ OFF
Switch
DO NOT LAY UNIT
DOWN ON THIS END
DO NOT LIFT OR
CARRY BY PUMP
GUARD!!!
Lift by handle
only
Hoist
point
Hoist
point
Thermal Relief
Valve
Chemical Hose

CC-400HF HI-FLO 0121
10
NOTES

CC-400HF HI-FLO 0121 11
NOTES

GOODWAY®TECHNOLOGIES CORPORATION
420 West Avenue, Stamford, CT 06902 USA
Tel: [phone] · Toll-Free Tel: [phone]
Fax: [phone] · Toll-Free Fax: [phone]
Email: [e-mail]
Visit: www.goodway.com
P/N:MNL-CC400
©Copyright 2020 Goodway Technologies Corp., Stamford, CT USA
Effective date January 12, 2021
Goodway is a Trademark of Crossford International.
Goodway reserves the right to improve products; contact the factory for the latest conguration and uses.
