MODEL CVC-100
CoilVac™HVAC Vacuum Cleaning System
OPERATING AND MAINTENANCE INSTRUCTIONS

CVC-100 Manual 10/2006
MODEL CVC-100
CoilVac™HVAC Vacuum Cleaning System
Thank you for purchasing this Goodway CoilVacTM HVAC Vacuum Cleaning System. We appreciate your
business and look forward to serving you in the future. As with all Goodway products, you can be assured
that the finest quality components and workmanship have gone into this machine.
Please take a few minutes to read the following Operating and Maintenance Instructions. By carefully
following the instructions, you will obtain years of trouble free service from this product. Please pay
particular attention to the safety instructions and exercise caution when using this machine.
We are here to serve you!
For Sales call
1-800-333-7467
For Service call
1-800-370-2855
Goodway Technologies Corp.

CVC-100 Manual 10/2006
Table of Contents
Important Safety Instructions ........................................................................................................................1
Operating Instructions ....................................................................................................................................4
Parts Breakbown ........................................................................................................................................... 4
Vacuum......................................................................................................................................................... 5
Blower........................................................................................................................................................... 5
Filtration System Overview .......................................................................................................................... 6
Changing Disposable Collection Bag ........................................................................................................... 7
Checking The Filtration System ................................................................................................................... 7
Checking Motor/Switch/Electrical Assembly............................................................................................... 7
Attachments .................................................................................................................................................. 8
Maintenance And Storage............................................................................................................................. 9
Servicing ....................................................................................................................................................... 9
Warranty ....................................................................................................................................................... 9
Troubleshooting .............................................................................................................................................10
Replacement Parts .........................................................................................................................................11
Accessories......................................................................................................................................................11
Specifications..................................................................................................................................................12

CVC-100 Manual 10/2006

CVC-100 Manual 10/2006 1
Important Safety Instructions
When using an electrical appliance, basic precautions should always be followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE
WARNING - To reduce the risk of fire, electric shock, or injury:
1. Do not leave appliance unattended when plugged in. Unplug from outlet when not in use and before
servicing or changing filters.
2. Do not allow to be used as a toy. Strict supervision is required when operated near children.
3. Use only as described in this manual. Use only attachments and filters recommended by Goodway.
4. Do not use with damaged cord or plug. If appliance is not working as it should, has been dropped,
damaged, left outdoors, or dropped into water, return it to the factory for service.
5. Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp
edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.
6. Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
7. Do not handle plug or appliance with wet hands.
8. Do not put any object into openings. Do not use with any opening blocked. Keep openings free of dust,
lint, hair and anything that may reduce air flow.
9. Keep objects, hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
10. Do not pick up anything that is burning or smoking, such as cigarettes, matches or hot ashes.
11. Do not use without dustbag and/or filters in place while vacuuming.
12. Turn off all controls before unplugging the power cord.
13. Use extra care when cleaning on stairs.
14. Do not use to pick up flammable or combustible fluids such as gasoline or use in areas where they may
be present.
15. To avoid electric shock, do not use on wet surface or expose to rain. Store indoors in a cool, dry area.
16. To reduce the risk of electric shock, this appliance has a polarized plug (one blade is wider than the
other). This plug will fit into an outlet only one way. If the plug does not fit fully in the outlet, reverse
the plug. If it still does not fit, contact a qualified electrician to install the proper outlet. Do not change
the plug in any way.
17. Connect to a proper grounded outlet only. See Grounding Instructions.
GROUNDING INSTRUCTIONS
This appliance must be grounded. If it should malfunction or breakdown, grounding provides a path of least
resistance for electric current to reduce the risk of electric shock. This appliance is equipped with a cord
having an equipment-grounded conductor and grounding plug. The plug must be inserted into an
appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.

CVC-100 Manual 10/2006 2
WARNING:
Improper connection of the equipment-grounding conductor can result in risk of electric shock. Check with
a qualified electrician or service person if you are in doubt as to whether the outlet is properly grounded.
Do not modify the plug provided with the appliance – if it will not fit the outlet, have a proper outlet
installed by a qualified electrician.
This appliance is for use on a nominal 120-volt circuit, and has a grounded plug that looks like the plug
illustrated in Figure 1. A temporary adapter that looks like the adapter illustrated in Figures 2 & 3 may be
used to connect this plug to a 2-pole receptacle as shown in Figure 2 if a properly grounded outlet is not
available. The temporary adapter should be used only until a properly grounded outlet (Fig. 1) can be
installed by a qualified electrician. The green colored rigid ear, lug, or the like extending from the adapter
must be connected to a permanent ground such as a properly grounded outlet box cover, Whenever the
adapter is used, it must be held in place by a metal screw. In Canada, the use of a temporary adapter is not
permitted by the Canadian Electrical Code.

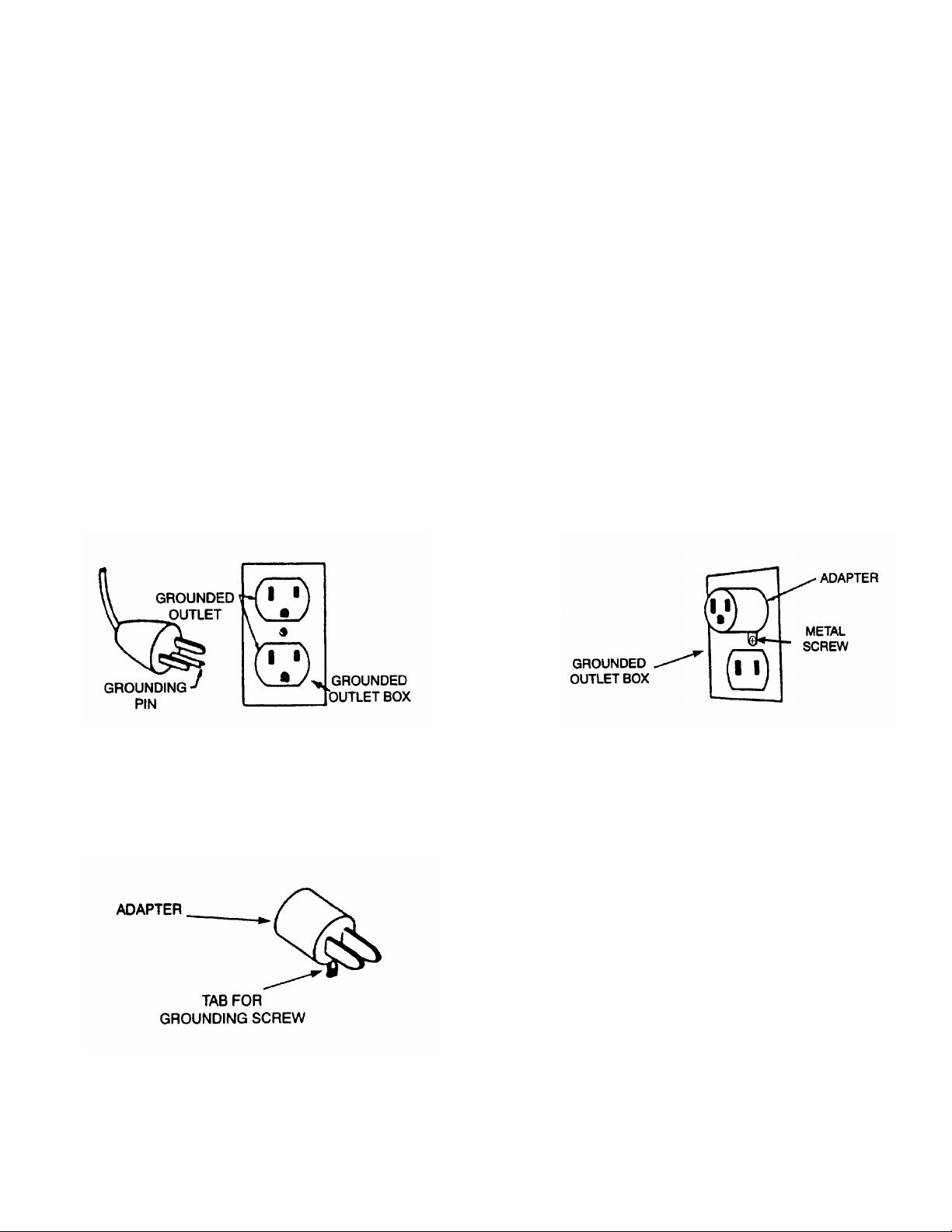

Grounding Methods
Figure 1 Figure 2
Figure 3

CVC-100 Manual 10/2006 3
EXTENSION CORDS
WARNING - To reduce the risk of electric shock, use only with an extension cord suitable for outdoor use.
1. Use only three-wire outdoor extension cords with three-prong grounding receptacles that accept the
appliance’s plug. Replace or repair damaged cords.
2. Avoid Dangerous Environment-- Do not use appliance in damp or wet locations.
3. Do not use in rain.
4. Use of rubber gloves and footwear is recommended when working outdoors.
5. Keep children Away - All visitors should be kept a safe distance from work area.
6. Use safety goggles when operating unit. Do not blow debris in direction of another person.
7. Use right appliance. Do not use appliance for any job except that for which it is intended.
8. To avoid the risk of injury, use only attachments supplied by Goodway specifically for this appliance.
9. To reduce the risk of disconnection of appliance cord from the extension cord during operation, make a
knot as shown in Figure 4:
Figure 4 – Method of Securing Extension Cord
10. Don’t abuse cord - Never carry appliance by cord or yank it to disconnect from receptacle. Keep cord
from heat, oil, and sharp edges.
11. Don’t overreach - Keep proper footing and balance at al times.
12. Store idle appliances indoors - When not in use, appliances should be stored indoors in dry, high or
locked-up place out of reach of children.

CVC-100 Manual 10/2006 4
Operating Instructions
The CoilVacTM is a heavy-duty vacuum and power blower in a convenient lightweight unit. Together with
Goodway’s HVAC-specific cleaning attachments, the CoilVacTM HVAC Cleaning System will clean the
dirtiest coils and fins quickly and efficiently.
Parts Breakbown
The CoilVacTM HVAC Vacuum Cleaning System consists of:
Part Description Part Number
•One CoilVacTM Vacuum/Blower Unit (2-speed switch, handle, 25 ft grounded cord) 9955-0
•One 6 ft flexible vacuum/blower hose 9955-5
•Two 20” rigid extensions 9955-6
•One Tapered Air Nozzle 9955-7
•One Shoulder Strap 9955-8
•One Dual-Length Bristle CoilBrush 9956
•One Extra-Long Bristle CoilBrush 9957
•One Extendable Crevice Tool With 90°Brush 9958
•One Flexible Extension 9959

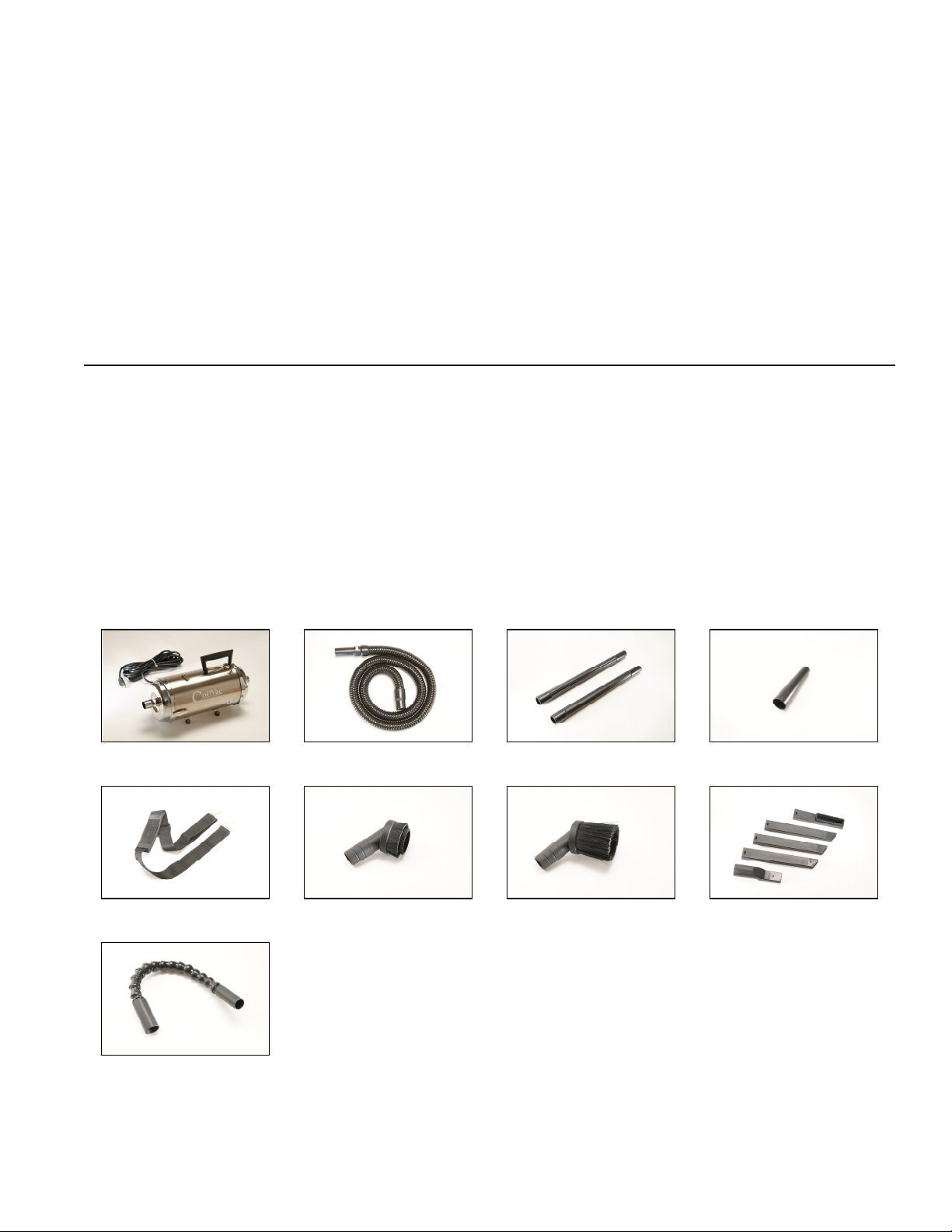

9955-0 9955-5 9955-6 9955-7
9955-8 9956 9957 9958
9959

CVC-100 Manual 10/2006 5
Vacuum
1. Insert the power cord plug into an outlet of the proper voltage and current rating. See the vacuum’s
nameplate for its electrical rating
2. Insert the hose onto the suction manifold (see below) and install the desired tool onto the end of the hose
3. The CoilVacTM is equipped with a 2-speed “High/Low” switch – turn the unit on and begin vacuuming
4. For top performance, replace the disposable collection bag and check the permanent filters regularly.
Clogged filters restrict air flow and reduce suction
Blower
1. Insert the plug into an outlet of the proper voltage and current rating
2. Insert the hose onto the exhaust manifold and install the desire tool on the end of the hose (see picture
below)
3. The CoilVacTM is equipped with a 2-speed “High/Low” switch – turn the unit on and begin blowing
4. For top air flow and blower performance, the 4 stage filtration system should be fully removed. For
normal usage, however, the unit can be used with the filters in place. Ensure that the disposable
collection bag is relatively empty - a full collection bag will restrict air flow and reduce blowing power

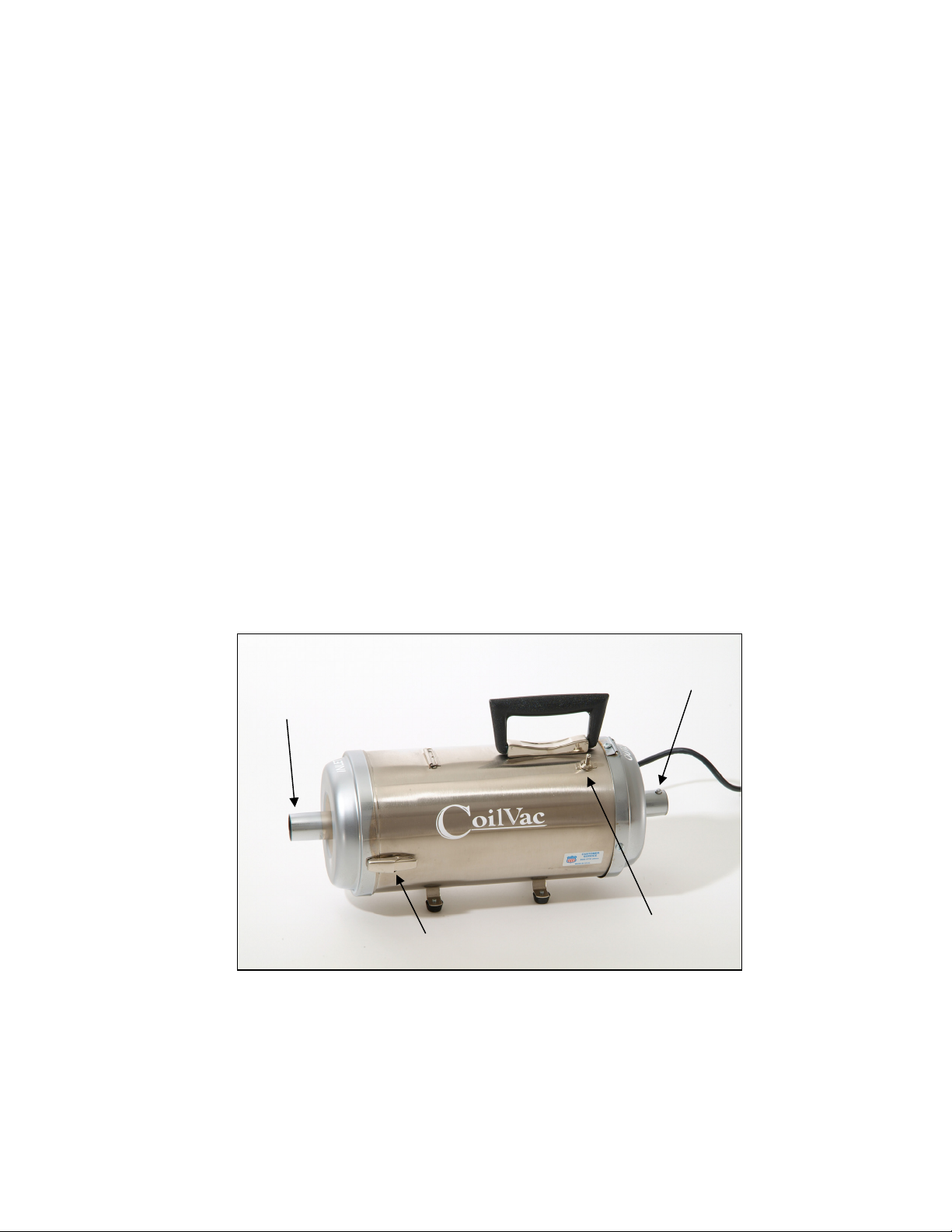

Latch
Inlet
Nozzle
Outlet
Nozzle
2 Speed
Switch

CVC-100 Manual 10/2006 6
Filtration System Overview
The CoilVacTM is equipped with a 4-stage filtration system:
•Stage 1 – Disposable 0.3 Micron Collection Bag
•Stage 2 – Cloth Filter Bag
•Stage 3 – Foam Filter
•Stage 4 – Paper Media Filter Cartridge
For top performance, replace the disposable collection bag regularly. A full filter restricts airflow and
reduces suction. IMPORTANT: A disposable filter bag always must be placed inside the cloth filter.
Check the others filters after extended use and replace if necessary. Goodway recommends replacing the
permanent filters at least once a year.

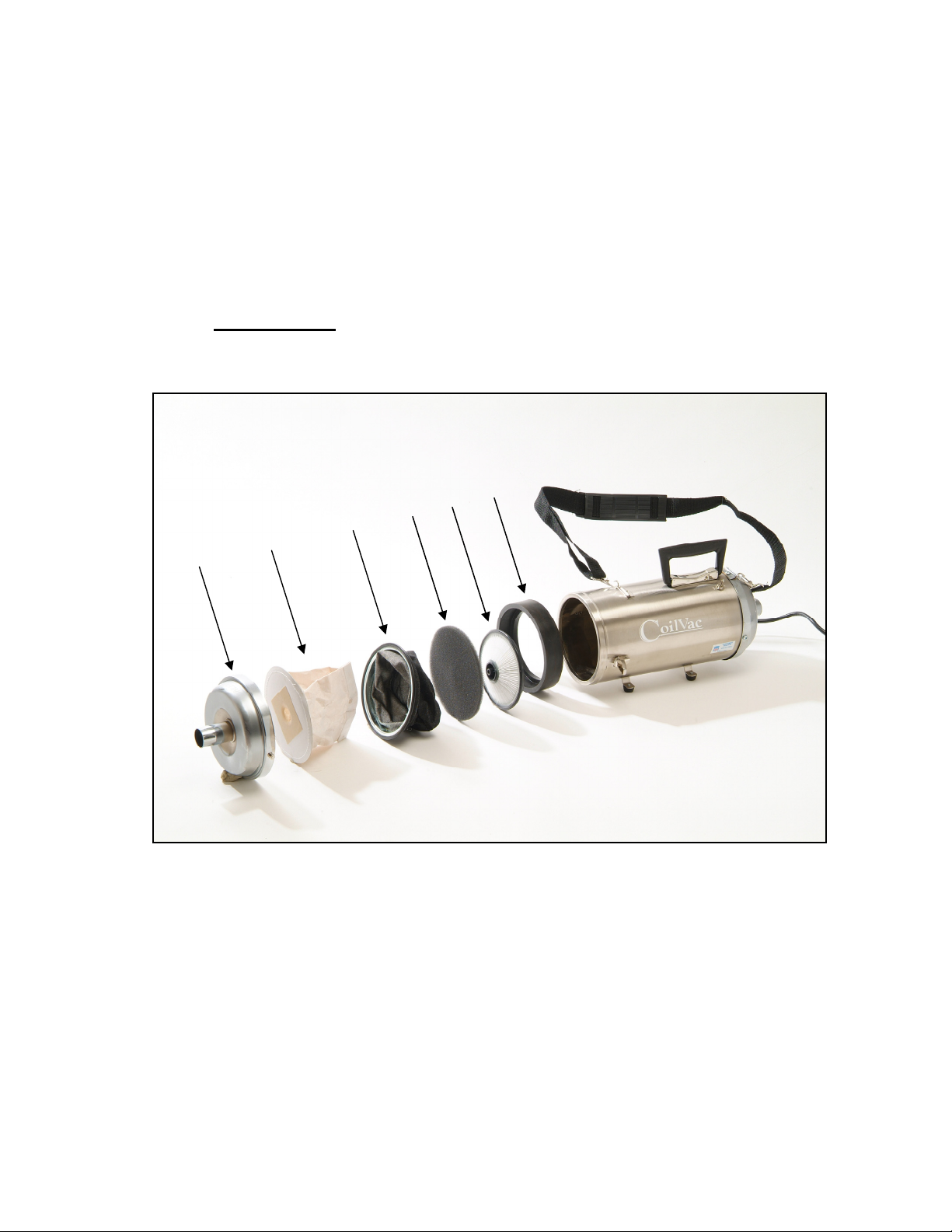

Filtration System Exploded View
1. Inlet Cover
2. Disposable Collection Bag P/N: CVC-PFILTER-12 (Package of 12 Filters)
3. Cloth Filter Bag P/N: 9955-10 (1 Filter)
4. Foam Filter P/N: CVC-FILTER-FOAM (Package of 3 Filters)
5. Paper Media Filter Cartridge P/N: 9955-12 (1 Filter)
6. Sealing Gasket P/N: 9955-13
7. CoilVacTM Vacuum Canister
1
2
3 456

CVC-100 Manual 10/2006 7
Changing The Disposable Collection Bag
Ensure that the power cord is unplugged when changing the collection bag.
1. Open the two latches at the suction end of the vacuum and remove the intake cover
2. Carefully remove the full collection bag from the vacuum. CAUTION!! Old dust/debris from the bag
may be hazardous if inhaled
3. Place a new collection bag inside the cloth filter in the vacuum. Replace the intake cover, ensuring that
the intake nozzle slides into the collection bag opening
4. Secure the two side latches
Checking The Filtration System
Ensure that the power cord is unplugged when changing or checking the filters.
1. Open the two latches at the suction end of the vacuum and remove the intake cover
2. Carefully remove the collection bag from the vacuum. CAUTION!! If the collection bag is full, old
dust/debris from the bag may be hazardous if inhaled
3. Remove the Cloth Filter
4. Remove the Foam Filter
5. Remove the paper media filter cartridge
6. Remove the rubber seal/gasket
7. Installation is the reverse of removal
8. Replace cover and secure by closing the two side latches
Checking Motor/Switch/Electrical Assembly
Ensure that the CoilVac power cord is unplugged when checking the motor and electrical assembly.
1. Remove the three screws holding the blower side cover
2. Carefully remove cover to expose the motor and electrical assembly

CVC-100 Manual 10/2006 8
HVAC System Cleaning/Attachment Description
20” Extension Wands
Use these rigid extension wands to get that extra reach. With the two wands ceiling registers and diffusers
can be easily cleaned.
Tapered Air Nozzle
The Tapered Air Nozzle can be used for vacuuming or blowing. It concentrates the airflow for increased
power and airflow velocity. With the hose on the blower nozzle, use this attachment on the back side of the
coils to dislodge impacted dust and debris.
CoilBrush - Dual Bristle
The Dual-Bristle CoilBrush is specifically designed to clean most HVAC condenser and evaporator coils.
Its dual length, dual diameter bristles can penetrate all types of coils - from densely packed, enhanced fins to
wide-spaced air handler fins. The synthetic bristles are tough yet will not harm delicate aluminum fins.
CoilBrush – Extra-Long Bristle:
The Extra-Long Bristle CoilBrush is specifically designed to clean large and deep HVAC heating coils.
The 3” long high-density nylon bristles can penetrate deep into baseboard heating fins where dust and debris
can get behind the pipe and fins and be difficult to reach.
Extendable Crevice Tool with 90° Brush
Use this modular crevice tool in really tight spaces, where normal hoses and attachments cannot fit. The
brush and tool are only ½” thick, and the ¼” long bristles loosen dust to clean in places that normally don’t
get cleaned.

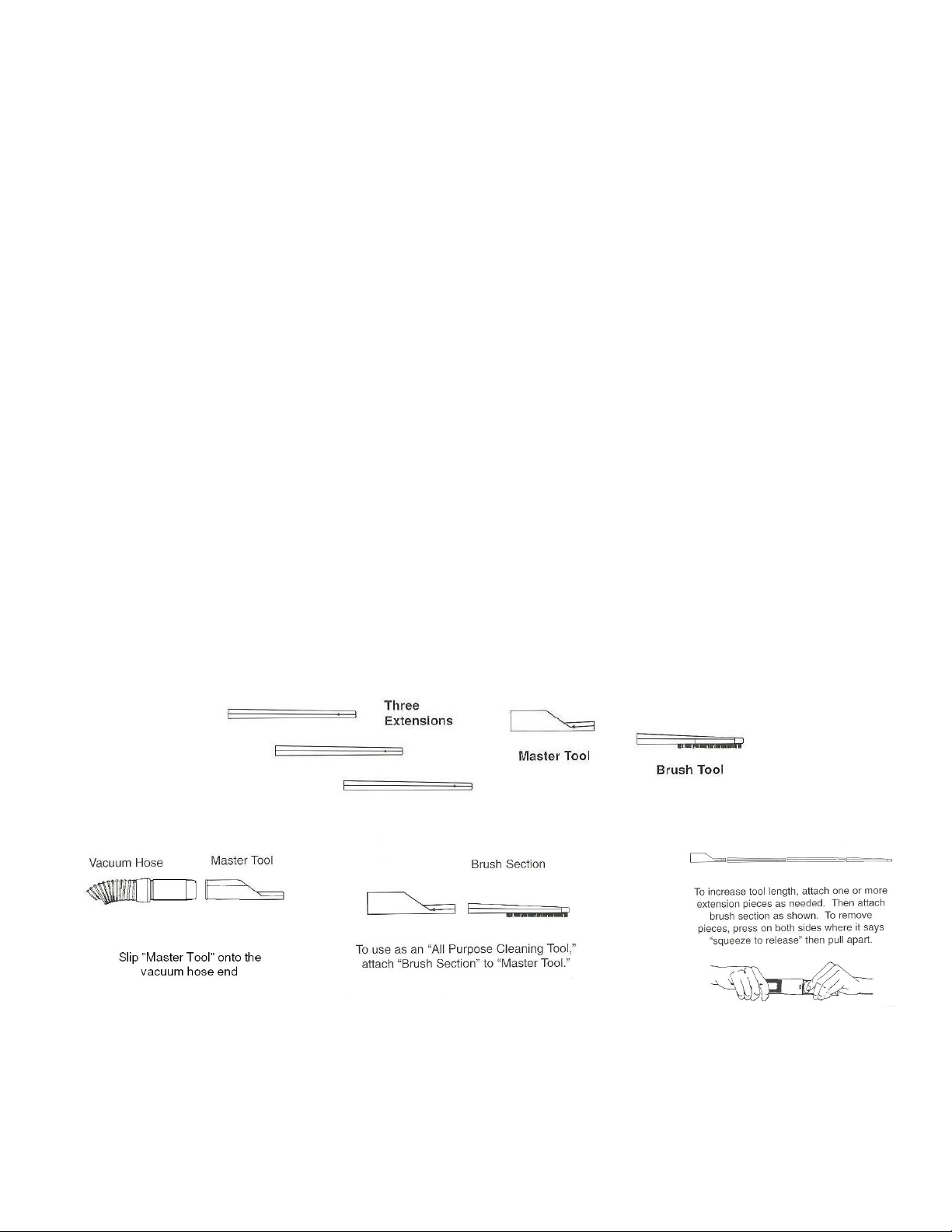

Crevice Tool Parts:
Assembly:
Flexible Extension
The Flexible Extension can be used with any other attachment. It will hold its shape for vacuuming or
blowing.

CVC-100 Manual 10/2006 9
Maintenance And Storage
•Check collection bag and replace if full. Be careful not to inhale dust when handling bag
•Check cloth filter for holes or tears. Replace filter immediately if torn or otherwise damaged
•The cleaner the filtration system is kept, the better the vacuum performs. If very fine dust, like talc or
cement is picked up it will clog the filters and reduce suction. Clean the inside of the cloth filter
regularly by turning inside out and brushing with soft bristle brush.
•After use always detach hose and tools before storing. Check hose, tubes, floor tool and unit lid for
blockages.
•When electric cable is UNPLUGGED check cable for any damage.
Servicing
Make sure unit is serviced regularly (depending on frequency of use) for motor wear and brush checks.
Warranty
This vacuum has been carefully tested and inspected at the factory and is warranted to be free from defect in
material or workmanship. The company will, under this warranty, repair or replace any parts which prove,
upon examination, to be defective. The unit must be returned prepaid to Goodway. Repairs made by others
automatically voids this warranty. This warranty is F.O.B. factory and is valid for three years from date of
purchase by original purchaser.
THIS WARRANTY DOES NOT COVER PARTS SUCH AS FILTERS, RUBBER PARTS, HOSES,
CORDS AND MOTOR BRUSHES. ALSO EXCLUDED FROM WARRANTY IS ANY NORMAL
WEAR AND TEAR OR ANY ABUSE OR MISUSE OF THE VACUUM.

CVC-100 Manual 10/2006 10
Troubleshooting
Loss Of Power:
•Check that cord is plugged in
•Check fuse or circuit breaker
•Check cord for breaks or loose contacts
•Check switch
•Check motor brushes for wear
Loss Of Suction/Blowing Power:
•Check for clogged filters:
oReplace paper collection bag if full
oEnsure cloth and foam filters are in good condition and free of debris/dust
oReplace paper media filter cartridge if clogged or damaged
•Check hoses and tools for obstructions or holes.
•Check for clogged vacuum intake.
•Check vacuum body for holes
•Check all gaskets and seals at lid and intakes

CVC-100 Manual 10/2006 11
Replacement Parts
Description Part Number
Motor 9955-1
Motor Brushes 9955-2
2-Speed Switch 9955-3
CoilVac Stainless Steel Body w//Endcaps (Complete Assembly) 9955-4
Stainless Steel Body 9955-4A
Front (Suction Side) End Cap 9955-4B
Back (Blower Side) End Cap 9955-4C
6 Ft Flexible Vacuum/Blower Hose 9955-5
20“ Extension Tube (Package of 2) 9955-6
Blower Nozzle 9955-7
Shoulder Strap 9955-8
Disposable Collection Bag (Package of 12) CVC-PFilter-12
Cloth Filter Bag 9955-10
Foam Filter (Package of 3) CVC-Filter-Foam
Paper Media Filter Cartridge 9955-12
Sealing Gasket 9955-13
Cleaning Attachments:
Dual Length Bristle CoilBrush 9956
Long Bristle CoilBrush 9957
Extendable Crevice Tool with 90° Brush 9958
Flexible Extension 9959
Accessories
CoilVac Dolly Mounting Kit P/N: CVC-CC-BRACKET
Attach the CoilVacTM to Goodways’s award winning CoilProTM and create the complete HVAC cleaning
system. The Brackets and Accessory Bin attach to the CoilPro’sTM dolly with no modifications needed - all
fastening hardware is included, just bolt on the two support brackets and accessory bin. The CoilVacTM can
be used while mounted to the dolly and the bin holds all the tools and extra collection bags you may need in
a compact and efficient package.
Certified HEPA Filter Cartridge P/N: CVC-FILTER-HEPA
Replaces the standard Paper Media Filter Cartridge (P/N: 9955-12) with a Certified True HEPA Filter
Cartridge. No modifications needed, just drop in place. Each filter is Certified to trap particles as small as
0.3 microns at 99.97% efficiency.

CVC-100 Manual 10/2006 12
Specifications
Dimensions
Length 18.25 in
Diameter 6.5 in
Weight 9 lbs
Cord
Length 25 ft
Gage 18/3
Plug type NEMA 3 prong (15 amp)
Input Power
Voltage/Hz 120 VAC / 60
Amps 9.1 A (High Speed) / 6.5 A (Low Speed)
Power 1100 Watts
Motor HP 4.0 HP
Performance (Vacuum)
Air flow 90 CFM (High Speed) / 75 CFM (Low Speed)
Lift 90+” of water (High Speed) / 70” of water (Low Speed)
Cleaning Power 950 Air Watts (High Speed) / 620 Air Watts (Low Speed)
Temperature 125°F (Motor) / 114°F (Shell)
Noise Level 69 dB (High Speed) / 58 dB (Low Speed)
Performance (Blower)
Air flow (without filters in place) 135 CFM (High Speed) / 105 CFM (Low Speed)
Air flow (with filters in place) 100 CFM (High Speed) / 85 CFM (Low Speed)
Temperature 125°F (Motor) / 114°F (Shell)
Noise Level 69 dB (High Speed) / 58 dB (Low Speed)
Other
Hose Type Corrugated, Flexible
Hose Length 6 ft
Filter 1 Type Disposable Collection Bag
Filter 2 Type Cloth Filter Bag
Filter 3 Type Foam Filter
Filter 4 Type Paper Media Filter Cartridge

CVC-100 Manual 10/2006 13
We Are Here to Serve You!
For Sales Call: 1-800-333-7467
For Service Call: 1-800-370-2855
GOODWAY TECHNOLOGIES CORPORATION
420 WEST AVENUE, STAMFORD, CT 06902, USA
Tel: [phone] · Toll-Free Tel: [phone]
Fax: [phone] · Toll-Free Fax: [phone]
E-Mail: [e-mail]
Internet: www.goodway.com
Goodway Technologies Corporation
manufactures and distributes a complete line of Tube/Pipe
Cleaning Systems, Duct Cleaning Systems, Vacuums,
Floor Machines, Hi-Pressure Washers and other
maintenance related equipment.
TM
