Good Way VAC-EX-120-9-SS User manual

OPERATION AND MAINTENANCE MANUAL
STATIC DISSIPATIVE / GROUNDED
INDUSTRIAL VACUUM CLEANER SYSTEM
ELECTRICALLY OPERATED FOR DRY RECOVERY
DUST IGNITION PROTECTED, DESIGNED AND CERTIFIED FOR USE IN
CLASS II - DIVISION 2 - GROUPS F & G HAZARDOUS LOCATIONS
as defined in the National Electric Code (NFPA 70)
MODEL: VAC-EX-120-9-SS
READ ALL INSTRUCTIONS BEFORE OPERATING,
CLEANING OR SERVICING
IMPORTANT - SAVE THESE INSTRUCTIONS

Page 2of 27
Table of Contents
1.0 INSPECTION ......................................................................................................3
2.0 APPLICATIONS..................................................................................................3
3.0 IMPORTANT SAFETY PRECAUTIONS.............................................................5
4.0 PRE-USAGE INSTRUCTIONS...........................................................................8
5.0PRE-CAUTIONS FOR THE RECOVERY OF HAZARDOUS MATERIALS .....10
6.0 GROUNDING INSTRUCTIONS........................................................................11
7.0 TESTING FOR GROUND CONTINUITY ..........................................................12
8.0 FILTRATION SYSTEM .....................................................................................13
9.0 OPERATING INSTRUCTIONS - FOR DRY RECOVERY.................................14
10.0 CLEANING AND MAINTENANCE .............................................................15
11.0 ASSEMBLING AND REPLACING THE HEPA FILTERS...........................16
12.0 STORAGE...................................................................................................19
13.0 TROUBLESHOOTING:...............................................................................19
June 21, 2018

Page 3of 27
1.0INSPECTION
Carefully unpack and inspect your Vacuum Cleaner for shipping damage. Each vacuum cleaner
is tested and thoroughly inspected before being shipped; therefore, any damage is the
responsibility of the delivering carrier, who should be notified.
2.0APPLICATIONS
WARNING: A full Process Hazard Analysis has to be conducted by the user for the
recovery of dusts in hazardous areas. The recommendations in this manual
cannot, in any case, supplant the conclusions of a full Process Hazard
Analysis.
VAC-EX-120-9-SS is an electrically operated, dust ignition protected industrial vacuum cleaner
system designed and certified for use in CLASS II - DIVISION 2 - GROUPS F & G
HAZARDOUS LOCATIONS, as defined in the National Electric Code (NFPA 70)
WARNING: THIS VACUUM CLEANER IS NOT DESIGNED TO BE USED IN
DIVISION 1 HAZARDOUS LOCATIONS. DO NOT USE THIS VACUUM
CLEANER IN DIVISION 1 HAZARDOUS LOCATIONS.
WARNING: THIS VACUUM CLEANER IS NOT CERTIFIED FOR USE IN GROUP E
HAZARDOUS LOCATIONS CONTAINING METAL DUSTS. DO NOT
USE THIS VACUUM CLEANER IN GROUP E HAZARDOUS
LOCATIONS CONTAINING METAL DUSTS.
WARNING: THIS VACUUM CLEANER IS NOT DESIGNED TO BE USED IN CLASS
I HAZARDOUS LOCATIONS CONTAINING FLAMMABLE GASES,
VAPORS OR LIQUIDS. DO NOT USE THIS VACUUM CLEANER IN
CLASS I HAZARDOUS LOCATIONS CONTAINING FLAMMABLE
GASES, VAPORS OR LIQUIDS.
WARNING: This vacuum cleaner is designed for the recovery of dry materials
only. Do not recover liquids.
WARNING: Only tools and accessories provided by the manufacturer shall be
used with this vacuum cleaner. The use of other tools and
accessories may impair safety.

Page 4of 27
2.1.APPLICATIONS IN HAZARDOUS LOCATIONS IN PRESENCE OF FLAMMABLE
GASES, VAPORS OR LIQUIDS
WARNING: THIS VACUUM CLEANER IS NOT DESIGNED TO BE USED IN
CLASS I HAZARDOUS LOCATIONS CONTAINING FLAMMABLE
GASES, VAPORS OR LIQUIDS. DO NOT USE THIS VACUUM
CLEANER IN CLASS I HAZARDOUS LOCATIONS CONTAINING
FLAMMABLE GASES, VAPORS OR LIQUIDS.
2.2.APPLICATIONS IN HAZARDOUS LOCATIONS IN PRESENCE OF COMBUSTIBLE
DUST
VAC-EX-120-9-SS is an electrically operated, dust ignition protected industrial vacuum
cleaner system designed and certified for use in CLASS II - DIVISION 2 - GROUPS F & G
HAZARDOUS LOCATIONS, as defined in the National Electric Code (NFPA 70)
Model VAC-EX-125-9-SS can be used to recover combustible dusts such as:
Combustible flyings
Combustible carbonaceous dusts (Carbon black, charcoal, coal or coke dusts)
Flour, grain, wood, plastic and chemicals
WARNING: DO NOT RECOVER ANY HOT EMBERS OR IGNITED DUSTS.

Page 5of 27
3.0IMPORTANT SAFETY PRECAUTIONS
3.1.MOTOR COOLING AIR INTAKE

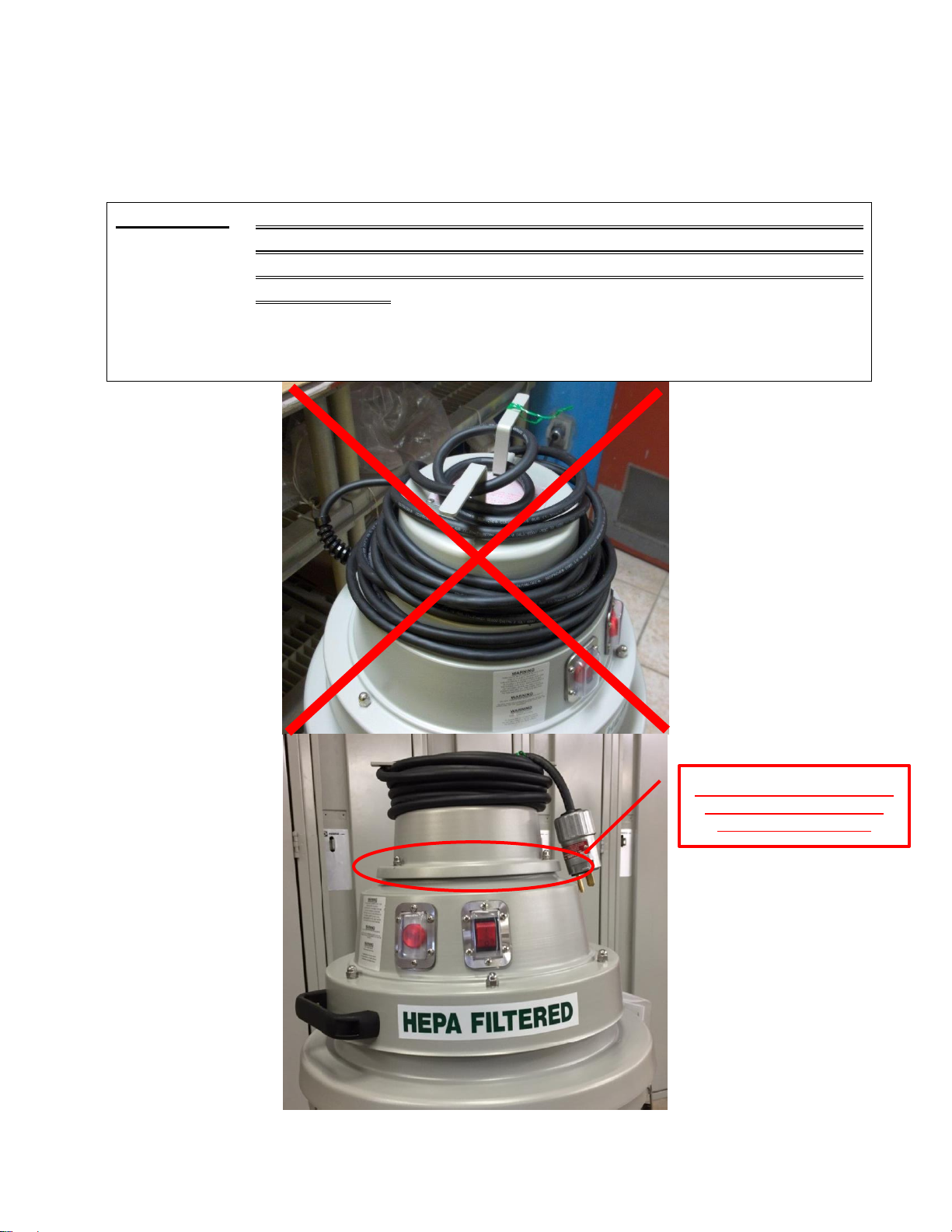

WARNING: DO NOT WRAP THE ELECTRIC CABLE AROUND THE
MOTOR COOLING AIR INTAKE OR OBSTRUCT THE
MOTOR COOLING AIR INTAKE IN ANY WAY DURING
OPERATION. THIS WOULD PREVENT AIR TO COOL DOWN
THE MOTOR, THE TEMPERATURE OF THE MOTOR
WOULD RISE, AND THIS WOULD STOP THE VACUUM
CLEANER.

Motor cooling air intake must
remain unobstructed at all
times during operation

Page 6of 27
3.2.FILTER BLOCKAGE WARNING LIGHT
A filter blockage warning light is installed on the vacuum cleaner. The light turns on to
indicate a loss of suction. In such case the collection bag may be full, cloth filters (main
filters and safety filters) may need to be washed or HEPA filters may need to be replaced.
WARNING: When the filter blockage warning light turns on, turn the vacuum
cleaner off as soon as possible as filter blockage cause the
temperature inside the vacuum cleaner to rise and can also lead to
motor damage.
For maintenance refer to “Cleaning and maintenance” and to “Assembling and replacing the
HEPA filters” sections.
3.3.LAYERS OF DUST
WARNING: Clean regularly the vacuum cleaner surfaces with a water damped
cloth to avoid dust accumulation which could create a potential source
of ignition.
3.4.BURNING MATERIAL
WARNING: DO NOT PICK-UP ANYTHING THAT IS BURNING OR SMOKING, SUCH
AS HOT ASHES, CIGARETTES, MATCHES OR LIVE EMBERS.
3.5.FLAMMABLE LIQUIDS
WARNING: THIS VACUUM CLEANER IS NOT DESIGNED TO RECOVER
FLAMMABLE LIQUIDS. DO NOT USE THIS VACUUM CLEANER TO
RECOVER FLAMMABLE LIQUIDS.

Page 7of 27
3.6.SELF-IGNITION OF DUST
WARNING: DO NOT USE THIS VACUUM CLEANER TO RECOVER DUST OR
MIXTURE OF DUSTS THAT CAN SELF-IGNITE.
3.7.MECHANICALLY GENERATED SPARKS
WARNING: To prevent mechanically generated sparks (thermite reaction) avoid
impact of the wand and tools supplied with the vacuum cleaner with
any rusted parts present in the working area.
3.8.IMPORTANT SAFETY PRECAUTIONS IN REGARD TO ELECTROSTATIC
CHARGES GENERATION
When the vacuum cleaner is used as recommended in this manual it has been determined
that no significant or continuous electrostatic charge accumulation, which could act as a
potential ignition source, can occur.
Nevertheless, it is recommended for safe use not to perform any specific action on the
insulating items assembled on the vacuum cleaner, such as a continuous and intense
manual rubbing, which could lead to a significant electrostatic charge accumulation.
The above instructions are to be observed particularly in regard to the plastic wheel covers
on the vacuum cleaner.

Page 8of 27
4.0PRE-USAGE INSTRUCTIONS
WARNING: This vacuum cleaner must be properly grounded.DO NOT OPERATE
UNIT WITHOUT A PROPER GROUND SOURCE.
WARNING: The vacuum cleaner unit and detachable tools and accessories are
completely grounded and use special static-free materials. Use only
original replacement parts from the manufacturer or from one of its
authorized distributors.
WARNING: This equipment is certified only if used with supplied or
recommended hose and tools. The use of other hose and tools may
impair safety. Any alteration to this equipment by a third party
nullifies its certification.
WARNING: The plug must be plugged into an appropriate outlet that is properly
installed and grounded in accordance with all local codes and
ordinances.
WARNING: This appliance is for dry use only and is not to be used or stored
outdoors in wet conditions.
WARNING: Before use, operators should be provided with information,
instruction and training for the use of the appliance and the
substances for which it is to be used, including the safe method of
removal and disposal of the material collected
WARNING: This appliance is not suitable to pick up dusts or liquids of high
explosion risk, nor mixtures of combustible dust with liquids.
WARNING: Improper use of this vacuum cleaner will result in the voiding of the
warranty.

Page 9of 27
a. Consult local electric code and authority having jurisdiction before using. Make sure that the
electrical installation is compatible with the voltage stated on the nameplate.
b. Examine the vacuum cleaner’s power cable for damage (cracking or ageing) before use.
Return to manufacturer for servicing if damaged. Use only the power cable supplied with
the unit or one purchased from the manufacturer.
c. Do not pull vacuum cleaner by the power cable.
d. Turn off the vacuum cleaner and unplugged the power cable before servicing or storing the
vacuum cleaner. Clean and service this vacuum cleaner only in a NON-HAZARDOUS
AREA.
e. This vacuum cleaner is designed for indoor use only.
f. The tank should be clean and dry before using the vacuum cleaner.
g. The appliance shall only be operated when all filters are in position and undamaged. (See
paragraph regarding the filtration system)
h. Connect to a properly grounded outlet only. See Grounding Instructions.
i. Do not use extension cords
j. For dusts with ignition energy less than 1mJ additional restrictions of the labour authorities
may apply.

Page 10 of 27
5.0PRE-CAUTIONS FOR THE RECOVERY OF HAZARDOUS MATERIALS
WARNING: Model VAC-EX-120-9-SS not equipped with a HEPA filter is not
suitable for the recovery of hazardous materials.
DANGER: If the vacuum cleaner is used to recover toxic or nuisance materials,
the following safety precautions must be taken:
a. The vacuum cleaner must be equipped with a HEPA filter.
b. Service and operation should only be carried out by trained personnel.
c. Appropriate clothing and personal protective equipment should be worn when operating
or servicing the vacuum cleaner.
d. Dispose of collected materials responsibly. Follow applicable government regulations for
the disposal of hazardous materials.
WARNING: This appliance contains dust hazardous to health. Emptying and
maintenance operations, including removal of the dust collection
means, must only be carried out by authorized personnel wearing
suitable personal protection. Do not operate without the full filtration
system fitted.
NOTE: Any health hazard associated with the use of this vacuum cleaner in
conjunction with the recovery of asbestos and other hazardous
substances has not been investigated.

Page 11 of 27
6.0GROUNDING INSTRUCTIONS
This vacuum cleaner must be properly grounded. If it should malfunction or breakdown,
grounding provides a path of least resistance for electric current to reduce the risk of electric
shock.
This vacuum cleaner is equipped with a cord having an equipment-grounding conductor. The
plug must be plugged into an appropriate outlet that is properly installed and grounded in
accordance with all local codes and ordinances. Ensure that the fuse/breaker on the electrical
panel is of the correct rating and exceeds the maximum current rating shown on the technical
data sticker of the vacuum unit. Test the electrical continuity of the vacuum cleaner prior use.
(See section “testing for ground continuity”).
UWARNING:UThis vacuum cleaner for hazardous locations is equipped with
conductive wheels, which allow for the vacuum cleaner to be grounded
with the floor. Do not substitute the conductive wheels and use only
replacement conductive wheels supplied by the manufacturer.
UWARNING:UImproper connection of the equipment-grounding conductor can result
in a risk of electric shock. Check with a qualified electrician or service
person if you are in doubt as to whether an outlet is properly grounded.
If the plug will not fit the outlet, have a proper plug or outlet installed by
a qualified electrician. No adaptor should be used with this vacuum
cleaner
UWARNING:UTo effectively dissipate static electricity and to ensure spark-free
operation, this vacuum cleaner must be grounded during use.
UDANGER:UDo not operate vacuum cleaner if the electrical outlet is not properly
grounded or if the grounding is questionable.

Page 12 of 27
7.0TESTING FOR GROUND CONTINUITY
WARNING: Test the electrical continuity of the vacuum cleaner before use. This will
ensure that any static electricity that is produced while vacuuming will
be discharged to ground.
WARNING: Use only original replacement parts from the manufacturer or from one
of its authorized distributors.
An ohm-meter is required to perform the following electrical continuity test.
a. Disconnect the static dissipating power cable from the outlet.
b. Make sure that all the latches on the vacuum cleaner are fastened and that the detachable
recovery tank is properly installed on the vacuum cleaner.
c. Disconnect the suction hose from the vacuum cleaner.
d. Using an ohm-meter, test the electrical continuity of the vacuum cleaner from the ground
pin at the end of the power cable to the suction intake of the vacuum cleaner. A reading
between 106ohms and 109ohms or less is satisfactory to ensure proper grounding and static
dissipation.
e. Using the ohm-meter test for the electrical continuity of the suction hose from one end to
the other. A reading between 106ohms and 109ohms or less is satisfactory to ensure proper
grounding and static dissipation.

Page 13 of 27
8.0FILTRATION SYSTEM

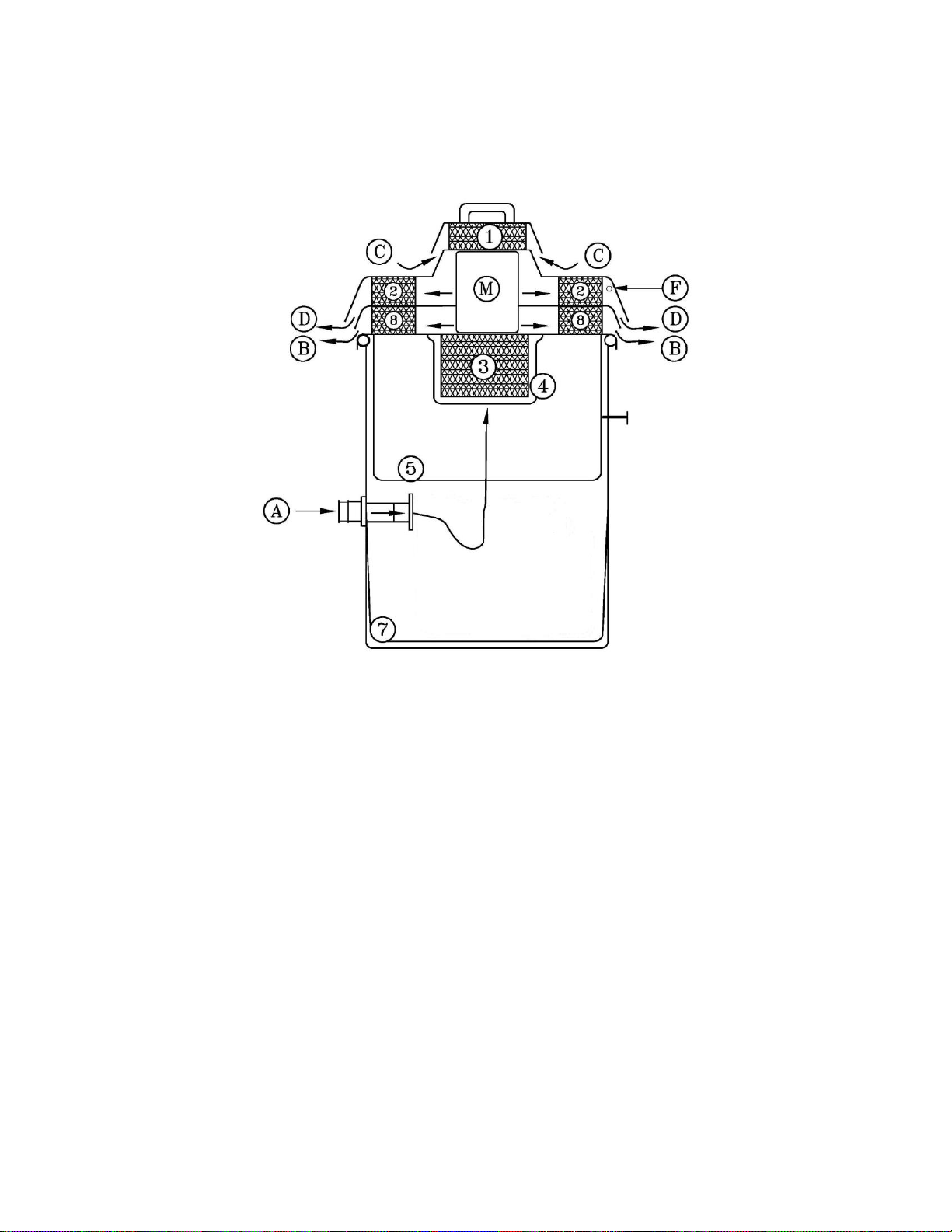

Figure 1
1. ABSOLUTE HEPA FILTER FOR MOTOR COOLING AIR INTAKE (Efficiency > of 99.995% on
0.3 micron.)
2. ABSOLUTE HEPA FILTER FOR MOTOR COOLING AIR EXHAUST (Efficiency > of 99.995%
on 0.3 micron.)
3. ABSOLUTE HEPA FILTER FOR WORKING AIR INTAKE (Efficiency > of 99.995% on 0.3
micron.)
4. SAFETY FILTER (STATIC DISSIPATIVE)
5. MAIN CLOTH FILTER (STATIC DISSIPATIVE)
6. MANUAL FILTER SHAKER
7. POLY LINER RECOVERY BAG (STATIC DISSIPATIVE)
8. ABSOLUTE HEPA FILTER FOR WORKING AIR EXHAUST (Efficiency > of 99.995% on 0.3
micron.)
A. SUCTION INLET
B. WORKING AIR EXHAUST
C. MOTOR COOLING AIR INTAKE
D. MOTOR COOLING AIR EXHAUST
F FILTER BLOCKAGE WARNING LIGHT
M. MOTOR


Page 14 of 27
9.0OPERATING INSTRUCTIONS - FOR DRY RECOVERY
WARNING: This vacuum cleaner is designed for the recovery of dry materials
only. Do not recover liquids.
1. Disengage the latches and remove the power head from the recovery tank.
2. Place the poly liner (item # 7 on Fig. 1) at the bottom of the tank
NOTE In order to prevent the poly liner from being vacuumed up during use;
press the bag along the interior walls and bottom of the recovery tank in
order to remove any trapped air.
3. Place the main cloth filter (item # 5 on Fig. 1) on the recoverytank. Make sure that the filter's
gasket covers the circumference of the recovery tank lip.
IMPORTANT: Do not use this vacuum cleaner for dry recovery if the cloth filters are
not installed
4. Place the power head on the recovery tank and fasten the latches.
5. Fasten hose to suction intake on side of recovery drum and attach desired tools to hose.
NOTE: The floor tool is designed to be attached to the wand. Other tools can be
attached directly to the hose.

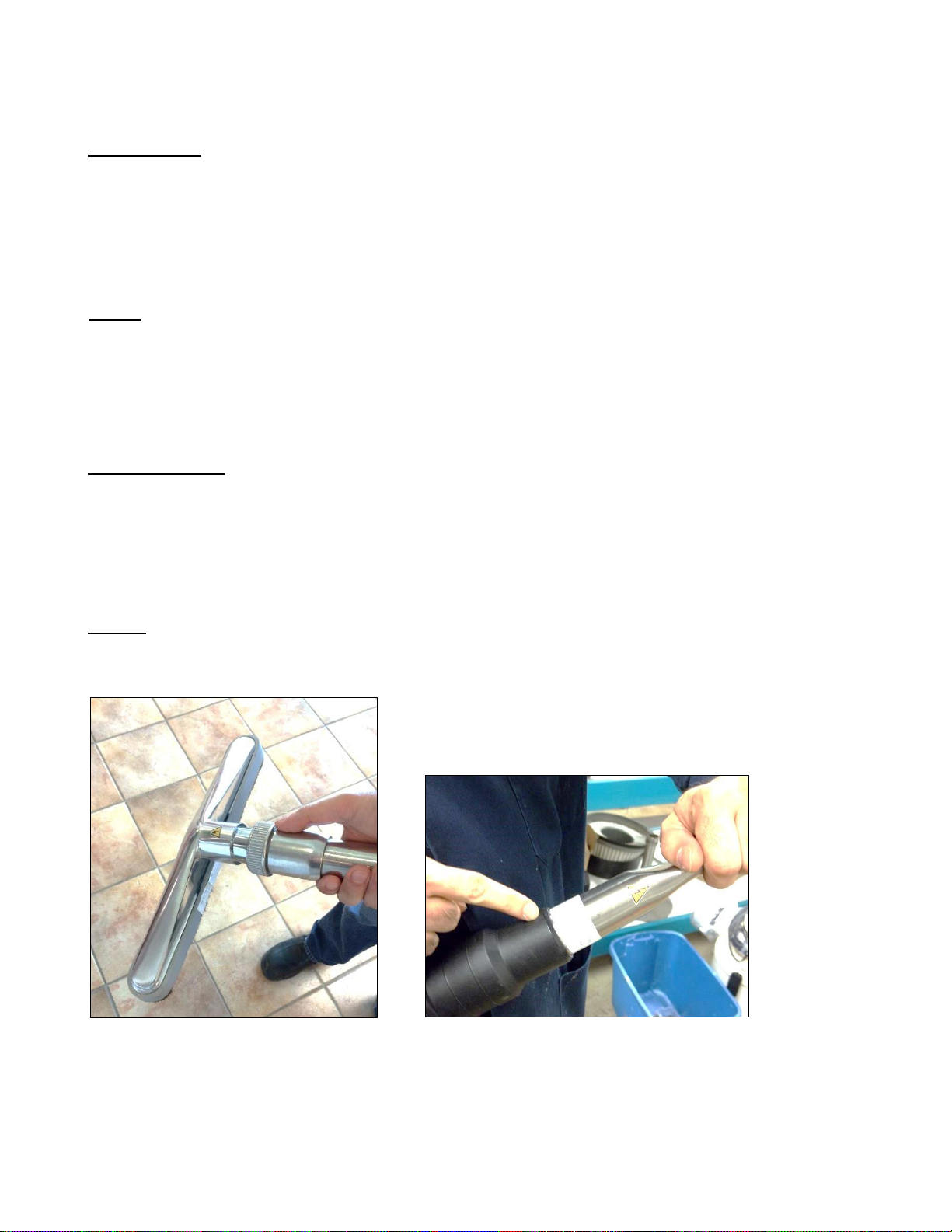

Floor tool Crevice tool

Page 15 of 27
6. To turn on the vacuum cleaner, turn switch to the ON position
7. To shut off unit, turn switch to the OFF position. Disconnect the power cable when not in
use.
10.0 CLEANING AND MAINTENANCE
FILTER BLOCKAGE WARNING LIGHT:
A filter blockage warning light is installed on the vacuum cleaner. The light turns on to indicate
a loss of suction. In such case the collection bag may be full, cloth filters (main filters and safety
filters) may need to be washed or HEPA filters may need to be replaced.
WARNING: When the filter blockage warning light turns on, turn the vacuum cleaner
off as soon as possible as filter blockage cause the temperature inside
the vacuum cleaner to rise and can also lead to motor damage.
IMPORTANT: We recommend proceeding with the following maintenance after each
use and after a maximum of 8 hours of consecutive use
WARNING: Turn off the vacuum cleaner and disconnect the power cable before
performing any servicing or maintenance of the vacuum cleaner.
a. Shake the cloth filters regularly using the manual filter shaker handle to dislodge caked-
on dust
b. Dispose of collection bag when full and replace by a new collection bag
c. Empty and clean the recovery tank.
WARNING: Empty the recovery tank when necessary but also after every use (8
hours shift). Do not allow recovered materials to sit for extended periods
of time. An excessive accumulation of recovered materials can create a
dust ignition hazard.
d. It is recommended that the cloth filters be cleaned regularly. Dirty cloth filters will reduce
the airflow through and reduce the performance of the vacuum cleaner. The cloth filters
(main filters and safety filters) can be washed with warm water (no detergents required).
IMPORTANT: After washing the filters, make sure that they are completely dry
before reinstalling them in the vacuum. Do not reinstall the cloth
filters if they are still wet.

Page 16 of 27
e. The cloth filters should be replaced every two or three years depending on use.
f. Inspect the cloth filters regularly. If the cloth filters are torn, replace immediately. A torn
filter will allow dust and other materials to enter the motor and may cause pre-mature
wear of the motor
g. Clean hose to remove any accumulated dust, debris or material recovered.
h. The HEPA filter should be replaced yearly, or every two years, depending on the use.
WARNING: Do not use the HEPA filter after removal out of the appliance.
WARNING: Keep the power supply cable clean and inspect it regularly for cuts
or cracks
WARNING: When carrying out service or repair operations, all contaminated
items which cannot be satisfactorily cleaned, are to be disposed of;
such items shall be disposed of in impervious bags in accordance
with any current regulation for the disposal of such waste;
WARNING: Clean regularly the vacuum cleaner surfaces with a water damped
cloth to avoid dust accumulation which could create a potential
source of ignition.
11.0 ASSEMBLING AND REPLACING THE HEPA FILTERS
A HEPA filter is designed for filtration of ultra fine particles. A clogged HEPA filter will reduce
the air flow thereby reducing the vacuum’s performance thus requiring replacement.
The life of the HEPA filters depends greatly on the use of the vacuum cleaner. It is
recommended that the HEPA filters be replaced once a year if the vacuum is used intensively
(daily). The filters can be replaced everytwo years if the vacuum cleaner is used lessfrequently
(two or three times per week)
WARNING: If the vacuum cleaner is used for the recovery of toxic materials proper
clothing and the use of an appropriate breathing apparatus is
necessary when servicing the HEPA filter housing or any other
contaminated part of the unit.

Page 17 of 27
11.1 REPLACEMENT OF THE HEPA FILTER FOR MOTOR COOLING AIR INTAKE (ITEM
#1 ON FIG. 1 SEE SECTION 8 FOR ILLUSTRATION)
1. Disconnect the power cable from the outlet.
2. Unscrew the three hex nuts securing the top section of the power head to the lid
3. Remove and discard the old HEPA filter
4. Carefully inspect the seal gaskets for wear and breaks. Replace gaskets if defective.
5. Place the new filter on the lid.
6. Securely fasten the top section of the power head to the lid using the three hex nuts.
7. Dispose of the contaminated filter according to government regulations. (If applicable)
11.2 REPLACEMENT OF THE HEPA FILTER FOR MOTOR COOLING AIR EXHAUST (ITEM
#2 ON FIG. 1 SEE SECTION 8 FOR ILLUSTRATION)
1. Disconnect the power cable from the outlet.
2. Unscrew the six hex nuts securing the middle section of the power head to the lid
3. Remove and discard the old HEPA filter.
4. Carefully inspect the seal gasket on the HEPA filter. Replace gasket if defective.
5. Place the new filter on the lid.
6. Securely fasten the middle section of the power head to the lid using the six hex nuts.
7. Dispose of the contaminated filter according to government regulations. (If applicable)

Page 18 of 27
11.3 HEPA FILTER FOR WORKING AIR EXHAUST (ITEM #8 ON FIG. 1SEE SECTION 8
FOR ILLUSTRATION)
1. Disconnect the power cable from the outlet.
2. Unscrew the six hex nuts securing the lower section of the power head to the lid
3. Remove and discard the old HEPA filter.
4. Carefully inspect the seal gasket on the HEPA filter. Replace gasket if defective.
5. Place the new filter on the lid.
6. Securely fasten the lower section of the power head to the lid using the six hex nuts.
7. Dispose of the contaminated filter according to government regulations. (If applicable)
11.4 HEPA FILTER FOR WORKING AIR INTAKE (ITEM #3 ON FIG. 1 SEE SECTION 7 FOR
ILLUSTRATION)
1. Disconnect the power cable from the outlet.
2. Disengage the latches and remove the power head from the recovery tank.
3. Remove the safety filter
4. Unscrew the hex nut securing the HEPA filter to the underside of the lid.
5. Discard the old HEPA filter.
6. Carefully inspect the seal gaskets for wear and breaks. Replace gaskets if defective.
7. Insert the new HEPA filter
8. Securely fasten the HEPA filter using the hex nut.
9. Place back the safety filter
10.Dispose of the contaminated filter according to government regulations. (If applicable)

Page 19 of 27
12.0 STORAGE
It is recommended that the inside of the recovery tank be clean and dry when storing the
vacuum cleaner.
13.0 TROUBLESHOOTING:
PROBLEM
PROBABLE CAUSE
SOLUTION
Drop in suction power
Cloth filter(s) may be
excessively dirty or covered
with dust.
Wash or replace the cloth
filter(s)
Recovery tank may be full
Empty the recovery tank
Suction hose or vacuum
tools may be blocked
Clear blockage using a
broom handle or other
appropriate device
HEPA filters may be clogged
Change HEPA filters

Page 20 of 27

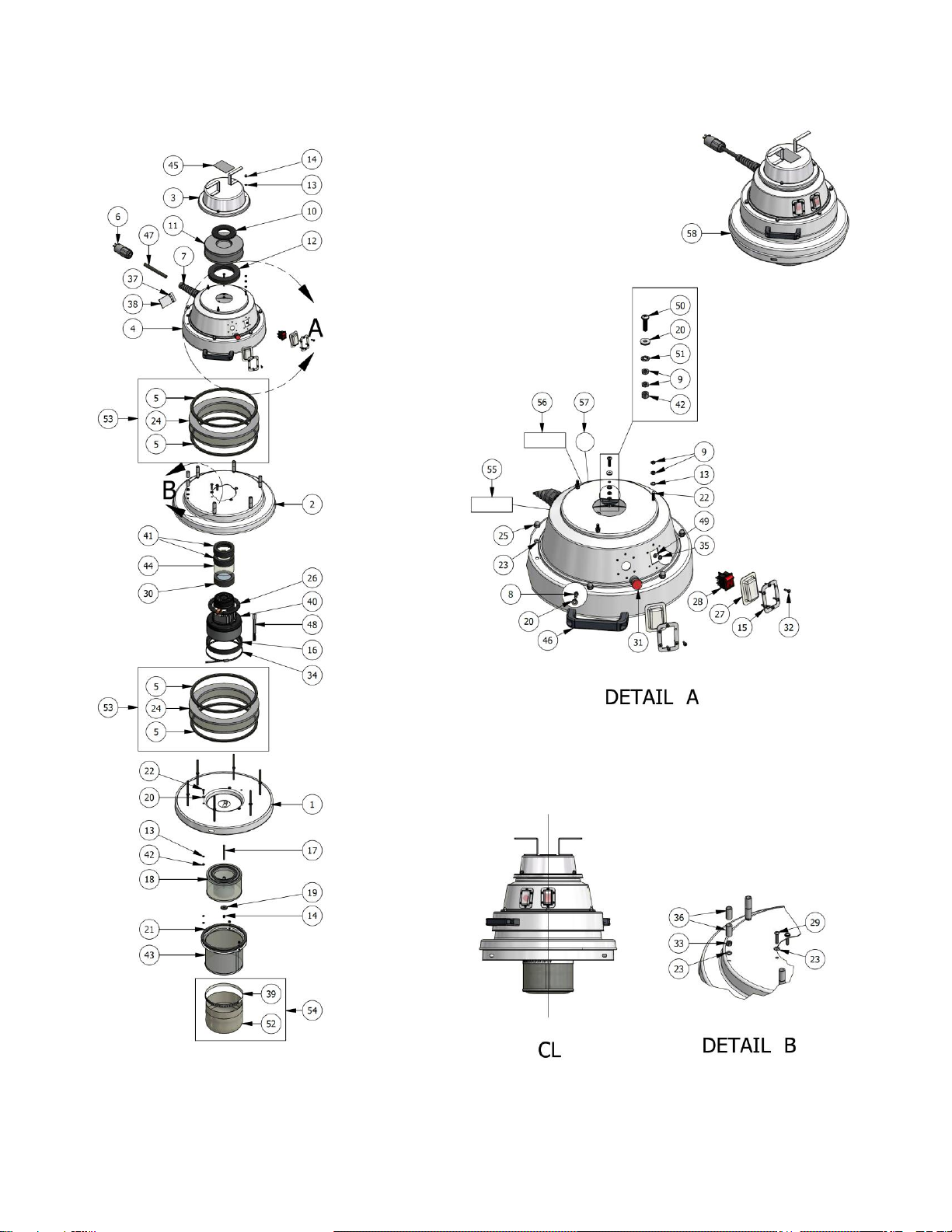

14.0 EXPLODED VIEW:
