Good Way BioSpray-5 Manual

BioSpray®-5
BioSpray®-5-BP
Surface Sanitation System
Operating and
Maintenance
Instructions
Read before operating.

BIOSPRAY®-5, BIOSPRAY®-5-BP 07212
CONTENTS:
GENERAL ...........................................................................................................................................3
IMPORTANT SAFETY INSTRUCTIONS............................................................................................3
IDENTIFYING MAIN PARTS..............................................................................................................4
INSTALLATION/SETUP .....................................................................................................................5
OPERATING INSTRUCTIONS ..........................................................................................................6
SPRAY GUN SETTINGS.....................................................................................................................6
SPRAYING PROTOCOL ....................................................................................................................7
SHUT DOWN PROCEDURE.............................................................................................................7
CO2TANK REFILLS............................................................................................................................7
OTHER OPERATING INFORMATION .............................................................................................8
STORAGE AND MAINTENANCE ....................................................................................................8
TECHNICAL INFORMATION ...........................................................................................................9
TROUBLESHOOTING.......................................................................................................................9
COMMON REPLACEMENT PARTS ...............................................................................................10
NOTES..............................................................................................................................................11
Thank you for purchasing this Goodway Surface Sanitization System. We appreciate
your business and look forward to serving you in the future. As with all Goodway
products, you can be assured that the nest quality components and workmanship
have gone into this machine.
Please take a few minutes to read the following Operating and Maintenance
Instructions. Please pay particular attention to the safety instructions and exercise
caution when using this machine.
GOODWAY®TECHNOLOGIES CORPORATION
HVAC & FACILITY MAINTENANCE SOLUTIONS
For Sales Call: 1-800-333-7467
For Service Call: 1-800-370-2855

BIOSPRAY®-5, BIOSPRAY®-5-BP 0721 3
IMPORTANT SAFETY INSTRUCTIONS
To prevent operator injury and damage to the equipment, please read and observe
the following basic safety precautions:
1. Read and understand all instructions before using.
2. Keep this manual with the unit at all times.
3. Do not operate without eye protection or other necessary protective gear.
Consult SDS for all chemicals and for CO2and OSHA exposure limits.
4. Consult Goodway or chemical manufacturer about mixing or using unspecied
chemicals with this unit.
5. Service must be performed by qualied personnel.
6. Use only Goodway specied replacement parts.
7. If the machine does not operate properly or has been damaged or exposed to
water, return it to factory for service.
8. Do not use unit with children or visitors in the immediate area.
9. Do not aim the spray toward electrical receptacles or in a direction
not intended.
10. Do not operate unit when fatigued or under the inuence of alcohol or drugs.
10. Keep operation area clear of all persons.
11. Do not over reach or stand on unstable support. Keep good footing and
balance at all times.
12. Follow maintenance instructions in manual.
13. Stay alert - watch you are doing.
14. Make sure that all CO2tanks are kept in an OSHA approved area and are
supported so they don't tip over. Refer to OSHA section 1910.101 -
Compressed Gases (General Requirements).
15. Establish if the environment is safe for operation.
16. Operate only in a well ventilated area.
17. Ensure that the CO2tank doesn’t have a dip tube.
SAVE THESE INSTRUCTIONS
WARNING
GENERAL
This BioSpray®-5 and BioSpray®-5-BP units are designed for intermittent use and
will come with a 5 lb capacity CO2tank.

BIOSPRAY®-5, BIOSPRAY®-5-BP 07214

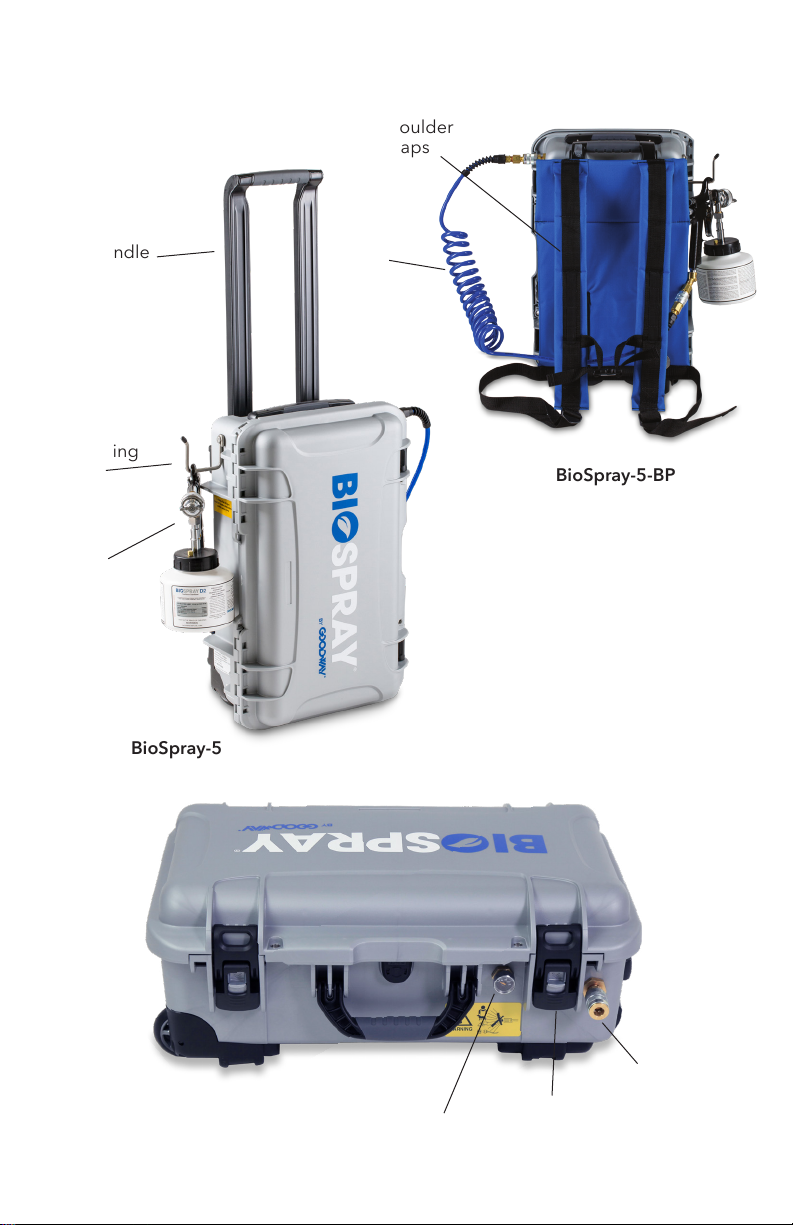

IDENTIFYING MAIN PARTS
Handle
BioSpray-5
BioSpray-5-BP
Spray
Gun
Shoulder
Straps
Mounting
Hook
Outlet
Connector
Pressure Gauge Latch
Coil
Hose

BIOSPRAY®-5, BIOSPRAY®-5-BP 0721 5
INSTALLATION/SETUP
1. Remove from packaging and inspect unit. If anything is damaged, contact
Goodway Technologies.
2. Place the surface sanitization system on a at surface.
INSTALLING THE CO2TANK:

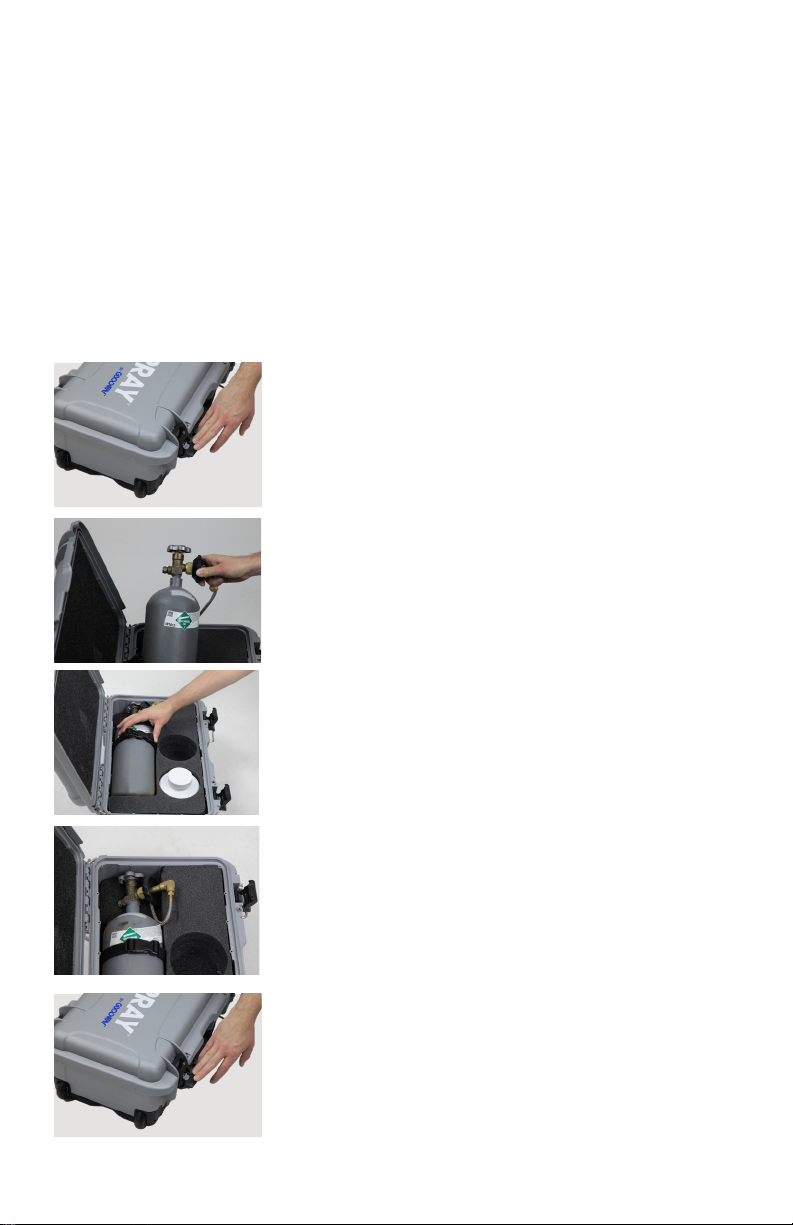

1. With the BioSpray-5 lying at, unlock
the latches and open the cover.
2. Tighten the hand nut on the full CO2tank.
3. Lay the CO2down and strap the unit in
place with the buckles.
4. The hose that is connected to the hand nut
should have a small loop in it as shown.
5. Close the cover and then lock the latches
in place.

BIOSPRAY®-5, BIOSPRAY®-5-BP 07216
(BD)
(IM)
(SC)
(TD)
(BD)
OPERATING INSTRUCTIONS
1. Attach Goodway approved formula
to spray gun. NOTE: To do this,
carefully remove the foil seal on the
top of the bottle, making sure that no
debris gets into the bottle, as that will
impede the spraying. Be careful not
to overtighten the bottle, it only has
to be snug to seal.
2. Connect the spray gun to the
coil hose.
3. Connect the coil hose to the outlet
connector on the side on the unit.
4. Open the CO2tank valve by turning
it counter clockwise ¾ - 1 turn.
5. Verify that the tank pressure reads
between 800-1000 PSI (55-69 BAR).
6. Verify that the unit is in a vertical
position. DO NOT spray while the
unit is lying on the oor.
7. Spray evenly in an overlapping
pattern until surface remains
thoroughly wet.
8. For best results, we recommend
BioSpray®-D2 or other Goodway
approved chemicals.
9. BioSpray-5-BP only: when using
the backpack straps, tighten both the
shoulder straps and the chest strap
so the unit rests comfortably on the
users shoulders.

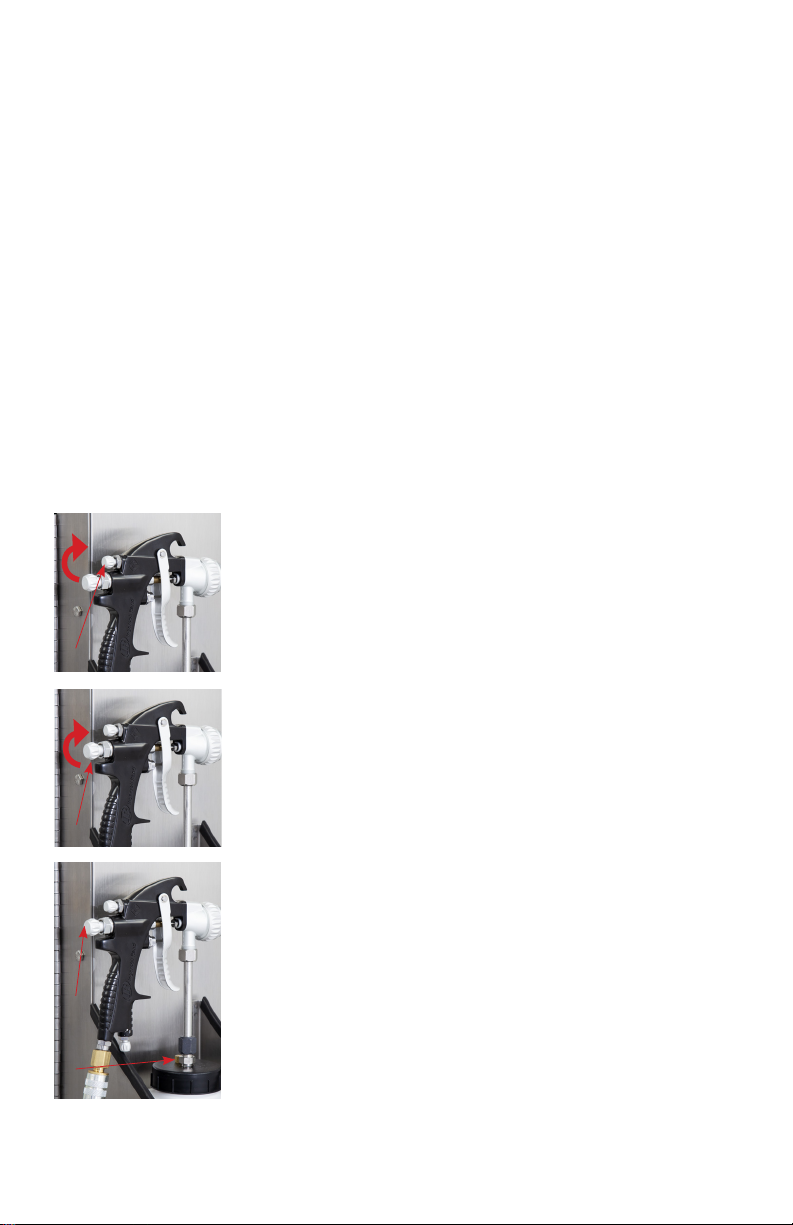

SPRAY GUN SETTINGS:
1. The top dial (TD) on the back of the spray gun
should always be completely closed by turning
the dial fully CLOCKWISE
2. The bottom dial (BD) on the back of the spray gun
controls the amount of formula to be sprayed.
Before proceeding to step 3, begin by ensuring the
dial is completely closed by turning the dial fully
CLOCKWISE.
3. Open the bottom dial (BD) by turning it COUNTER-
CLOCKWISE to the desired number of rotations
for sanitation or disinfection. Count the number or
rotations made by using the indicator mark (IM)
located on the back of the bottom dial (BD). As listed
on the siphon assembly cap (SC) for standard settings
of a 24” (61cm) spray distance at 72º F (22º C), turn the
bottom dial (BD Above) COUNTER-CLOCKWISE: 1.5
Turns for Sanitization 3.0 Turns for Disinfection.

BIOSPRAY®-5, BIOSPRAY®-5-BP 0721 7
SPRAYING PROTOCOL:
Do not apply near an ignition source.
Spray evenly in an overlapping pattern until surface remains
thoroughly wet for the desired time:
At the proper setting listed in ‘Spray Gun Settings’ Step 4,
you should only have to make one pass in an overlapping
pattern to apply enough solution to remain on the surface for
the dwell time required.
1 SQ. FT.
SHUT DOWN PROCEDURE:
1. Rinse the gun with clean water using the provided rinse bottle for 30 seconds.
2. Close the tank valve by turning it clockwise.
3. Squeeze the trigger of the spray gun half way to release the gas pressure in the
coil hose.
CO2TANK REFILLS:
Rell or replace CO2tanks at any CO2Compressed Gas Center in your area. In
some non-metropolitan areas, the best option may be an independent welding
supply shop.
Do not use any CO2tank with a dip tube. Using a CO2tank with a dip tube will
cause damage to the regulator.
Praxair Technology Inc. (www.praxair.com) is a National Compressed Gas Center
and an example of a company that can rell your BioSpray® CO2tanks.
Most CO2Compressed Gas Centers, including most independent welding supply
shops located in virtually every community and area, will create an account for your
company and provide pickup and delivery to rell or replace your tanks at little or
no additional charge, or you can take your tanks to these centers to have
them relled or replaced.
Note:
Regular, industrial grade CO2 is required for this application. Food grade CO2is
used for human consumption, and not required for sanitizing/disinfecting food
grade surfaces.
TIP:
Depending on your usage, volume and needs, it is recommended to have an extra
set of CO2tanks on hand, so that you can continue using your BioSpray® System
while your empty CO2 cylinders are being relled.

BIOSPRAY®-5, BIOSPRAY®-5-BP 07218
STORAGE AND MAINTENANCE
As a preventative maintenance measure, it is requested that the hoses be checked for
wear and all sealing areas are checked for leaks after each use.
To prevent the coil hose from
dragging, guide it across the front
of the unit and rest the gun on the
mounting hook.
Bio-Spray-5-BP ONLY: To prevent the
shoulder straps from dragging, secure
the buckle across the front of the unit.

BIOSPRAY®-5, BIOSPRAY®-5-BP 0721 9
Problem Cause Solution
Spray gun is
sputtering Debris in nozzle
Packing nut is too
loose, allowing air
to leak.
Remove the nozzle and
spray the compressed air
for 15 seconds.
Tighten the packing nut,
located near the trigger of
the spray gun.
Siphon for spray
gun is not able to
breathe.
Make sure all of the foil is
removed from the Bio-
Spray-D2 container.
Operating Pressure 24-26 PSI (1.6-1.8 BAR)
Working Tank Pressure 0-1000 PSI (0-69 BAR)
Operating Environmental
Temperature
68°F +/- 20°F (20°C +/- 11°C)
Air Flow 5.4 CFM (.003 m³/s)
Siphon Rate 160 mL/min (5.4  oz/min)
Tank Safety Relief 3000 PSI (207 BAR)
Regulator Safety Relief 150 PSI (10.3 BAR)
TROUBLESHOOTING
TECHNICAL INFORMATION

BIOSPRAY®-5, BIOSPRAY®-5-BP 072110
SANI-034-ASSM
(Spray Gun Assembly)
SANI-087 (Buckle Set) SANI-079 (Foam Set)
SANI-BP-ASSM
(Backpack Strap Assembly)
SANI-045-ASSM
(Coil Hose Assembly,
10', 3m)
COMMON REPLACEMENT PARTS
SANI-REGULATOR-ASSM-5
(Regulator Assembly)
SANI-TANK-5 (5lb CO2 Tank)

BIOSPRAY®-5, BIOSPRAY®-5-BP 0721 11
NOTES

GOODWAY®TECHNOLOGIES CORPORATION
420 West Avenue, Stamford, CT 06902 USA
Tel: [phone] · Toll-Free Tel: [phone]
Fax: [phone] · Toll-Free Fax: [phone]
Email: [e-mail]
Visit: www.goodway.com
P/N: MNL-BIOSPRAY-5
©Copyright 2021 Goodway Technologies Corp., Stamford, CT USA
Effective date July 27, 2021
Goodway is a Trademark of Crossford International.
Goodway reserves the right to improve products; contact the factory for the latest conguration and uses.
