The Section describes how to operate the meter via an optical
interface.
• It also explains the detail information of all interface command sets
of Standard Commands for Programmable Instruments (SCPI) used
in the meter.
• The remote control operation enables the user either to manually
operate the meter via a terminal or to execute a host computer
program automatically.
Symbols
Safety Symbol
The following symbols in this manual indicate the relative importance
of cautions and warnings.
Other symbols
Indicates advisory items related to performance or
correct operation of the instrument.
Indicates the reference.
*Iterminology explained at the bottom of the word.

Symbols
2

3
Chapter 1 Remote Interface Overview

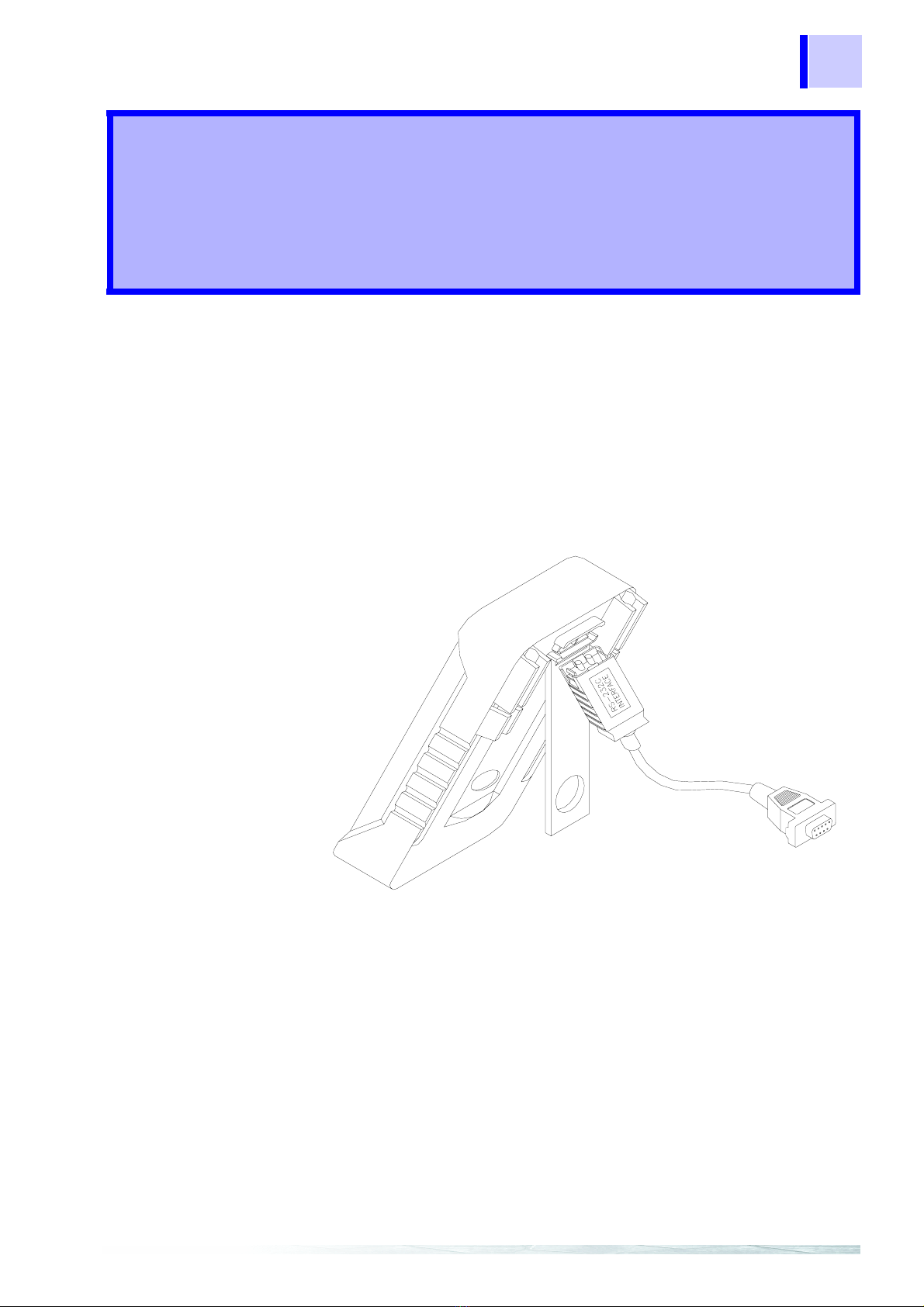

The following figure shows the USB type optical cable connecting for
the meter and a host computer communication.
The computer is added a virtual RS-232 COM port when the user
plugs the USB type cable and installs the USB driver.
• The remote interface is a serial binary data interchange, which
operates from 2400 to 19200 baud rate.
• The communication port of the 7016 is designed in full duplex,
which makes the meter more reliable and efficient in data taking.
Cable connection for Communication
Remote Interface
Overview Chapter 1

Chapter 1 Remote Interface Overview
4

5
Chapter 2 Setting Remote Interface Parameters
In order to operate the meter via a host computer or terminal, the
parameters in interface within the 7016 have to match the parameters
in the serial interface provided by the host or terminal.
The following procedures will guide the user to set up interface
parameters within the 7016 to comply interface with the host.
The default settings of the meter at factory are 9600-baud rate, non-
parity, 8 data bits, and 1 stop bit (9600, n, 8, 1).
The following table indicates the factory settings and user selectable
communication parameters by using remote interface.
Echo
With ECHO ON, the meter echoes (returns) all the characters
whatever it receives.
Print-Only
• The remote indicator of the 7016 is flashing when the meter is set to
Print-Only ON.
• If the remote interface of the 7016 is under Print-Only mode, the
7016 will print out the measured data when the measurement cycle
is completed.
• The 7016 auto-sends the newest data to a host continuously.
• The 7016 doesn't accept any commands under Print-Only mode.
Setup Procedures for Communication Parameter
To ensure the remote interface will operate appropriately, user may
need to configure the remote interface parameters on Setup Mode.
Please refer to operation procedures of POWER-ON OPTION.
❖7016 instruction manual 5.4 Power-On Options
Setting Remote Interface
Parameters Chapter 2
Remote Interface Parameters
Item Parameter Factory
Setting Selectable Parameter
1Baud Rate 9600 2400, 4800, 9600, 19200
2Parity None None, Odd or Even
3Data Bit 8 7 or 8
4ECHO OFF ON or OFF
5Print-Only OFF ON or OFF

Chapter 2 Setting Remote Interface Parameters
6

7
Chapter 3 Commands Summary
Overview of Command Type and Format
• All commands must be entered in the upper case.
• There are two types of the 7016 programming commands: IEEE
488 common commands and Standard Commands for
Programmable Instruments (SCPI).
• Some commands are device-specific to the 7016. They are not
included in the version 1999.0 of the SCPI standard. However,
these commands are designed with the SCPI format in mind and
they follow the syntax rules of the standard.
Common Command Format
• The IEEE 488 standard defines the common commands as
commands that perform functions like reset and system query.
• Common commands usually come with the asterisk "*" character,
and may include parameters. Some examples of Common
command like: *IDN?, *RST, *CLS, GTL, LLO.
SCPI Command Format and Query Format
• The SCPI commands control instrument functions.
• A subsystem command has a hierarchical structure that usually
consists of a top-level (or root) keyword, one or more lower level
keywords, and parameters.
• The following example shows a command and its associated query:
Commands
Summary Chapter 3
A. CONFigure:VOLTage:DC 0.5: Set the primary display to the
DC voltage measurement , and
select the 500mV range.
B. CONFigure? : Return the function of the primary
display measurement.
• CONFigure is a root level keyword with the second level
keyword, VOLTage, and 0.5 is the command parameter.
• The query command ends with a question mark "?".
SCPI stems from IEEE488.1 and IEEE 488.2. Although the IEEE
488.2 standard addressed some instrument measurements, it
principally dealt with common commands and syntax or data formats.
Please refer to the IEEE488.2 and SCPI reference manual for more
information.

Chapter 3 Commands Summary
8
Terminator
A terminator is a character sent by a host, which identifies the end of a
command string. A valid terminator consists of two-byte data:
<CR> (Carriage Return, ASC(&H0D))
<LF> (Line Feed, ASC(&H0A))

9
Chapter 4 Responding Message
Return result
• After the meter executes a query command the return of the result
will be in the following format:
• If communication of the meter is under print-only mode, the meter
will print out the measured data when the measurement cycle is
completed. The printed data are only for primary display.
The format of printed data will be shown as following:
• On the meter warning the return of the prompt will be in the following
format except Xon and Xoff:
Data Types
• Returned message is the ASC II string from the meter responding to
a query.
• A query is a command followed by a question mark.
The following table is explanation for data types.
Responding
Message Chapter 4
<Result> + <CR> <LF>
<Measurement Data> + <CR> <LF>
<Prompt> + <CR> <LF>
Data Types of Responding Message and Parameter
Data Type Explanation Example
<NR1> An integer +10000, -10000, 123, -
100
<NR2>
This numeric
representation has an
explicit radix point.
+13.234, -.00002,
3.4567
<NR3>
This representation has an
explicit radix point and an
exponent.
-1.20000000E+02,
+9.90000000E+37*
<Boolean>
Single ASCII-encoded
byte, is return for the
setting query.
0 or 1,OFF or ON

Chapter 4 Responding Message
10
<Literal>
ASCII-encoded bytes
corresponding to the short
form of the literal used as
the command parameter.
DCV, ACA
*: +9.90000000E+37 means positive overload,
-9.90000000E+37 means negative overload.
Data Types of Responding Message and Parameter
Data Type Explanation Example

11
Chapter 4 Responding Message
Prompts
When the meter comes up any system warnings, the meter sends a
prompt string to the host through remote interface.
The meter returns one of the prompts as shown on the following table.
Return Prompts
Prompts Description
*L Into local mode
*C Into calibration mode
*E Remote command's error warning
*B Battery low warning
*I Input warning
*O Output warning
*0 Rotary position: Voltage input & Pulse output
*1 Rotary position: Voltage input & Current output
*2 Rotary position: Voltage input & Voltage output
*3 Rotary position: mV input & Voltage output
*4 Rotary position: Resistance input & Voltage output
*5 Rotary position: Diode input & Current output
*6 Rotary position: Current input & Voltage output
*7 Rotary position: Current input & Current output
*8 Rotary position: Current input & Pulse output
ASC(&H11) Xon: The meter is available.
ASC(&H13) Xoff: The meter is busy.

Chapter 4 Responding Message
12

13
Chapter 5 Instructions of Command Sets
*CLS
*IDN?
*RST
LLO
GTL
Instructions of
Command Sets Chapter 5
5.1 IEEE 488 Common Commands
Description Clear the System Error Queue.
Description Query the Meter identification.
Response Returns instrument maker name, model number, serial number
and firmware version.
Description Put the meter to power-on-reset state, but no affect the Output
Queue and interface parameter.
The reset operation is executed for 3 seconds at least. Be sure to execute
other commands then.
Description Put the meter into the local lockout state when in remote
control. This means no local key operation at the front panel is
allowed during remote control.
Description Put the meter into the local state, clearing the remote state and
front panel lockout.

Chapter 5 Instructions of Command Sets
14
This subsection describes the SCPI subsystem commands for the
meter. The meter only accepts the UPPER CASE part of command. It
is unnecessary to send complete command characters.
CONFigure Subsystem:
CONFigure
[:SCALar]
:CURRent
:DC [<range>]
:AC [<range>]
:ACDC [<range>]
:DCAC [<range>]
CONFigure[:SCALar]:CPERcent < 0-20mA | 4-20mA >
5.2 SCPI Commands
Some SCPI Symbol Conventions
Text Symbol Meaning
[ ] Option: can be omitted
|Exclusive OR
< > Defined element
( ) Comment
?Question mark
:Separated two command
keywords
;Compound commands
Description • Set to DC, AC or AC+DC current measurement.
• The function switch is at current measuring.
Parameter • If parameter is omitted, the meter is set to auto range.
• Enter the current measurement range to <range>.: 0.05* or
0.5*
*0.05: 50 mA, 0.5: 500 mA
Example CONF:CURR:DC : Set to DC current.
CONF:CURR:AC 0.5 : Set to AC current and 500 mA range.
Description • Set to the DCmA percent measurement.
• The function switch is at current measuring.
Parameter • Value to be entered to < >: 0-20mA* or 4-20mA*
*0-20mA: 0 mA (0%) to 20 mA (100%),
4-20mA: 4 mA (0%) to 20 mA (100%)
Example CONF:CPER 4-20mA: Set to DC 4-20 mA.

15
Chapter 5 Instructions of Command Sets
CONFigure
[:SCALar]
:VOLTage
:DC [<range>]
:AC [<range>]
:ACDC [<range>]
:DCAC [<range>]
CONFigure[:SCALar]:FREQuency [<range>]
CONFigure
[:SCALar]
:PULSe
:PWIDth [<range>]
:NWIDth [<range>]
:PDUTycycle
:NDUTycycle
CONFigure[:SCALar]:RESistance [<range>]
Description • Set to DC, AC or AC+DC voltage measurement.
• The function switch is at mV measuring or V measuring.
Parameter • If parameter is omitted, the meter is set to auto range.
• Enter the voltage measurement range to <range>.:
The function switch is at mV measuring: 0.05* or 0.5*
The function switch is at V measuring : 5, 50, or 250
*0.05 : 50 mV, 0.5: 500 mV
Example CONF:VOLT:DC : Set to DC voltage measuring.
CONF:VOLT:ACDC 0.5: Set to AC+DC voltage and 500 mV
range.
Description • Set to frequency measurement and enable dual display
mode.
• The function switch is at voltage or current measuring
Parameter • If parameter is omitted, the meter is set to auto range.
• Enter the frequency measurement range to <range>. (Unit:
Hz):100, 1000 (1KHz), 10KHz, 100KHz, or 200KHz
Example CONF:FREQ 1000 : Set to frequency measuring and 1 kHz
range.
Description • Set to pulse measurement and enable dual display mode.
• The function switch is at voltage or current measuring.
Parameter • If parameter is omitted, the meter is set to auto range.
• Enter the pulse measurement range to <range>. (Unit: s):
0.5*or 5
*0.5: 500 ms
Example CONF:PULS:PWID : Set to positive pulse width measuring.
CONF:PULS:NDUT: Set to negative pulse duty measuring.
Description • Set to 2-wire resistance measuring.
• The function switch is at resistance measuring.
Parameter • If parameter is omitted, the meter is set to auto range.
• If parameter is omitted, the meter is set to auto range.
• Enter the resistance measurement range to <range>. (Unit:
Ω): 500, 5000 (5Kohm), 50Kohm, 500Kohm, 5Mohm, or
50Mohm
Example CONF:RES 50Kohm : Set to resistance measuring and 50
kΩrange.

Chapter 5 Instructions of Command Sets
16
CONFigure[:SCALar]:CONTinuity [<range>]
CONFigure[:SCALar]:DIODe
CONFigure[:SCALar]:TEMPerature
CONFigure? [@2]
Description • Set to 2-wire resistance measuring with the continuity test.
• The function switch is at resistance measuring.
Parameter • If parameter is omitted, the meter is set to auto range.
• Enter the resistance measurement range to <range>. (Unit:
Ω): 500, 5000 (5Kohm), 50Kohm, 500Kohm, 5Mohm, or
50Mohm.
Example CONF:CONT 500 : Set to resistance measuring with the
continuity test and 500 Ωrange.
Description • Set to diode measuring with continuity test.
• The function switch is at diode measuring.
Description • Set to temperature measuring with continuity test.
• The function switch is at mV measuring.
Example CONF:TEMP TC,K,CEL: Set to temperature measuring,
thermocouple K type and Celsius
unit.
Description Query the function of the primary or secondary display.
Parameter If parameter is omitted, query the function of the primary
display.
Response Return <"function range,resolution"> format string, the
examples are as following:
Example Function Range Resolution
VOLT +5.000000E-02,+1.000000E-06 DCV 50 mV 0.001 mV
VOLT:ACDC +5.000000E-00,+1.000000E-04 AC+DCV 5 V 0.0001 V
CURR:AC +5.000000E-01,+1.000000E-05 ACA 500 mA 0.01 mA
CPER:0-20mA Current percent:
0-20mA
FREQ +1.000000E+03,+1.000000E-02 Frequency 1 kHz 0.01 Hz
PULS:PWID +5.000000E+00,+1.000000E-04 Pulse
width(Positive)
5000
ms 0.1 ms
PULS:NDUT Pulse
duty(Negative)
RES +5.000000E+04,+1.000000E+00 Resistance 50 kΩ1 Ω
CONT +5.000000E+02,+1.000000E-02 Continuous 500 Ω0.01 Ω
DIOD Diode
TEMP:TC K CEL Temperature
