HunterDouglas Vignette User manual

Installation •Operation •Care
Vignette® Modern Roman Shades
EasyRise™Lifting Systems
Standard, Top-Down/Bottom-Up and Two-On-One Headrail

CONTENTS
Questions?
Call the Hunter Douglas Customer Information Center at
1-888-501-8364.
© 2009 Hunter Douglas Inc.
® Registered trademark of Hunter Douglas Inc. ™ Trademark of Hunter Douglas Inc.
Getting Started:
Mounting Types And Window Terminology....................... 1
Installation Components Needed .................................... 1
Tools And Fasteners Needed.......................................... 2
Product View ................................................................ 3
Installation:
Mount The Installation Brackets — Inside Mount ............ 4
Mount The Installation Brackets — Outside Mount.......... 5
Mount The Installation Brackets — End Mount ............... 6
Install The Shade .......................................................... 6
Attach The Hold-Down Brackets (Optional)...................... 7
Attach The Universal Cord Tensioner (UCT) ..................... 7
Operation:
Operate The Shade ....................................................... 8
Troubleshooting ............................................................ 8
Care:
Cleaning Procedures ................................................... 11
Remove The Shade ..................................................... 12
Child Safety:
Warning ..................................................................... 13
Cord Loop Shades....................................................... 13

GETTING STARTED
1
Thank you for purchasing Hunter Douglas Vignette®Modern Roman Shades. With proper
installation, operation, and care, your new shades will provide years of beauty and performance.
Please thoroughly review this instruction booklet before beginning the installation.
Mounting Types And Window Terminology
If the installation brackets are mounted correctly, the rest of the installation process will follow
easily. To prepare for this important first step, review the mounting types and basic window
terminology illustrated below.
Installation Components Needed
Check the packaging to be sure you have all the components
needed to install your shade. Keep the packaging until the
shades perform to your satisfaction. If your shade has a
protective plastic cover on the fabric covered headrail, keep
the plastic in place until the shade is installed.
Required Components
Installation Brackets.■The number of installation brackets
required varies with shade width, as shown in the table.
■Universal Cord Tensioner (UCT) Installation Kit. The UCT
functions as a safety device that makes the cords less accessible
to children and pets. The cord control will only function
properly if the UCT is installed correctly.
Outside Mount
Shade mounts outside
window opening.
Inside Mount
Shade fits within
window opening.
Collectively, the sills and
jambs are called the
“window casement.”
Molding
Top Sill
Bottom Sill
Jamb Jamb
Shade
Width
Brackets
Required
12" - 36" 2
361/8" - 72" 3
721/8" - 108" 4
1081/8" - 140" 5
Installation
Bracket
t
i
o
n
s

2
GETTING STARTED

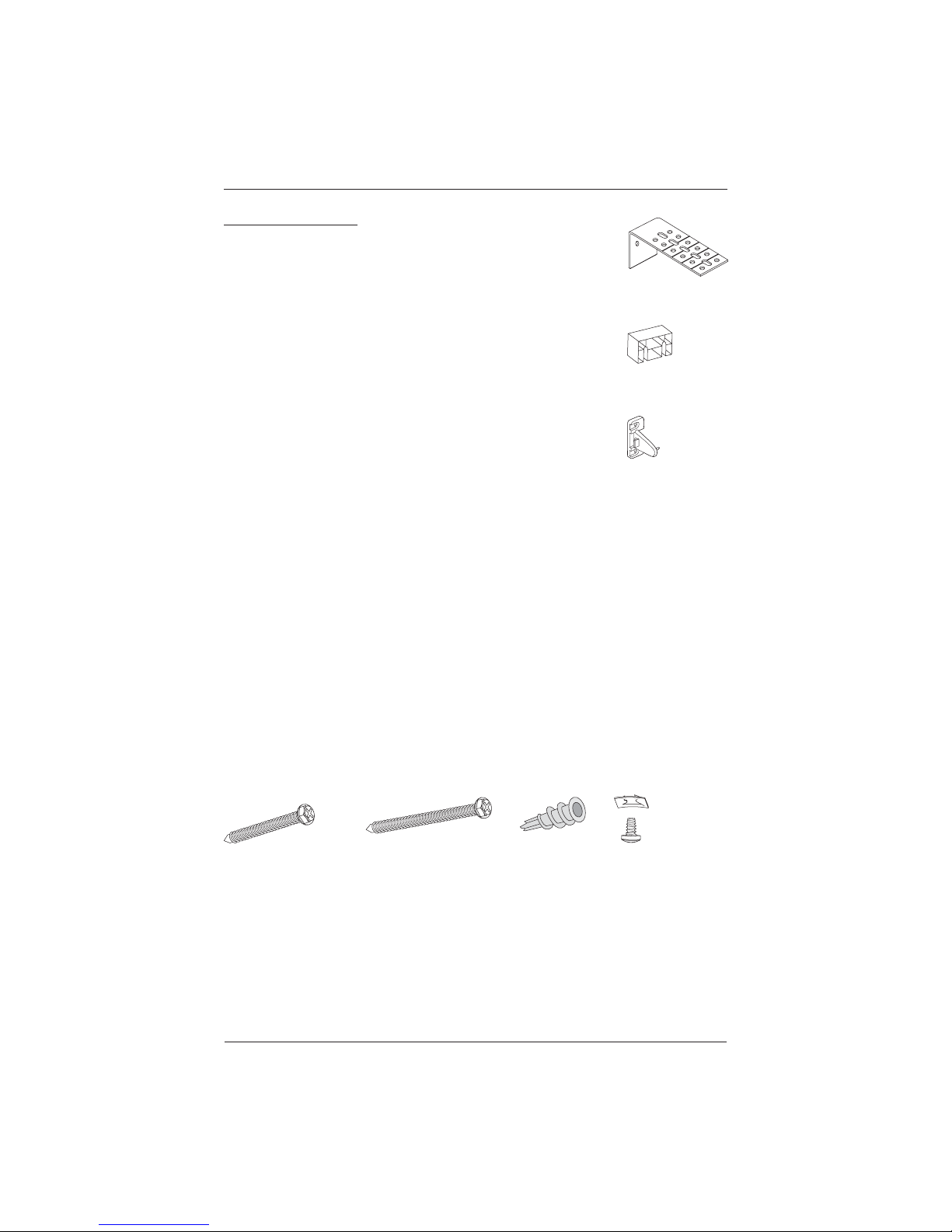

Optional Components
Extension Brackets.■Extension brackets can add up to 31/2" of
clearance for end mounts. If requested, there should be the same
number of extension brackets as installation brackets.
■Spacer Blocks. Each spacer block projects the installation bracket
1∕2" away from the mounting surface. If ordered, there should be a
maximum of three spacer blocks per installation bracket.
■Hold-Down Brackets. Hold-down brackets provide stability and
prevent swaying by securing the bottom rail (i.e. often used in French
door applications).
Tools And Fasteners Needed
Flat blade and Phillips screwdriver■Level■
Measuring tape and pencil■Needlenose pliers■
Power drill,■3∕32" drill bit, and a
1∕4" hex driver
In addition, you will need fasteners designed to work with your specific mounting surface(s).
#6 Hex Head Screws (Provided).
■Two 11∕2" screws are provided per installation bracket.
Longer Hex Head Screws (Not Provided).■If using spacer blocks, use a #6 screw long
enough for a secure attachment.
Wall Anchors or Expansion Bolts (Not Provided).■If mounting into drywall, you will need
wall anchors or expansion bolts to ensure a secure installation.
Speed Nuts and Screws (Provided).■Extension brackets come with screws and speed nuts.
Extension Bracket
(Optional)
Spacer Block
Outside Mount
(Optional)
Hold-Down
Bracket
(Optional)
#6 x 1½"
Hex Head Screw
(Provided)
Longer #6 Hex Head Screw
For Use With Spacer Blocks
(Not Provided)
Wall Anchor Or
Expansion Bolt
(Not Provided)
Speed Nut
And Screw
(Provided With Each
Extension Bracket)

GETTING STARTED
3
Product View
Standard Shade
End
Cap
Headrail
End
Cap
Hold-Down
Bracket
(Optional)
Cord
Tensioner
And
Bracket
Not Shown: Two-On-One Headrail
Top-Down/Bottom-Up Shade
Hold-Down
Bracket
(Optional)
Installation
Brackets
Headrail
Cord
Tensioner
And
Bracket

INSTALLATION
4
Mount The Installation Brackets — Inside Mount
Use pliers to break off and discard the tab of each bracket.■
Measure in 3" from each jamb for bracket location.■
If more than two installation brackets came with your order,■
space additional bracket(s) on studs, evenly between the two end
brackets.
Mark the location of the screw holes by centering■
the brackets on the previously made marks.
Minimum mounting depth for bracket attachment➤
is 1". Fully recessed mounting depth is 37
/8".
Use a■3∕32" drill bit to drill holes for the screws.
IMPORTANT: If you are fastening the installation
brackets to drywall, be sure to use wall anchors and
follow the instructions provided with the anchors.
(Anchors not provided.)
Use a level to check that the mounting surface is level. Shim the brackets if necessary.■
(Shims not provided.)
Use the hex head screws provided to fasten the installation brackets to the mounting■
surface.
IMPORTANT: The front edges of the installation brackets must be level and aligned to
each other.
Remove
Tab
3" Space Evenly Space Evenly 3"
3"
Minimum Depth
Required is 1"
Fully Recessed
Depth is 37/8"

INSTALLATION
5

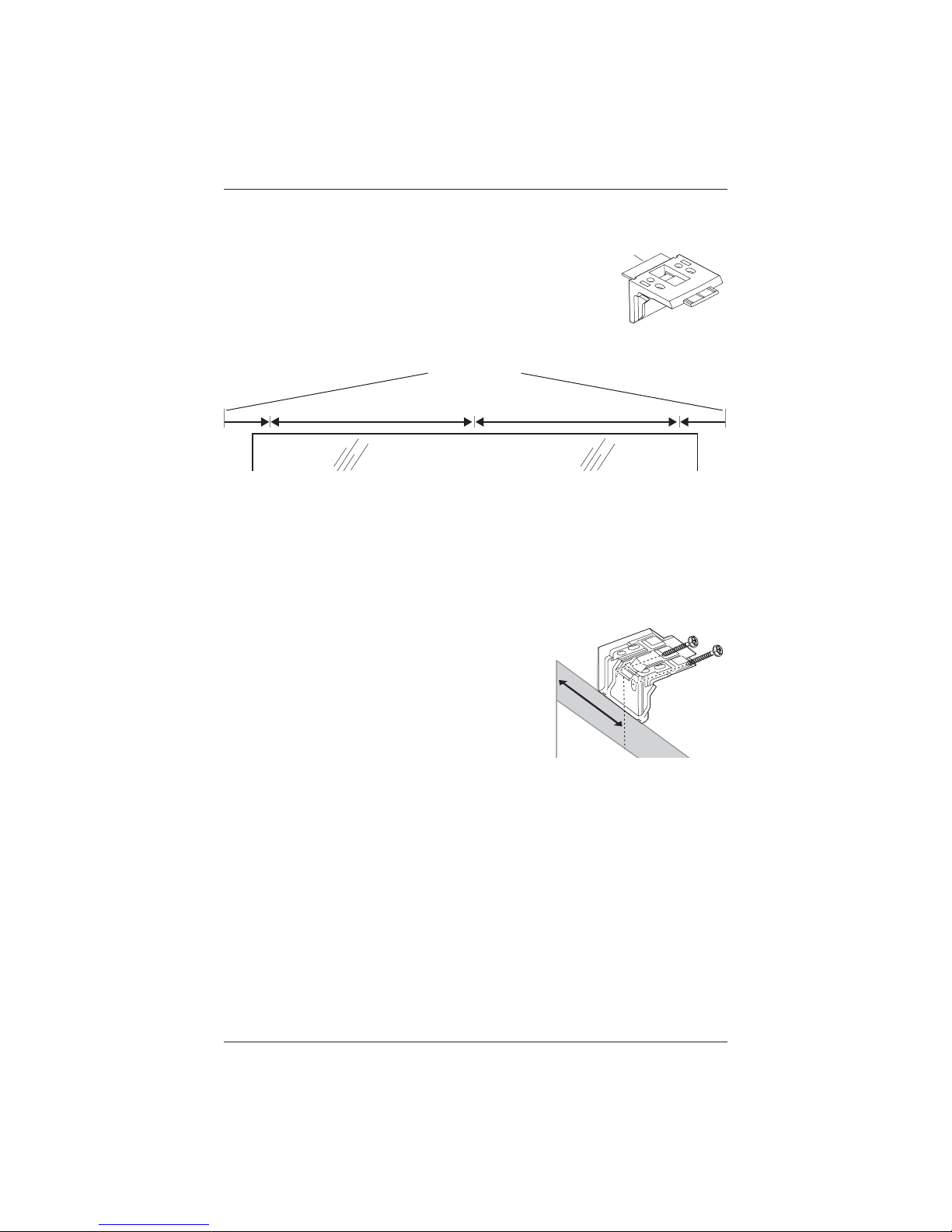

Mount The Installation Brackets — Outside Mount
Use pliers to break off and discard the tab of each bracket.■
Determine the bracket locations.■
With the shade lowered, center it over the window opening at➤
the desired height. Use a pencil to lightly mark each end of the
headrail.
Alternatively, measure the width of the headrail to determine its centerpoint. Measure the➤
width of the window and determine its centerpoint.
Lower the shade and align these centerpoints, then mark each end of the headrail at the➤
desired height.
■Measure and mark 3" in from each end of the headrail.
If more than two installation brackets came➤
with your order, space additional bracket(s)
evenly on studs, between the two end
brackets and mark their location.
Mark the location of the screw holes by■
centering the brackets on the previously
made marks.
A minimum 1" flat vertical surface is required to mount➤
the brackets.
The top of the installation brackets should be at the desired➤
height. The brackets should be level and aligned.
CAUTION: The rear of the blocks/brackets must be flush against a flat mounting
surface. Do not mount brackets on curved molding.
Using a■3∕32" drill bit, drill holes for the screws.
IMPORTANT: If you are fastening the installation brackets to drywall, be sure to use wall
anchors and follow the instructions provided with the anchors. (Anchors not provided.)
Remove
Tab
2" 2"
Space EvenlySpace Evenly
Headrail End Marks
Window Opening
3"

INSTALLATION
6

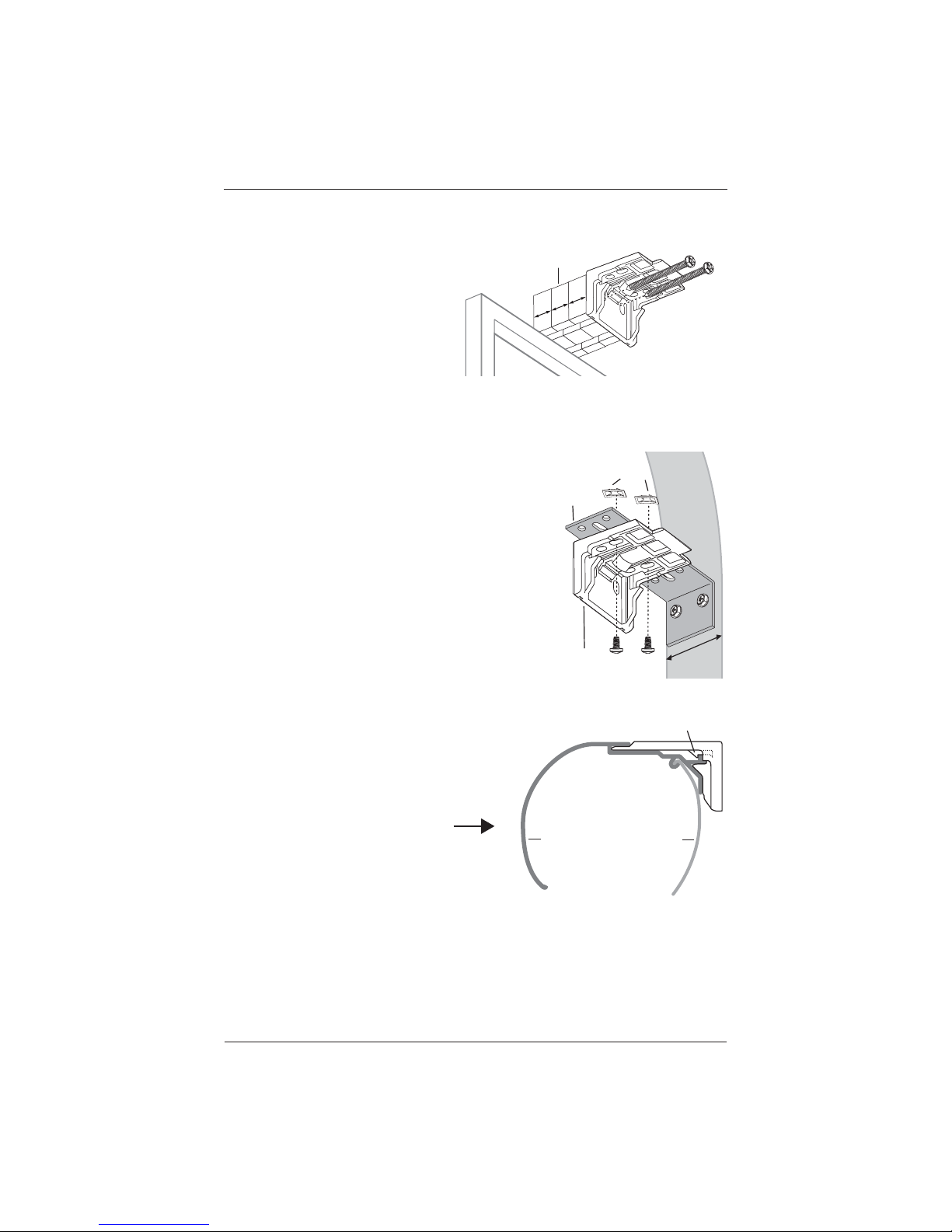

Fasten installation brackets to the mounting surface using the hex head screws provided.■
➤If using spacer blocks, attach a
maximum of three spacer block(s)
and installation bracket to a flat
vertical mounting surface with a
#6 screw long enough for a secure
installation (screws not provided).
Mount The Installation Brackets — End Mount
End mount the headrail when conventional mounting
techniques will not work, for example, in an
arched window.
Mount the extension brackets on a surface at least■
1½" wide.
Attach the installation brackets to the extension■
brackets using the provided screws and speed nuts.
Install The Shade
Hold the headrail so the front■
(curved side) faces you.
Push the top edge of the headrail■
into the installation brackets until
it snaps into place. You will hear a
click when the shade is securely
installed.
Gently pull on the front of the■
headrail to ensure that the shade
is locked into the brackets.
Remove the plastic covering on the■
front of the headrail.
1/2"1/2"
Spacer Blocks
1/2"
11/2"
Minimum
Extension
Bracket
Installation
Bracket
Speed
Nuts
Locking Tab
Headrail
Push until
headrail
clicks into
place.
Fabric
Guard

INSTALLATION
7
Attach The Hold-Down Brackets (Optional)
Hold-down brackets may be used with outside mount shades only.
With the shade fully lowered, insert the pin on the■
hold-down bracket into the hole on the bottom rail
end cap.
Mark the hole locations on the mounting surface.■
Center the hold-down brackets over the mounting■
hole locations and check their alignment. Attach using
two screws.
IMPORTANT: Disconnect the bottom rail from the hold-
down brackets to raise the shade.

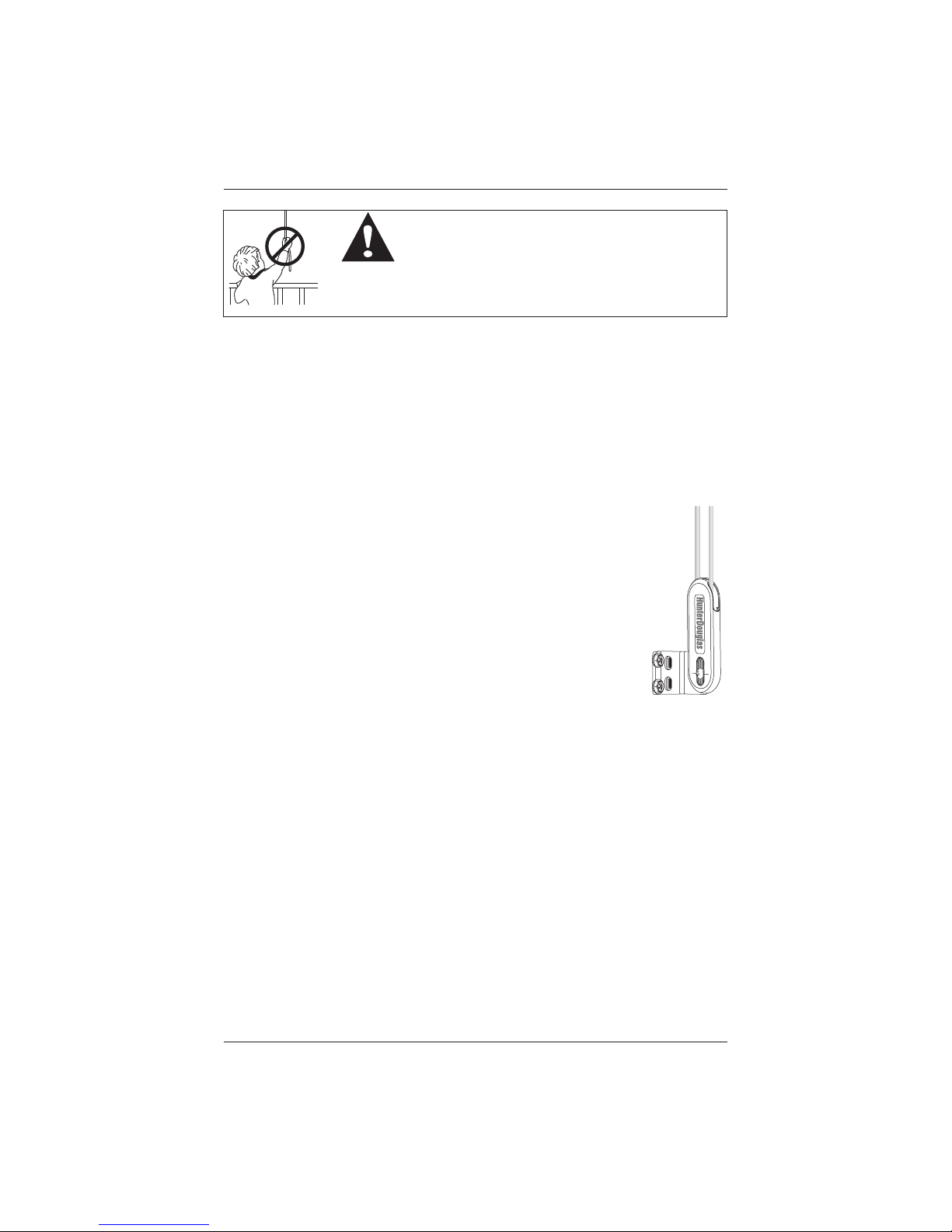

Attach The Universal Cord Tensioner (UCT)
Before doing anything, you must first slide the cord
tensioner to the bottom of the cord loop.
Insert a small screwdriver, punch, or awl through the■
screw hole at the bottom of the cord tensioner.
Move the screw hole down to the indicator line to release■
the safety mechanism.
Slide the cord tensioner down to the bottom of the■
cord loop.
WARNING: It is imperative that the cord tensioner be properly secured to the wall
or window frame to reduce children’s access to the cord loop. Young children can
strangle in cord loops. They can also wrap cords around their necks and strangle.
CAUTION: The shading will not operate properly unless the cord tensioner is
secured. A cord tensioner installation kit has been included with your shading.
Follow the instructions in the kit to correctly secure the cord tensioner.
Indicator
Line
Universal
Cord
Tensioner

OPERATION
8

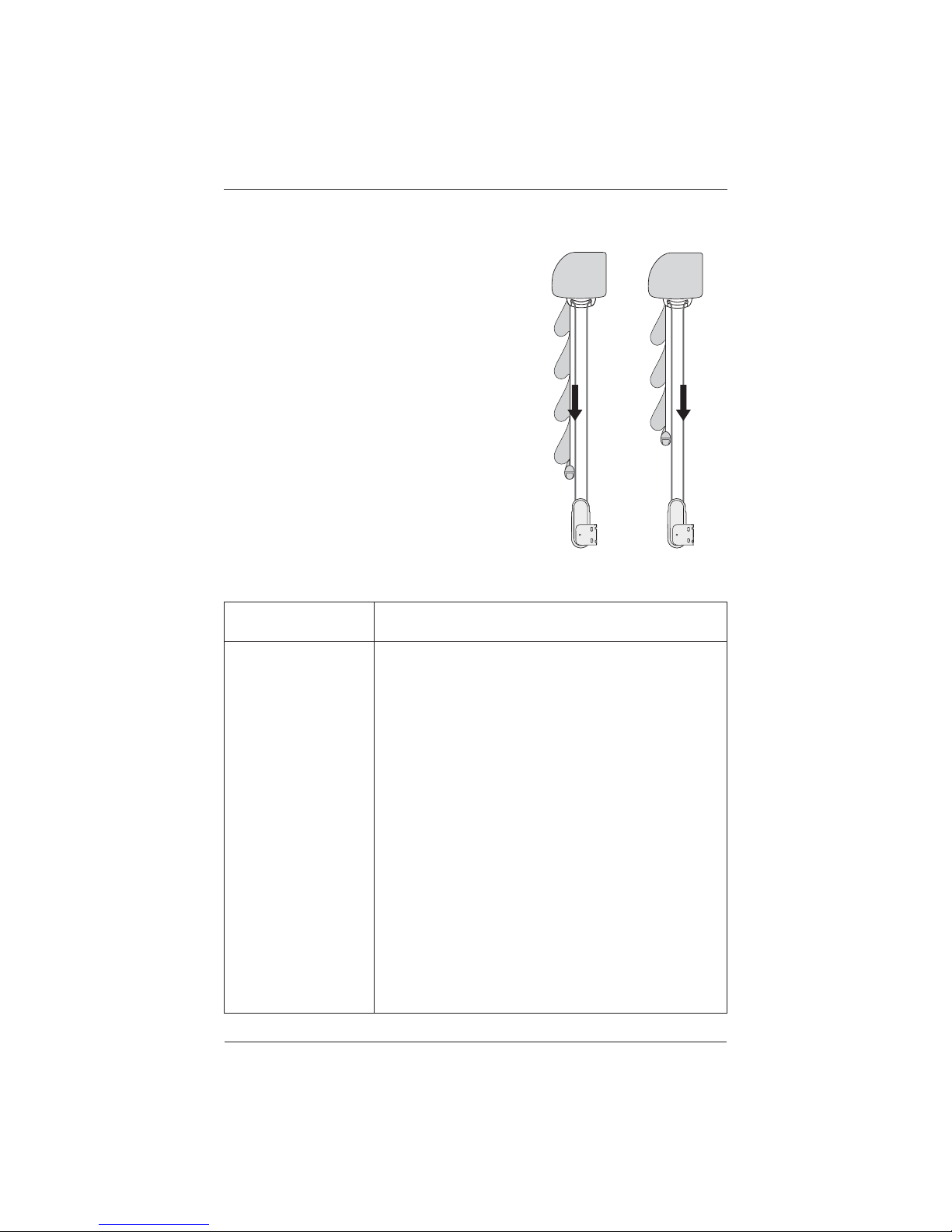

Operate The Shade
Pull the front cord of the cord loop to lower the■
shade from the top. Continue to pull until the
shade is fully lowered and rotated back toward
the window.
Pull the rear cord of the cord loop to raise the■
shade.
Continue to pull the rear cord to raise the shade■
into the headrail.
Top-Down/Bottom Up Shades Only.■With the
bottom of the shade fully lowered, continue to
pull the front cord to lower the top of the fabric.
The fabric loops will stack at the bottom. On an
inside mount, the fabric loops may rest on the
window sill.
Lower Raise

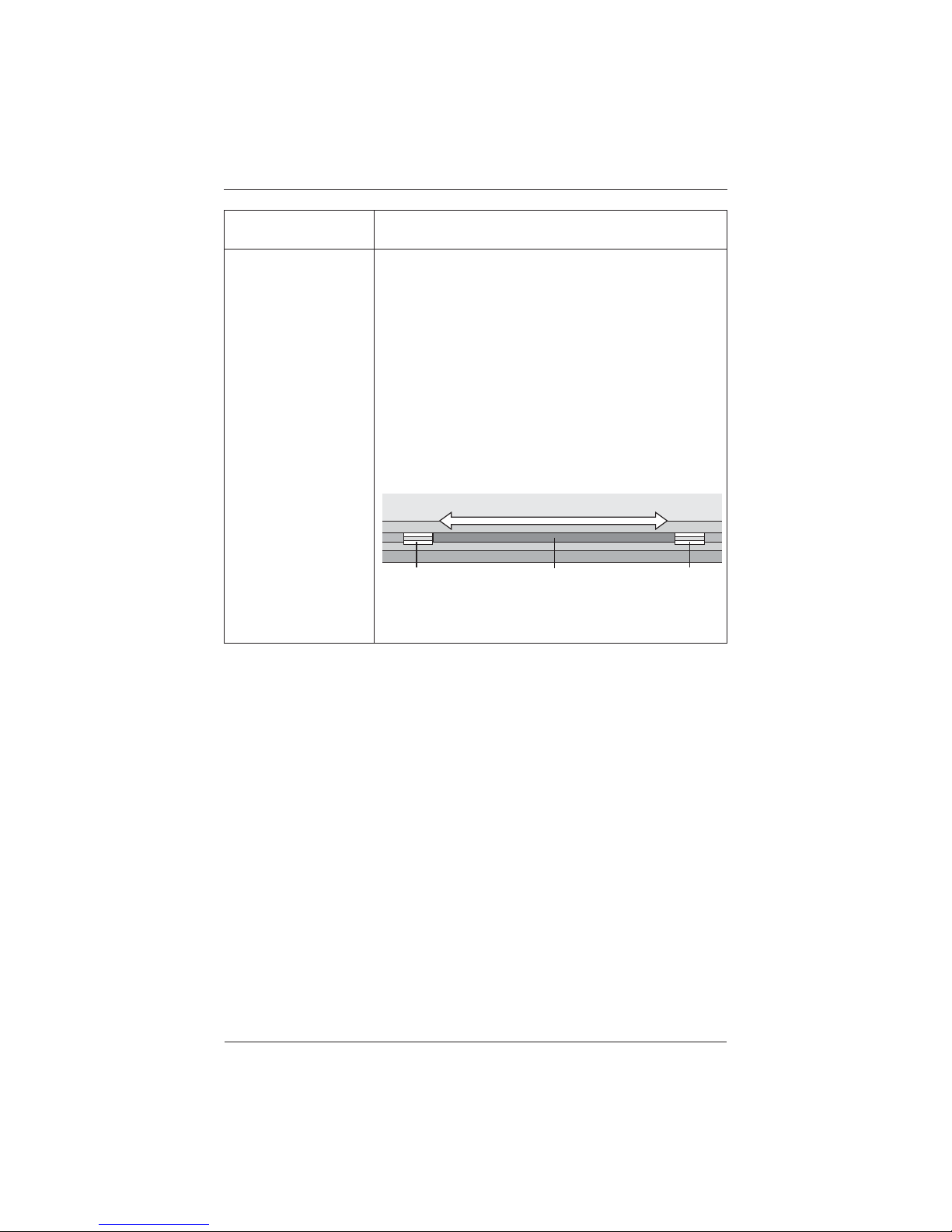

Troubleshooting
Problem Solution
The shade is hard to raise
or lower, or will not raise
or lower.
Check that the cord tensioner is mounted correctly. See■
Universal Cord Tensioner Installation Instructions in the kit
included with your shade.
Check that the headrail and installation brackets are level■
and aligned in the window.
The window may be out of square. To check if the➤
window is square, measure the diagonals.
Level the headrail by shimming the installation brackets,➤
if necessary.
Make sure the fabric is not caught in the installation bracket.■
If the bottom rail is pulled inside the headrail, gently pull it■
out by hand.
Check that cord loops are not pinched or tangled.■
If hold-down brackets are used, make sure they have been■
released before operating the shade.

OPERATION
9
Problem Solution
The front fabric appears
to cling to the back fabric.
Lightly apply a static spray for home furnishings. Follow the■
manufacturer's directions.
Allow the shade to dry in the fully lowered position.■
If necessary, reapply the static spray each time the shade is■
professionally cleaned.
Vignette®Top-Down/
Bottom-Up Shades Only:
Shade midrail appears
uneven.
Gently lift the lower side of the midrail until the shade■
appears level.
The shade will not snap
into the installation
brackets.
Check that the installation brackets are aligned and level.■
The window may be out of square. To check if the➤
window is square, measure the diagonals.
Level the headrail by shimming the installation brackets,➤
if necessary.
Check that the headrail is correctly inserted into the■
installation brackets.
The universal cord
tensioner has climbed to
the headrail.
Pull down on the spring to relieve tension and pull the■
universal cord tensioner to the bottom of the cord loop.
Properly mount the cord tensioner. See Universal Cord
Tensioner Installation Instructions in the kit included with
your shade.
The universal cord
tensioner grabs onto the
cord upon operation.
Check that the universal cord tensioner is mounted properly.■
Reinstall, if necessary. Properly mount the cord tensioner.
See the Universal Cord Tensioner Installation Instructions
that came with your Cord Tensioner Kit.

OPERATION
10
Problem Solution
The shade raises or
lowers unevenly, or the
bottom rail is uneven
when fully raised.
Check that the window is square by measuring the■
diagonals.
Check that the headrail is level. Shim the installation■
brackets to level, if necessary.
Check that the top of the fabric (midrail) is level. Adjust by■
hand.
Access the weight on the back of the bottom rail.■
Push up on the weight clips to release. Slide the clips and■
weight in 1" increments toward the side where the fabric is
gathering.
Test and, if necessary, adjust again.■
Move Weight To Adjust
Weight
Clip
Weight Weight
Clip

CARE
11
Cleaning Procedures
Hunter Douglas Vignette®Modern Roman Shades are made of an anti-static, dust-resistant
fabric which repels dirt and dust. For most fabrics, the following options are available if your
shade needs cleaning.
A Note On Textiles
As with all textiles, the Vignette fabrics are subject to some inherent variations in the fabric
weave. Subtle dye-lot variations, puckering, or wrinkling fall within textile industry standards and
should be considered as normal, acceptable quality. Additionally, there will be slight differences
in pattern alignment from the fabric on the headrail to the fabric of the shade, which do not
detract from the product’s appeal.
The Grasslands Collection of fabrics is reminiscent of natural woods, reeds and grasses.
Variations in color pattern irregularities are unique characteristics that contribute to the classic
beauty of the shade.
Dusting
Regular light dusting with a feather duster is all the cleaning needed in most circumstances.
Vacuuming
Use a hand-held vacuum with low suction for more thorough dust removal.
Compressed Air / Hair Dryer (Cool Setting)
Blow dirt and debris from within the fabric folds using clean, compressed air or a hair dryer set
on a cool setting.
Spot-Cleaning
Prepare a solution of warm water and mild detergent.■
Dampen a clean cloth in the solution and wring it out.■
Place a dry, clean cloth behind the spot between the face fabric and the■
back fabric.
Dab the spot with the dampened cloth until it is gone. Do not rub the fabric.■
Rubbing alcohol or non-oil-based baby wipes may be used on more stubborn stains.■
Allow the shade to dry in the completely lowered position.■
Ultrasonic Cleaning
Vignette Modern Roman Shades can be ultrasonically cleaned by a professional.
Specify that a mild detergent solution be used.■
Never immerse the fabric-covered headrail into the solution.■

CARE
12
Allow the shade to dry in the completely lowered position.■
CAUTION: Do not ultrasonically clean the fabric on the headrail.
Injection/Extraction Cleaning
Vignette®Modern Roman Shades can be cleaned by a professional using the injection/extraction
method of deep cleaning.
Specify the dry cleaning method only.■
Pretreat heavy stains.■
Allow the shade to dry in the completely lowered position.■
CAUTION: Do not use the injection/extraction method of deep cleaning on the fabric of
the headrail.
Steaming
Steam the face fabric from the bottom to the top, making sure to get steam under each fabric
fold. Be careful not to saturate the fabric with steam. Allow the shade to dry completely before
raising it.
CAUTION: Do not steam the headrail fabric on fabric-covered headrails.
Remove The Shade
Fully raise the shade.■
While holding the headrail, place the■
screwdriver behind the locking tab and
push up, twist the screwdriver to release
the shade.
IMPORTANT: On longer shades, you
might need to lower the shade slightly to
access the locking tab.
Locking Tab
Headrail Fabric
Guard
Push Up
And Twist

CHILD SAFETY
13
WARNING
For more safety information call 1-888-501-8364
in the U.S. or 1-866-662-0666 in Canada.
Young children can STRANGLE in cord loops. They can also wrap cords around their
necks and STRANGLE.
Always keep cords out of the reach of children.■
Move cribs, playpens and other furniture away from cords. Children can climb■
furniture to get to cords.
Cord Loop Shades
Attach the cord tensioner on the cord loop to the wall or window■
casement. See Attach The Universal Cord Tensioner (UCT) on page
7. This can prevent children from pulling cord loops around their
necks.
Hunter Douglas provides a cord tensioner installation kit with■
instructions for attaching the cord tensioner. For the shade to
operate properly, the cord tensioner must be correctly mounted
and secured.
Only Hunter Douglas supplied cord tensioners and hardware■
should be used. Replacement parts may be obtained by
contacting the Hunter Douglas Customer Information Center at
1-888-501-8364.
Warning

The Hunter Douglas Lifetime Guarantee is designed to ensure a thoroughly satisfying experience
when selecting, purchasing and living with your window fashion products. If you are not thoroughly
satisfied, simply contact Hunter Douglas Inc. at 1-888-501-8364 or visit hunterdouglas.com.
1. Contact your original dealer (place of purchase) for warranty assistance.
2. Visit hunterdouglas.com/customersupport for additional warranty information and
frequently asked questions.
3. Contact Hunter Douglas Inc. at 1-888-501-8364 (9:00 AM - 8:00 PM EST) for technical
support, certain parts free of charge, for assistance in obtaining warranty service or for
further explanation of our warranty.
TO OBTAIN WARRANTY SERVICE
• Hunter Douglas window fashion products are
covered for defects in materials, workmanship
or failure to operate
• Operational cords for a full 7 years from the date
of purchase (applies to products sold after
January 1, 2008)
• All internal mechanisms
• Components and brackets
• Fabric delamination
• Hunter Douglas PowerRise®, PowerTilt™and
PowerGlide® 2.0, all with Platinum Technology™, and
all other Hunter Douglas motorization components
are covered for 5 years from date of purchase
• Repairs and/or replacements will be made with
like or similar parts or products
• Any conditions caused by normal wear and tear
• Abuse, accidents, misuse or alterations to
the product
• Exposure to the elements (sun damage, wind,
water/moisture) or discoloration over time (with
the exception of EverWood®Collection alternative
wood blinds which carry a “Satisfaction Guarantee”
covering fading, yellowing, warping and bowing
for the life of the product)
• Failure to follow our instructions with respect
to measurement, proper installation, cleaning
or maintenance
• Shipping charges, cost of removal and
reinstallation
COVERED
BY A LIFETIME LIMITED WARRANTY BY A LIFETIME LIMITED WARRANTY
NOT COVERED
For further details, see the warranty card included with your order.
5105351000 3/09
