IDEAL SecuriTEST User manual


SecuriTEST User’s Manual
Table of Contents
Before Using SecuriTEST................................... 2
SecuriTEST Safety Precautions ........................ 3
Battery Charging Precautions ............................ 5
Standard Accessories.......................................... 8
Names & Functions.............................................. 9
General Specifications ...................................... 14
Meter Specifications .......................................... 15
Digital Multi-Meter .............................................. 23
PTZ Controller..................................................... 30
UTP Cable Tester............................................... 36
View Information................................................. 38

2
Before Using SecuriTEST
WARNING
Read the “Safety Information” portion of the manual
before using the SecuriTEST CCTV tester.
This manual is for users of the IDEAL SecuriTEST multi-
function CCTV tester. The manual describes the
operation and function of the various features of
SecuriTEST.
It is highly recommended that operators read the entire
manual before using SecuriTEST to prevent damage to
the tester or injury to the operator.

3
WARNING
SecuriTEST Safety Precautions
When using the Digital MultiMeter function to measure
voltage or current, be sure that the input does not
exceed the capabilities of the tester. Overloading the
tester can cause damage or personal injury.
When measuring current of unknown values, always
begin with the 10A mode, then step down to the 400mA
input if necessary.
Environmental Limitations
Temperature: -10 to 50 degrees C
14 to 122 degrees F
Relative Humidity: 0-90%, non-condensing
DC input voltage: 12V +/-10%, 1A

4
1. SAFETY INFORMATION
Do not use the unit in damp conditions or environments
where explosive gases may be present.
Do not handle the unit with wet hands.
Avoid dropping or causing mechanical shock to the unit.
Do not expose the ports to liquids and avoid exposure to
dust.
Use only specified replacement fuses.
Do not use damaged test leads with the DMM.
Do not measure resistance on powered circuits.
When using the DMM function, set the proper mode
before connecting to the circuit under test.
When measuring resistance, make certain that the circuit
is de-energized before connecting the test leads to the
circuit.

5
1. SAFETY INFORMATION
WARNING
Battery Charging Precautions
SecuriTEST is capable of
recharging NiMH batteries
installed in its battery
compartment.
To charge the batteries attach
the included 12V adapter to the
handset and set the main
power switch to the ON
position. Charging time takes 8
hours. Although the charge
LED will light regardless of the
position of the power switch,
charging will only occur with the
switch in the ON position.
Operation time is approximately
3-4 hours on a fully charged set
of batteries.
When using alkaline batteries
the tester can run for
approximately 2 hours on a new
set of batteries.
When using alkaline batteries,
set the switch inside the battery
compartment to OFF to prevent
accidental charging of alkaline
batteries.

6
- Battery Precautions -
The following batteries can be used with SecuriTEST:
> AA size alkaline batteries
> AA size rechargeable nickel metal hydrogen
(Ni-MH) batteries
When charging batteries in SecuriTEST:
Place both the MAIN POWER and the CHARGE
SWITCH to the “ON” position. The charge LED will light
when the MAIN POWER SWITCH is in either position,
but the batteries will charge only when the switch is set
to “ON”.

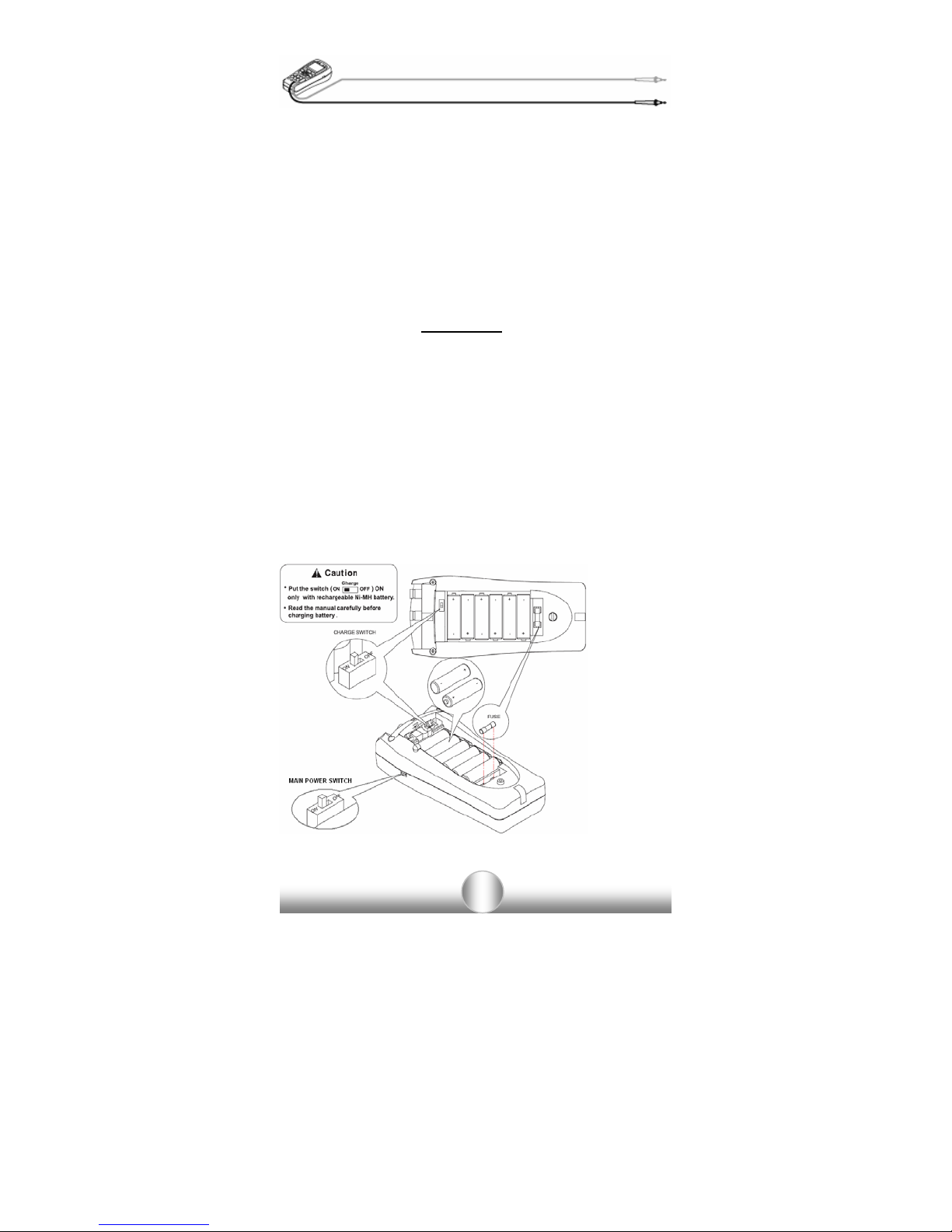

The CHARGE SWITCH is located on the upper part of
battery compartment. (Refer to the figure below)
The performance of batteries can be very different,
depending on manufacturers. Please use any reputable
brand for best performance. Do not mix batteries of
different manufacturers when charging batteries. Make
sure not to reverse the polarization of the batteries. Do
not short-circuit or disassemble batteries. Make sure to
check the polarization, voltage and current ratings before
charging batteries. Immediately disconnect the charger
should an abnormal situation arise.

7
FEATURES
SecuriTEST is a portable device for testing and
troubleshooting various functions of CCTV cameras. It
includes functions to test video image quality, control
PTZ operation, analyzes various PTZ protocols,
generates video test patterns, test UTP cables and
includes a full-function Digital MultiMeter.
All functions are controlled through the front keypad and
on-screen display for quick and easy setup of fixed and
PTZ camera systems.
2. SecuriTEST Introduction
Video Tester ►Displays the output signal from the
connected CCTV camera. Used to
adjust aim and adjust and
troubleshoot cameras.
►Video signal generator mode:
Outputs color bars and Red, Blue
and Green screens to allow
technicians to configure monitors
and troubleshot cameras by sending
a known good video signal down a
questionable coax run. Supports
both PAL & NTSC video signal
formats.
MultiMeter ►Measures resistance, AC/DC
voltage and current, and provides
continuity beep and display hold
functions.
PTZ Controller ►The PTZ controller tests the
movement of the dome and allows
manual zoom and manual focus
control of the camera. Supports
various RS-485 and RS-422

8
protocols to allow operation with a
variety of camera manufacturers.
UPT Cable Tester►The UTP cable check tests
unshielded cables for continuity,
opens, shorts and mis-wired pairs.
Standard Accessories
The following items are included with the SecuriTEST
CCTV Tester.
•SecuriTEST Handset
•User’s Manual
•DMM Test Lead Set (Red, Black)
•AC Adapter with international plug adapters
•Rechargeable AA Nickel Metal Hydride
(Ni-MH) Battery (6ea)
•Neck Strap
•UTP test Terminator
•BNC Video Cable
•Car Power Jack (12VDC)

9

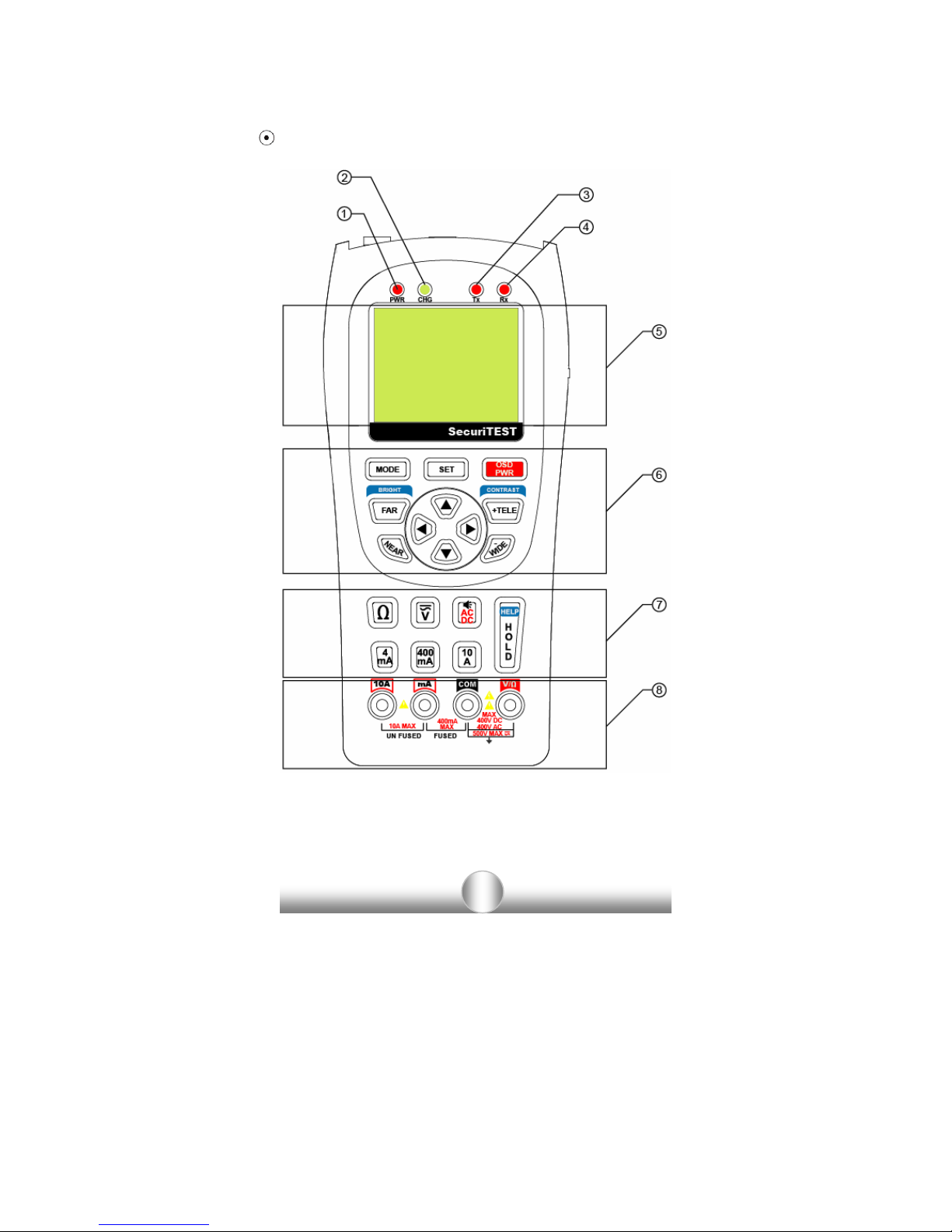

Names & Functions

10

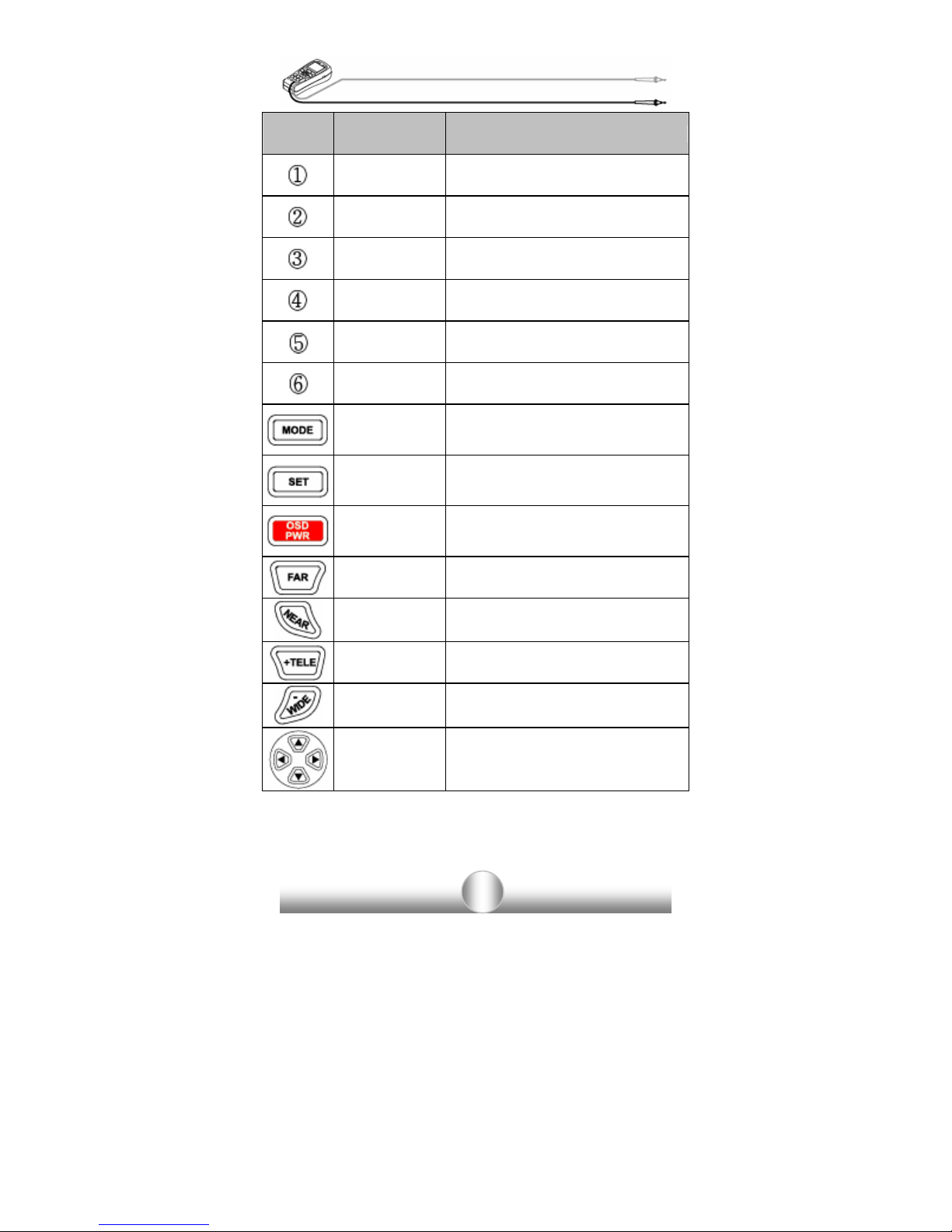

Part Name Function
Power LED Red LED is on when the system is
switched on
Charge LED Green LED is on when AC adapter
connected
Data
Transmitting LED
Red LED is on when PTZ data is
transmitted
Data Receiving
LED
Red LED is on when PTZ data is
received
LCD 2.5” Color TFT LCD
Keypad Main keypad for SecuriTEST
operation
MODE Button
Mode Select: Video, MultiMeter, PTZ
Control, UTP Test (press and hold to
display main menu)
SET Button
Used to confirm selection in menu
screens. Press and hold to access
PTZ protocol menu
OSD Button
Press to toggle on-screen display on
or off. Press and hold to turn off
power.
FAR Button Adjusts PTZ focus (far direction) &
Video Mode Brightness
NEAR Button Adjust PTZ focus (near direction) &
Video Mode Brightness
TELE Button Zoom PTZ (zoom in) &
Adjusts Video Mode Contrast
WIDE Button Zoom PTZ (zoom out) &
Adjusts Video Mode Contrast
Direction Keys Moves up, down, right, left for PTZ
& for menus

11

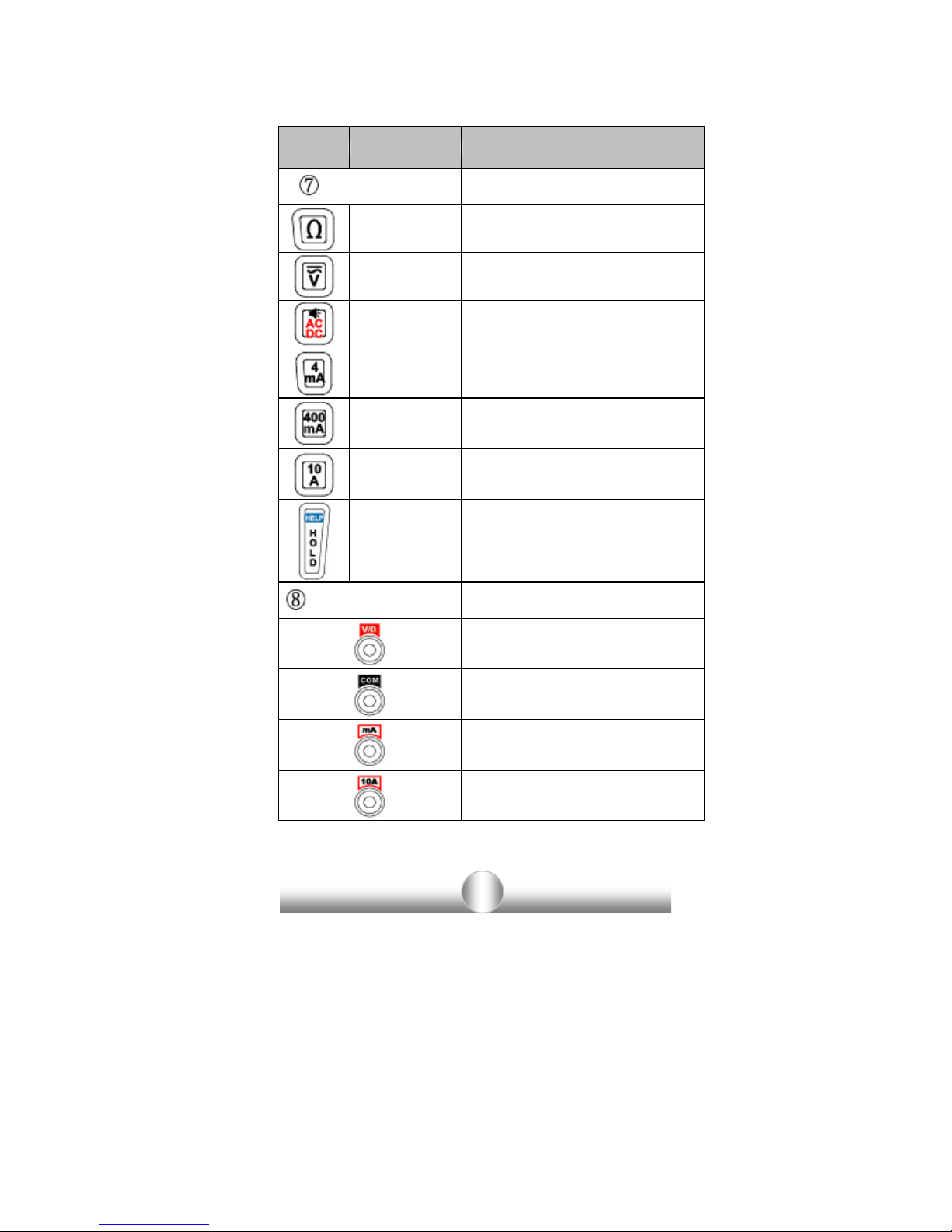

Part Name Function
MultiMeter Keys Selects functions of Digital MultiMeter
Resistance
Button Selects Resistance Mode
Voltage Button Selects Voltage Mode
Setup Change
Button
Toggles AC/DC Mode &
Selects Continuity Test
Current
Measuring
Button 1
Selects low Current (below 4mA)
Mode
Current
Measuring
Button 2
Selects Current (below 400mA) Mode
Current
Measuring
Button 3
Selects Current (up to 10A) Mode
HOLD, HELP
Button
Locks Auto-Ranging Function.
Hold for HELP
Test Lead Connection Ports for Digital MultiMeter
Voltage & Resistance Port
Common Port
Current Measurement below 400mA
Port
Current Measurement up to 10A Port

12
PART NAME FUNCTION
Input BNC Connect to camera output to display
image on screen
Output BNC
Use as pass-through port for camera
image or to output video test signal to
external monitor
Communication
Port
Input & Output of PTZ
communications signals
Kickstand Holds unit upright when extended
Neck-strap Hook Connect neck-strap here to hang unit
Neck-strap Hook Can be used to hang the unit upside
down

13
PART NAME FUNCTION
UTP Jack Test jack for UTP Cable w/ RJ45 plug
AUX Jack Audio, AUX Input Port
(for future use)
DC Power Jack DC Power Input Jack
(DC12V, 1A)
Power Switch Main Power Supply ON/OFF switch

14
3. SECURITEST SPECIFICATIONS
General Specifications
Input Voltage 12V ± 10% above 1A
Battery Rechargeable Ni-MH battery
6ea (AAsize)
Charging
Time Above 8 hrs
Electric
Characteristics
Built-in Charger
Operation
Time > 3 hrs
TV Type NTSC / PAL
Image Level 1 Vpp, 140IRE
Protocol Multi-Protocol support
Transmission
Speed 2400bps ~ 38400bps
PTZ Operation
Test
Transmission
Mode RS-422, RS-485
UTP Cable
Test Test Direct / Cross Cable, and
Broken or Short-Circuit
Size W 3.5” (88mm) X L 7.9” (190mm) X H 2.3”
(58mm)

15
3. SECURITEST SPECIFICATIONS
Meter Specifications
Measuring
Item Measured
Value Minimum
Measuring Accuracy
400mV 100uV ± (0.8% + 2dgts)
4V 1mV
40V 10mV
DC Voltage
400V 100mV
± (1.0% + 2dgts)
4V 1mV
40V 10mV
AC Voltage
400V 100mV
± (1.2% + 3dgts)
(40Hz ~ 500Hz)
400uA 0.2uA
4mV
4mA 2uA
± (1.0% + 2dgts)
40mA 20uA
400mV
400mA 200uA
± (1.5% + 2dgts)
DC Current
10A 10A 2mA ± (2.0% + 3dgts)

16
Measuring
Item Measured
Value Minimum
Measuring Accuracy
400uA 0.2uV
4mV
4mA 2uV
± (1.5% + 5dgts)
(40Hz ~ 500Hz)
40Hz ~ 500Hz
40mA 20uV
400mV
400mA 200uV
± (1.8% + 5dgts)
(40Hz ~ 500Hz)
40Hz ~ 500Hz
AC Current
10A 10A 2mV ± (3.0% + 4dgts)
40Hz ~ 500Hz
400 Ω0.1 Ω± (1.0% + 4dgts)
4k Ω1 Ω
40k Ω10 Ω
400k Ω100 Ω
± (1.0% + 2dgts)
4M Ω1k Ω± (2.0% + 4dgts)
Resistance
40M Ω10k Ω± (3.0% + 5dgts)
Continuity Beeper is activated when the resistance is below 80
Ω
Rated Fuse 250 Volt 800 mA

17
4. FUNCTIONAL USE
Power ON/OFF
The power switch is located on the side of the
handset.
Turn the power switch on, and press to start
SecuriTEST.
To turn off the system, press & hold for more
than 3 sec. Then, POWER OFF is displayed on the
main screen with a beep. Release the button. Turn
the power switch OFF to prevent battery drain during
storage. The switch must remain ON to recharge the
batteries.
A rechargeable battery should be plugged in over 8
hrs to fully charge. The charged battery can operate
for about 3 hours.
When the battery indicator shows below [][], recharge
it for use. (Full charge: [][][][])
OSD Setup Screen When Power is ON
When power is turned on, the OSD is displayed, and it
automatically changes to the video test mode after 3-5
seconds.
The initial OSD displays the SecuriTEST version and the
initial setup on the screen.
Product Version: 2.02
Firmware Version: 2.03
Initital Protocol: PELCO-D
TV Mode: NTSC / PAL (automatic setup)

18
Battery Indicator: [][][][]
User Name: User’s name (Name can be changed
in the Main menu)
Model & Software versions are subject to change without
notice.
Mode Setup
Pressing the key changes the operation mode
between VIDEO, DMM, PTZ, and UTP.
To directly select a mode, press and hold the
key for 3 seconds then choose a mode and press the
key again to select the mode.
Video Tester Mode:
In this mode, the image quality of the external input
picture signal is tested. Unlike most monitors,
SecuriTEST does not have a video input amplifier,
thus picture quality problems caused by long cable
runs or poor connectors will be seen. The same signal
input into a standard external monitor may look fine
since the monitor will boost the signal to make the
image look clear. The un-amplified input circuit allows
users to troubleshoot cable and connector problems
that would normally go unnoticed. The VIDEO mode
also outputs color test patterns to aide in
troubleshooting or setting up monitors.

19
Digital MultiMeter Mode:
Use the MultiMeter mode to measure voltage, current
and resistance. In the resistance mode the continuity
beeper can be turned on to generate an audible tone
when the measured resistance is less than 80 ohms.
PTZ Controller Mode:
In this mode, the up, down, right, left movement for
PTZ cameras is controlled. Zoom and focus can also
be adjusted using the Tele/Wide and Far/Near buttons.
UTP Cable Test Mode:
UTP cables are tested for straight (direct), crossover,
opens, and shorts. The yellow UTP terminator must be
placed on the far end of the cable to make
measurements. Press the SET button to begin the
cable test.
The UTP test does not report the length of the cable.
View Information Mode:
In this mode, the basic information of SecuriTEST can
be seen (firmware version, battery level,
communications protocol and speed).
Main Setting Mode:
In this mode, the basic setup of SecuriTEST can be
changed (user’s name, auto power off time, beeper,
brightness, contrast, etc).
HELP:
HELP information relevant to the
current mode is displayed when
the key is pressed on for more
than 2 seconds.
This function gives a brief
explanation of the current
function.
Other manuals for SecuriTEST
1
Table of contents
Other IDEAL Multimeter manuals

IDEAL
IDEAL 61-603 User manual

IDEAL
IDEAL 61-340 User manual

IDEAL
IDEAL ND 3511-1 User manual

IDEAL
IDEAL 61-327 Use and care manual

IDEAL
IDEAL 61-497 User manual

IDEAL
IDEAL 61-340 User manual

IDEAL
IDEAL ND-5499 User manual

IDEAL
IDEAL ND 2350-1 User manual

IDEAL
IDEAL 61-704 User manual

IDEAL
IDEAL 61-797 User manual

IDEAL
IDEAL 61-764 User manual

IDEAL
IDEAL 61-605 User manual

IDEAL
IDEAL 61-357 Use and care manual

IDEAL
IDEAL ND 2352-1 User manual

IDEAL
IDEAL 61-312 User manual

IDEAL
IDEAL 61-354 (TRMS) User manual

IDEAL
IDEAL ND 3405-1 User manual

IDEAL
IDEAL ND 2351-1 User manual

IDEAL
IDEAL 61-614 User manual

IDEAL
IDEAL Resi-Pro 310 Series User manual
